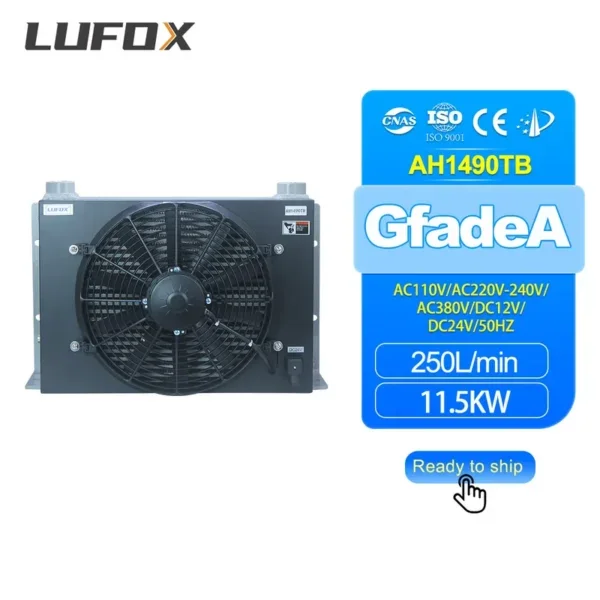

Ah1490tb Air Cooler, AC110V, 11.5KW

The ah1490tb air cooler listed here carries voltage AC110V/AC220V-240V/AC380V/DC12V/DC24V, 11.5KW, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ah1490tb Air Cooler

• Voltage: AC110V/AC220V-240V/AC380V/DC12V/DC24V
• Cooling Capacity: 11.5KW
• Material: Aluminium
• Warranty: 1 Year
• Warranty Of Core Components: 1Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Product Descirption

The characteristics of air coolers involve using air as the medium for heat exchange, where heat is carried away by the air. Generally, the cooling efficiency of an air cooler primarily depends on its heat exchange area and the air volume. The greater the air volume, the better the cooling effect; with the same air volume, the larger the heat exchange area, the better the cooling effect. Application : Hydraulic stations, CNC machine tools, engineering machinery,wind power equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields,for hydraulic system, lubrication system, big data center, communication equipment and other energy reduction and cooling solutions.

PRODUCT CONFIGURATION
Model	AH1490TB
Cooling capacity	11.5KW
Flow	250L/min
Weight	18KG
Working pressure	≤2Mpa
Package size	59×29×41cm
Fan Power	142W/135W
Fan voltage	AC110V/AC220V-240V/ AC380V/DC12V/DC24V/50HZ
Fan Power	10.5㎡
Special voltage can be customized

Cover plate

Outer fin(ventilation)

partition
left and right seals
Front and rear cushion locks
Inner fin (oil filled)

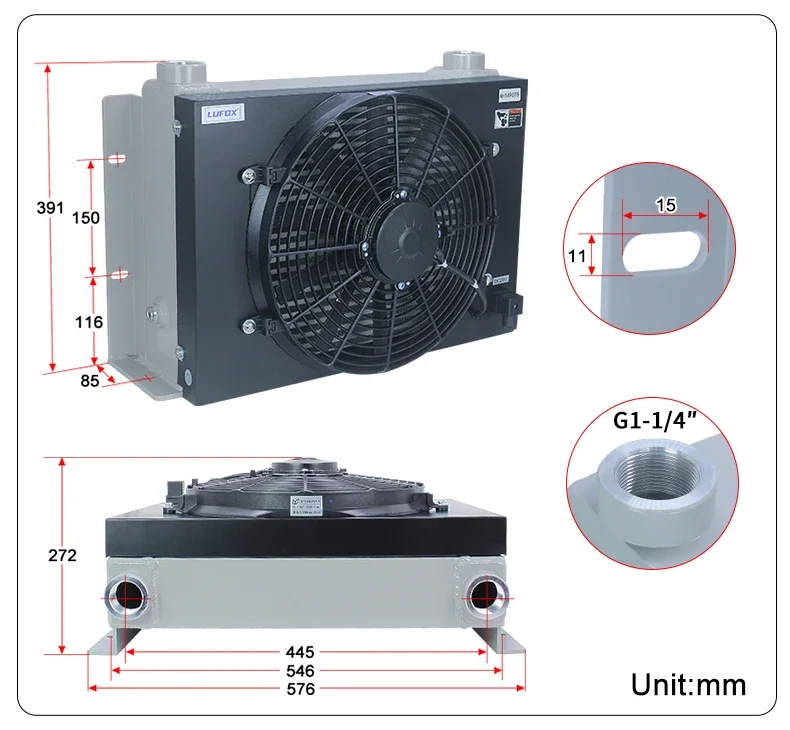

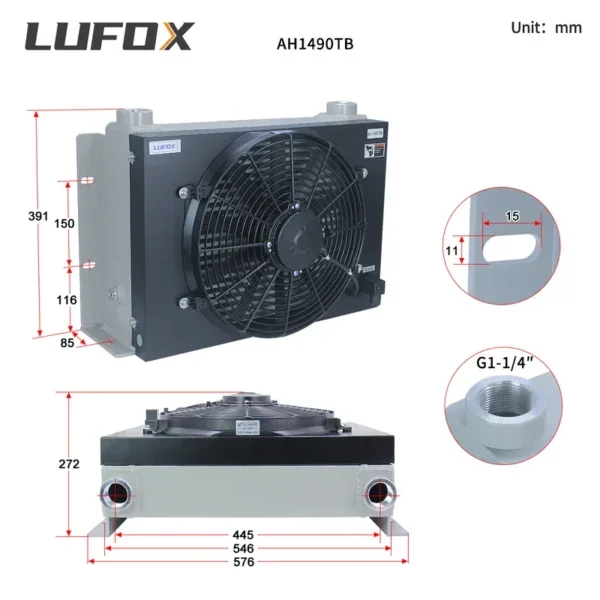

Dimension Drawing

Product Details Analysis

This series of products is specially made of lightweight, highly resilient and highly efficient heat-exchanging aluminum materials.

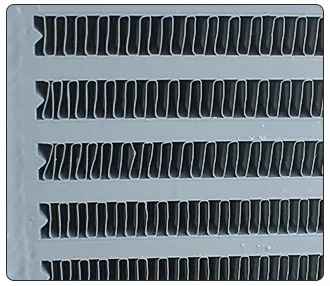

IN terms of structure,there are fins inside the heat dissipation tube, which significantly increases the heat dissipation area and accelerates the heat tran sfer rate.

Stoved varnish coating

The painted coating provides an attractive finish and excellent rust resistance.

Heavy-duty junction box

Heavy-duty junction boxes with electrically insulated housings prevent electrical hazards in industrial applications.

Heavy-wall hydraulic port

The port boss reinforcement ensures rigid mounting to the cooling plate.

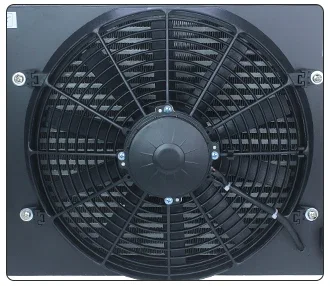

High-performance fan

Motor with 100% electrolytic copper windings ensures extended service life.

Precision-engineered plate-fin

Precision-engineered plate-fin heat exchanger with high density delivers superior thermal management, achieving extended service life.

Precision-controlled diffusion brazing

Vacuum-brazed aluminum cooling plates achieving zero-porosity joints for leak-free thermal performance

Threaded temperature sensor port

Reinforced Mounting Feet

Reinforced mounting feet provide sturdy, durable support

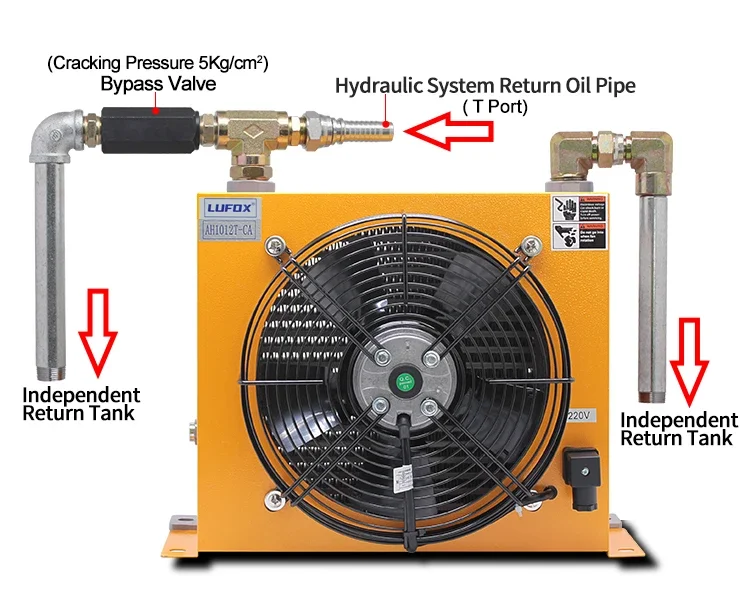

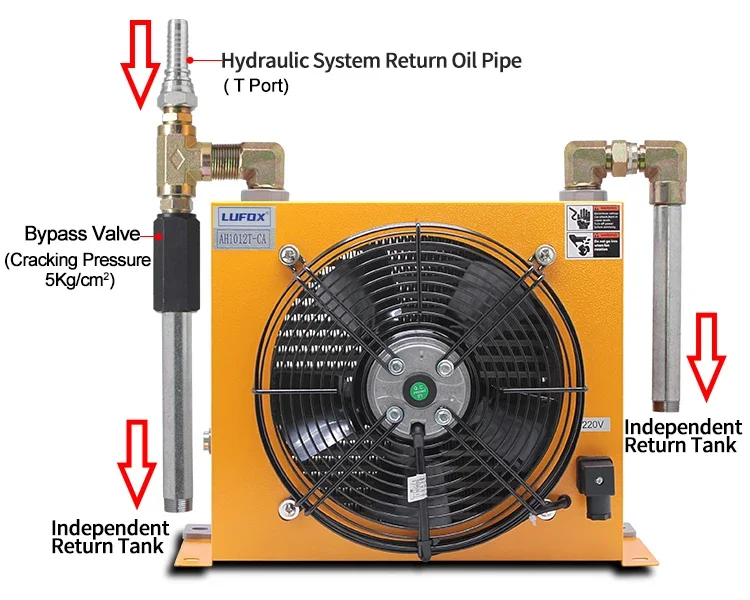

When installing a cooler in the hydraulic system return line, a bypass relief valve must be incorporated to prevent damage from pressure surges.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ah1490tb air cooler?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ah1490tb air cooler be supplied for my local voltage?

The standard configuration is AC110V/AC220V-240V/AC380V/DC12V/DC24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Changzhou Yousen Automation complete equipment Co., LTD,, based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Changzhou Yousen Automation complete equipment Co., LTD, range on HVACR Nexus.
