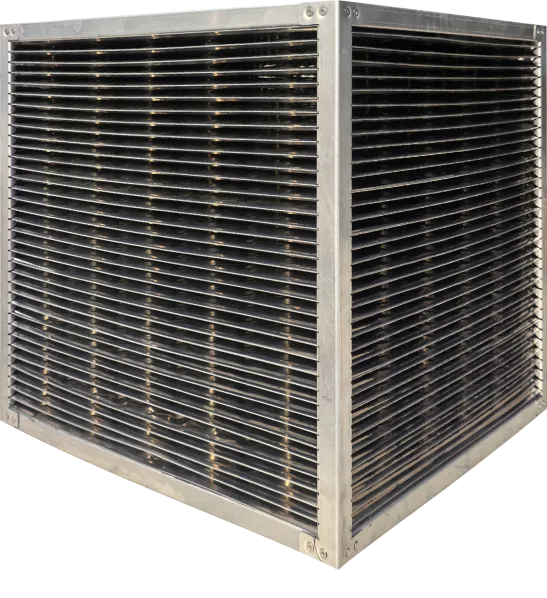

The sensible heat exchanger listed here carries 220 V, 380 V, 240 V, material Stainless Steel, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Sensible Heat Exchanger
- Voltage: 220 V, 380 V, 240 V
- Flow Capacity: Custom
- Material: Stainless Steel
- Frame Material: Stainless Steel, GI plate, Aluminum plate
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Heat Exchanger Type | Air to Air Heat Exchanger |
|---|---|
| Flow Capacity | Custom |
| Material | Stainless Steel |
| Maximum Operating Temperature | 150-300c |
| Voltage | 220 V, 380 V, 240 V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Working Temperature Range | 0-200c |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 50 |
| Brand Name | YKF |
| Maximum Pressure Rating | Max1000kg |
| Dimension(L*W*H) | 300x300x300 |
| Model | Customzied |
| Frame Material | Stainless Steel, GI plate, Aluminum plate |
| Application | Dry, Fresh Air, Data Center, HVAC |
| Specification | Modular Desgin |
| Size (Max) | 1200 mm(L) * 1200 mm(W) * 1200 mm(H) |
| Size (Minimun) | 300 mm(L) * 300 mm(W) * 10 mm(H) |
| Selling Units | Single item |
| Single Package Size | 35X35X40 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Product Description

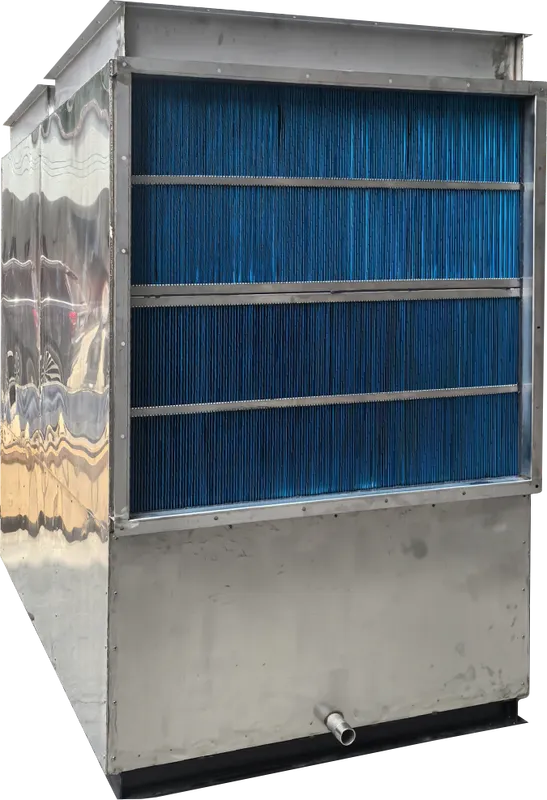

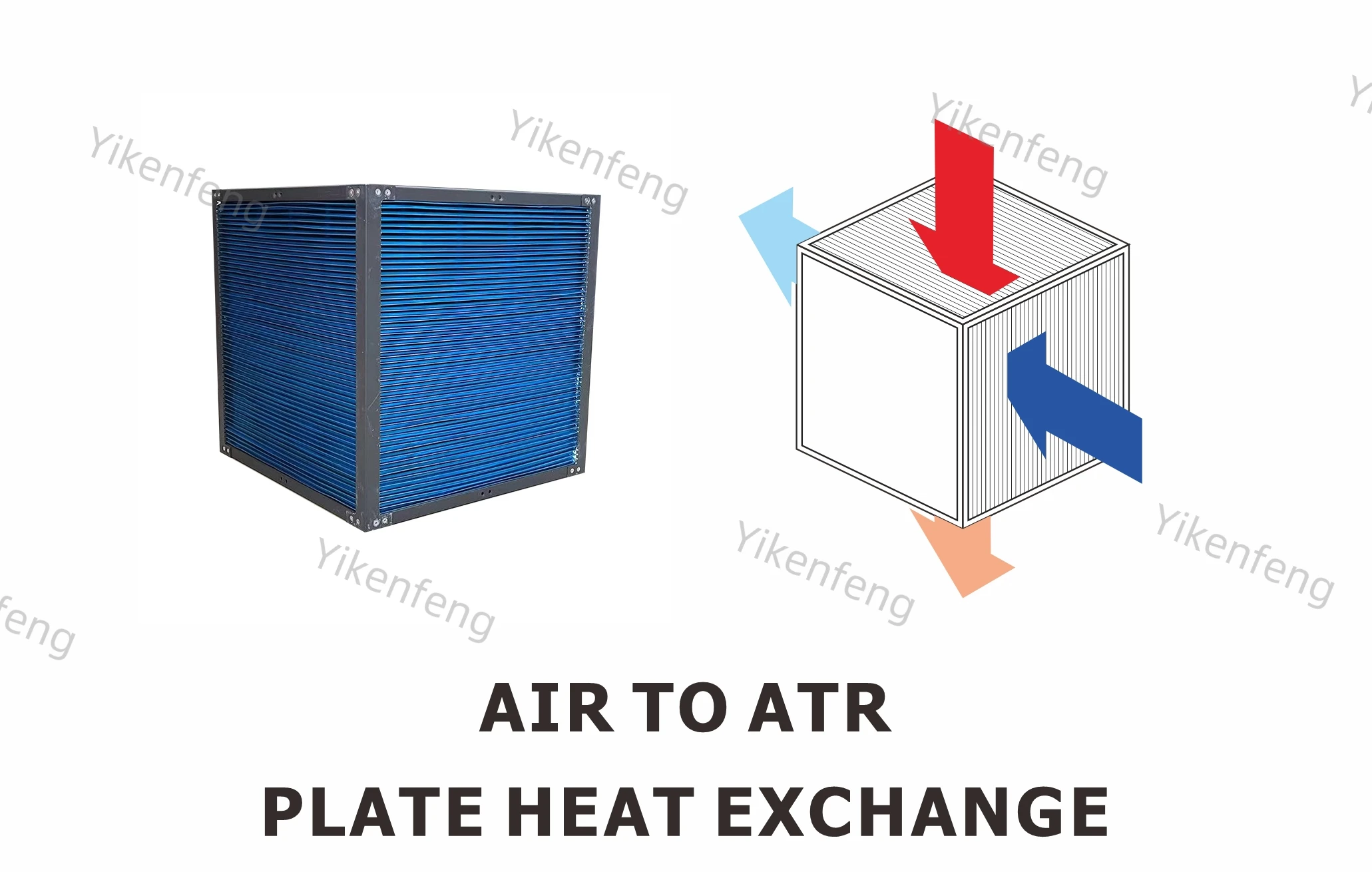

Air-to-Air Plate Heat Exchanger is a device that separates two air streams using metal or polymer material plates to facilitate heat exchange.High-temperature and low-temperature air streams flow through adjacent plate channels, where enhanced airflow improves heat transfer efficiency to facilitate effective heat exchange.
Heat exchanger cores are vacuum-formed with variable thicknesses and fin pitches to meet diverse requirements. Each layer is hermetically sealed via welding. Typically, aluminum alloy is used for the four corner posts, while the top and bottom covers are made of aluminum or galvanized steel sheets with customizable surface finishes.
Applications:
* Drying rooms / kilns heat recycle
* Heat Recovery
* Air Handling Units
* De-humidification of air streams
* Electrical equipment cooling
* Drying rooms / kilns heat recycle
* Air Handling Units
* De-humidification of air streams
* Electrical equipment cooling
* Drying rooms / kilns heat recycle
Specification

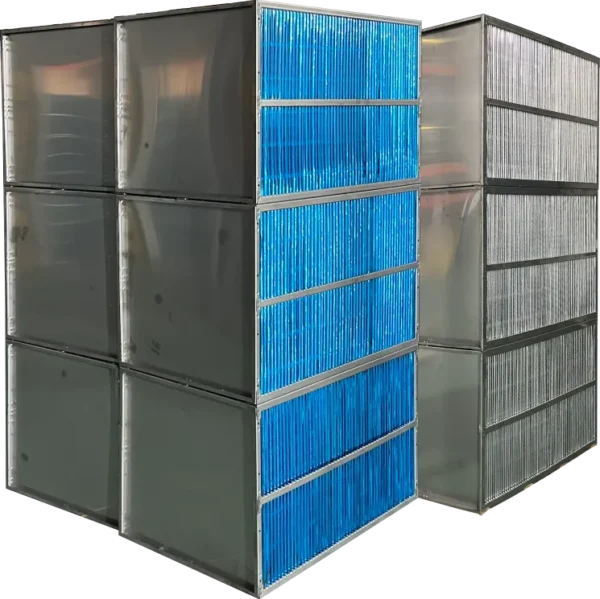

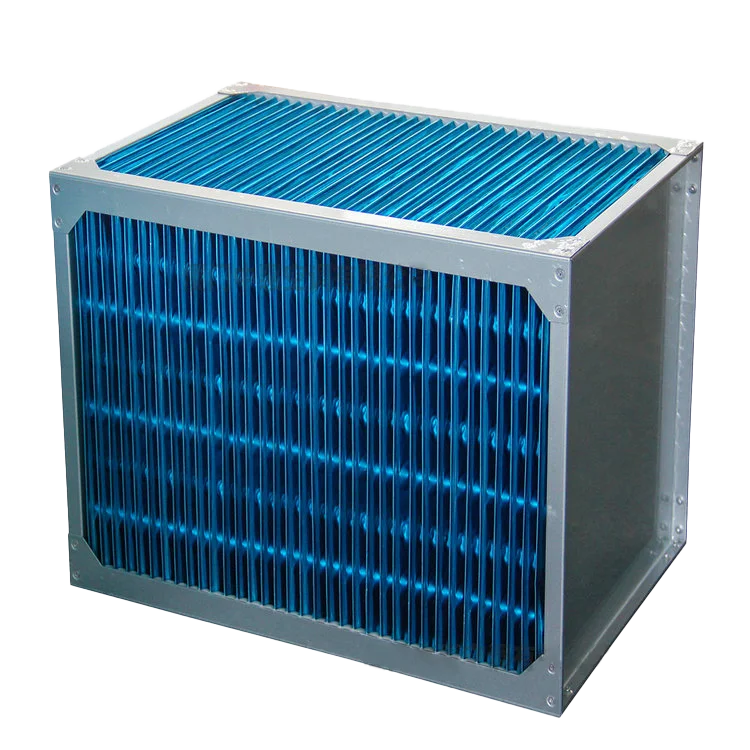

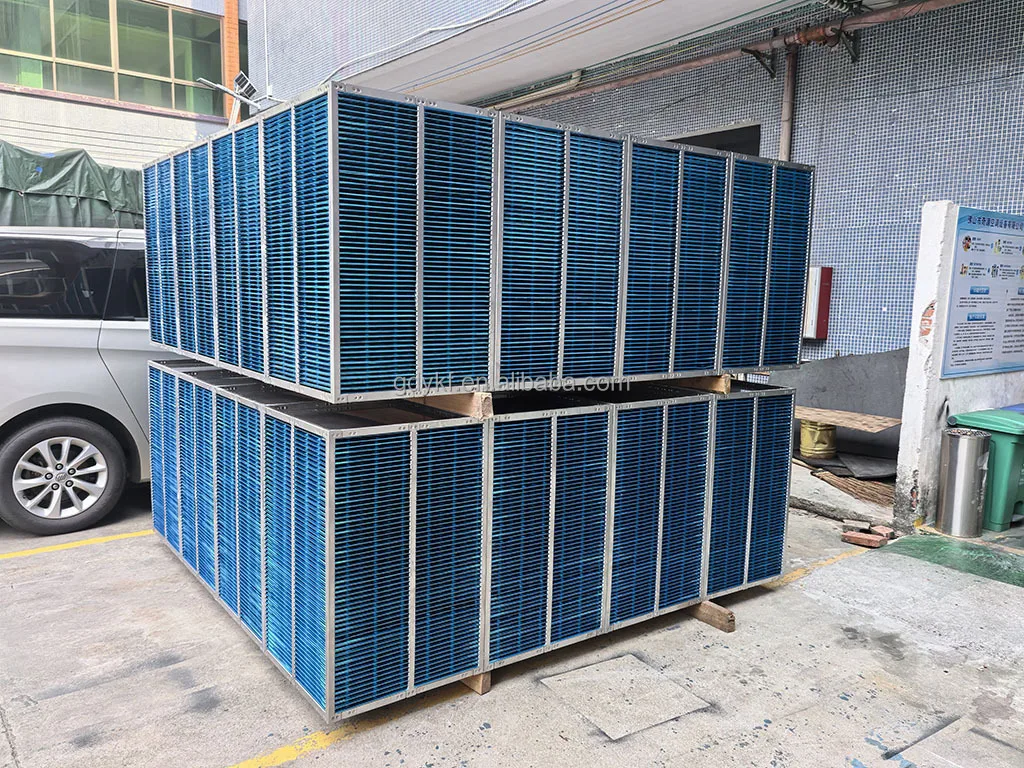

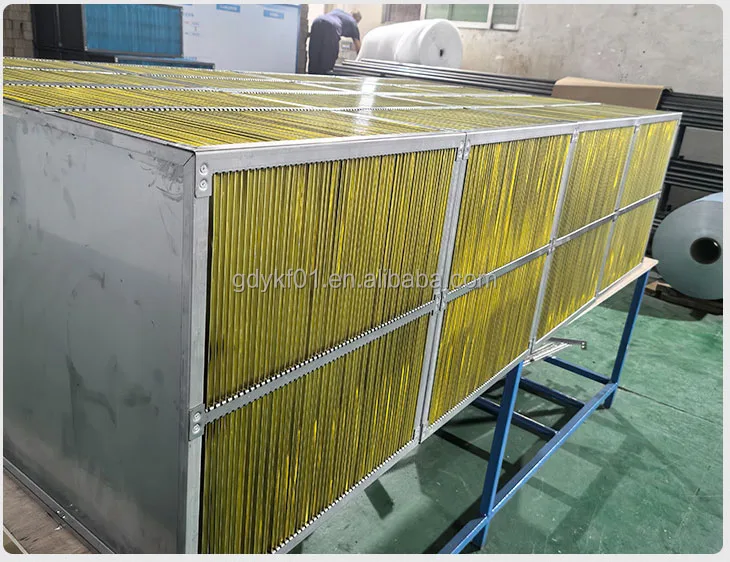

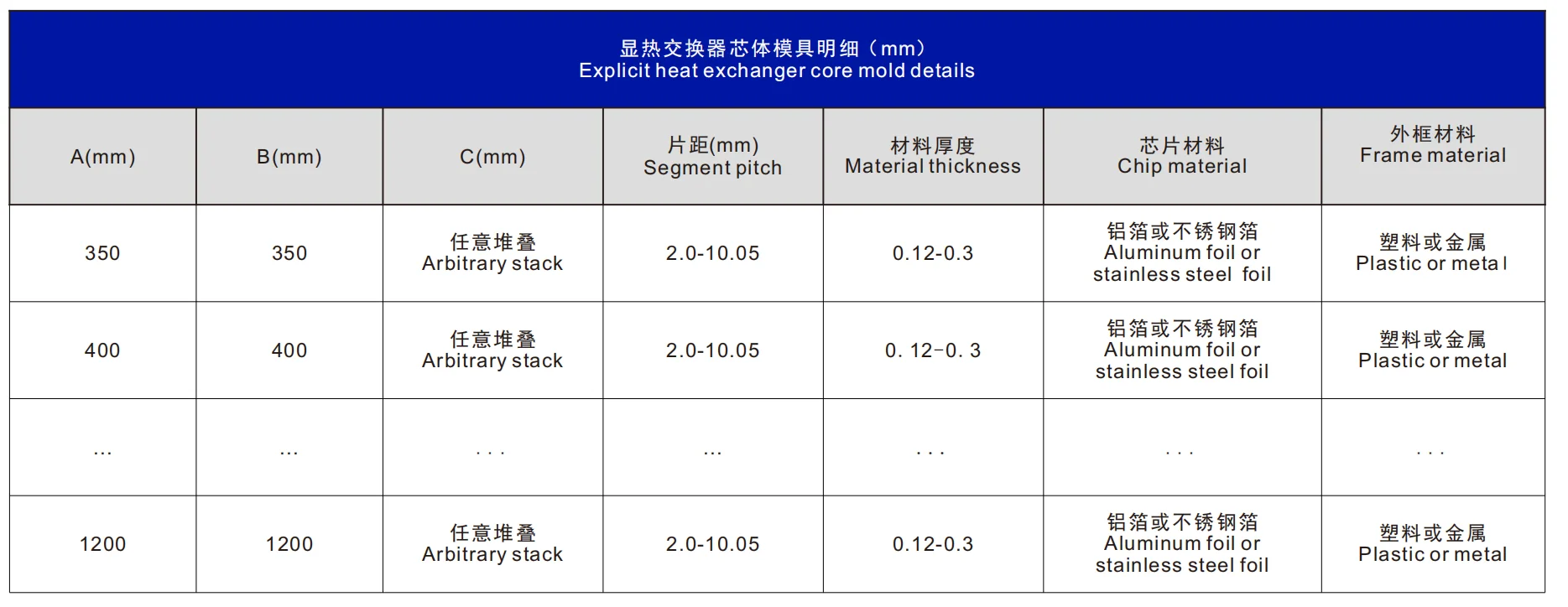

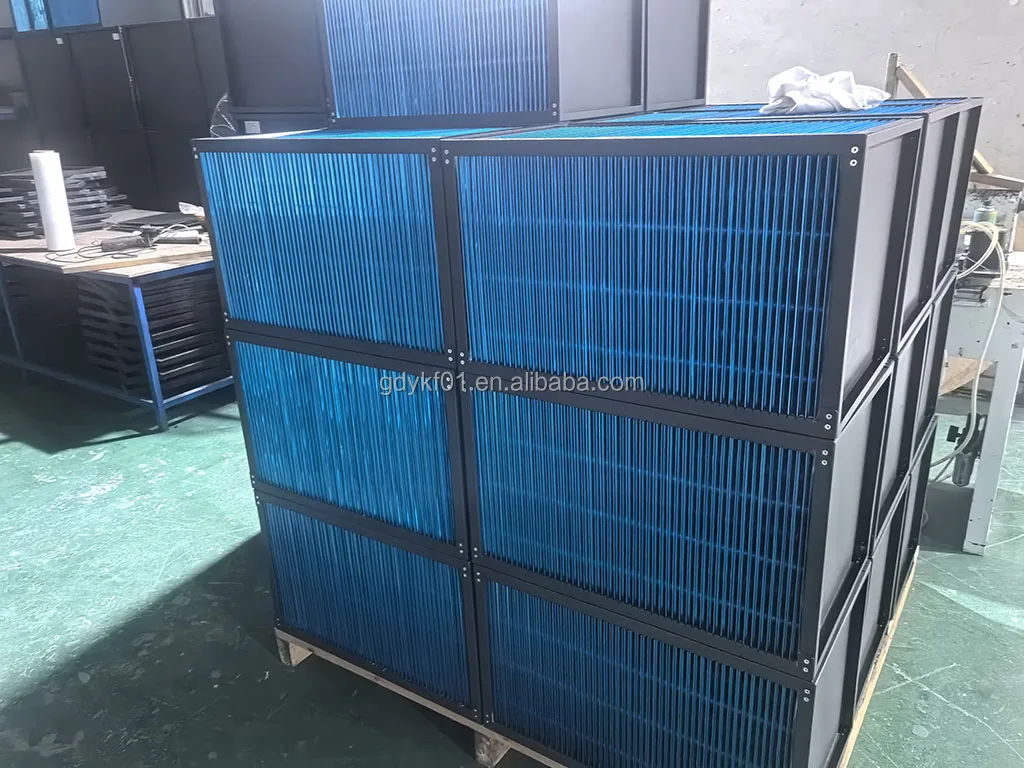

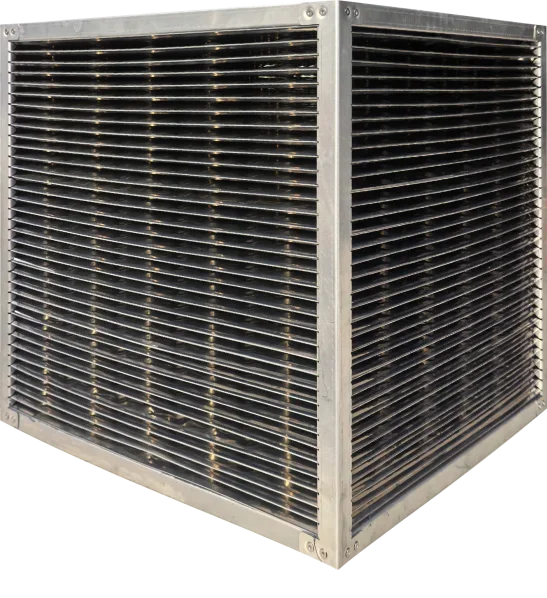

Sensible Heat Exchange Cores

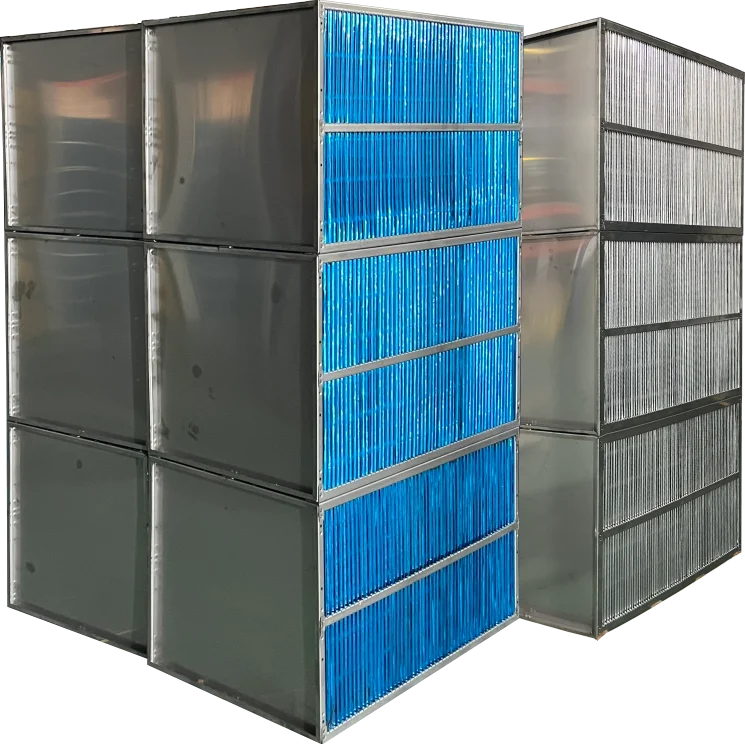

Modular design allows custom cross-sections and plate thicknesses. Maintenance-free with no moving parts. Compact and versatile for all applications.
Core material | Blue hydrophilic aluminum foil, epoxy resin-coated aluminum foil, Stainless Steel | ||||||
Aluminum foil thickness | 0.15mm~0.3mm | ||||||
Operating temperature range | -40℃~50℃ | ||||||
Storage temperature | -40℃~70℃ | ||||||
Plate spacing | 2.5mm~10mm | ||||||
Arbitrary stacking height | 500mm~1600mm | ||||||

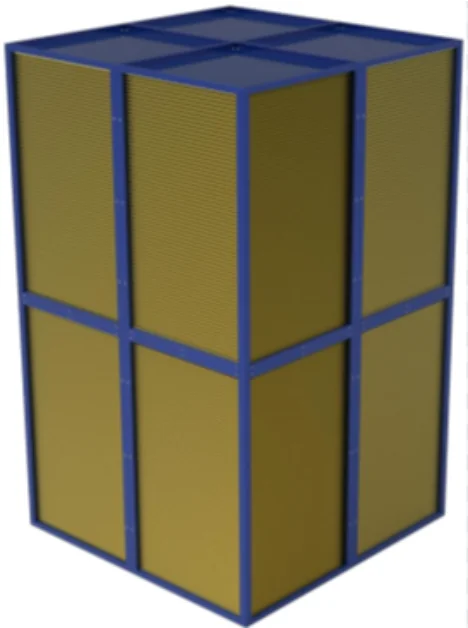

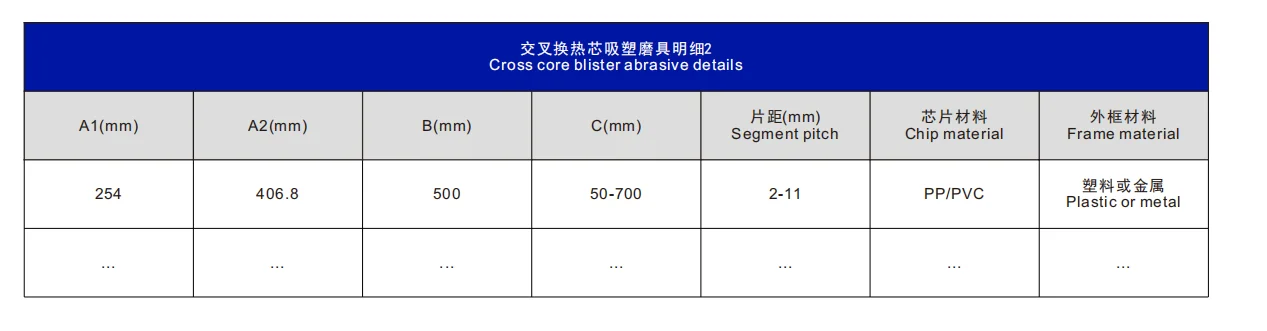

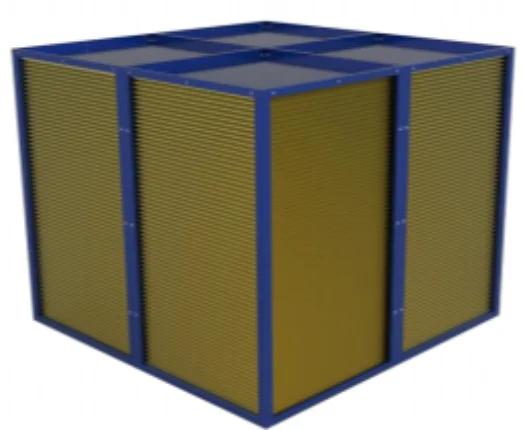

Enthalpy exchange core (resin)
The enthalpy exchange core is fabricated using vacuum forming for its chips. The overall structure resembles that of an aluminum foil core but differs in sealing via welding. This product features high heat transfer efficiency, lightweight design, strong malleability, and UV resistance.
Material options | PP film /PVC film /epoxy-coated aluminum foil | ||||||
Assembly method | Assembled from individual units, optional: 2，3，4，5，6，8，9，12… | ||||||
Maximum single unit size（PP.PVC) | 1600 (L)x1600 (W)x1600mm (H)（PP.PVC) | ||||||
Maximum single unit size (epoxy-coated aluminum foil) | 1200 (L)x1200 (W)x1600mm (H) | ||||||
Customization options

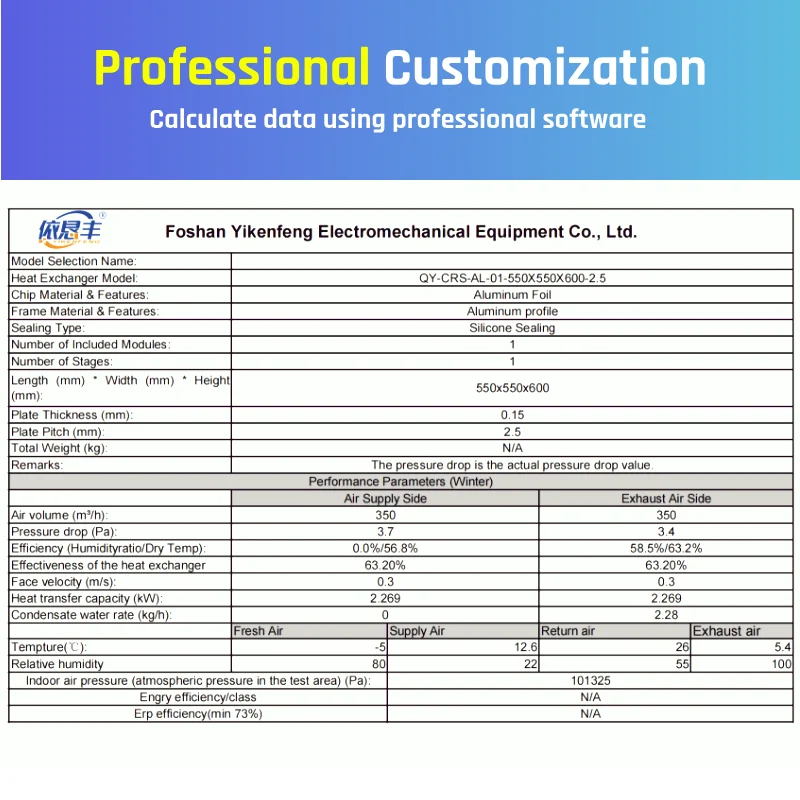

1 How do you provide professional customization services?
We utilize professional design software to calculate accurate performance data and provide solutions tailored to your specific requirements.
2 What data do I need to provide to obtain the calculation report?
Client Case:
Client :The following are my requirements. Please provide me with the calculation report.
(1) Fresh air volume of around 2000m³/h. (2) Only requires passive operation (no heating/cooling needed). (3) Inlet air parameters in winter: temperature -5 °C, humidity 50%. (4) Inlet air parameters in summer: temperature 30 °C, humidity 40%.(5) No material requirements.
(6) Smaller size needed.
(6) Smaller size needed.
We：Okay, here is our calculation report. Please check all the data. If there is any need, we will update the calculation report for you at any time.
Client: Great! I like it. I need 50 pieces. Please send me the PI.
Service
Per-sale Service
Calculation Book
Quotation SheetTechnical information consultation
Provide videos of leak testing on products.
DesgineDrawings
Visit Our Factory (online video/ offline visit)
After-sales Service
One – year warranty period,
Online video guidance
Free delivery of accessories.
Other Products
Packing & Delivery
The product is packaged in plywood wooden cases, and the four sides of the product are fixed with plywood square timbers.
FAQ
1.Are you a factory or a trader?

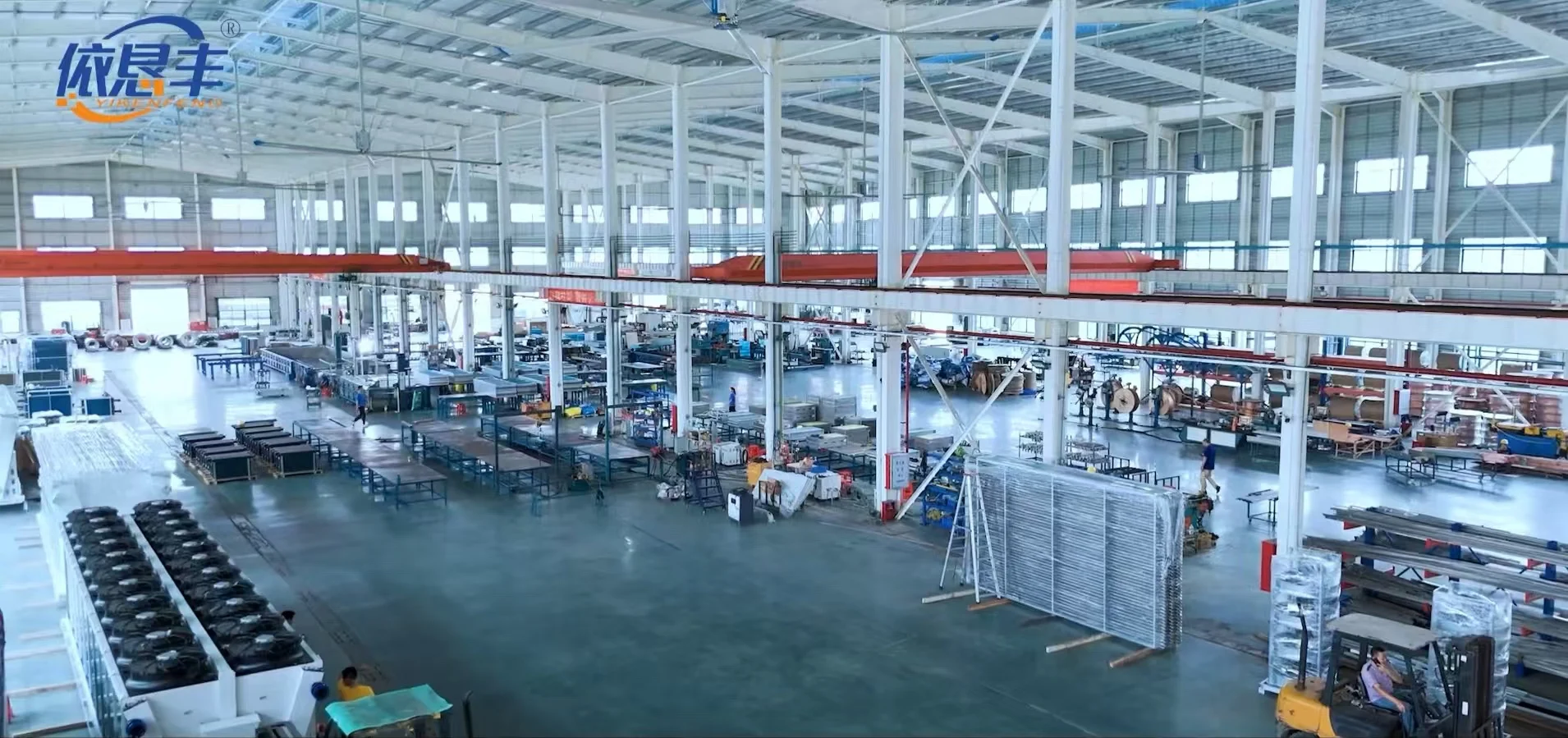

–We are a factory with two manufacturing facilities. They are located in Foshan City and Jiangmen City of Guangdong Province, and the total area of these two facilities is 30,000 square meters.
–We are a factory with two manufacturing facilities. They are located in Foshan City and Jiangmen City of Guangdong Province, and the total area of these two facilities is 30,000 square meters.
2. Can I visit your factory?
–You're more than welcome! You can take a virtual tour of our factory via a video call, or you can come to China for an on-site visit.
3. This is my first time cooperating with you. How can I trust you?
-We are a verified factory certified by Alibaba , and our factory qualifications have been fully recognized by SGS. Moreover, we have a free sample policy. You can start our cooperation with a sample order.
4.What is your free sample policy?
-Some of our products support a free sample policy. The first sample order is charged at the normal price, but in future purchases, we will deduct the first sample order cost from the total amount.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-YKF is a 20 years experienced manufacturer in producing heat exchangers, we promise good quality and competitive price to ensure our customers benefit.
–You're more than welcome! You can take a virtual tour of our factory via a video call, or you can come to China for an on-site visit.
3. This is my first time cooperating with you. How can I trust you?
-We are a verified factory certified by Alibaba , and our factory qualifications have been fully recognized by SGS. Moreover, we have a free sample policy. You can start our cooperation with a sample order.
4.What is your free sample policy?
-Some of our products support a free sample policy. The first sample order is charged at the normal price, but in future purchases, we will deduct the first sample order cost from the total amount.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-YKF is a 20 years experienced manufacturer in producing heat exchangers, we promise good quality and competitive price to ensure our customers benefit.
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–49 piece: US $12 / piece
- 50+ piece: US $10 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sensible heat exchanger?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the sensible heat exchanger be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 240 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Yikenfeng Electromechanical Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Yikenfeng Electromechanical Equipment Co., Ltd. range on HVACR Nexus.
