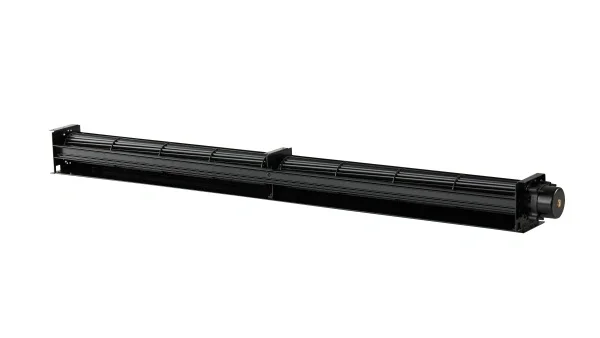

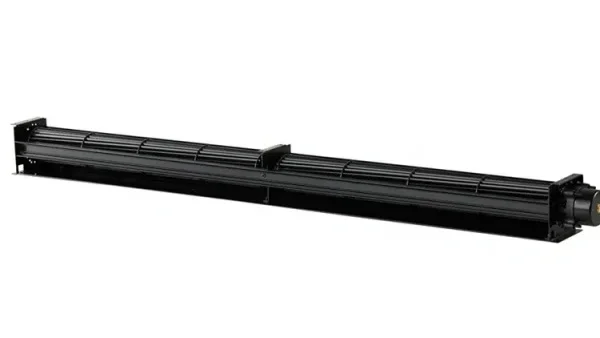

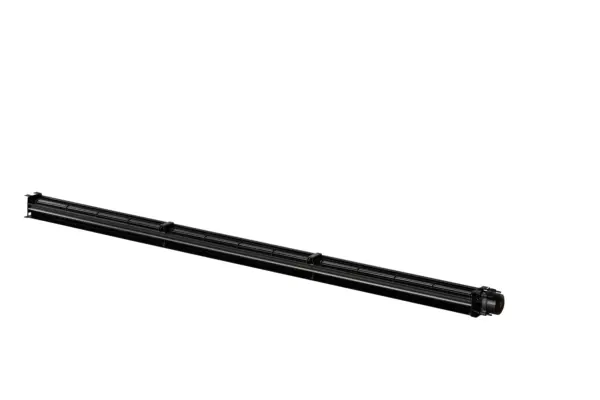

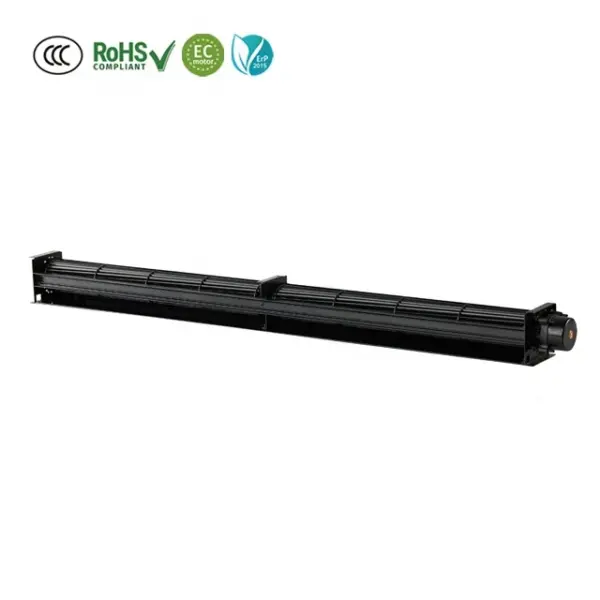

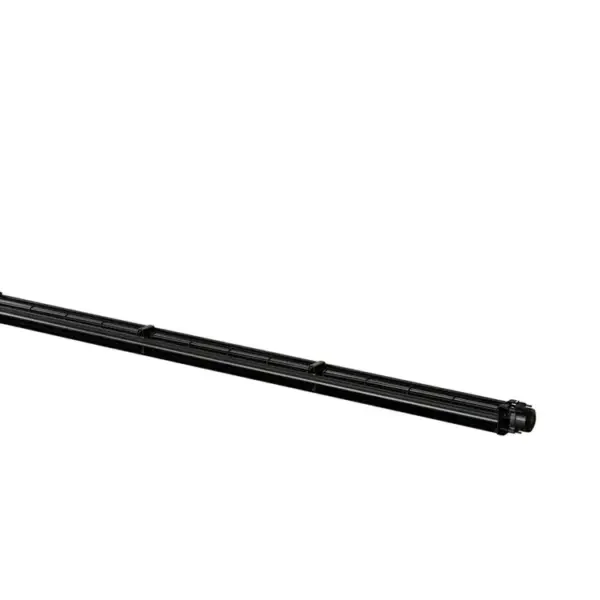

This ceiling fan is listed with the manufacturer’s full published specification — voltage 24v, blade material aluminium alloy, model number CD24-F030A-EC-03. It is produced by Suzhou Blauberg Motoren Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Ceiling Fan
- Model Number: CD24-F030A-EC-03
- Voltage: 24v
- Blade Material: aluminium alloy
- Warranty: 2 Years
- Place Of Origin: jiangsu
- Protect Feature: Waterproof

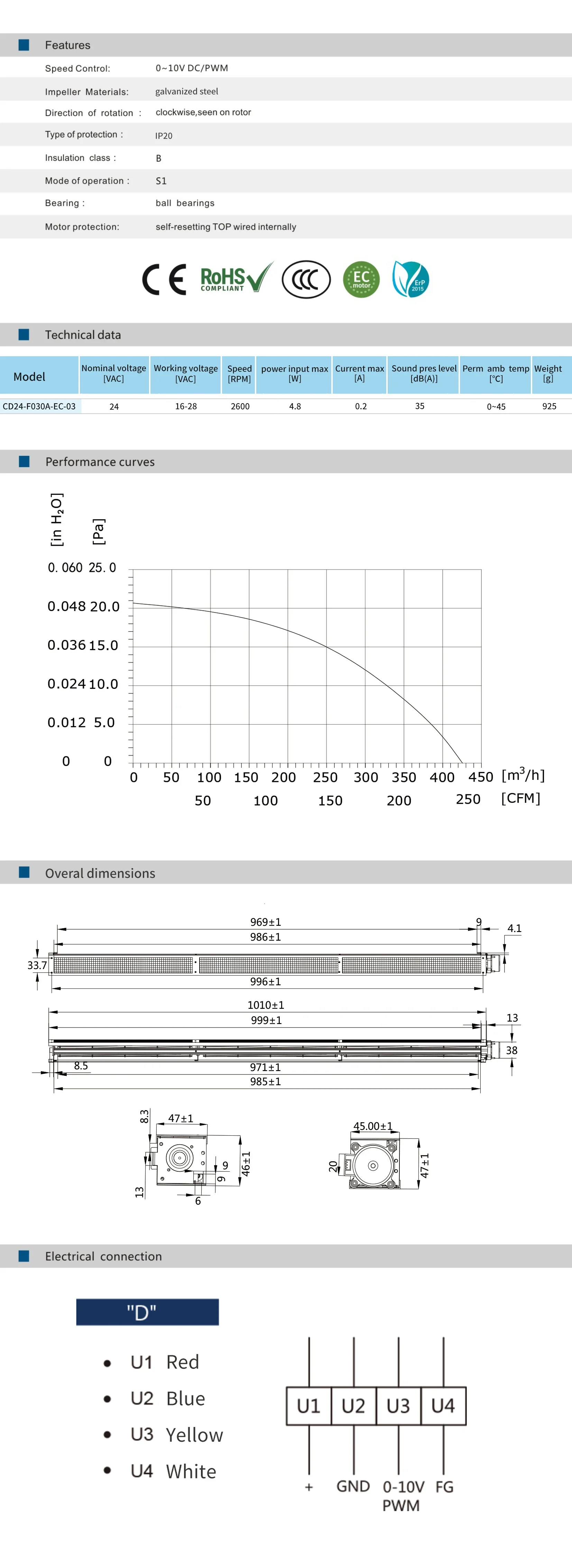

Technical Specifications
| Blade Material | aluminium alloy |
|---|---|
| Mounting | Ceiling Fan |
| Place Of Origin | jiangsu |
| Voltage | 24v |
| Customized Support | OEM |
| Brand Name | Blauberg |
| Model Number | CD24-F030A-EC-03 |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Housing | Iron |
| Protection Class | IP55 |
| Protect Feature | Waterproof |
| Selling Units | Single item |
| Single Package Size | 60X20X20 cm |
| Single Gross Weight | 2.500 kg |
|
Dimension:
|
985*47*46mm
|
Mode of operation:
|
S1
|
|
Materials Impeller:
|
aluminum alloy
|
Bearing:
|
ball bearings
|
|
Materials Housing:
|
SPCC+S45C
|
Motor protection:
|
self-resetting TOP wired internally
|
|
Direction of rotation :
|
clockwise,seen on rotor
|
Air Flow:
|
425M³/H
|
|
Number of Blades:
|
–
|
Static Pressure:
|
21Pa
|
|
Speed Control:
|
0~10VDC / PWM
|
Life Expectance:
|
50,000 Hours(L10)
|
|
Operating Voltage:
|
24 VDC
|
Operating Humidity:
|
5%-90% RH
|
|
Type of protection:
|
IP20
|
Signal Output:
|
FG (Frequency Generator)
|
|
Insulation class:
|
B
|
Authentication:
|
UL,CE,ROHS,CCC,ISO
|
|
Model
|
Nominal voltage[VDC]
|
Speed (RPM)
|
Power input max(W)
|
Current max(A)
|
Sound pres level[dB(A)]
|
Perm amb temp[*c)
|
Electrical connection
|
|
CD24-F030A-EC-01
|
24
|
2600
|
4.08
|
0.17
|
35
|
-25 ºC ~ +60 ºC
|
D
|
|
CD24-F030A-EC-02
|
24
|
2600
|
4.08
|
0.17
|
35
|
-25 ºC ~ +60 ºC
|
D
|
|
CD24-F030A-EC-03
|
24
|
2550
|
4.8
|
0.2
|
42
|
-25 ºC ~ +60 ºC
|
D
|
|
CD24-F040A-EC-01
|
24
|
2200
|
5
|
0.21
|
38
|
-25 ºC ~ +60 ºC
|
D
|
Industries
|
1
|
Ventilation & Purification
|
7
|
Automobile Industry
|
|
2
|
Air Conditioning
|
8
|
Household Electric Appliances
|
|
3
|
Cold Storage and Cold Chain
|
9
|
Cloud Date Center
|
|
4
|
IT & Electronic Industry
|
10
|
Mechanical Equipment and Systems
|
|
5
|
Medical Industry
|
11
|
Energy-saving & Intelligent Retrofitting
|
|
6
|
Heating
|
|
|
1
|
Charging Column
|
9
|
Equipments Cooling Project
|
|
2
|
Kitchen smoke exhaust system
|
10
|
Ventilation Unit Project
|
|
3
|
FFU Project
|
11
|
AHU（Air Handing Unit）Project
|
|
4
|
Computer room cooling
|
12
|
Air Purifier Project
|
|
5
|
Air-conditioned fan for rail transit carriers
|
13
|
Heater Exchanger Project
|
|
6
|
Electrical appliances
|
14
|
Telecom Container Project
|
|
7
|
FanGrid Project
|
15
|
Data Center Cooling Project
|
|
8
|
Ventilation Equipments Project
|
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this ceiling fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 24v. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
