The sip panel listed here carries model number PU Sandwich Panel, documented exactly as the manufacturer publishes it. Made by Wuhan Changle Purification & Refrigeration Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Sip Panel
- Model Number: PU Sandwich Panel
- Panel Material: Metal
- Material: Color Steel Sheet/stainless steel sheet/aluminum sheet/+PU panel
- Place Of Origin: Hubei, China
- Application: cold room/wall/roof
- Single Gross Weight: 0.0 kg
Technical Specifications
| Panel Material | Metal |
|---|---|
| Model Number | PU Sandwich Panel |
| Place Of Origin | Hubei, China |
| Brand Name | Changle |
| Application | cold room/wall/roof |
| Material | Color Steel Sheet/stainless steel sheet/aluminum sheet/+PU panel |
| Advantage | Energy-saving+easy installation+fireproof+soundproof |
| Packaging Details | the surface covered with thin PVC film and put on wooden pallet |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 5000 square meters per Month |
Product Details
Cold room building material, China sip panels, building a cold room
Application

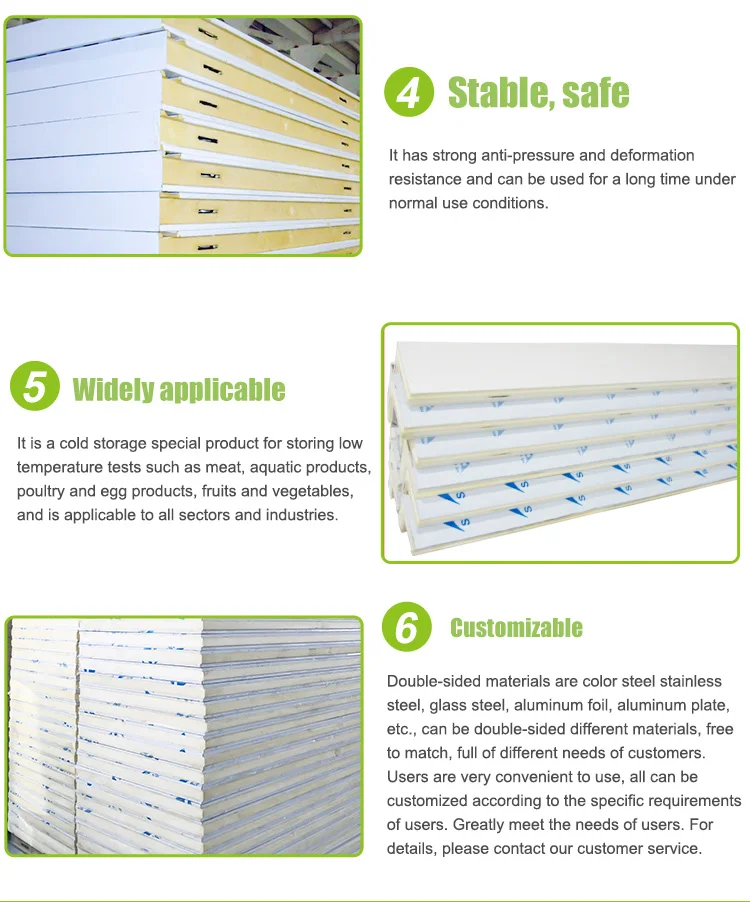

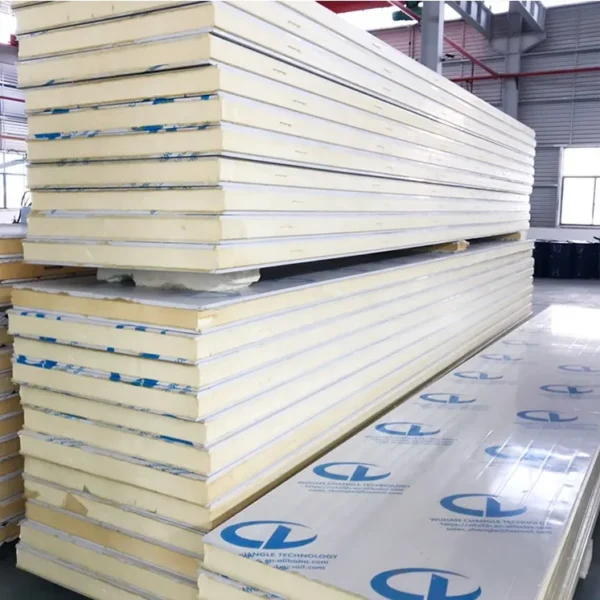

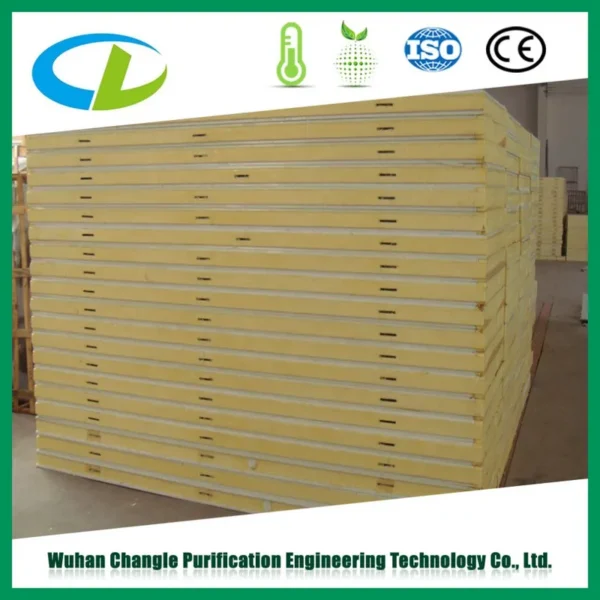

PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
Features
High strength, wear resistant, oil resistant, shock absorption, heat preservation effect is good.
Parameters
| Product name | Polyurethane (PU) Sandwich Board | |
| Thickness | upper layer | 0.5-0.8mm |
| core material | 75mm, 100mm, 120mm,150mm | |
| bottom layer | 0.5-0.8mm | |
| Effective Width | standard | 960mm |
| other | can be customized | |
| Length | can be customized, less than 12m | |
| Density | 38-40kg/m3 | |
| Weight | up to model | |
| Color | any (generally white, blue, red, grey,) | |
| Temp tolerance | -120-90℃ | |
| Fire resistance level | A2 (incombustible) | |
| Surface profile | flat,corrugated,big rib, small wave | |
| Compression bearing | ≥0.2Mpa | |
| Material | upper layer | PPGI (prepainted galvanised steel) color steel sheet |
| inner layer | PU foam (injected, not glued) | |
| bottom layer | PPGI (prepainted galvanised steel) color steel sheet | |
| Parts | Eccentric hook used for connection of panel | |
| Film covering for protecting the surface layer | ||
| Heat transfer coefficient | 0.019 W/M*K | |

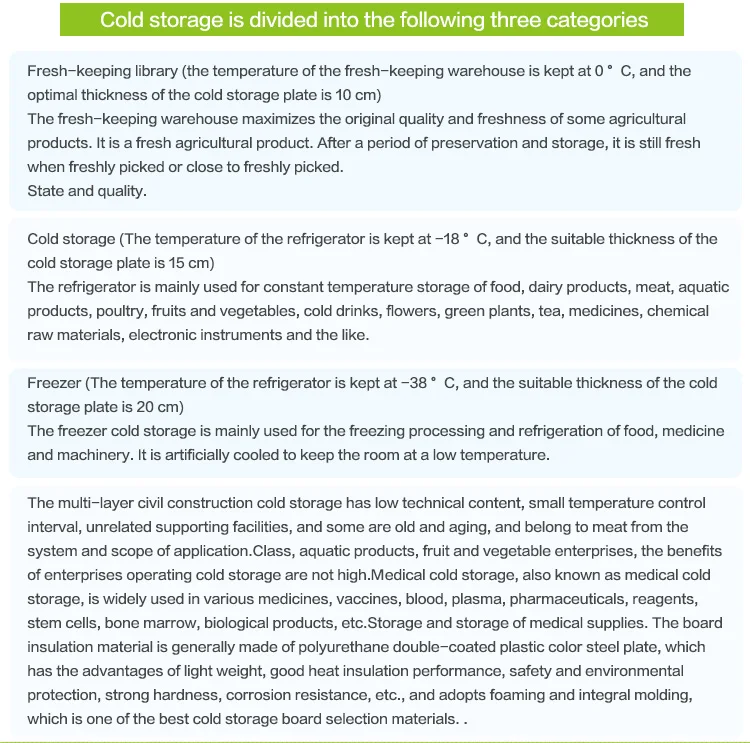

| Characteristics | heat insulation energy-saving | 100mm width can keep temp at 0℃ (suit for fresh keeping) |
| 150mm width can keep temp at -18℃ (suit for cold storage) | ||
| 200mm width can keep temp at -38℃ (suit for freezing) | ||
| water resistance and sound proof | ||
| weather proofing | ||
| fire retardant level:B | ||
| high strength and bending resistance | ||
| easy quick installation and dismantling,labour cost saving | ||
| light weight compared to traditional stone or plaster panel | ||
| safe and green,good appearance,without formaldehyde | ||
| Lifespan | can reach 15-20 years | |
| Usage | Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets, hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc. | |
Ordering and Pricing
- Minimum order quantity: 100 square meter
- Volume pricing:
- 100–199 square meter: US $10 / square meter
- 200+ square meter: US $8 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sip panel?
The standard minimum order quantity is 100 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuhan Changle Purification & Refrigeration Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Wuhan Changle Purification & Refrigeration Technology Co., Ltd. range on HVACR Nexus.
