The sleeve bearing listed here carries 12v, power connector 2-Pin, documented exactly as the manufacturer publishes it. Made by Shenzhen Zeyucheng Technology Co., Ltd. (13 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Sleeve Bearing
- Model Number: ZYC-F12025
- Power Connector: 2-Pin
- Voltage: 12v
- Blade Material: Plastic
- Material: Plastic
- Noise Level: 28 dB
Technical Specifications
| Voltage | 12v |
|---|---|
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OBM, ODM, OEM |
| Place Of Origin | China |
| Brand Name | ZYC |
| Model Number | ZYC-F12025 |
| Product Name | 12V Cooling Fan |
| Power Connector | 2-Pin |
| Wattage | 3.6 watts |
| Cooling Method | Air |
| Compatible Devices | Radiator |
| Noise Level | 28 dB |
| Material | Plastic |
| Maximum | 1500 RPM |

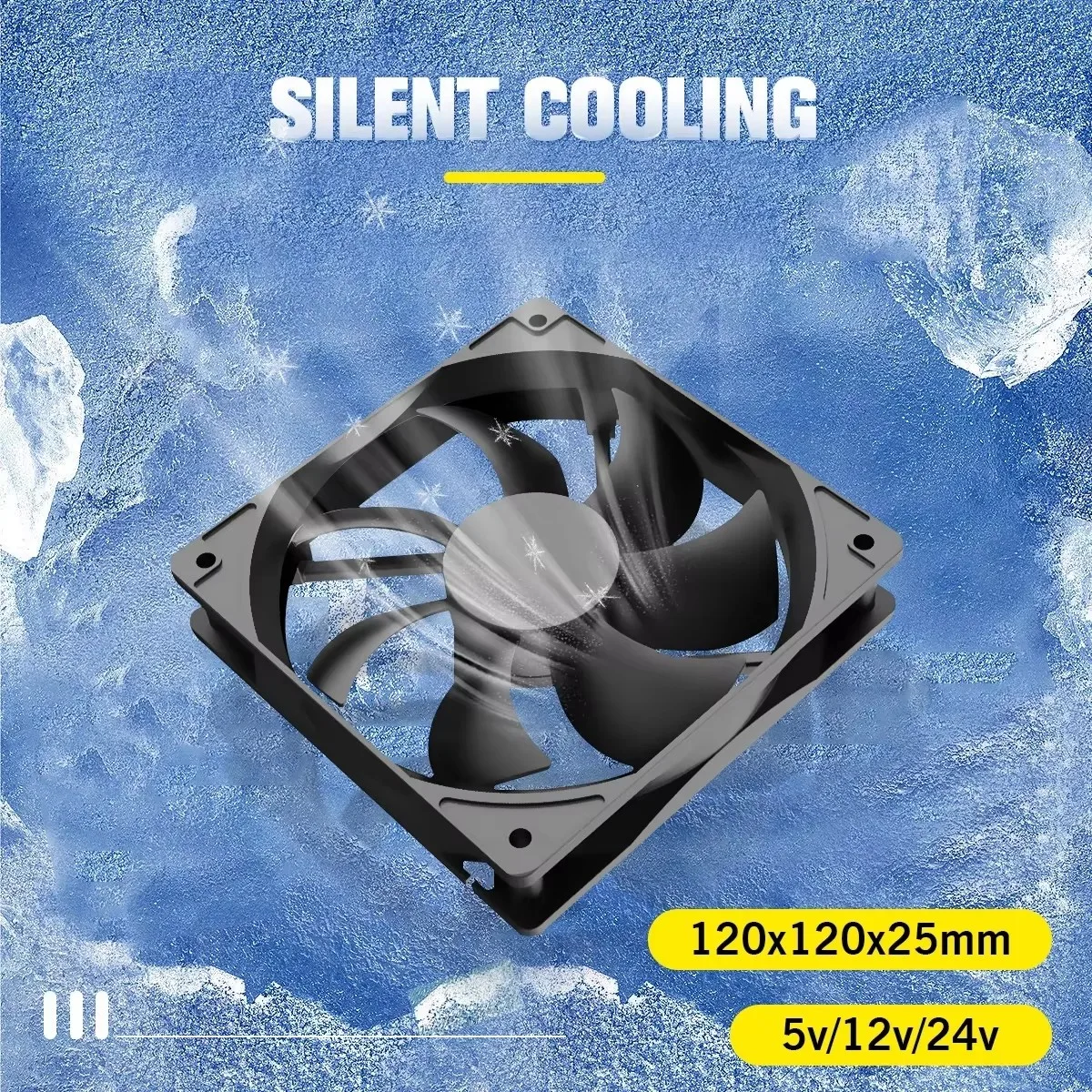

| Size | 120x120x25mm |
| Selling Units | Single item |

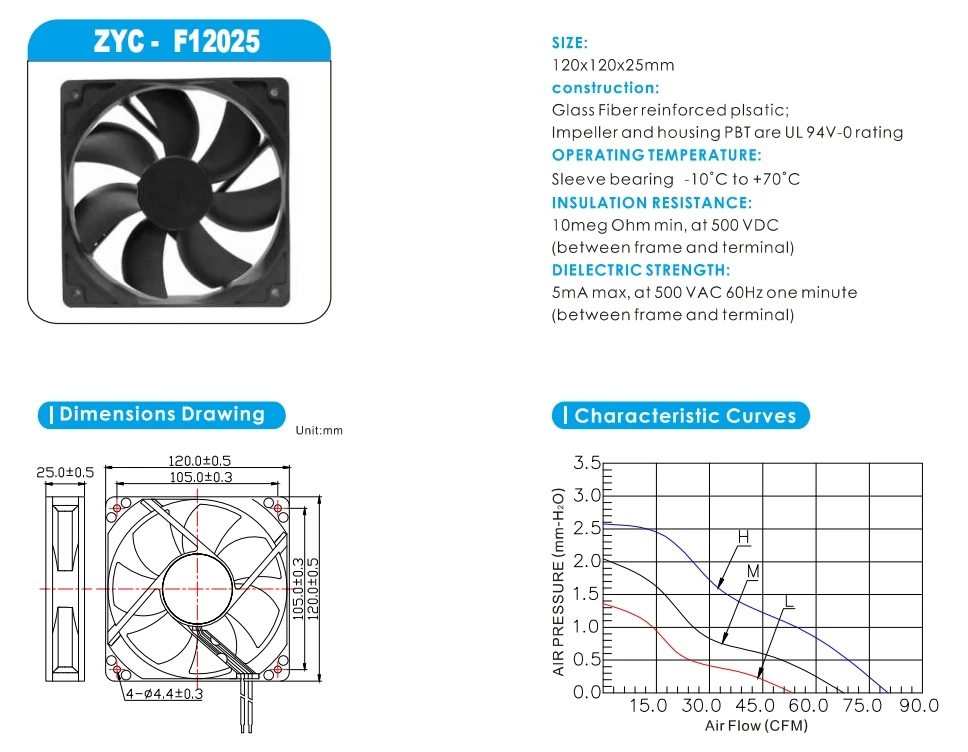

Product Details
Mode | Bearing Type | Rated Voltage | Oeration Voltage | Current | Speed | Air Flow | Static Pressure | Noise Level |
Mode | Bearing Type | VDC | VDC | A | RPM | CFM | mmH2O | dBA |
ZYC-F12025HS | Sleeve | 12 | 10.8~13.2 | 0.60 | 3000 | 79.75 | 2.57 | 32.48 |
ZYC-F12025MS | Sleeve | 12 | 10.8~13.2 | 0.35 | 2000 | 66.05 | 2.01 | 28.00 |
ZYC-F12025LS | Sleeve | 12 | 10.8~13.2 | 0.15 | 1000 | 52.58 | 1.37 | 24.43 |
ZYC-F12025HB | Ball | 12 | 10.8~13.2 | 0.60 | 3000 | 79.75 | 2.57 | 32.48 |
ZYC-F12025MB | Ball | 12 | 10.8~13.2 | 0.35 | 2000 | 66.05 | 2.01 | 28.00 |
ZYC-F12025LB | Ball | 12 | 10.8~13.2 | 0.15 | 1000 | 52.58 | 1.37 | 24.43 |
ZYC-F12025HS24 | Sleeve | 24 | 21.6~26.4 | 0.30 | 3000 | 79.75 | 2.57 | 32.48 |
ZYC-F12025MS24 | Sleeve | 24 | 21.6~26.4 | 0.20 | 2000 | 66.05 | 2.01 | 28.00 |
ZYC-F12025LS24 | Sleeve | 24 | 21.6~26.4 | 0.13 | 1000 | 52.58 | 1.37 | 24.43 |
ZYC-F12025HB24 | Ball | 24 | 21.6~26.4 | 0.30 | 3000 | 79.75 | 2.57 | 32.48 |
ZYC-F12025MB24 | Ball | 24 | 21.6~26.4 | 0.20 | 2000 | 66.05 | 2.01 | 28.00 |
70 C12026I D0A | DolI | 04 | 04606 | 012 | 4000 | 5 6Q | 427 | 04 2 |
Answer: The main product line includes AC Fan (6 – 25cm), DC Fan (2 – 250cm), and various Radiators, Plastic Parts, Electronic Wire, Hardware Accessories, etc.
Question 2: Can customers customize products?
Answer: Customers are able to customize all kinds of non – standard Cooling Fan with specific functions such as temperature control, constant temperature, manual setting, Automatic protection, etc.
Question 3: What kind of testing equipment does the company have for products?
Answer: The company owns Air Rate Tester, Wind Pressure Tester, Anechoic Chamber, Balancing machine and Motor Multifunction Tester.
Question 4: What is the monthly sales volume of fans and CPU coolers?
Answer: The monthly sales volume of Fans reaches 1 – 3 million units and CPU Cooler reaches 0.5 – 1 million units.
Question 5: Are the products certified?
Answer: Yes, all products are certified by UL, CE, TUV, CSA, CUL and ROHS.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–9999 piece: US $5 / piece
- 10000+ piece: US $1.65 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this sleeve bearing?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the sleeve bearing be supplied for my local voltage?
The standard configuration is 12v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Zeyucheng Technology Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Zeyucheng Technology Co., Ltd. range on HVACR Nexus.
