This small brushless fan is published with the manufacturer’s full specification — 5V / 12V, 24V, power source Electric. Made by Guangzhou Mega Technology Limited Company (8 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Small Brushless Fan
- Model Number: 3010
- Power Source: Electric
- Voltage: 5V / 12V, 24V
- Voltage:: 5V 12V
- Material: Plastic
- Blade Material: Plastic
Technical Specifications
| Blade Diameter | 0.984 in |
|---|---|
| Voltage | 5V / 12V, 24V |
| Speed | 26000RPM |
| Type | Duct Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | screw mounting |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | mega |
| Model Number | 3010 |
| Type: | Axial Flow Fan |
| Electric Current Type: | DC |
| Mounting: | screw mounting |
| Blade Material: | Plastic |
| Voltage: | 5V 12V |
| Noise Level | 23~32dBA |
| Air Volume: | 8.96CFM |
| Speed: | 26000RPM |
| Application: | RC Racing |
| Bearing Type: | two ball bearing |
| Selling Units | Single item |
| Single Package Size | 3X3X1.2 cm |
| Single Gross Weight | 0.580 kg |
Product Details

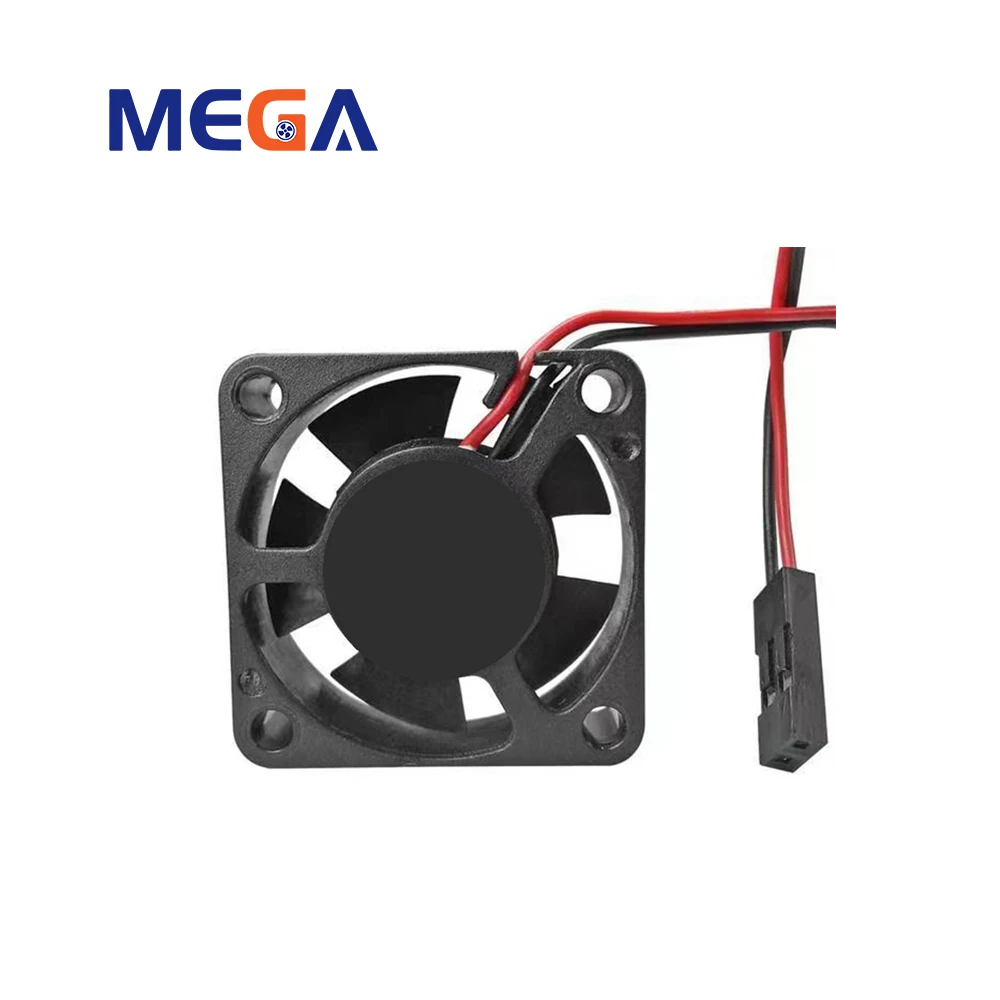

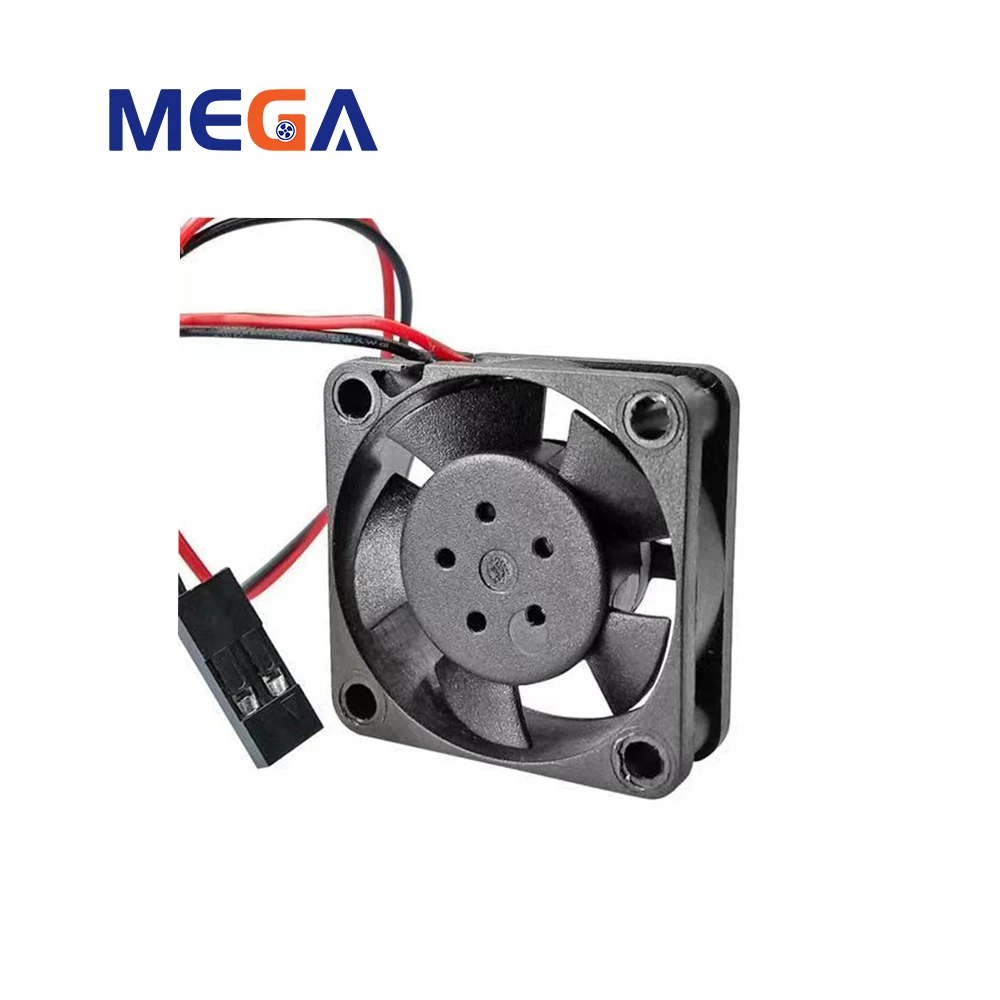

Silent 30x30x10mm 5V 12V 24V Small Brushless Fan 2-pin 3010 Axial Fan
www.cnmegatech.com
We can custom all kinds of famous brand fan, some data replacement fan, please feel free to contact
lisa@cnmegatech.com
whatsapp: 86-13570567086
lisa@cnmegatech.com
whatsapp: 86-13570567086
Details Images
Product Overview
The 3010 fan is a 30x30x10mm brushless fan with the following features:
* Moderate size and large air volume
* 5V or 12V rated voltage, strong versatility
* Rated current and rated input power are related to voltage, energy saving and environmental protection need to be considered carefully
* The maximum air volume and maximum air pressure are related to voltage, suitable for heat dissipation and other application scenarios
* The speed range is related to voltage, which can meet the needs of different application scenarios
* Noise is related to voltage, and the operating noise needs to be considered carefully
The 3010 fan is a 30x30x10mm brushless fan with the following features:
* Moderate size and large air volume
* 5V or 12V rated voltage, strong versatility
* Rated current and rated input power are related to voltage, energy saving and environmental protection need to be considered carefully
* The maximum air volume and maximum air pressure are related to voltage, suitable for heat dissipation and other application scenarios
* The speed range is related to voltage, which can meet the needs of different application scenarios
* Noise is related to voltage, and the operating noise needs to be considered carefully

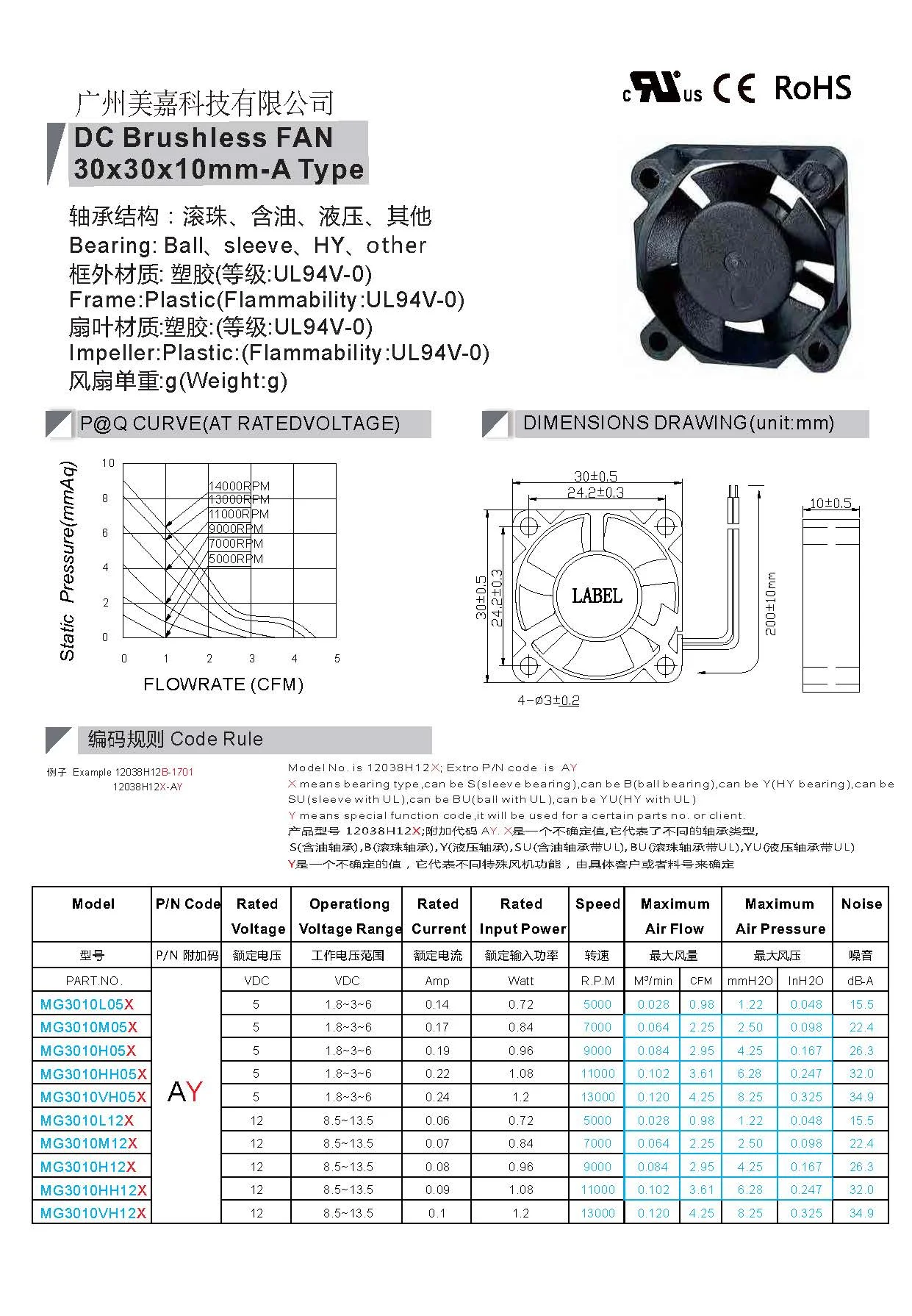

Product Parameters
Parameter | 5V | 12V |
Model | Mega3010 | Mega3010 |
Rated voltage | 5V | 12V |
Working voltage range | 4.5-5.5V | 10.8-13.2V |
Rated current | 0.06A | 0.12A |
Rated input power | 0.3W | 1.44W |
Maximum air volume | 7CFM | 12CFM |
Maximum air pressure | 2.0mm-H2O | 2.5mm-H2O |
Speed range | 3000-6000RPM | 4000-8000RPM |
Noise | 18-25dB | 22-30dB |
Bearing type | Dual ball bearing | Dual ball bearing |
Connection mode | 2PIN | 2PIN |
Wire length | 250mm | 250mm |
Weight | 40g | 40g |
Product Advantages
* Moderate size and large air volume
* 5V or 12V rated voltage, strong versatility
* The maximum air volume and maximum air pressure are related to voltage, suitable for heat dissipation and other application scenarios
* The speed range is related to voltage, which can meet the needs of different application scenarios
* Adopt double ball bearing, long life and stable operation
* Moderate size and large air volume
* 5V or 12V rated voltage, strong versatility
* The maximum air volume and maximum air pressure are related to voltage, suitable for heat dissipation and other application scenarios
* The speed range is related to voltage, which can meet the needs of different application scenarios
* Adopt double ball bearing, long life and stable operation
Application Scenarios
The 3010 fan can be widely used in the following scenarios:
* Computer case heat dissipation
* Laptop heat dissipation
* Server heat dissipation
* Communication equipment heat dissipation
* Industrial control equipment heat dissipation
* Home appliance heat dissipation
The 3010 fan can be widely used in the following scenarios:
* Computer case heat dissipation
* Laptop heat dissipation
* Server heat dissipation
* Communication equipment heat dissipation
* Industrial control equipment heat dissipation
* Home appliance heat dissipation
Application Scenarios The 3010 fan can be widely used in the following scenarios: Computer case heat dissipation Laptop heat dissipation Server heat dissipation Communication equipment heat dissipation Industrial control equipment heat dissipation Home appliance heat dissipation For the 3010 fan under 5V voltage, its characteristics are as follows: Lower rated current and rated input power, lower power consumption, more energy saving and environmental protection. Lower maximum air volume and maximum air pressure, weaker heat dissipation capacity. Lower speed range, lower operating noise, and quieter. Therefore, the 3010 fan under 5V voltage is more suitable for application scenarios that are sensitive to power consumption and noise, such as: Small electronic device heat dissipation Toy heat dissipation Industrial control equipment heat dissipation Home appliance heat dissipation
Products Description
12 Years Manufacture Experience, 6 years OEM Experience !
Specialized In Customized According To Application And Requirement !
Welcome To Contact Us ! For More Details Click here
Company Profile
Guangzhou Mega technology Co.,LTD
*Established in 2008, specializes in the R&D and production of DC/AC cooling fans, blowers.
*Products are customized according to Clients' application.
*Sample Available, Small Quanity 0rder Available, Quick Delivery
*Our products are mainly used for equipment ventilation heat dissipation in the fields such as computers, home appliances, cars, medical equipment, industrial controls, electrical power, printing, electric welding machines and instrument panels.
*Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but alsohave special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !
* Your Satisfaction Is Our Aim. Feel free to contact us !
Product packaging
Packing And Deliver are all according to Client's requirement
Cooling System
The cooling system uses the evaporation cooling principle of water to achieve the cooling purpose. The core of cooling system is
to ensure that the whole cooling pads wall is evenly wetted by water. When air passes through the wet curtain medium, water-air
exchange with surface of cooling pads reduces the temperature of the air. It is the most economical and effective method to make the temperature down.
Why Choose Us
Always Give Customer Best
* Experienced Staff
* Guarantee/Warranty * Competitive Price
* Excellent Product Performance
* 100% Quality Approvals
* Customized Sample
* Guarantee/Warranty
* Packaging
* Good Product Features
* Prompt Delivery
* Good Reputation
* Small Orders Accepted
Our Advantages
FAQ
1. What is a bearing?
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is
50000hours or more.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.One is testing during production
Another is 100% testing before packing.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan,
AC cooling fan, EC cooling fan and frameless fan.
5. What's your MOQ and delivery date ?
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is
50000hours or more.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.One is testing during production
Another is 100% testing before packing.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan,
AC cooling fan, EC cooling fan and frameless fan.
5. What's your MOQ and delivery date ?
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Customer Satisfaction
Contact Information | ||
Company | Mega Tech Guangzhou Mega Technology Limited Company | |
Attn: | Lisa Han | |
Email: | lisahan1222@gmail.com | |
Tel: | 13570567086 | |
Office Add: | Loteam Cloudy Village, Huangge Section, Shinan Road, Huangge Town, Nansha District,Guangzhou,China | |
Factory Add： | 5F #2Hong Changfa Industrial park LongXi community longgang district, Shenzhen | |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–999 piece: US $5 / piece
- 1000–9999 piece: US $3.17 / piece
- 10000+ piece: US $2.63 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this small brushless fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the small brushless fan be supplied for my local voltage?
The standard configuration is 5V / 12V, 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
