The small fan listed here carries 5V, 12V, 12-24V, power source Electric, documented exactly as the manufacturer publishes it. Made by Shenzhen Songlian Electronics Co., Ltd. (7 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Small Fan
- Power Source: Electric
- Voltage: 5V, 12V, 12-24V
- Material: PBT
- Blade Material: PBT
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 5V, 12V, 12-24V |
|---|---|
| Type | dc cooling fan |
| Material | PBT |
| Blade Material | PBT |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | SONGLIAN |
| Selling Units | Single item |
Product Details

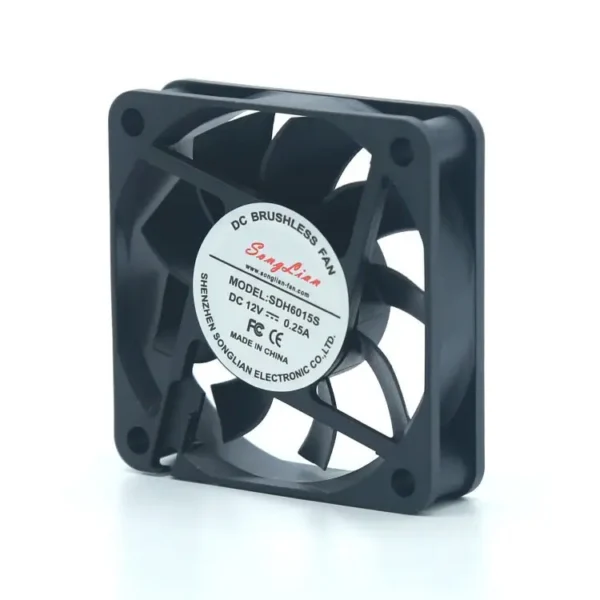

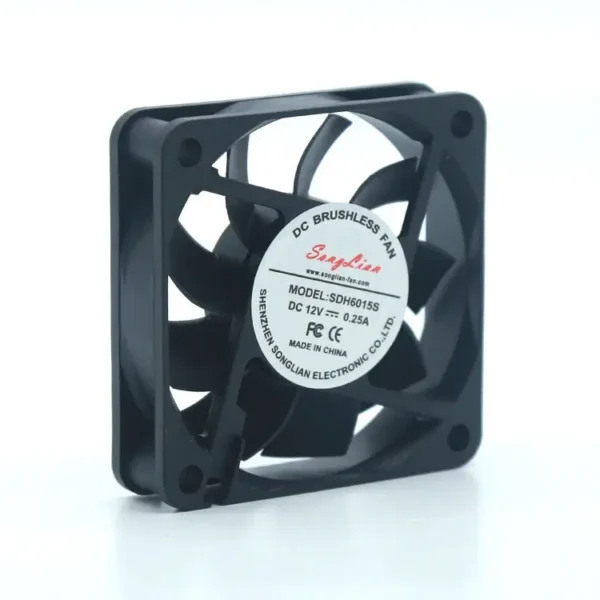

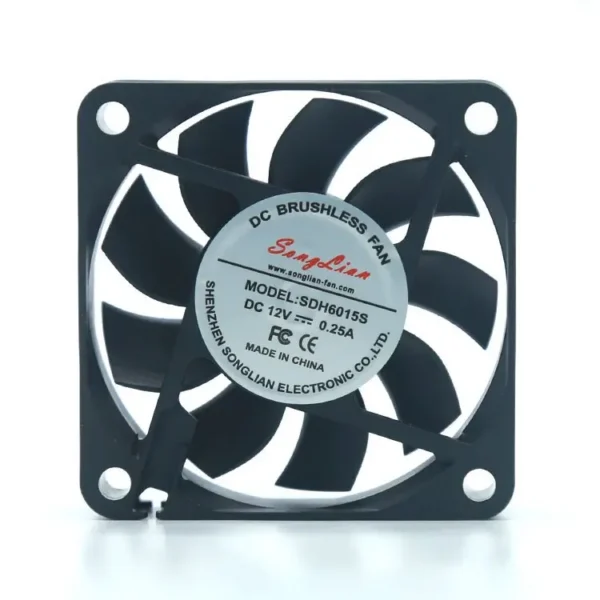

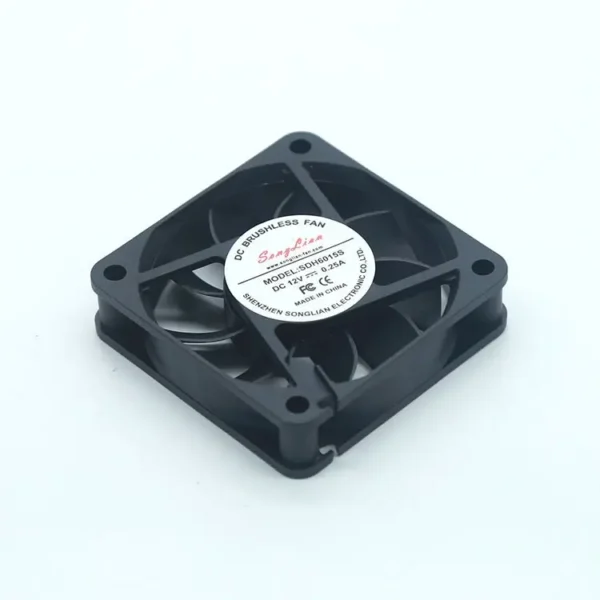

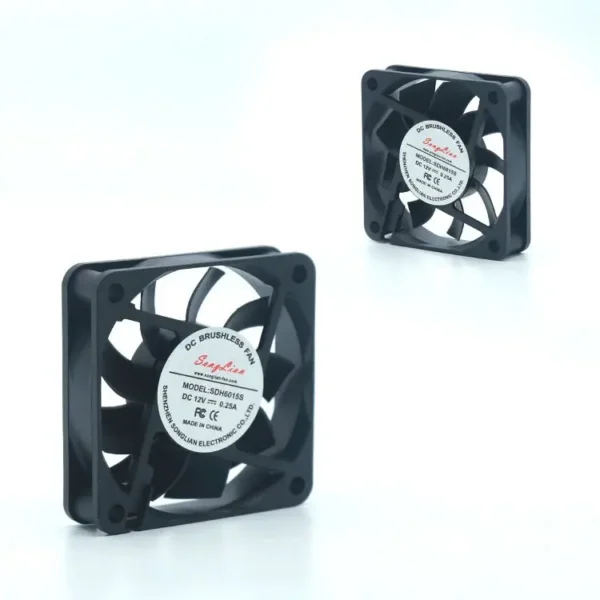

Hot Selling 6cm 6015 Small Fan Waterproof IP55 IP67 5v 12v 24v Dc Brushless Axial Cooling Fan Mini 12volt Cooling Fan 60x60x15
Are You Looking for A Reliable Source Factory with Strong Cooling Fan R&D and Production Capabilities?
We Welcome Inquiries from Global Engineering Contractors, Equipment Manufacturers, and Telecom Operators!
The Cooling Fan Customization Expert 1-on-1 Engineer Support Throughout The Process
WHY CHOOOSE US?
Are You Looking for A Reliable Factory Specializing In The Source Of Cooling Fans?
Products Description
FREE DESING/ FREE SAPLAM
Custom Design/LOGO/Custom Color /Size/Package Certification：CCC/UL/CE/RoHS/ISO9001 Fast Delivery: 1-3 days for prototyping, 10-15 days for mass production After-sales: Extended 3-5Year Warranty Marketing Support: Complimentary HD Product Images, Spec Sheets & Short Videos
Agency Benefits: Regional Exclusivity + NDA Agreement + Dedicated Production Line with Compensation for Late Delivery
Contact us immediately Get free sample
customization Pls Contact us >>

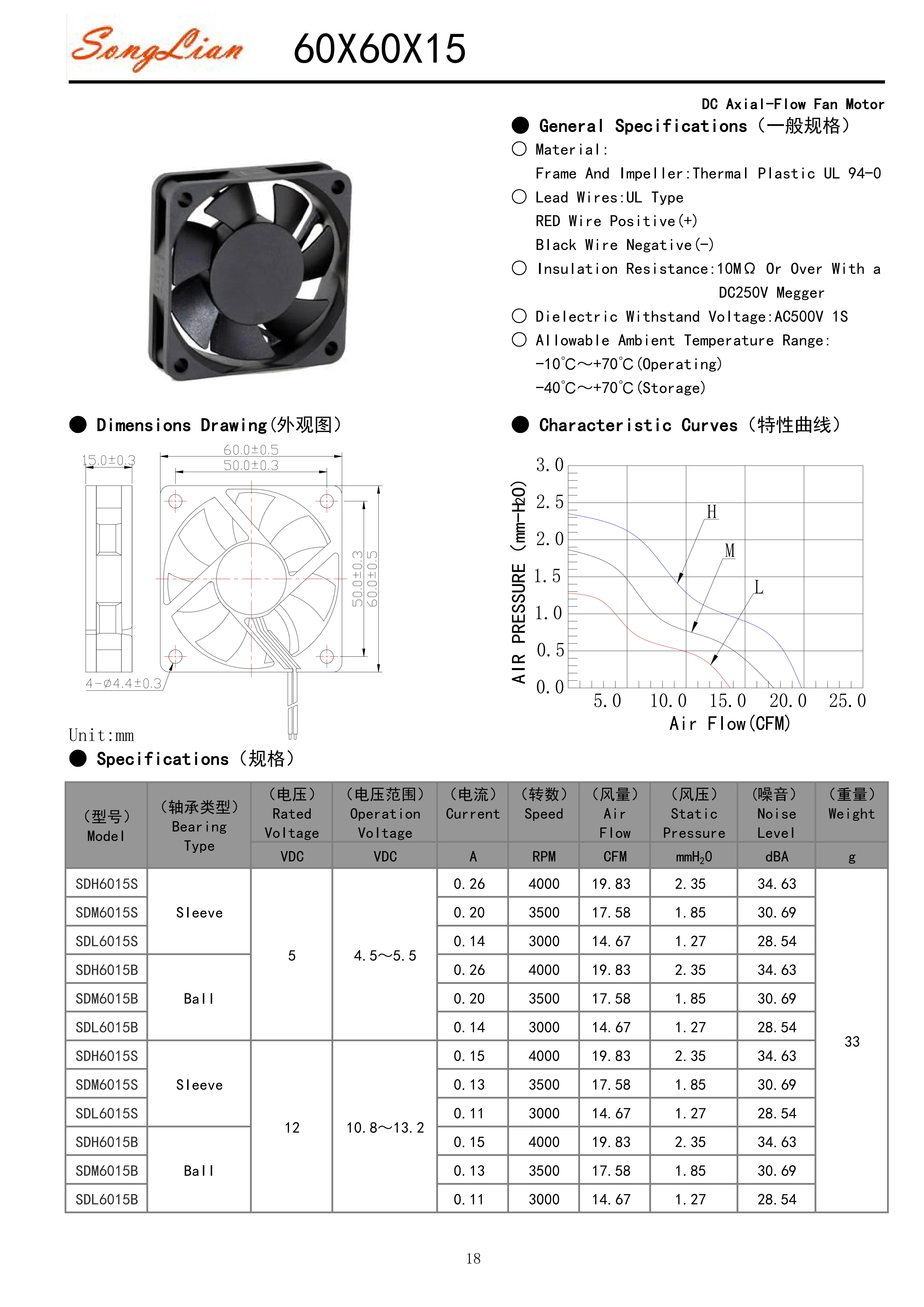

Size | 60*60*15mm | ||||||
Bearing type | Ball Bearing/hydraulic bearing/DUAL BALL BEARING | ||||||
Frame materials | Plastic (UL94V-0) | ||||||
Impeller materials | Plastic (UL94V-0) | ||||||
Fuction | PWM/FG/RD | ||||||
Voltage | DC 5V /12V /24V /48V | ||||||
IP Rating | IP65/IP67/IP68 Waterproof & IP54 Moisture-Resistant | ||||||
Speed | Standard Speed:3000~4000RPM, Accept Customizable to High speeds | ||||||
Noise Level | 28.54~34.63 dBA | ||||||
Wire | 2 pin, 3pin or 4pin with Customized connector | ||||||
Certification | CE, RoHS, CCC, UL | ||||||
Bland | Label Customize | ||||||
Model Number | 6015 Axial Flow Fan | ||||||
DC Axial Flow Fan
Fan Series ( 20X20X6MM~200X51MM)
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
20X20X6 | 0.33~0.82 | 70X70X15 | 16.24~27.06 |
20X20X10 | 0.55~1.56 | 70X70X20 | 25.92~43.20 |
25X25X7 | 1.54~3.09 | 70X70X25 | 26.94~44.90 |
25X25X10 | 1.35~2.51 | 80X80X10 | 14.49~21.74 |
30X30X7 | 1.98~3.64 | 80X80X15 | 23.23~46.47 |
30X30X10 | 2.52~4.10 | 80X80X20 | 24.52~53.94 |
35X35X10 | 3.93~5.90 | 80X80X25 | 30.92~68.02 |
38X38X28 | 8.44~22.05 | 80X80X25 F | 22.51~67.54 |
40X40X7 | 3.13~4.38 | 80X80X25 G | 41.40~93.14 |
40X40X10 | 4.22~6.67 | 80X80X38 | 37.06~92.66 |
40X40X15 | 4.80~8.00 | 80X80X38 F | 34.48~114.28 |
40X40X20 | 4.38~13.76 | 80X80X38 G | 44.28~145.40 |
40X40X20 G | 11.77~19.42 | 92X92X25 | 33.42~58.48 |
40X40X28 | 7.79~20.26 | 92X92X25 F | 35.11~96.56 |
40X40X28 F | 13.63~26.50 | 92X92X32 | 61.67~102.79 |
40X40X28 G | 9.79~30.48 | 92X92X38 | 57.65~105.69 |
45X45X10 | 5.37~10.73 | 120X120X25 | 48.48~96.95 |
50X50X10 | 6.45~11.82 | 120X120X25 J | 38.68~121.14 |
50X50X15 | 6.61~12.27 | 120X120X25 G | 52.46~104.93 |
50X50X20 | 8.09~16.18 | 120X120X25 F | 63.95~201.44 |
60X60X10 | 10.28~17.13 | 120X120X32 | 67.16~93.52 |
60X60X15 | 11.01~28.62 | 120X120X38 | 100.71~146.90 |
60X60X20 | 11.43~19.05 | 120X120X38 J | 118.16~180.36 |
60X60X25 | 16.76~43.10 | 120X120X38 F | 115.11~263.10 |
60X60X28 | 16.23~24.35 | 140X140X25 | 60.34~86.20 |
60X60X38 | 36.73~50.15 | 172X150X51 F | 171.73~274.76 |
60X60X38 F | 40.26~57.51 | 200X51 | 392.22~728.400 |
70X70X10 | 14.56~24.27 | ||
DC Blower Fan
Fan Series (35X35X7 ~ Φ130X69)
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
20X20X6 | 0.15~0.37 | 55X55X12 | 2.35~3.92 |
20X20X8 | 0.58~0.69 | 60X60X15 | 2.79~3.59 |
25X25X7 | 0.25~0.50 | 60X60X25 | 5.55~9.25 |
30X30X10 | 0.85~1.48 | 60X60X28 | 3.98~6.64 |
35X35X7 | 0.68~0.98 | 70X70X20 | 7.73~15.47 |
40X40X10 | 1.17~2.01 | 75X75X15 | 6.32~10.54 |
52X40X10 | 2.03~2.79 | 75X75X25 | 7.37~13.26 |
40X40X20 | 1.33~2.66 | 75X75X30 | 6.94~20.83 |
45X45X10 | 2.83~3.6 | 93X93X30 | 11.62~22.25 |
50X50X15 | 2.22~4.75 | 97X97X33 | 15.8~22.40 |
50X50X20 | 4.09~6.14 | 100X100X25 | 32.24~50.09 |
50X50X20 J | 4.62~6.92 | 120X120X32 | 18.45~27.68 |
50X50X25 | 5.22~7.83 | 130X130X69 | 49.67~99.34 |
AC Axial Fan
Fan Series ( 60X60X38MM~200X200X60MM)
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
60X60X30 | 8.1~10.3 | 120X120X38 (7 blades) | 64~119 |
80X80X25 | 15~22 | 150X150X50 | 105~235 |
80X80X38 | 18~31 | 158X158X50 | 225~250 |
92X92X25 | 21~37 | 172X150X51 (5 blades) | 105~235 |
92X92X38 | 24~50 | 172X150X51 (7 blades) | 105~235 |
120X120X25 | 50~78 | 172X150X51 (C) | 130~251 |
120X120X38 (5 blades) | 60~113 | 200X200X60 | 370~420 |
EC AXial Flow Fan
Fan Series ( 60X60X28 MM~172X150X51MM)
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
60X60X28 | 8.12~16.24 | 92X92X38 | 48.04~67.26 |
60X60X38 | 9.92~19.83 | 120X120X38 | 97.59~136.62 |
80X80X38 | 30.89~49.92 | 172X150X51 | 135.52~202.80 |
Company Profile
FAQ
Q:What are kinds of cooling fan or centrigugal fan supplied by your company |
Our factory can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan. |
Q: How to choose sleeve bearings or ball bearings of fan? |
1.Speed and Noise 2.Lifespan and Durability 3.Maintenance 4.Cost |
Q: What is your MOQ and lead time ? |
Our MOQ is 50 PCS. |
Q:How could I get a sample? |
Before we received the first order, please afford the sample cost and express fee.We will return the sample cost back to you in your first order. |
Q: What's your delivery date? |
Sample lead time: 3-5 working days Mass production delivery time: 12-15 working days |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–1999 piece: US $1.2 / piece
- 2000–4999 piece: US $0.8 / piece
- 5000+ piece: US $0.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this small fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the small fan be supplied for my local voltage?
The standard configuration is 5V, 12V, 12-24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Songlian Electronics Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Songlian Electronics Co., Ltd. range on HVACR Nexus.
