The dc cooling fan listed here carries 5V, 12V, 24V, 0.7W, 1.1W, 1.65W, 2.52W, 3.00W, documented exactly as the manufacturer publishes it. Quantity and destination market determine the final price — tell us both for a firm quote.

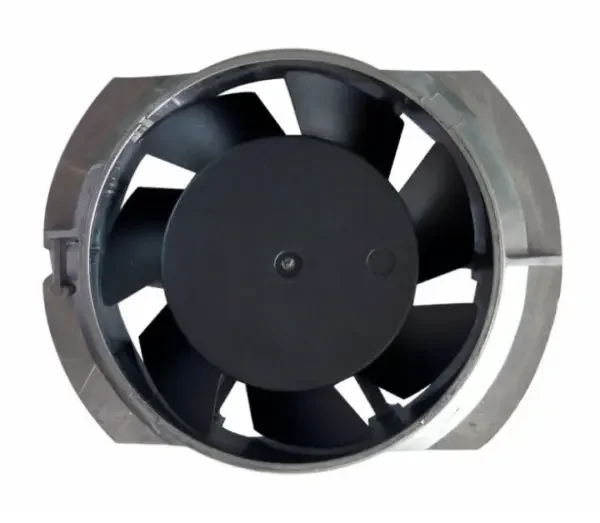

Static pressure is the number that matters when a DC cooling fan has to push air through a filter, a heatsink or a packed enclosure, and this 75mm unit reaches 10.46mmAq at its top speed — several times what a general-purpose fan of the same size manages. Five speed grades from 3500 to 7000RPM let noise and airflow be balanced at design time. Available in 5V, 12V and 24V with flow control.
Key Features of This Dc Cooling Fan
- Model Number: RS7520B12VH
- Power (Watts): 0.7W, 1.1W, 1.65W, 2.52W, 3.00W
- Voltage – Rated: 5V, 12V, 24V
- Place Of Origin: Guangdong, China
- Size / Dimension: 75x75x20mm
- Size: 75*75*20mm
Technical Specifications
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | RUNDA |
| Model Number | RS7520B12VH |
| Application | UPS, Inverter, Cabinet, RFD, New energy, CPU, Welding machine, Communication equipment, Home appliance, Medical equipment |
| Description | 7520 DC fan |
| RPM | 3500RPM, 4500RPM, 5500RPM, 6500RPM, 7000RPM |
| Power (Watts) | 0.7W, 1.1W, 1.65W, 2.52W, 3.00W |
| Voltage – Rated | 5V, 12V, 24V |
| Fan Static Pressure | 2.61mmAq, 4.32mmAq, 6.46mmAq, 9.02mmAq, 10.46mmAq |
| Series | DC fan |
| Size / Dimension | 75x75x20mm |
| Size | 75*75*20mm |
| Selling Units | Single item |
| Single Package Size | 7.5X7.5X2 cm |
| Single Gross Weight | 0.095 kg |

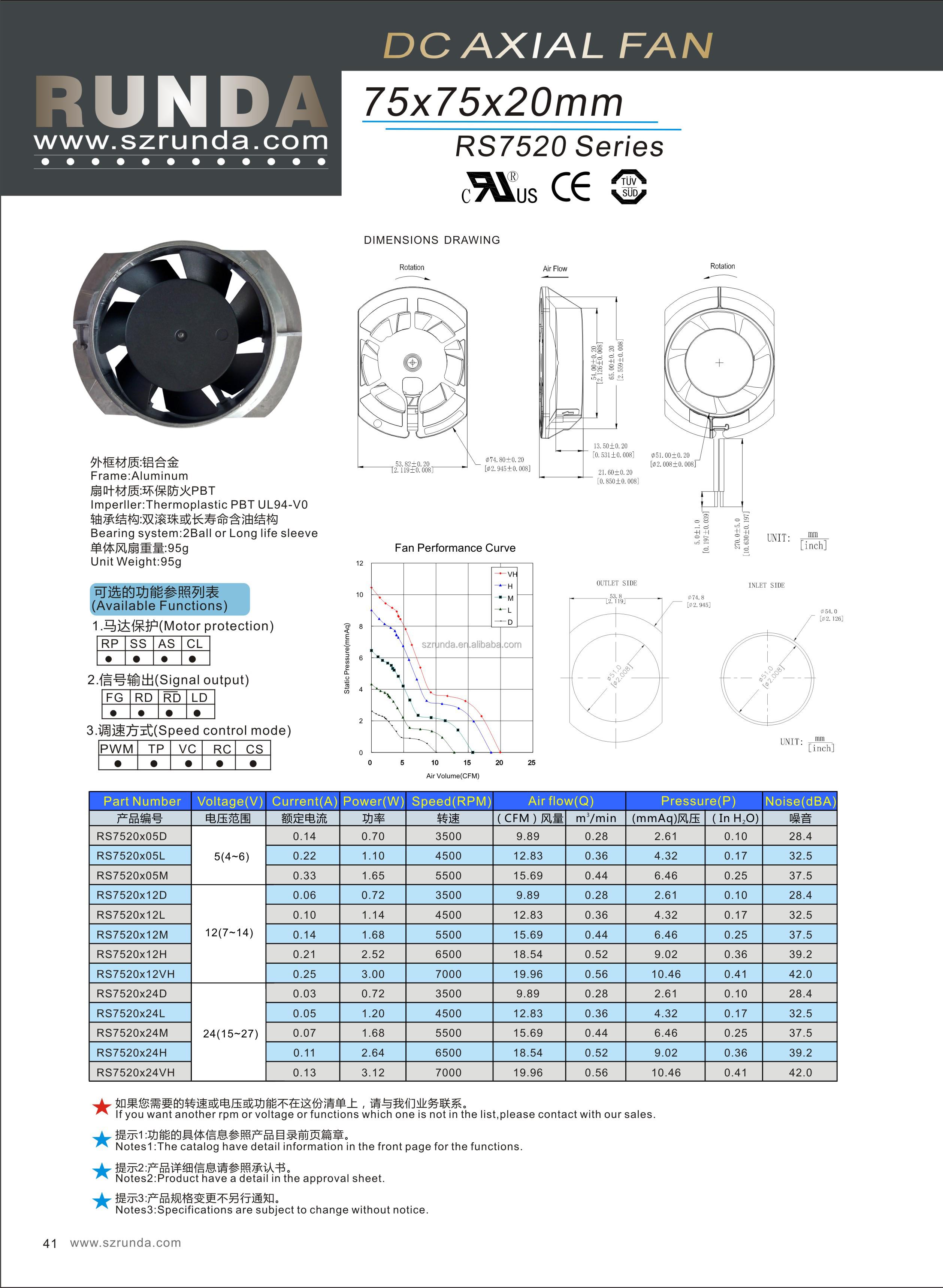

Specification
Runda RS7520 Series DC Axial cooling fan
| Size: | 75x75x20mm |
| Material: |
Thermoplastic PBT UL94-V0 |
| Bearing: |
2 balls, hydraulic, sleeve |
| Rated voltage: |
DC 5V, 12V, 24V |
| Rated current: | 0.03-0.33A |
| Speed: | 3500-7000RPM |
| Airflow: | 9.89-19.96CFM |
| Air pressure: | 2.61-10.46mmAq |
| Noise: | 28.4-42.0dBA |
| Available functions: |
RP, SS, AS, CL, FG, RD, LD, PWM, TP, VC, RC, CS |
| Lifespan: | 30000-100000 hours, depend on bearing type |
| IP grade: | IP54/IP55/IP67/IP68 |
|
Operating temperature: |
-10~+70℃ |
| Unit weight: | 95g |
| Certifications: |
CE, TUV, UL, ROHS and REACH |
If you want another RPM or Voltage or functions which one is not in the list, please contact with our sales.
Company Profile
RUNDA is located in Dongguan City, only 20 minutes to Shenzhen and Guangzhou City by car, we mainly specialized in DC, AC, EC axial fans, blowers and centrifugal fans used in industrial fields for more than 20 years. We have 10 production lines and more than 300 employees now, our daily production capacity is 60,000pcs at most. The main applications are communication equipment, home appliances, VMIC, car, advanced PC, Medical equipments.
RUNDA have quality management system ISO9001:2015, ISO14001:2016 and IAFT16949:2016. Our products have UL, TUV, CE, RoHS and REACH approved.

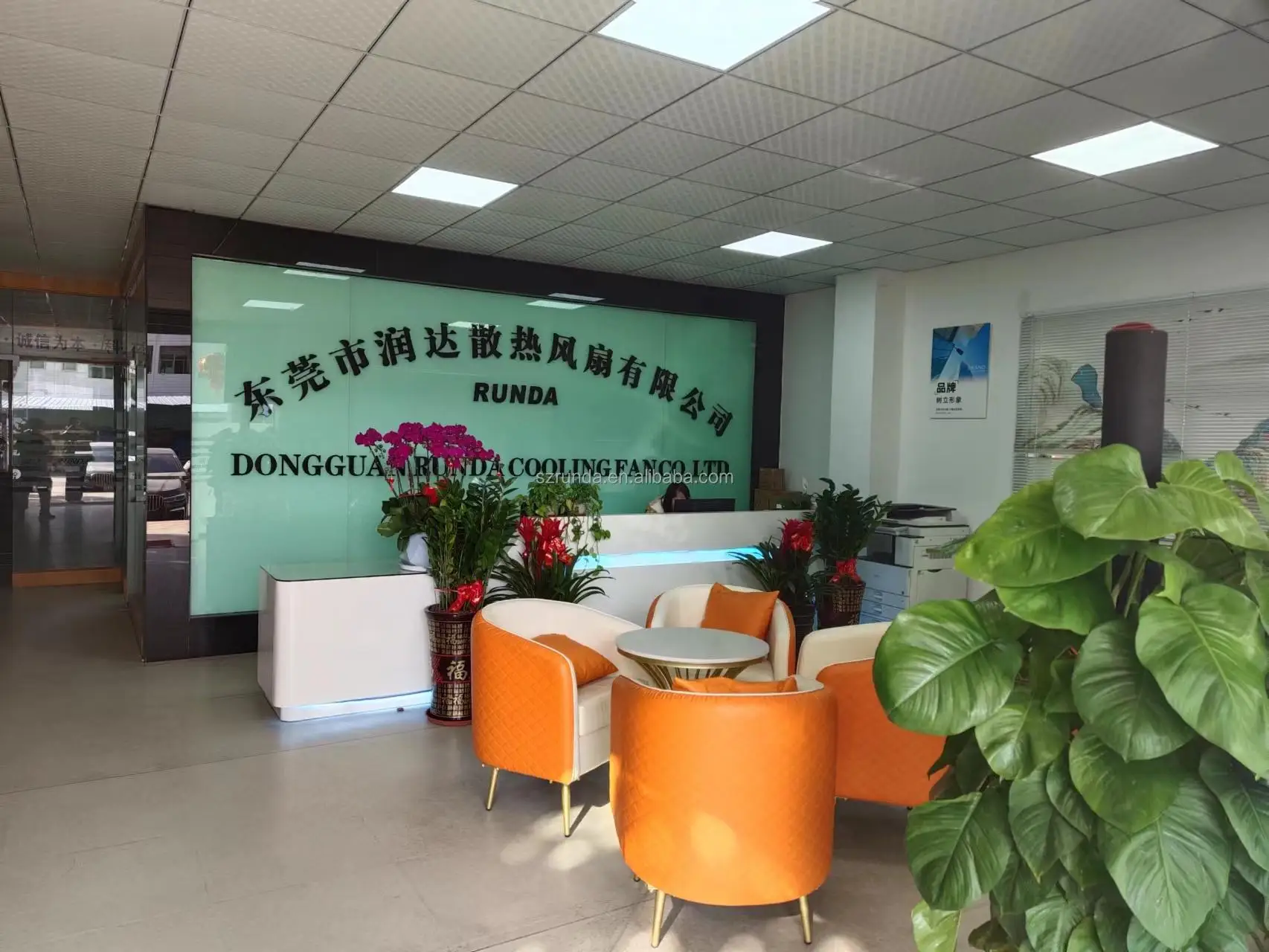

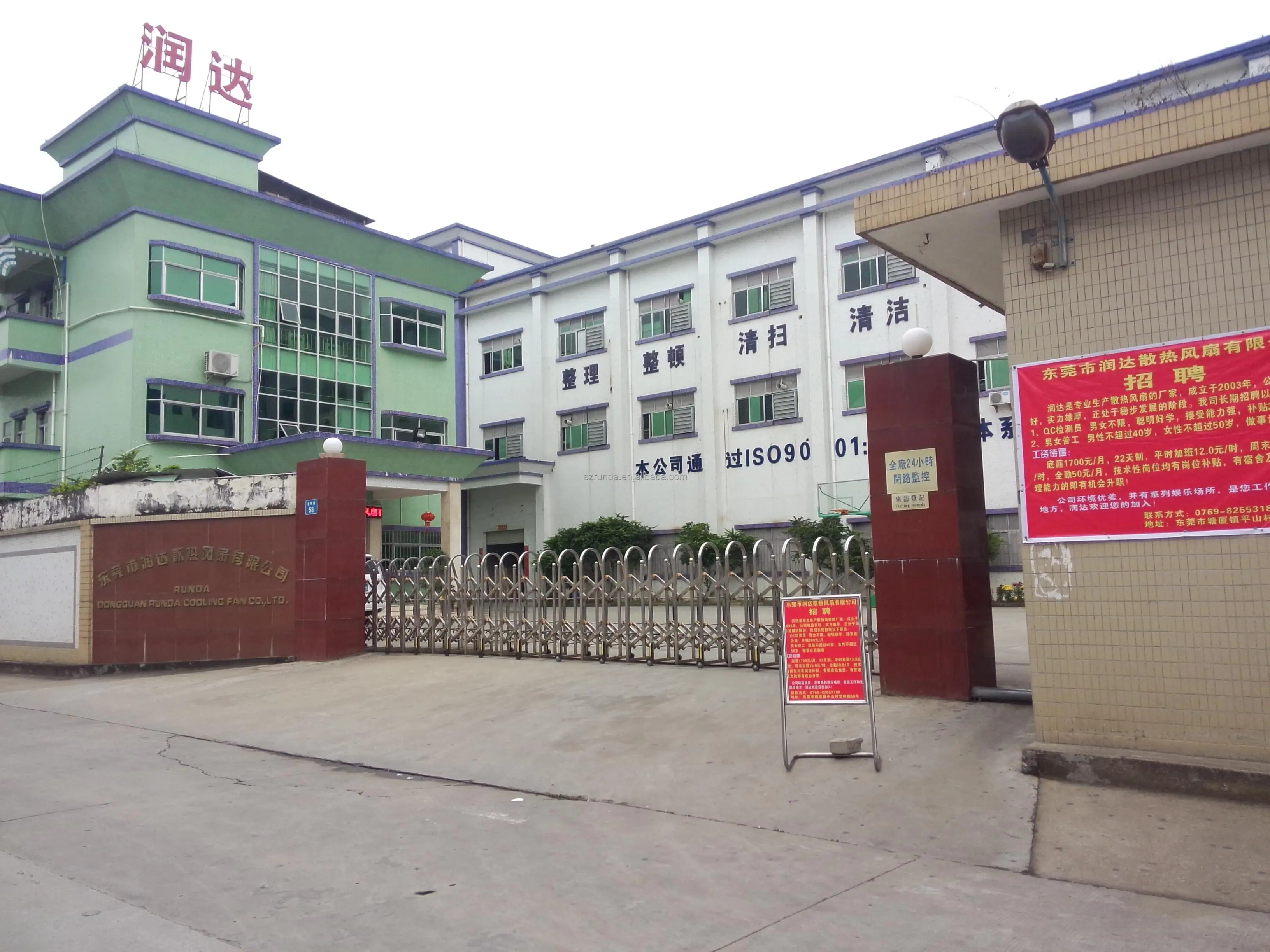

Factory Overviews

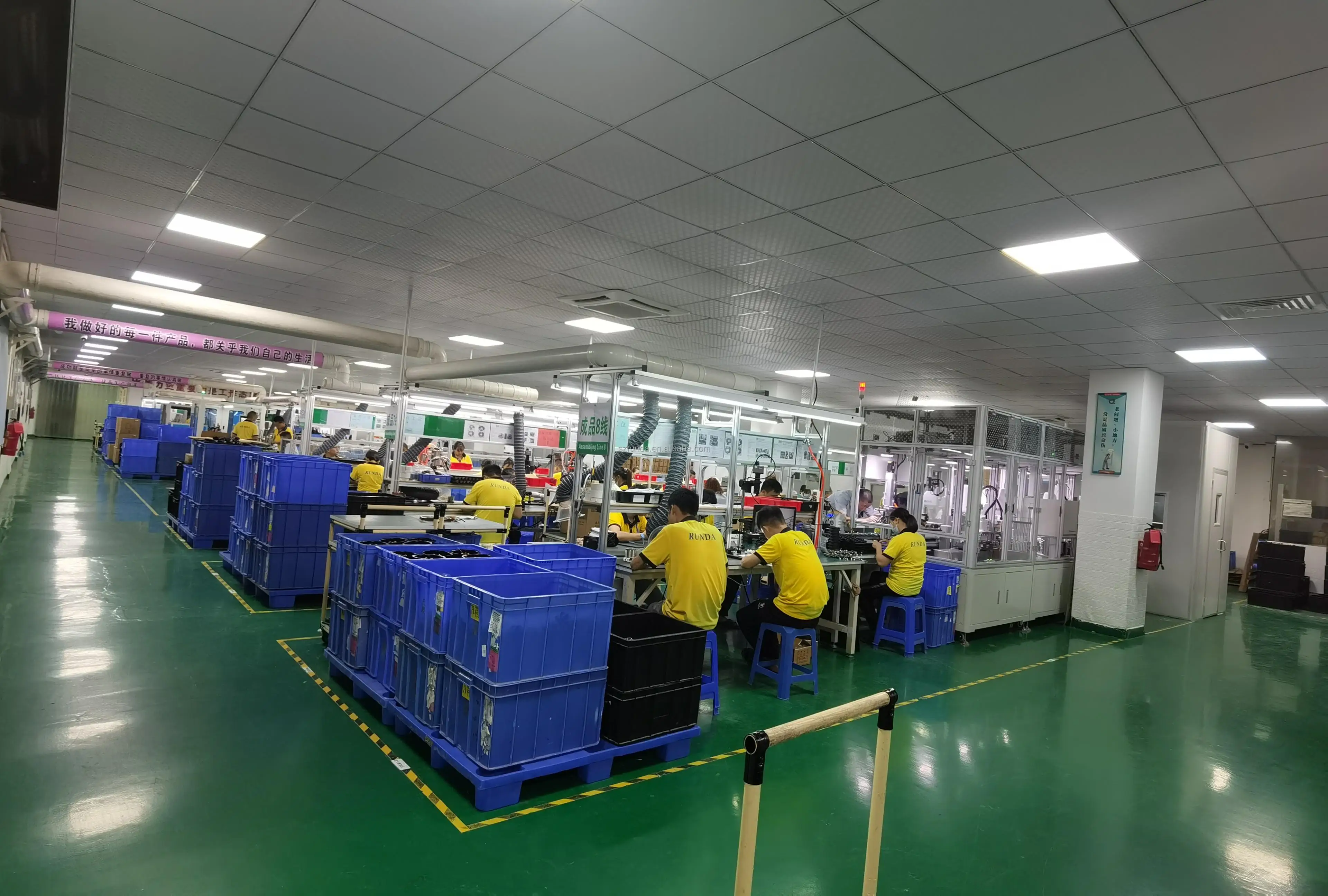

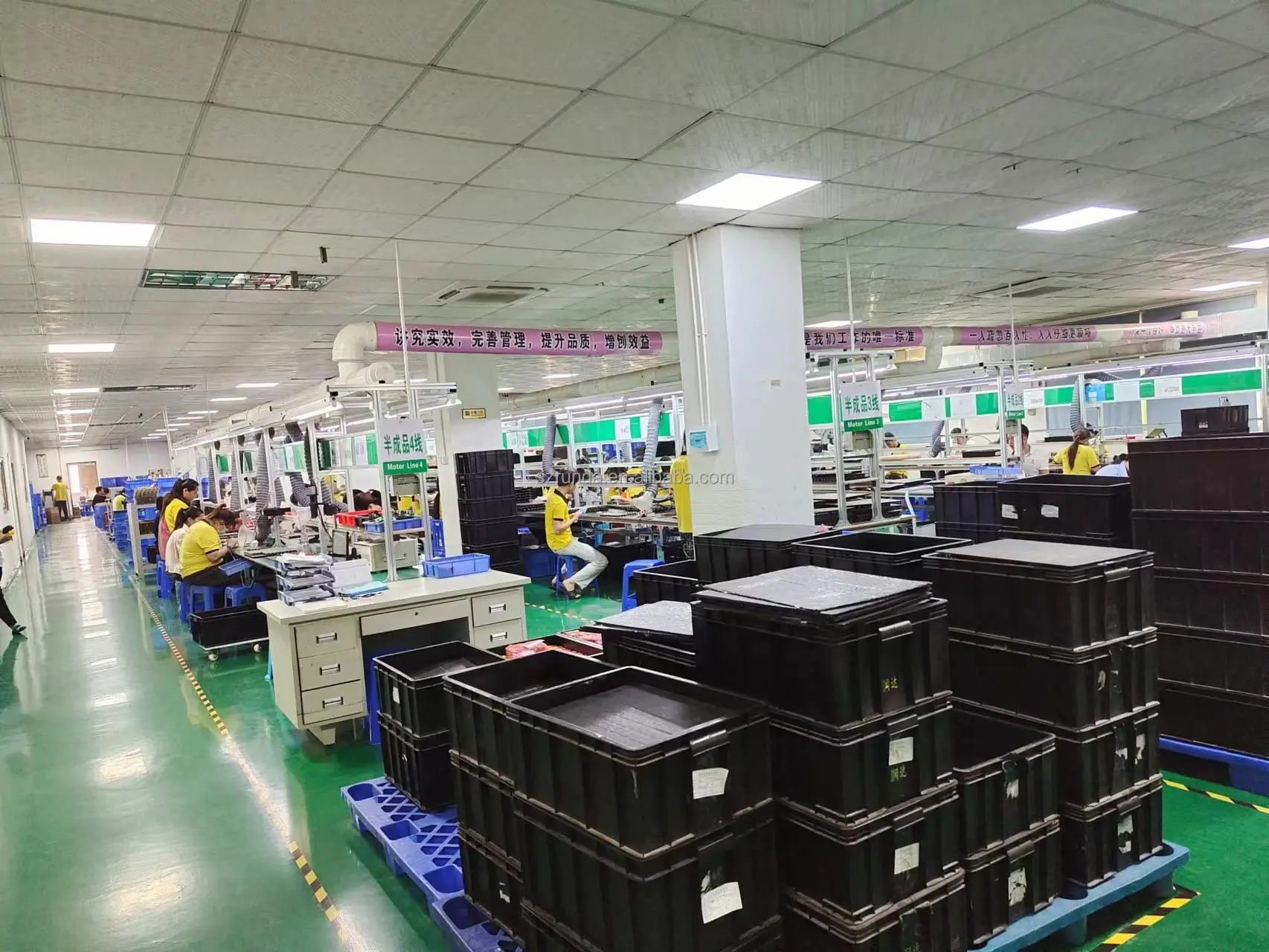

Workshops

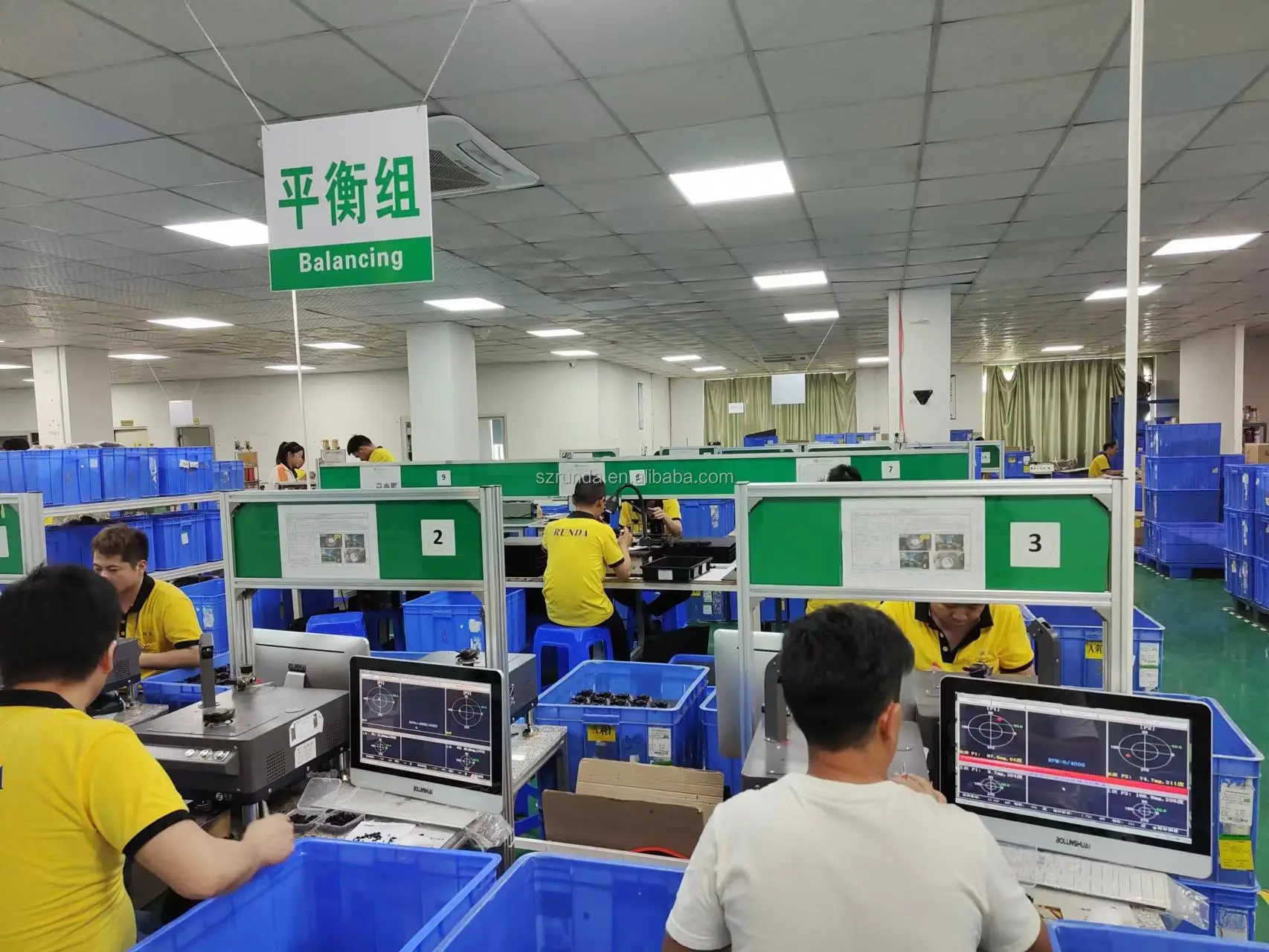

Balance checking

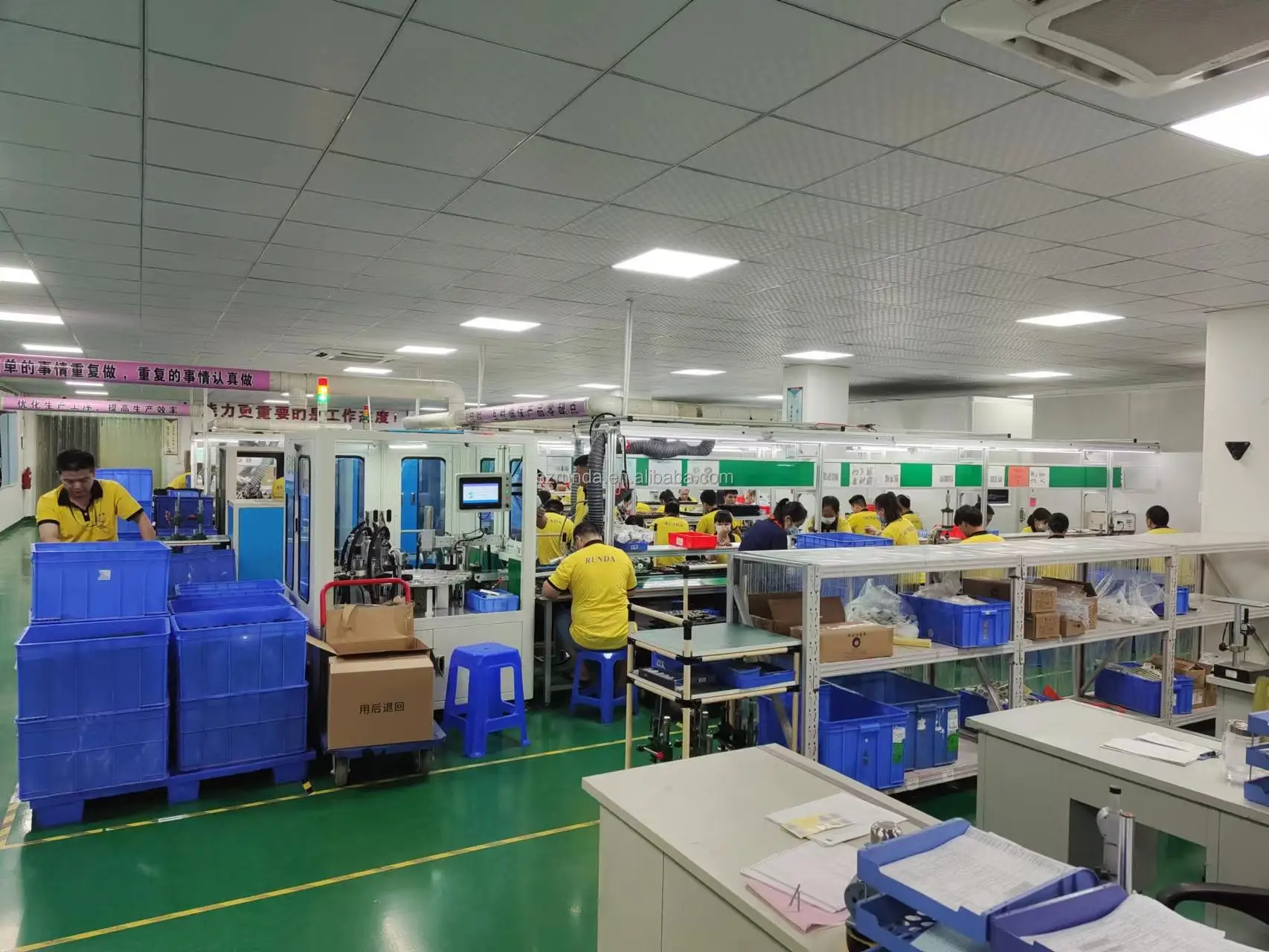

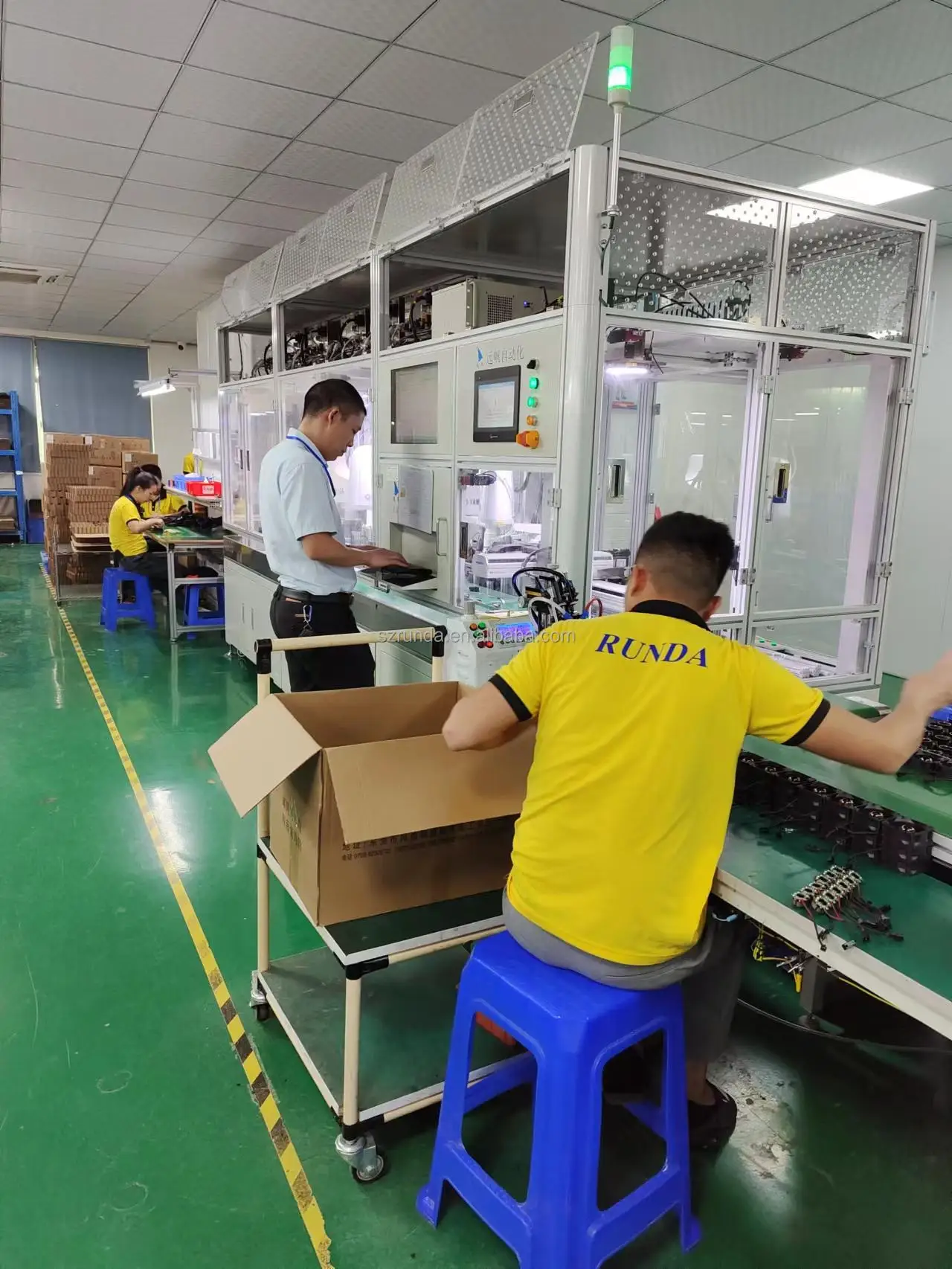

Automation assemble lines

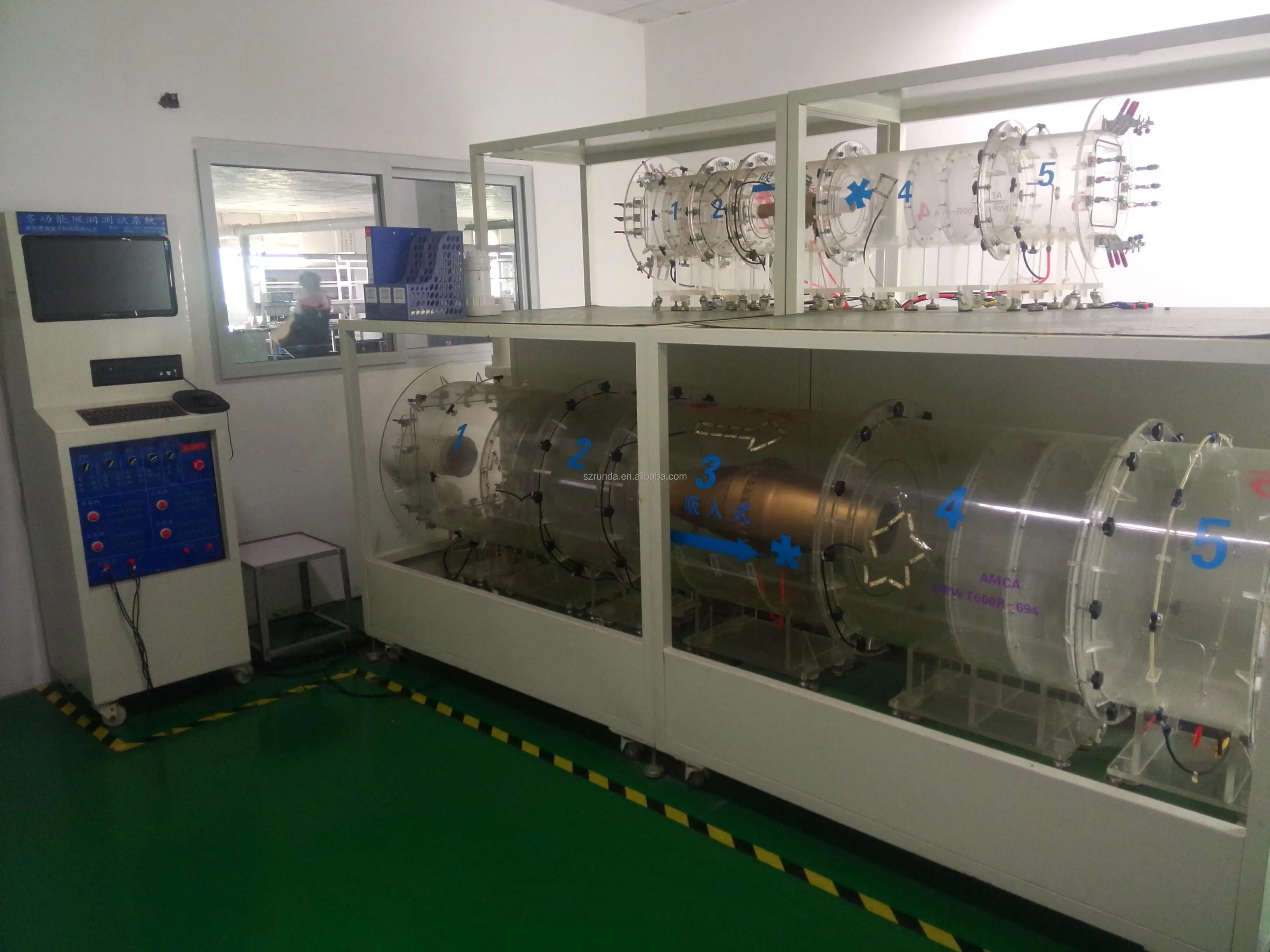

Wind tunnel

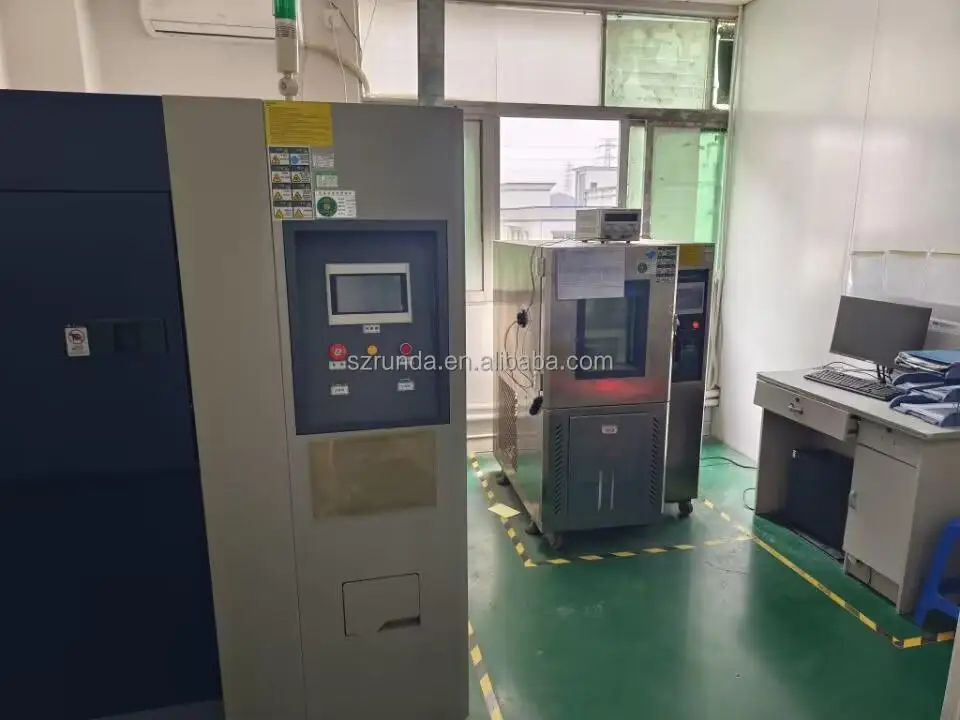

High-low temperature testing

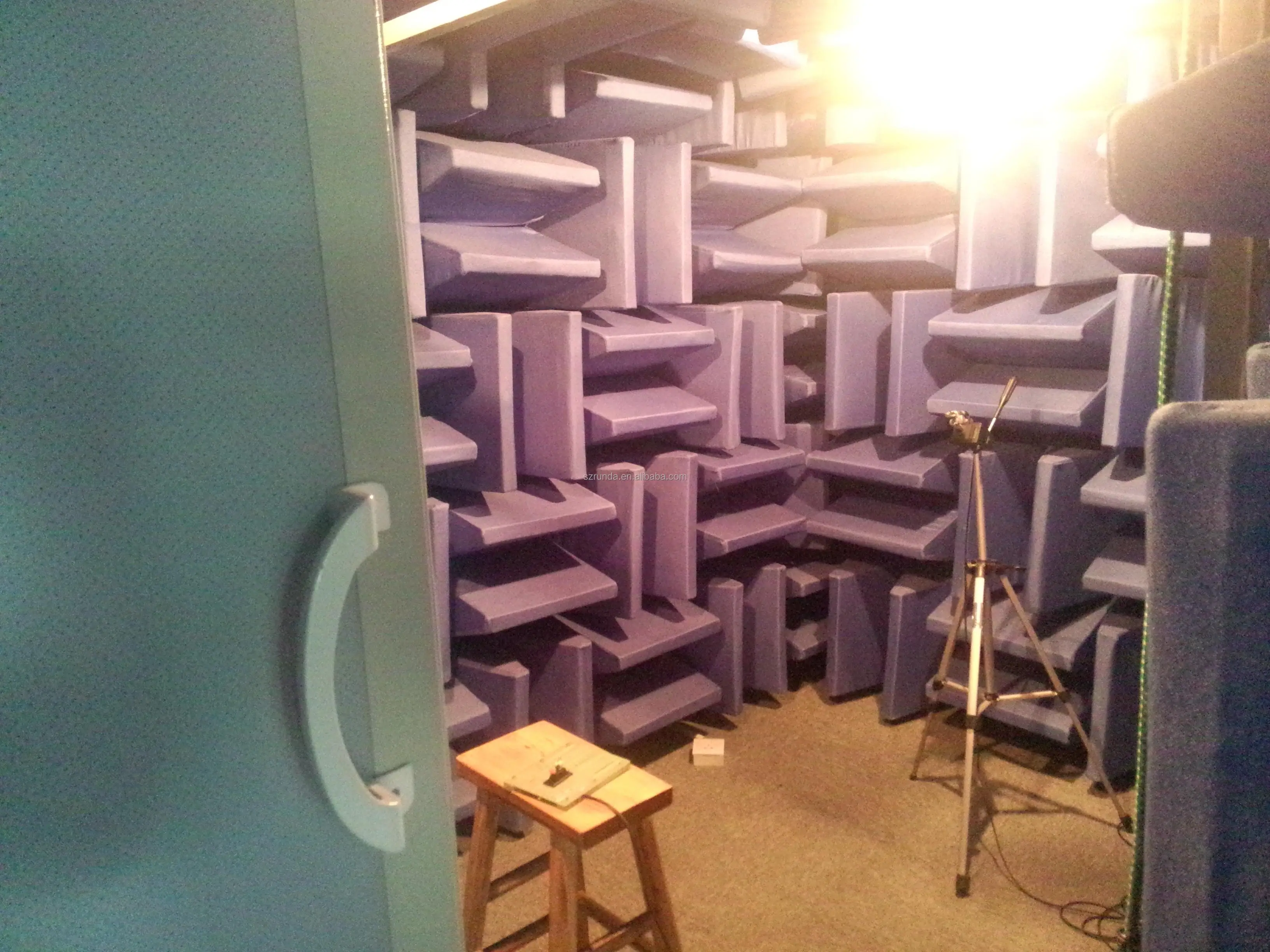

3D noise testing room

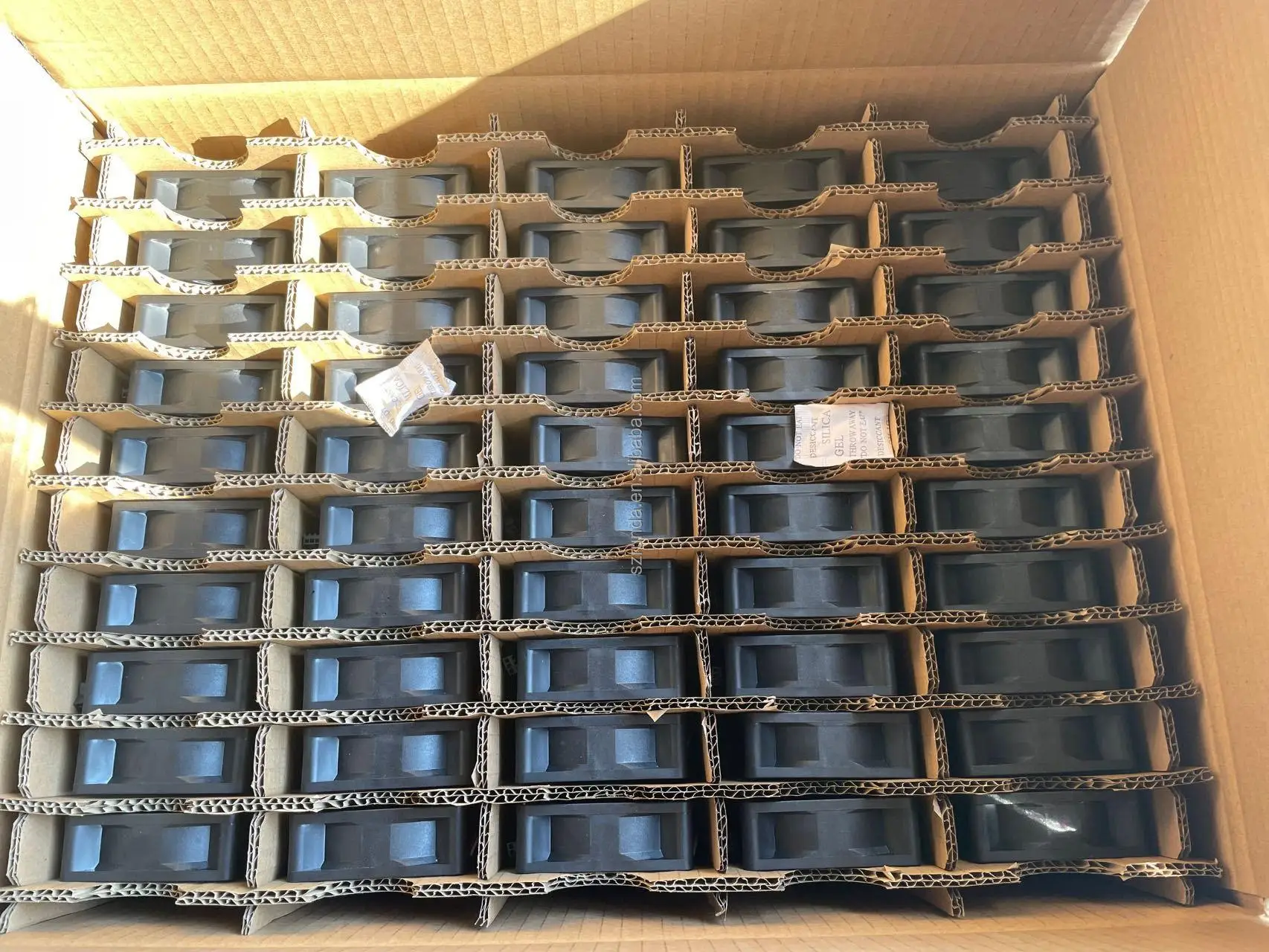

Product package

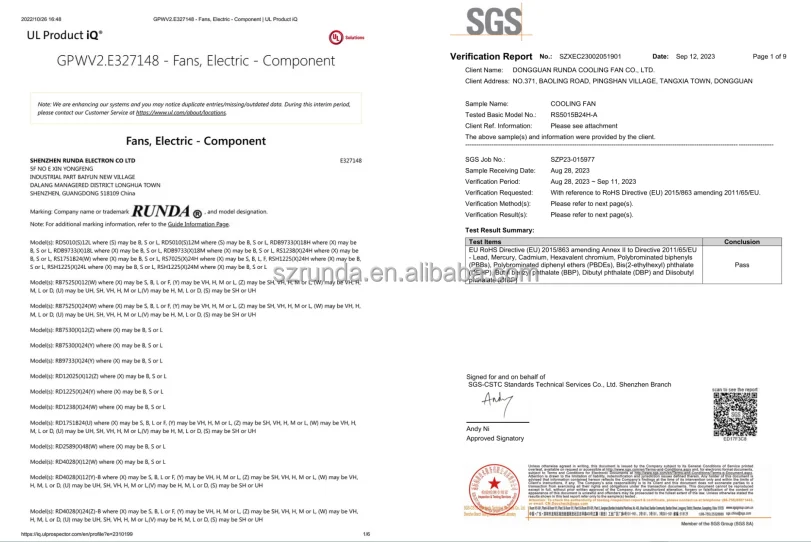

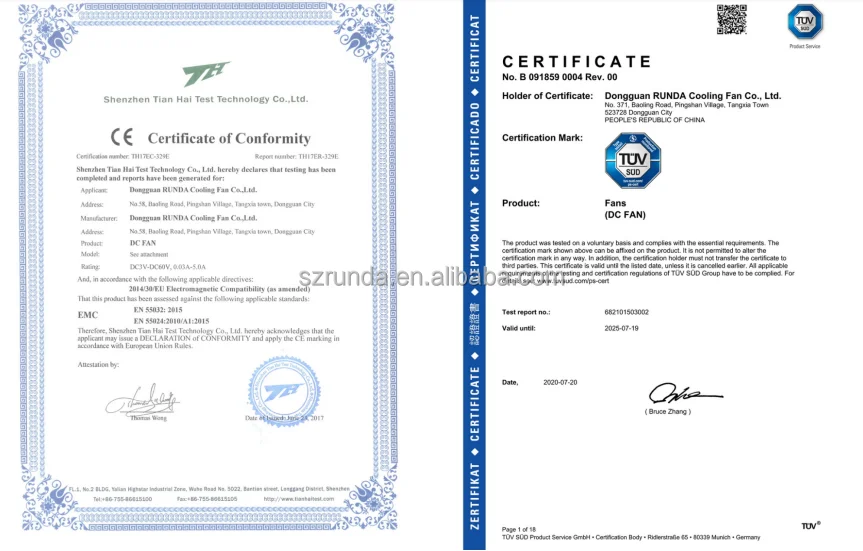

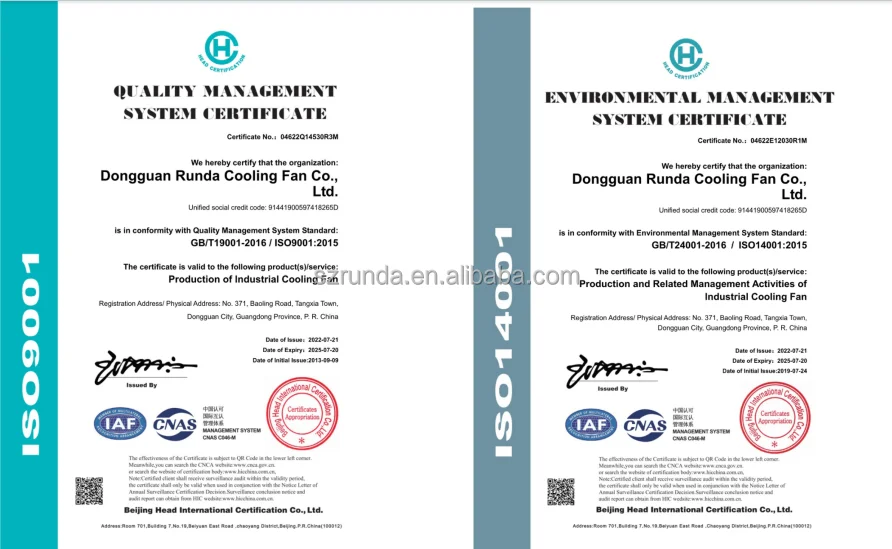

Product certifications
Overseas fairs
Our main customers
Frequently Asked Questions
What is the minimum order quantity for this dc cooling fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Can it be built for my local voltage?
The standard specification is 5V, 12V, 24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
