This smart air conditioner is published with the manufacturer’s full specification — voltage 220, capacity ＞12001. Made by Tongxing Air Conditioning Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Smart Air Conditioner
- Power Type: AC
- Power Source: Electric
- Power (W): 500
- Power Supply: 220-240V/1Ph/50Hz
- Voltage (V): 220
- Capacity (Btu): ＞12001
Technical Specifications
| Type | Split Wall Mounted Air Conditioners |
|---|---|
| Capacity (Btu) | ＞12001 |
| Cooling/Heating | Cooling Only |
| Application | Commercial, Hotel, Household |
| EER | 2-4 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Power Type | AC |
| Power Source | Electric |
| App-Controlled | Yes |
| Remote Control | Yes |
| Power (W) | 500 |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Private Mold | No |
| Place Of Origin | Guangdong, China |
| Recommended Room Size（Square Feet） | 215 |
| Voltage (V) | 220 |
| Brand Name | TX |
| Maximum Airflow Rate | 750 |
| Product Name | Wall Split Air Conditioner |
| Cooling Capacity | 9000btu 12000btu 18000btu 20000btu 24000btu |
| Function | Cooling Air |
| Refrigerant | R-410A |
| Feature | Inverter |
| Power Supply | 220-240V/1Ph/50Hz |
| Color | Black |
| Control | Remote + Wifi Optional |
| Low Noise | 19dB |
| Net Weight | 45kg |
| Packaging Details | Export worthy package suitable for air,sea,railway, truck transportation indoor units: carton Outdoor unit: strech film + carton |
| Port Of Dispatch | FoShan, GuangDong port ,china |
| Selling Units | Single item |
| Supply Ability | 10000 sets per Month |
Product Details
Product Description

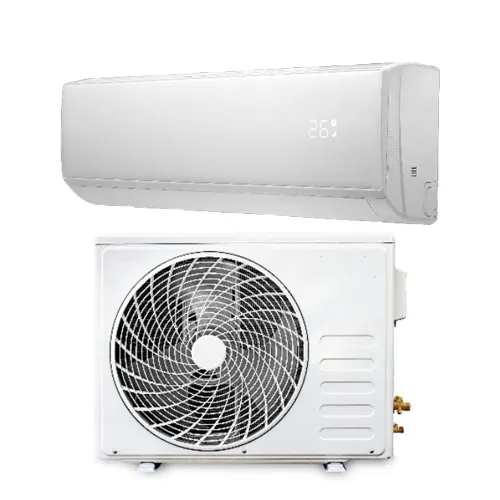

12000btu 18000btu smart air conditioner inverter cooling air conditioner with Wi-FI
air conditioner home use
Main features

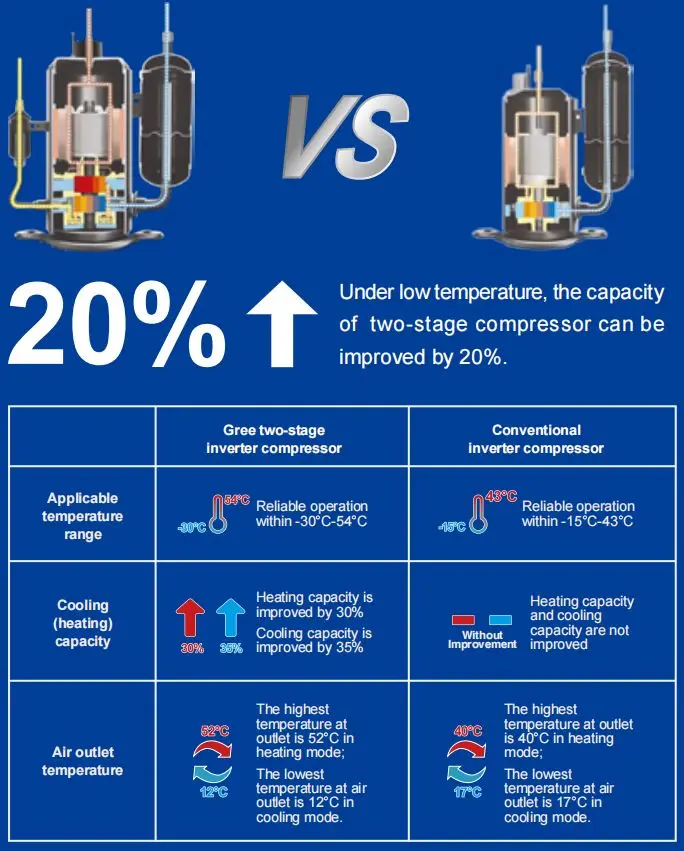

1.DC Inverter Technology/Two-stage Compressor
2.High Efficiency&Energy-Saving

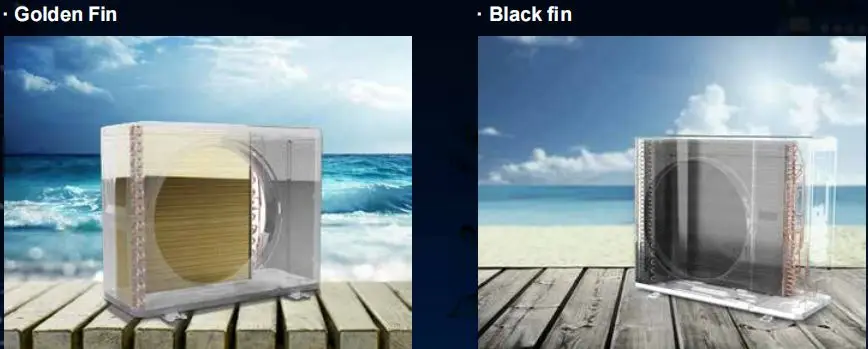

3.Anti-corrosive fin
For some humid or coastal areas, Gree air conditioner adopts special anti-corrosive aluminum foil with corrosion resistance and acid resistance, which has longer service life.

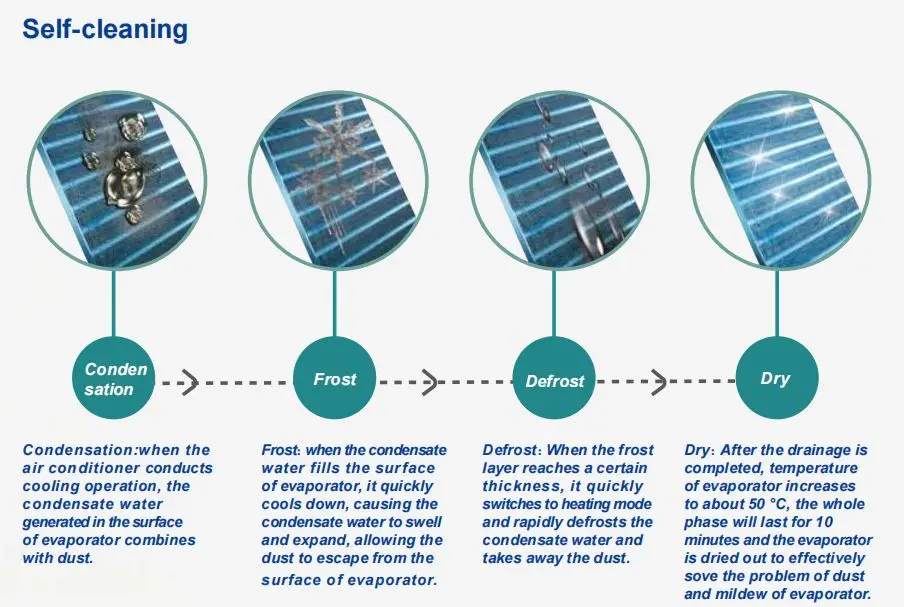

4. Self-cleaning
5.Continuous cooling without attenuation under 54℃ working temperature
6. Multifunctional filter
With multifunctional filter for fresher air supply.
Other features

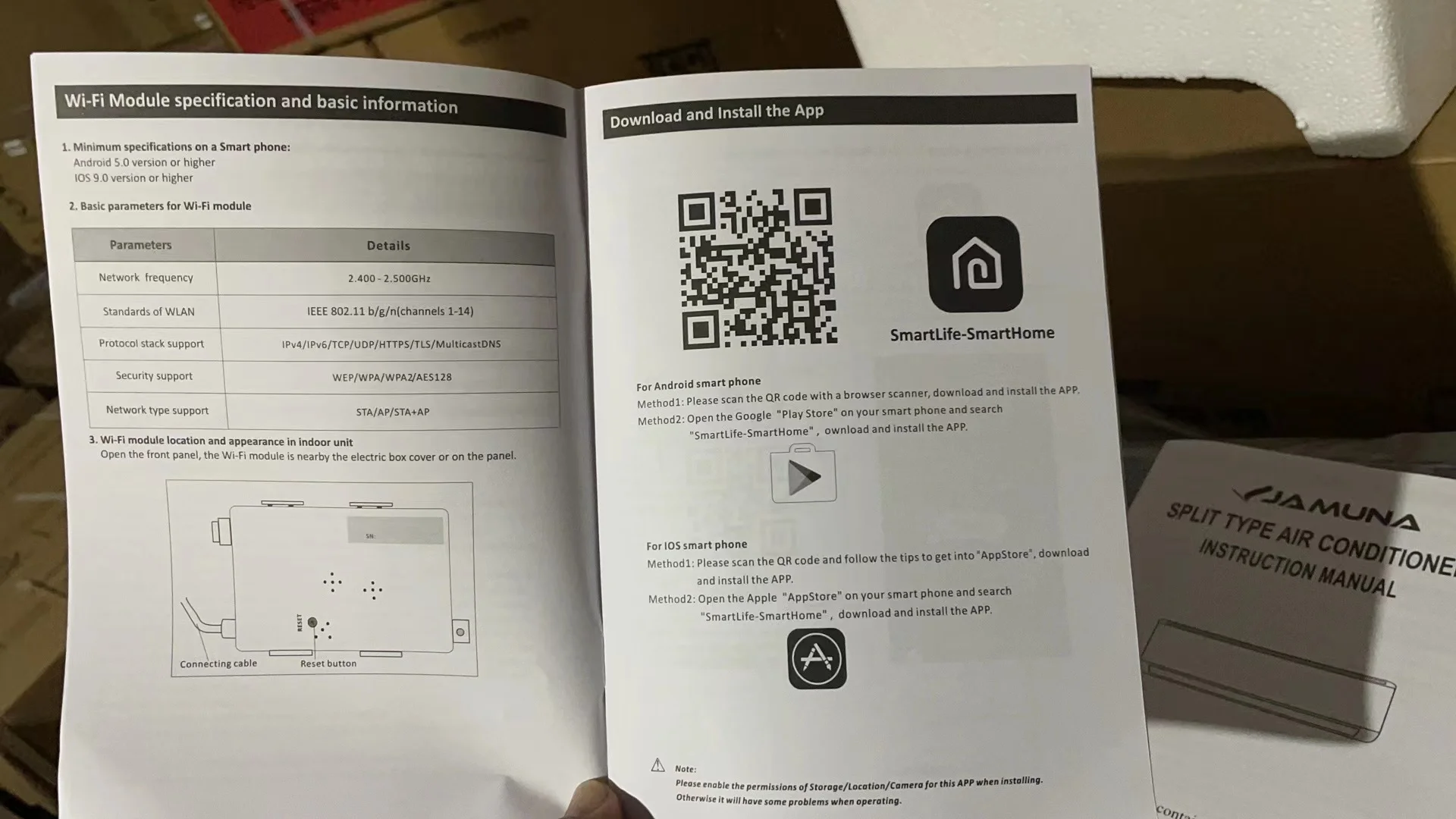

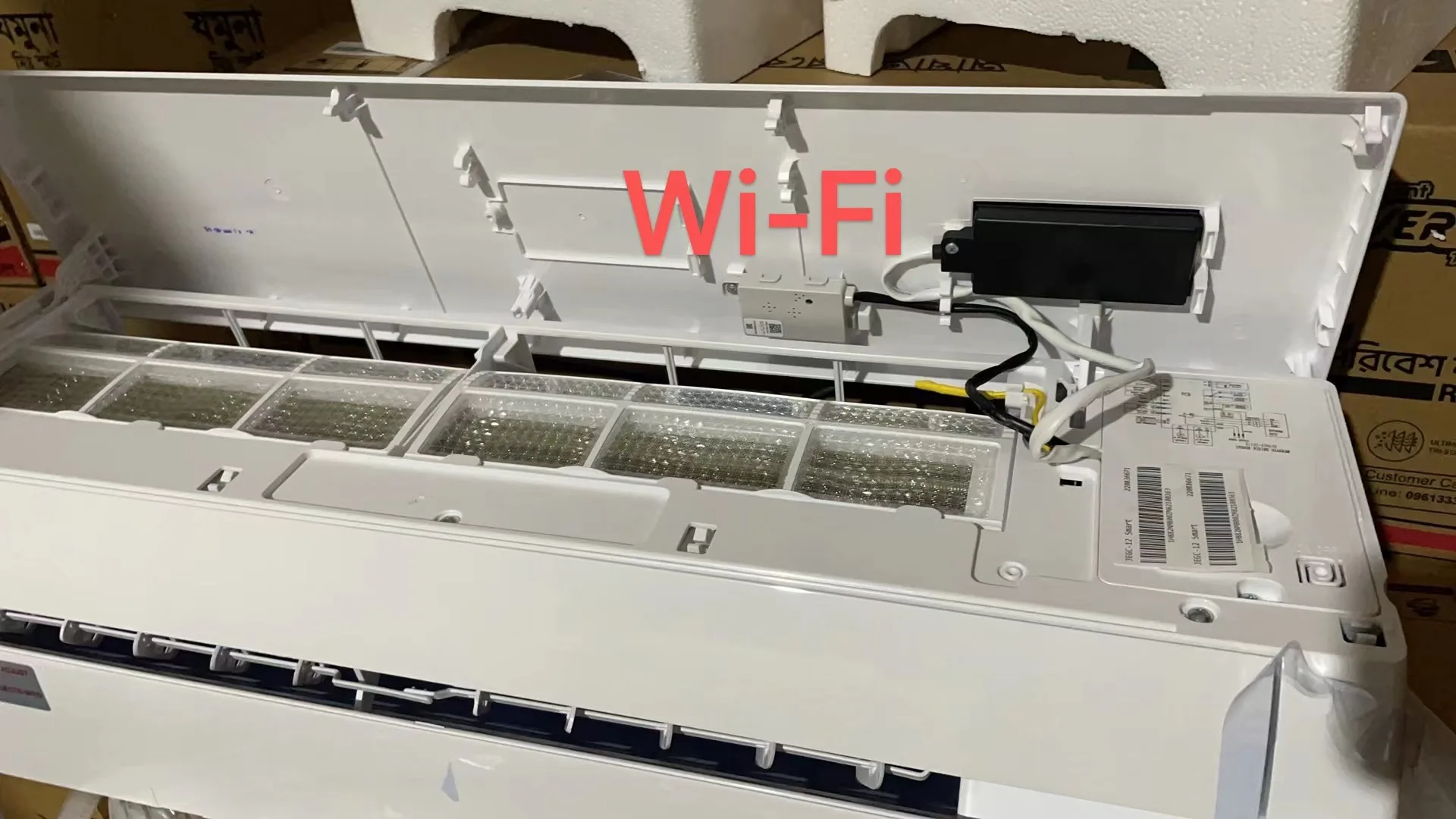

WiFi control
Turbo cooling Super low noise Washable filter Auto diagnosis Sleep mode L.E.D display 24-hopur timer 4-way air outlet Removable&Washable panel 180V(220V) or 99V(110V) low voltage start up Automatic clean and dry Number of speed control(ex:Auto,1,2,3) Number of working mode(ex:Cool/Heat/Smart/Fan/Dehumidify=5modes) Formaldehyde prevention Filter
Optional features
Heating and cooling Silver ion filter Healthy Negative ion Active charcoal Filter Auto restart Anti cold air preventive function

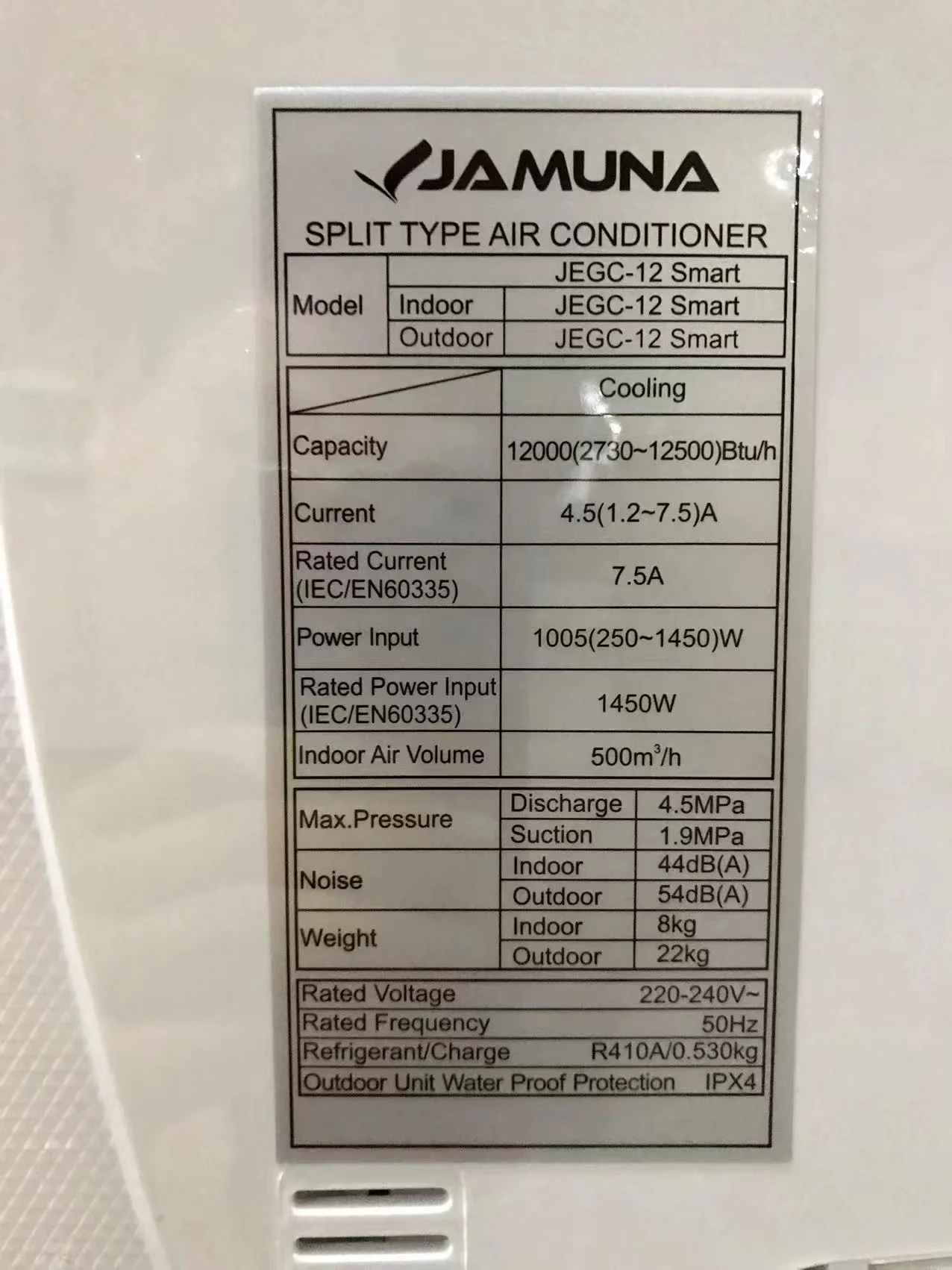

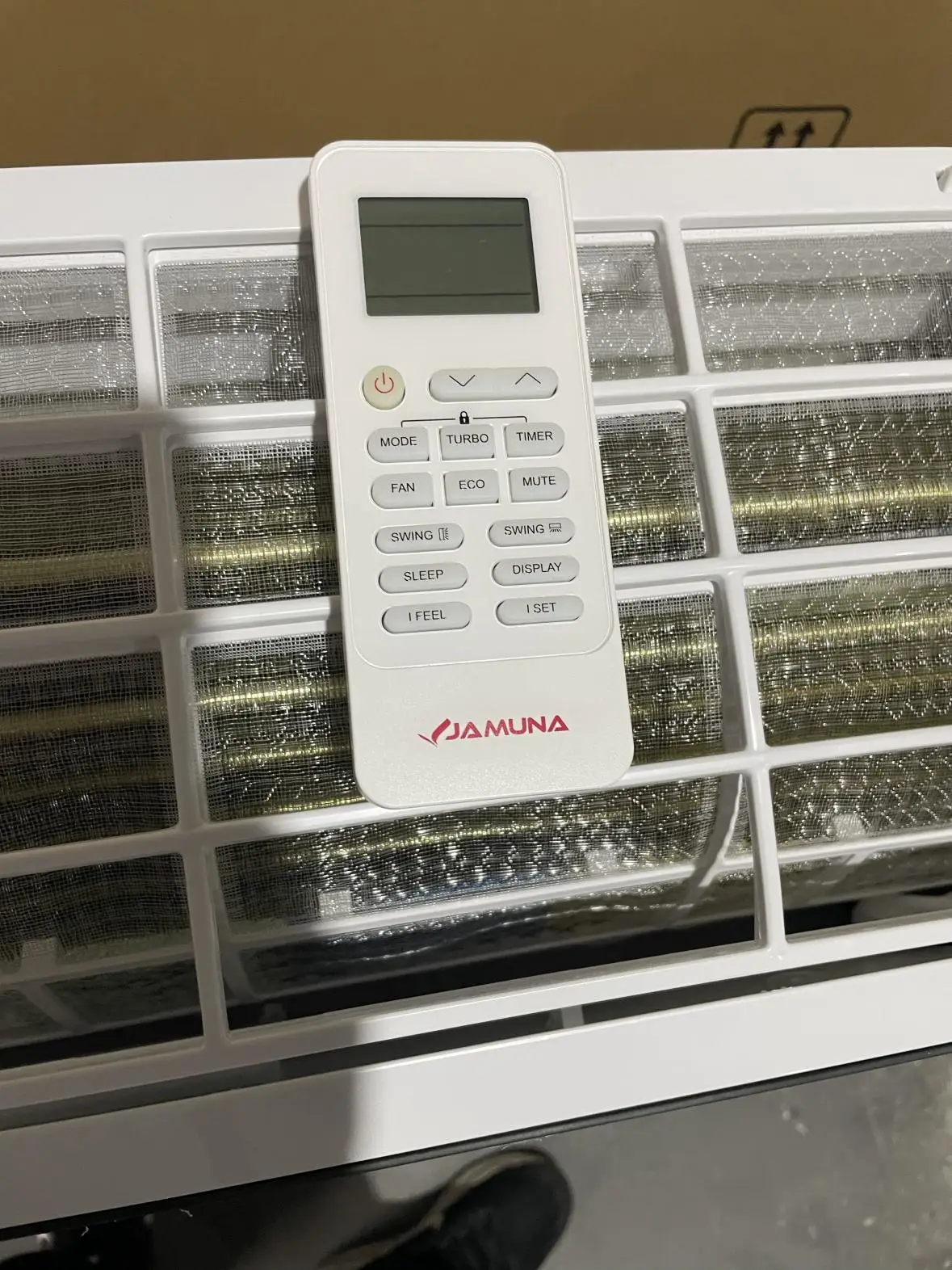

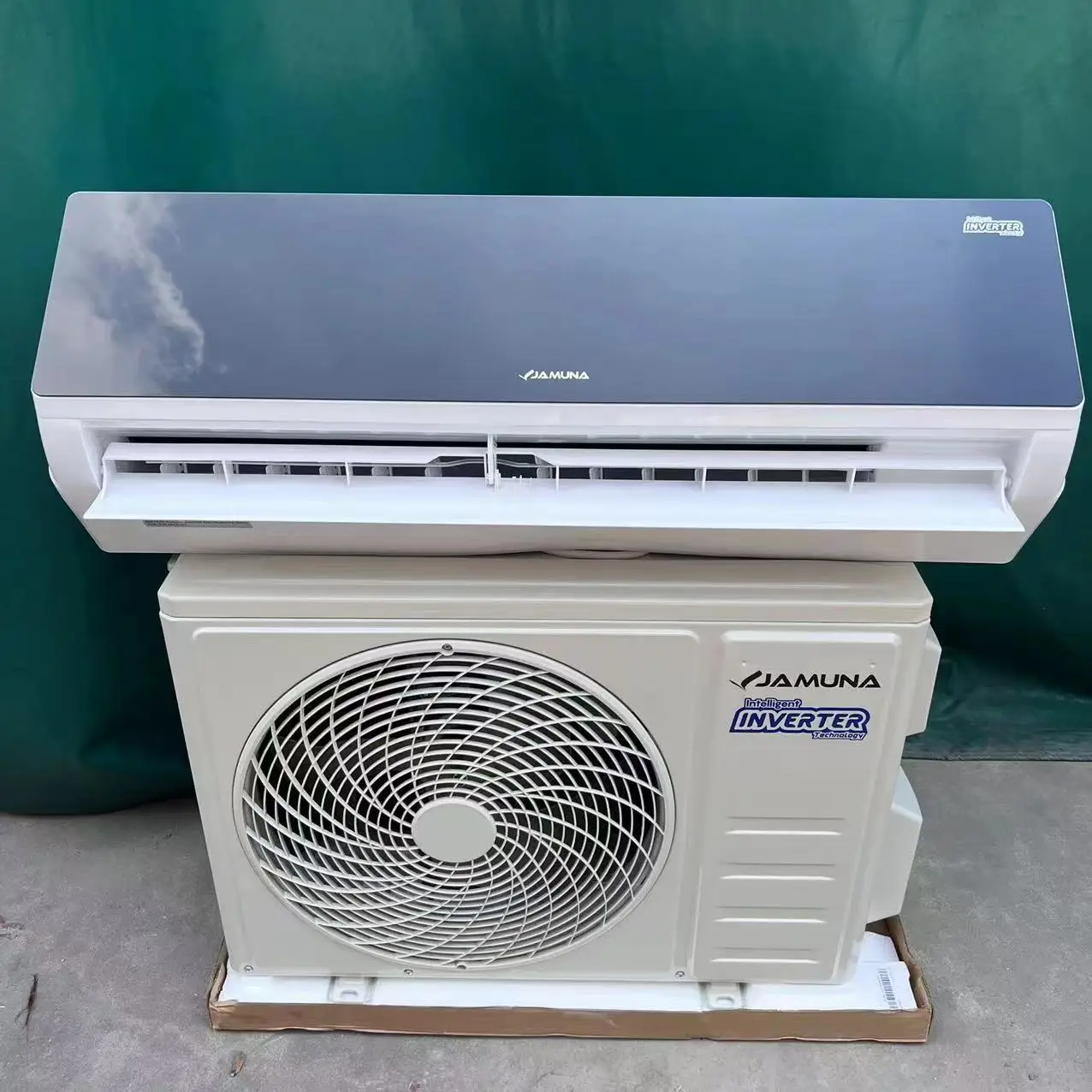

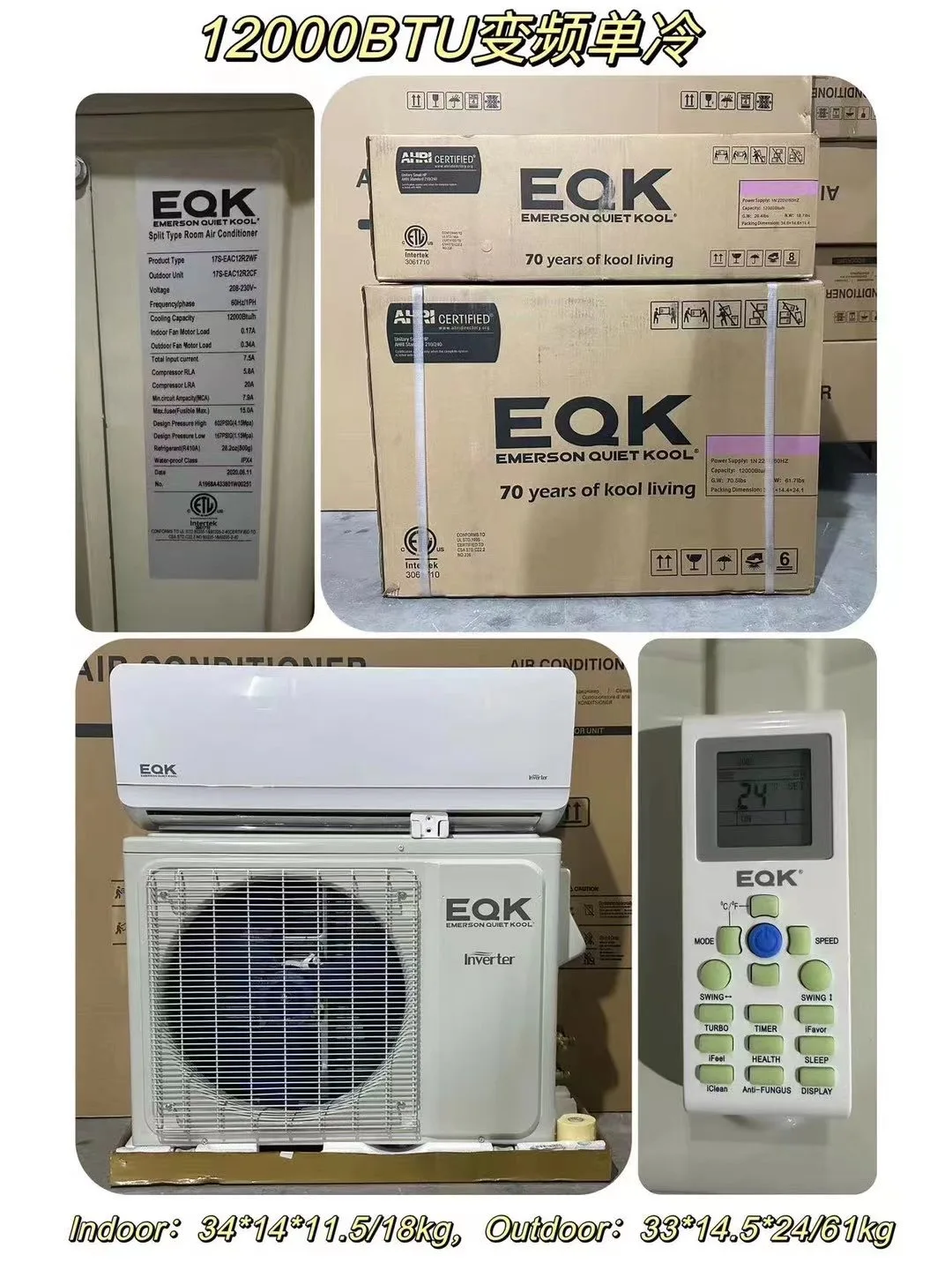

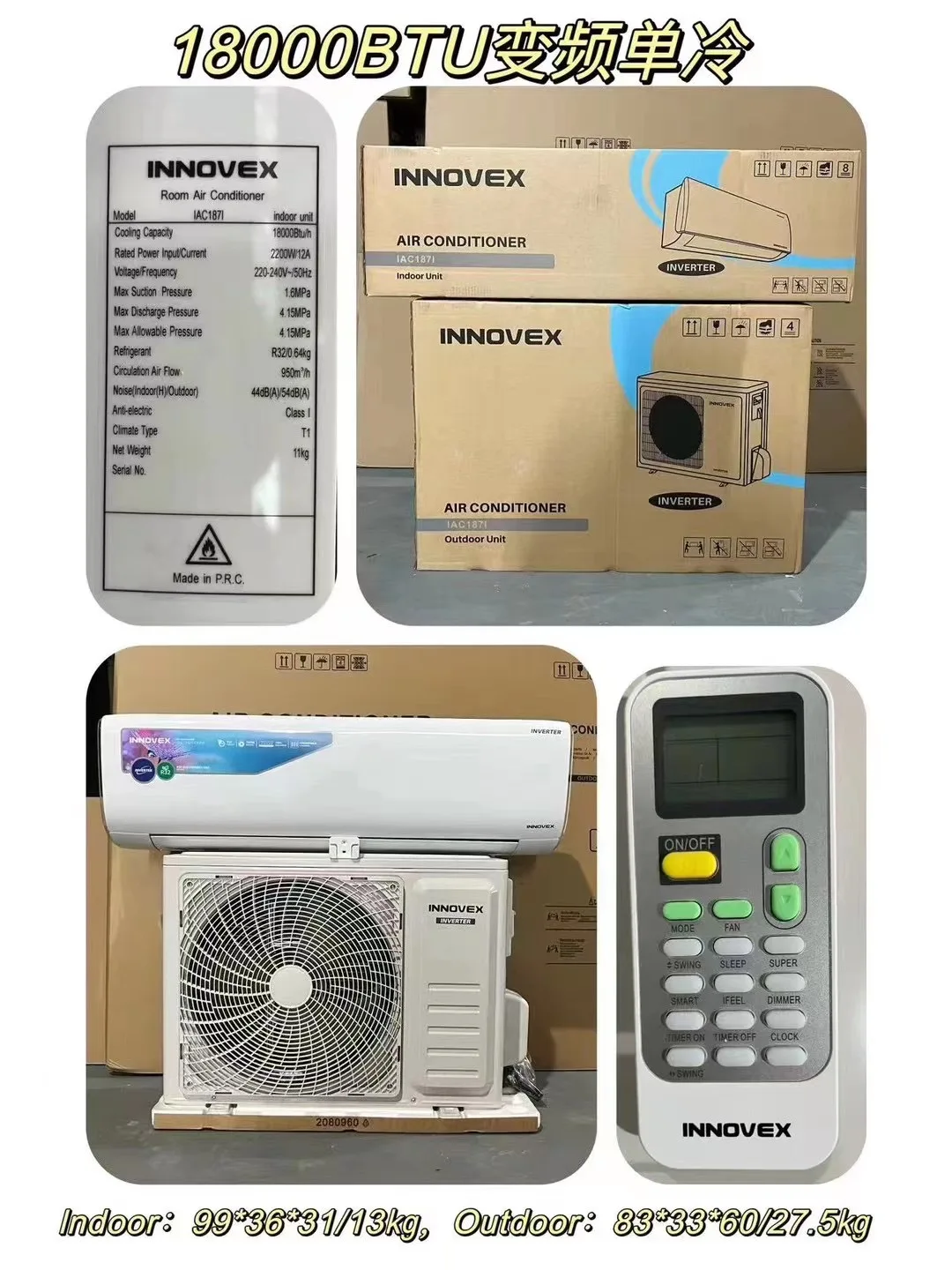

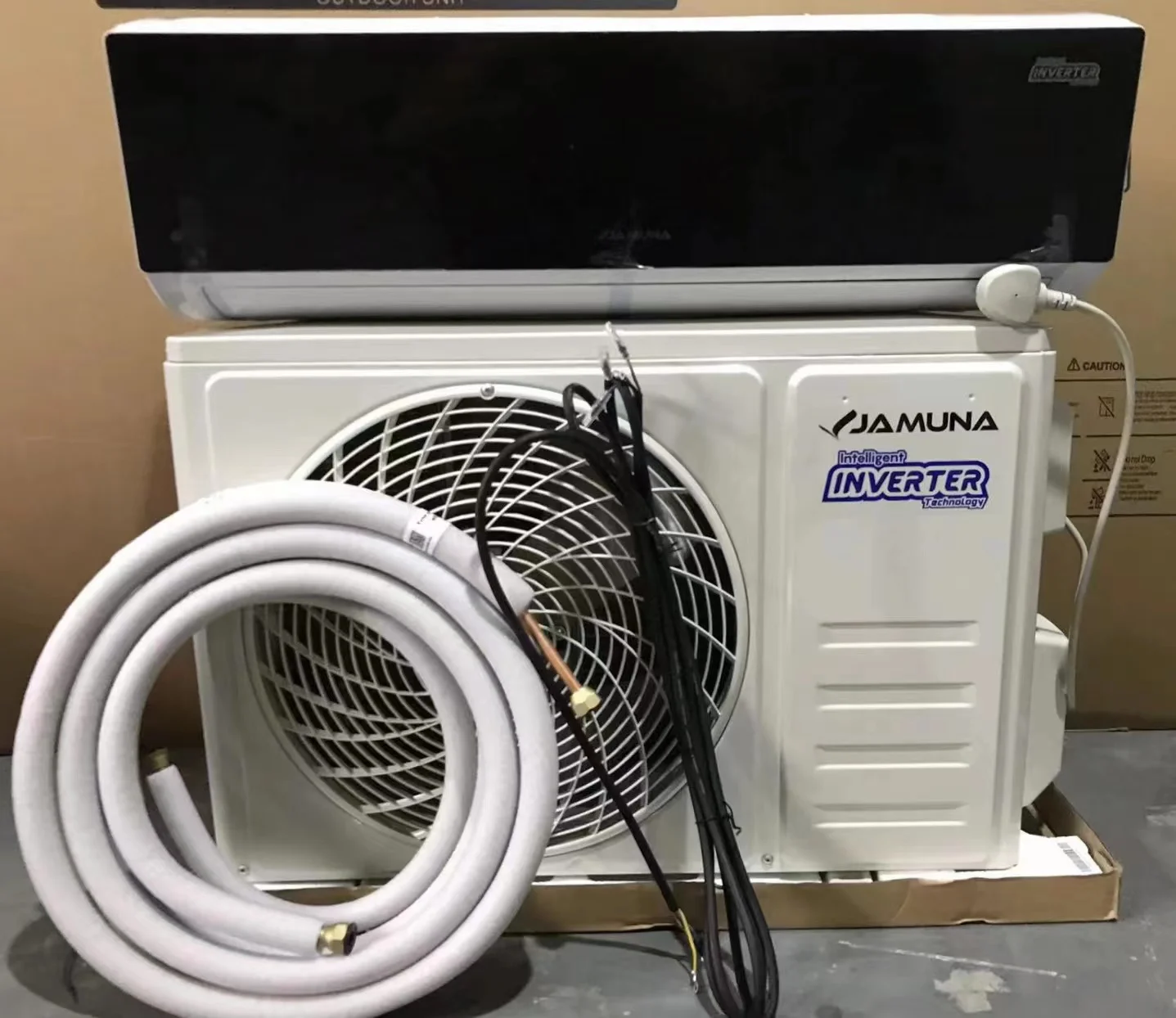

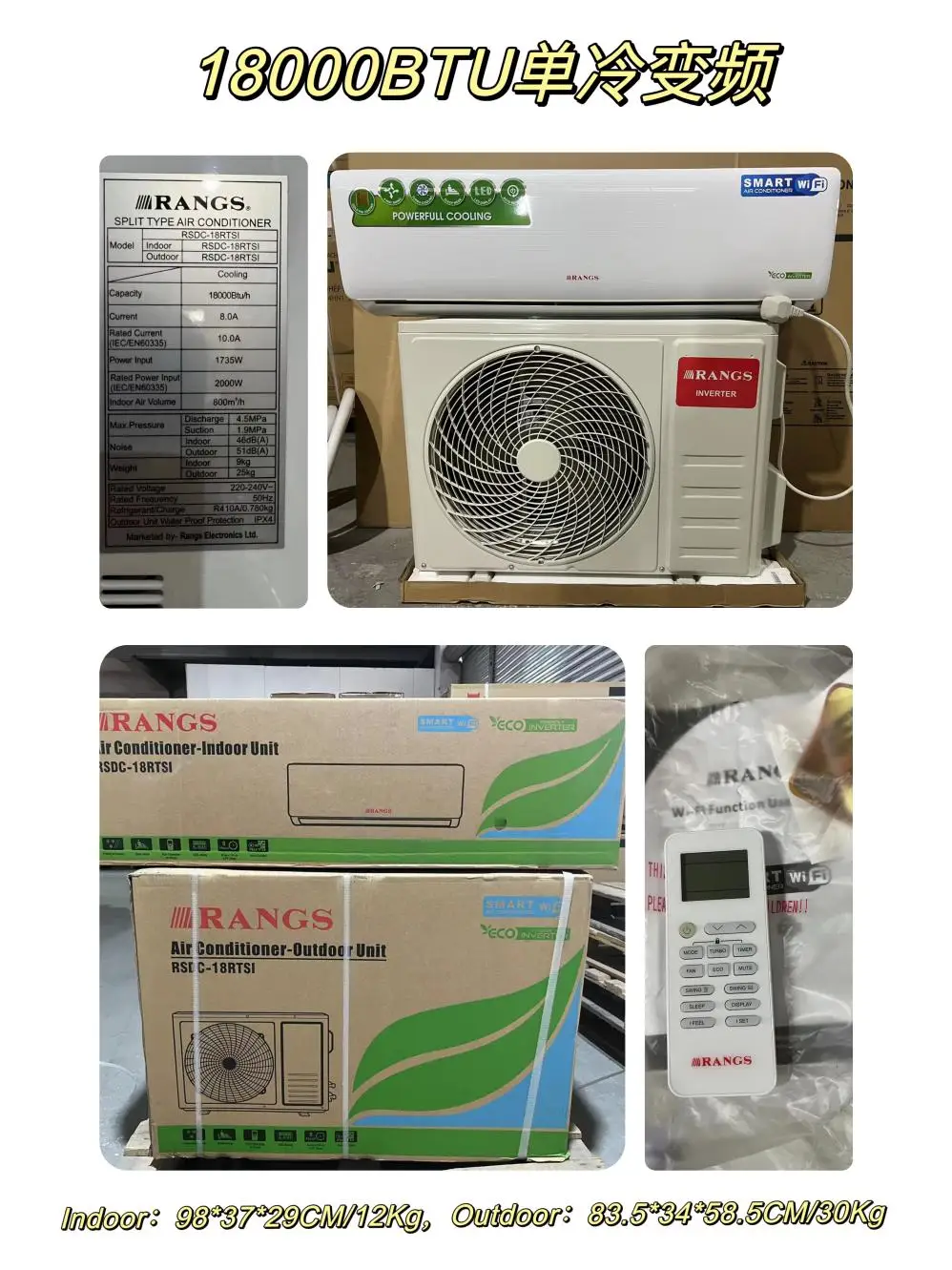

Detailed real pictures
Prices are for reference only
Different model with difference price, please advise us the capacity and which country it will be used to get accurate price.
Specification
Split Air Conditioner/Air Conditioner Split Type/inverter air conditioner | ||||||||||||||
Function | Cooling Heating | Cooling Heating | Cooling Heating | Cooling Heating | ||||||||||
Horsepower | P | 1 | 1.5 | 2 | 3 | |||||||||
Ton | 0.8 | 1 | 1.5 | 2 | ||||||||||
Capacity | Cooling | BTU/h | 9000 | 12000 | 18000 | 24000 | ||||||||
Heating | BTU/h | 9500 | 12500 | 18500 | 24500 | |||||||||
EER/COP | W/W | 3.6 | 3.4 | 3.5 | 3.3 | |||||||||
Power Supply | ph,V,Hz | 1ph,220V-240V,50hz | 1ph,220V-240V,50hz | 1ph,220V-240V,50hz | 1ph,220V-240V,50hz | |||||||||
Power Input | Cooling | W | 825 | 1180 | 1660 | 2240 | ||||||||
Heating | W | 780 | 1080 | 1540 | 1860 | |||||||||
Current Input | Cooling | A | 4.2 | 5.9 | 7.8 | 9.8 | ||||||||
Rated Current | Heating | A | 5.9 | 7.9 | 12.3 | 13 | ||||||||
Refrigerant | R410A | R410A | R410A | R410A | ||||||||||
Indoor Unit | Airflow Volume | m³/h | 450 | 550 | 900 | 950 | ||||||||
Sound Pressure Level | dB(A) | 30-36 | 36-42 | 39-45 | 42-46 | |||||||||
Outline Dimension (W×H×D) | mm | 790×280×200 | 790×280×200 | 890×300×210 | 1020×320×260 | |||||||||
Pakage Dimension (W×H×D) | mm | 865×330×260 | 870×350×275 | 980×370×300 | 1100×390×320 | |||||||||
Gross Weight | kg | 9 | 11 | 13 | 14 | |||||||||
Outdoor Unit | Sound Pressure Level | dB(A) | 45 | 48 | 55 | 55 | ||||||||
Piping Connection | Gas | mm | φ9.52 | φ12.7 | φ12.7 | φ16 | ||||||||
Liquid | mm | φ6.35 | φ6.35 | φ6.35 | φ6.35 | |||||||||
Outline Dimension (W×H×D) | mm | 600×250×450 | 780×260×550 | 850×300×600 | 850×320×700 | |||||||||
Pakage Dimension (W×H×D) | mm | 760×350×550 | 860×350×600 | 950×400×680 | 990×400×690 | |||||||||
Gross Weight | kg | 29 | 35 | 43 | 54 | |||||||||
Loading Quantity | 40`GP | sets | 126 | 105 | 75 | 68 | ||||||||
40`HQ | sets | 308 | 258 | 185 | 165 | |||||||||
Packing & Delivery
Export worthy package suitable for air,sea,railway, truck transportation indoor units: carton Outdoor unit: strech film + carton
Company Profile
A leader in energy saving service industry, Tongxing Company was founded in 2000 and located in Zhengzhou, China. Tongxing is engeged in the fields of air conditioning product R&D, manufacture, sales, service and provide one-stop energy system solution to customs
FAQ
1. who are we?
We are based in Henan, China, start from 2004,sell to Africa(20.00%),Southeast Asia(15.00%),North America(13.00%),South Asia(10.00%),South America(8.00%),Eastern Asia(6.00%),Domestic Market(6.00%),Western Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southern Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Central Air Conditioning, Fire Ventilation, Fan Coil Unit, Accessories, Heat Pump, Air Conditioner
4. why should you buy from us not from other suppliers?
VRF Chillers technology,installation,core value:honesty, speciality, innovation been central industry since 1980s,export since 2004.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2004,sell to Africa(20.00%),Southeast Asia(15.00%),North America(13.00%),South Asia(10.00%),South America(8.00%),Eastern Asia(6.00%),Domestic Market(6.00%),Western Europe(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Southern Europe(2.00%),Central America(2.00%),Northern Europe(2.00%),Oceania(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Central Air Conditioning, Fire Ventilation, Fan Coil Unit, Accessories, Heat Pump, Air Conditioner
4. why should you buy from us not from other suppliers?
VRF Chillers technology,installation,core value:honesty, speciality, innovation been central industry since 1980s,export since 2004.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–9 set: US $250 / set
- 10+ set: US $220 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this smart air conditioner?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the smart air conditioner be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tongxing Air Conditioning Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Tongxing Air Conditioning Technology Co., Ltd. range on HVACR Nexus.
