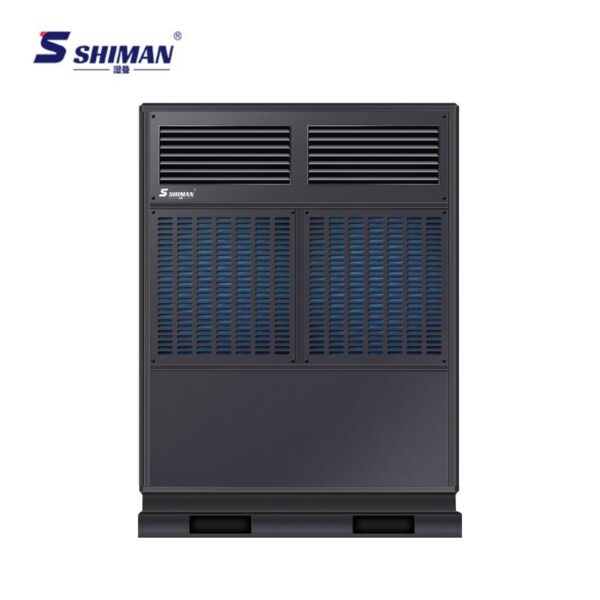

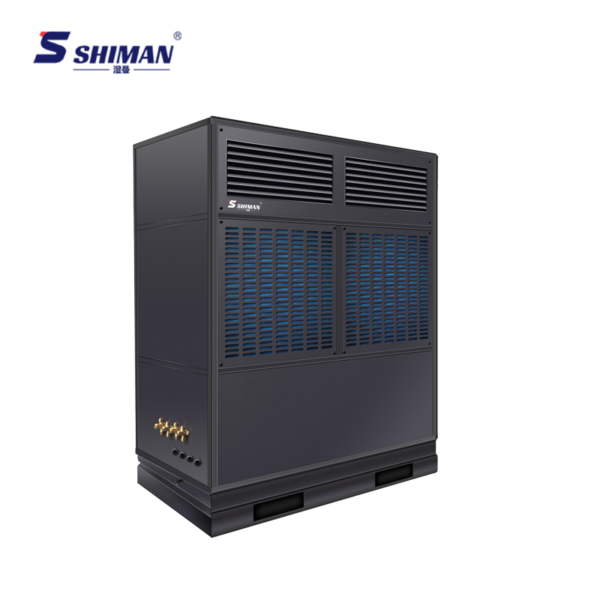

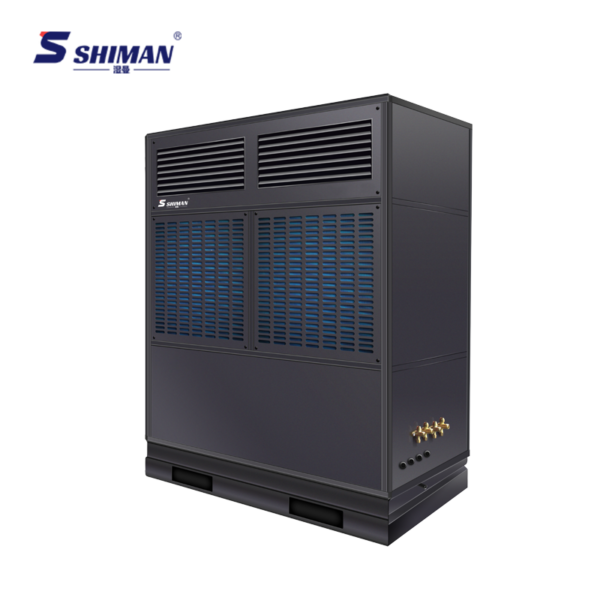

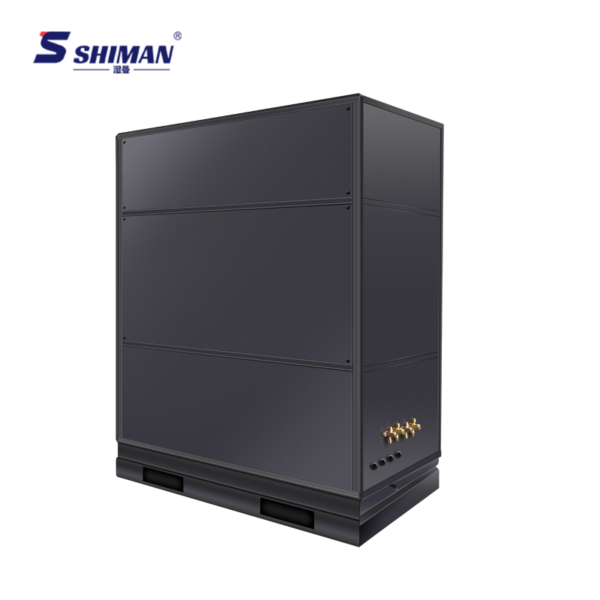

A precision air conditioner differs from comfort cooling in what it controls: temperature held to a tight band, humidity managed, and a high sensible heat ratio because server heat is dry. Comfort units over-dehumidify and cycle, both of which damage IT equipment. This H-80F delivers 80kW with 17000m3/h of circulating air on 380V in a floor standing 1050kg cabinet, sized for a full server room rather than a comms closet.
Key Features of This Precision Air Conditioner
- Model Number: H-80F
- Rated Voltage: 380v
- Cool Capacity: 80kw
- Heating Capacity: 45kW
- Warranty: 1 Year
- Place Of Origin: China

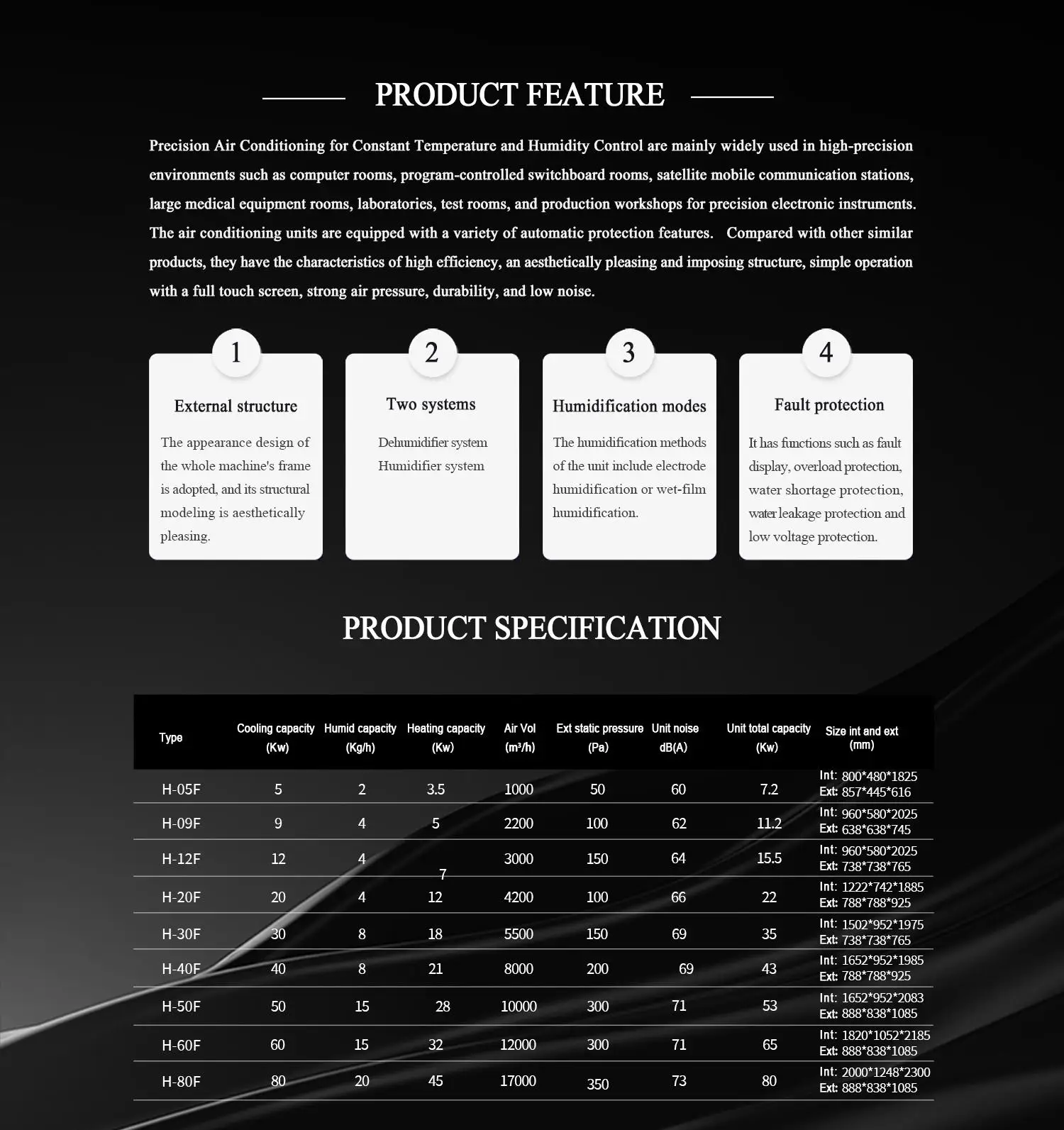

Technical Specifications
| Mounting Type | Floor Standing |
|---|---|
| Type | Air Handling Unit |
| Fan Motors Type | AC |
| Warranty | 1 Year |
| Place Of Origin | China |
| Weight (Kg) | 1050 |
| Model Number | H-80F |
| Circulating Air Volume | 17000m³/h |
| Rated Voltage | 380v |
| Cool Capacity | 80kw |
| Heating Capacity | 45kW |
| External Static Pressure | 350 |
| Selling Units | Single item |
requiring stringent temperature and humidity control. It is widely used in data centers, telecommunication base stations, medical
equipment rooms, laboratories, and precision instrument production workshops. With its efficient and stable performance,
intelligent control system, and robust construction, the H-80F delivers consistent temperature and humidity conditions, ensuring
the safe operation of equipment and the accuracy of industrial processes.
|
applying space
|
240-350m²
|
|
Circulating air volume
|
17000m³/h
|
|
horsepower
|
32P
|
|
refrigerating capacity
|
80kw
|
|
electrical heating
|
45kw
|
|
external static pressure
|
350pa
|
|
Temperature control range
|
14-30℃
|
|
Humidity control range
|
RH-50~70%
|
|

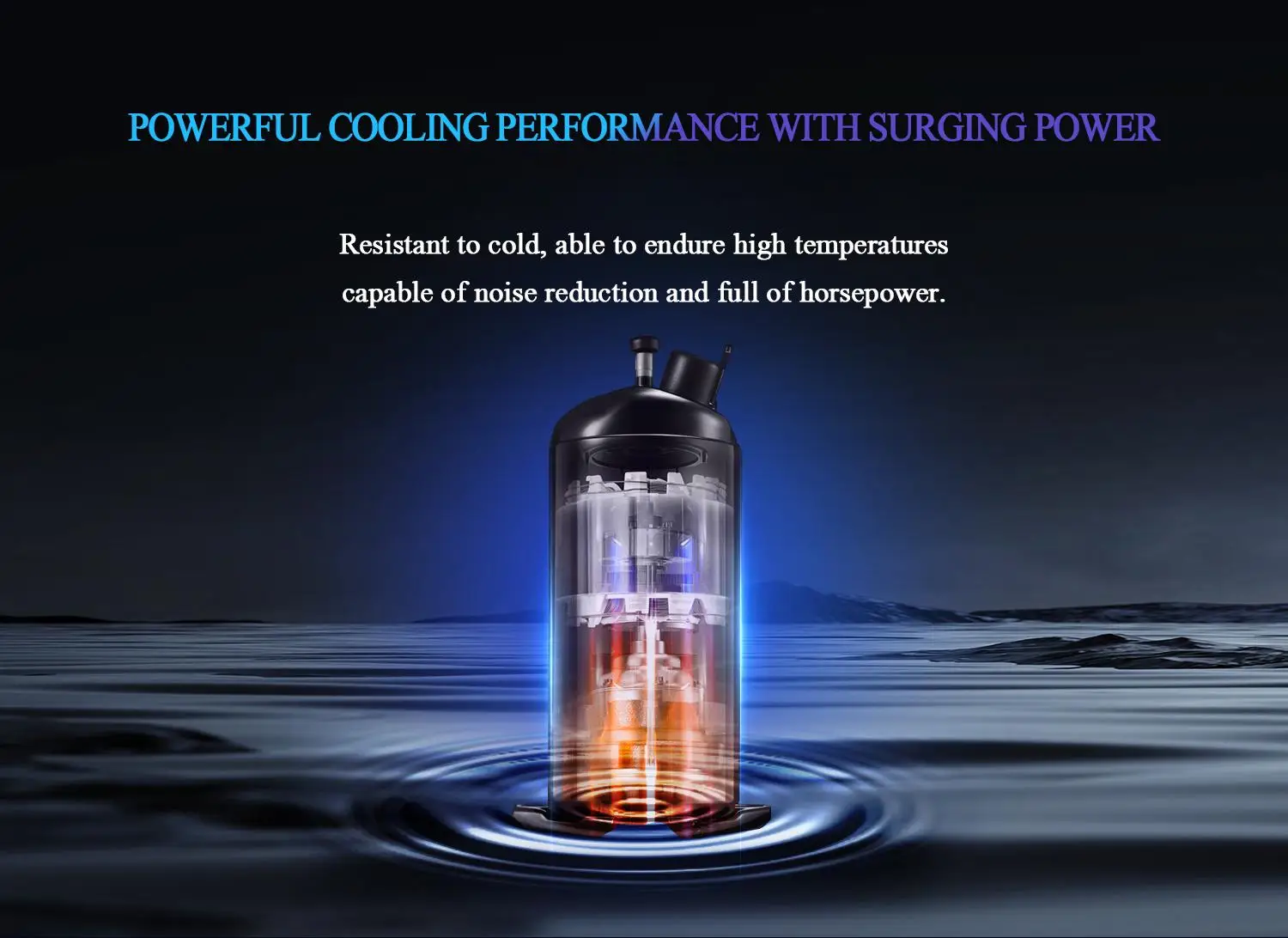

Compressor type
|
fully hermetic scroll type
|
VR
Answer: The H-80F is designed for environments requiring high-precision temperature and humidity control, such as data centers, medical laboratories, telecommunication base stations, precision manufacturing workshops, and museums. It operates reliably in extreme conditions, with a temperature range of -30°C to 55°C.
2. How much space is required for installation?

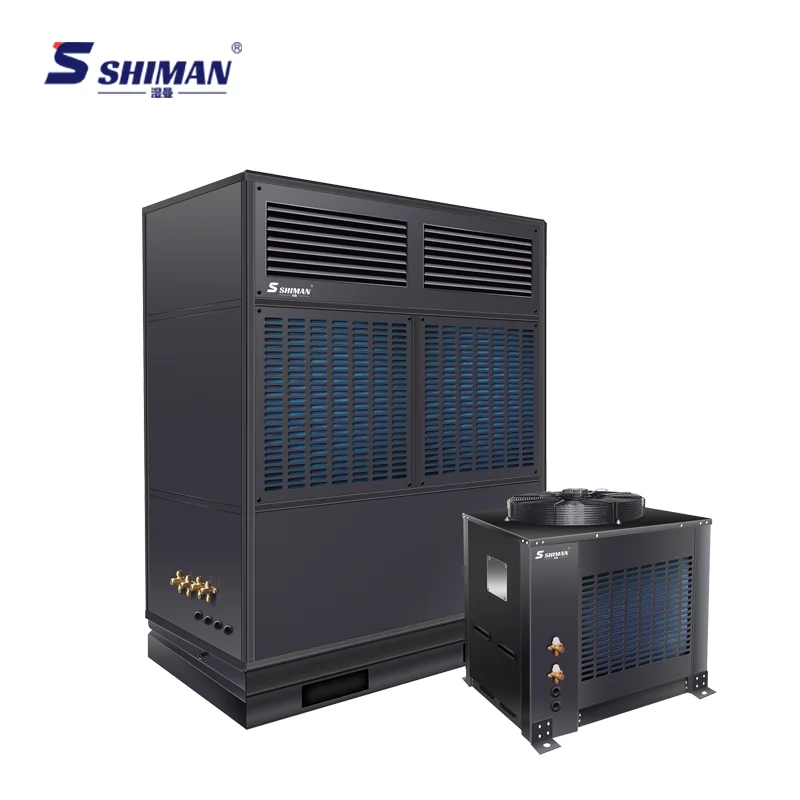

Answer: The internal unit dimensions are 2000×1248×2300 mm. We recommend reserving at least 50 cm of clearance on both sides for ventilation and maintenance. External unit placement should align with duct design and static pressure requirements.
3. How does it achieve precise temperature and humidity control?

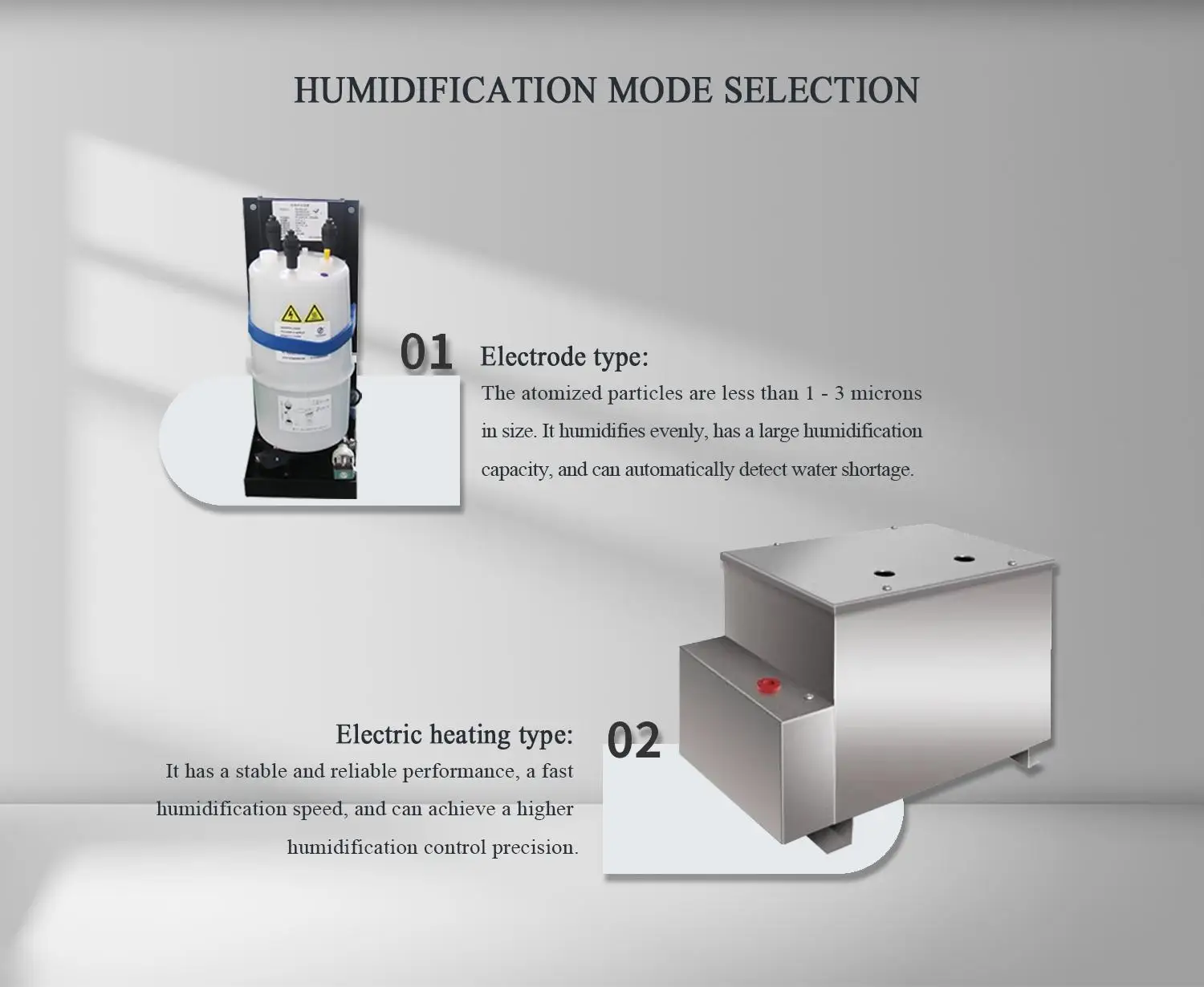

Answer: It utilizes a dual cooling/heating system and dual humidification modes (electrode or wet film), combined with intelligent algorithms. Temperature control accuracy reaches ±0.5°C, and humidity control accuracy is ±2% RH, ensuring environmental stability.
4. Will the noise level of 73 dB(A) affect the working environment?
Answer: The 73 dB(A) noise level is measured at full load. Noise can be reduced by adjusting fan speed settings. The unit also features triple noise reduction technology, making it suitable for noise-sensitive environments like laboratories and medical
facilities.
5. Does the humidification system require frequent maintenance?
Answer: Electrode humidification modules should be checked for scale buildup every 3 months. Wet film humidification requires periodic filter cleaning (frequency depends on water quality). The system includes auto-drainage and water shortage protection to minimize manual intervention.
7. What is its energy efficiency? Are operating costs high?
Answer: Certified as China Grade 1 Energy Efficiency, the unit achieves an Annual Performance Factor (APF) of 4.2, reducing energy consumption by approximately 30% compared to traditional models, lowering long-term operational costs.
8. What does the after-sales service include?
Answer: Shiman provides 24/7 technical support, a 1-year warranty on key components (e.g., compressor), and global rapid spare
part replacement and on-site maintenance services.
Frequently Asked Questions
What is the minimum order quantity for this precision air conditioner?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this precision air conditioner?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380v. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
