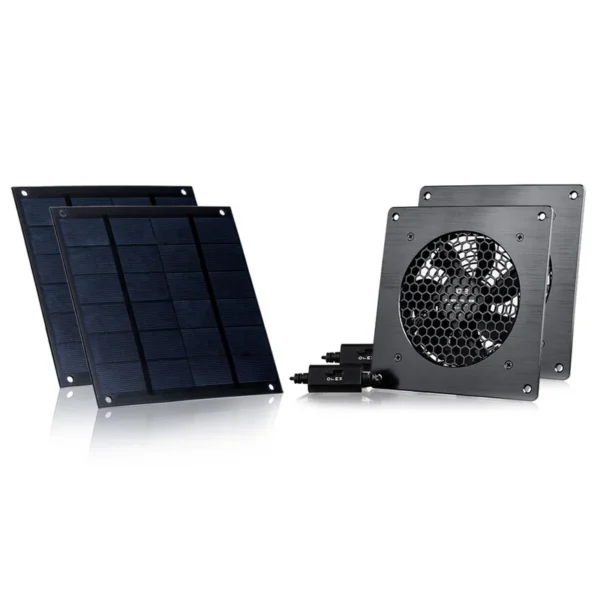

Solar powered exhaust fan — voltage DC5V, DC12V, DC24V, DC48V, blade material Plastic. The complete factory specification follows. Made by Shenzhen Minxin Industry Co., Ltd. (4 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Solar Powered Exhaust Fan
- Model Number: FFS
- Voltage: DC5V, DC12V, DC24V, DC48V
- Blade Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Pet house, home, chicken coop, car, RV, caravan, dog house, etc.
Technical Specifications
| Voltage | DC5V, DC12V, DC24V, DC48V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | Screw fixing |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | Minxin |
| Model Number | FFS |
| Motor Type | Efficient 5V/12V/24V/48V DC Motor |
| Application | Pet house, home, chicken coop, car, RV, caravan, dog house, etc. |
| Fan Type | Axial Flow Type |
| Fan Features | Silent, high cfm, USB charging, Speed control |

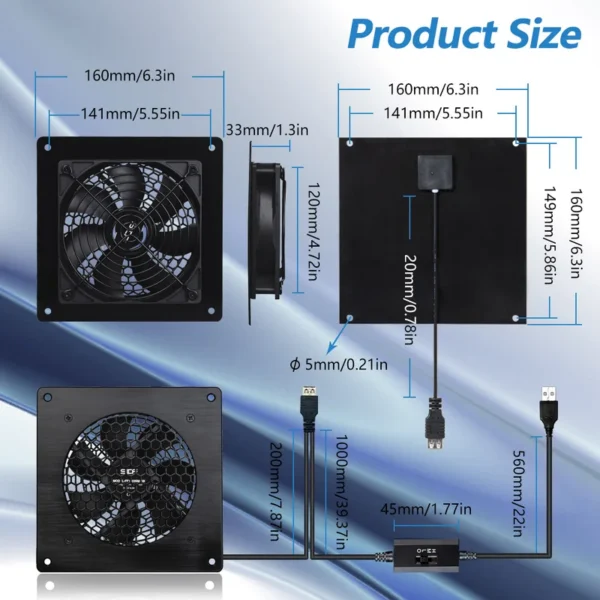

| Fan Size | 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, 120mm, 140mm, 150mm, 172mm, 200mm |

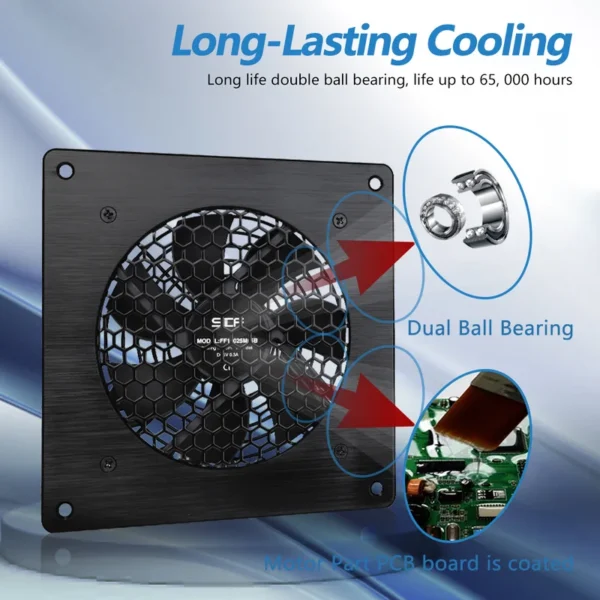

| Fan Bearing Type | Dual Ball Bearing |
| Fan Life Span | over 50,000 hours |
| Installation | Screw fixing, vertical or horizontal |
| Functions | Ventilate the heat from cabinets or other confined place |
| Plug Adapter Available | EU type, US type, AU type, UK type |
| Packaging Details | Each Wall Mounted Solar Powered Exhaust Fan DIY Small Solar Panel Two USB Fan Kit for Chicken Coop Greenhouse Attic RV Ventilation packed in mail box |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 pieces per Month |
Product Details
Product Features
* USB or DC power supply: Our fans can be powered by the solar panel through either a USB or DC cable and connector, the output voltage can be DC5V, 12V, 24V, or 48V, depending on your preference.
* Speed control or thermostat feature: Our fans can come with a speed control feature, allowing you to adjust the fan speed to your preferences. And they can also come with a thermostat feature, which automatically adjusts the fan speed based on the temperature.
* Solar-powered: Our solar panel fans are powered by solar energy, which means you can save money on your electricity bill and reduce your carbon footprint.
Applications
Q: What connector does the cooling fan come with?
A: It can come with any type of connectors you require, be it a multi-pin connector, or a USB connector, or a plug, just let us know your requirements and we will customize for you.
Q: I am looking for this fan size but with higher static pressure or airflow, can you make it?
A: Of course we can! Just let us know your desired static pressure, airflow or noise level for your application, and we will customize the fan as close to your requirements as possible.
Q：Is there a thermostat available for the cooling fan?
A: Yes it can come with built-in thermostat, however, it is advisable that you use a external thermostat and controller for easier and more flexible control
Q: Can this cooling fan withstand high humidity?
A: It is IP53 rating by default, but if you are using it in a high humidity environment, we will have to add a procedure in production of this cooling fan to make it weatherproof, IP67 rating or even IP68 rating, you name it.
Q: Do you have an alternative that runs on 230V?
A: Besides those voltages which are states on the product description, these cooling fans can be built for 5V DC & 12V DC & 24V DC & 48V DC & 117VAC & 220V AC & 240V AC, just let us know the voltage you use and we shall be happy to customize for you.
Q: Can it come with a variable speed control?
A: Yes it can be custom made with speed control functions with a speed controller ,even the controller with on/off switch.
Q: Can I order just one or several fans?
A: well, we don’t really do retail at the moment, we are mainly focused on OEM and ODM. But if you are looking for samples for your project, we shall be happy to customize the samples for you, the sampling normally takes no more than 5 workdays.
Q: Can it run almost constantly?
A: Yes the cooling fans are supposed to work 24/7, however, The temp and cleanliness will make a big difference.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $19.99 / piece
- 100–999 piece: US $15.89 / piece
- 1000–9999 piece: US $12.99 / piece
- 10000+ piece: US $9.99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this solar powered exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the solar powered exhaust fan be supplied for my local voltage?
The standard configuration is DC5V, DC12V, DC24V, DC48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Minxin Industry Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Minxin Industry Co., Ltd. range on HVACR Nexus.
