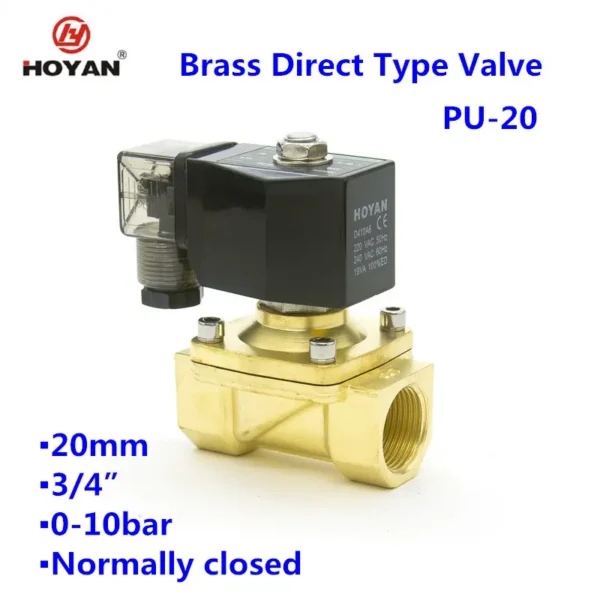

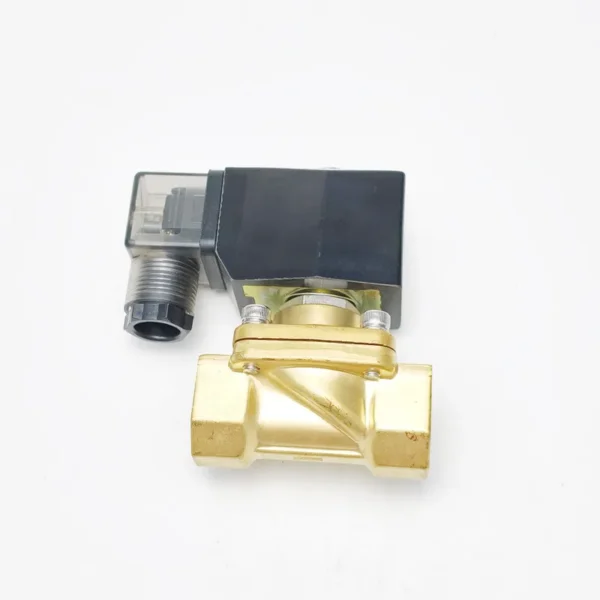

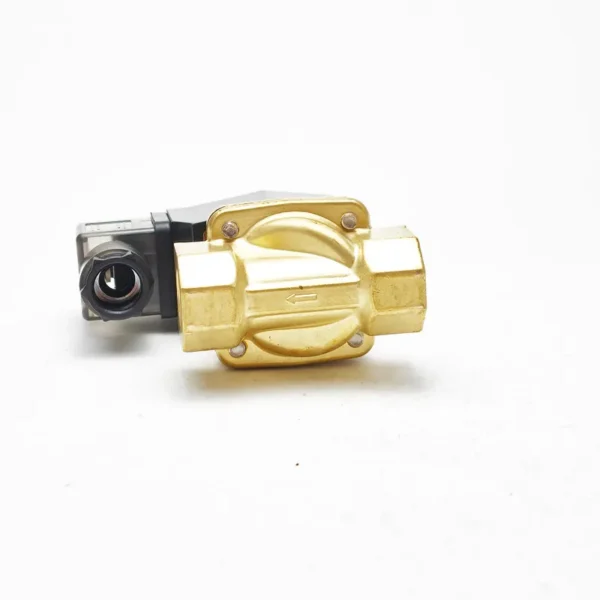

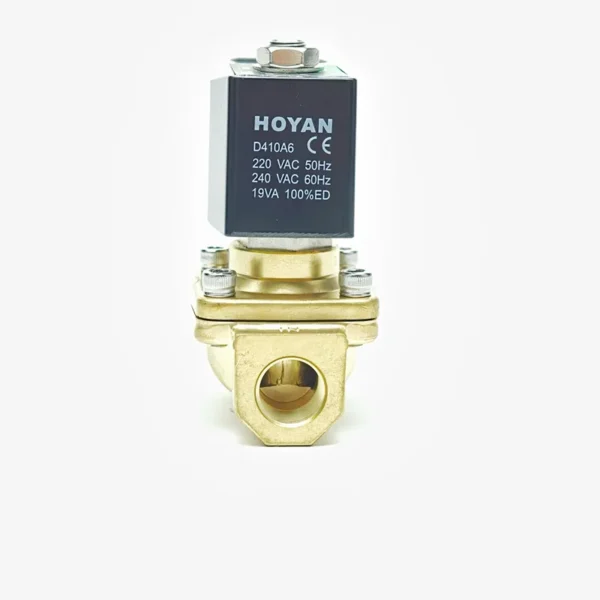

This solenoid valve is published with the manufacturer’s full specification — voltage AC 220 V, Dc 12V, AC 110 V, Dc 24V, power Electric. Made by Yuyao Hoyan Electronic Co., Ltd. (13 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Solenoid Valve
- Model Number: PU-20
- Power: Electric
- Voltage: AC 220 V, Dc 12V, AC 110 V, Dc 24V
- Available Voltage:: AC 380V 220V 110V 24V DC 24V 12V
- Body Material: Brass
- Seal Material:: NBR EPDM FKM
Technical Specifications
| Structure | Plug |
|---|---|
| Connection Size | 3/4 in |
| Operational Pressure Range | 0-10bar |
| Operating Temp. Range | -5℃~150℃ |
| Media | Water Oil Gas Air |
| Power | Electric |
| Voltage | AC 220 V, Dc 12V, AC 110 V, Dc 24V |
| Port Size | 3/4 in |
| Customized Support | OEM |
| Warranty | 1 years |
| Temperature Of Media | Normal Temperature |
| Application | General |
| Model Number | PU-20 |
| Place Of Origin | Zhejiang, China |
| Brand Name | HOYAN |
| Type | Normally Closed |
| Body Material | Brass |
| Seal Material: | NBR EPDM FKM |
| Pipe Size | 3/4" |
| Threads | G, BSPP, NPT |
| Orifice | 20mm |
| Work Pressure | 0-10bar |
| Available Voltage: | AC 380V 220V 110V 24V DC 24V 12V |
| Coil: | D16011 |
| Selling Units | Single item |
| Single Package Size | 15X6X10 cm |
| Single Gross Weight | 0.85 kg |
Product Details
Hoyan-Solenoid valve selection guide
Type:2/2-Way,normally Closed
Fluids: water or air or other ?
Thread: G or NPT ?
Port Size: 3/4"
Orifice: 20mm
Voltage: AC 380V 220V 110V 24V DC 24V 12V
Body material: Brass
Work Pressure: 0~10bar

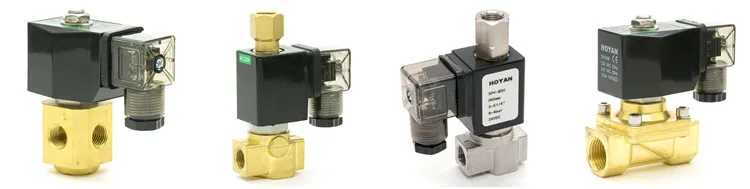

Solenoid valve
Feature :
1. Direct Acting
2. Have both Normally cosed and open
3. Fit for Air, water.etc
4. Port size: from 1/8" to 2"
5. Voltages: DC12V, 24V, AC110v, 220V, 380V
6. Thread connection: BSPT, G standard or NPT.
7. Large flow.

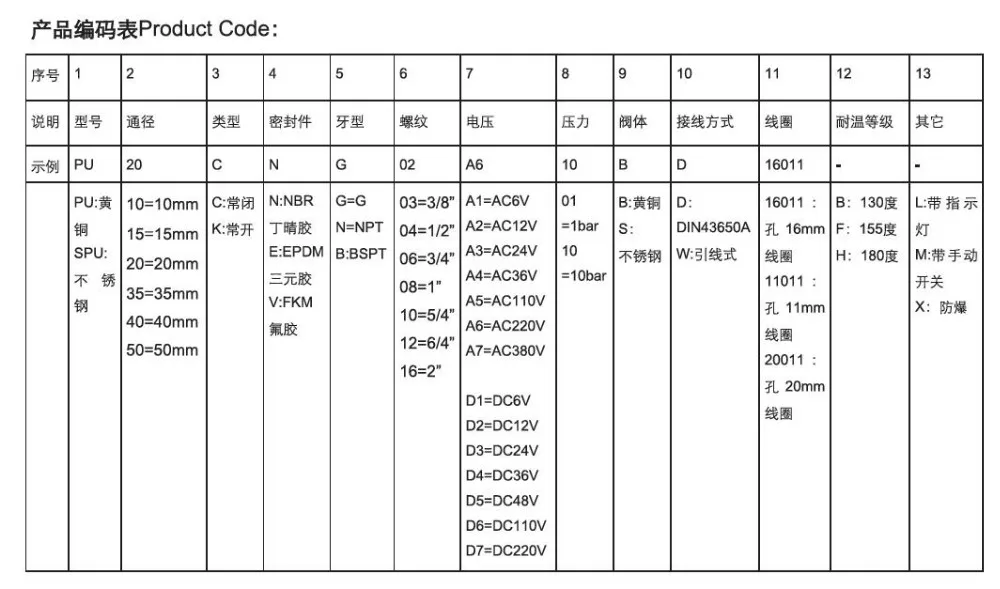

Product Code:

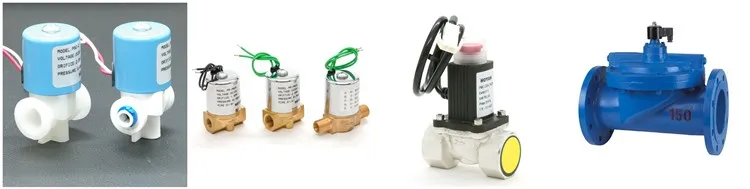

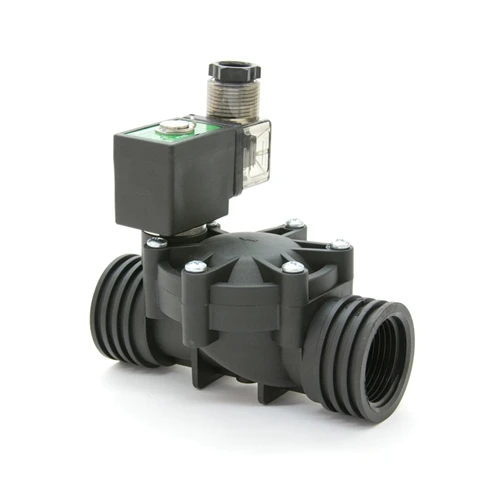

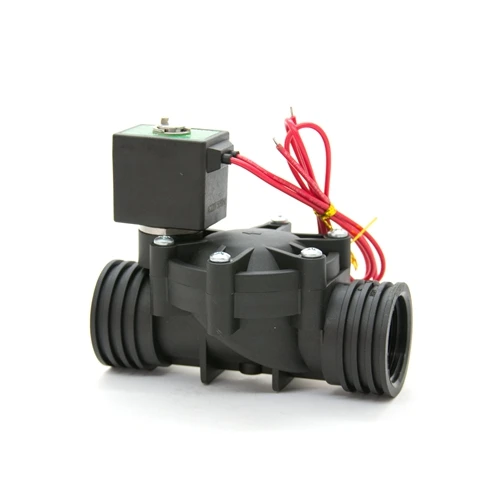

New Item–Plastic solenoid valve
We Provied One Year Quality Assurance Date Warranty Period After Shipment Date ,
But If There is Quality Issue out of Period ,We will Also Be Responsible for it !
Packing :
1.Export Cartons
2.Packed according to the client requirements
Delivery:
Within 15 days after receipt of deposit
Q1:Are you a factory or trading company?
A: We are a factory, we have rich experience for manufacturing more than 10 years.
Q2:Where is your factory located? How can I visit there?
A: Our factory is located in Yuyao city,Zhejiang Province,China.
It is about more than 3 hours from Shanghai airport, We can pick you up if you need, welcome to visit our factory.
Q3:What is the material for your products?
A: The material is Brass or stainless steel
Q4:Can you make samples?
A: Yes, we can make samples for you.
Q5:How does your factory do as quality control?
A: Quality is the lift of our factory. We have inspector in different post, and there are three inspectors before packing to get best quality products.
Q6: How is your after sale?
A: 1.If any damaged rings in the course of carriage, with the checking it's our mistake, we will take full responsibility to compensate the
customers.
Skype/Whatsapp : +86 15158324315
Wechat: jennyye87
Business e-mail: jenny (at)hoyan.cn
LInkedin: www.linkedin.com/in/-jennyye
Facebook:Jenny Ye
Ordering and Pricing
- Minimum order quantity: 2 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this solenoid valve?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Can the solenoid valve be supplied for my local voltage?
The standard configuration is AC 220 V, Dc 12V, AC 110 V, Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yuyao Hoyan Electronic Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yuyao Hoyan Electronic Co., Ltd. range on HVACR Nexus.
