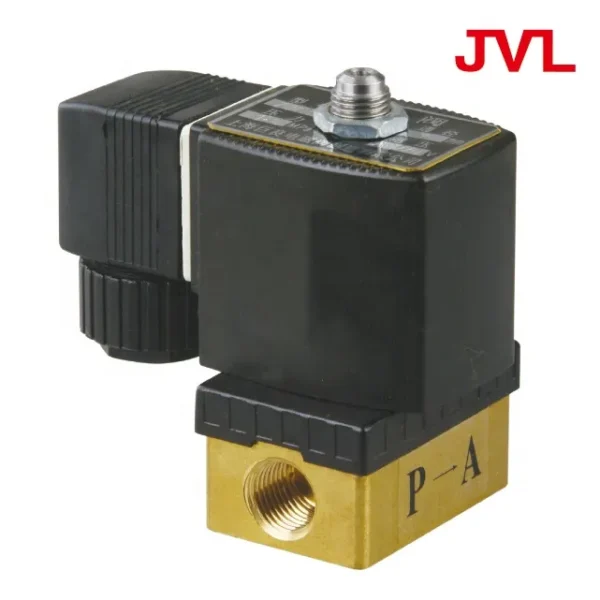

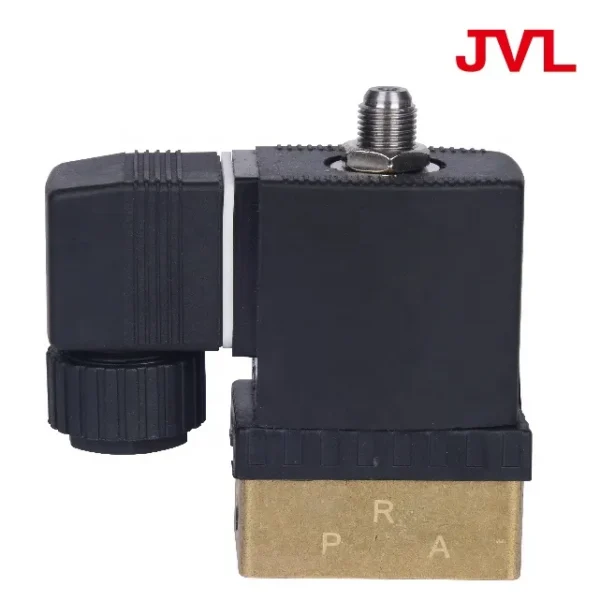

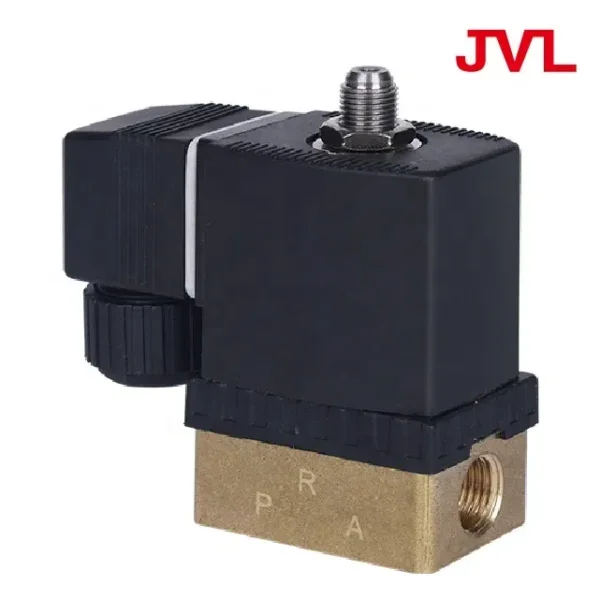

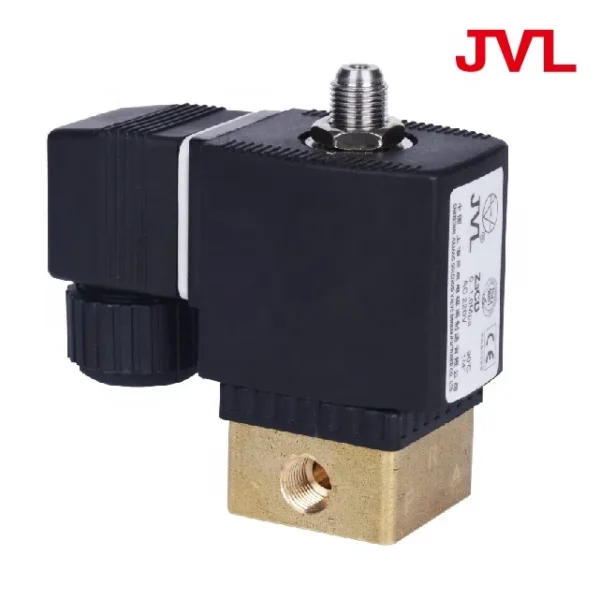

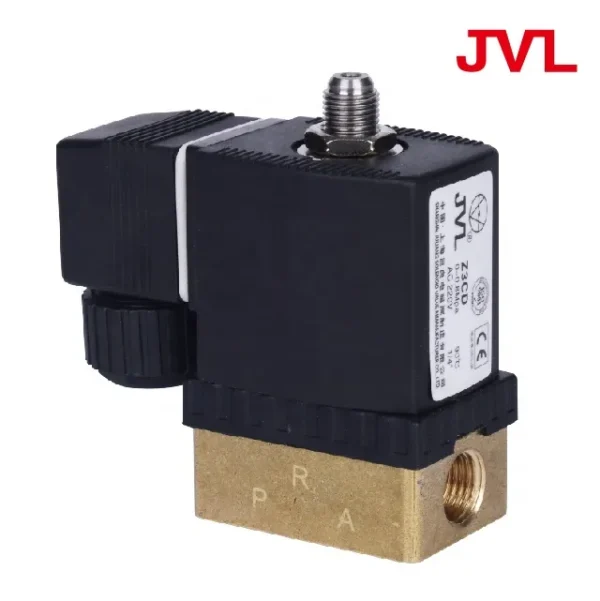

Solenoid Valve, Brass, 12v

Key specification for this solenoid valve: voltage AC 220 V, Dc 24V, power Solenoid. Everything below is reproduced from the factory data sheet. Made by Shanghai Juliang Valve Group Co., Ltd. (7 years on the platform, typical reply ≤7h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Solenoid Valve

• Model Number: Z3CD
• Power: Solenoid
• Voltage: AC 220 V, Dc 24V
• Sealing Material: NBR, FKM, PTFE
• Warranty: 1 year
• Place Of Origin: Shanghai, China

Technical Specifications

Product Details

Products Description

Model Selection notice:

1.The direction of arrow on the valve body must be consistent with the flow of the medium, if there is bi-directional flow, may select electric valve or pneumatic valve.

2.If contain impurity particles in the fluid, the strainer should be installed in front of the valve according to the particle size (the mesh number ≧ 80).

3.The length of DC power cord should not be too long to avoid coil power loss and normal operation.

4.Please give preference to the normally closed type in the design control plan.
5.If you need explosion-proof solenoid valve, long duration power on and special voltage requirements, please consult before selecting the model.

DN	DN 1~10mm
Connection mode	G female thread, NPT female thread (other can be customized)
Work principle	Direct acting piston type
Body material	Brass, SS304, and SS316L can be customized
Seal material	NBR, FKM, PTFE, others please consult
Suitable medium	Liquid, Gas, Oil etc.
Medium temperature	1.-20℃~80℃ 2.-20℃~150℃ 3.100℃~200℃ (others please consult)
Ambient temperature	Standard type:-20℃~60℃
Installation mode	Horizontal installation, coil vertical upward (others please consult)
Protection rating	Encapsulation Explosion-Proof Type: IP65 Flameproof Explosion-Proof Type: CT5: IP65, CT6: IP67

Product Size

Related Products

Certificate

Company Introduction

Shanghai Juliang Valve Group is located in the core section of Songjiang District Shanghai national economic and technological development zone with a building of 20,000 square meters, a modern high-tech group enterprise, which integrates scientific research, manufacturing, sales and international trade. People in Juliang inherit the traditional Chinese craftsman spirit and absorb Germany's rigorous manufacturing idea. To be the world's top 10 enterprises in the fluid control field is our the vision.we pursue material and the spiritual happiness, and provide customers high quality products . In the past of decades , devoting to researching and exploring the control valves ,we constantly improve our products with an extreme attitude. Therefore, the unique "JVL " brand come out. From digital control valves to intelligent control valves, then to industrial 5.0 era, we are always at the forefront of innovation and change; From universal valves to high temperature and high pressure valves , then from high-end manufacturing to special customization, we are always at the leading line of fluid control valves fields. So far as now, JVL awarded 30 patented technologies and high-tech achievement transformation projects with lot of honors such as "National High-tech Enterprise" and so on. Our products are widely used in diverse fields such as Aerospace, Petrochemical, Bio-pharmaceutical, HVAC, etc. Main ranges are Automatic control valves and Automatic products & services for global customers.

International Cooperation

Packing&Shipping

FAQ

1.Are you a factory or trading company? A: We are a factory, we have rich experience for manufacturing more than 10 years.

2.Where is your factory located? How can I visit there?

A：Our factory is located in Shanghai, China. The Shanghai port and airport are within easy reach. If necessary, please visit our factory.

3.What is your advantage   ？

A:We have more than 30 patented technology and high-tech achievements transformation projects, and also won the honor of "National High-tech Enterprise

4.What is your philosophy and vision  ？

A：We take the vision of "becoming one of the world's top 100 companies in the field of fluid control", and "not only pursue the overall material and spiritual happiness, but also provide customers with quality products and efficient services, and contribute to us". Taking "Developing World Industrial Automation" as its mission

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this solenoid valve?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.

Can the solenoid valve be supplied for my local voltage?

The standard configuration is AC 220 V, Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
