Key specification for this solenoid valve: power Electric, type solenoid valve. Everything below is reproduced from the factory data sheet. Made by Beijing Ymer Technology Co., Ltd. (9 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Solenoid Valve
- Model Number: YM-2WS
- Power: Electric
- Place Of Origin: Beijing, China
- Application: General
- Type: solenoid valve
- Port Size: DN8-DN50
Technical Specifications
| Type | solenoid valve |
|---|---|
| Media | Water |
| Port Size | DN8-DN50 |
| Temperature Of Media | Medium Temperature |
| Application | General |
| Power | Electric |
| Structure | Control |
| Customized Support | OEM |
| Place Of Origin | Beijing, China |
| Model Number | YM-2WS |
| Brand Name | YMER |
| Product Name | Solenoid Valve |
| Size | DN8-DN50 |
| Working Pressure | 0-1MPa |
| Working Medium | air water oil |
| Temperature | -5~80℃ |
| Selling Units | Single item |
| Single Package Size | 10X5X10 cm |
| Single Gross Weight | 0.200 kg |
Product Details
Product Features

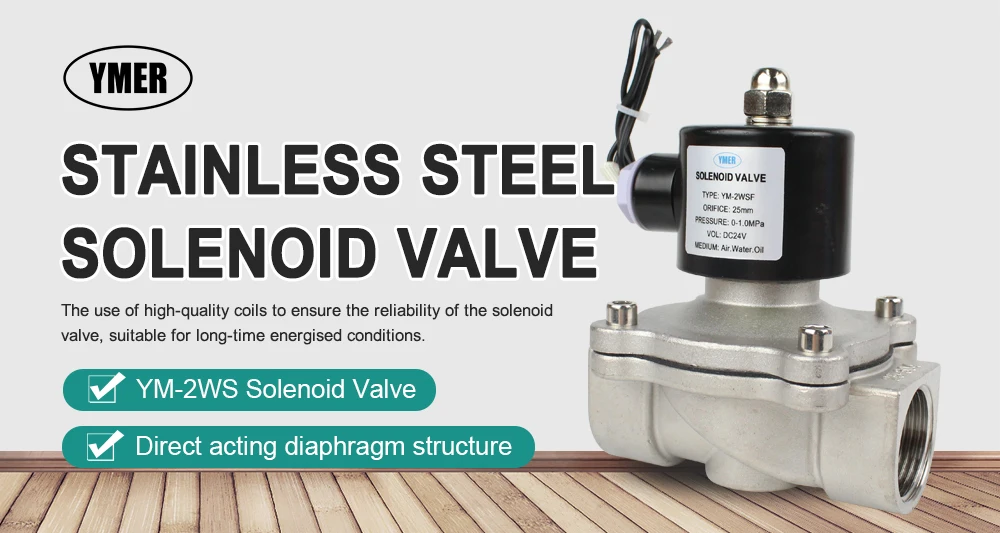

2. The direct-acting diaphragm structure expands the range of applications and reliability of this series of products.
3. The use of direct-acting diaphragm structure without pressure to start, greatly expanding its field of use.
Product Parameter | ||||||||||||||||||
Caliber | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1 1/4'' | 1 1/2'' | 2'' | ||||||||||
Torque | 4mm | 4mm | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm | |||||||||
CV value | 0.23 | 0.6 | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |||||||||
Applicable fluids | Air, water, oil, neutral gases and liquids | |||||||||||||||||
Operating Voltage | AC220V、DC24V | |||||||||||||||||
Operation model | Direct acting | |||||||||||||||||
Type | Normally closed | |||||||||||||||||
Material | Brass | |||||||||||||||||
Pressure | water、air：0~1.0MPa oil：0~0.7MPa | |||||||||||||||||
Seal material | Standard: NBR Fluid temperature below 80°C | |||||||||||||||||

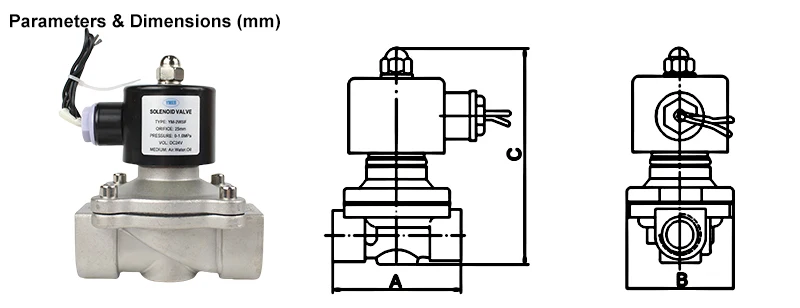

Model | Connection | Caliber | A | B | C |
YM-2W | Screw | DN8 | 39 | 42 | 74 |
DN10 | 62 | 55 | 102 | ||
DN15 | 62 | 55 | 102 | ||
DN20 | 67 | 55 | 113 | ||
DN25 | 86 | 73 | 117 | ||
DN32 | 90 | 77 | 130 | ||
DN40 | 106 | 87 | 164 | ||
DN50 | 123 | 83 | 176 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this solenoid valve?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
