Steel bellows globe valve — power Hydraulic, type Globe Valve. The complete factory specification follows. Made by Beijing Ymer Technology Co., Ltd. (9 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steel Bellows Globe Valve
- Model Number: WJ41H-16C
- Power: Hydraulic
- Body Material: cast steel
- Warranty: 1 year
- Place Of Origin: Beijing, China
- Application: General
Technical Specifications
| Type | Globe Valve |
|---|---|
| Media | Water |
| Port Size | DN15-DN200 |
| Temperature Of Media | Medium Temperature |
| Application | General |
| Power | Hydraulic |
| Structure | Regulating |
| Customized Support | OEM |
| Warranty | 1 year |
| Place Of Origin | Beijing, China |
| Model Number | WJ41H-16C |
| Brand Name | YMER |
| Product Name | globe valve |
| Body Material | cast steel |
| Standard | DIN STANDARD |
| Size | DN15-DN200 |
| Working Pressure | PN16 |
| Working Medium | Air Water Oil |
| Temperature | -20~200℃ |
| Selling Units | Single item |
| Single Package Size | 13X15X23 cm |
| Single Gross Weight | 1.000 kg |
Product Details

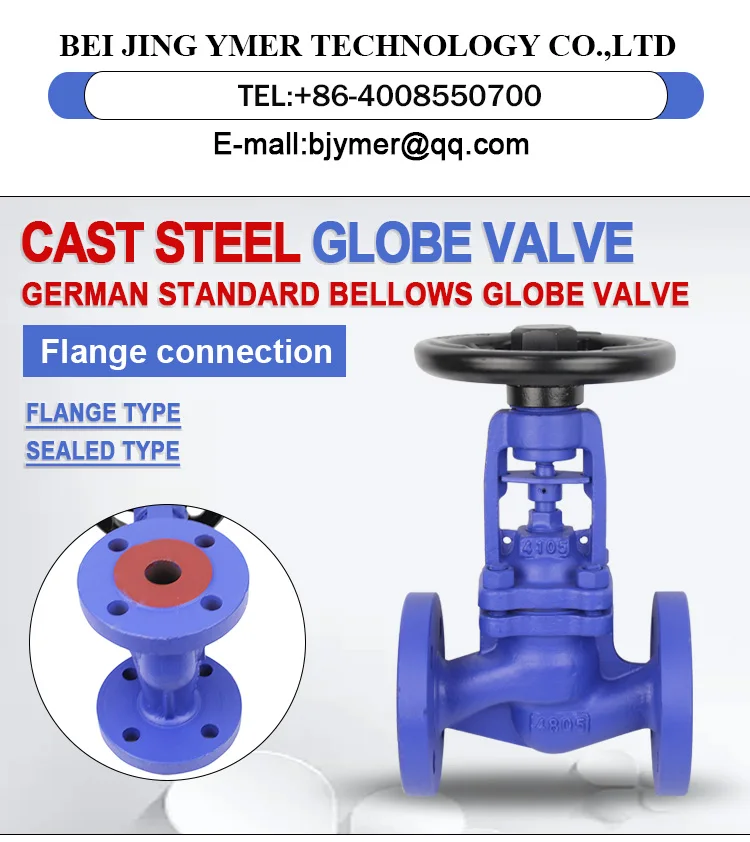

Product Name: Flanged Bellows Sealed Globe Valve (German Standard)
Product Material: Cast Steel + Stainless Steel
Structure: Internal corrugated pipe structure, corrugated pipe welded to the valve stem to maintain stable performance.
Usage: Suitable for piping of steam, flammable, heat conducting oil, high purity, toxic and other media.
Features: Reasonable product structure, reliable sealing performance, beautiful appearance, wear and corrosion resistance, long service life.

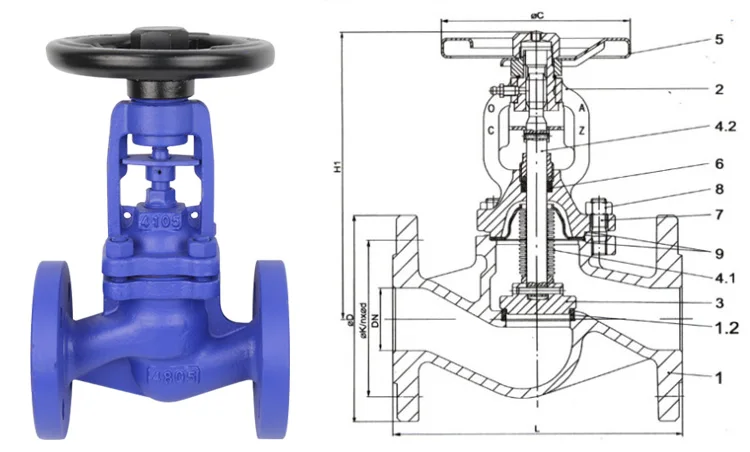

| DN | L | H1 | φC | Stem stroke | discharge coefficient | ||
| PN16/PN25 | PN40 | commonly | Fig.45.046 | ||||
| 15 | 130 | 191 | 126 | 126 | 6 | 4.7 | 3.3 |
| 20 | 150 | 191 | 126 | 126 | 6 | 7.4 | 5.8 |
| 25 | 160 | 197 | 126 | 126 | 8 | 11.2 | 9.2 |
| 32 | 180 | 200 | 126 | 126 | 8 | 18.3 | 15.0 |
| 40 | 200 | 218 | 150 | 150 | 13 | 29.3 | 23.3 |
| 50 | 230 | 220 | 150 | 150 | 13 | 44.2 | 36.0 |
| 65 | 290 | 238 | 175 | 175 | 16 | 73.2 | – |
| 80 | 310 | 257 | 175 | 225 | 20 | 112.2 | – |
| 100 | 350 | 340 | 225 | 300 | 25 | 173.0 | – |
| 125 | 400 | 360 | 300 | 300 | 32 | 288.0 | – |
| 150 | 480 | 390 | 400 | 400 | 40 | 410.0 | – |
| 200 | 600 | 530 | 520 | 520 | 50 | 725.0 | – |
unit:mm

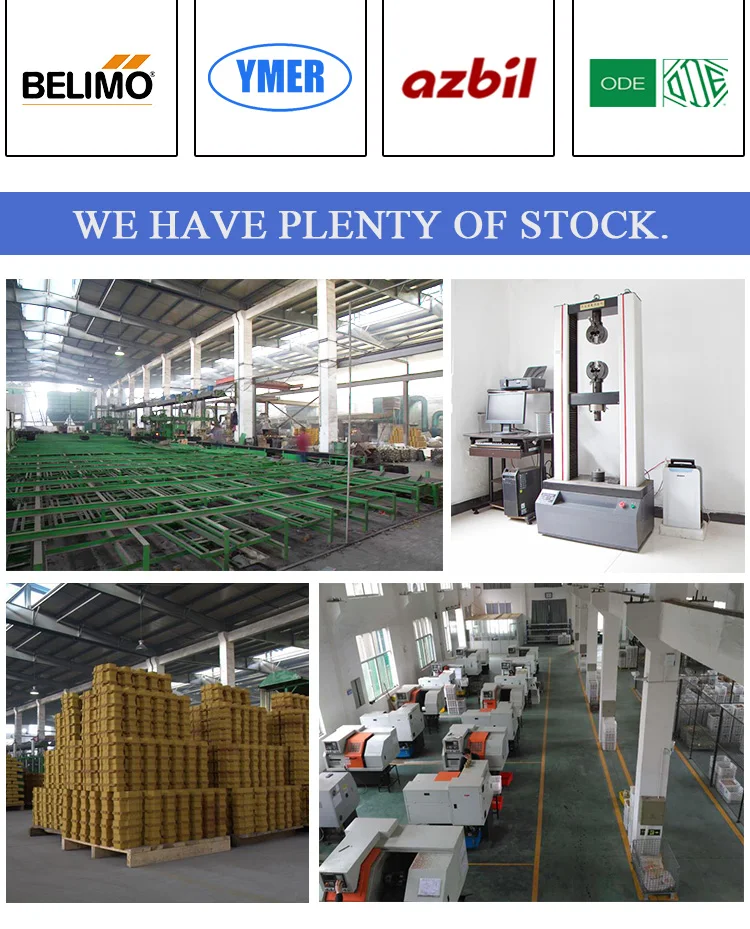

Our manufacturing philosophy is to ensure stable quality and just in time delivery. We have an advanced machining shop. All “wetted” parts are produced in-house to ensure quality consistency by means of state-of-the-art CNC machining cells, experienced operation team. The high level of automation throughout the organization helps us to serve the most demanding industries in the world in a very flexible, high quality and efficient manner.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steel bellows globe valve?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
