This split air conditioner is published with the manufacturer’s full specification — capacity 18001-24000. Made by RPOINT LLC (1 year on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Split Air Conditioner
- Capacity (Btu): 18001-24000
- Place Of Origin: United States
- Recommended Room Size（Square Feet）: ≥ 501 ft²
- Single Gross Weight: 50.0 kg
- Cooling/Heating: Cooling/Heating
- Energy Efficiency Rating: Class A
Technical Specifications
| Capacity (Btu) | 18001-24000 |
|---|---|
| Cooling/Heating | Cooling/Heating |
| Energy Efficiency Rating | Class A |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（Square Feet） | ≥ 501 ft² |
| Eer | 8.6-12 |
| App-Controlled | Yes |
| Place Of Origin | United States |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 50.0 kg |
Product Details

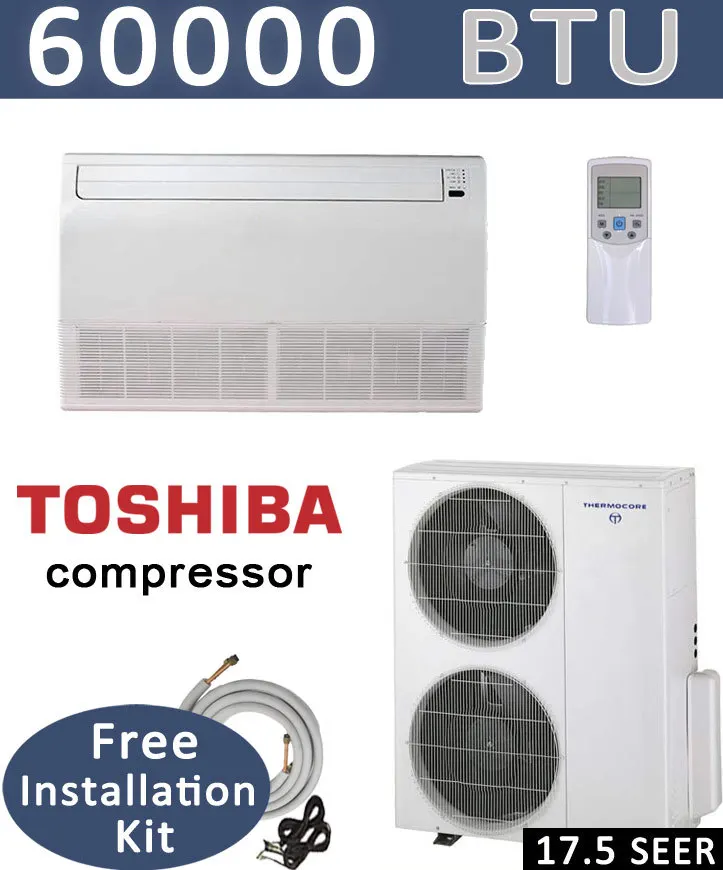

60,000 BTU Ductless Split Air Conditioner Ceiling-Floor | 5 Ton Inverter Heat Pump System w/ Install Kit
Product Overview
The Thermocore T3 Series 60,000 BTU Ductless Split Air Conditioner & Heat Pump is a powerful 5 Ton inverter HVAC system engineered for large residential and commercial spaces. Designed for flexible installation, this ceiling-suspended or floor-mounted split AC system delivers high-capacity cooling and heating for areas exceeding 3,000 sq. ft.
Built with advanced DC inverter technology, this system ensures maximum energy efficiency, precise temperature control, and reliable operation even in extreme climates.
Key Features
- 60,000 BTU Cooling & Heating (5 Ton System)
- High-efficiency DC Inverter Technology
- 18 SEER / 9 HSPF / 9.5 EER Performance
- Operates in extreme temps (-13°F to 122°F)
- Covers 3,000+ sq. ft.
- Low-noise cross-flow airflow design
- Built-in drain pump for moisture removal
- Freon Leak Detection System
- Auto-restart after power outage
- “Follow Me” smart temperature sensing
- Pre-charged with eco-friendly R410A refrigerant
- Low ambient operation in both cooling & heating modes
System Includes

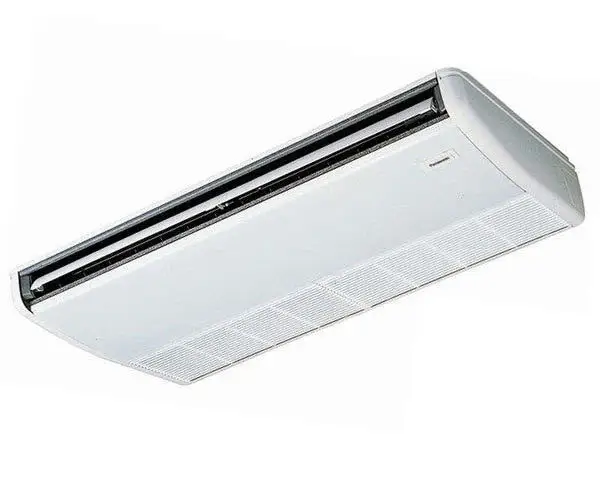

- Indoor Unit – Ceiling/Floor Suspended Air Handler

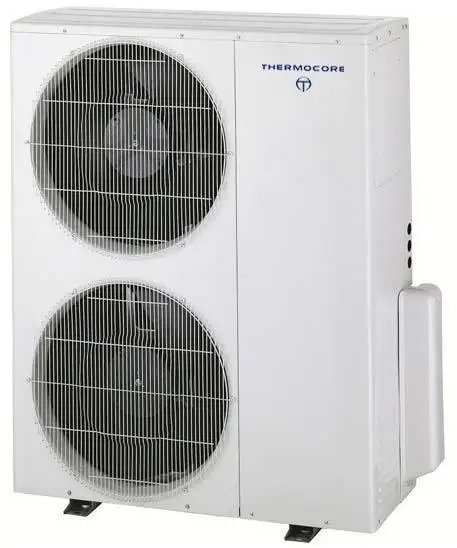

- Outdoor Unit – High-performance Compressor (Toshiba GMCC)
- Digital multi-function LCD remote control
- 15 ft full installation kit (line set + wiring)
- Installation & product manuals
Technical Specifications
Indoor Unit Specifications
| Parameter | Specification |
|---|---|
| Model Number | T3C18S-H260-C |
| Cooling Capacity | 60,000 BTU |
| Airflow (Hi/Mid/Low) | 2353 / 1749 / 1352 m³/h |
| Noise Level (Hi/Mid/Low) | 55 / 39 / 50 dBA |
| Power Supply | 208/230V, 1 Phase, 60Hz |
| Refrigerant Line Size | 3/8" (Liquid) / 3/4" (Gas) |
| Dimensions (W×D×H) | 64.96 × 26.57 × 9.25 inches |
| Weight | 101.2 / 110 lbs |
Outdoor Unit Specifications
| Parameter | Specification |
|---|---|
| Model Number | T3C18S-H260-C |
| Compressor Type | Toshiba (GMCC) |
| Cooling Capacity | 44,697 BTU |
| Heating Capacity | 60,000 BTU |
| Airflow | 7500 m³/h |
| Power Supply | 208/230V, 1 Phase, 60Hz |
| Input Power | 3420 W |
| Current (Min) | 36 A |
| SEER | 18 |
| EER | 9.5 |
| HSPF | 10.5 |
| Maximum Fuse | 50 A |
| Sound Level | 55 / 39 / 50 dBA |
| Max Pipe Length | 213 ft |
| Max | 98 ft |
| Operating Temperature | -13°F to 122°F |
| Dimensions (W×D×H) | 37.48 × 16.34 × 13.11 inches |
| Weight | 224.9 lbs |
Installation Kit Contents
| Component | Details |
|---|---|
| Copper Tubing | 15 ft Flared |
| Insulation Pipe | 15 ft |
| Electrical Wire | 15 ft Harness |
| Drain Pipe | Included |
| Mounting Kit | Ceiling/Floor Bracket |
| Accessories | Binding Belt & Catchment Trough |
| Documentation | Manuals + Remote |
Advanced Features
- Ceiling-suspended or floor-standing installation flexibility
- Smart inverter compressor for energy savings
- Anti-freeze & low ambient operation
- High static pressure airflow system
- Quiet cross-flow fan technology
- Intelligent restart IC memory function
- Commercial-grade durability
Ideal Applications
Perfect for:
- Warehouses
- Retail stores
- Offices
- Restaurants
- Large homes & villas
- Gyms & studios
- Commercial buildings
- Open floor-plan spaces
Frequently Asked Questions (FAQ)
Q1: What size area can this system handle?
A: It can efficiently cool or heat spaces over 3,000 sq. ft.
Q2: Is this unit suitable for commercial use?
A: Yes, it is designed for both large residential and commercial applications.
Q3: Does it come pre-charged?
A: Yes, it is pre-charged with refrigerant for up to 25 ft of line set.
Q4: Can the unit be installed on the floor?
A: Yes, it supports both ceiling-suspended and floor-mounted installation.
Q5: What voltage does it require?
A: It operates on 208/230V single-phase power.
Q6: Does it work in cold climates?
A: Yes, it operates in temperatures as low as -13°F.
Q7: What warranty is included?
A: 1-year parts warranty and 5-year compressor warranty.
Call To Action (CTA)
Power your large space with the Thermocore 60,000 BTU Inverter Split AC System
Built for commercial performance & reliability
Extreme cooling + heating in any climate
Energy-efficient inverter technology saves operational costs
Contact us now for bulk pricing, distributor deals, and fast shipping!
Ordering and Pricing
- Minimum order quantity: 2 unit
- Volume pricing:
- 2–9 unit: US $1200 / unit
- 10+ unit: US $950 / unit
- Ships from: US
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 2 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by RPOINT LLC. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full RPOINT LLC range on HVACR Nexus.
