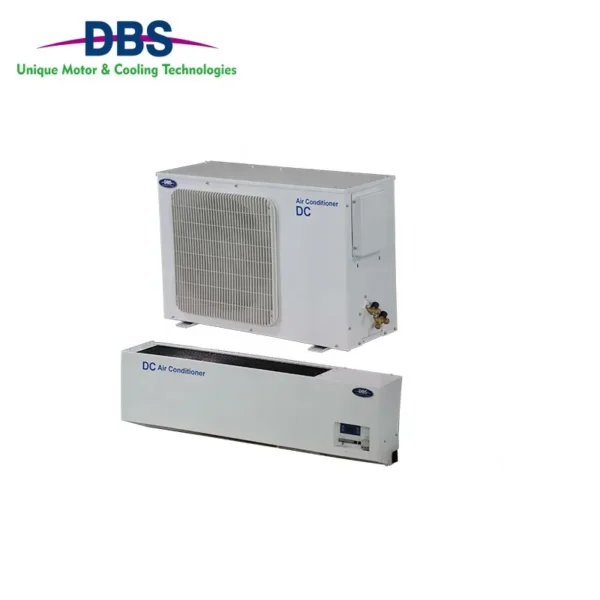

Key specification for this split air conditioner: power supply 48 VDC, 4000W. Everything below is reproduced from the factory data sheet. Made by DBS Cooling Technology (Suzhou) Co., Ltd (3 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Split Air Conditioner
- Power Supply: 48 VDC
- Cooling Capacity: 4000W
- Heating Capacity: Optional
- Warranty: 1.5 year
- Place Of Origin: Jiangsu, China
- Type: Cabinet Air Conditioner
Technical Specifications
| Type | Cabinet Air Conditioner |
|---|---|
| Mounting Type | Other |
| Compressor Brand | Hitachi |
| Fan Motors Type | DC |
| Key Selling Points | Energy Saving |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Compressor, PCB board, Fan |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 53 |
| Brand Name | DBS |
| Brand | DBS |
| Product Name | DC split air conditioner |
| P.N. | ASZB-040-000-010 |
| Cooling Capacity | 4000W |
| Heating Capacity | Optional |
| Power Supply | 48 VDC |
| IP Grade | IPX5 |
| Color | RAL7035 |
| 20GP Loading QTY | 44 units |
| 40HQ Loading QTY | 136 units |
| Selling Units | Single item |
Product Details
Brand | DBS | ||||||
Rated voltage | 48 VDC | ||||||
Cooling capacity | 4000W @35℃/35℃ | ||||||
Rated power consumption | 1000W @35℃/35℃ | ||||||
Rated current | 20.8A @35℃/35℃ | ||||||
EER | 4.0 | ||||||
Inner circulation air flow rate | 1000m³ /h | ||||||
Display board | LED | ||||||
Heater | Optional | ||||||
Operating temperature range | -15℃~+55℃ | ||||||
Max. noise level | Indoor unit： 58dB(A) @ 1.0m away Outdoor unit：60dB(A) @ 1.0m away | ||||||
IP protection level | IPX5 – Outdoor unit | ||||||

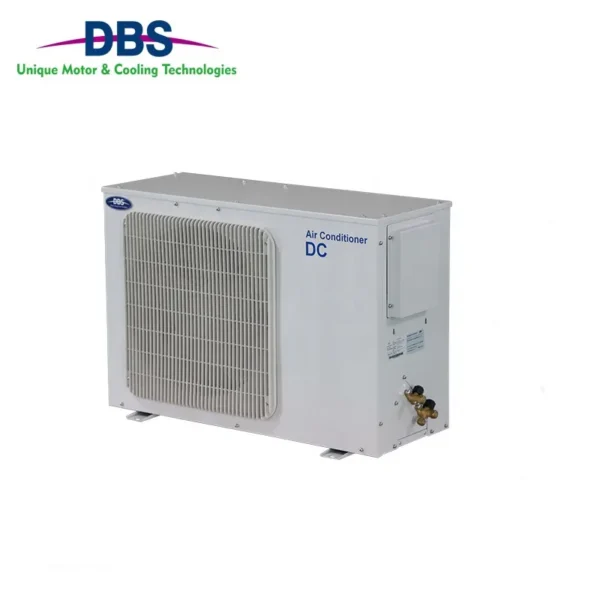

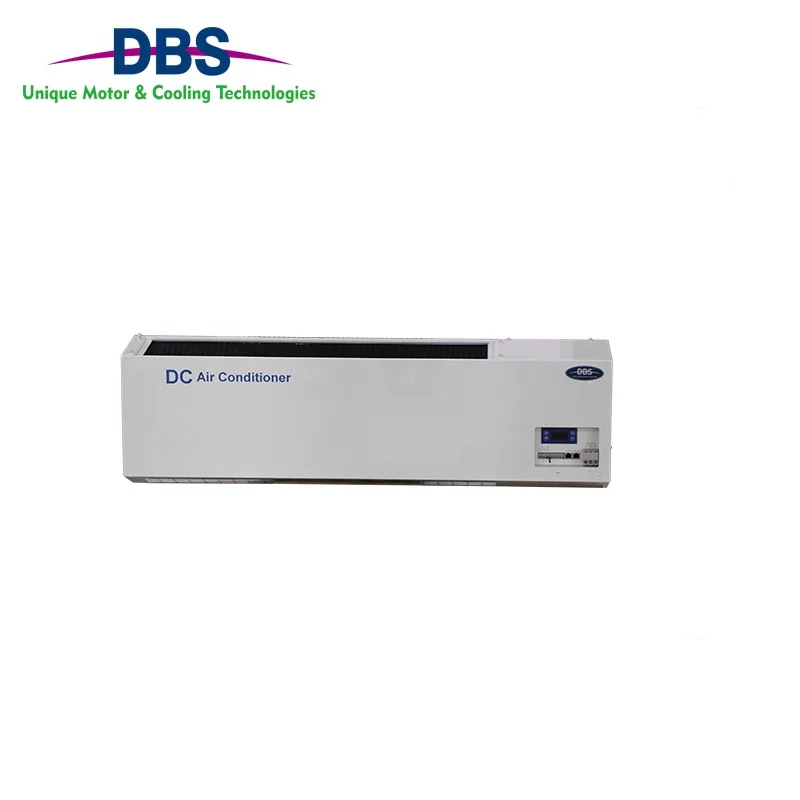

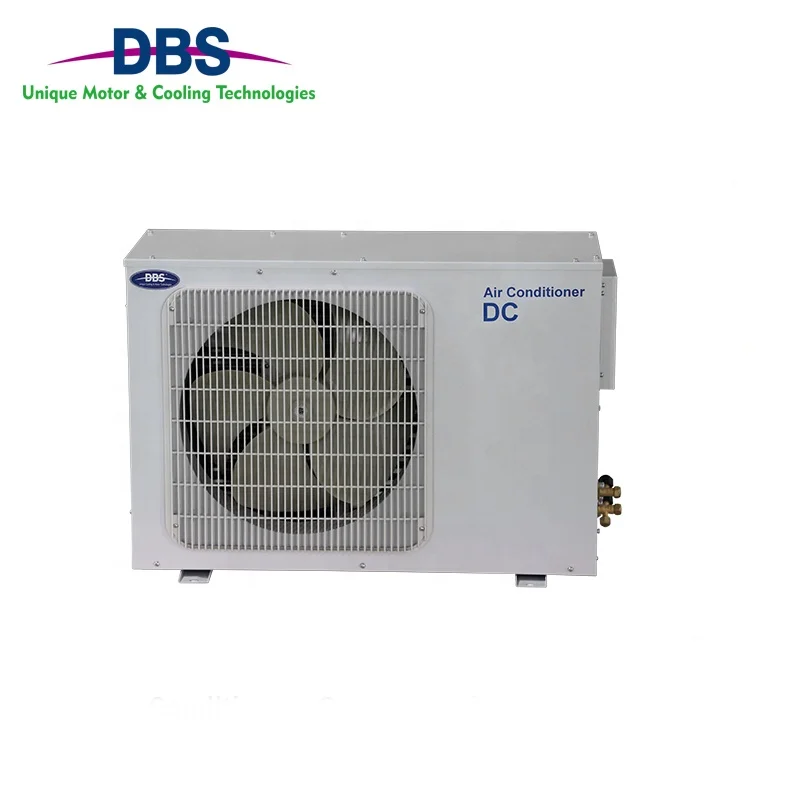

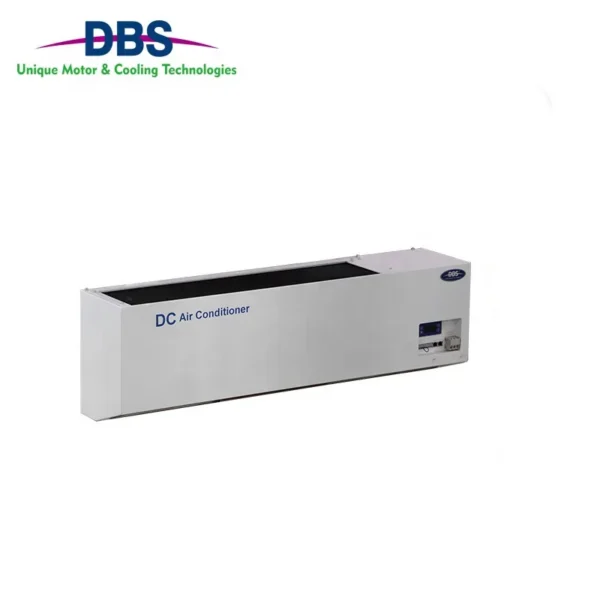

Net. weight | Indoor unit： 18Kg Outdoor unit：35Kg | ||||||
Outer dimension | Indoor unit： 1000x315x215(mm, HxWxD) Outdoor unit：765x530x280(mm, HxWxD) | ||||||
Refrigerant type | R134a | ||||||
Certification | CE | ||||||
Surface treatment | Outdoor type powder coating, standard color: RAL 7035 | ||||||
Design Lifetime | 10 years | ||||||
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–49 unit: US $1020 / unit
- 50–99 unit: US $990 / unit
- 100–199 unit: US $960 / unit
- 200+ unit: US $920 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the split air conditioner be supplied for my local voltage?
The standard configuration is 48 VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
