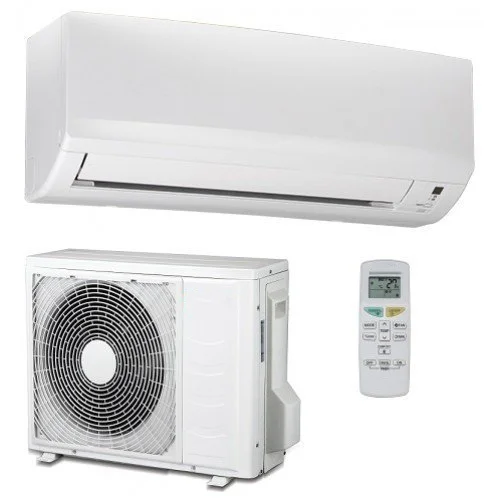

The split air conditioner listed here carries power supply 220~240V/1ph/50Hz, airflow 560m³/h, documented exactly as the manufacturer publishes it. Made by Tongxing Air Conditioning Technology Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Split Air Conditioner
- Power Supply: 220~240V/1ph/50Hz
- Power Source: Electrical
- Operating Voltage: 220-240V
- Airflow: 560m³/h
- Refrigerant: R410a
- Warranty: 3 Years
Technical Specifications
| Type | Other |
|---|---|
| Airflow | 560m³/h |
| Operating Voltage | 220-240V |
| Mounting Type | Wall / Window Mount |
| Key Selling Points | R410A |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel |
| Place Of Origin | Henan, China |
| Weight (Kg) | 66 KG |
| Dimension(L*W*H) | 792*279*195 |
| Function | Cooling and Heating |
| Power Supply | 220~240V/1ph/50Hz |
| Keyword | Air Conditioner Split |
| Refrigerant | R410a |
| Brand Name | Tongxing |
| Cop | 3.2-3.4 |
| Power Source | Electrical |
| Certification | EMC, CB, CE, ROHS, Emf, LFGB, UR, GS |
| Product Name | cheaper splitt air conditioner |
| Packaging Details | Home Air Conditioner /Cheaper Split Air Conditioner 9000Btu-24000Btu:Standard Packaging by air or shipping |
| Port Of Dispatch | Qingdao,shanghai,Shenzhen,any China port |
| Selling Units | Single item |
| Supply Ability | 10000 sets per Month |
Product Details
Product Description

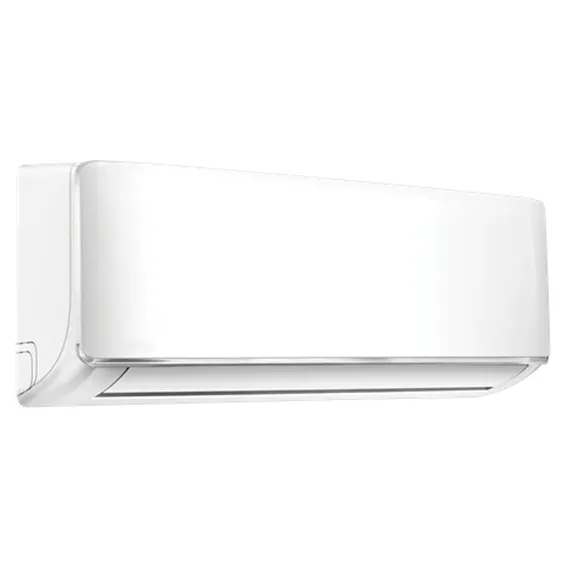

9000 12000 18000 24000 36000 Btu Heating And Cooling 50hz 60hz Inverter Mini Wall Split Air Conditioner Ac Mini Split Unit((9000Btu-24000Btu Cooling and Heating Air Conditioning smart Split Inverter Air Conditioners)
9000BTU 12000BTU 18000BTU 24000BTU
DC Inverter TechnologyHigh Efficiency&Energy-Saving
Elegant Design
Smart Control
Cheap price
Elegant Design
Smart Control
Cheap price
(9000Btu-24000Btu Cooling and Heating Air Conditioning smart Split Inverter Air Conditioners)

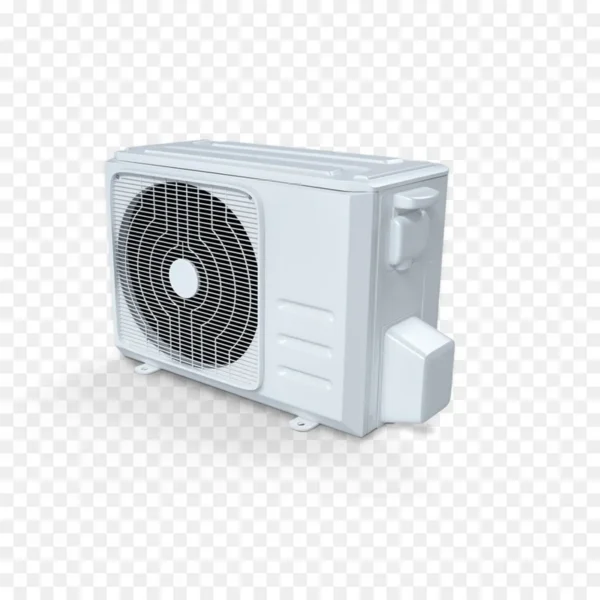

Outdoor Unit Advantages:
Core Technology

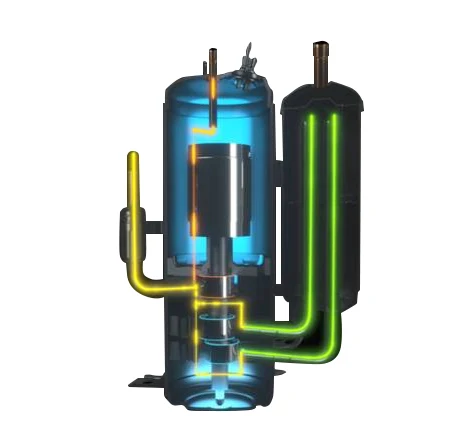

The triple-cylinder two-stage rotary compressor of variable volume ratio independently developed by it has reached the “world leading” level. Thanks to its wide operation range, it enables turbo heating under ultra-low temperature. The indoor temperature
can be maintained at 25℃ even the outdoor temperature is – 35℃.
·Heating capacity is not attenuated under -15℃; stable heating under ultra-low temperature of -35℃
·Stable operation under -35℃~54℃
·Auxiliary heating elements such as electric heater cancelled.
can be maintained at 25℃ even the outdoor temperature is – 35℃.
·Heating capacity is not attenuated under -15℃; stable heating under ultra-low temperature of -35℃
·Stable operation under -35℃~54℃
·Auxiliary heating elements such as electric heater cancelled.
(9000 12000 18000 24000 36000 Btu Heating And Cooling 50hz 60hz Inverter Mini Wall Split Air Conditioner Ac Mini Split Unit)

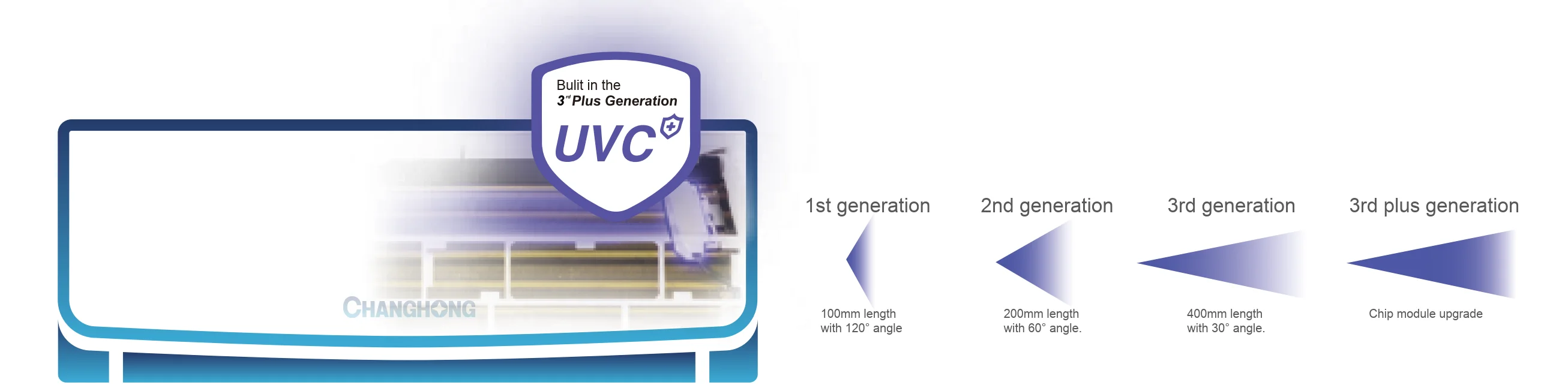

UVC photosensitive sterilization module can emit 260 ~ 280nm deep ultraviolet rays, which have high photon energy. When irradiating microorganisms, it can penetrate the cell membrane and nucleus of microorganisms, destroy the molecular bonds of DNA, and make them instantly lose their replication ability and activity, thus death.
(9000 12000 18000 24000 36000 Btu Heating And Cooling 50hz 60hz Inverter Mini Wall Split Air Conditioner Ac Mini Split Unit)
The evaporator adopts hydrophilic coating. When the remote controller is turned on for self-cleaning with one key, the surface of the evaporator is rapidly cooled and frosted, generating strong cold expansion force to peel off dirt. Then the air conditioner is rapidly heated and melted, and the frost is washed, and the evaporator is dried to keep the evaporator clean for a long time like lotus flowers.
(9000 12000 18000 24000 36000 Btu Heating And Cooling 50hz 60hz Inverter Mini Wall Split Air Conditioner Ac Mini Split Unit)

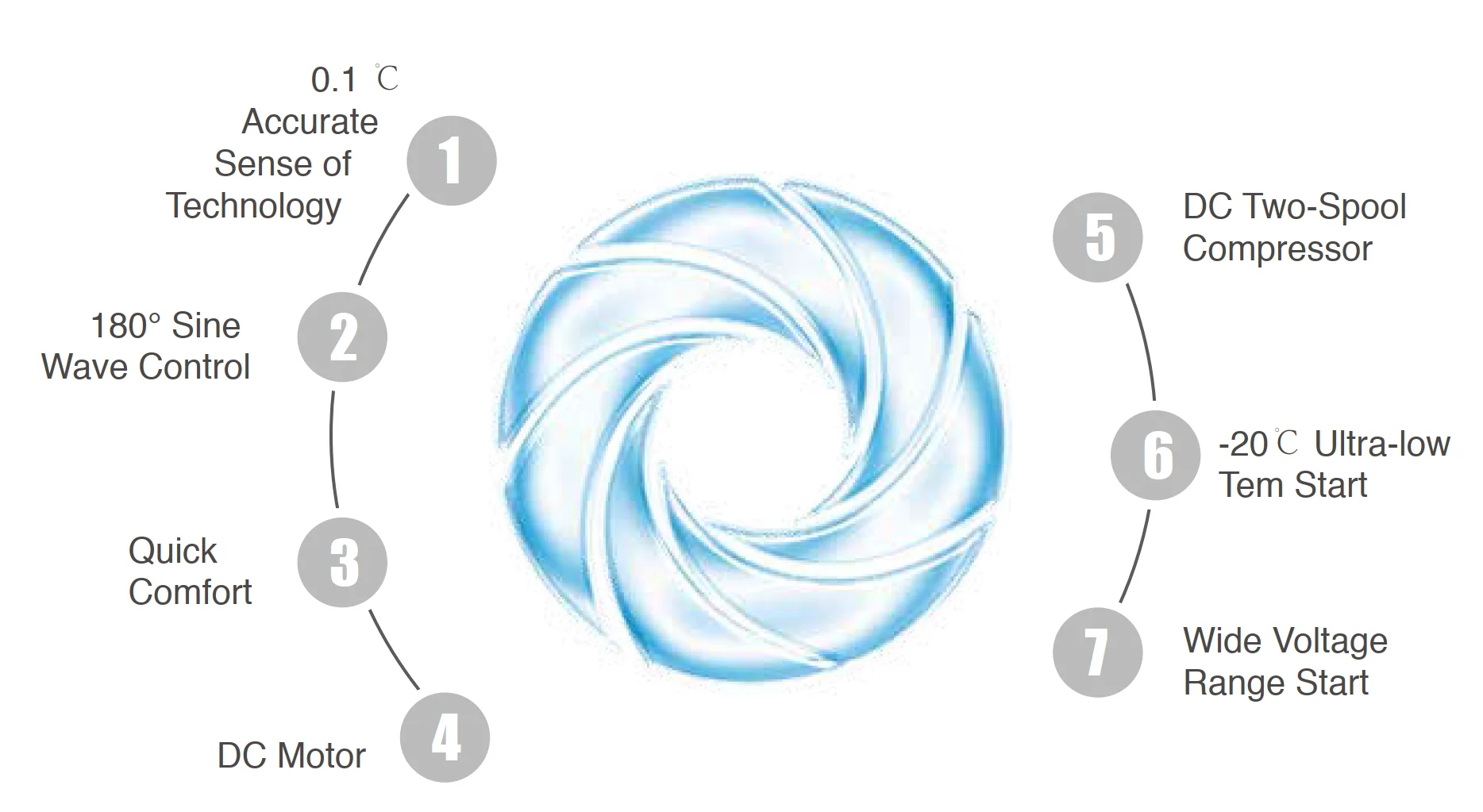

DC inverter uses the high efficiency compressor and quality DC motors to ensure the AC work stably , efficiently, safely and energy-saving.
(9000 12000 18000 24000 36000 Btu Heating And Cooling 50hz 60hz Inverter Mini Wall Split Air Conditioner Ac Mini Split Unit)
Environment Friendly
1.Eu Energy Efficiency Classes A+++
The EU Energy Efficiency Classes A+++, this appliance comes with an ultra efficient performance . 2.R32&R290&R410a Refrigerant
Environment-friendly refrigerant with excellent
performance and stability.
(9000-24000Btu Cooling and Heating Air Conditioning smart Split Inverter Air Conditioners)
Energy Saving & Comfort

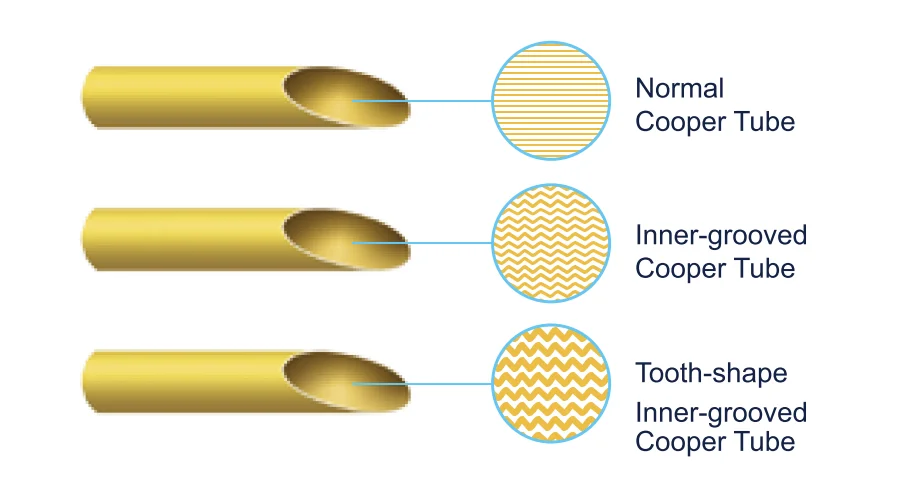

1.Tooth-Shaped Inner-Grooved Copper Tube
By adopting newly tooth-shape design high efficiency groove inner copper screw technology to enlarge the area between refrigerant and copper, the efficiency of heat exchange can be improved about 30-50％.(9000 12000 18000 24000 36000 Btu Heating And Cooling 50hz 60hz Inverter Mini Wall Split Air Conditioner Ac Mini Split Unit

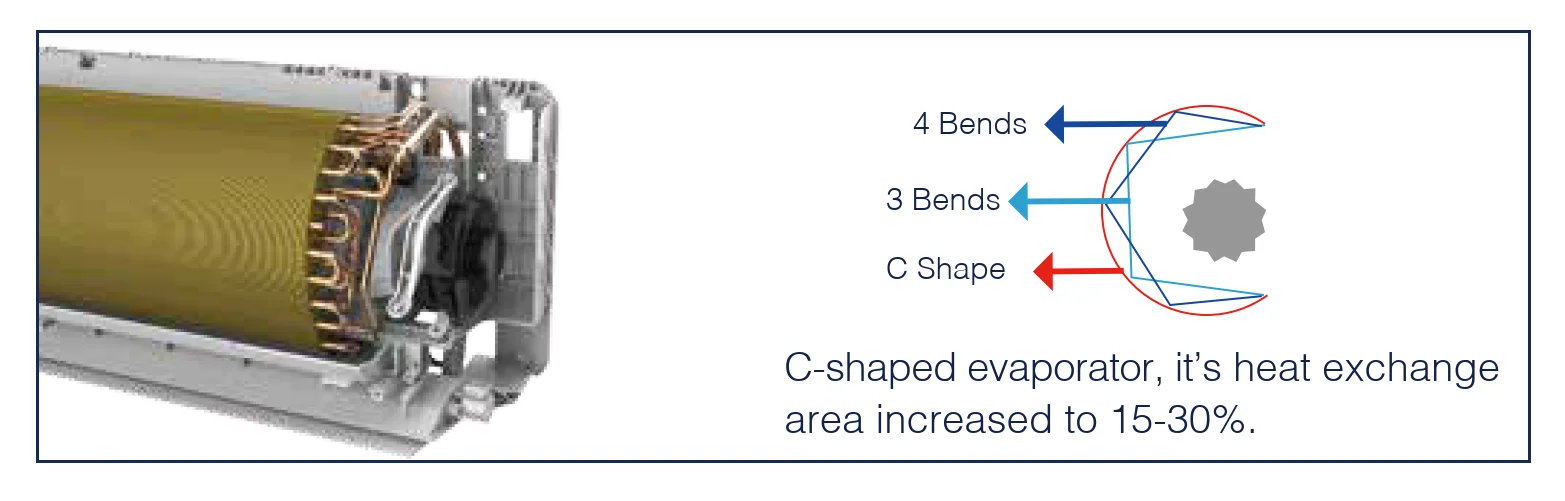

1.C-Shaped Efficient Evaporator
Evaporator is one of the most important components and the main carrier to realize heating and cooling exchange in air conditioner. Other brands’ air conditioning mainly used 3 bending type evaporator which is slow, noisy and waste. We use C-shaped evaporator, compared with the normal evaporator, it’s heat exchange area increased to 15-30%. At the same time, it avoids the air reverse blowing increases 12-25% cooling and heating speed. It effectively reduce the noise level.
Evaporator is one of the most important components and the main carrier to realize heating and cooling exchange in air conditioner. Other brands’ air conditioning mainly used 3 bending type evaporator which is slow, noisy and waste. We use C-shaped evaporator, compared with the normal evaporator, it’s heat exchange area increased to 15-30%. At the same time, it avoids the air reverse blowing increases 12-25% cooling and heating speed. It effectively reduce the noise level.
Specification
Split Air Conditioner/Air Conditioner Split Type/Energy Saving Silent Mode Split Air Conditioning | ||||||||||||||
Function | Cooling Heating | Cooling Heating | Cooling Heating | Cooling Heating | ||||||||||
Horsepower | P | 1 | 1.5 | 2 | 3 | |||||||||
Ton | 0.8 | 1 | 1.5 | 2 | ||||||||||
Capacity | Cooling | BTU/h | 9000 | 12000 | 18000 | 24000 | ||||||||
Heating | BTU/h | 9500 | 12500 | 18500 | 24500 | |||||||||
EER/COP | W/W | 3.6 | 3.4 | 3.5 | 3.3 | |||||||||
Power Supply | ph,V,Hz | 1ph,220V-240V,50hz | 1ph,220V-240V,50hz | 1ph,220V-240V,50hz | 1ph,220V-240V,50hz | |||||||||
Power Input | Cooling | W | 825 | 1180 | 1660 | 2240 | ||||||||
Heating | W | 780 | 1080 | 1540 | 1860 | |||||||||
Current Input | Cooling | A | 4.2 | 5.9 | 7.8 | 9.8 | ||||||||
Rated Current | Heating | A | 5.9 | 7.9 | 12.3 | 13 | ||||||||
Refrigerant | R410A | R410A | R410A | R410A | ||||||||||
Indoor Unit | Airflow Volume | m³/h | 450 | 550 | 900 | 950 | ||||||||
Sound Pressure Level | dB(A) | 30-36 | 36-42 | 39-45 | 42-46 | |||||||||
Outline Dimension (W×H×D) | mm | 790×280×200 | 790×280×200 | 890×300×210 | 1020×320×260 | |||||||||
Pakage Dimension (W×H×D) | mm | 865×330×260 | 870×350×275 | 980×370×300 | 1100×390×320 | |||||||||
Gross Weight | kg | 9 | 11 | 13 | 14 | |||||||||
Outdoor Unit | Sound Pressure Level | dB(A) | 45 | 48 | 55 | 55 | ||||||||
Piping Connection | Gas | mm | φ9.52 | φ12.7 | φ12.7 | φ16 | ||||||||
Liquid | mm | φ6.35 | φ6.35 | φ6.35 | φ6.35 | |||||||||
Outline Dimension (W×H×D) | mm | 600×250×450 | 780×260×550 | 850×300×600 | 850×320×700 | |||||||||
Pakage Dimension (W×H×D) | mm | 760×350×550 | 860×350×600 | 950×400×680 | 990×400×690 | |||||||||
Gross Weight | kg | 29 | 35 | 43 | 54 | |||||||||
Loading Quantity | 40`GP | sets | 126 | 105 | 75 | 68 | ||||||||
40`HQ | sets | 308 | 258 | 185 | 165 | |||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

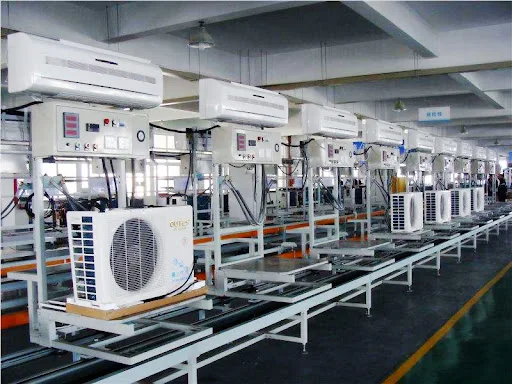

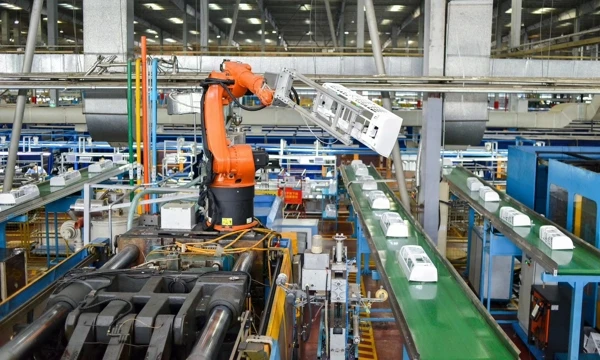

Tongxing Air Conditioning Technology Co.,Ltd.(referred to the Tongxing)is a central air conditioner sales and
installation,accessories sales,centeal air conditioning repair ,cleaning services for the integration of science and technology enterprise,for office buildings,shopping malls,hotels,dance halls,stations,hospitals , factores and other central air conditioning system to provide integrated solutions.Company dedicated to the world's most advanced central air-conditioning system service concept to china,and work diligently pursue efforts to build the best central air-conditioning system service brand.
Tongxing has been pushing with Gree,Midea,Trane,Mcquay,AUX,Galanz and other well-known brand central air conditioning unit installatin,commissioning and maintenance , maintenance , cleaning services.With these well-known brands have established good relations of cooperation.In recent years,according to market demand with the launch of the extrusion duct Tongxing,phenolic duct,glass fiber and magnesium,fiberglass duct ,etc.,throughout the project in Henan has been used in the majonity of users praise,the company welcomes calls to sample inquiry,discussion ,and looks forward to become your loyal partner.
installation,accessories sales,centeal air conditioning repair ,cleaning services for the integration of science and technology enterprise,for office buildings,shopping malls,hotels,dance halls,stations,hospitals , factores and other central air conditioning system to provide integrated solutions.Company dedicated to the world's most advanced central air-conditioning system service concept to china,and work diligently pursue efforts to build the best central air-conditioning system service brand.
Tongxing has been pushing with Gree,Midea,Trane,Mcquay,AUX,Galanz and other well-known brand central air conditioning unit installatin,commissioning and maintenance , maintenance , cleaning services.With these well-known brands have established good relations of cooperation.In recent years,according to market demand with the launch of the extrusion duct Tongxing,phenolic duct,glass fiber and magnesium,fiberglass duct ,etc.,throughout the project in Henan has been used in the majonity of users praise,the company welcomes calls to sample inquiry,discussion ,and looks forward to become your loyal partner.
FAQ
1. who are we?
We are based in Henan, China, start from 2004,sell to North America(20.00%),South America(15.00%),Mid East(15.00%),Eastern
Europe(10.00%),Southeast Asia(10.00%),Africa(10.00%),Western Europe(5.00%),South Asia(5.00%),Domestic
Market(5.00%),Oceania(3.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Conditioner
4. why should you buy from us not from other suppliers?
VRF Chillers technology,installation,core value:honesty, speciality, innovation been central industry since 1980s,export since
2004.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2004,sell to North America(20.00%),South America(15.00%),Mid East(15.00%),Eastern
Europe(10.00%),Southeast Asia(10.00%),Africa(10.00%),Western Europe(5.00%),South Asia(5.00%),Domestic
Market(5.00%),Oceania(3.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Conditioner
4. why should you buy from us not from other suppliers?
VRF Chillers technology,installation,core value:honesty, speciality, innovation been central industry since 1980s,export since
2004.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–199 set: US $197 / set
- 200+ set: US $180 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this split air conditioner carry?
It is supplied with EMC, CB, CE, ROHS, Emf, LFGB, UR, GS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the split air conditioner be supplied for my local voltage?
The standard configuration is 220-240V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
