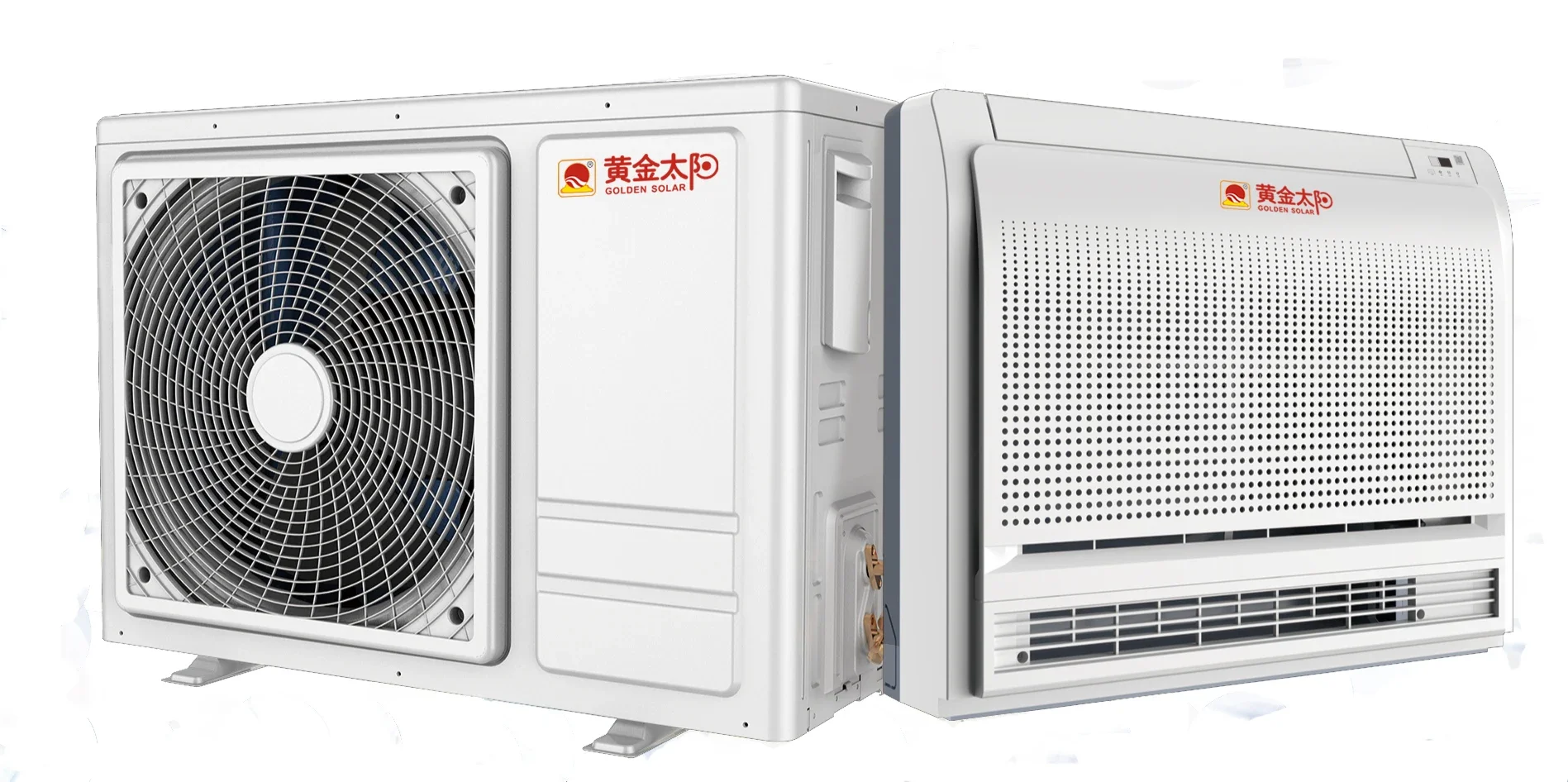

Split Air Conditioner, R410A, <6000W(<8.05hp), AC

This split air conditioner is listed with the manufacturer’s full published specification — capacity (btu) <6000W(<8.05hp), power type AC, refrigerant R410A. It is produced by Shandong Golden Solar Technology Development Co., Ltd., a verified supplier of 2 years. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.

Key Features of This Split Air Conditioner

• Model Number: HJTY-RFC-30LW/BPA1-1A
• Power Type: AC
• Power Source: Electric
• Power (W): 3000W(4.02hp)
• Capacity (Btu): <6000W(<8.05hp)
• Maximum Airflow Rate: 600m³/h(21188.80ft3/h)

Technical Specifications

Product Details

It can be switched between warm and cold with just one click

Rapid heating in winter and strong cool breezes in summer

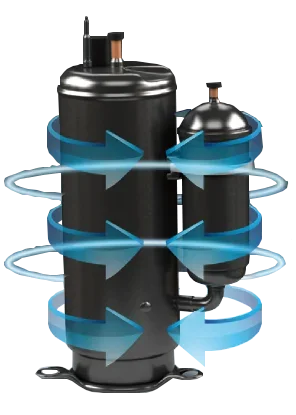

High-efficiency variable-frequency fully enclosed compressor, with more lasting energy efficiency

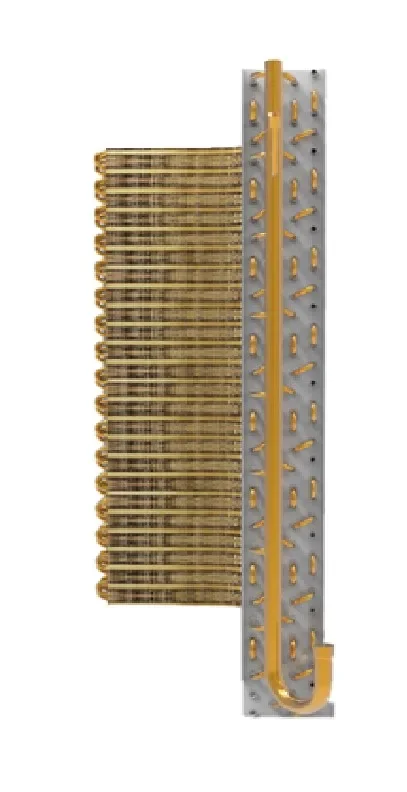

Hydrophilic aluminum foil finned heat exchangers have higher heat exchange efficiency

Feature Introduction

1、Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

2、Ultra-low temperature heating capacity, no decline in effect: By adopting the jet enthalpy increase technology, the heating capacity and energy efficiency ratio in low-temperature working conditions are significantly enhanced. The heating is strong, and it still operates reliably and stably at -30℃。

3、Ultra-quiet operation: Equipped with a low-noise, high-volume centrifugal fan and a unique integrated wide air outlet, it operates in ultra-quiet mode, significantly enhancing sleep comfort.

4、Low-carbon and environmental protection：It adopts the new environmentally friendly refrigerant R410A, which has a higher heating efficiency and a zero ozone layer depletion rate (ODP)。

5、Precise control of electronic expansion valves: High-precision electronic expansion valves are used to ensure the stable, reliable, economical and energy-saving operation of the entire machine.

6、Dual air outlets at the top and bottom: The unit adopts dual air outlets at the top and bottom, avoiding a hot head and cold feet, and ensuring a uniform and warm temperature field throughout the room like spring.

7、Power-off memory function in one step: At the moment of power failure, all operating states of the unit are instantly remembered and locked. After power is restored, it operates in the state before power failure. There is no need to worry about resetting after power failure. The power-off memory function is in one step.

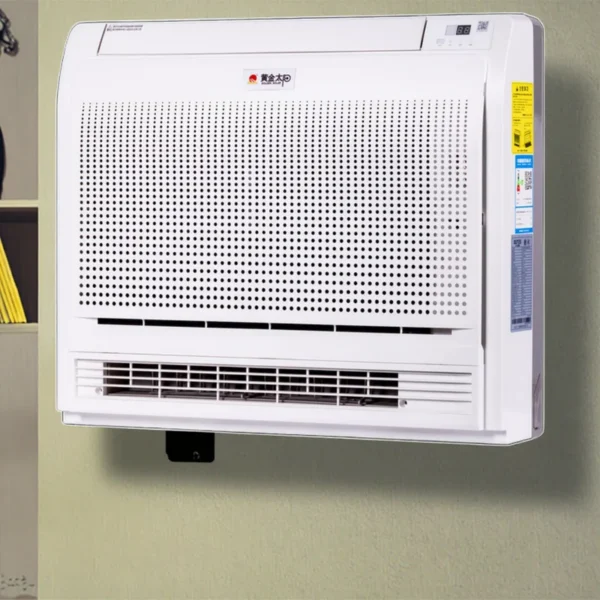

8、Novel, elegant and generous appearance: The entire plastic mold is opened, the unit is thin and light, and elegant and generous. It can be installed on the ground or wall-mounted, and is convenient. The mesh panel air intake ensures uniform air intake and low noise.

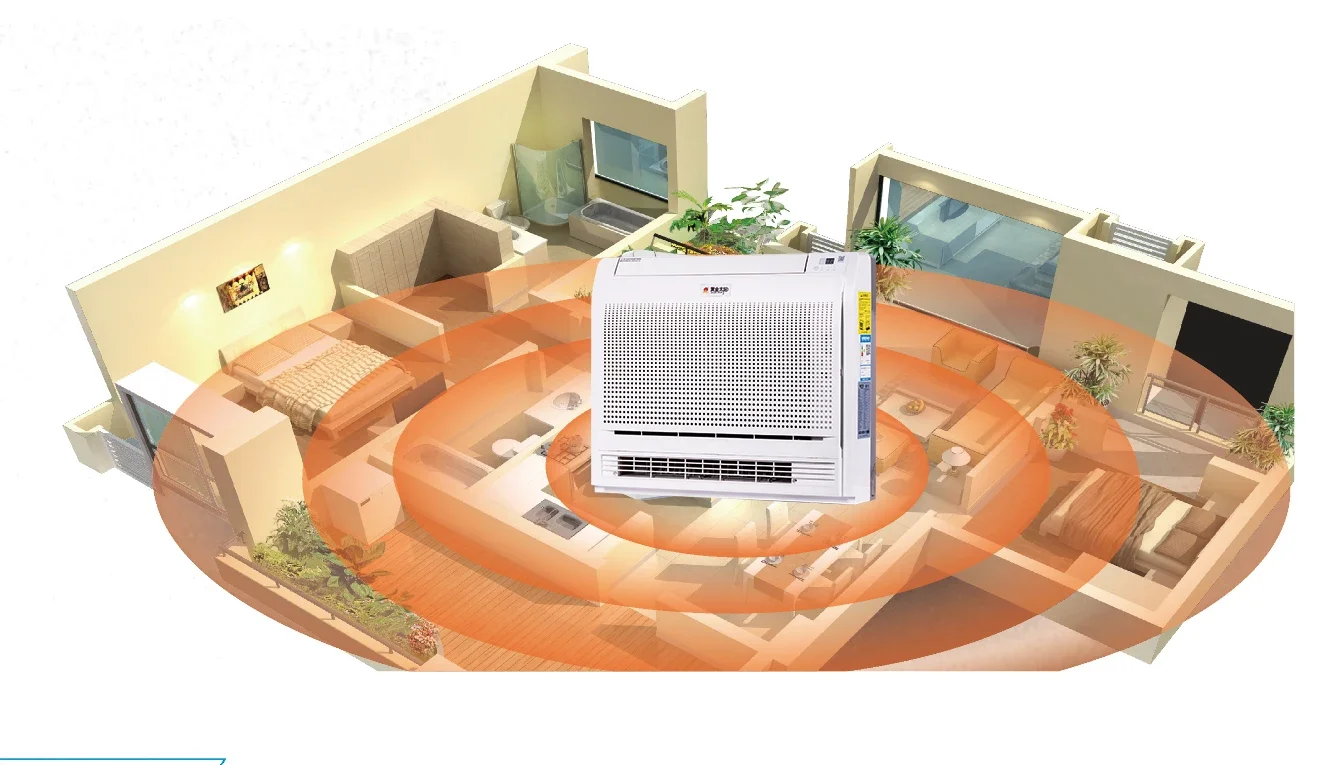

Heating  for a super-large area of 30 square meters

The effective heating area reaches 30 square meters. It adopts intelligent defrosting, which can continuously provide heating in ultra-low temperature environments, extending the defrosting cycle without obvious temperature fluctuations, and is full of warmth.

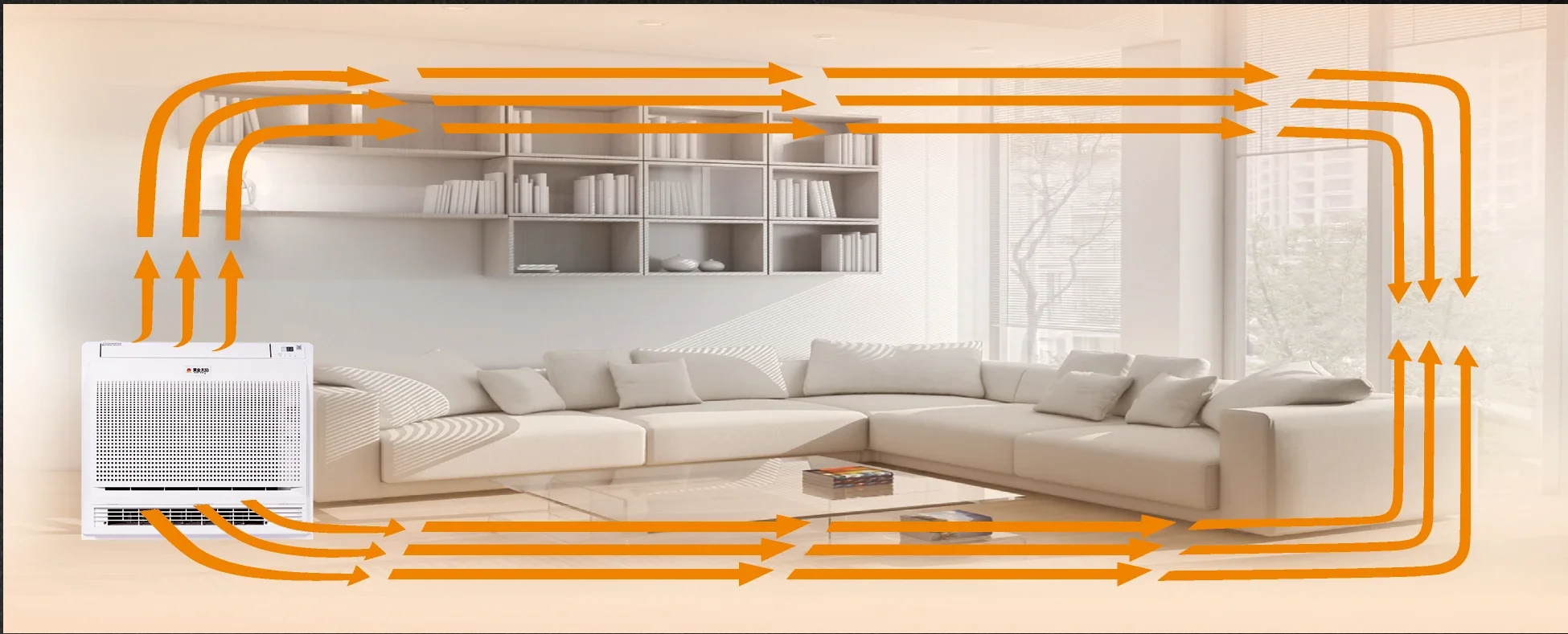

The dual air outlets at the top and bottom are as warm as spring

The unit adopts dual air outlets from the top and bottom, evenly raising the temperature throughout the room. It completely changes the feeling of being hot near and cold far away in ordinary electric heaters and air conditioners, making the indoor temperature evenly distributed and avoiding the discomfort caused by direct wind blowing on the human body. Moreover, it heats up faster than ordinary heating methods, making the home as warm as spring.

Complete Machine Model	HJTY-RFC-30LW	HJTY-RFC-40LW

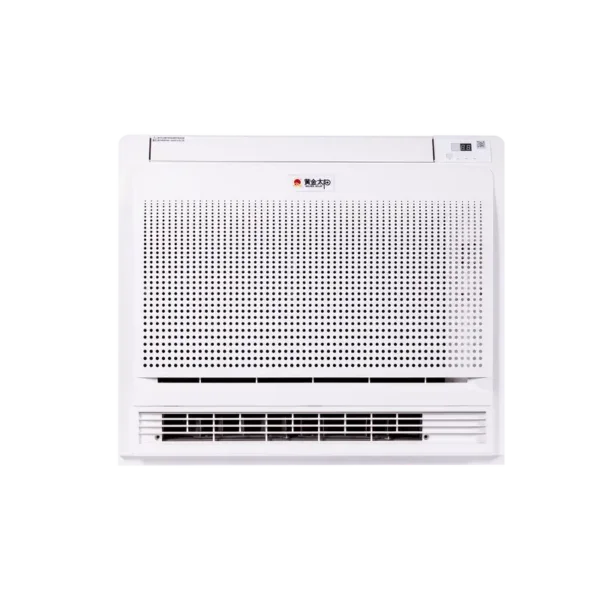

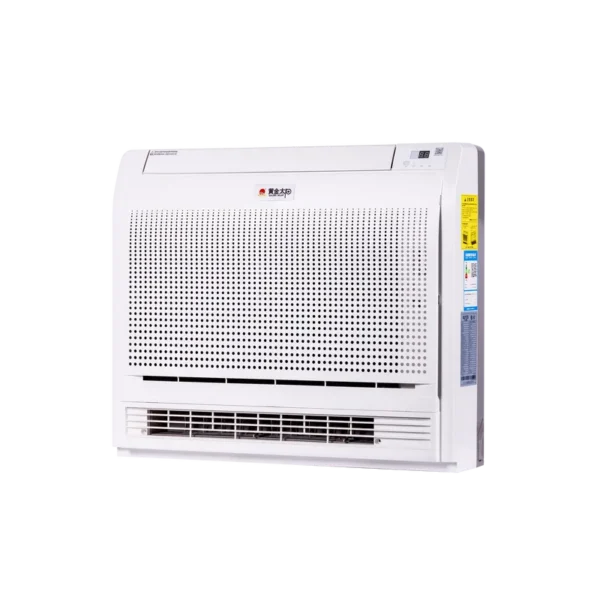

Indoor Unit Model	HJTY-RFC-30L	HJTY-RFC-40L

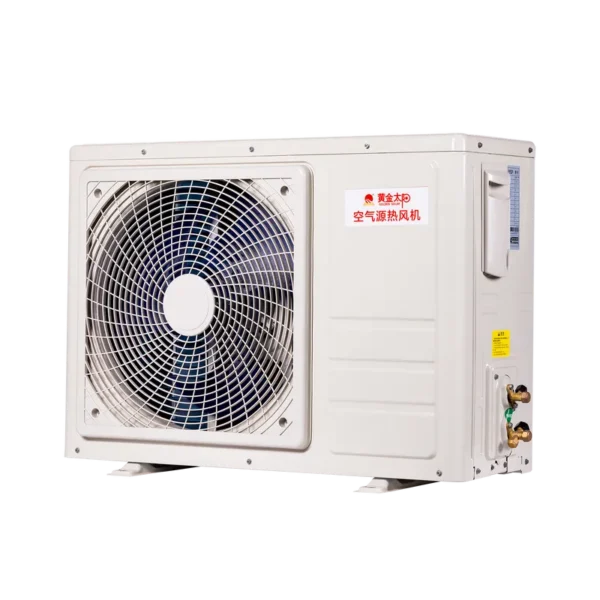

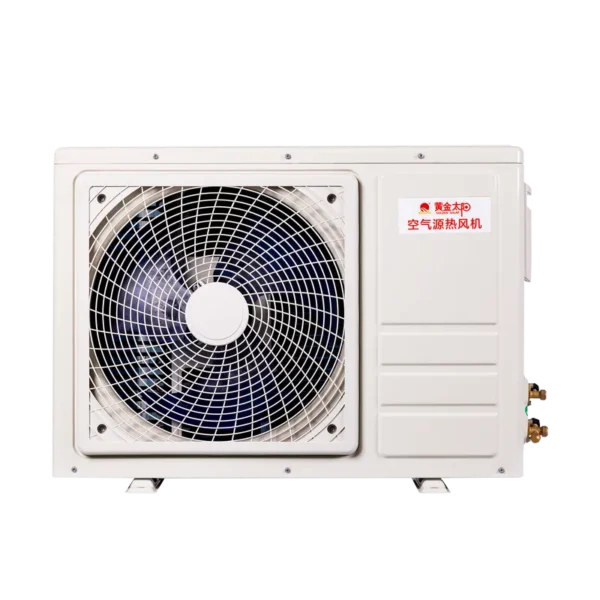

Outdoor Unit Model	HJTY-RFC-30W	HJTY-RFC-40W
Electrical Shock/ Water Resistance Rating	Class I/IPX4
Power Supply	220V~/50Hz
Safety Measures	Overcurrent protection, heating overtemperature protection, antifreeze
Heat Pump Rated Heating Capacity (-12°C)	3000W	4000W
Heat Pump High-Temperature Heating Capacity (7°C)	3000(300~6000)W	4000(400~7000)W
Heat Pump Low-Temperature Heating Capacity (-20°C)	3000W	4000W
Rated Heating Input Power (-12°C)	1300W	1735W
Rated Heating Input Power (7°C)	810(100~2200)W	1081(100~2500)W
Low-Temperature Heating Input Power (-20°C)	1500W	2000W
Heating Input Electricity (7-12°C-20°C)	3.9A/6.5A/6.9A	5.2A/8.0A/9.3A
Rated Cooling Capacity	3000W	4000W
Rated Cooling Power/Electric Current	1000W/4.6A	1410W/6.5A
Maximum Input Power	2000W	2500W
Maximum Input Current	10.1A	11.9A
COP (7°C-12°C-20°C)	3.70/2.30/2.00	3.70/2.30/2.00
Heating Seasonal Performance Factor (HSPF)	3.37	3.21
Heating Season Energy Consumption (HST)	1600kW ·h	2260kW ·h
Maximum Allowable Pressure for Heat Exchanger	4.5MPa	4.5MPa
Maximum Operating Pressure (Suction/Discharge Side)	1.2MPa/4.5MPa	1.2MPa/4.5MPa
Refrigerant and Charge Amount	R410A/1.10kg	R410A/1.10kg
Circulating Air Volume	600m³/h	650m³/h
Indoor/Outdoor Unit Noise	≤42/52dB(A)	≤42/52dB(A)
Indoor Unit Net Weight	15kg	15kg
Outdoor Unit Net Weight	35kg	37kg
Indoor Unit Dimensions	700*225*600(mm)	700*225*600(mm)
Outdoor Unit Dimensions	820*300*600(mm)	820*300*600(mm)

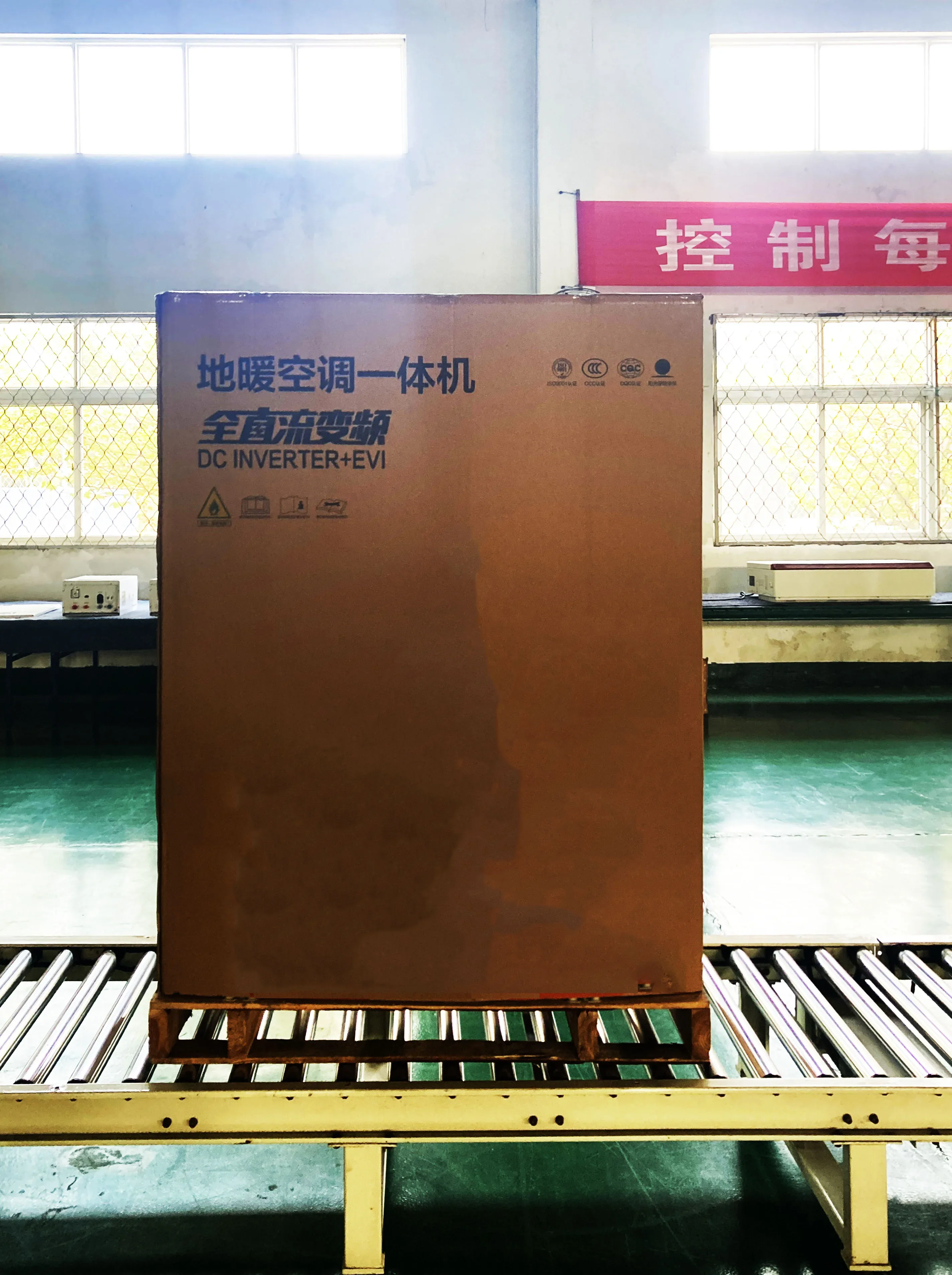

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

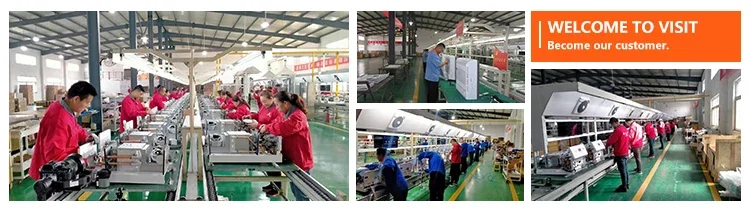

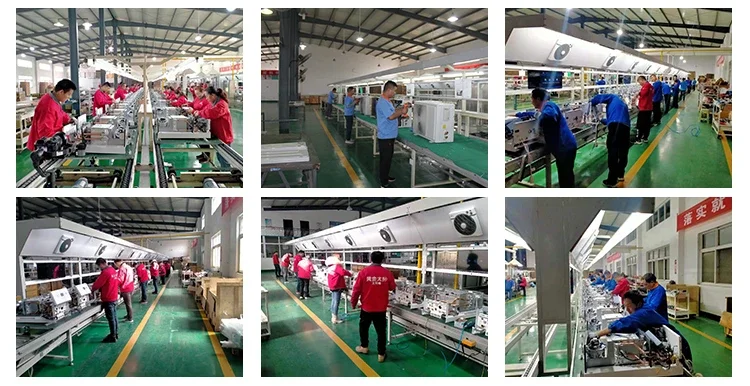

Shandong Gold Sun Technology Development Co., Ltd. was established in 2003 in Zaozhuang City, Shandong Province, with a registered capital of 86 million yuan. It is a high-tech enterprise. Focusing on the research, development, production and promotion of new energy application products, the company has more than 70 independent intellectual property rights. Its business covers a variety of new energy products such as solar water heaters, gas wall-mounted boilers, air source heat pumps, and household electric heaters. The annual production capacity is approximately 1.2 million solar water heaters, 200,000 gas wall-mounted boiler products, 500,000 air source heat pumps, and 1 million electric heaters and other products.The company has passed a number of system certifications, won numerous honorary titles, reached cooperation with many units, and its products and services cover many regions, enjoying a high reputation and influence in the industry. Shandong Gold Sun Technology Development Co., Ltd. actively responds to the clean heating policy, cooperates with the government to promote the clean heating policies of "coal-to-electricity" and "coal-to-gas", and has accumulated rich experience and achieved great results. Its products have been successively promoted and applied across the country, and exported to countries and regions such as Southeast Asia, North America, South Africa, Europe, and Russia. The company is committed to the development and utilization of the new energy field, and has successfully designed and developed a number of heating/hot water projects in many places at home and abroad. It has been highly recognized and praised by a large number of users at home and abroad.

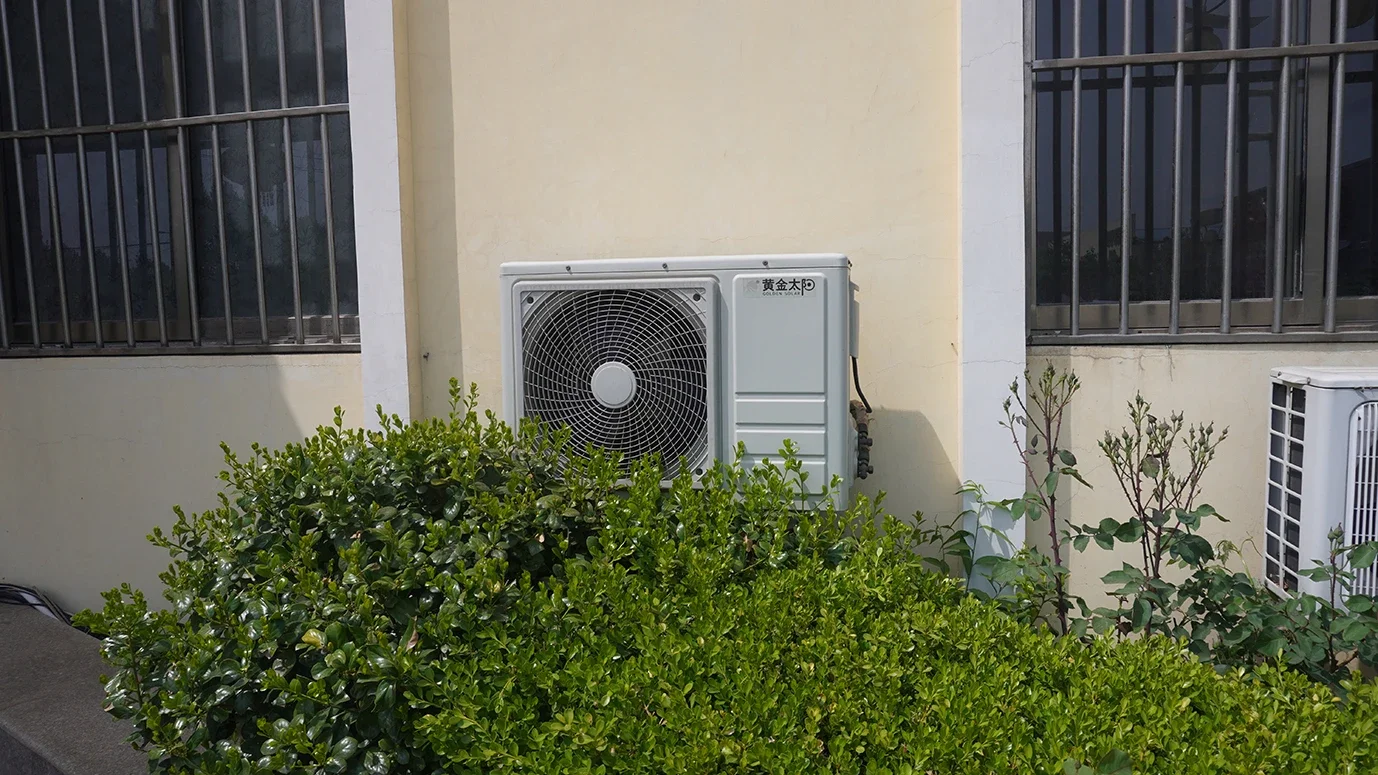

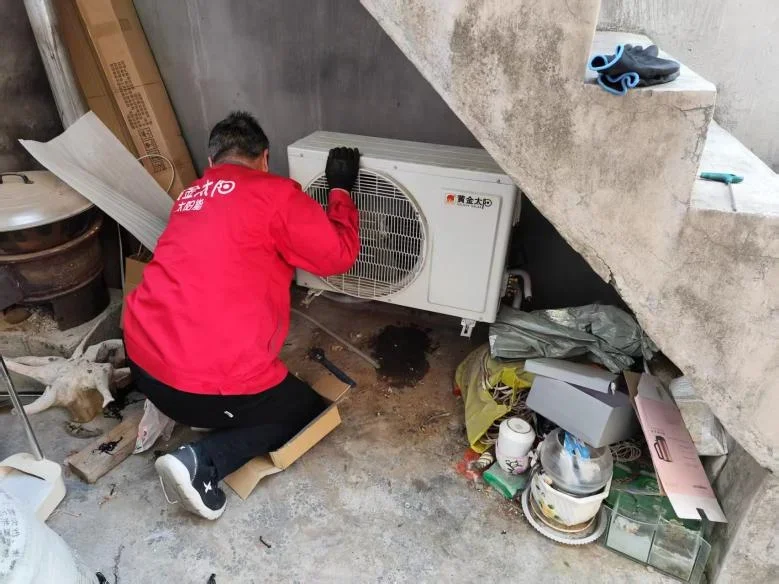

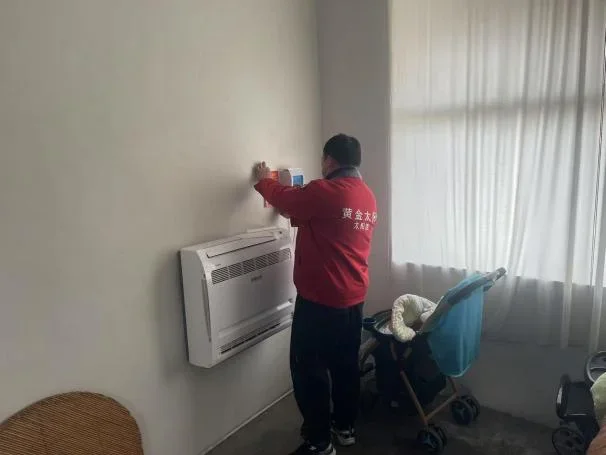

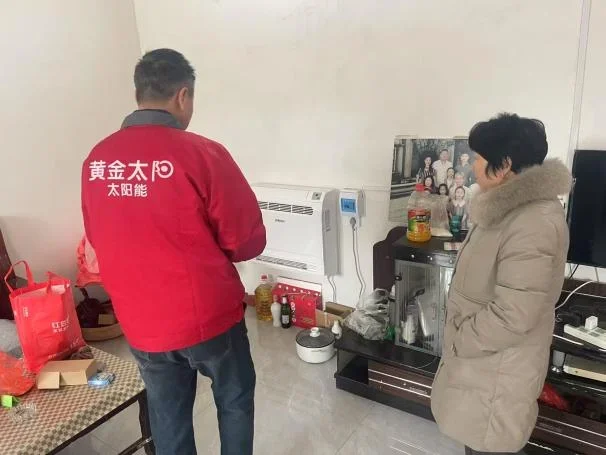

Case Show

1. who are we?
We are based in Shandong, China, start from 2003,sell to Domestic Market(60.00%),Eastern Asia(7.00%),Oceania(5.00%),Mid East(5.00%),Central America(4.00%),Southern Europe(4.00%),South Asia(3.00%),Western Europe(3.00%),Northern Europe(2.00%),Southeast Asia(2.00%),South America(2.00%),Eastern Europe(1.00%),Africa(1.00%),North America(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Household solar water heater,Gas-fird heating and water combi-boilers,Carbon crystal indoor heater,Low ambient temperature air source heat pump fan,Fast Heating Electric Water Heater (Electric Wall Hanging Furnace)

4. why should you buy from us not from other suppliers?
We have a professional technical R&D team, hold multiple national invention patents, have participated in numerous national procurement projects, and have accumulated rich experience in energy conversion and utilization.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,Cash;
Language Spoken:English,Chinese

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–99 set: US $305 / set
  • 100+ set: US $300 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this split air conditioner?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Golden Solar Technology Development Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Golden Solar Technology Development Co., Ltd. range on HVACR Nexus.
