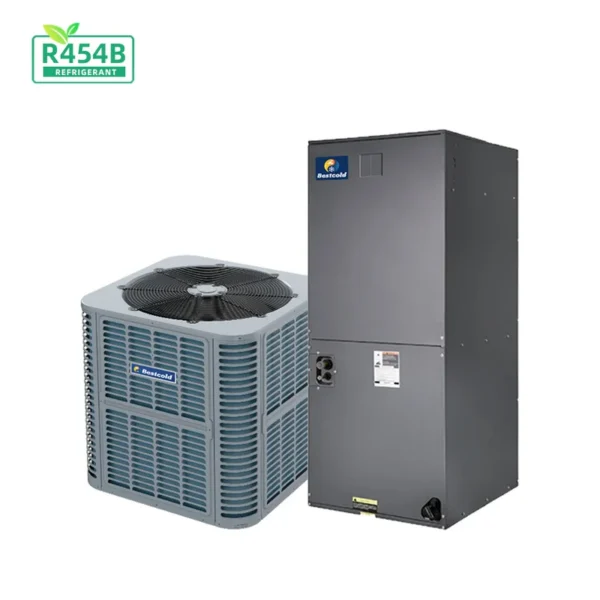

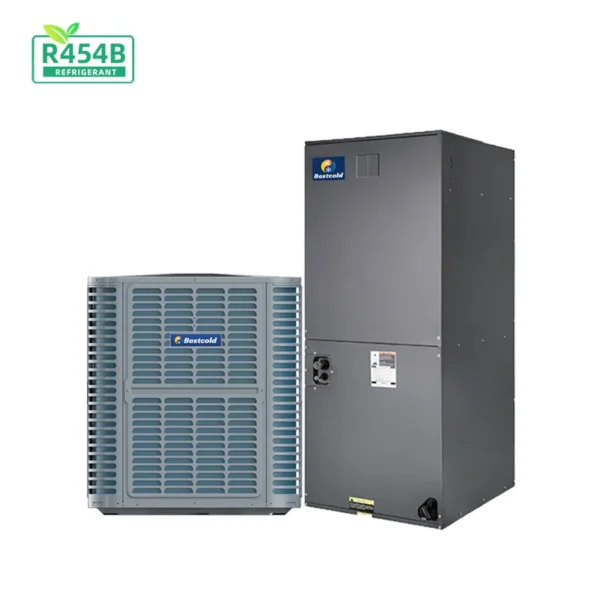

Key specification for this split air conditioner: power supply 208-230V/1Ph/60Hz, 23700BTU, 34200BTU, 47300BTU, 55000BTU. Everything below is reproduced from the factory data sheet. Made by Moyu Technology Co., Ltd. Zhuhai (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Split Air Conditioner
- Power Supply: 208-230V/1Ph/60Hz
- Cooling Capacity: 23700BTU, 34200BTU, 47300BTU, 55000BTU
- Heating Capacity: 24000BTU, 34200BTU, 47800BTU, 57000BTU
- Refrigerant: R454B environmentally friendly refrigerant.
- Warranty: 1 Year
- Certification: AHRI & ETL
Technical Specifications
| Type | Air Handling Unit |
|---|---|

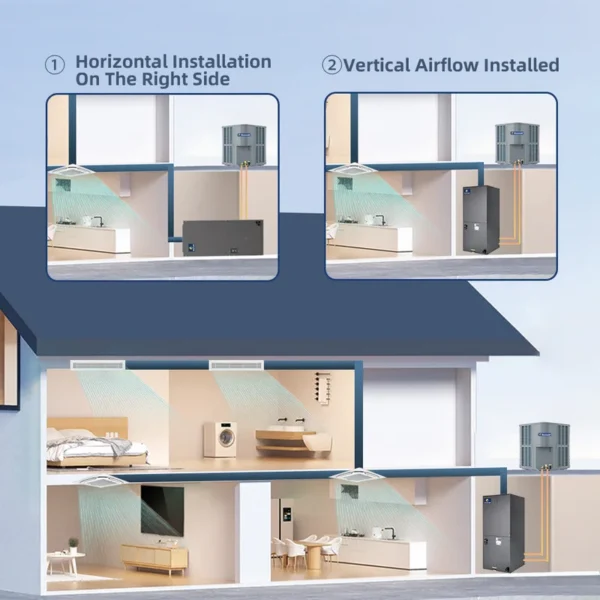

| Mounting Type | DUCT |
| Fan Motors Type | DC |
| Motor Type | DC Motor |
| Application | Hospital, Hotel, Home, School, Plant, Warehouse |
| Key Selling Points | R454b environmentally friendly refrigerant. |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Compressor |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 60 |
| Brand Name | Bestcold |
| Dimension(L*W*H) | 750mm*635mm*750mm |
| Product Name | 18 SEER2 Air Handler |
| Advantage | OEM & ODM |
| Power Supply | 208-230V/1Ph/60Hz |
| Refrigerant | R454B environmentally friendly refrigerant. |
| Cooling Capacity | 23700BTU, 34200BTU, 47300BTU, 55000BTU |
| Heating Capacity | 24000BTU, 34200BTU, 47800BTU, 57000BTU |
| Compressor | Rotary compressor |
| Feature | Intelligent defrosting program |
| Function | CoolingHeating |
| Certification | AHRI & ETL |
| Selling Units | Single item |
| Single Package Size | 200X200X200 cm |
| Single Gross Weight | 200.0 kg |
Product Details
| Model | 24K | 36K | 48K | 60K | ||
| Electrical Data | Voltage-Phase-Hz | V-Ph-Hz | 208/230V-1Ph-60Hz | |||
| Minimum Circuit Ampacity | A | 15 | 20 | 25 | 30 | |
| Max. Overcurrent Protection | A | 20 | 25 | 35 | 40 | |
| Min / Max Volts | V | 187 / 253 | 187 / 253 | 187 / 253 | 187 / 253 | |
| Refer to Room Area | square feet | 365~660 | 536~990 | 709~1320 | 835~1650 | |
| Compressor | Model | TTM240D43UFTB | TTM240D43UFTB | TTQ440D1UMUA | TTQ440D1UMUA | |
| Brand | GMCC | GMCC | GMCC | GMCC | ||
| Type | Rotary | Rotary | Rotary | Rotary | ||
| Hz | 18-100 | 18-100 | 18-100 | 18-100 | ||
| Capacity | W/h | 6700 | 6700 | 13000 | 13000 | |
| Input | W | 1805 | 1805 | 3650 | 3650 | |
| Rated current(RLA) | A | 10 | 12.8 | 15.8 | 20 | |
| Refrigerant oil | ml | 920 | 920 | 1300cc | 1300cc | |
| LRA | 52 | 52 | 58.1 | 58.1 | ||
| Outdoor motor | Model | S.TB-DQ-DRN-310-200-10 | S.TB-DQ-DRN-310-200-10 | S.TB-DQ-DRN-310-200-10 | S.TB-DQ-DRN-310-200-10 | |
| Brand | board-ocean | board-ocean | board-ocean | board-ocean | ||
| Type | DC | DC | DC | DC | ||
| Rated HP | W | 1/4 | 1/4 | 1/4 | 1/4 | |
| Speed | rpm | 1100 | 1100 | 1100 | 1100 | |
| FLA | A | 1.8 | 1.8 | 1.8 | 1.8 | |
| Outdoor Fan | material | Metal | ||||
| Type | Axial flow | |||||
| Diameter | mm | φ595×115×φ12.7 | φ595×115×φ12.7 | φ595×115×φ12.7 | φ595×115×φ12.7 | |
| Outdoor coil | Number of row | 2 | 2 | 2 | 2 | |
| Number of U-tubes | 28 | 38 | ||||
| Tube outside dia | mm (in.) | 7 (9/32) | 7 (9/32) | 7 (9/32) | 7 (9/32) | |
| Fin spacing / Thickness / Type | mm / mm | 1.4 / 0.095 / Hydrophilic aluminium | ||||
| Length (outside/inside row)*Width*Height | mm | (2136/2076)*26.76*588 | (2136/2073)*26.74*798 | |||
| Tube pitch(a) × row pitch(b) | mm | 13.37 × 21 | 13.37 × 21 | 13.37 × 21 | 13.37 × 21 | |
| Outdoor Sound power | dB(A) | 76 | 79 | 76 | 79 | |
| Oudoor unit | Dimension (W×H×D) | mm | 750*635*750 | 750×835×750 | ||
| inch | 29-1/8×25×29-1/8 | 29-1/8×32-7/8×29-1/8 | ||||
| Packing (W×H×D) | mm | 760×660×760 | 760×875×760 | |||
| in. | 30×26×30 | 30/16×34-4/9×3 | ||||
| Net / Gross weight | kg | 62/66 | 62/66 | 85/ 89 | 85/ 89 | |
| lbs | 137/146 | 137/146 | 187 / 196 | 187 / 196 | ||
| Refrigerant system | Liquid side / Gas side | in. | 3/8 / 3/4 | 3/8 / 3/4 | 3/8 / 7/8 | 3/8 / 7/8 |
| Factory charge | oz | R454B/116.4 | R454B/116.4 | R454B/155.2 | R454B/155.2 | |
| Metering device | EEV | EEV | EEV | EEV | ||
| Maximum Line Length | ft | 100 | 100 | 100 | 100 | |
| Maximum Elevation Difference | ft | 50 | 50 | 50 | 50 | |

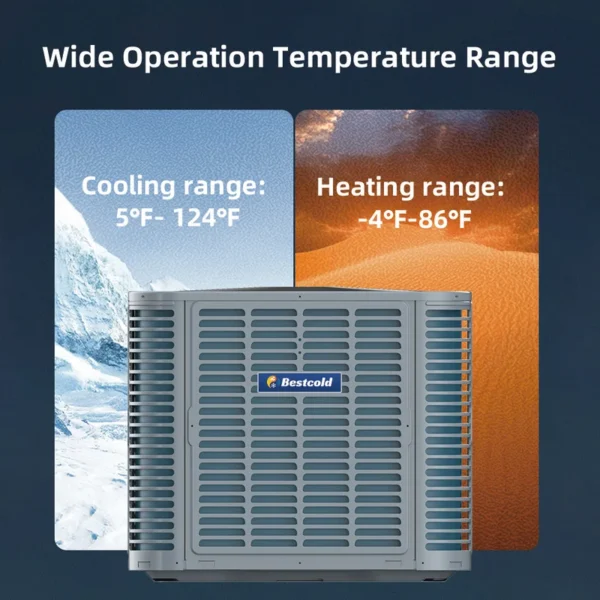

| Operating temperatures | Cooling | ℉ | 5-125 | 5-125 | 5-125 | 5-125 |
| Heating | ℉ | -4-86 | -4-86 | -4-86 | -4-86 | |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $750 / set
- 20–49 set: US $725 / set
- 50–99 set: US $680 / set
- 100+ set: US $630 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this split air conditioner carry?
It is supplied with AHRI & ETL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the split air conditioner be supplied for my local voltage?
The standard configuration is 208-230V/1Ph/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Moyu Technology Co., Ltd. Zhuhai, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Moyu Technology Co., Ltd. Zhuhai range on HVACR Nexus.
