The split air conditioner listed here carries 220V/380V, heating capacity 11500(1500-13400)W, documented exactly as the manufacturer publishes it. Made by NEW HVACR TECHNOLOGY (NINGBO) CO., LTD. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Split Air Conditioner
- Model Number: Split Wall Air Conditioner
- Voltage: 220V/380V
- Voltage Startup Range: 150V -265V Wide Voltage Support
- Heating Capacity: 11500(1500-13400)W
- Maximum Airflow: 1560
- Maximum Airflow Volume: 1560 m3/h
Technical Specifications
| Type | Air Conditioning |
|---|---|
| Application | Kitchen, Dining, Courtyard, Exterior, Laundry, Park, Sports Venues, Home Office, Villa, Hospital, Leisure Facilities, Supermarket |
| Voltage | 220V/380V |
| Refrigerant Type | R410A/R32 |
| Heating Capacity | 11500(1500-13400)W |
| Maximum Airflow | 1560 |
| Material Thickness | CUSTOM |
| Feature | Easy Installation, Flexible |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Onsite Inspection, Return and Replacement |
| Design Style | Minimalist, Modern, Coastal, Craftsman, Postmodern |
| Project Solution Capability | total solution for projects, graphic design, 3D model design, Cross Categories Consolidation |
| Place Of Origin | Zhejiang, China |
| Brand Name | NEW HVACR |
| Model Number | Split Wall Air Conditioner |
| Annual Performance Factor (APF) | 4.27 (High Efficiency Grade 1) |
| Compressor Type | Full DC Inverter Technology |
| Maximum Airflow Volume | 1560 m3/h |
| Voltage Startup Range | 150V -265V Wide Voltage Support |
| Safety Classification | VO-Grade Fire-Proof Electrical Box |
| Anti-Corrosion Technology | Hydrophilic Golden Fin Coating |
| Smart Sensing Logic | I-Feel Remote Temperature Sensing |
| Refrigerant Media | R32 Eco-Friendly Refrigerant |
| Maintenance System | 5th Gen High-Temp Self-Cleaning |
| Diagnostic System | Auto Refrigerant Leakage Detection |
| Selling Units | Single item |
Product Details
DESCRIPTION

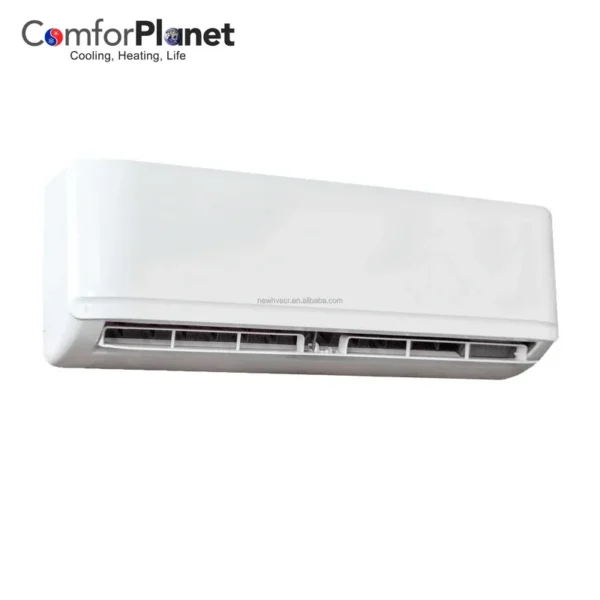

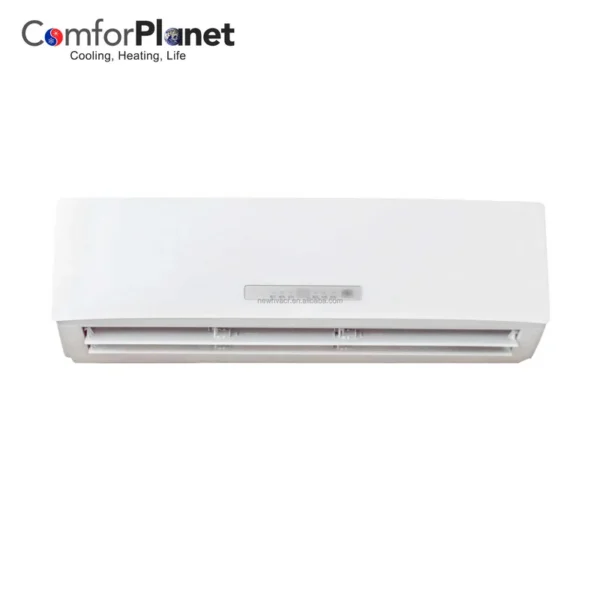

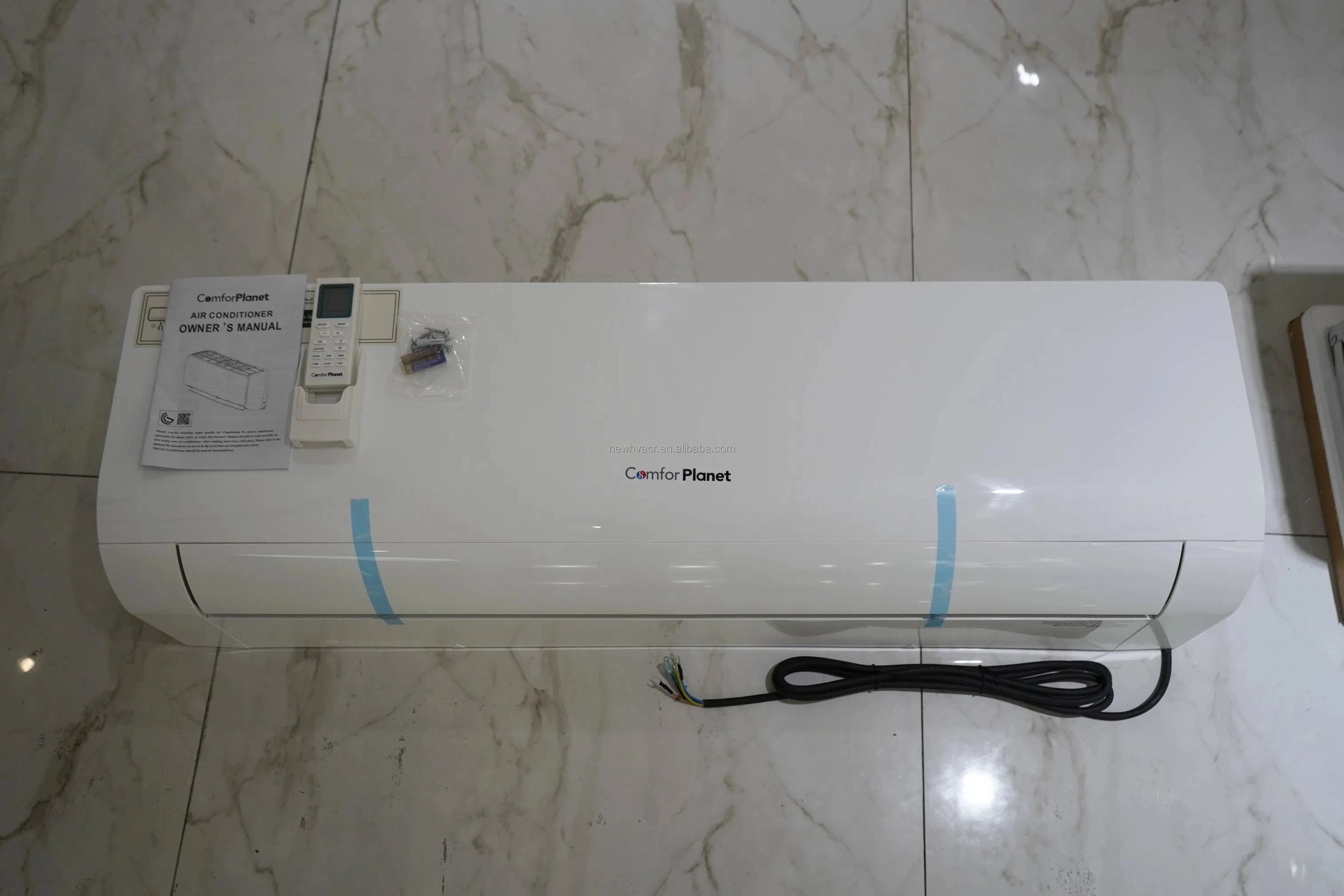

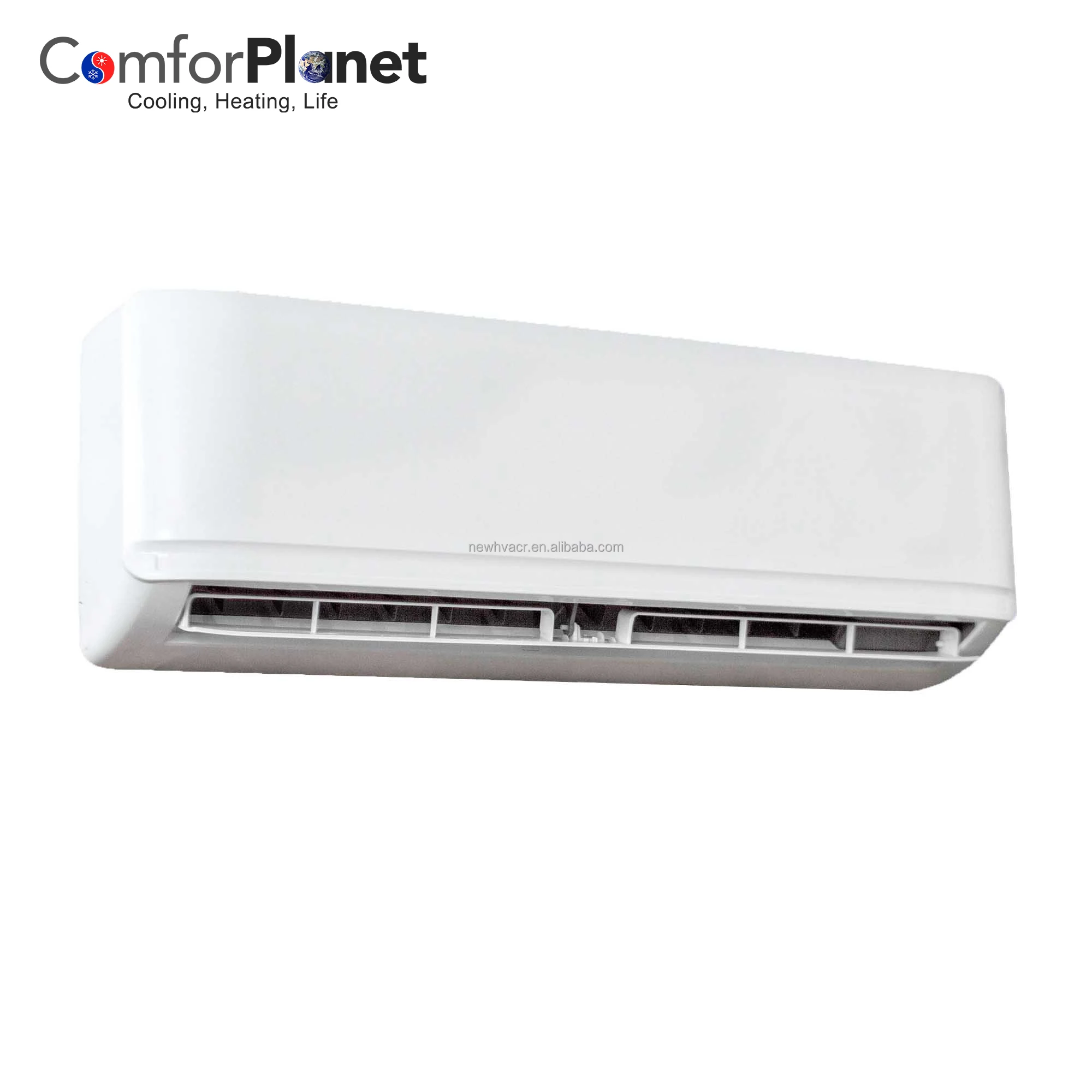

Split Wall Air Conditioner
This series comprises full DC inverter split wall-mounted air conditioners, covering a complete power range from 1P (9,000 BTU) to 4P (36,000 BTU). Each system consists of a high-efficiency indoor unit paired with an outdoor unit equipped with a top-tier inverter compressor, delivering cooling, heating, dehumidification, and ventilation four-in-one functionality.
Working Principle
Full DC Inverter Technology: Powered by high-performance full DC inverter, the system precisely controls rotational speed by varying power frequency. Compared to fixed-speed ACs, energy efficiency improves by approximately 40%, achieving laboratory-grade precise temperature control within ±0.5℃. Heat Pump System: In heating mode, the system reverses the refrigeration cycle to "harvest"heat from outdoor air and transfer it indoors, providing efficient heating even in low-temperature environments.
PRODUCT DETAIL
Product Advantages
Extreme Energy Efficiency: APF up to 4.27 (1.5P model), meeting China National Grade 1 Energy Efficiency standard. Top-Tier Quiet Operation: Indoor noise range 18 dB -40 dB, providing a virtually imperceptible operating environment. Superior Performance: 36,000 BTU model delivers 9,500W cooling and 11,500W heating capacity. 5,000W (18,000 BTU) model offers excellent price-to-performance balance. Wide Voltage Operation: Supports 220-240V/50-60Hz wide-voltage startup, compatible with most global power grids.

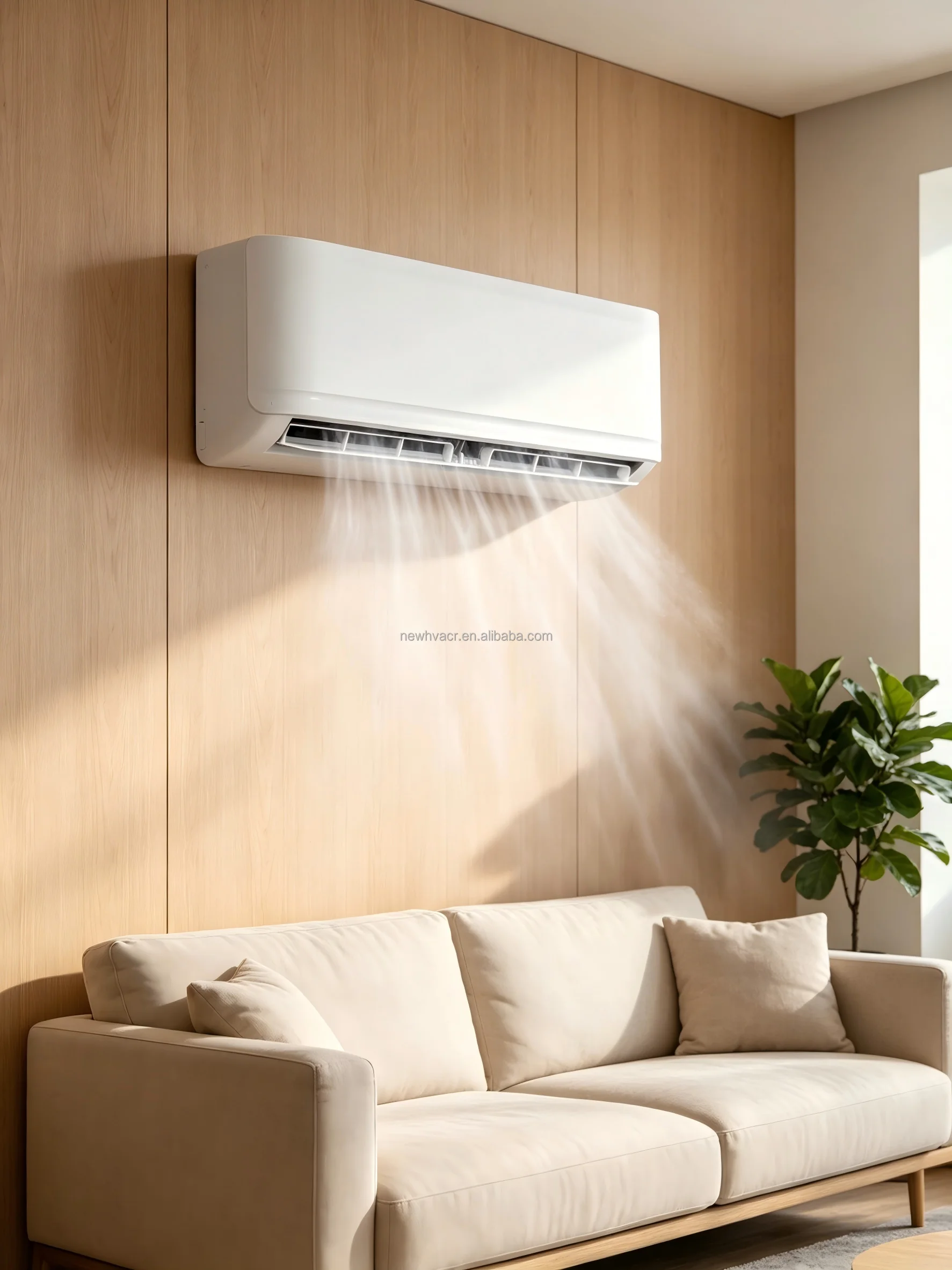

APPLICATION

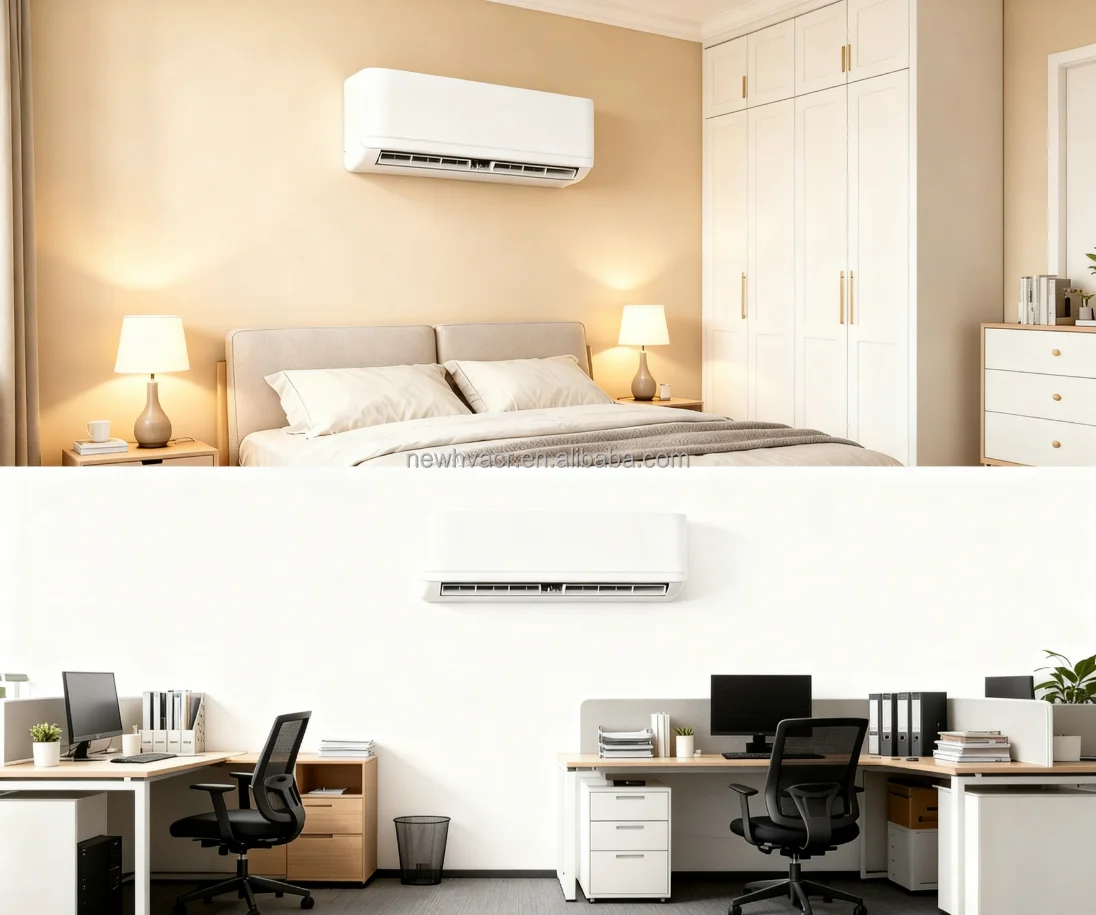

Application Scenarios
9K/12K BTU: Ideal for bedrooms and studies (emphasize 18dB ultra-quiet operation) 18K/24K BTU: Ideal for living rooms, master bedrooms, and small offices. 36K BTU (4P/3 Ton): Ideal for large villa halls, commercial showrooms, and conference rooms (airflow up to 1,560 m3/h).
Specification
Model | KFR-70GW/IH070F | KFR-25GW/IHO09B | KFR-35GW/IH012A | KFR-50GW/IHо50C |
Work Mode | Inverter | Inverter | Inverter | Inverter |
Power Source | 220-240V/50-60Hz | 220-240V/50-60Hz | 220-240V/50-60Hz | 220-240V/50-60Hz |
Horsepower (P) | 3 | 1 | 1.5 | 2 |
Ton | 2 | 0.8 | 1 | 1.5 |
Capacity (BTU) | 24000 BTU | 9000 BTU | 12000 BTU | 18000 BTU |
Cooling Capacity | 7200W | 2500W | 3496W | 5000W |
Cooling Power Input | 2600(350-3280)W | 650(90-1450)W | 980(95-1570)W | 1570(160-2500)W |
Heating Capacity | 9160(800-11000)W | 3900(200-5000)W | 4600(200-5700)W | 633(750-8100)W |
Heating Power Input | 2950(300-4100)W | 1070(90-1680)W | 1300(90-1920)W | 2100(200-2900)W |
APF | 3.46 | 4.26 | 4.27 | 3.66 |
Air Flow Volume (M3/4) | 1240 | 630 | 660 | 870 |
Indoor/Ourdoor Noise | 20~38/47db(A) | 1836/40db(A) | 1836/40db(A) | 40~36/46db(A) |
Compressor | GMCC/LINDA | GMCC/LINDA | GMCC/LINDA | GMCC/LINDA |
Refrigerants | R410A/R32 | R410A/R32 | R410A/R32 | R410A/R32 |
Pipe Diameter | 6.35/15.88 | 6.35/9.52 | 6.35/9.52 | 6.35/12.7 |
Structure & Functional Design
Minimalist Hidden LED: The panel uses high-gloss anti-aging material; the temperature display is concealed beneath the surface, with no glare at night. 18dB Sleep Mode: Optimized air duct design enables 1P/1.5P models to operate as low as 18 dB, far exceeding industry averages. 3D Omni-Directional Airflow: Vertical + horizontal auto-swing ensures even distribution of cool/warm air to every corner of the room. Four-Way Piping Connection: The indoor unit supports left/right/rear/bottom pipe routing, dramatically reducing installation complexity.
Core Materials & Craftsmanship Quality
Power Core (The Heart): All models feature high-performance compressors, with stable operation and a lifespan of 10+ years. High Thermal Conductivity Materials: Inner-groove copper tubes (9.52/15.88 mm) are used to increase refrigerant heat exchange area, improving heat transfer efficiency by 30%. Anti-Corrosion Coating: Fins feature Golden/Blue anti-corrosion coating (Golden/Blue Fin), optimized for coastal and acid-rain environments, with 3x better corrosion resistance. Eco-Friendly Refrigerant: Full R32/R410A support; R32 models feature lower GWP (Global Warming Potential).

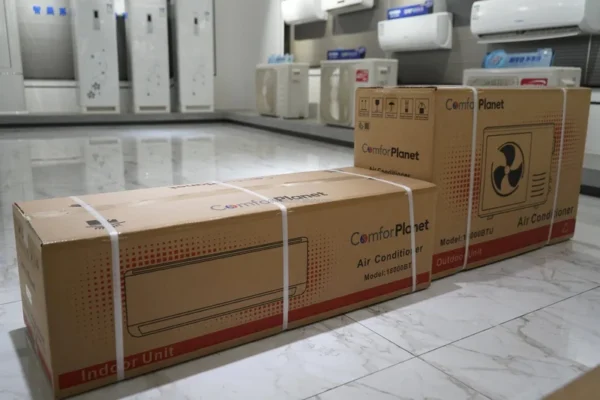

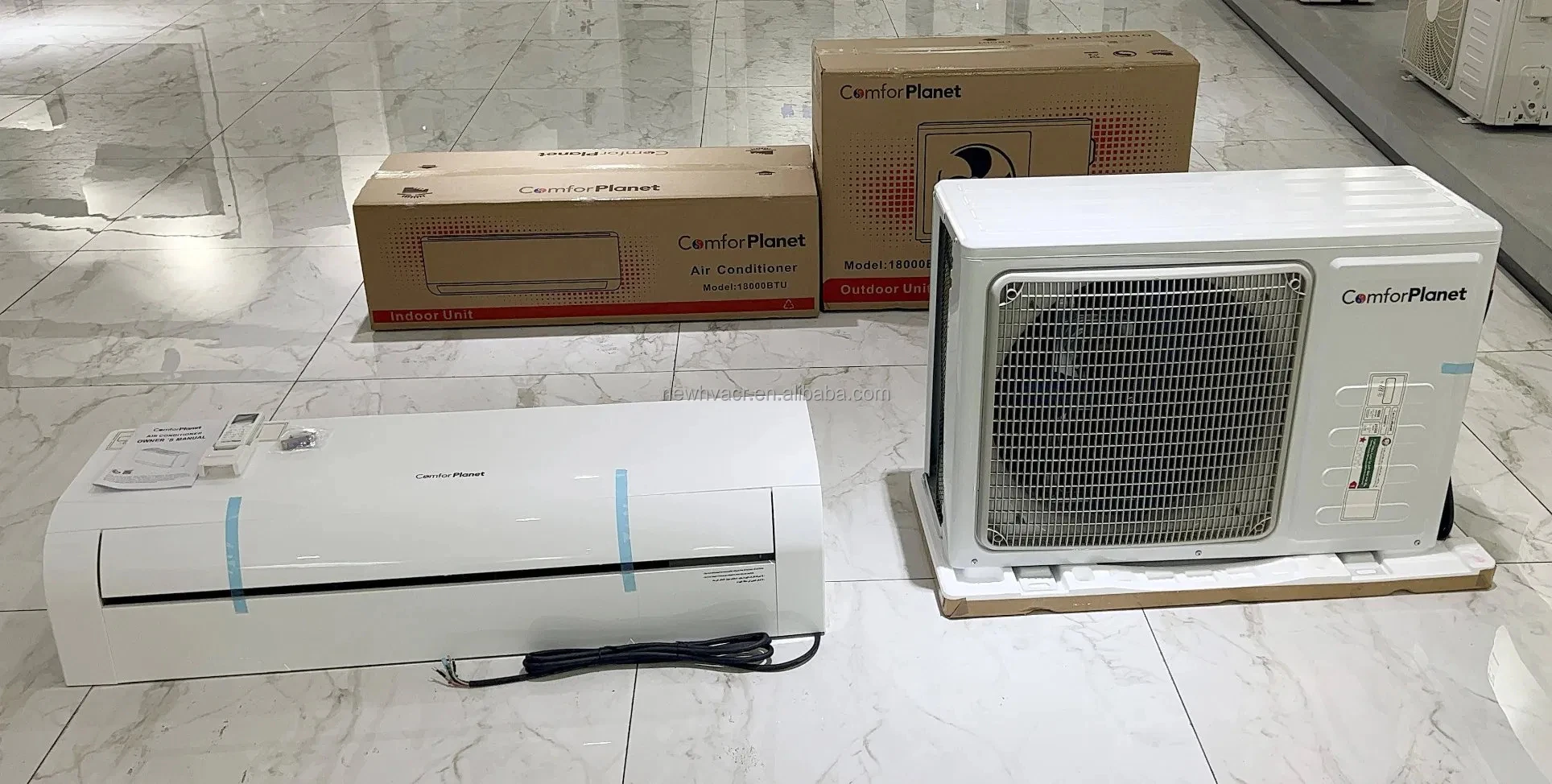

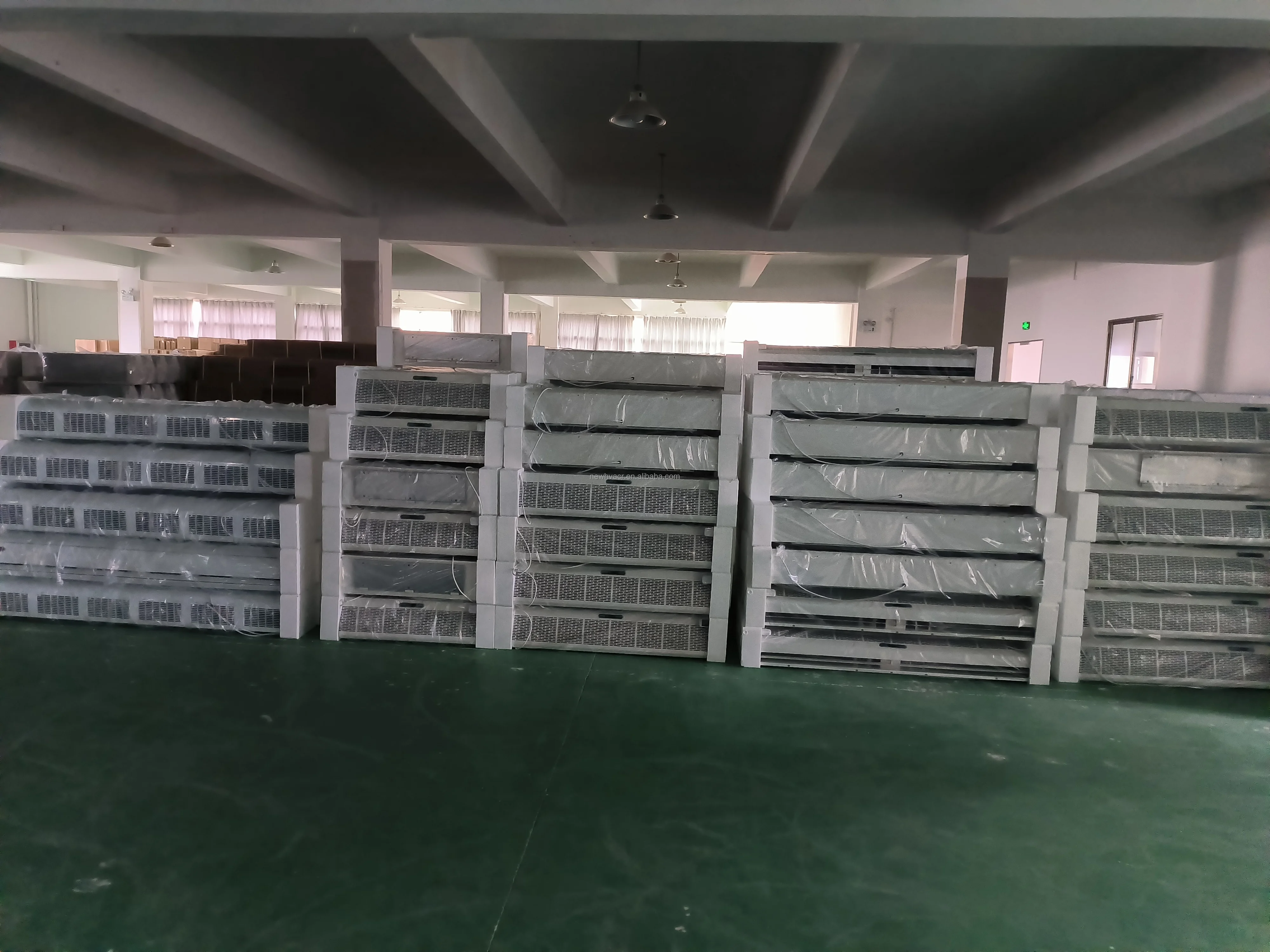

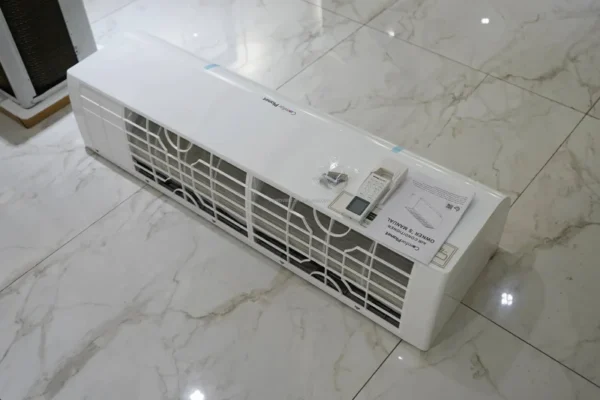

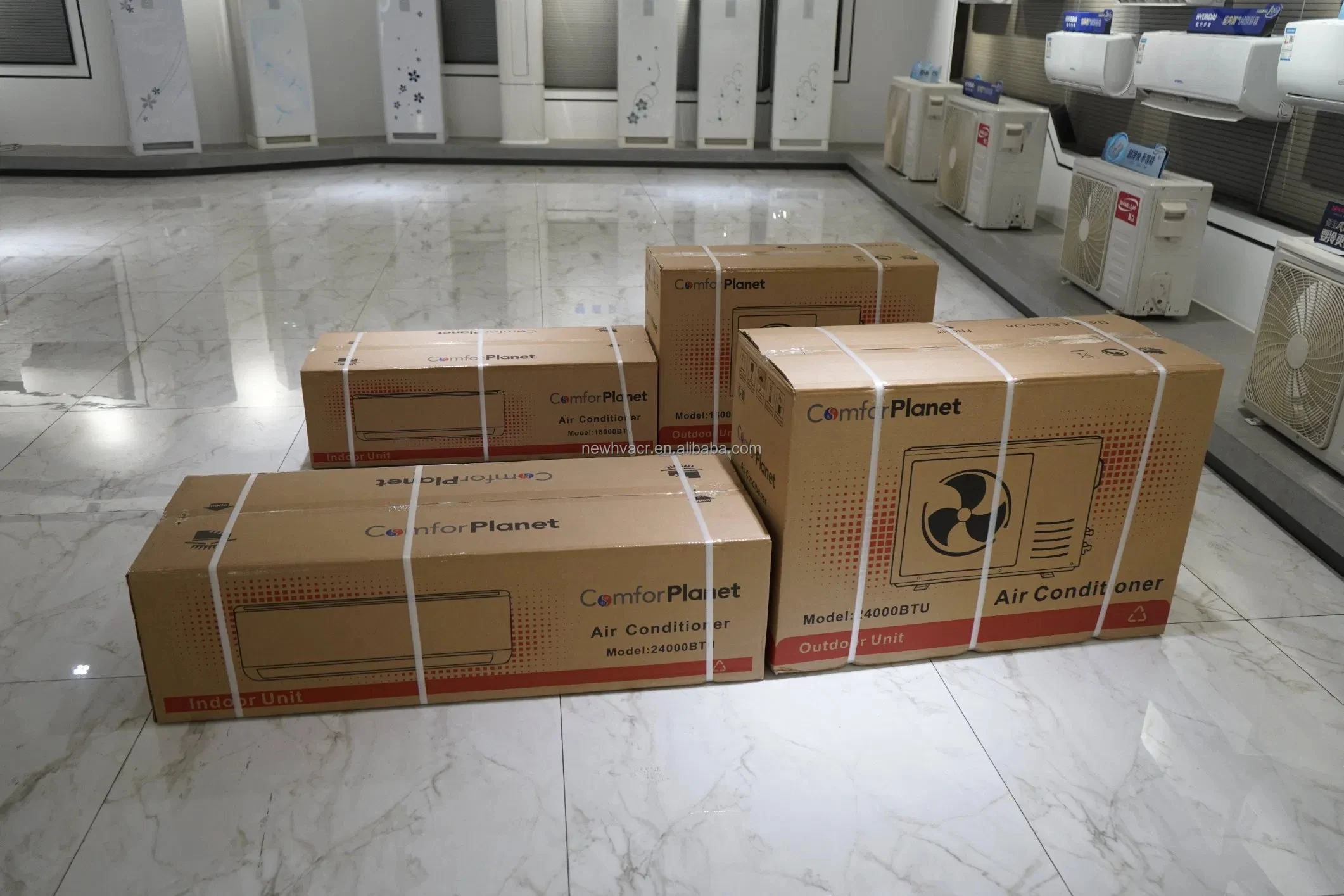

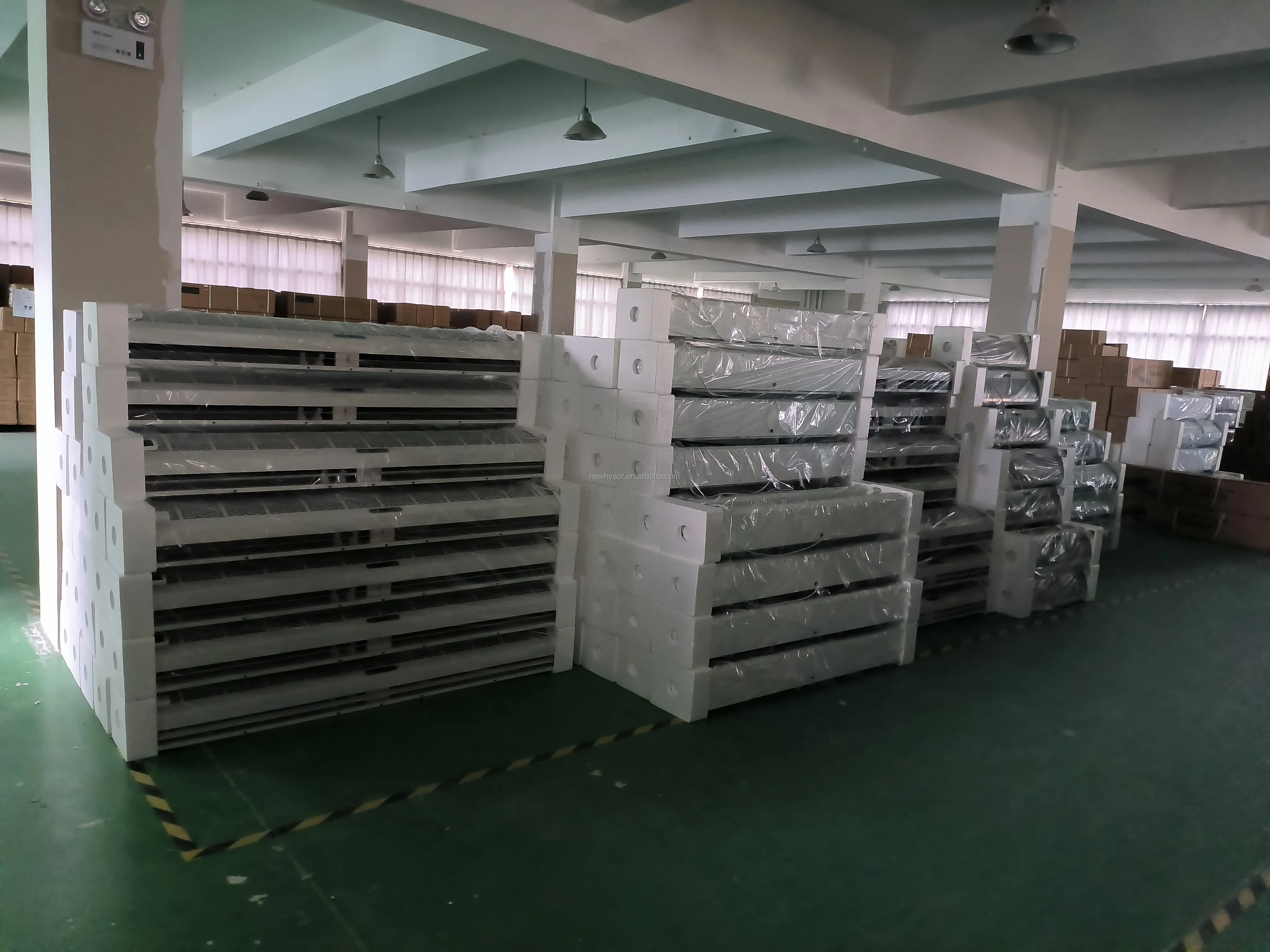

BULK ORDER PICTURES
Industry Standards & Certifications
Safety Certifications: Compliant with CE-LVD， CE-EMC，CB
Environmental Standards: Compliant with international refrigerant transition regulations.

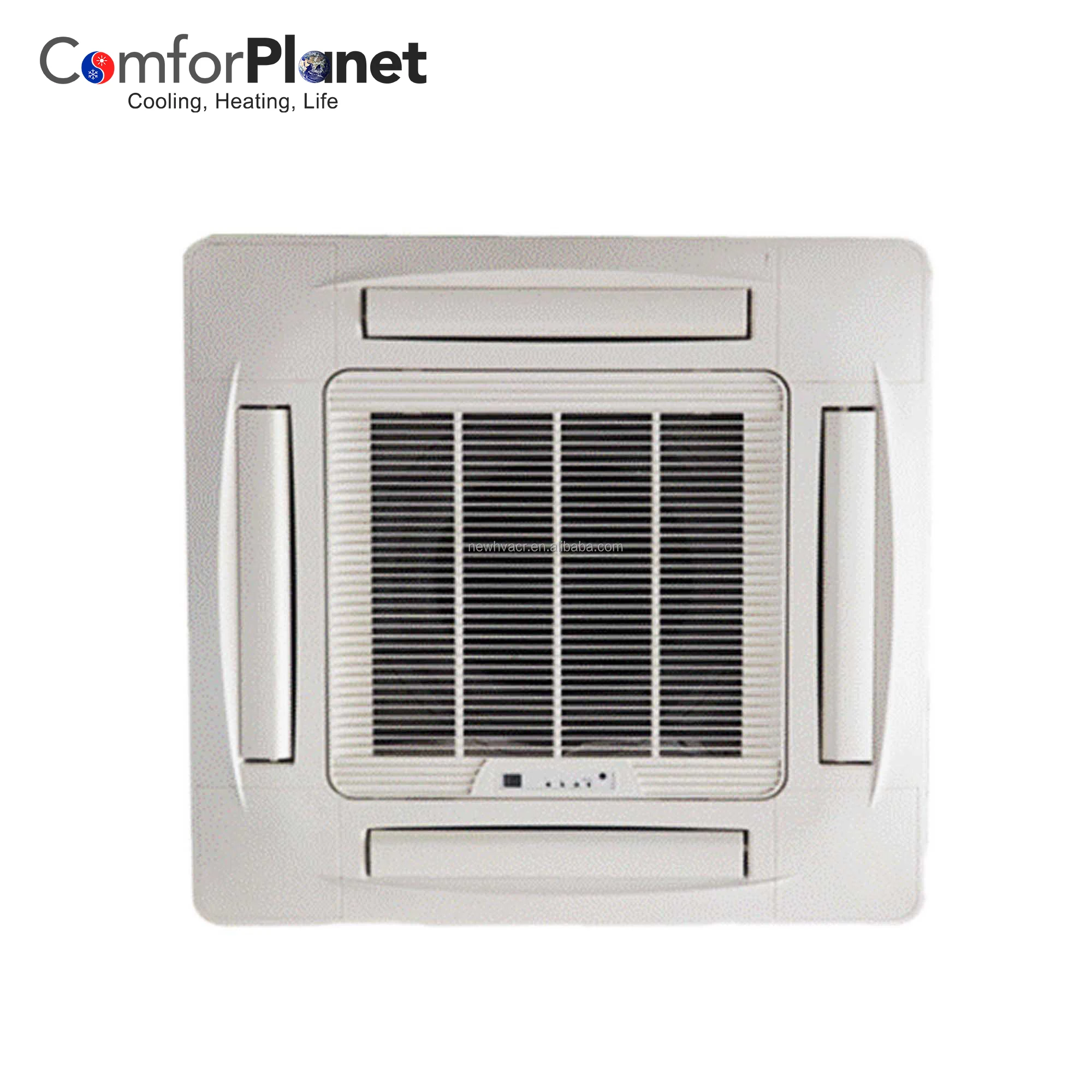

RELATED PRODUCTS
FAQ
Q: Why does the 18,000 BTU model list heating capacity as only 633W? A: This is a spec sheet printing error. The actual rated heating capacity is 6,330W (range: 750-8,100W), delivering powerful heating performance. Q: The AC isn't cooling and the display is flashing error codes? A: Inverter ACs feature self-diagnosis. Check if the outdoor unit is obstructed, or contact a professional to inspect refrigerant pressure. Q: The remote control isn't working? A: Check the batteries and ensure the remote is aimed at the IR receiver on the right side of the indoor unit.
Installation Essentials (Professional Advice) Vacuum Evacuation (Critical): Since the system uses R32/R410A inverter technology, installation must include vacuum pump evacuation for at least 15-20 minutes (below 500 microns). Never use refrigerant purge method — this will degrade efficiency or damage the compressor. Stable Mounting: The outdoor unit must be installed on a level, sturdy bracket to prevent vibration-induced noise.
Daily Maintenance Filter Cleaning: Every 15 days, remove the indoor unit panel and rinse the dust filter with clean water to maintain smooth airflow. Seasonal Switching: Before switching from summer to winter use, run "Fan Mode"for 2 hours to dry internal moisture and prevent odors.

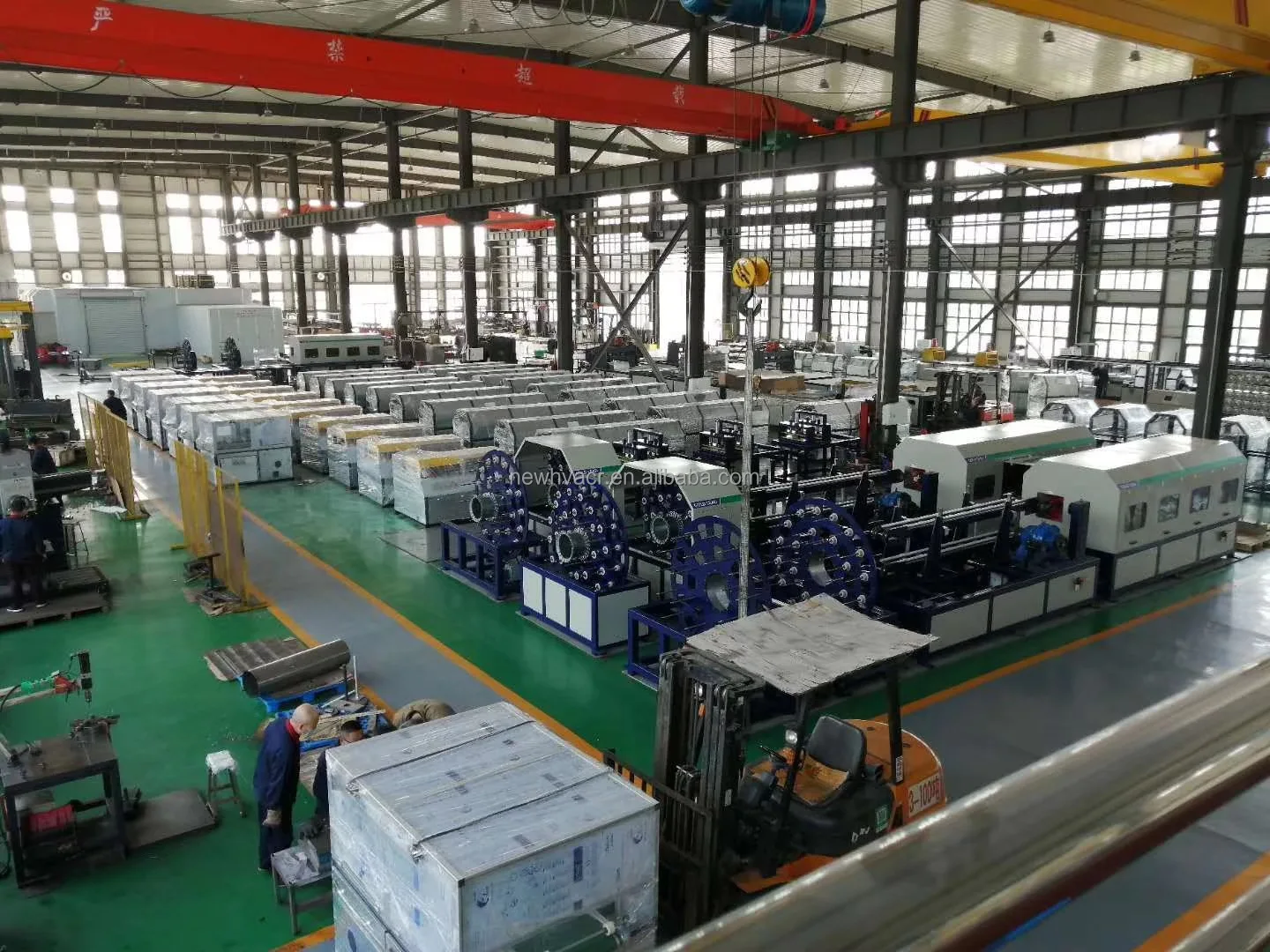

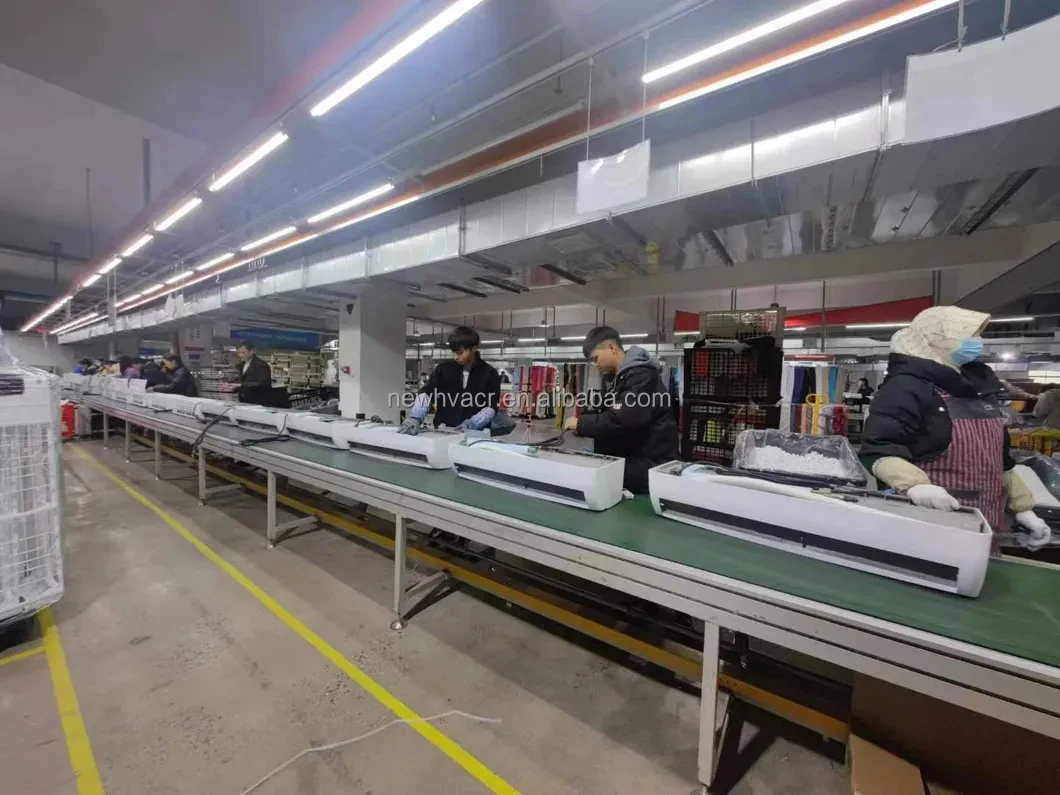

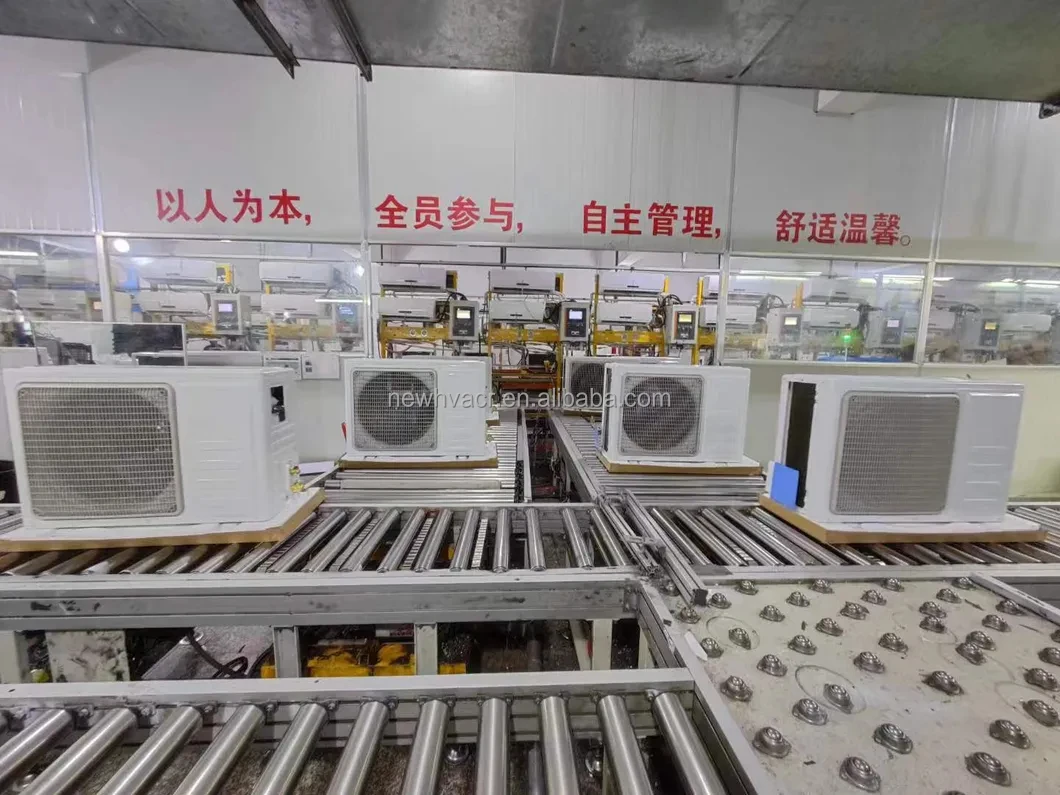

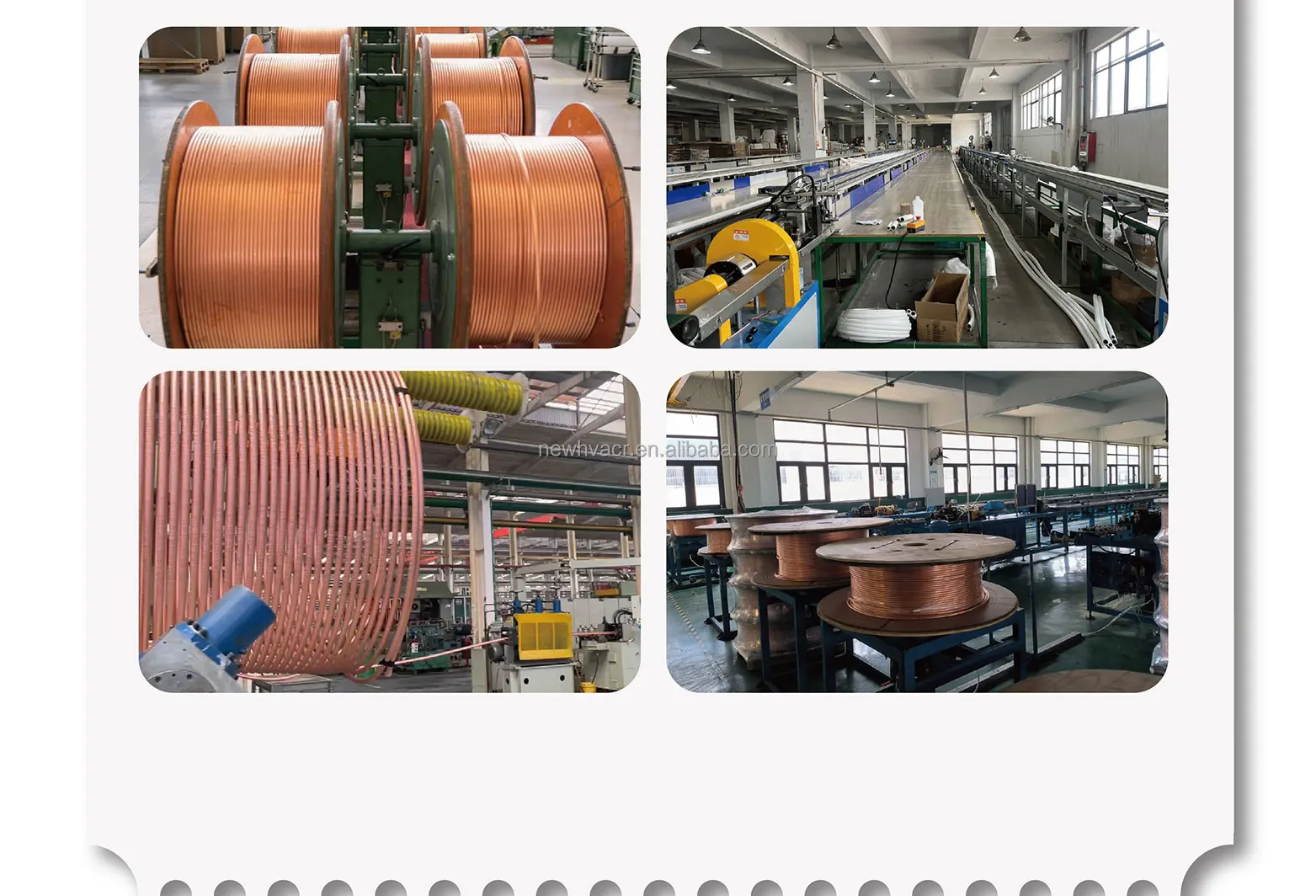

FACTORY

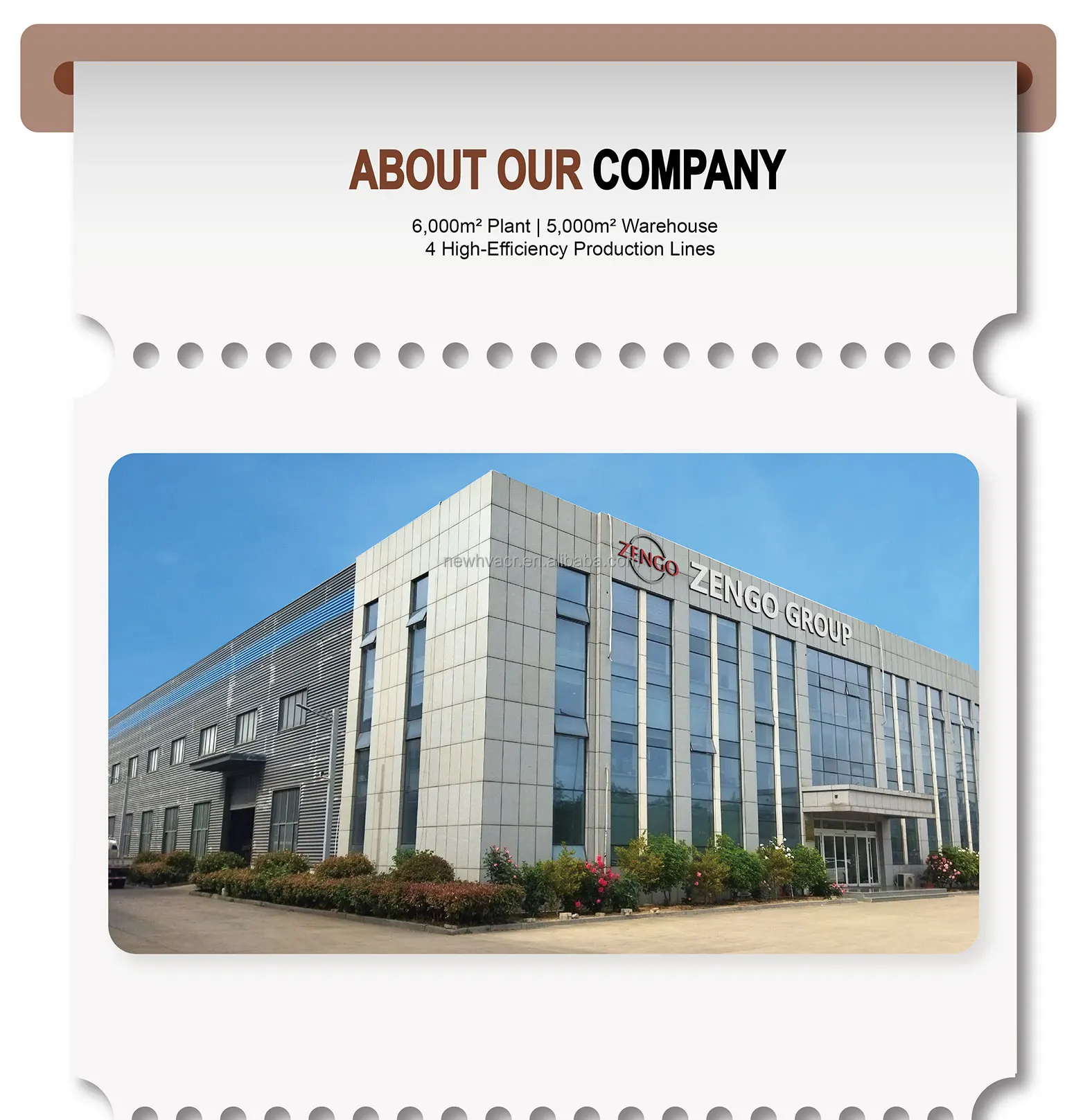

For over 20 years, ZENGO GROUP has been a cornerstone in the global HVAC/R industry. Based in China with strategic access to Ningbo Port, we deliver premium Ventilation, Refrigeration, Air Conditioning, and Home Appliance solutions. Our reputation is built on scale and precision.
Customer Feedback
Ordering and Pricing
- Minimum order quantity: 400 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split air conditioner?
The standard minimum order quantity is 400 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the split air conditioner be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
