This split cooling only unit is published with the manufacturer’s full specification — voltage 380, capacity 27296-307080. Made by Zero Technologies Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Split Cooling Only Unit
- Model Number: ZTVC
- Power Source: Electrical
- Voltage (V): 380
- Capacity (Btu): 27296-307080
- Total Capacity: 50-130% of Outdoor unit capacity
- Cooling/Heating Capacity: 8kw-90kw
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Application | Outdoor, Hotel, Commercial, Household |
| Cooling/Heating | Cooling/Heating |
| Capacity (Btu) | 27296-307080 |
| Eer | 3.27-4.35 |
| Power Source | Electrical |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation, Return and Replacement, Field Maintenance and Repair Service |
| Place Of Origin | Guangdong, China |
| Voltage (V) | 380 |
| Brand | ZERO |
| Cop | 4.8 |
| Model Number | ZTVC |
| Feature | EVI Technology and Oil Balance Pipe Not Required |
| Refrigerant | R410a |
| Compressors Type | All DC Inverter |
| ESP | 0 Pa (maximum: 80 Pa) |
| Total Capacity | 50-130% of Outdoor unit capacity |
| Ambient Temp Operating | -25 to 54 ℃ |
| Cooling/Heating Capacity | 8kw-90kw |
| Certification | ce |
| Packaging Details | Package:Pallet + PE Bag + Carton + Corner Protector Recommend shipping: LCL, Full container |
| Port Of Dispatch | FOB Guangdong |
| Selling Units | Single item |
| Single Package Size | 60X60X60 cm |
| Single Gross Weight | 68.0 kg |
| Supply Ability | 30000 sets per Year |
Product Details

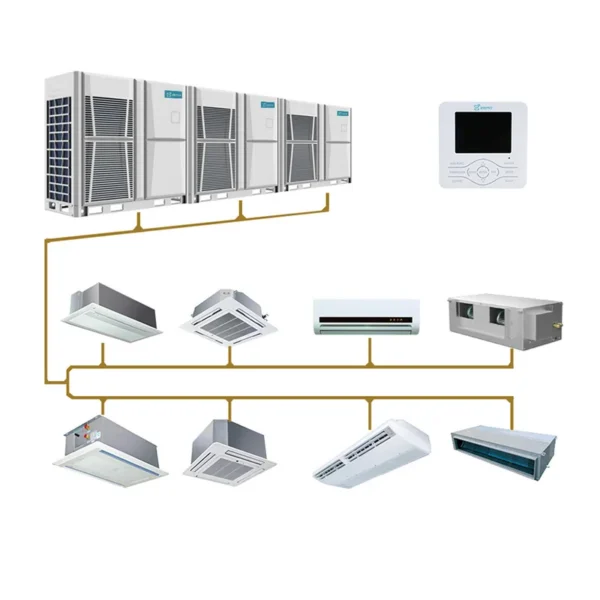

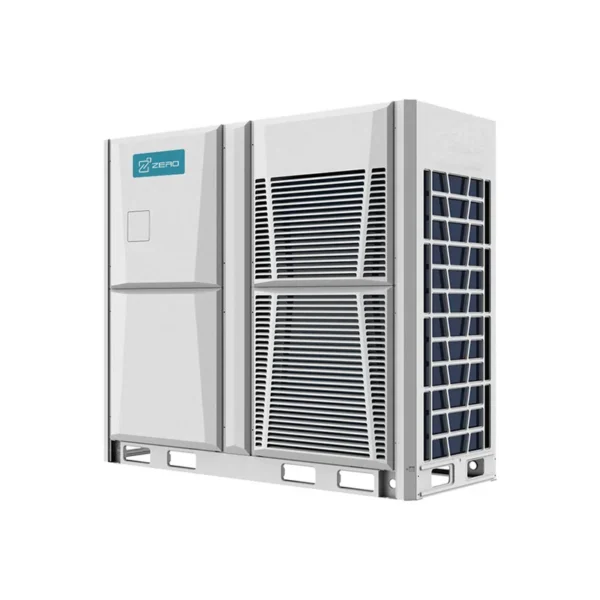

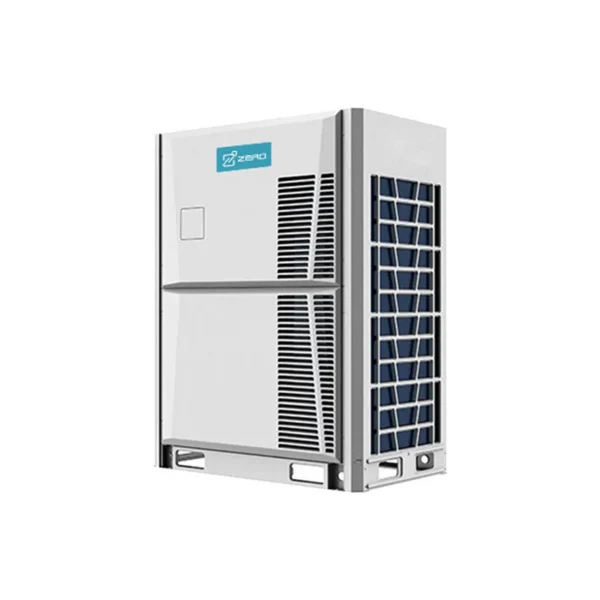

ZERO VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
We offer one stop solution includes VRF drawing design, model selection, instalation material calculation, start up guidance etc, equipments, installation material and other parts will be loaded all together in the same containers directly ship to your job site, we make your VRF projects never been so easy.
WHY CHOOSE US ?
1.Experience
More than 15 years of overseas HVAC project experience，with deep understanding of global markets.
More than 15 years of overseas HVAC project experience，with deep understanding of global markets.
2.Professional design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint, we will advise the
most suitable solution.
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint, we will advise the
most suitable solution.
3.Professional selection
We can select the most suitable model for your project according to the drawings.
We can select the most suitable model for your project according to the drawings.
4.One-stop solution
The necessary installation material and other parts can be collected and loaded them all together directly ship to your job site,
which is truly one-stop solution.
5.Technical support
Professional technical support, worry-free after sales.
The necessary installation material and other parts can be collected and loaded them all together directly ship to your job site,
which is truly one-stop solution.
5.Technical support
Professional technical support, worry-free after sales.
1.Project Drawing, building layout, equipment BOQ.
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
4.Project type: tender or self-owned.

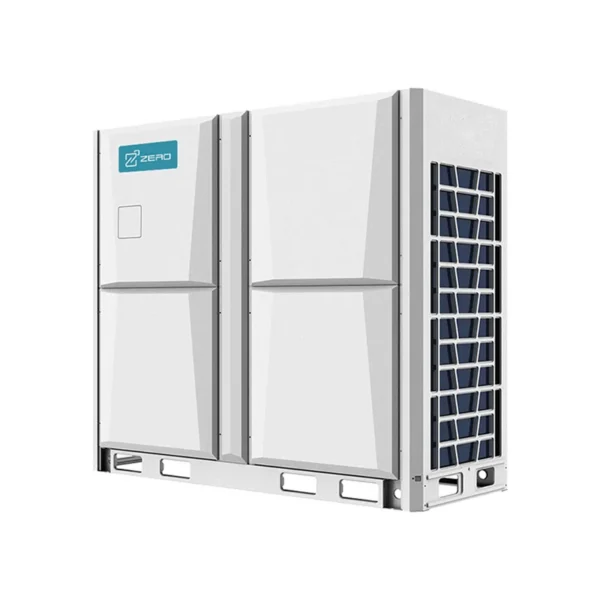

Product Line
8/10/12Hp 14/16HP 18/20HP 22HP 24HP 26/28/30/32HP
13 BASIC MODULES (380V-3Ph-50/60Hz)
HP | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||||||
Dimension (mm) | 990*1740*845 | 1340*1740*845 | ||||||||||||
Fan quantity | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||||||
Compressor quantity | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | ||||||
HP | 24 | 26 | 28 | 30 | 32 | ||||
Dimension (mm) | 1990*1740*845 | ||||||||
Fan quantity | 2 | 2 | 2 | 2 | 2 | ||||
Compressor quantity | 2 | 2 | 2 | 2 | 2 | ||||

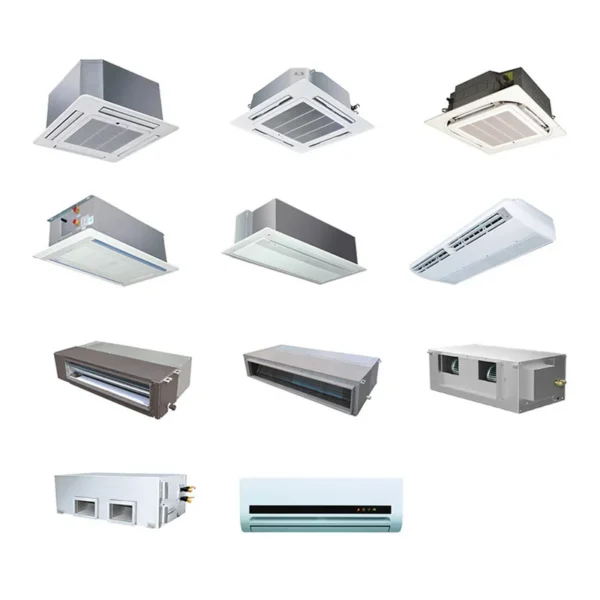

One-way Cassette
2.2-7.1kW
Two-way Cassette
3.6-8.0kW

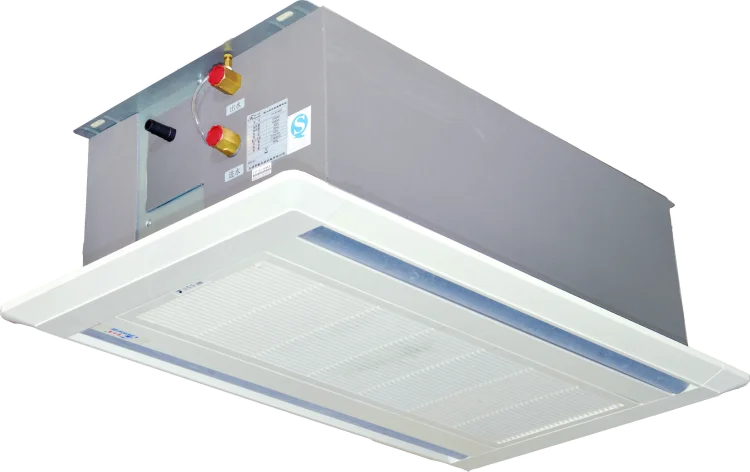

4-way Cassette
2.2-16kW

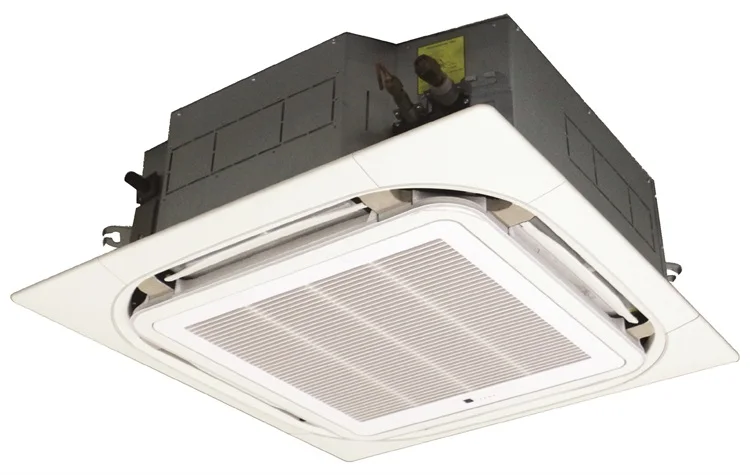

Round-flow cassette
5.6-16kW
Wall-mounted
2.2-7.1kW

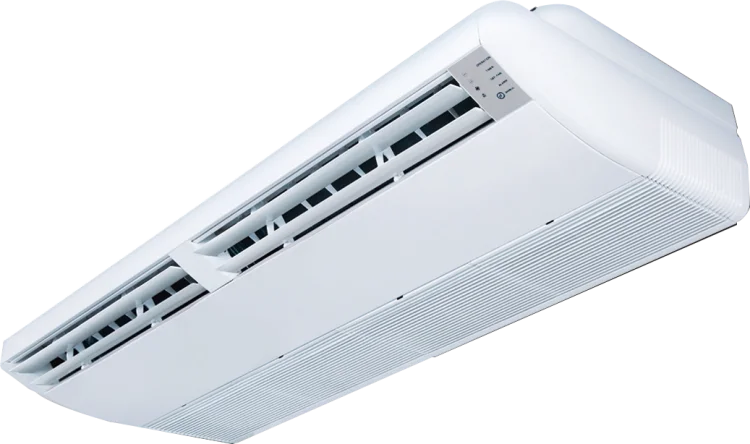

Floor Ceiling
3.6-16kW
Air handler
10-16kw

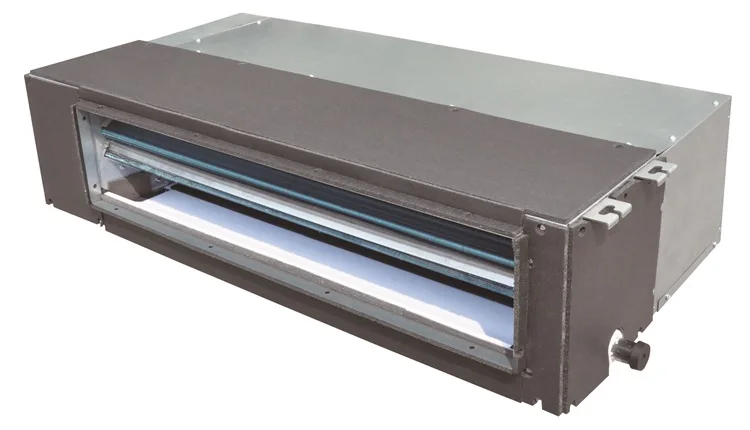

Short ducted
2.2-7.1kw
Medium ESP ducted
7.1-15kw

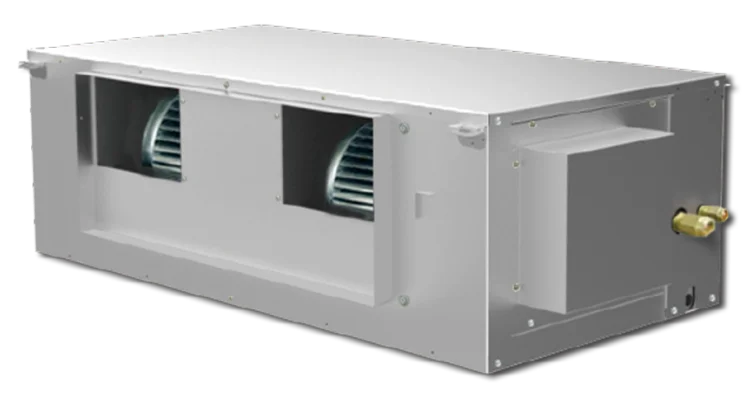

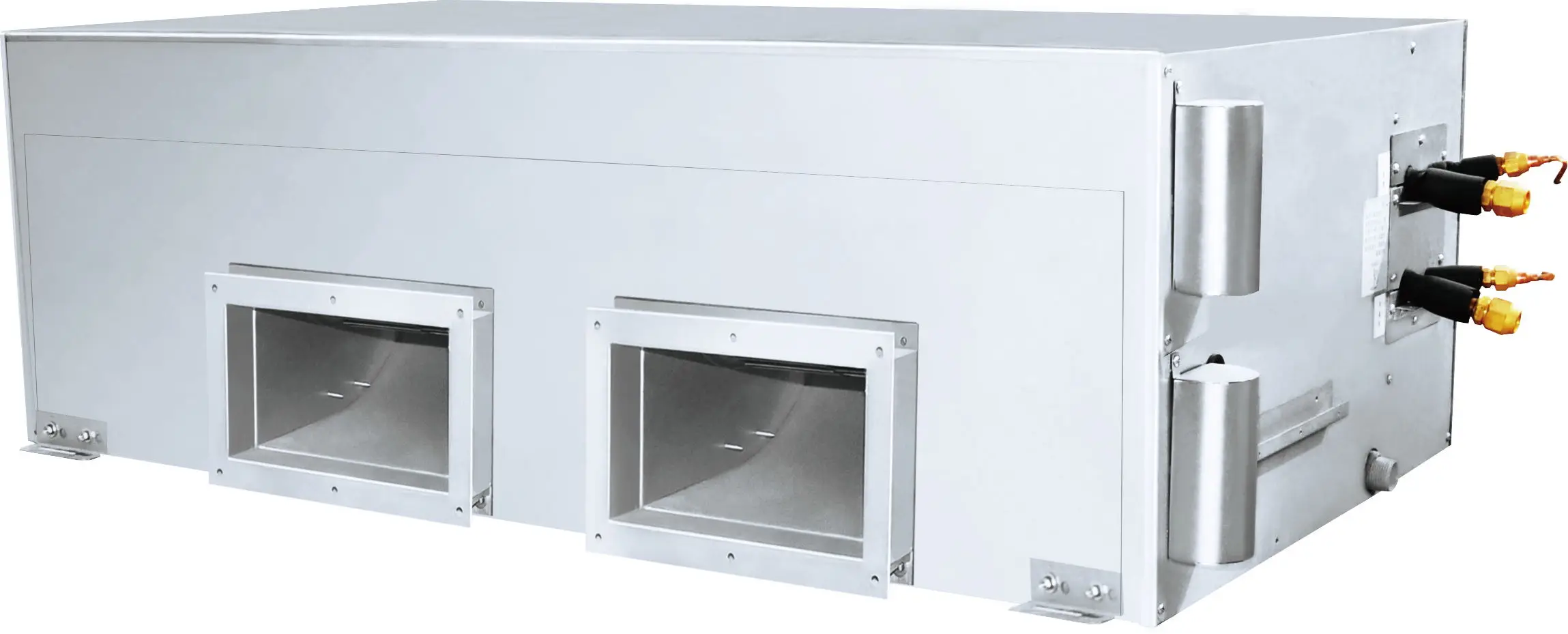

High ESP ducted
7.1-56kw
Fresh air processor
14-56kw
Specification
Type | Type | Mini VRF | Large VRF | |||
Capacity | HP | 3HP-12HP | 8HP-22HP | |||
Power supply | V/Ph/Hz | 220-240V/1PH/50Hz 208-230V/1PH/60Hz 380-415V/3PH/50Hz & 60Hz | 208-230V/3PH/60Hz 380-415V/3PH/50Hz & 60Hz | |||
Cooling | Capacity | kW | 8KW~33.5KW | 25.2KW-61.5KW | ||
Cooling | kBtu/h | 27.3-60kBtu/h | 86-209.8kBtu/h | |||
Power input | kW | 5.78-14.4KW | 17-27.65KW | |||
EER | kW/kW | 3.32-3.69 | 3.02-4.72 | |||
Heating | Capacity | kW | 9KW-37.5KW | 27.4KW-69KW | ||
kBtu/h | 92-191kBtu/h | 215-341kBtu/h | ||||
Power input | kW | 5.41-14KW | 15.8-26.08KW | |||
COP | kW/kW | 3.56-4.27 | 4.11-5.5 | |||
Comperssors | Type | – | DC inverter | |||
Fan motors | Type | – | DC inverter | |||
Max.ESP | Pa | 85 | 85 | |||
Refrigerant | Type | R410A | ||||
Aiflrow rate | m³/h | 3300-8000 | 15000-17000 | |||
dB(A) | 45-60 | 58-63 | ||||
Ambient temp | Cooling | ℃ | -5-50℃ | -5-55℃ | ||
Heating | ℃ | -20-30℃ | -30-30℃ | |||
Our Advantages

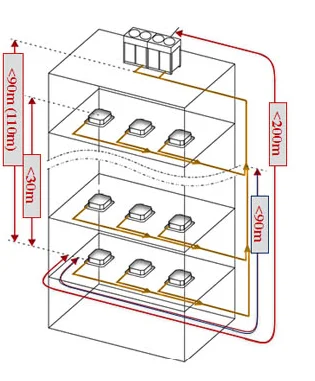

LONG PIPE & HEIGHT DIFFERENCE
1.The total pipe length: 1000 m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.
2.The longest pipe length: 200 /240m.
3.Height deference:Outdoor unit. Above<90m<90m.
4.Outdoor unit below<110m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
5.Height difference between indoor units: 30m.
6.Length from first indoor distributor to last indoor unit 90 m.
7.Communication wire length can be upto 1000m.
CONTROLLERS AND SOFTWARE
SIMPLIFY CENTRALIZED CONTROLLER
Easy to install.Controller connects to outdoor units only.
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
1 Controller can control max. 100 indoor units.
Operation mode restriction
Error or protection code display
Can control single unit or all units together
Max. 100 Indoor units can be connected in ONE system.
WIRELESS REMOTE CONTROLLERS
Indoor unit address inquiry
Indoor unit address setting
Temperature setting
Operation mode setting
Fan speed setting
Timer function
Indoor unit address setting
Temperature setting
Operation mode setting
Fan speed setting
Timer function
WIDE OUTDOOR OPERATION RANGE(380V)
Max.cooling operating temperature is up to 55°C.
Low ambient temperature of cooling mode can be downto-10℃.

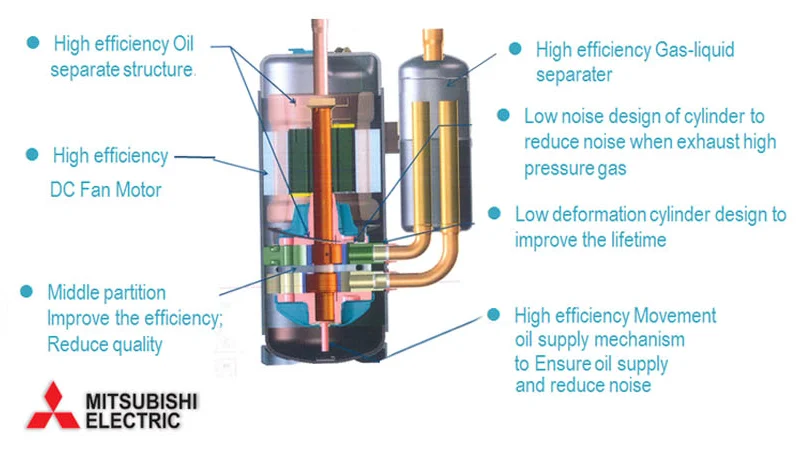

DC INVERTER COMPRESSOR
High efficiency Oilseparate structure,High efficiency DC Fan Motor,Middle partition Improve the efficiency;Reduce quality.High efficiency Gas-liquid separater,Low noise design of cylinder to reduce noise when exhaust high pressure gas,Low deformation cylinder design to improve the lifetime,High efficiency Movement oil supply mechanismto Ensure oil supplyand reduce noise

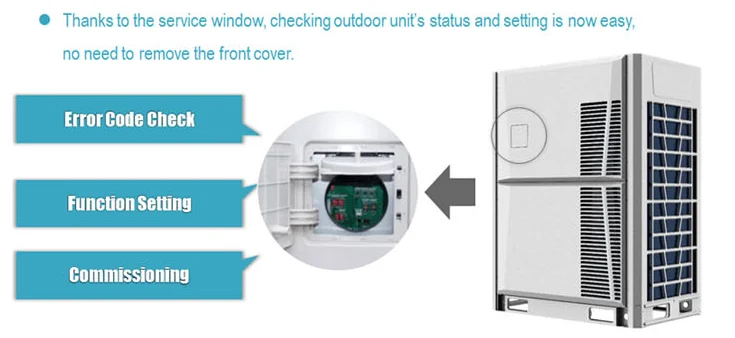

SERVICE WINDOW ON FRONT COVER
Thanks to the service window, checking outdoor unit's status and setting is now easy, no need to remove the front cover

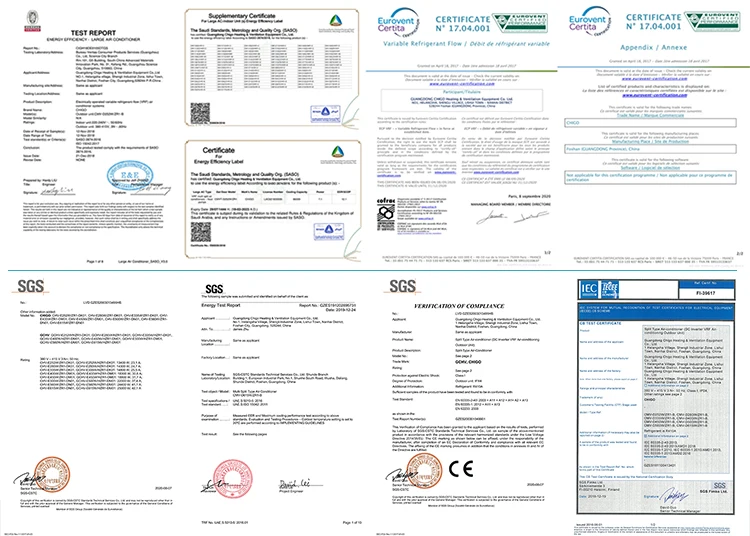

Certifications and Authorization
Product packaging
Package:Pallet + PE Bag + Carton + Corner Protector
Recommend shipping: LCL, Full container
PRESTIGIOUS PROJECTS IN OVERSEAS MARKET
FAQ
1.Can you provide drawing design service?
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your VRF guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24×7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
Yes, we have professional HVAC engineering team to design your project and optimize solutions, we can also provide professional HVAC drawings.
2.Can you provide installation accessories along with equipment?
Yes, of course. This is one of our standard services, we can calculate and quote you needed VRF installation kit which includecopper pipe, insulation pipe, air diffuser & grill, ball valve, etc.
Note: most of our customer prefer to ship units and installation materials together as one shipment, we are professional to do that with good package method.
3.What is your delivery time?
For the standard unit, about 35-40days.
4.What is your VRF guarantee?
Our products has strict quality control, lifespan for proper use can be 5-10 years.
Also we provide 1% free spare parts for your maintenance and aftersales services.
5.Do you have technical support?
We have professional technical team to answer technical question at 24×7.
When the goods arrived, we can also guide the installation and commissioning by online video or phone call.
If needed we can also send out a project engineer to your country at a fair cost.
6.Would you help me to manage the transportation to my country?
Yes, our professional logistic team will help you to arrange cost effective shipping service to get you fast shipment with less cost.Usually we recommend full container shipment 20GP, 40GP, 40HQ.
7.How can I trust your company?
We are one of the best professional HVAC solution suppliers in China with more than 10 years experience, also we are authorized agent for some reputed brands such as Dunham-Bush(a USA brand with 126 years) and TICA Climate (a Carrier holding company), you can verify us by any means, if needed we can also provide business references around your region as credibility testimonial materials.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split cooling only unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this split cooling only unit carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the split cooling only unit be supplied for my local voltage?
The standard configuration is 380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zero Technologies Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Zero Technologies Co., Ltd. range on HVACR Nexus.
