Key specification for this stator assembly rotor motor: rated voltage 24VDC, 0.5W Max (Can Customize). Everything below is reproduced from the factory data sheet. Made by Shenzhen Jupiter Motor Co., Ltd. (4 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Stator Assembly Rotor Motor
- Model Number: PM100
- Rated Power: customizd
- Power: 0.5W Max (Can Customize)
- Rated Voltage: 24VDC
- Gear Material: Metal Gear
- Speed(RPM): customizable
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Power | customizd |
| Speed(RPM) | customizable |
| Efficiency | IE 1 |
| Type | Brushless Motor |
| Construction | customizable |
| Frame | customizd |
| Motor Mounting Type | customizd |
| Protect Feature | Drip-proof |
| Usage | Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Robots, door locks, electric toothbrushes, robotic hands etc. |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | customizable |
| Model Number | PM100 |
| Torque | customizable |
| Place Of Origin | Guangdong, China |
| Brand Name | Jupiter |
| Product Name | Micro Dc Gear Motor |
| Application | Automatic Product |
| Motor Type | Brushless Motor |
| Keywords | High Torque Gear Motor |
| Rated Voltage | 24VDC |
| Certification | RoHS |
| Power | 0.5W Max (Can Customize) |

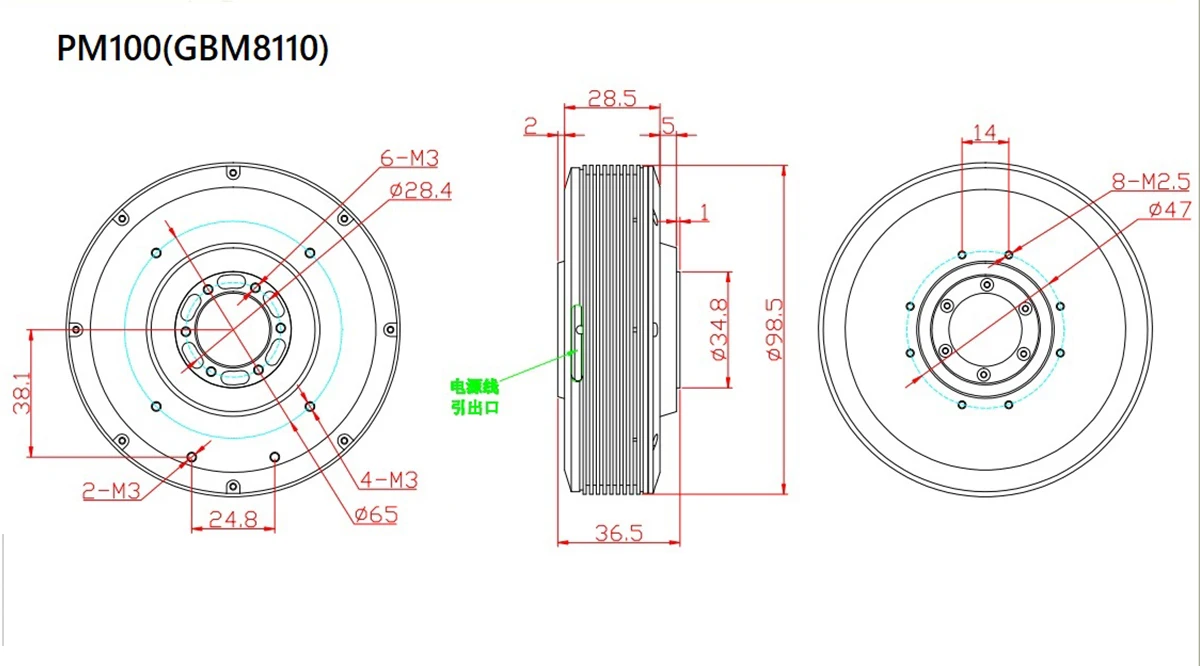

| Size | 40*40mm-300*300mm/customized |
| Typical Applications | Automotive Product |
| Gear Material | Metal Gear |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |

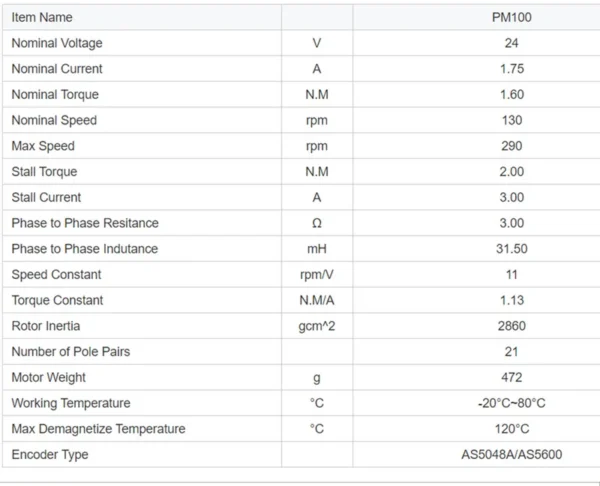

Product Details
Item Name | PM100 | |
Nominal Voltage | V | 24 |
Nominal Current | A | 1.75 |
Nominal Torque | N.M | 1.60 |
Nominal Speed | RPM | 130 |
Max Speed | RPM | 290 |
Stall Torque | N.M | 2.00 |
Stall Current | A | 3.00 |
Phase to Phase Resitance | Ω | 3.00 |
Phase to Phase Indutance | mH | 31.50 |
Speed Constant | RPM/V | 11 |
Torque Constant | N.M/A | 1.13 |
Rotor Inertia | gcm^2 | 2860 |
Number of Pole Pairs | 21 | |
Motor Weight | g | 472 |
Working Temperature | °C | -20°C~80°C |
Max Demagnetize Temperature | °C | 120°C |

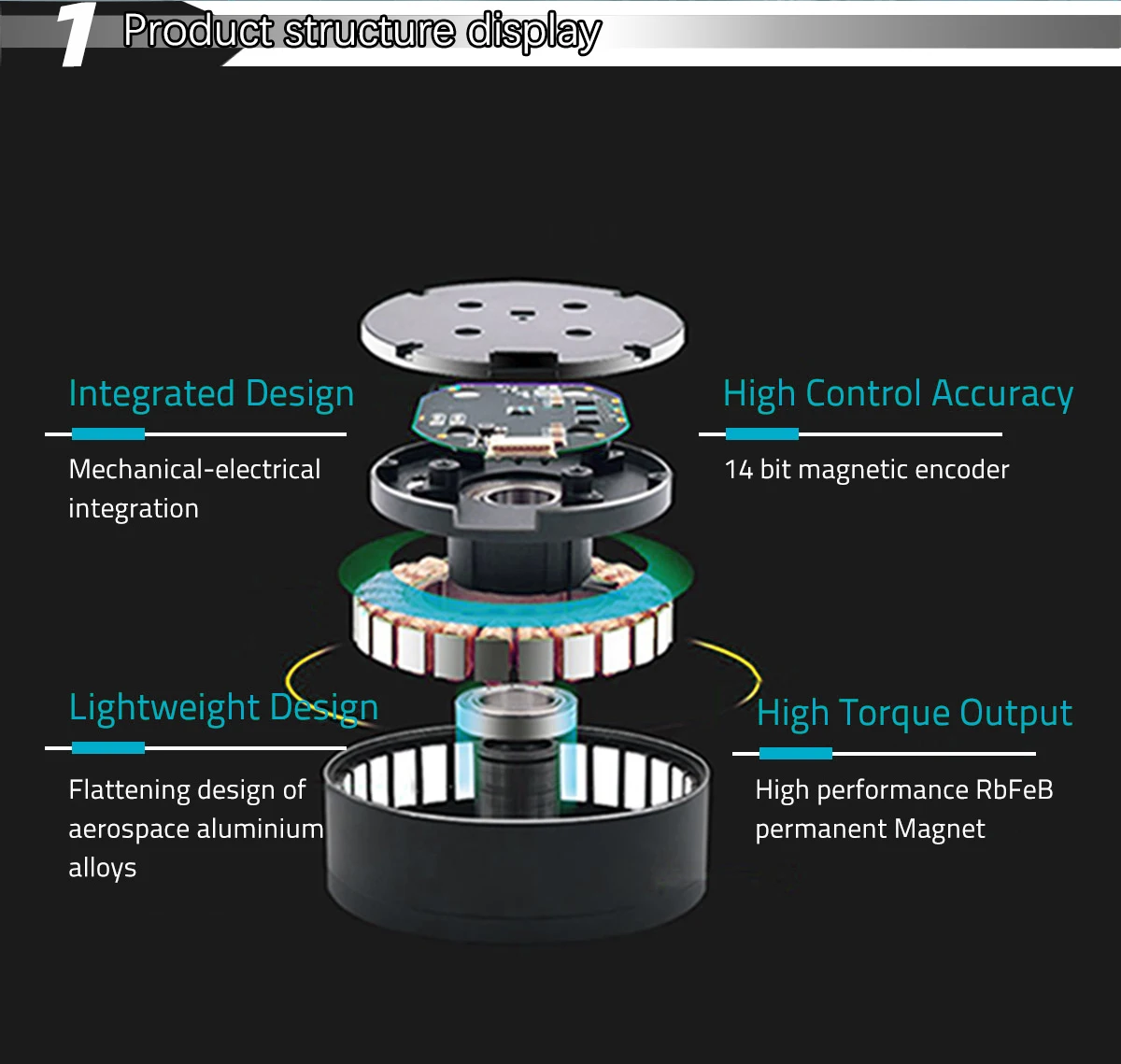

Encoder Type | AS5048A/AS5600 |
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q:Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available. The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A:Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the otherpayment ways. Also 30-50% deposit is available, the balance money should be paid before shipping. Any questions plz send an inquiry to us,or contact us online. We will reply you as soon as possible. 7*24 hours for you !!! Thank you so much!
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $120 / piece
- 50–999 piece: US $108 / piece
- 1000+ piece: US $96 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stator assembly rotor motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this stator assembly rotor motor carry?
It is supplied with RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the stator assembly rotor motor be supplied for my local voltage?
The standard configuration is 24VDC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Jupiter Motor Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shenzhen Jupiter Motor Co., Ltd. range on HVACR Nexus.
