Steam generator — type Electric steam generator. The complete factory specification follows. Made by Shanghai Tiangang Machine Manufacture Co., Ltd. (17 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Steam Generator
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Type: Electric steam generator
- Marketing Type: Ordinary Product
- Single Package Size: 70X55X165 cm
- Single Gross Weight: 100.0 kg
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Produce steam to cook soy milk. |
| Steam Production | 24kg/h |
| Fuel | Electric |
| Pressure | Low Pressure |
| Structure | Water Tube |
| Type | Electric steam generator |
| Core Components | Heating pipe, Water pump |
| Key Selling Points | Automatic |
| Style | VERTICAL |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Shanghai, China |
| Brand Name | Tiangang |
| Dimension(L*W*H) | 540*650*1500mm |
| Marketing Type | Ordinary Product |
| Selling Units | Single item |
| Single Package Size | 70X55X165 cm |
| Single Gross Weight | 100.0 kg |
Product Details

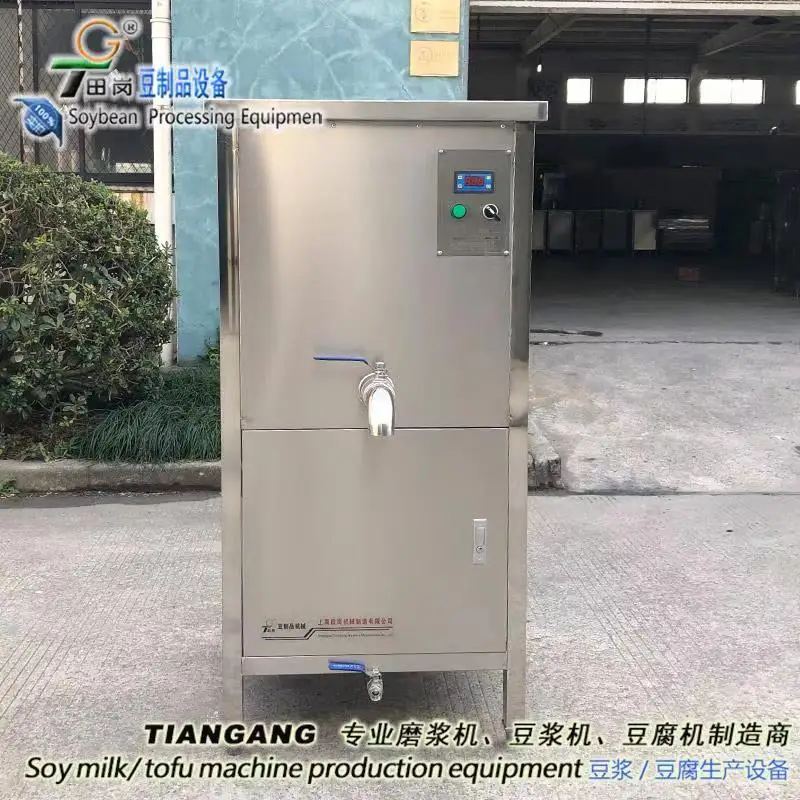

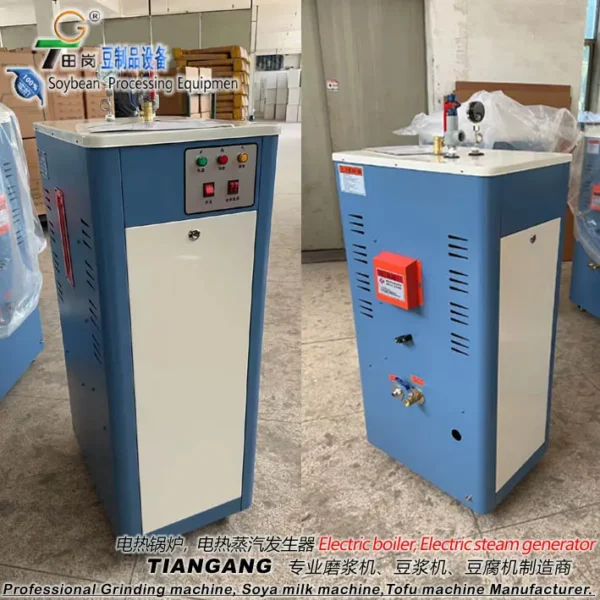

Electrothermal steam generator/Electric heating boiler./Soybean milk cooking machine
Manufactured according to the requirements of the C-class boiler production regulations and standards.
Automatic control, turn on the power to run automatically.
Suitable for food processing, clothing, electroplating, pharmaceutical, dielectric heating the ideal equipment sterilization
Soymilk cooking machine ;Electric steam generator
Product Description
Manufactured according to the requirements of the C-class boiler production regulations and
Automatic control, turn on the power to run

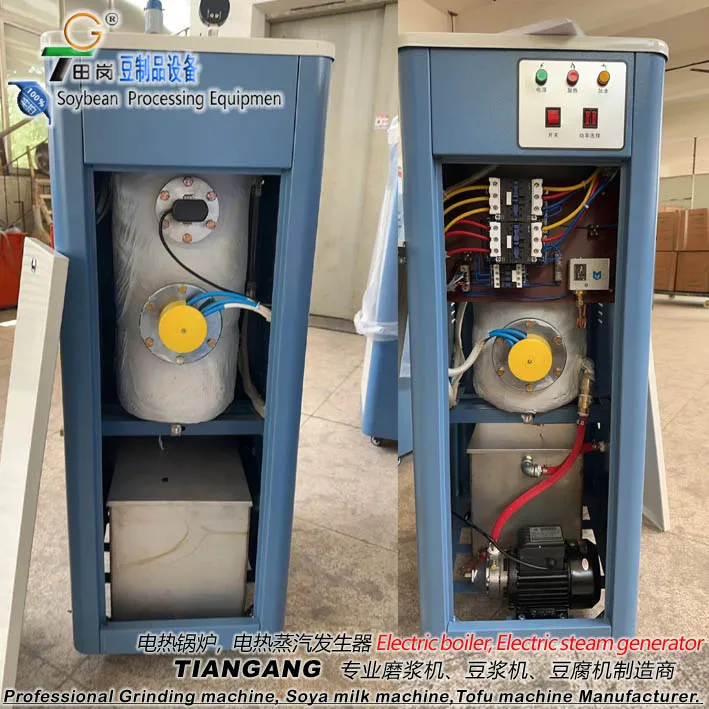

The inner lining of the boiler is made of SUS304 stainless steel seamless pipes.

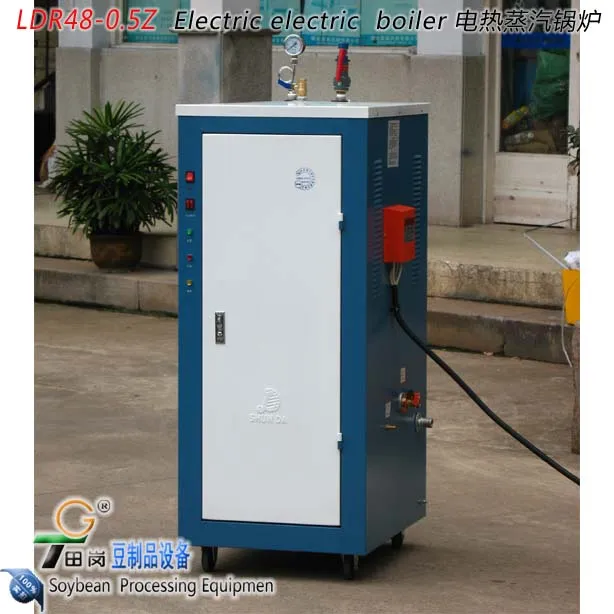

Model: LDR48-0.5Z
Electric power 48KW
Rated voltage 380V
Rated pressure 0.45MPa
Water capacity 40L
Steam evaporation 64kg/h
Net weight 95kg;Size:580*710*1500mm
Suitable for food processing, clothing, electroplating, pharmaceutical, dielectric heating the ideal equipment sterilization.
| Technical Data
| Voltage | Electric power
| Rated pressure
| Water capacity
| Steam evaporation
| Net weight
|
Dimension
|

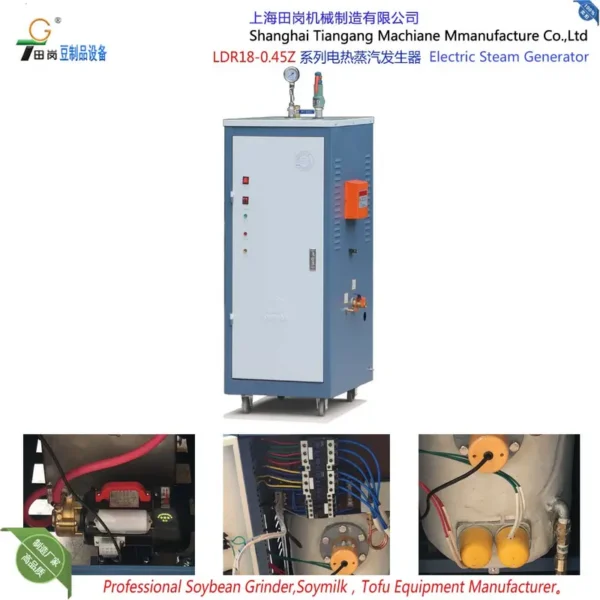

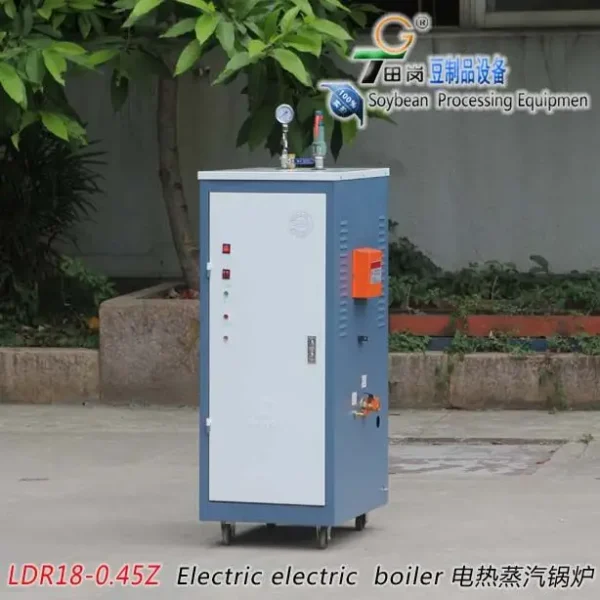

| LDR18-0.45Z | 380V | 18 kw | 0.45MPa | 27 L | 24kg/h | 88kg | 540*650*1500mm
|
| LDR24-0.45Z | 380V | 24 kw | 0.45MPa | 27 L | 32kg/h
| 88kg | 540*650*1500mm
|
| LDR36-0.5Z | 380V | 36 kw | 0.5MPa | 40 L | 48kg/h | 98kg | 580*710*1500mm
|
| LDR48-0.5Z | 380V | 48 kw | 0.5MPa | 40 L | 64kg/h | 98kg | 580*710*1500mm |
Featuring and use
1. Double safety device—-safety valve and safety plug are installed in this machine, to ensure safety in use.
2. Automatic pressure control device is installed in this machine. When boiler pressure reaches the maximum design pressure, heater will stop heating; when boiler pressure is lower than design requirements, heater will self-heat immediately, so that the boiler can always keep up a stable pressure.
3. Apart from a water level indicator, the boiler is also equipped with a liquid level controller to control the boiler water level automatically, to make the boiler stable and horizontal.
Shanghai Tiangang Machinery is a professional soybean processing machinery manufacturer.
Main products:

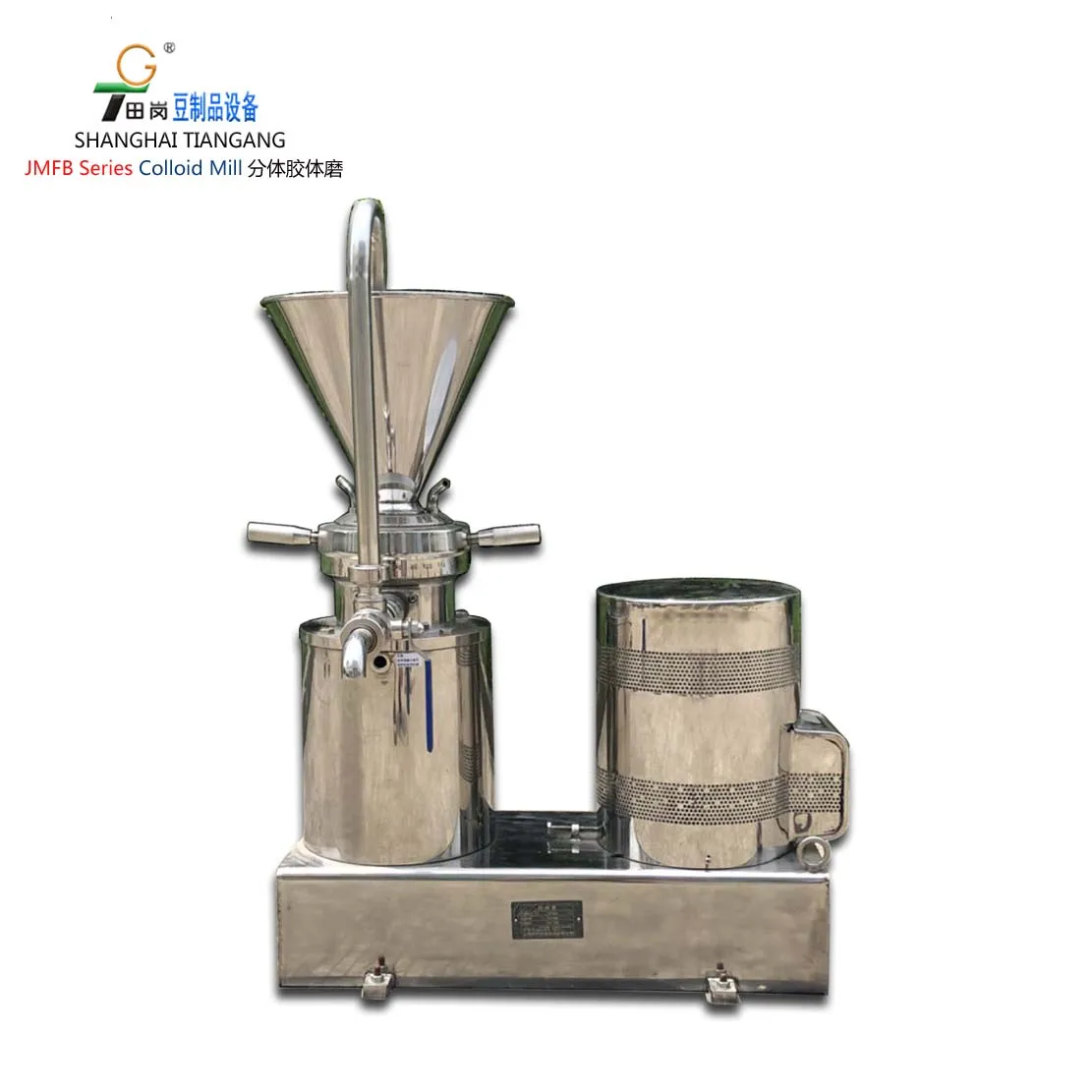

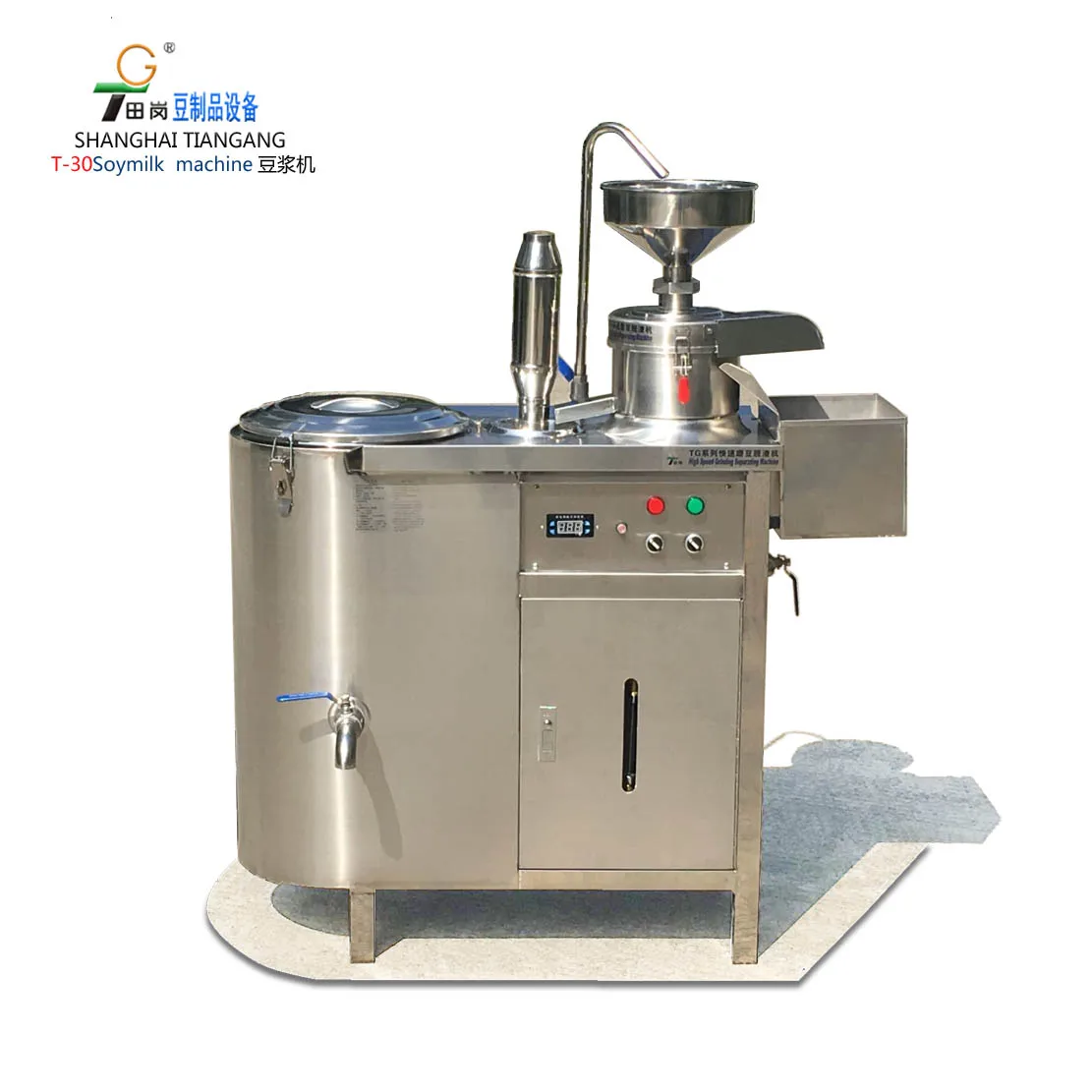

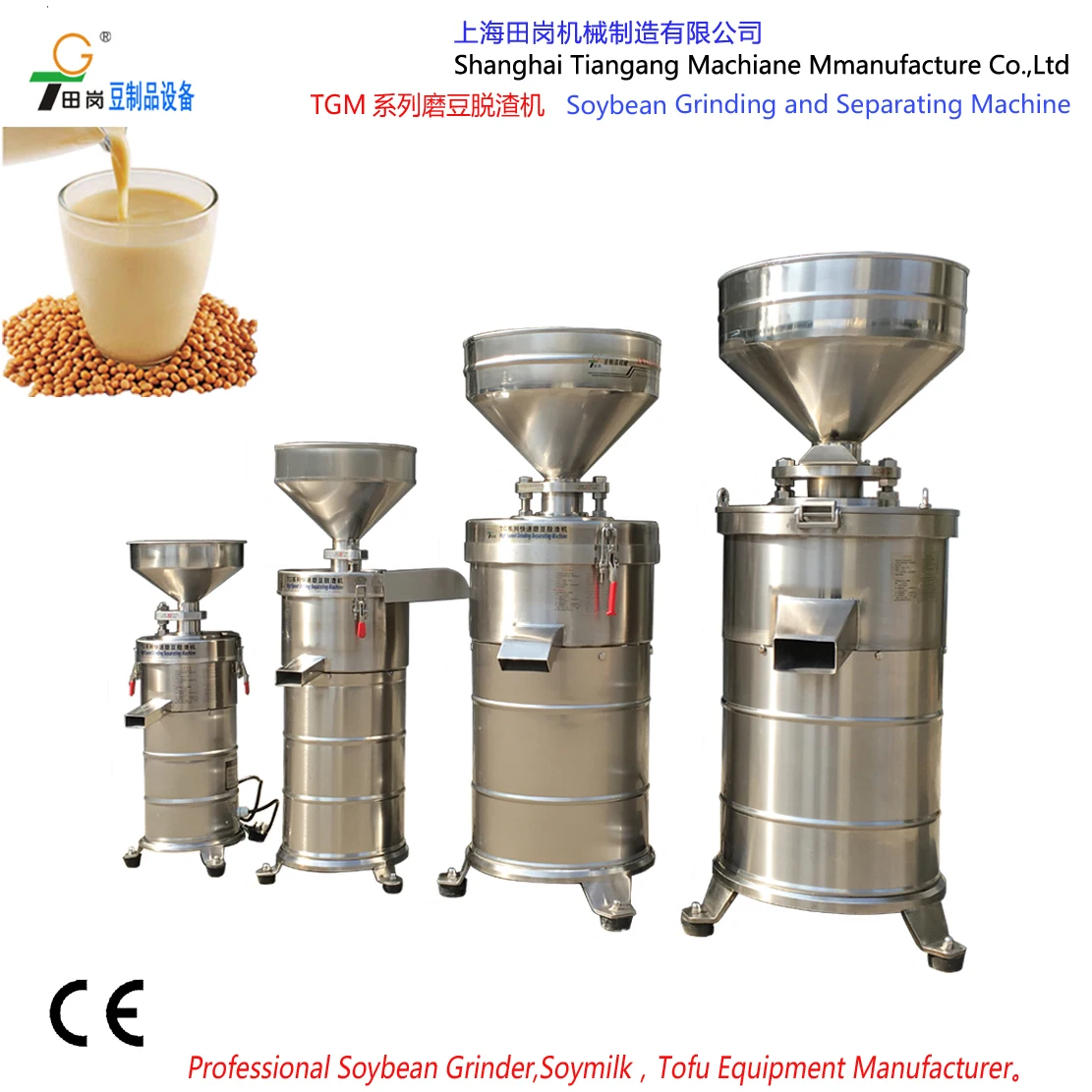

Soybean Grinding Machine, Colloid mill, Soya milk machine, Tofu machine.
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for .
Our products are widely used all over the world . Mainly including Food grinding machine,Colloid mill,Commercial Soya milk machine, Tofu making machine, packaging and other soybean processing machinery.

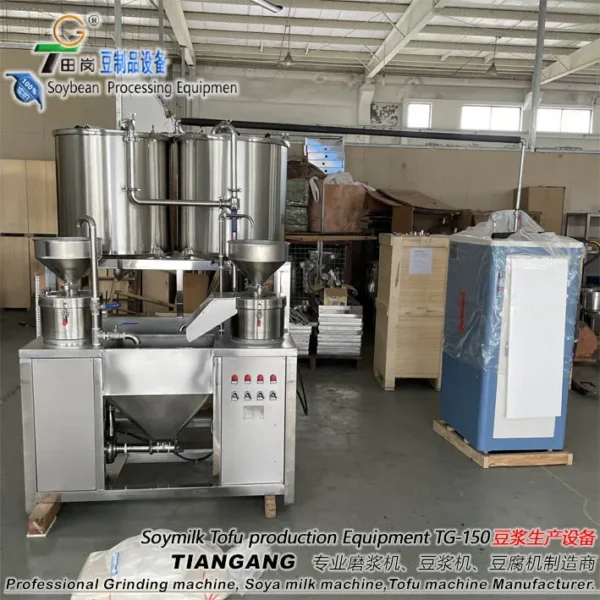

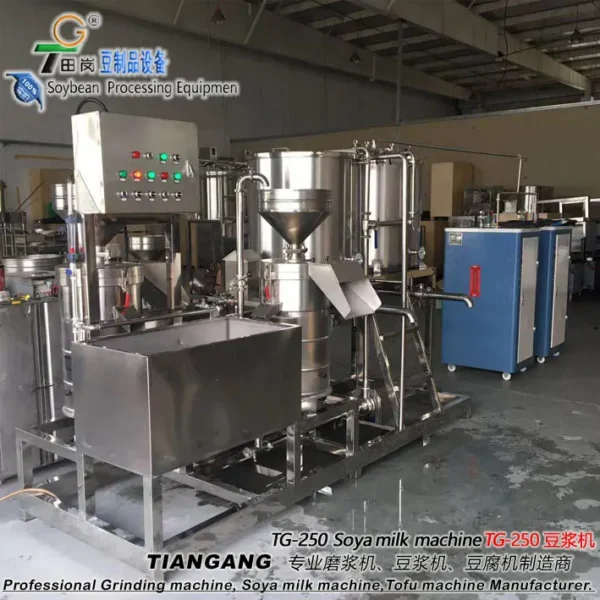

Also,we can provide whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and separating,cooking,breaking,pressing and sterilization ,packaging other.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this steam generator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Tiangang Machine Manufacture Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shanghai Tiangang Machine Manufacture Co., Ltd. range on HVACR Nexus.
