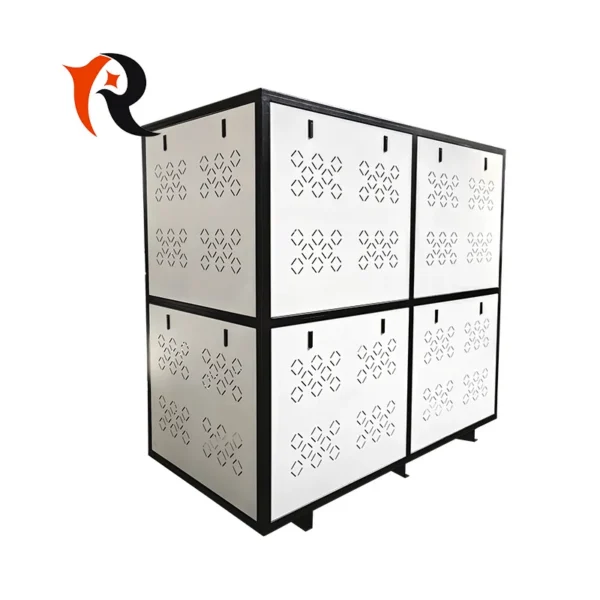

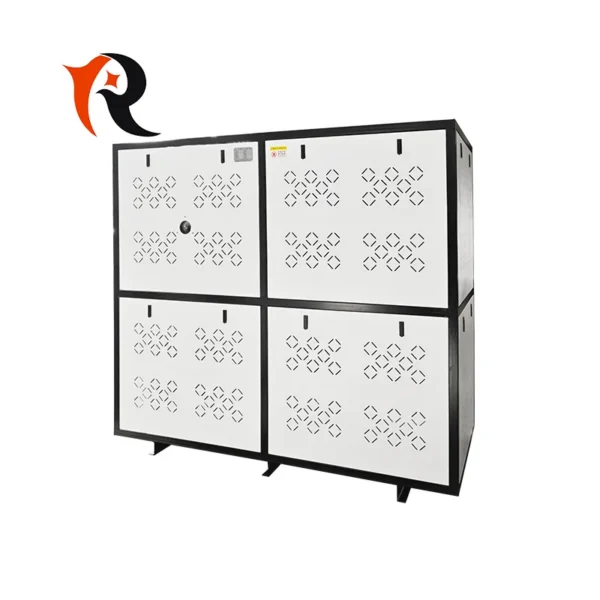

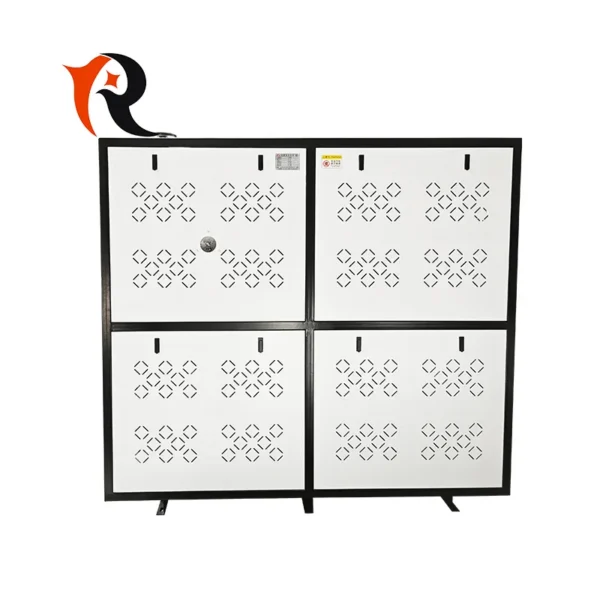

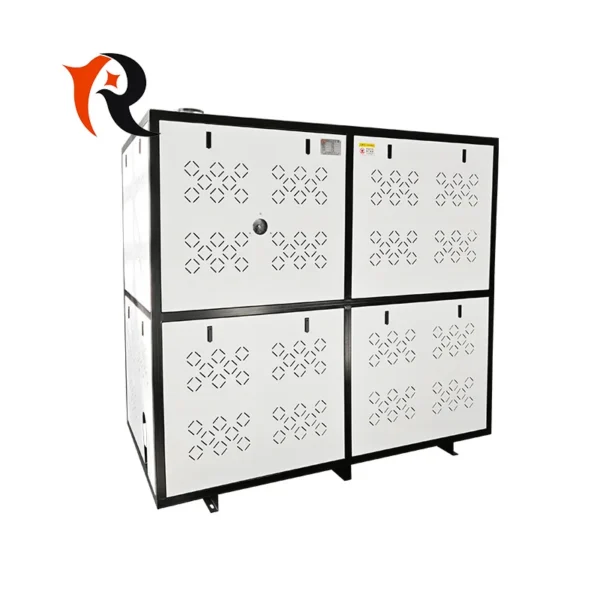

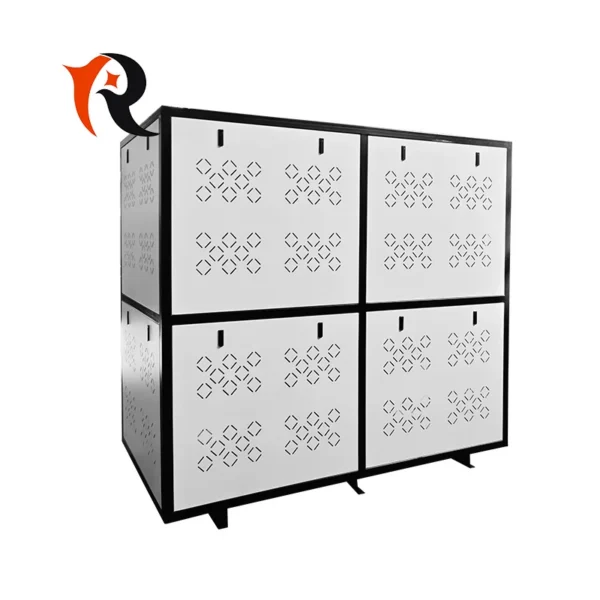

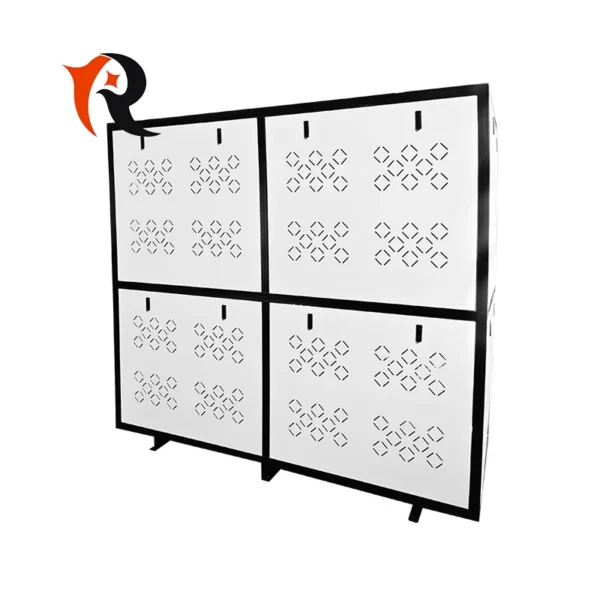

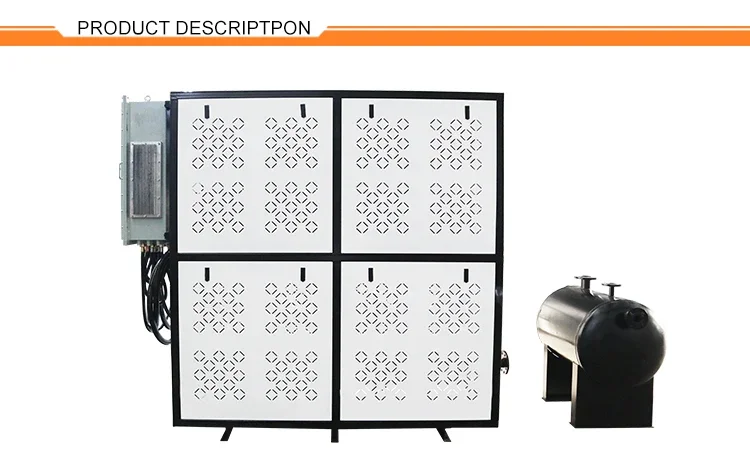

Steel Thermal Oil Heater, 380v, Stainless

Key specification for this steel thermal oil heater: 380 V, heating capacity Manufacturing industry. Everything below is reproduced from the factory data sheet. Made by Yancheng Xinrong Electronic Industries Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steel Thermal Oil Heater

• Power Source: Electric
• Power: 48KW
• Voltage: 380 V
• Heating Capacity: Manufacturing industry
• Material: Stainless Steel
• Tube Material: Stainless Steel 304/316/321/310/titanium/Incoloy 800

Technical Specifications

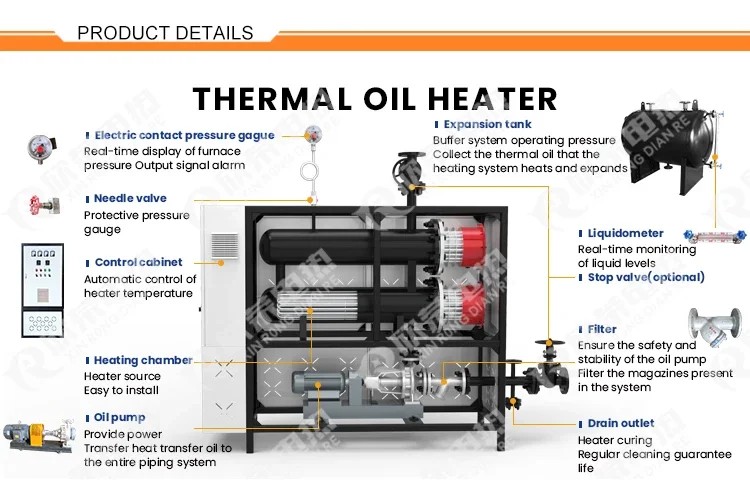

Product Details

TECHINCAL SPECIFICATION
Model	Heater Power (KW)	Oil Capacity (L)	Overall Dimension (L*W*H)	Heating-oil Pump					Expansion Tank(mm)
								Power(kw)		Flow(m3/h)	Head(m)
XR-YL-10	10	15	1400*500*1150	1.5	8	22	φ400*500
XR-YL-18	18	23	1750*500*1250	1.5	8	22	φ400*500
XR-YL-24	24	28	1750*500*1250	2.2	12	25	φ400*500
XR-YL-36	36	48	1750*500*1250	3	14	30	φ500*600
XR-YL-48	48	48	2000*550*1500	5.5	18	40	φ500*600
XR-YL-60	60	52	2000*550*1500	5.5	18	40	φ500*600
XR-YL-72	72	60	2000*550*1500	5.5	18	40	φ500*600
XR-YL-90	90	68	2100*600*1550	7.5	25	50	φ500*600
XR-YL-120	120	105	2100*600*1550	7.5	25	50	φ600*700
XR-YL-150	150	195	2200*700*2000	7.5	25	50	φ600*700
XR-YL-180	180	230	2200*700*2000	11	60	40	φ700*800
XR-YL-240	240	260	2200*700*2000	15	80	40	φ700*800
XR-YL-300	300	293	2600*950*2200	15	80	40	φ700*800
XR-YL-400	400	358	2600*950*2000	15	80	40	φ800*1000
XR-YL-500	500	510	2200*1000*2000	15	80	40	φ800*1000
XR-YL-600	600	562	2600*1200*2000	22	100	55	φ800*1000
XR-YL-800	800	638	2600*1200*2000	22	100	55	φ1000*1200
XR-YL-1000	1000	750	2600*1200*2000	30	100	70	φ1000*1200

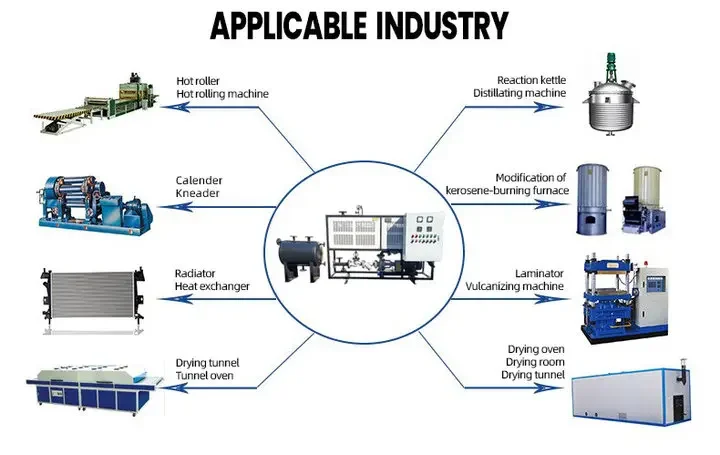

Application

Yancheng Xinrong Electronic Industrial Co.,Ltd. is a comprehensive high-tech enterprise focusing on design, production and sales for Air Duct Heater , Pipeline Heater , Thermal Oil Heater and electric heating elements , which is located on Yancheng City,Jiangsu Province, China.For a long time, the company is specialized on supplying the superior technical solution, our products have been export to many countries, such as USA, European countries, Middle East, South America, Asia, Africa etc. Since foundation, we have clients in more than 30 countries all over the world.The company has always attached great importance to the early research and development of products and quality control during the production process.The research and development is guided by a technical team with more than 20 years of practical research and development experience in the electric heating industry. At the same time, the company has a group of R&D, production and quality control teams with rich experience in electric thermal machinery manufacturing.Coupled with the automatic production line introduced at the beginning of the company's establishment, the electric heating products have a good quality assurance in the whole process from design and development, test demonstration to production and manufacturing, and inspecting each heater before shipment, including the quality of product performance, appearance, size and other key quality control aspects. Excellent, with high stability and consistency. In recent years, our company keep developing the new products constantly, with high quality, competitive price, the perfect services to reach the special request from customers. Our company has obtained CE mark and ISO 9001 international quality system certificate.

Q1. Is your company a factory or a trade?

A1. We have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer, providing OEM/ODM services to our customers.

Q2. This is the first time for me to use this kind of product. Can you provide the design scheme?
A2. We are a professional integrated solution supplier, we will provide you with our solutions and drawings for your reference.

Q3. What data do I need to provide so that you can help me design the product I need?
A3. You need to tell us the volume you need to heat, the temperature difference, the hourly wind flow rate, the heating medium,and the use environment. Then we can design the style you need for you.

Q4. How long do you usually take to make delivery?
A4. We will deliver the goods within 15 working days after confirming the drawing with you.

Q5. What kind of transportation do you usually use?
A5. We generally use sea, land and air transport, according to your needs to choose the right mode of transport for you.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $2200 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steel thermal oil heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the steel thermal oil heater be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Yancheng Xinrong Electronic Industries Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Yancheng Xinrong Electronic Industries Co., Ltd. range on HVACR Nexus.
