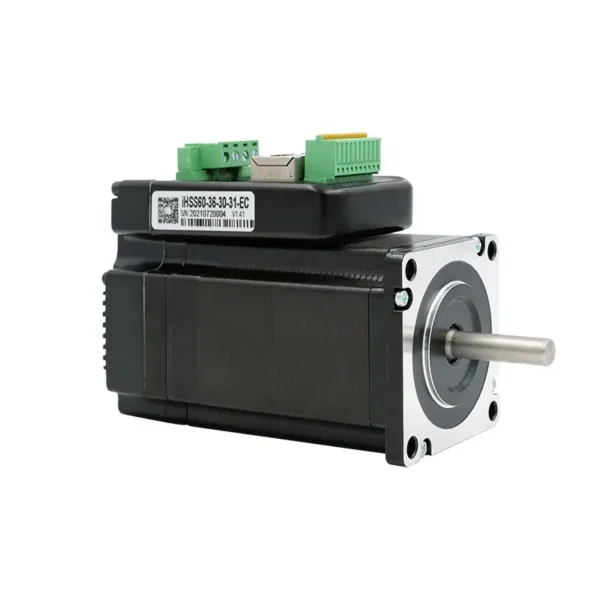

Stepper motor — voltage DC 36 V, type Hybrid. The complete factory specification follows. Made by Shenzhen Just Motion Control Electromechanics Co.,ltd. (18 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Stepper Motor
- Model Number: iHSS60-36-30-31-EC
- Voltage: DC 36 V
- Input Voltage: 20-50VDC Typical 36V
- Warranty: 1 year
- Place Of Origin: Guangdong, China
- Type: Hybrid
Technical Specifications
| Nema Frame Size | Nema24 |
|---|---|
| Voltage | DC 36 V |
| Type | Hybrid |
| Phase | 2 |
| Shaft Diameter | 8 mm |
| Torque | 3N.m |
| Warranty | 1 year |
| Place Of Origin | Guangdong, China |
| Model Number | iHSS60-36-30-31-EC |
| Brand Name | JMC |
| Current / Phase | 5A |
| Name | JMC 36v Stepper Motor with Integrated Controller 3 N.m CANBUS |
| Rotor Inertia | 690g.cm² |
| Input Voltage | 20-50VDC Typical 36V |
| Shaft Size | 8*31mm |
| Motor Length | 117mm |
| Field-Bus Type | EtherCAT |
| Communication Protocol | CANopen over EtherCAT |
| Encoder | 1000 lines |
| Shaft Type | Flat(25mm) |
| Flange Size | Nema24 |
| Selling Units | Single item |
| Single Package Size | 30X20X30 cm |
| Single Gross Weight | 2.5 kg |
Product Details
Communication Specifications: | ||||||
Bus Type | RS485 | CAN | EtherCAT | |||
Baud Rate | 115200bps | 1Mbps | 100Mbps full duplex | |||
Transmission Distance | max 1km | max 1km | max interval 100m | |||
Number of Slaves | 32 | 127 | 65535 | |||
Network Topology | Daisy chain | Daisy chain | Daisy chain, Star chain, Tree chain | |||
Motion Control Mode | PP: Profile Position PV: Profile Velocity HM: Home Mode | PP: Profile Position PV: Profile Velocity HM: Home | CSP: Cycle Synchronous Position CSV: Cycle Synchronous Velocity PP / PV / HM | |||
Communication Protocol | Modbus-RTU | CIA 301 CANopen | CANopen over EtherCAT | |||
Device Protocol Standard: IEC61800-7 CiA402 Drive Profile | ||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–10 set: US $99 / set
- 11–50 set: US $95 / set
- 51+ set: US $86 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this stepper motor?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the stepper motor be supplied for my local voltage?
The standard configuration is DC 36 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
