Swimming pool heat pump — heating capacity 6.5~14KW, power source Electric. The complete factory specification follows. Made by Shenzhen Solarshine Renewable Energy Technology Co., Ltd. (4 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Swimming Pool Heat Pump
- Power Source: Electric
- Input Power: AC220V/1ph 50~60Hz
- Heating Capacity: 6.5~14KW
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
- Application: Outdoor, Hotel, Household
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Application | Outdoor, Hotel, Household |
| Storage / Tankless | Storage |
| Installation | Freestanding |

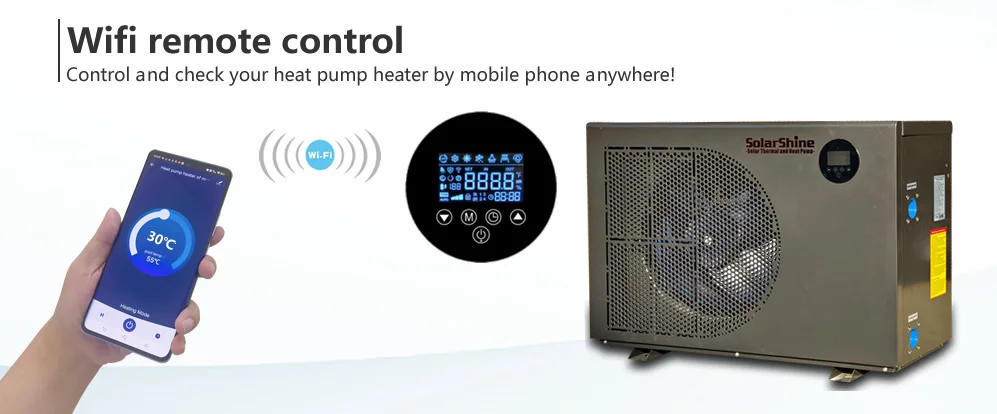

| App-Controlled | Yes |
| Power Source | Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Guangdong, China |
| Heating Capacity | 6.5~14KW |
| Input Power | AC220V/1ph 50~60Hz |
| Selling Units | Multiple of 2 items |
| Volume Per Batch | 0 cm³ |
| Gross Weight Per Batch | 0.0 kg |
Product Details

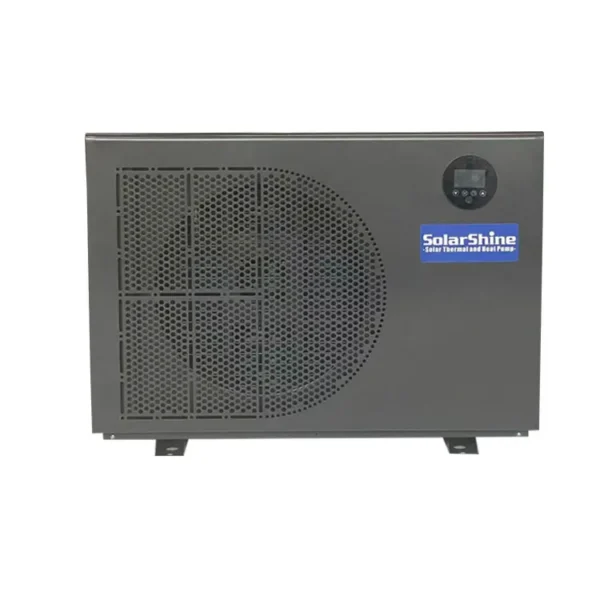

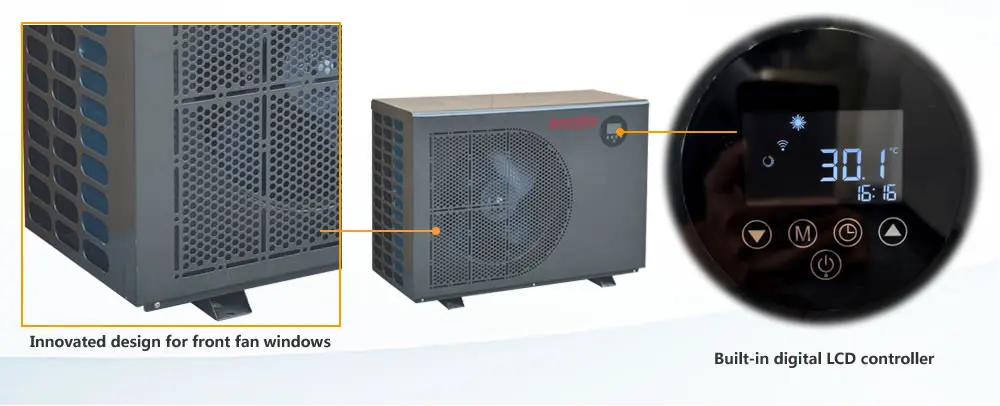

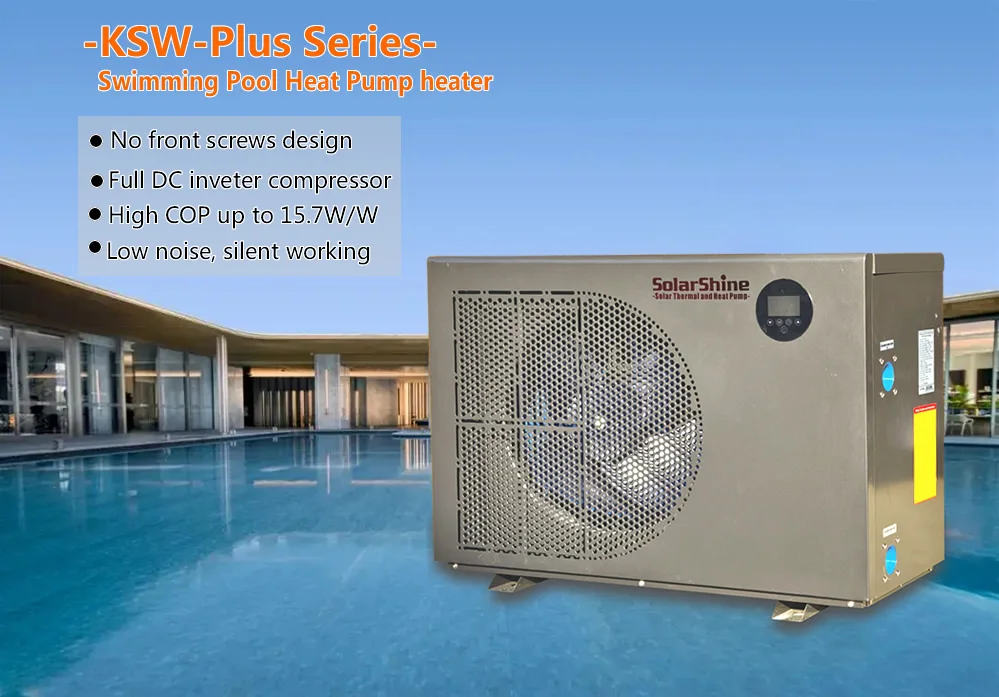

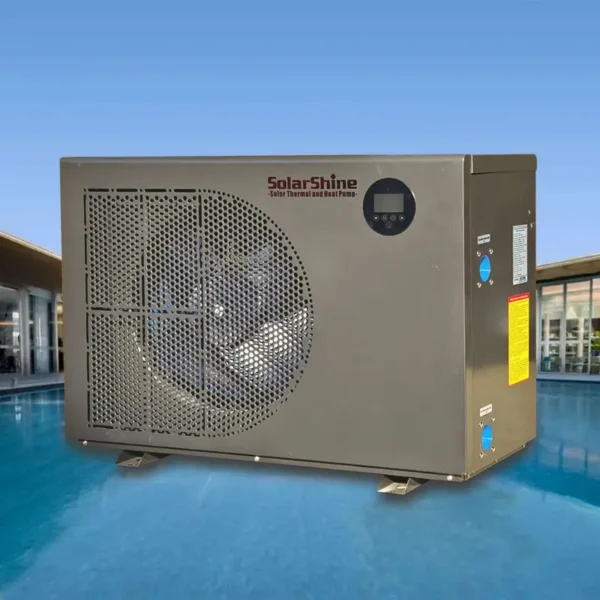

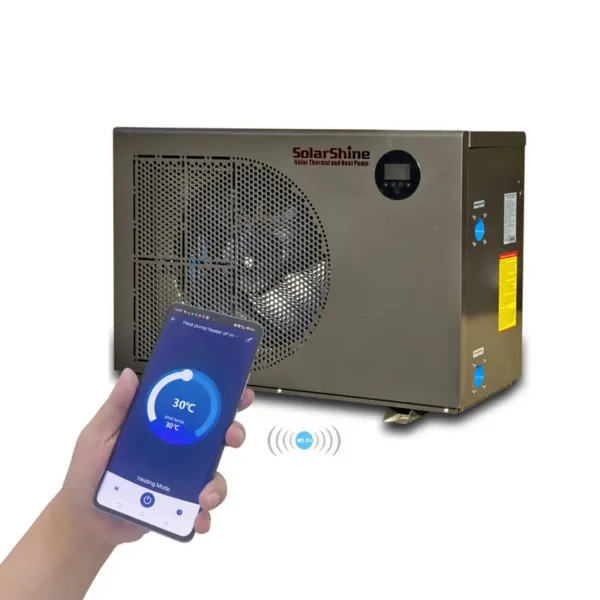

SolarShine KSW-PLUS series heat pump water heater is a innovated design products, it has features of bigger size case which can put bigger evaporator and condenser inside, assure very high COP and heating capacity output. The machine case has no fixing screws in front, with very elegant appearance. There are 3 models of this series heat pump, 6.5KW, 10KW and 14KW, very suitable for small ~middle scale swimming pool.
| Models and specification | |||
| Model | KSW-IN-PLUS-1.5-6.5 | KSW-IN-PLUS-2-10 | KSW-IN-PLUS-2.5-14 |
| Power supply | 220~240V/1ph | ||
| Heating Performance Condition: Air 27°C, Water 26°C, Humidity 80% | |||
| Nominal heating capacity | 6.5KW | 10KW | 14KW |
| Heating capacity (kW) | 6.52~1.87 | 9.8~2.82 | 14.28~4.03 |
| Power input (KW) | 0.96~0.12 | 1.44~0.18 | 2.1~0.26 |
| COP | 6.8~15.6 | 6.8~15.7 | 6.8~15.5 |
| Heating Performance Condition: Air 15°C, Water 26°C, Humidity 70% | |||
| Heating capacity (kW) | 5.4~1.28 | 8.1~1.95 | 11.65~2.85 |
| Power input (KW) | 1.02~0.17 | 1.53~0.26 | 2.22~0.38 |
| COP | 5.3~7.5 | 5.3~7.5 | 5.25~7.5 |
| Max. input power | 1.27 | 1.91 | 2.60 |
| Max. working currency (A) | 5.78 | 8.67 | 11.82 |
| Water temperature range | 15~40℃ | 15~40℃ | 15~40℃ |
| Sound pressure of 50% heating capacity at 1m dB(A) | 40-48 | 40-50 | 42-53 |
| Sound pressure at 10m dB(A) | 18~25 | 18~25 | 19~26 |
| Operation ambient temperature range | -15~45 | -15~45 | -15~45 |

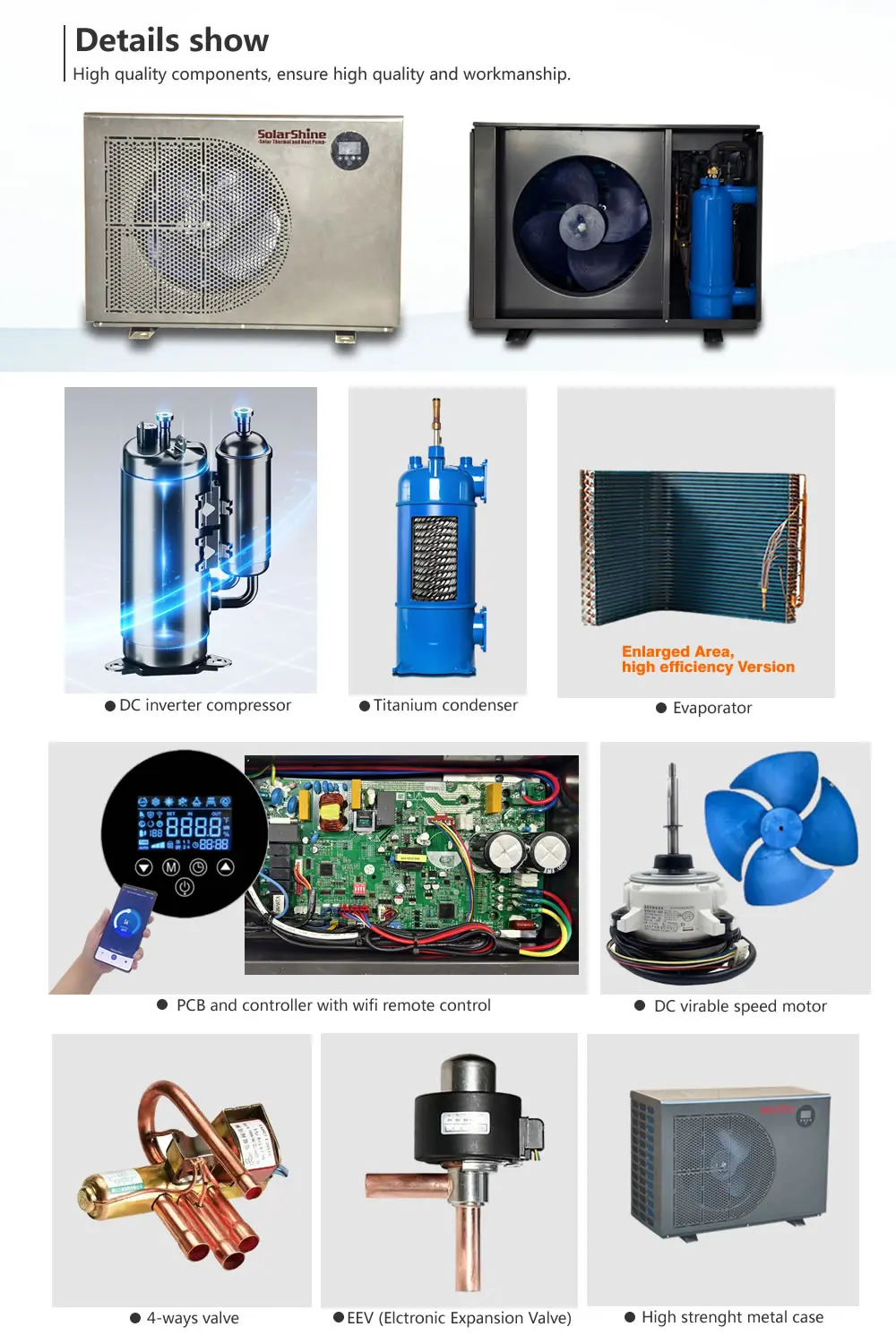

| Heat exchanger | Titanium tube internal + PVC shell external | ||
| Evaporator | High efficiency aluminum fins + copper refrigerant flow tubes | ||
| Refrigerant | R410a/R32/R417 | ||
| Fan motor | Bluss-less DC motor (flexible speed) | ||
| Fan and motor quantity | 1 | 1 | 1 |
| Water Connection (mm) | Φ32 | Φ40 | Φ50 |
| Advised water fluid(m³/h) | 2.5 | 3 | 4 |
| Machine ext. size(mm) | 920*410*670 | 920*410*670 | 1050*420*710 |
—————————————————————————————————————————————————
About us:
SolarShine Renewable Energy Technology Co., Ltd, is an professional manufacturer and developer of solar thermal + heat pump heating / cooling products and systems, we supply professional and high quality products, systems and professional services for our customers from more than 50 countries and regions.
Our main products and service covering:
*Domestic, swimming pool and commercial heat pump water heater
(Air source / water source and geothermal source)
* Domestic and industry water chiller (cooler)
* Hot water storage tank, buffer tank.
* Solar thermal collectors and solar water heater
* OEM and ODM service
* System design, technology support at water heating, cooling, and HVAC industry.
Ordering and Pricing
- Minimum order quantity: 40 set
- Volume pricing:
- 40–58 set: US $520 / set
- 60+ set: US $500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this swimming pool heat pump?
The standard minimum order quantity is 40 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
