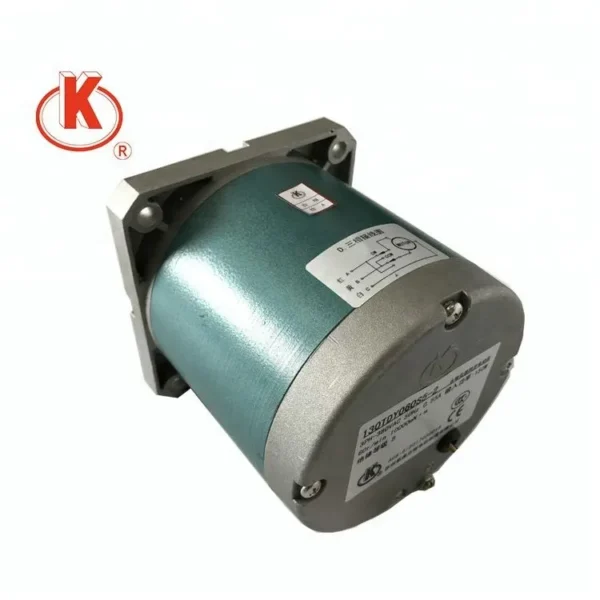

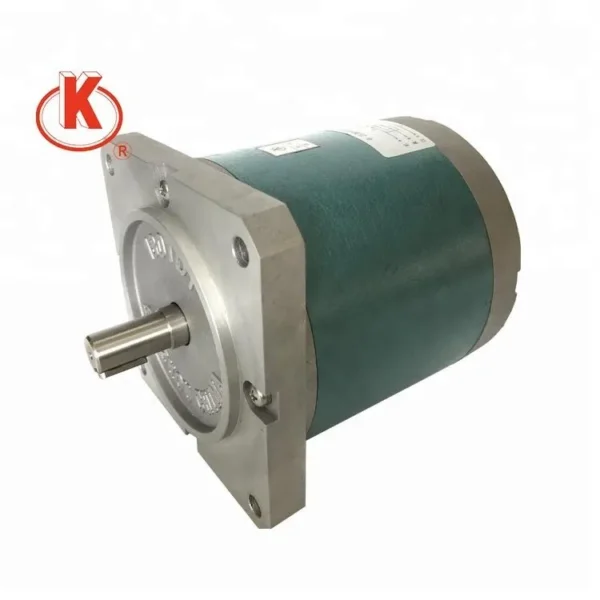

Synchronous motor — type Synchronous Motor, 60RPM. The complete factory specification follows. Made by Suzhou Sok Micro Motor Manufacturing Co., Ltd. (11 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Synchronous Motor
- Model Number: 130TDY060S4-2- synchronous motor
- Input Power: 150W
- AC Voltage: 220V
- Speed: 60RPM
- Place Of Origin: Jiangsu, China
- Protect Feature: Drip-proof
Technical Specifications
| Phase | Three-Phase |
|---|---|
| AC Voltage | 220V |
| Type | Synchronous Motor |
| Protect Feature | Drip-proof |
| Efficiency | Other |
| Model Number | 130TDY060S4-2- synchronous motor |
| Brand Name | SOK MOTOR- synchronous motor |
| Place Of Origin | Jiangsu, China |
| Frequency | 50Hz |
| Synchronous Motor | 220V 130mm 60rpm ac synchronous motor |
| Speed | 60RPM |
| Input Current | 0.90A |
| Input Power | 150W |
| Max. Torque | 11000mN.m |
| Rated Torque | 10000mN.m |
| Starting Torque | 4500mN.m |
| Insulation Class | B |
| N.W. | 9.0kg |
| Packaging Details | Ctn size: 465*235*390mm 4 pcs/ctn, N.W.: 36kgs, G.W.:37.8kgs Delivery : within 30 days after payment Apply to AC synchronous motor |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 15000 pieces per Month Apply to AC synchronous motor |
Product Details
PM slow speed synchronous motors is one kind of totally enclosed motor, which can naturally turn at slower speeds(72 or 60RPM).
For even slower speeds planetary gear reducers are offered. SOK synchronous motors produce very slow speed with modest gear reductions.
Ambient condition
1.Temperature:-25℃～ +40℃；
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2
Typical application
Auto-testing equipment
Medical equipment
Timing belt drives
X-ray scanning
Textile machines
Electrical valve actuator
Cryogenic pump
Heat exchanger
Remote control of switches rheostat
Printing,packaging machines
Antenna rotors
Auto-welding machines
Parameter of AC synchronous motor
Note: The typical specifications above just for your reference. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.
Outline drawing
Dimension of AC synchronous motor
50Hz 55mm High quality electric Ac Motor
91.8% Response Rate
55mm ac brushless permanent magnet synchronous gearmotor
91.8% Response Rate
135mm Single phase acasynchrous motor for barrier gate
91.8% Response Rate
Jennifer Wu(Sales Manager)
Suzhou SOK Micro Motor Mfg. CO., Ltd
Add:No.1,North Guan Du Road,Wang Shan Ind.Park,Wu Zhong Dist.Suzhou
Mobile : +86 15261970606 Tel.: +86-512-66558363 Fax:+86-512-66557780
WhatsApp: +86 15261970606
Skype: jennifer890113
Line: jenniferwu0113
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $100 / piece
- 50–99 piece: US $73.8 / piece
- 100+ piece: US $70.1 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this synchronous motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the synchronous motor be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Sok Micro Motor Manufacturing Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Sok Micro Motor Manufacturing Co., Ltd. range on HVACR Nexus.
