Key specification for this system control air conditioner: power consumption 4VA (only when damper position changes), model number IBF. Everything below is reproduced from the factory data sheet. Made by Nanjing Insbud Controls Company Limited (18 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This System Control Air Conditioner
- Model Number: IBF
- Power Supply: 220V AC +/- 15% 50 / 60Hz (24V AC; 110VAC available)
- Power Consumption: 4VA (only when damper position changes)
- Warranty: 2 Years
- Place Of Origin: Jiangsu, China
- Application: Hotel, Villa, Apartment, Office Building, Hospital, School
Technical Specifications
| Application | Hotel, Villa, Apartment, Office Building, Hospital, School |
|---|---|
| Warranty | 2 Years |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | graphic design, 3D model design |
| Place Of Origin | Jiangsu, China |
| Brand Name | INSBUD |
| Model Number | IBF |
| Product Name | HVAC system control air conditioner motorized air damper |
| OEM | Welcome |
| Color | Customized Color |
| Power Supply | 220V AC +/- 15% 50 / 60Hz (24V AC; 110VAC available) |
| Power Consumption | 4VA (only when damper position changes) |
| Nominal Angular Rotation | 90 |
| Torque | 1 Nm |
| Ambient Temperature | 0~60℃ |
| Relative Humidity | 0~90% |
| Packaging Details | HVAC system control air conditioner motorized air damper with 1 piece per carton box, 4 pieces per master carton box |
| Port Of Dispatch | Nanjing Port Or Shanghai Port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 pieces per Month air damper |
Product Details
| Name | Motorized Air Damper |
| Color | Customized Color |

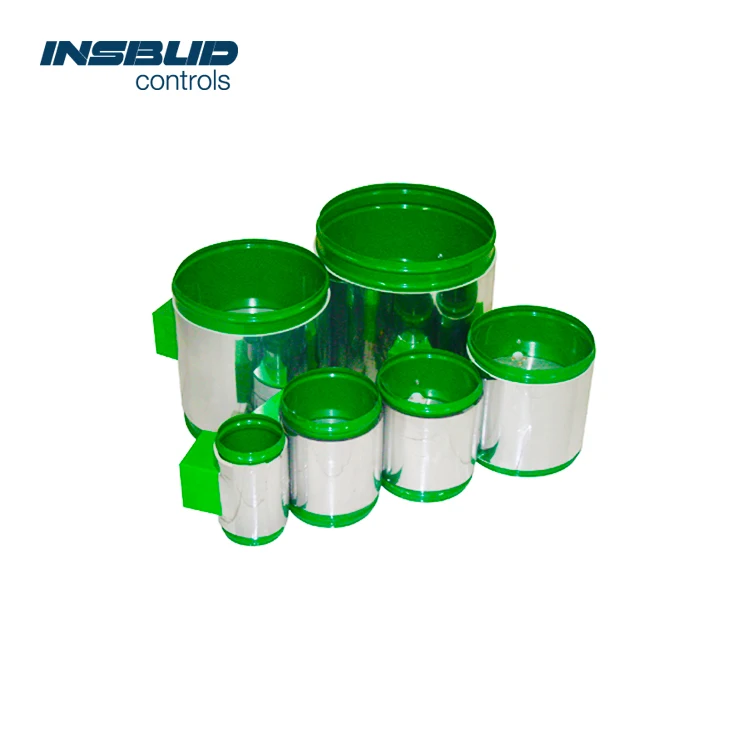

| Diameter | 100mm, 150mm, 160mm,200mm,250mm, 300mm,etc |
| Application | Air Conditioning Ventilation System |
| Power Supply | 220V AC +/- 15% 50 / 60Hz (24V AC; 110VAC available) |
| Power Consumption | 4VA (only when damper position changes) |
| Nominal Angular Rotation | 90 |
| Torque | 1 Nm |
| Ambient Temperature | 0~60℃ |
| Relative Humidity | 0~90% |
Applications
1.Connected with special thermostat so that it can realize air cooling or heating
2.Used in rooms where temportary higher or lower ventilation is required
3.By using IB-F model there is possibility to change ventilation level in separated rooms or in block of rooms
4.Mounted on channel which transports air to fire place to control speed of fire or close channel when fire place is not used

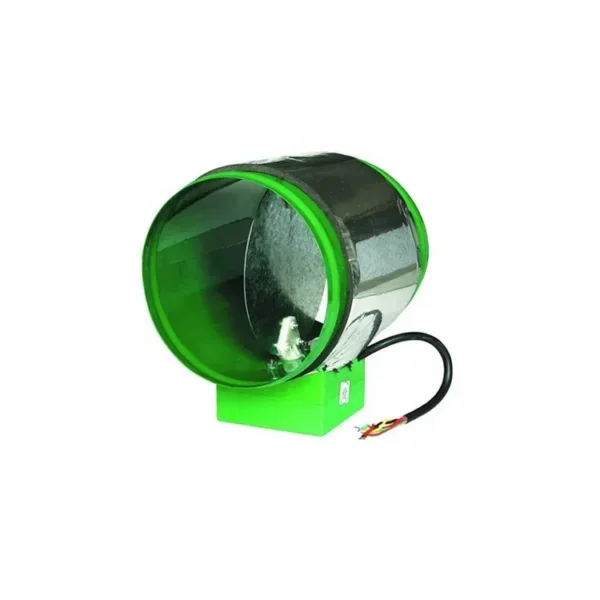

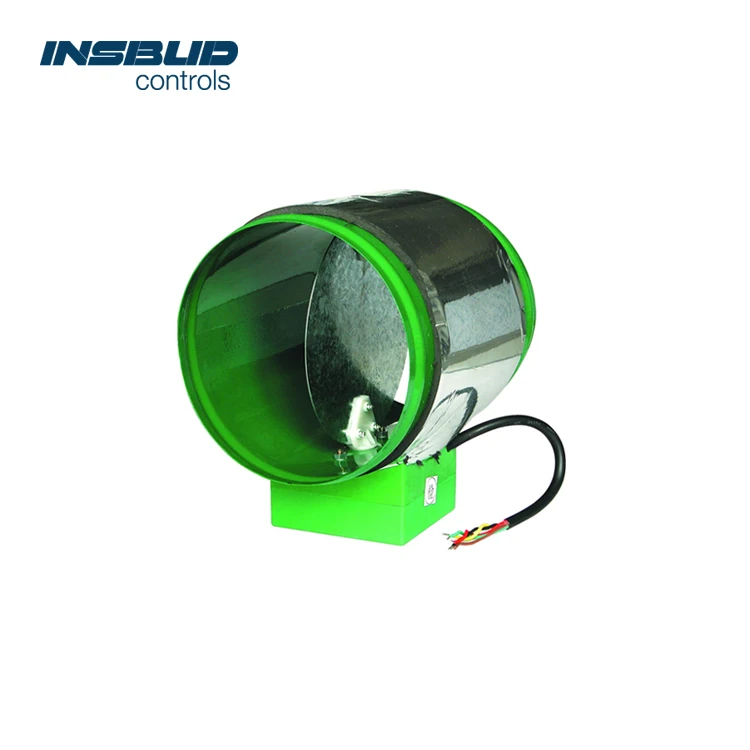

HVAC system control air conditioner motorized air damper
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this system control air conditioner?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the system control air conditioner be supplied for my local voltage?
The standard configuration is 220V AC +/- 15% 50 / 60Hz (24V AC; 110VAC available). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Nanjing Insbud Controls Company Limited, based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Nanjing Insbud Controls Company Limited range on HVACR Nexus.
