Key specification for this heat pump: 220V/1P/50/60Hz, 559.15CFM. Everything below is reproduced from the factory data sheet. Made by Guangzhou Airwoods Environment Technology Co., Ltd. (11 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Heat Pump
- Model Number: AV-HTPF35;AV-HTPF60;AV-HTPF90
- Power Supply: 220V/1P/50/60Hz
- Maximum Airflow: 559.15CFM
- Exhaust Airflow(Ventilation Mode): 350CMH
- Exhaust Airflow(Heating/Cooling Mode): 350CMH
- Refrigerant Type: R-32
Technical Specifications
| Type | Ventilation |
|---|---|
| Application | Hotel, Villa, Apartment, Office Building, Home Office, Bedroom, Dining, Basement |
| Refrigerant Type | R-32 |
| Maximum Airflow | 559.15CFM |
| Feature | Easy Installation, Flexible |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Design Style | Contemporary, Modern |
| Project Solution Capability | total solution for projects |
| Place Of Origin | Guangdong |
| Brand Name | Airwoods |
| Model Number | AV-HTPF35;AV-HTPF60;AV-HTPF90 |
| Exhaust Airflow(Ventilation Mode) | 350CMH |
| Exhaust Airflow(Heating/Cooling Mode) | 350CMH |
| External Static Pressure | 100pa |
| Noise | 37/42dB(A) |
| Power Supply | 220V/1P/50/60Hz |
| Dimension | 760*600*100mm(LWH) |
| Weight | 125kg |
| Refrigerant | R32 or R410A |
| Operation Temperature | -15 ~ 50℃ |
| Selling Units | Single item |
| Single Package Size | 76X60X100 cm |
| Single Gross Weight | 140.000 kg |

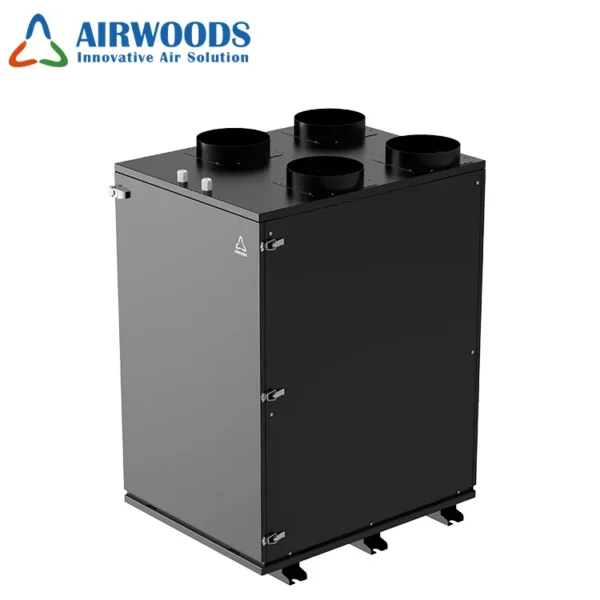

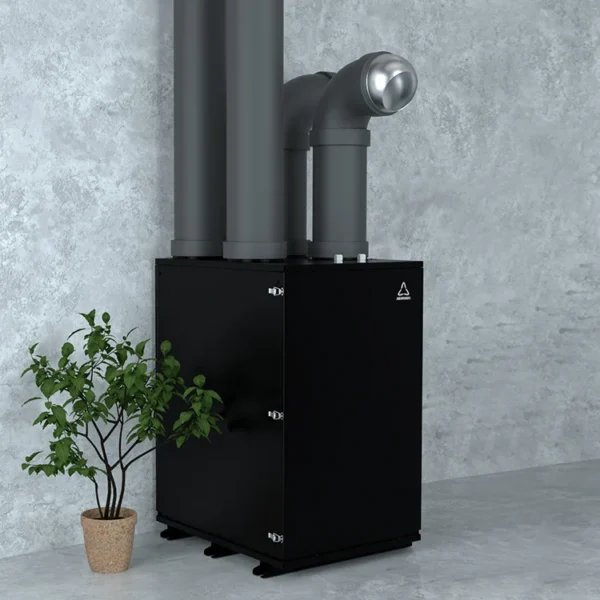

Product Details
solution for air tight buildings in which the windows often remain closed due to noise, dust particles and energy loss.
2˚C fresh air in the winter time can be heated to 35.5˚C. It can work as air conditioner in Autumn/ Spring or at night, when outdoor is 10-28˚C.
Besides, it can remove the excess humidity, prevent furniture mold build up and keep the indoor air at comfortable temperature and humidity.
Model | AV-HTPF35/EI32 | ||
Rated airflow | 350CMH | ||
Exhaust airflow (ventilation mode) | 350CMH | ||
Exhaust airflow (heating/cooling mode) | 350CMH | ||
External static pressure | 100Pa | ||
Noise | 37/42 | ||
Power | 220V 1P 50/60Hz | ||
Dimension (L×W×H) | 760×600×1000mm | ||
Air inlet/outlet diameter | 188mm | ||
Air inlet/outlet height | 40mm | ||
Machine base height | 40mm | ||
Drainage pipe | 1/2" inch | ||
Refrigerant | R32 | ||
Operation temperature | -15~50℃ | ||
Ventilation mode | Temperature Effi. (heating) | 76.5% | |
Temperature Effi. (cooling) | 72% | ||
Enthalpy Effi. (heating) | 72.6% | ||
Enthalpy Effi. (cooling) | 69.4% | ||
Input power | 185W | ||
Input current | 1.08A | ||
Cooling/Heatin | Norminal cooling capacity | 3798W | |
Max cooling capacity | 4173W | ||
Input power (cooling) | 847W | ||
Operation current (cooling) | 4.42A | ||
Norminal heating capacity | 4604W | ||
Max heating capacity | 4981W | ||
Input power (heating) | 790W | ||
Operation current (heating) | 3.82A | ||

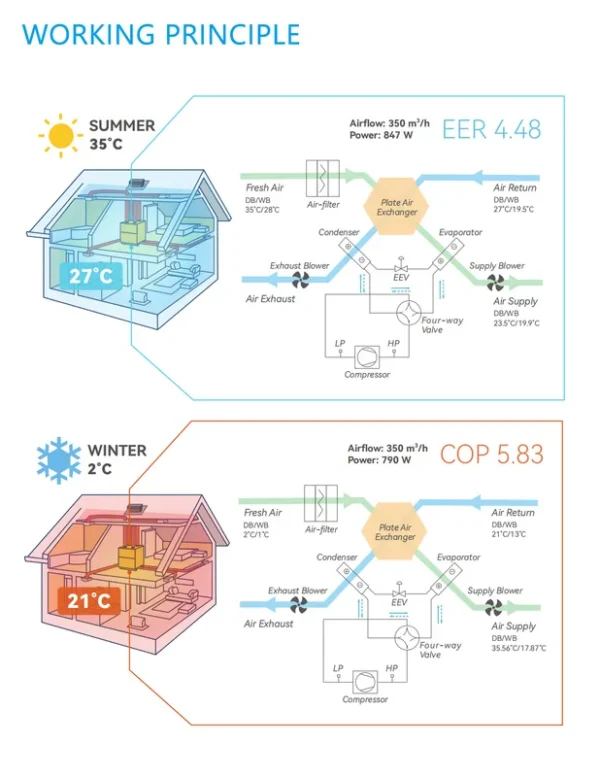

Advantages Compared with Standard ERV | ||||||
SUMMER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 35˚C | 59.10% | |||
2 | Inside Temperature RA | 27˚C | 49.80% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 29.24˚C | 55.48% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 23.5˚C | 72.11% | |||
WINTER CONDITIONS | ||||||
No | Description | Temperature | Relative Humidity | |||
1 | Outside Temperature OA | 2˚C | 83.84% | |||
2 | Inside Temperature RA | 21˚C | 39.16% | |||
3 | Fresh Air (Standard Heat Recovery Units) SA | 15.68˚C 73.57% | 73.57% | |||
4 | Fresh Air (Heat Pump Heat Recovery Units) SA | 35.56˚C | 17.87% | |||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $1950 / piece
- 10–99 piece: US $1800 / piece
- 100+ piece: US $1700 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heat pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the heat pump be supplied for my local voltage?
The standard configuration is 220V/1P/50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Airwoods Environment Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Airwoods Environment Technology Co., Ltd. range on HVACR Nexus.
