Key specification for this temperature control heat pump: 380 V, 220 V, 480V, 72KW. Everything below is reproduced from the factory data sheet. Made by Zhejiang Guanfeng Food Machinery Co., Ltd. (14 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Temperature Control Heat Pump
- Power: 22.4KW
- Voltage: 380 V, 220 V, 480V
- Heating Capacity: 72KW
- Refrigerating Capacity: 52KW
- Dehumidification Capacity: 90L/H
- Capacity: 600-1200kg/batch
Technical Specifications
| Application Fields | Beverage Factory, Dairy Products Factory, Seasoning Plant, Meat Processing Plants, Vegetable Processing Plant, Fruit Processing Plant, Snack Food Factory |
|---|---|
| Type | Tray Dryer |
| Heating Method | Electric Heating |
| Material | SUS304, SUS316, Stainless Steel, insulation board |
| Voltage | 380 V, 220 V, 480V |
| Core Components | PLC, Engine |
| Warranty | 14 months |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 3000 |
| Place Of Origin | Zhejiang, China |
| Heat Pump | 10HP*2 |
| Power | 22.4KW |
| Heating Capacity | 72KW |
| Refrigerating Capacity | 52KW |
| Dehumidification Capacity | 90L/H |
| Drying Room Temperature | 8~75℃ |

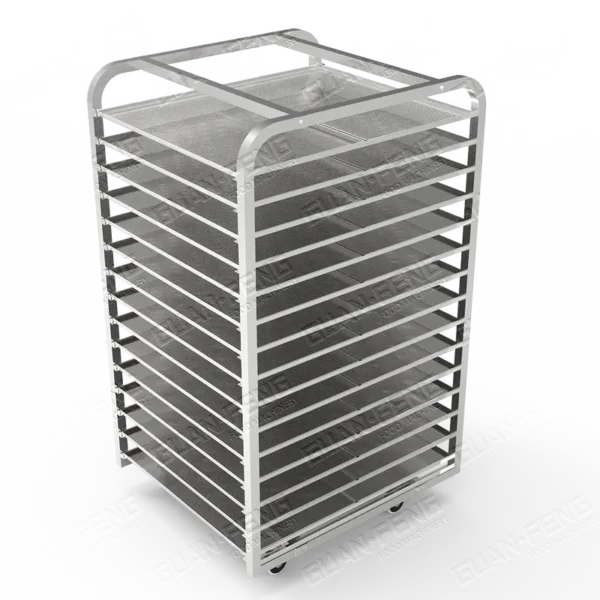

| Trolley | 8pcs |
| Capacity | 600-1200kg/batch |
| Dimension | 7000*2800*2200mm |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model | GRH-20 | GRH-50 | GRH-70 | GRH-120 | GRH-150 | GRH-200 | GRH-250 | GRH-300 | GRH-400 |
Heat Pump | 3HP×1 | 6HP×1 | 12HP×1 | 10HP×2 | 12HP×2 | 15HP×2 | 20HP×2 | 25HP×2 | 30HP×2 |
Power(kw) | 4.8 | 7.2 | 13.3 | 22.4 | 26.6 | 30.4 | 47 | 53.8 | 60.8 |
Heating Capacity(kw) | 11 | 22 | 45 | 72 | 90 | 96 | 150 | 176 | 200 |
Refrigerating Capacity(kw) | 7.9 | 19 | 35 | 52 | 70 | 76 | 124 | 144 | 180 |
Dehumidification Capacity(l/h) | 15 | 26 | 55 | 90 | 110 | 120 | 125 | 136 | 150 |
Drying room Temperature(℃) | 8~75 | 8~75 | 8~75 | 8~75 | 8~75 | 8~75 | 8~75 | 8~75 | 8~75 |
Trolley(pc) | 2 | 4 | 6 | 8 | 10 | 14 | 18 | 22 | 28 |
Capacity (kg/batch) | 100 ~200 | 250 ~500 | 350 ~700 | 600 ~1200 | 750 ~1500 | 1000 ~2000 | 1250 ~2500 | 1500 ~3000 | 2000 ~4000 |
Dimension(mm) | 3400 ×2800 ×2030 | 4400 ×2800 ×2030 | 5400 ×2800 ×2030 | 7000 ×2800 ×2200 | 8000 ×2800 ×2200 | 10000 ×2800 ×2200 | 12000 ×2800 ×2200 | 14000 ×2800 ×2200 | 17000 ×2800 ×2200 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this temperature control heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 14 months warranty. Spare parts and technical support remain available after the warranty period.
Can the temperature control heat pump be supplied for my local voltage?
The standard configuration is 380 V, 220 V, 480V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Guanfeng Food Machinery Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Guanfeng Food Machinery Co., Ltd. range on HVACR Nexus.
