The thawing equipment listed here carries 380V, 38KW, documented exactly as the manufacturer publishes it. Made by Phoenix Machine Technology(Shanghai) Co., Ltd. (9 years on the platform, typical reply >24h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Thawing Equipment
- Power(W): 38KW
- Voltage: 380V
- Material: SUS304
- Chamber Material: SUS304
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
Technical Specifications
| Type | Vacuum Drying Equipment |
|---|---|
| Voltage | 380V |
| Heating Method | Electric Heating |
| Material | SUS304 |
| Power(W) | 38KW |
| Application | Food Processing |
| Core Components | Pump |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 6000 |
| Brand Name | PMTC |
| Dimension(L*W*H) | 4500*1700*2030mm |
| Chamber Material | SUS304 |
| Total Usable Area Of Shelves | 10㎡ |
| Lowest Temperature Of Shelf | -50℃ |
| Shelf Cooling Rate (No Load) | 20℃~-40℃≤60min |
| Selling Units | Single item |
Product Details
Main Parameter： | ||

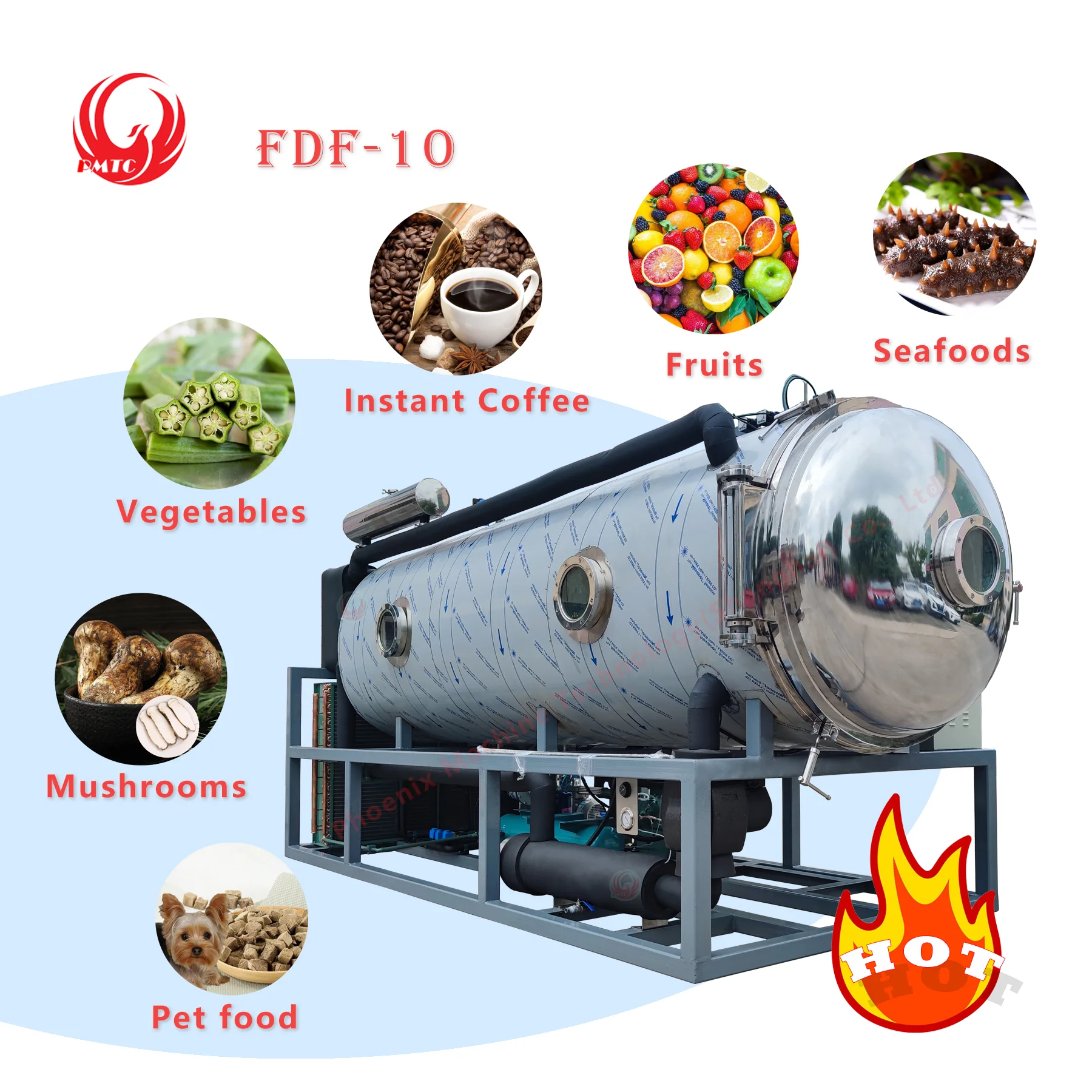

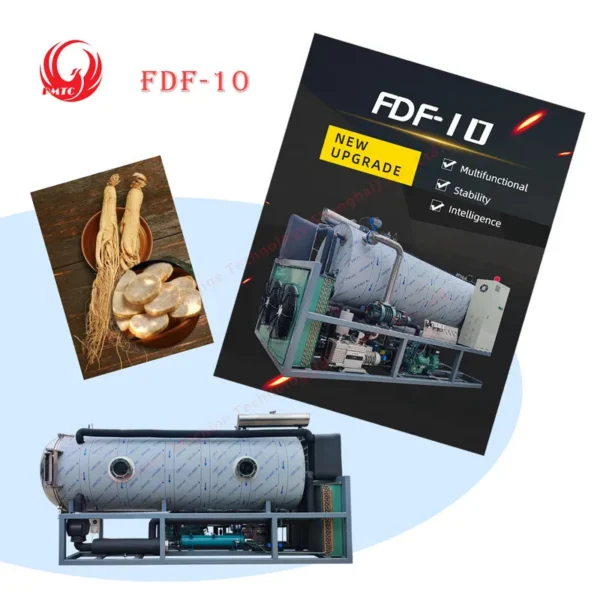

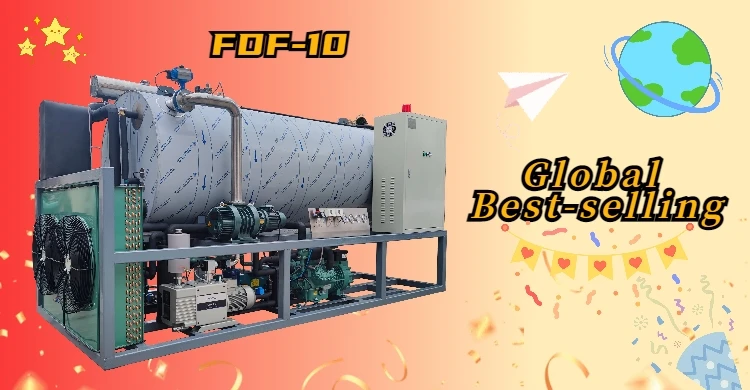

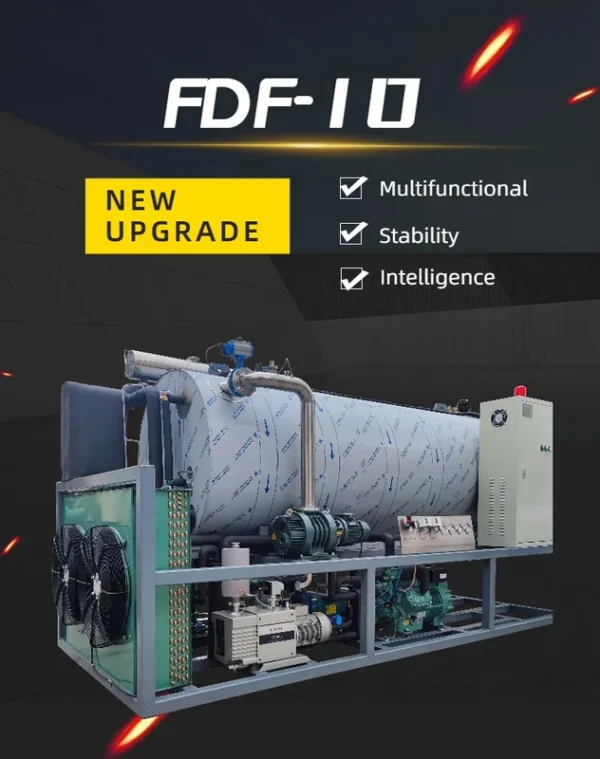

Model | FDF-10 | |
Whole volume(L*W*H) | 4500×1700×2030mm | |
Total weight | 6000KG | |
Power | 38Kw, 380V±10%, 50HZ, 3Phase, 5Wire | |
Defrost water Quantity | ≥500kg（T≥30℃、P=0.1-0.2Mpa） | |
Chamber material | SUS304 | |
Total usable area of shelves | 10㎡ | |
Lowest temperature of shelf | ≤-50℃ | |
Highest temperature of shelf | +80℃ | |
Chamber design pressure | -0.1Mpa | |
Condenser lowest temperature（no load） | ≤-70℃ | |
Compressor | Germany BITZER | |
Compressor power | 20HP | |
Ultimate vacuum | ≤2.6Pa | |
Vacuum pump | Japan ULVAC | |
Circulating pump | Germany WILO | |
Silicone oil | USA Dow Corning | |
Heating mode | Electrical heating | |

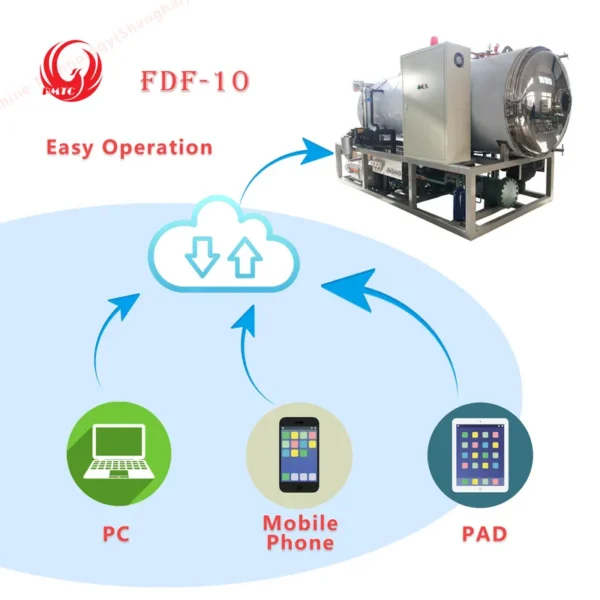

Control mode | PC+tablet PC+mobile phone | |

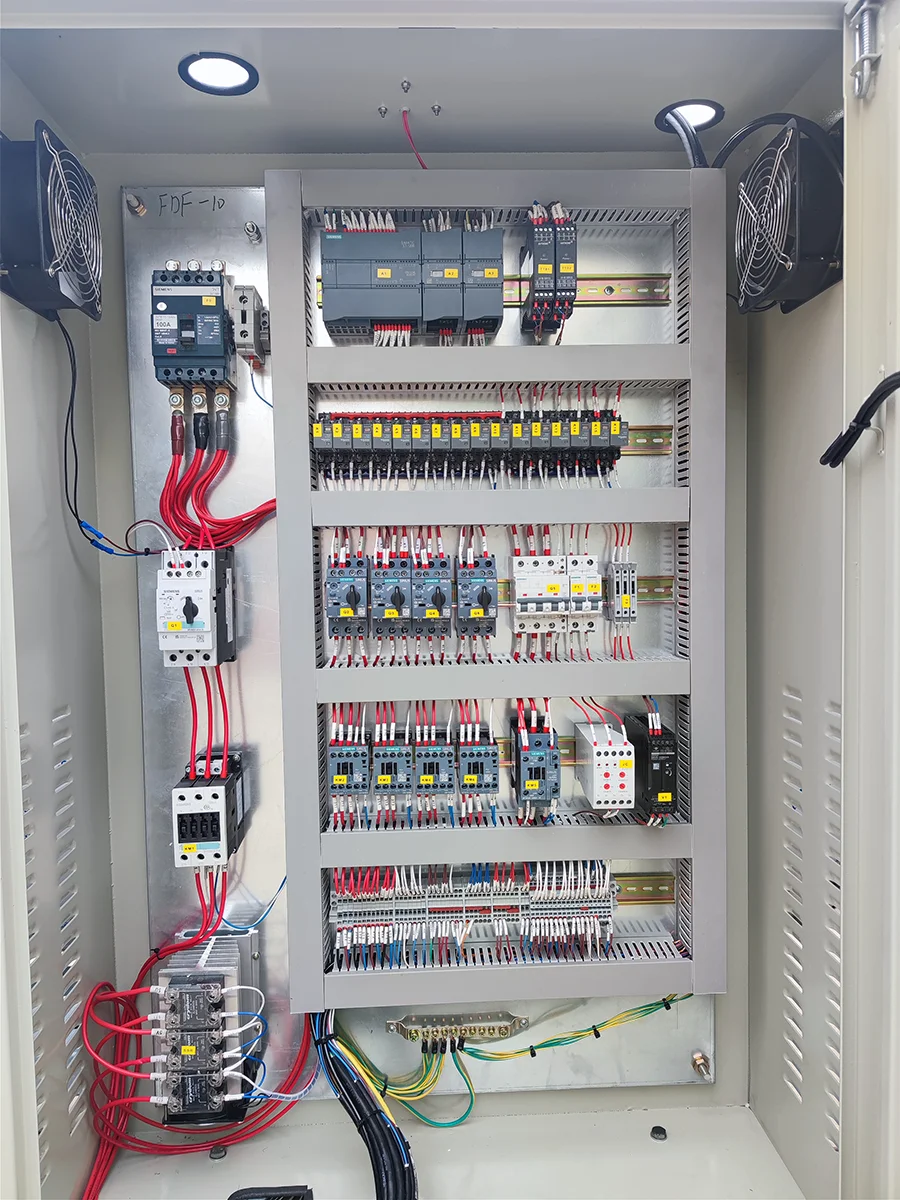

PLC | SIEMENS | |
Circuit Breaker | SIEMENS | |
AC contactor | SIEMENS | |
Small Relay | Schneider | |

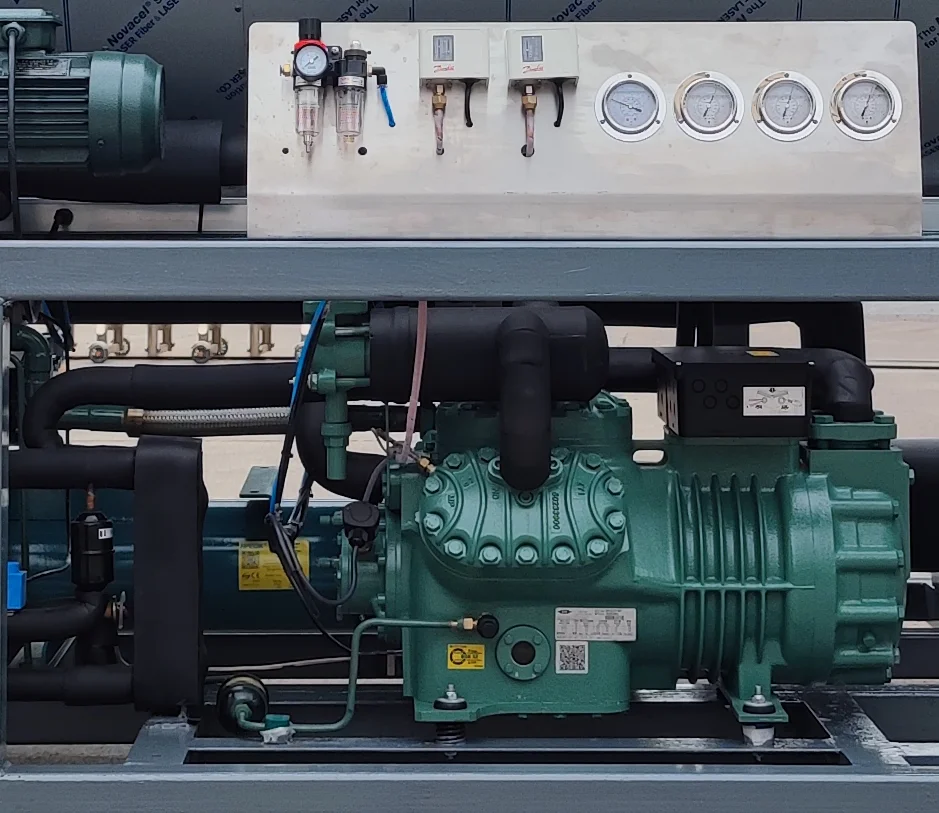

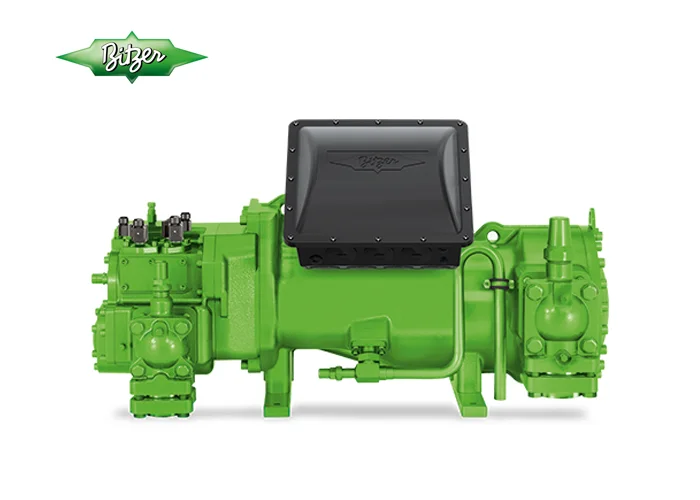

Compressor

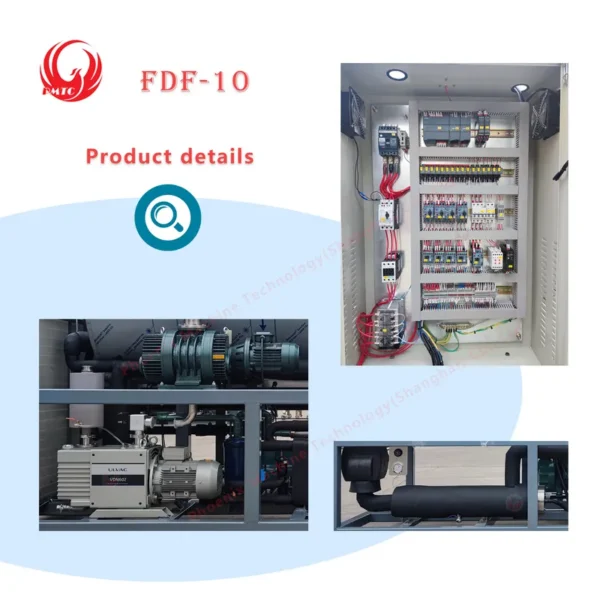

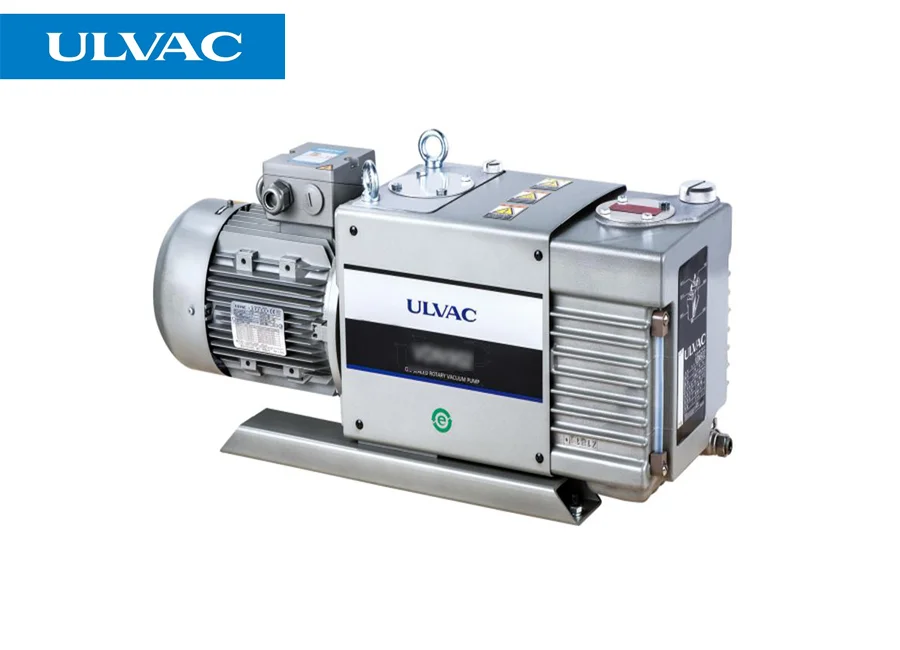

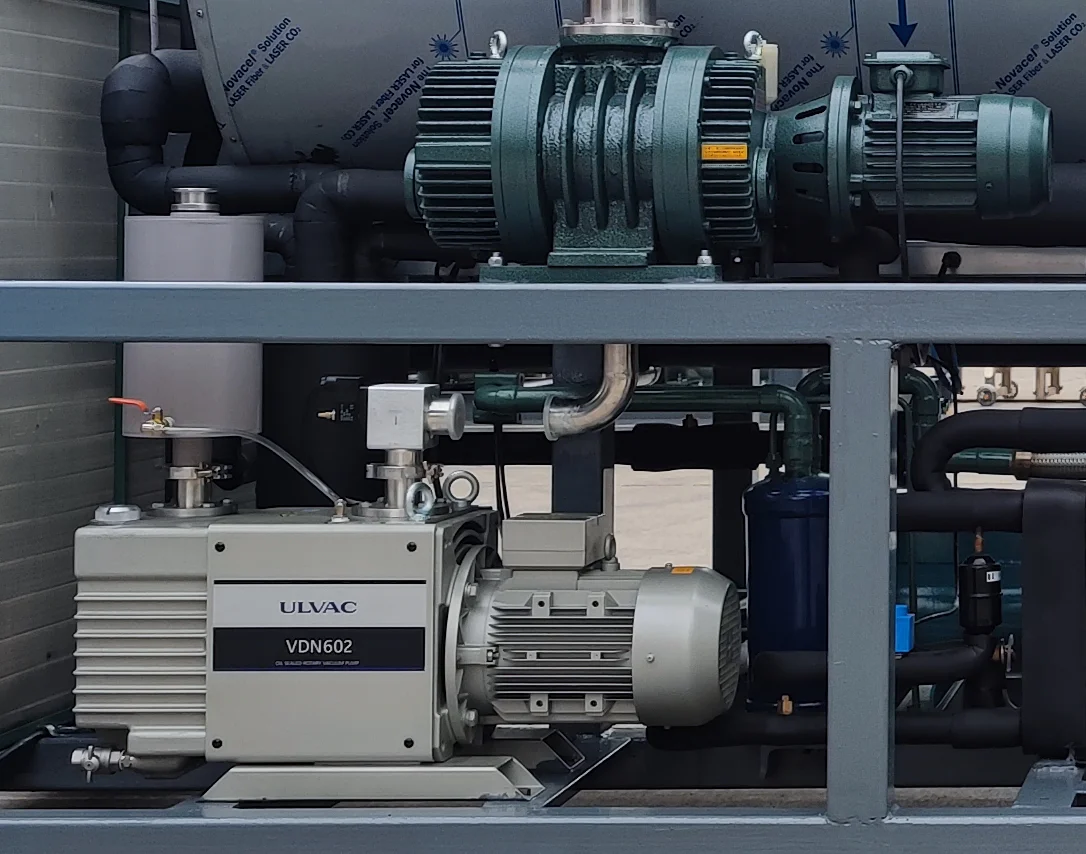

Vacuum pump

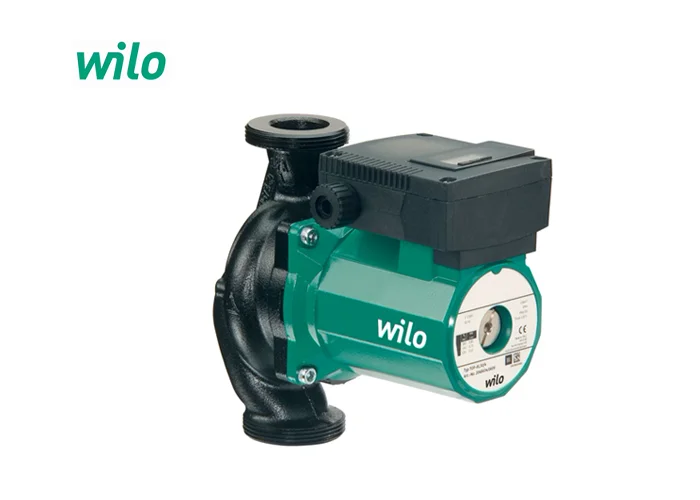

Circulating pump

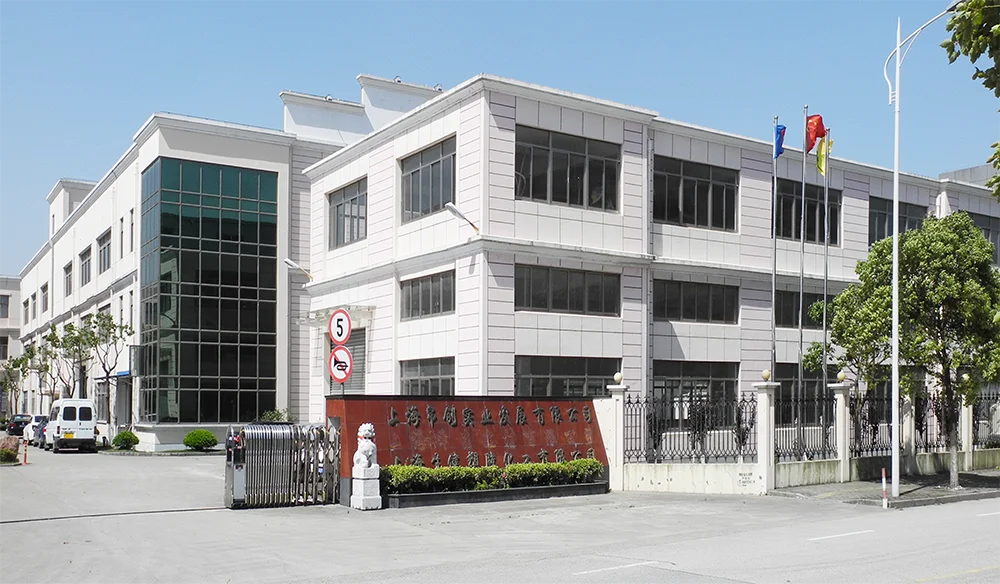

About us
The products are mainly exported to Southeast Asia, Europe, North America,Australia, New Zealand, South Africa and many other high-end customers.
The company has leading technological innovation ability and high-quality staff,Adhering to the mission of "professional technical services in freeze-drying industry",Committed to the vision of "becoming a first-class freeze-drying system supplier",Adhere to the values of "go all out in work",Provide users with cost-effective products.
Q：How do you make your price?
A：We make the price according to our comprehensive costing.And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.
Q：Can you guarantee your quality?
A：Of course.We are the manufacturefactory.More important,we highly value our reputation.Bestquality is our principle all the time.Youcan be assured on our production completely.
Q：How long does the whole procedure being worked out?
A：After you place a orderthe production handling time is about 3~4months .We need prepare all the stuff then manufacturing.

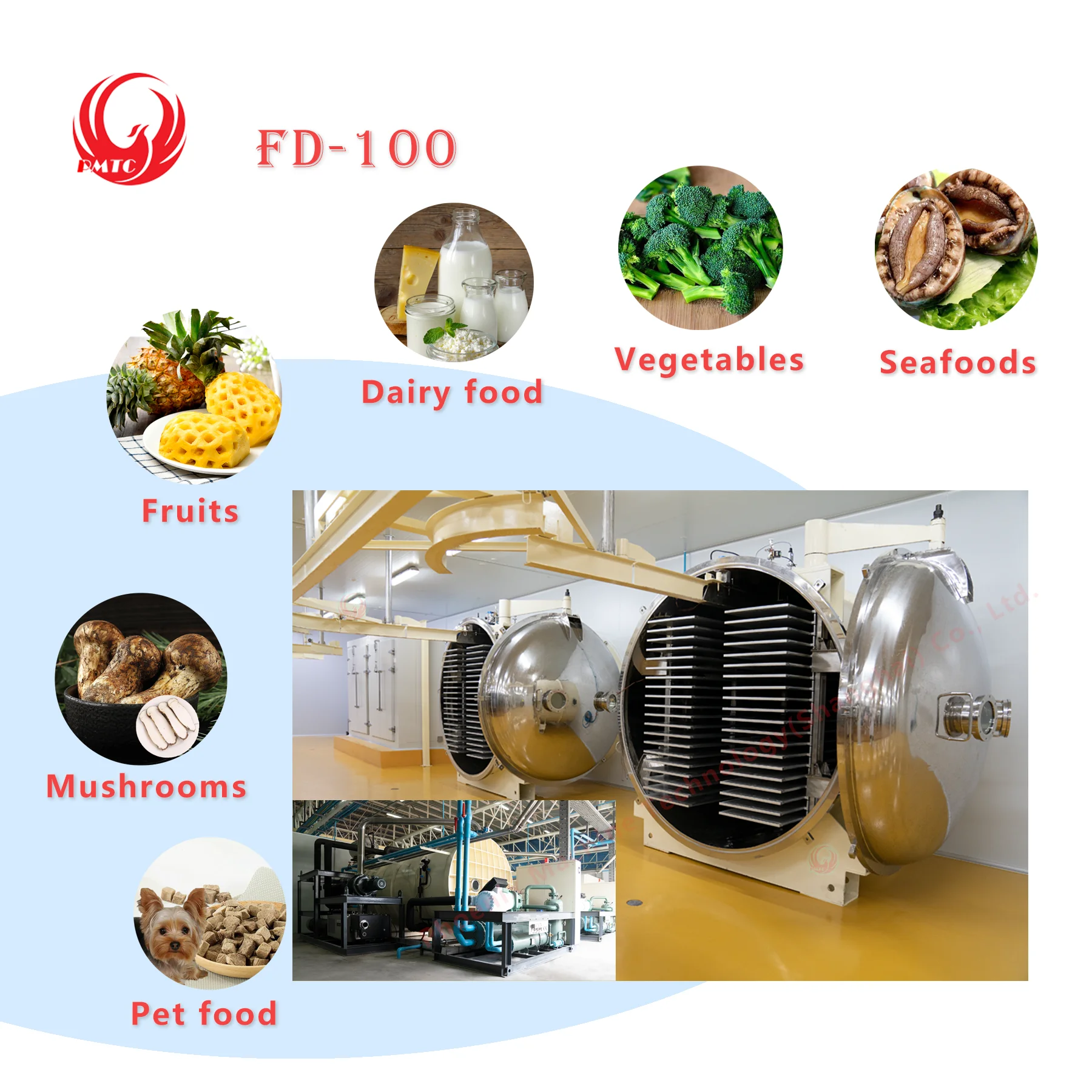

FD-100
12000*2520*2800mm
Installed power：127kw

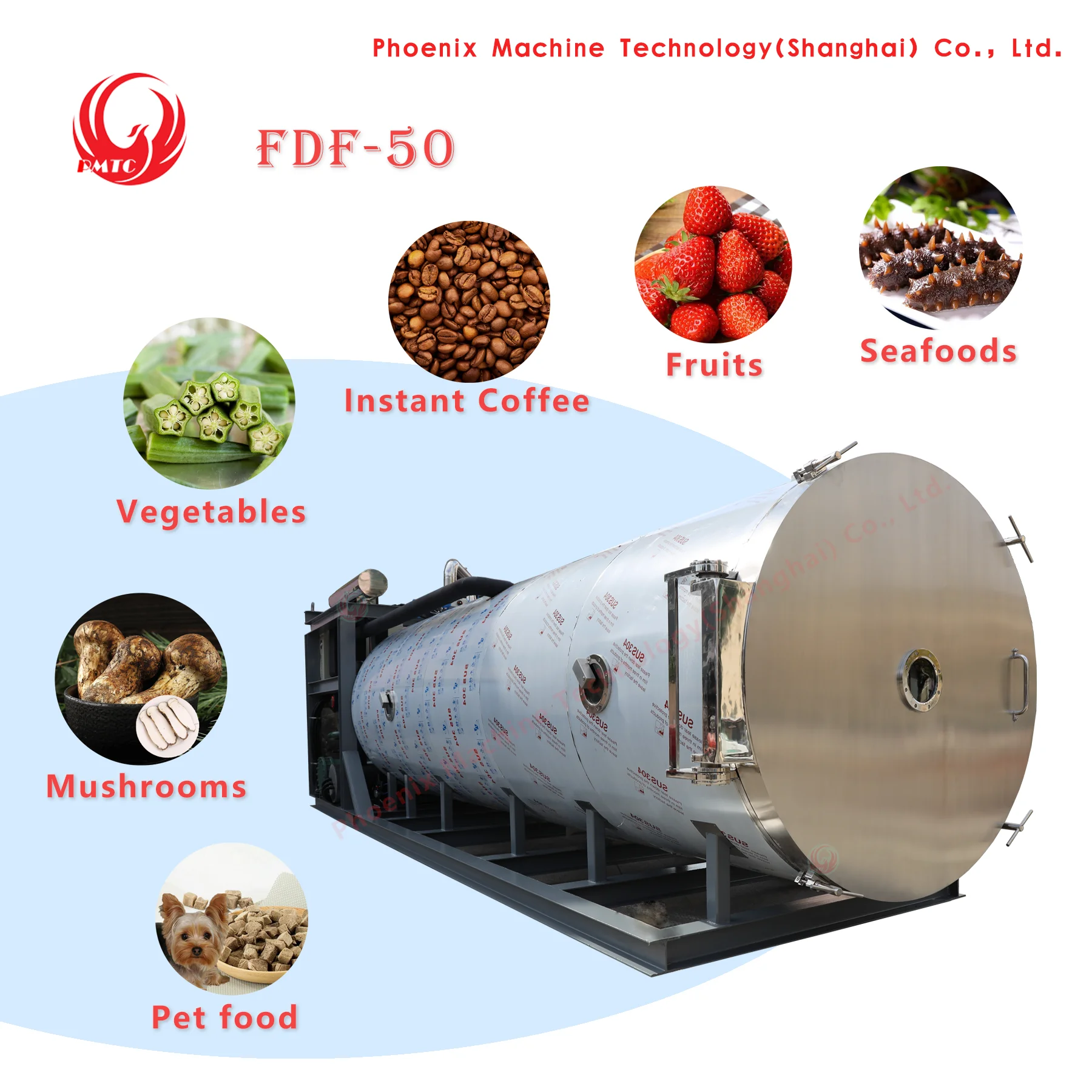

FDF-50
Installed power：158kw

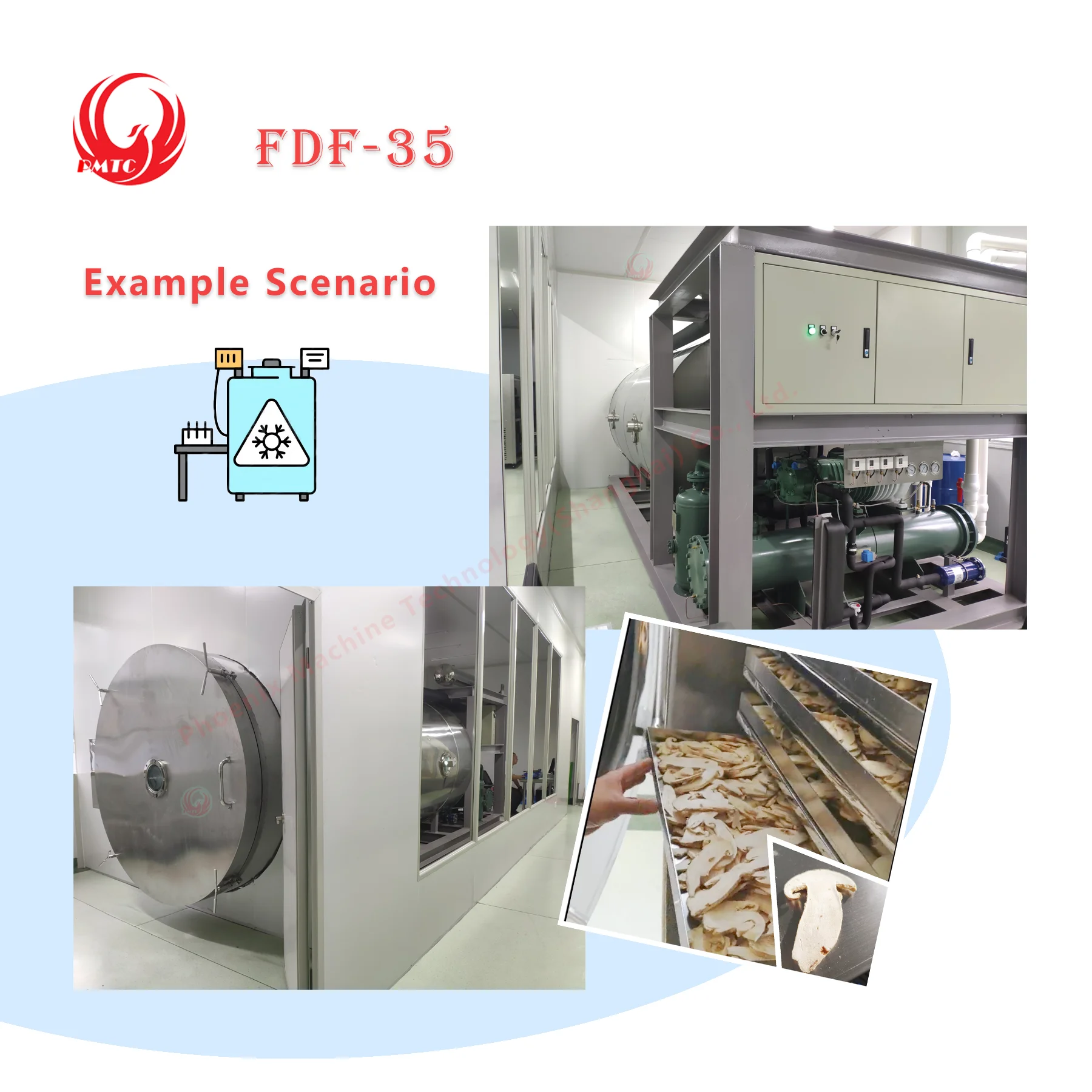

FDF-35
Installed power：101kw
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $65000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thawing equipment?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the thawing equipment be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
