Key specification for this thawing equipment: 380 V, 220 V, material SUS304. Everything below is reproduced from the factory data sheet. Made by Ningbo Sjia Instrument Co., Ltd. (14 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Thawing Equipment
- Voltage: 380 V, 220 V
- Ice-Condenser Capacity (Per Batch): 1800 kg
- Material: SUS304
- Material / Finish: SUS304 chamber; shelves in aluminium alloy
- Warranty: 1 Year
- Place Of Origin: China
Technical Specifications
| Type | Freeze Dryer |
|---|---|
| Voltage | 380 V, 220 V |
| Material | SUS304 |
| Application | Food Processing |
| Core Components | PLC, Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Operating System Language | English |
| Place Of Origin | China |
| Weight (Kg) | 20000 |
| Brand Name | SJ |
| Dimension(L*W*H) | 11000 x 3000 x 3300 mm |
| Drying / Shelf Area | 150 m² |
| Ice-Condenser Capacity (Per Batch) | 1800 kg |
| Number Of Shelves | 18 + 1 radiant |
| Shelf (Tray) Size | 600 x 4800 mm |
| Heating | Circulating thermal oil, radiant |
| Material / Finish | SUS304 chamber; shelves in aluminium alloy |
| Control | Siemens PLC + touchscreen; auto/manual; project I/O review |
| Vacuum Pump | Roots + rotary-vane set |
| Refrigeration | Compressor, R404A / R507 (Bitzer / Frascold) |
| Electrical / Customization | 380-440 V 3-phase; US 220-230 V 60 Hz 3-phase |
| Selling Units | Single item |
| Single Package Size | 1100X300X330 cm |
| Single Gross Weight | 20000.000 kg |
Product Details
PRODUCT HIGHLIGHTS
- FFD-150 industrial food freeze dryer for ready meals and prepared-food components. Verified base configuration: 150 m2 usable shelf area; Approx. 1500 kg/batch fresh-material reference load; 1800 kg/batch ice condenser; 18 + 1 radiant shelf arrangement; 600 x 4800 mm shelf/tray dimension; -45 C to +70 C shelf range; ultimate vacuum <=10 Pa. Reference load is not guaranteed output and must be reviewed against the actual formulation, component dimensions, sauce/oil/salt/sugar content, loading depth, target moisture and site utilities. Model range: FFD-50 = 50 m2 / Approx. 500 kg/batch; FFD-100 = 100 m2 / Approx. 1000 kg/batch; FFD-130 = 130 m2 / Approx. 1300 kg/batch; FFD-150 = 150 m2 / Approx. 1500 kg/batch; FFD-200 = 200 m2 / Approx. 2000 kg/batch; FFD-250 = 250 m2 / Approx. 2500 kg/batch. Electrical supply, chamber, shelves, trays, loading, access, control I/O, utilities and layout can be project-reviewed and engineering-confirmed.
FFD-50 TO FFD-250 MODEL RANGE AND RFQ
FFD-50: 50 m2 shelf area and Approx. 500 kg/batch fresh-material reference load. FFD-100: 100 m2 and Approx. 1000 kg/batch. FFD-130: 130 m2 and Approx. 1300 kg/batch. FFD-150: 150 m2 and Approx. 1500 kg/batch. FFD-200: 200 m2 and Approx. 2000 kg/batch. FFD-250: 250 m2 and Approx. 2500 kg/batch. These figures support model selection and are not guaranteed finished-product output. For an accurate quotation, provide the full recipe or component list, portion dimensions, fresh batch and daily targets, initial and target moisture, pretreatment or cooking method, loading depth, tray format, packaging plan, destination, electrical supply, cooling-water data, drainage, installation route and floor plan.
FAQs
Is Approx. 1500 kg/batch guaranteed finished output?
No. It is a fresh-material reference load for model selection. Actual loading and finished output depend on formulation, component dimensions, loading density, layer depth, target moisture, recipe and site utilities.
Can one cycle be used for all ready meals?
Not necessarily. Recipe composition, portion size, sauce distribution, oil, salt, sugar and the slowest-drying component can change the required loading plan and cycle.
How is the freeze-drying cycle selected?
Cycle development starts from the actual recipe, initial and target moisture, component dimensions, layer depth, loading density, freezing method, shelf loading and condenser demand. A fixed cycle should not be promised before testing.
What electrical supply is available?
General large-machine projects use 380-440 V, 3-phase, with frequency confirmed for the destination. A US project can use 220-230 V, 60 Hz, 3-phase. Final design follows the project and verified site supply.
Can the machine be customised?
Chamber, shelves, trays, loading method, access direction, control I/O, data interface and utility connections can be reviewed against the buyer's URS and site layout. Final feasibility is engineering-confirmed.
What about installation, warranty and support?
Factory testing, documentation, warranty, remote guidance, spare-parts support and commissioning responsibilities are defined by the final quotation, technical agreement and order. Items not confirmed there are not represented as standard.
Model | Total drying area | Ref. liquid load | Ice condenser | Foods |
FFD-150 | 150 m2 | ~1500 kg/batch | 1800 kg/batch | Seafood, meals, fruit, coffee |
Reference | 1 m2 | ~10 kg liquid | Sizing guide only | Confirm by inquiry |
Actual load | Depends on solids | Layer thickness | Moisture and recipe | Utilities and layout |

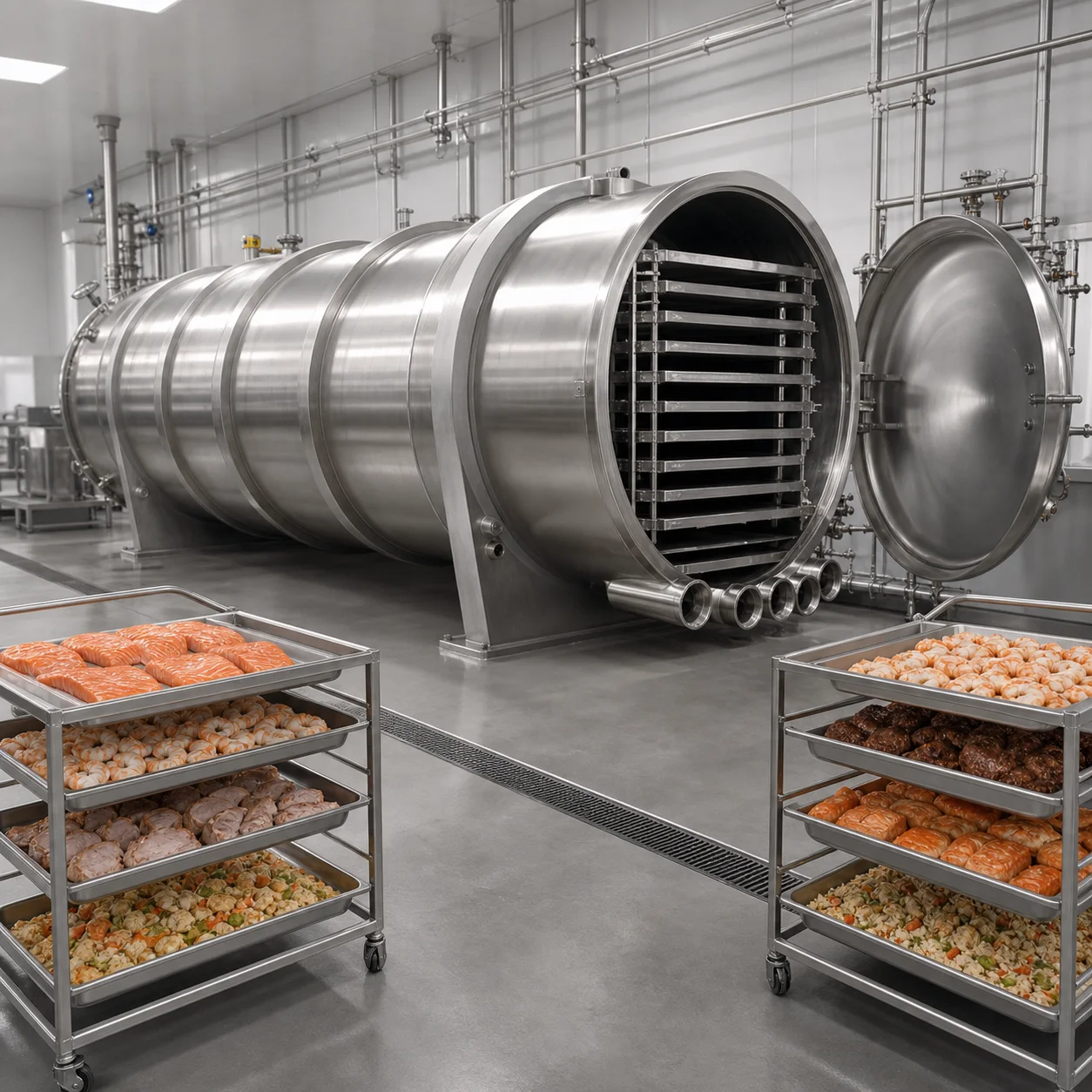

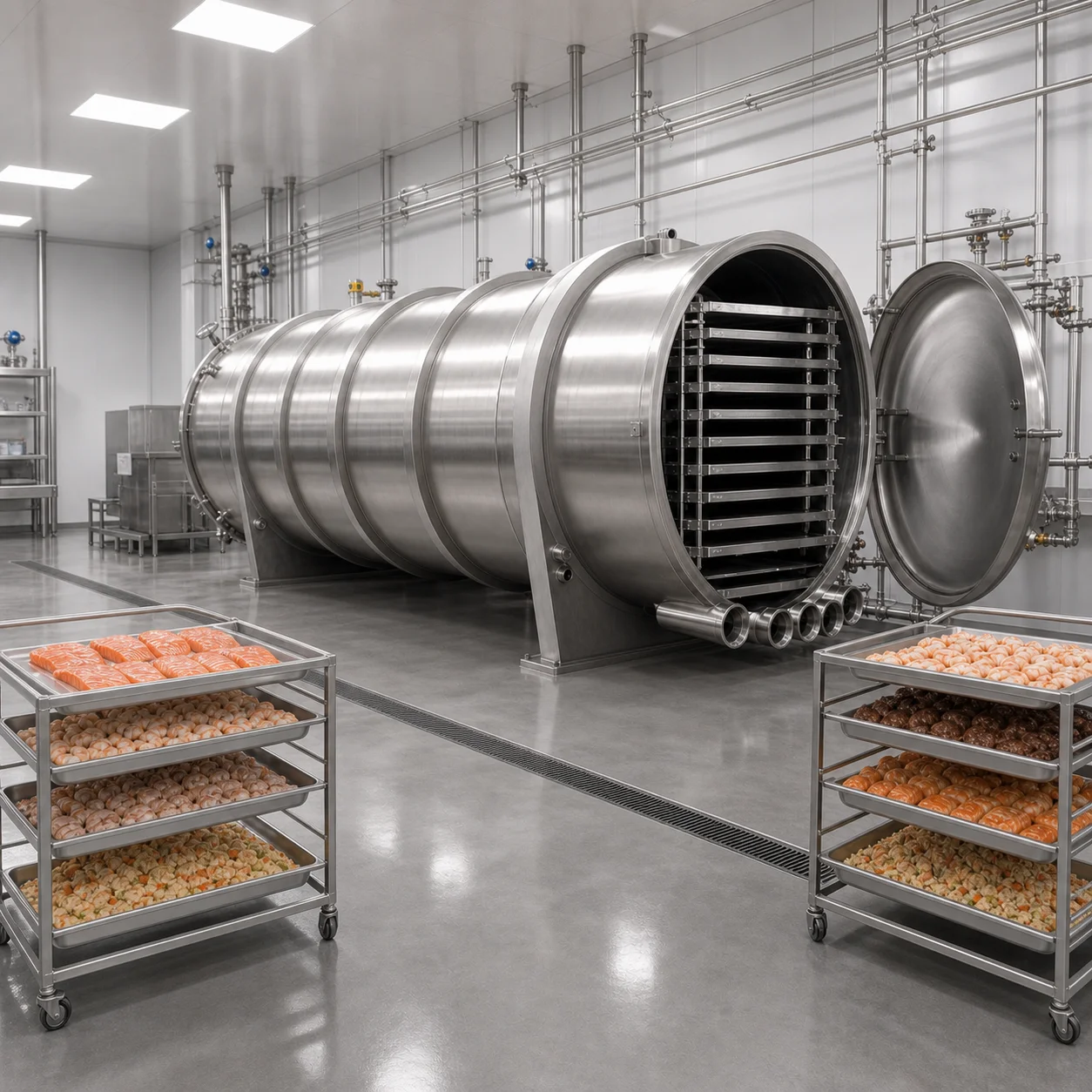

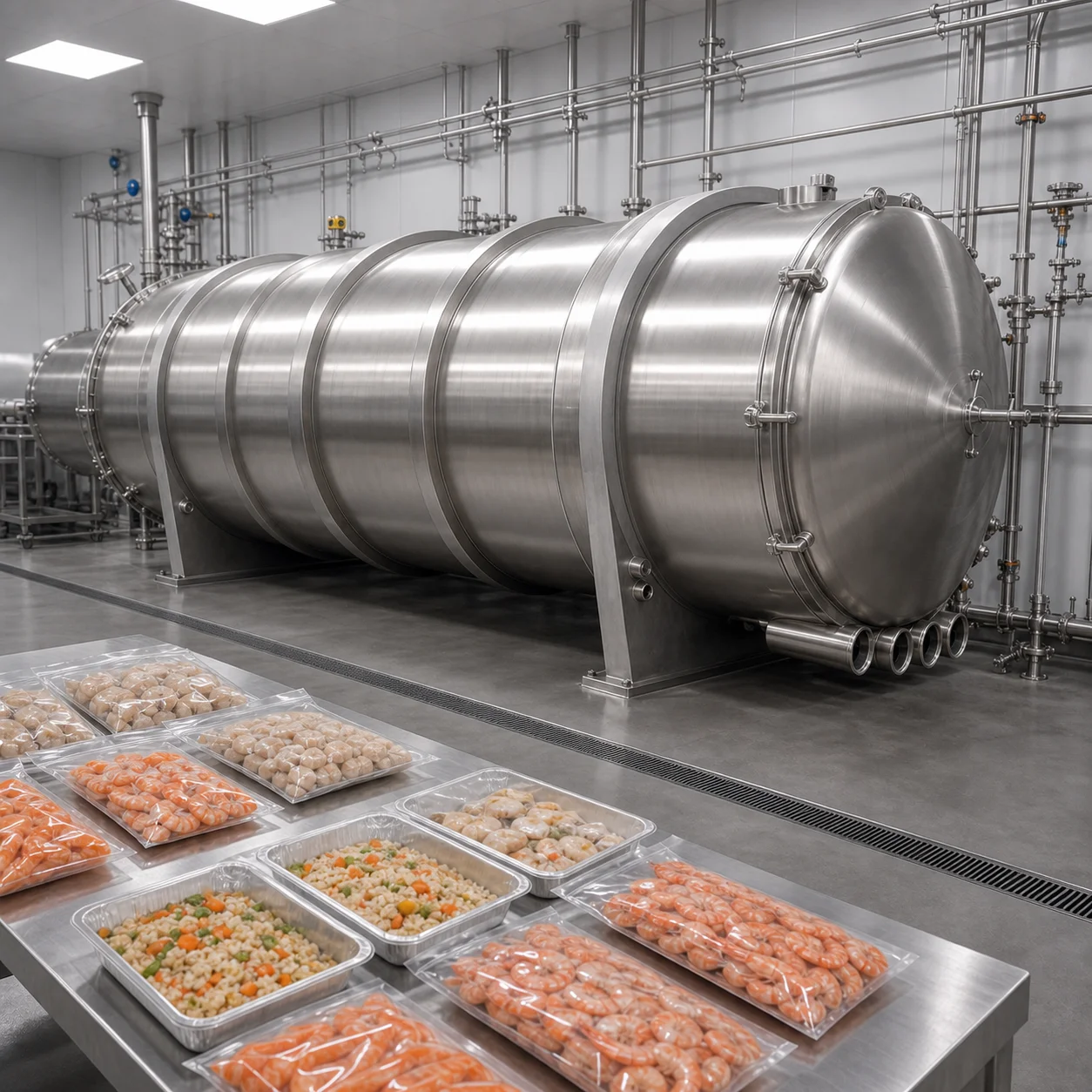

FFD-150 READY MEALS AND PREPARED-FOOD PROCESSING

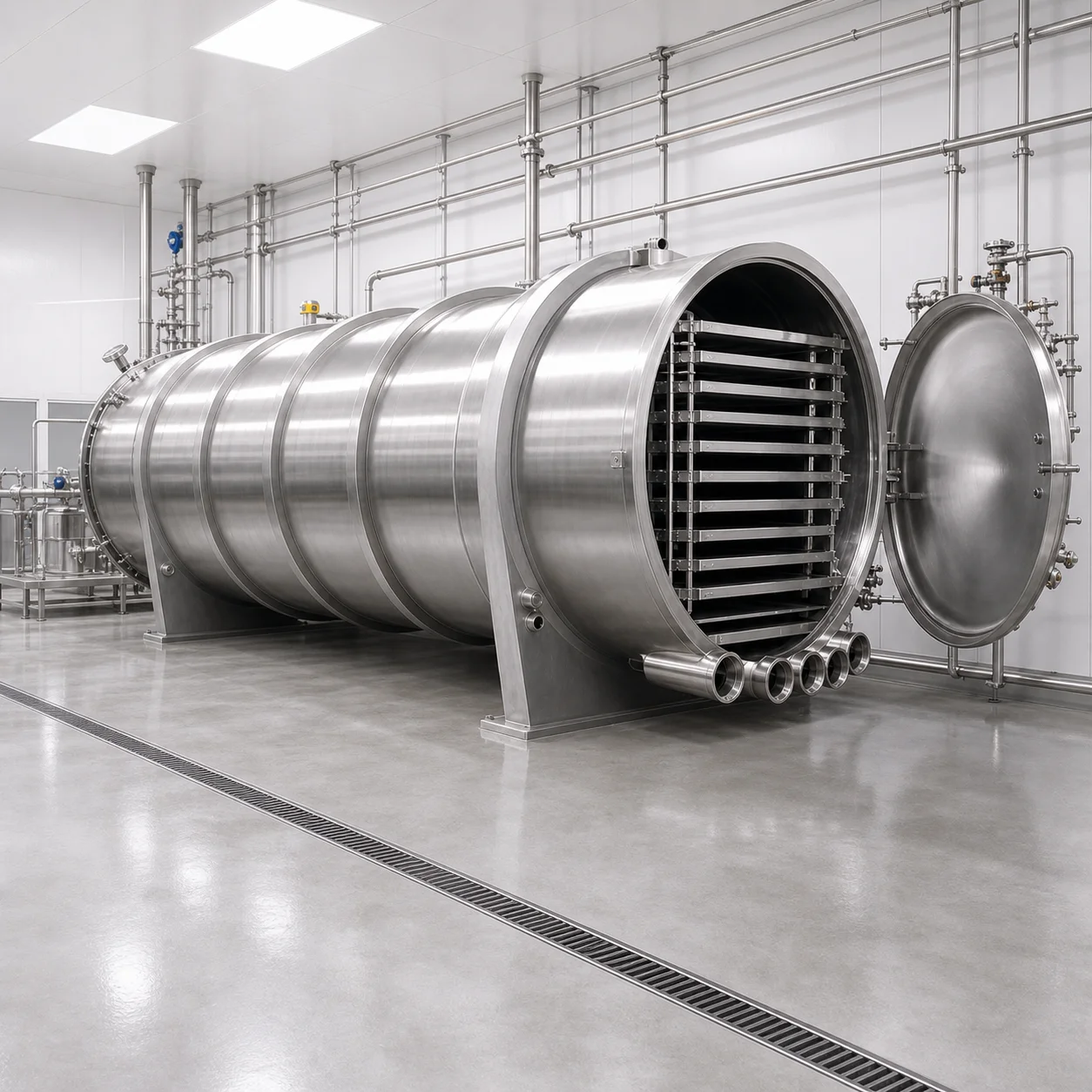

The SJIALAB FFD-150 is an industrial food vacuum freeze dryer for ready meals, prepared-food components and recipe-based food batches. Its 150 m2 usable shelf area and Approx. 1500 kg/batch fresh-material reference load provide a basis for project planning. Freeze drying removes frozen water by sublimation under vacuum. Mixed recipes may contain components with different thickness, moisture, fat, sugar and salt levels, so loading and cycle design must be based on the actual formulation rather than a generic recipe or guaranteed output claim.
VERIFIED FFD-150 TECHNICAL DATA
Model: FFD-150. Usable shelf area: 150 m2. Reference fresh-material load: Approx. 1500 kg/batch. Ice-condenser capacity: 1800 kg/batch. Shelf arrangement: 18 + 1 radiant. Shelf or tray dimension: 600 x 4800 mm. Shelf temperature range: -45 C to +70 C. Ultimate vacuum: <=10 Pa. Approx. machine dimensions: 11000 x 3000 x 3300 mm. These values belong to this verified base configuration and must not be copied to another FFD model. Actual loading and finished yield depend on the material and validated process.
APPLICATION FIT AND PROCESS PLANNING
FFD-150 is intended for project evaluation of ready meals, cooked ingredients and prepared-food components. Uniform portion size, sauce distribution, oil level, layer thickness, recipe consistency and loading density are important to process development. Multi-component meals may require product-specific preparation and trials so the slowest-drying component is properly evaluated. Prepared material is loaded in controlled layers, frozen according to the selected process and dried under vacuum with controlled shelf heating while released vapor is collected by the ice condenser. No fixed cycle or output should be promised before representative-material testing.
ELECTRICAL, SITE AND CUSTOM CONFIGURATION
General industrial projects use 380-440 V, 3-phase, with frequency confirmed for the destination. A US project can use 220-230 V, 60 Hz, 3-phase. Chamber and shelf arrangement, tray and loading method, access direction, control interface and I/O, data requirements, utility connections and documentation can be reviewed against the buyer's URS and site conditions. Installation access, floor loading, cooling-water conditions, drainage, ventilation and ambient conditions must be confirmed. Final feasibility is engineering-confirmed, and configuration changes can affect footprint, utilities, price and lead time.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $299012 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thawing equipment?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the thawing equipment be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

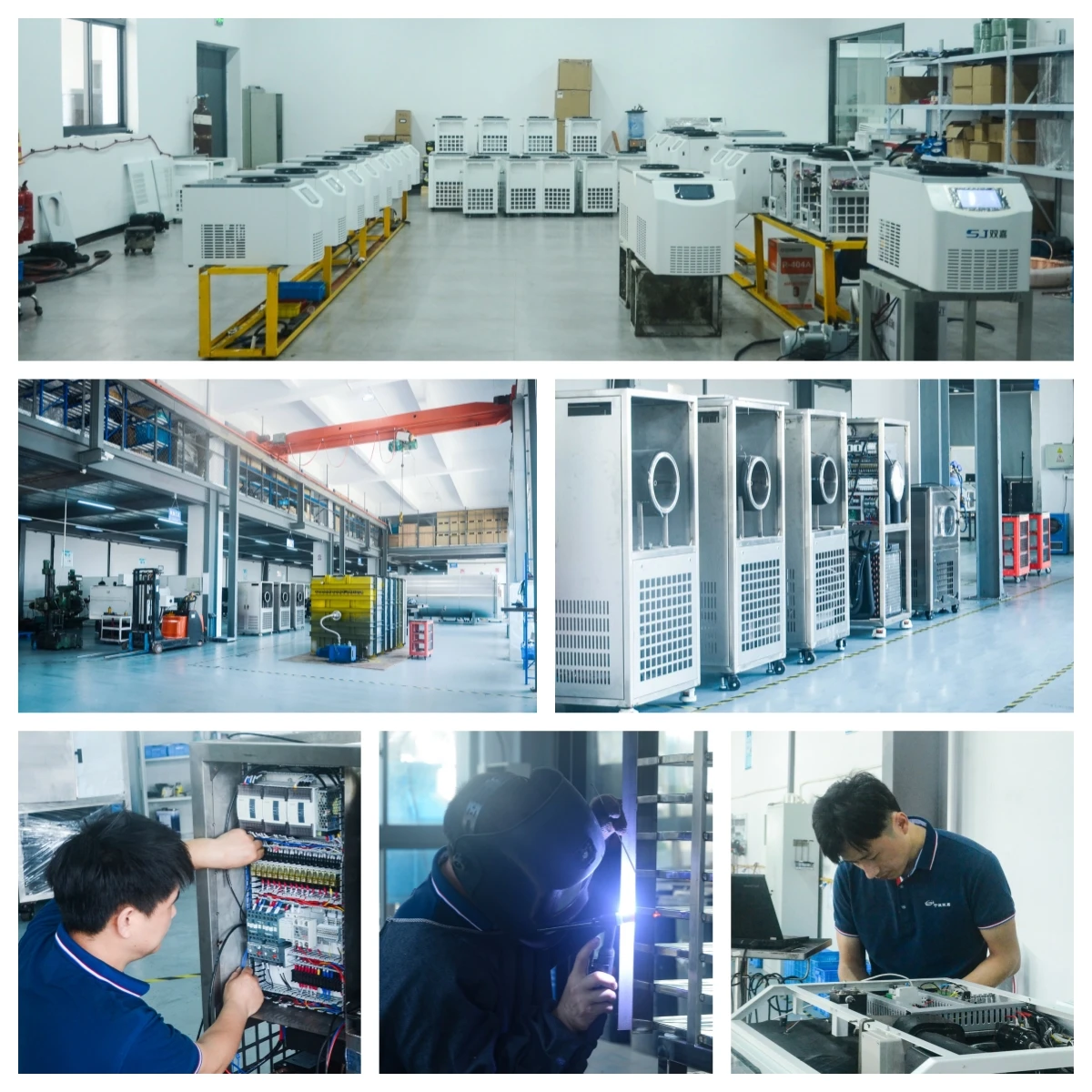

About the Manufacturer
