Thawing equipment — 380V, 10kw. The complete factory specification follows. Made by ROTECH INTERNATIONAL TRADING CO., LTD. (8 years on the platform, typical reply ≤11h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Thawing Equipment
- Power(W): 10kw
- Voltage: 380V
- Material: SUS304, SUS304L, SUS316, SUS316L, 304/316 Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
- Application: Chemicals Processing, Food Processing
Technical Specifications
| Type | Freeze Drying Equipment |
|---|---|
| Voltage | 380V |
| Heating Method | Electric Heating |
| Material | SUS304, SUS304L, SUS316, SUS316L, 304/316 Stainless Steel |
| Power(W) | 10kw |
| Application | Chemicals Processing, Food Processing |
| Core Components | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine, Pressure Vessel |
| Key Selling Points | Competitive Price |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Operating System Language | English |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 1000 |
| Brand Name | Rotech |
| Dimension(L*W*H) | 1500*900*1900mm |
| Compress Air(M³/Min) | 0.1(6-8bar) |
| Shelf Spacing(Mm) | 100 |
| Shelf Temperature(℃) | -55℃+80℃ |
| Condenser Max Temperature(℃) | -75℃ |
| Max. Vacuum(Pa ) | 1 |
| Selling Units | Single item |
Product Details
Product description
1.Our freeze drying machine is used in the field of optimized freezing and drying process.
2.The frozen and dried products have the high value, hence, the design of the freezing drying is in terms of safety to the greatest extent.
The humanity design applied in the freeze drying machine ensures the safety of the user and environment .
3.The mature design technology is put into the freeze drying machine which is produced with the high quality material and component accepted in the world widely.
At the same time, the advanced high-tech process is utilized in the freeze drying machine.
4.Our freeze drying machine design and manufacture Under in Standard.
Working principle
The vacuum freezing and drying machine is a drying method which can sublime the moisture in hydrous materials from solid state to gas state, under low temperature freezing and vacuum condition, after the materials are subjected to the pre-treatment, so as to remove the moisture and preserve the materials.

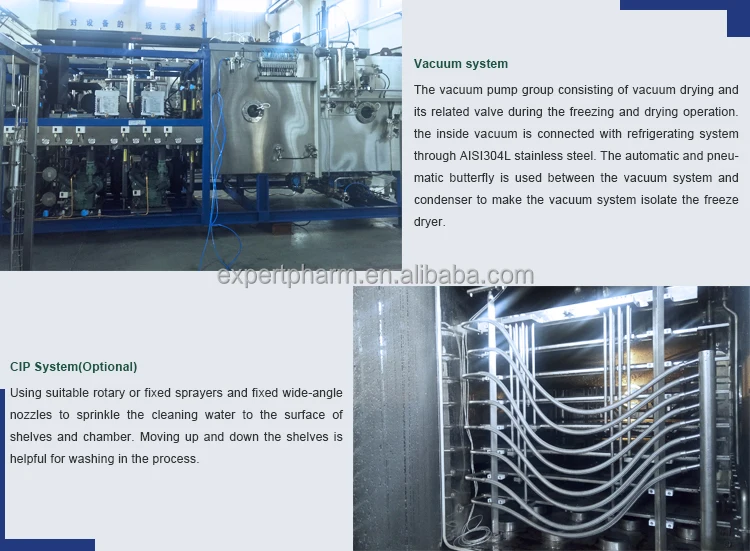

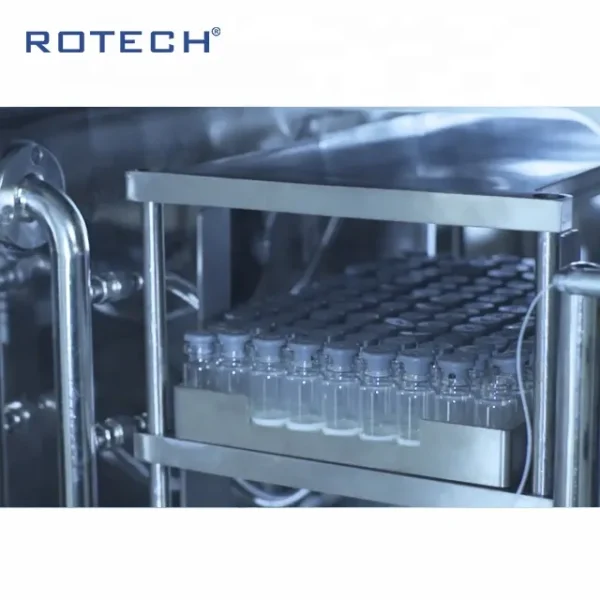

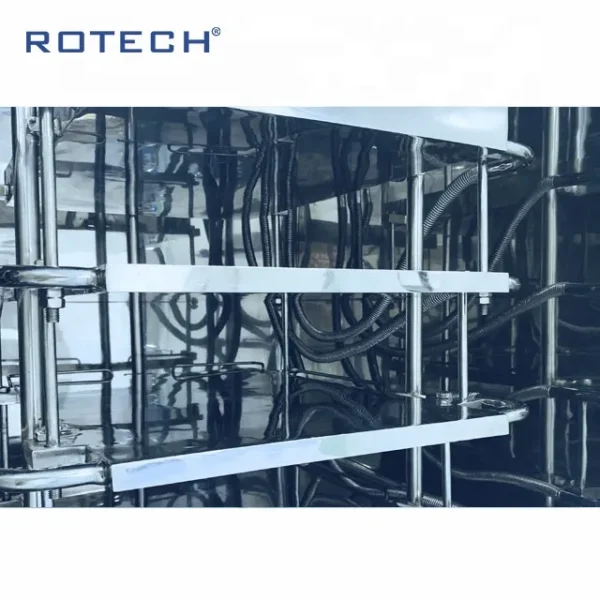

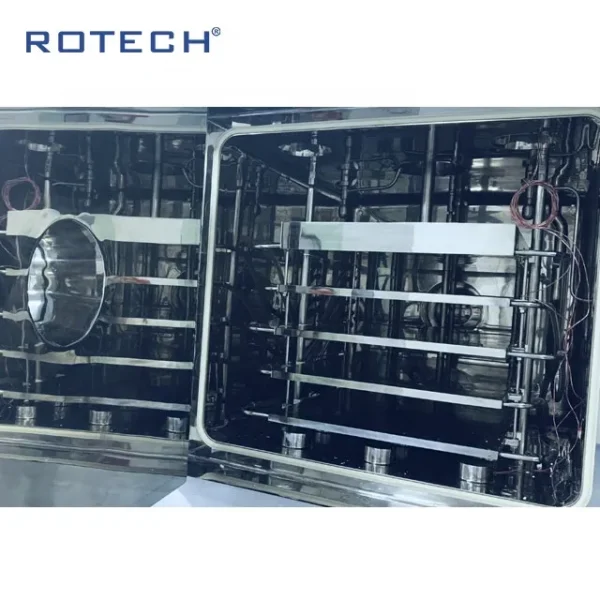

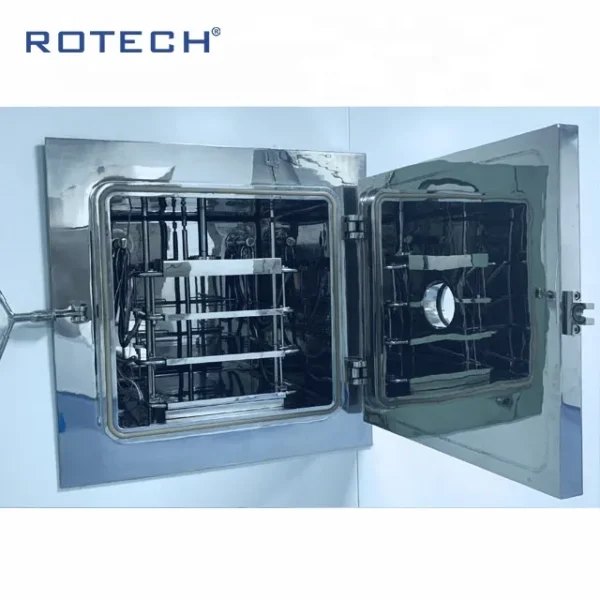

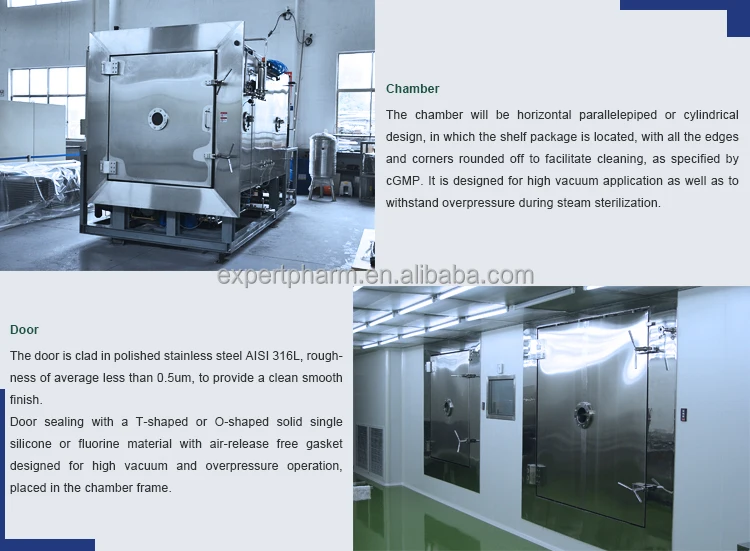

Detailed pictures
Technical parameters
| LYO- | Unit | 0.4 | 1 | 2 | 3 | 5 | 8 |
| Usable shelf area | Square meters | 0.4 | 1.08 | 2.16 | 3.24 | 5.67 | 8.64 |
| Ice capacity | Kg | 10 | 22 | 45 | 65 | 100 | 160 |
| Shelf Dimensions (L×W) | mm | 450× 300 | 600× 450 | 600× 600 | 900× 600 | 900× 900 | 1200× 900 |
| Number of shelves | Pcs | 3 | 4 | 6 | 6 | 7 | 8 |
| Shelf spacing | mm | 100 | |||||
| Shelf Temperature | ℃ | -55℃+80℃ | |||||
| Condenser Max Temperature | ℃ | -75℃ | |||||
| Max. vacuum | Pa | 1 | |||||
| Steam consumption | Kg/h | 30 | 30 | 40 | 50 | 80 | 100 |
| Washing water consumption | L/min | 50 | 60 | 80 | 160 | 210 | 300 |
| Power | Kw | 10 | 15 | 18 | 30 | 36 | 55 |
| Cooling water consumption | T/h | 2 | 3 | 4 | 6 | 8 | 15 |
| Compress air | M³/min | 0.1(6-8bar) | |||||
| Dimensions(L×W×H) | mm | 1500× 900×1900 | 2500× 1000×2300 | 3800× 1500×2900 | 4500× 1800×3000 | 4900× 1800×3300 | 5500× 2000×3310 |
| Weight | T | 1 | 2.2 | 3.8 | 5 | 7 | 9 |
| Electric heating | Kw | 3 | 4.5 | 4.5 | 7.5 | 12 | 15 |
| Main valve diameter | Mm | 150 | 200 | 250 | 300 | 300 | 400 |
| Vial capacity OD=16mm | Unit | 2200 | 4800 | 8900 | 15000 | 22000 | 36000 |
| Vial capacity OD=22mm | 1260 | 2450 | 4500 | 7500 | 11000 | 18000 | |
| Vial capacity OD=28mm | Unit | 820 | 1800 | 2800 | 4300 | 6100 | 12200 |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–1 unit: US $46000 / unit
- 2+ unit: US $45000 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this thawing equipment?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the thawing equipment be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

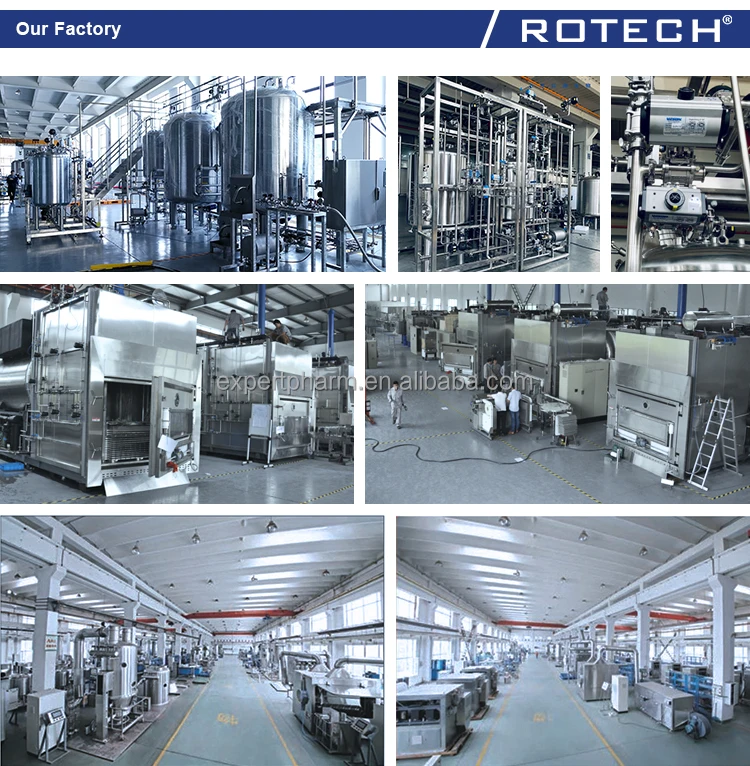

About the Manufacturer
This product is produced by ROTECH INTERNATIONAL TRADING CO., LTD., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company. Browse the full ROTECH INTERNATIONAL TRADING CO., LTD. range on HVACR Nexus.
