Key specification for this titanium heat exchanger: heating capacity 3.8-26KW, model number CSTY-TTP. Everything below is reproduced from the factory data sheet. Made by Baoji City Changsheng Titanium Co., Ltd. (18 years on the platform, typical reply ≤10h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Titanium Heat Exchanger
- Model Number: CSTY-TTP
- Heating Capacity: 3.8-26KW
- Inner Tuber Material: Pure titanium twisted tube
- Outer Tuber Material: Stainless Steel 304/316L/Titanium
- Certification: iso9001
- Place Of Origin: Shaanxi, China
Technical Specifications
| Powder Or Not | Not Powder |
|---|---|
| Processing Service | Bending, Welding, Cutting |
| Application | Swimming pool |
| Ti Content (%) | 99% |
| Place Of Origin | Shaanxi, China |
| Model Number | CSTY-TTP |
| Brand Name | CSTY |
| Grade | Titanium /SS 316L |
| Usage | swimming pool ,swimming pool, fish pond constant temperature |
| Inner Tuber Material | Pure titanium twisted tube |
| Outer Tuber Material | Stainless Steel 304/316L/Titanium |
| Water Import/Export | 50mm |
| Heating Capacity | 3.8-26KW |
| Water Flow | 1.8-12M3/H |
| Shell | pvc |
| OEM | Possible |
| Certification | iso9001 |
| Packaging Details | as your asked |
| Port Of Dispatch | shang hai ,guangzhou |
| Selling Units | Single item |
| Single Package Size | 10X3X3 cm |
| Single Gross Weight | 2.0 kg |
| Supply Ability | 1000 pieces per Week |
Product Details

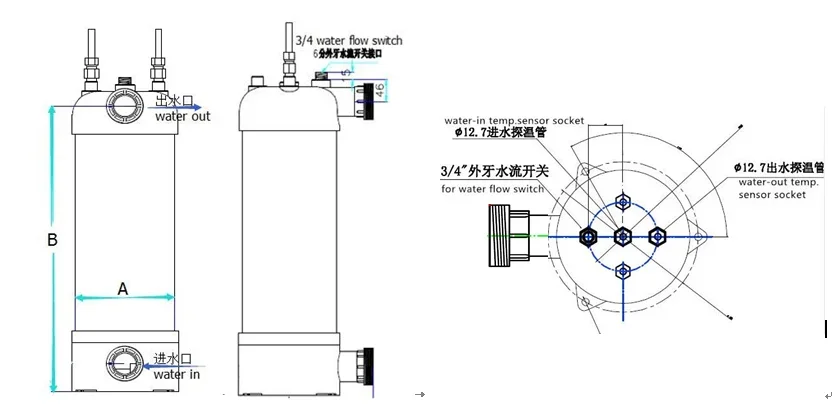

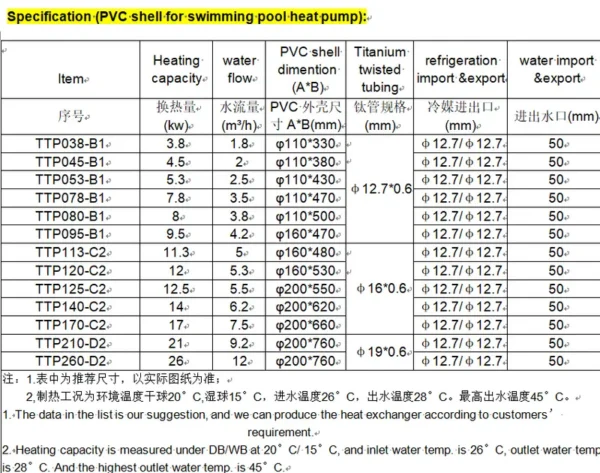

Item | Heating capacity | water flow | PVC shell dimention (A*B) | Titanium twisted tubing | refrigeration import &export | water import &export | ||||||
序号 | 换热量 (kw) | 水流量 (m³/h) | PVC 外壳尺寸A*B(mm) | 钛管规格 (mm) | 冷媒进出口 (mm) | 进出水口(mm) | ||||||
TTP038-B1 | 3.8 | 1.8 | φ110*330 | φ12.7*0.6 | φ12.7/φ12.7 | 50 | ||||||
TTP045-B1 | 4.5 | 2 | φ110*380 | φ12.7/φ12.7 | 50 | |||||||
TTP053-B1 | 5.3 | 2.5 | φ110*430 | φ12.7/φ12.7 | 50 | |||||||
TTP078-B1 | 7.8 | 3.5 | φ110*470 | φ12.7/φ12.7 | 50 | |||||||
TTP080-B1 | 8 | 3.8 | φ110*500 | φ12.7/φ12.7 | 50 | |||||||
TTP095-B1 | 9.5 | 4.2 | φ160*470 | φ12.7/φ12.7 | 50 | |||||||
TTP113-C2 | 11.3 | 5 | φ160*480 | φ16*0.6 | φ12.7/φ12.7 | 50 | ||||||
TTP120-C2 | 12 | 5.3 | φ160*530 | φ12.7/φ12.7 | 50 | |||||||
TTP125-C2 | 12.5 | 5.5 | φ200*550 | φ12.7/φ12.7 | 50 | |||||||
TTP140-C2 | 14 | 6.2 | φ200*620 | φ12.7/φ12.7 | 50 | |||||||
TTP170-C2 | 17 | 7.5 | φ200*660 | φ12.7/φ12.7 | 50 | |||||||
TTP210-D2 | 21 | 9.2 | φ200*760 | φ19*0.6 | φ12.7/φ12.7 | 50 | ||||||
TTP260-D2 | 26 | 12 | φ200*760 | φ12.7/φ12.7 | 50 | |||||||
注：1.表中为推荐尺寸，以实际图纸为准； 2,制热工况为环境温度干球20°C,湿球15°C，进水温度26°C，出水温度28°C。最高出水温度45°C。 1. The data in the list is our suggestion, and we can produce the heat exchanger according to customers’ requirement. 2. Heating capacity is measured under DB/WB at 20°C/ 15°C, and inlet water temp. is 26°C, outlet water temp. is 28°C. And the highest outlet water temp. is 45°C. | ||||||||||||
Main products include heat pimp titanium heat exchangers for swimming pool ,high efficiency seamed titanium whorl tube and seamless whorl tube, titanium coaxial tube in tube heat exchanger ,titanium heat exchanger for seafood fish pool, pure titanium tube evaporators,316L Stainless steel heating and cooling heat exchanger, electroplating chemical titanium heat exchanger, titanium plates, titanium bars, titanium wires and titanium standard parts ,titanium clamps and so on
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $120 / piece
- 10+ piece: US $116 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this titanium heat exchanger?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this titanium heat exchanger carry?
It is supplied with iso9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Baoji City Changsheng Titanium Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Baoji City Changsheng Titanium Co., Ltd. range on HVACR Nexus.
