The tubular heater listed here carries 110 V, 220 V, Other, 10W to 10KW, documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Tubular Heater
- Power Source: Electric
- Voltage: 110 V, 220 V, Other
- Heating Capacity: 10W to 10KW
- Material: Stainless Steel
- Sheath Material: stainless steel 304, 316, 321 and Incoloy 800 840
- Warranty: 1 Year
Technical Specifications
| Type | Immersion Heater |
|---|---|
| Power Source | Electric |
| Voltage | 110 V, 220 V, Other |
| Material | Stainless Steel |
| Core Components | resistance wire, sheath material, Insulated material |
| Key Selling Points | High-Accuracy, Eco-Friendly, Long Service Life, Easy To Operate |
| Temperature Range | High-Temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | 10W to 10KW |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 0.5 |
| Brand Name | Hongtai |
| Dimension(L*W*H) | customized |
| Working Temperature Range | 1 – 800 ℃(1.80-1440℉) |
| Product Name | Customized Tubular Heater |
| Sheath Material | stainless steel 304, 316, 321 and Incoloy 800 840 |
| Resistant Wire | Nichrome 8020 |
| Wattage Tolerance | +5%, -10% |
| Resistance Tolerance | +10%, -5% |
| Leading Wire | fiberglass, swaged fiberglass, silicone rubber, etc. |
| Insulation Strength | UDC 500V≥200MΩ |
| Dielectric Withstand Strength | UAC ≥2000V |
| Packaging | Plastic bag , Carton box,wooden box, other Customized |
| Lead Time | 5-7 days |
| Selling Units | Single item |
| Single Package Size | 20X20X10 cm |
| Single Gross Weight | 2.0 kg |
Product Details

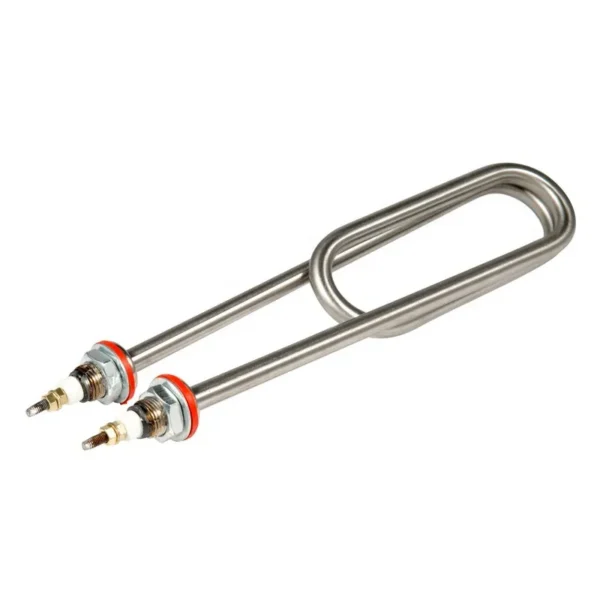

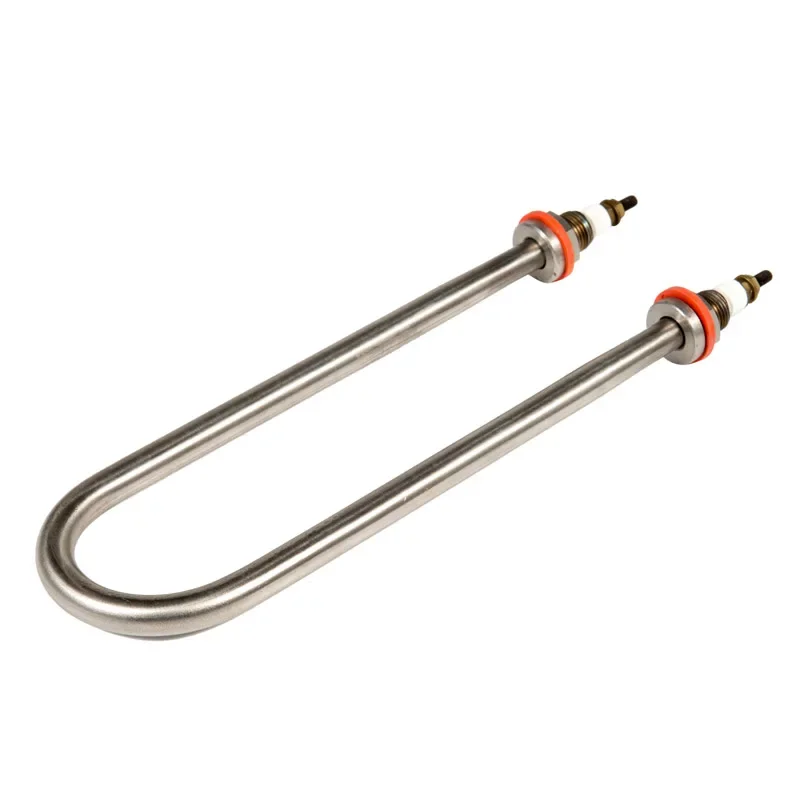

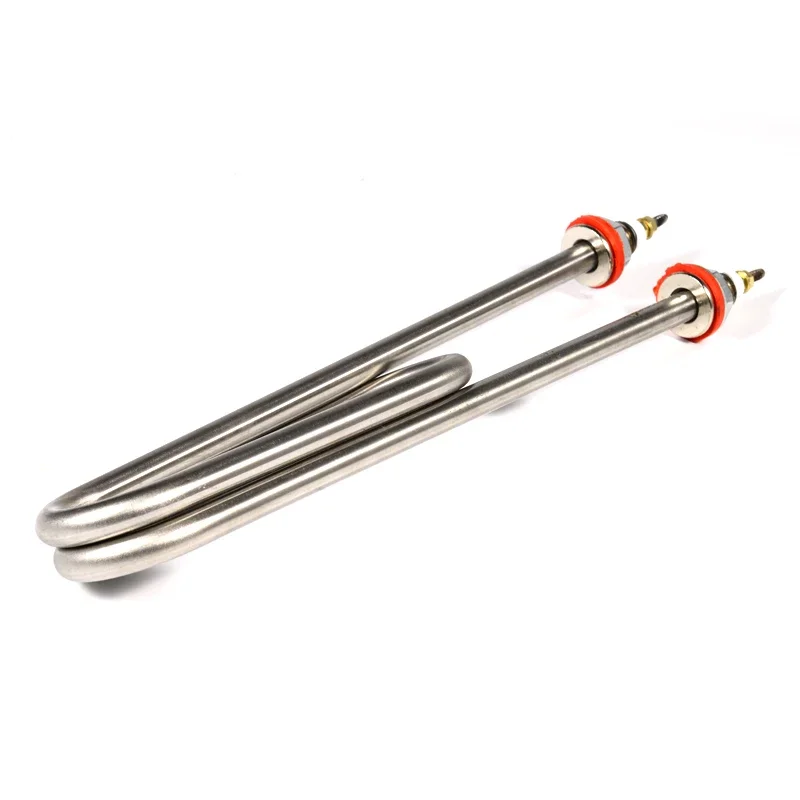

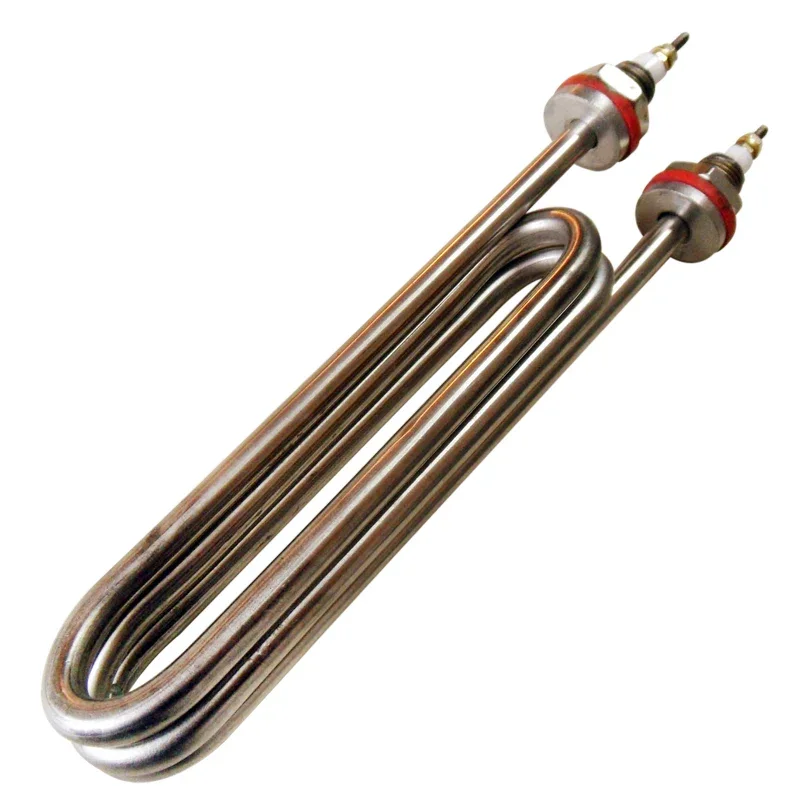

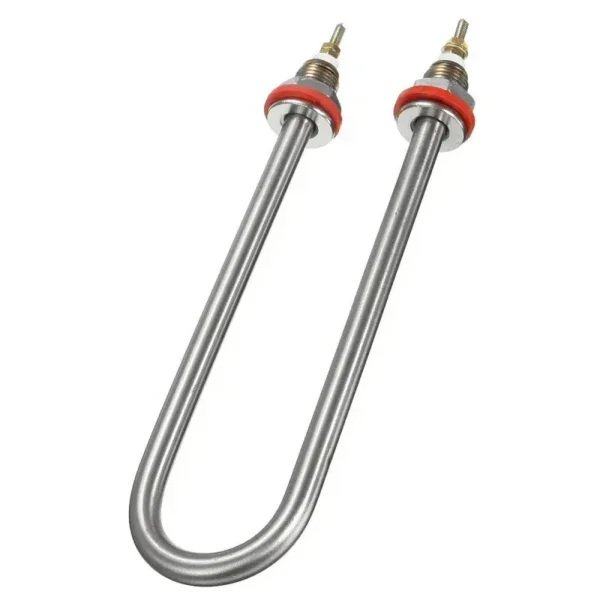

500w 600w 1500w 2000w electric u shaped tubular heater heating element for oven are the most versatile and widely used source of electric heat for industrial, commercial and scientific applications. They can be designed in a wide range of electrical ratings, diameters, lengths, terminations, and sheath materials.

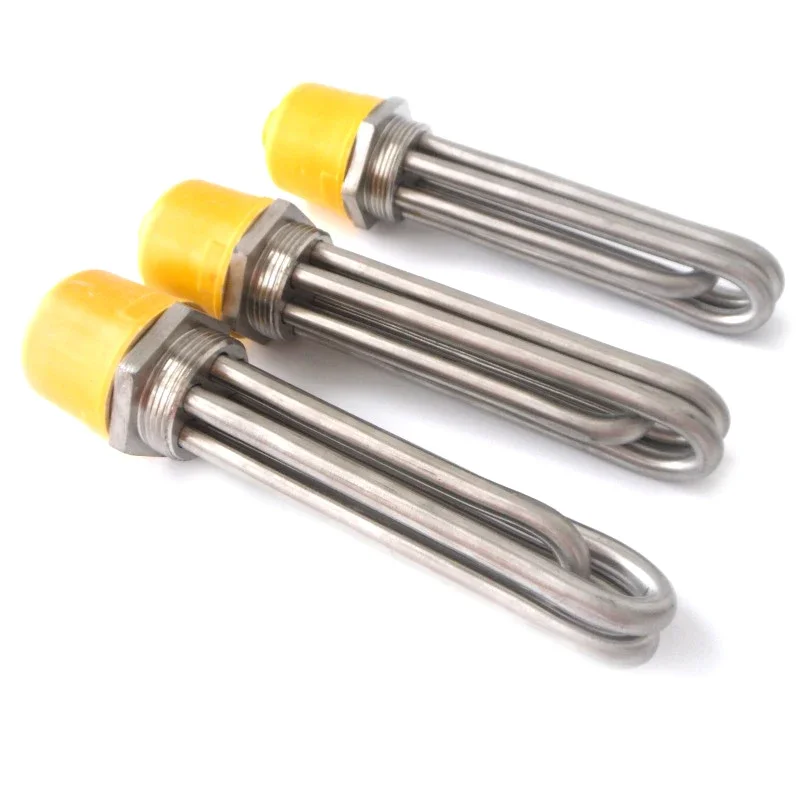

Also screw plug immersion heaters, flanged immersion heaters, circulation heaters, and high temperature process air heaters are available.
Hongtai engineering is available to assist with the design and development of special heaters for particular requirements.
Product Name | 500w 600w 1500w 2000w electric u shaped tubular heater heating element for oven |
Heating wire | Precision helical wound nickel-chrome resistance wire |
Certification | ISO9001, CE |
Insulation Material | High purity magnesium oxide powder compacted |
Voltage | 120V, 240V, 480V, 600V and so on |
Power | 50-2000W, or customized |
Tube Diameter | 6MM 8MM 10MM 12MM 14MM 16MM 18MM 20MM |
Thread size | M12 M14 M16 M18 M20 M22 |
Tube Material | Copper ,Steel,Incoloy,Titanium |
How to order ?
Pls provide this informations:
1.Vottage :380V,240V, 220V,200V,110V and other can be customized.
2.Wattage :80W,100W,200W,250W and other can be customized.
3.Size: length*Diameter.
4. Quantity

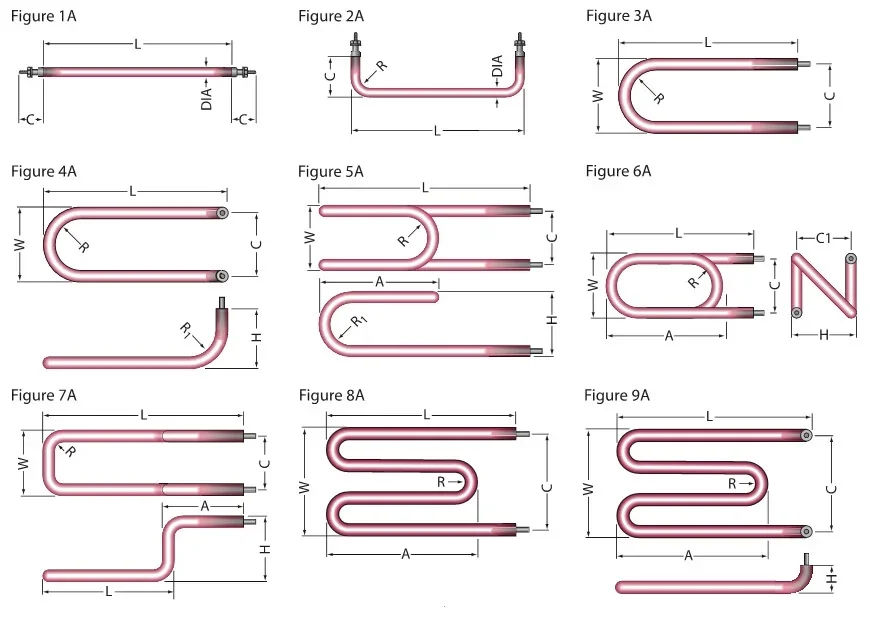

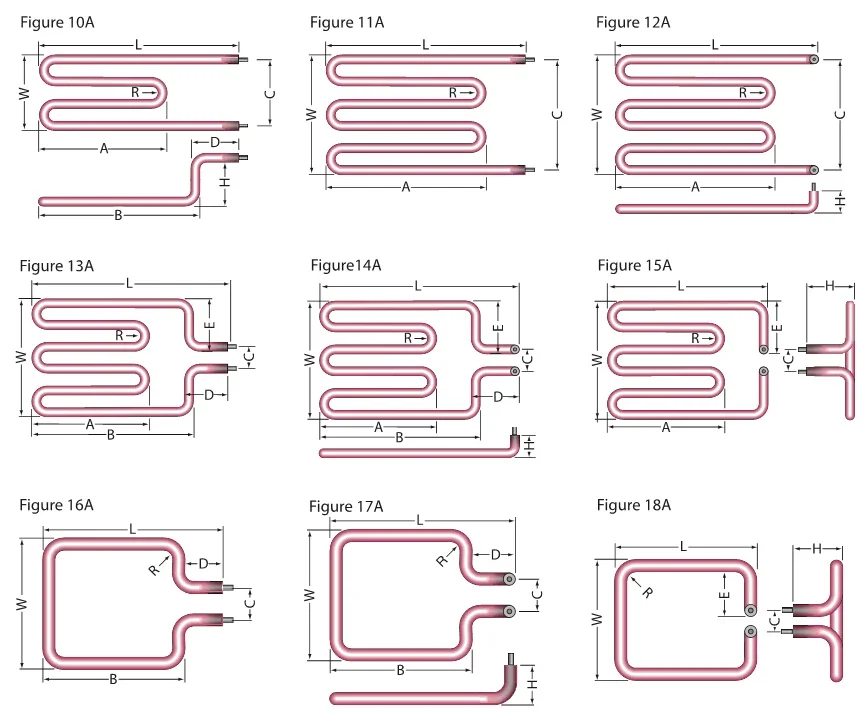

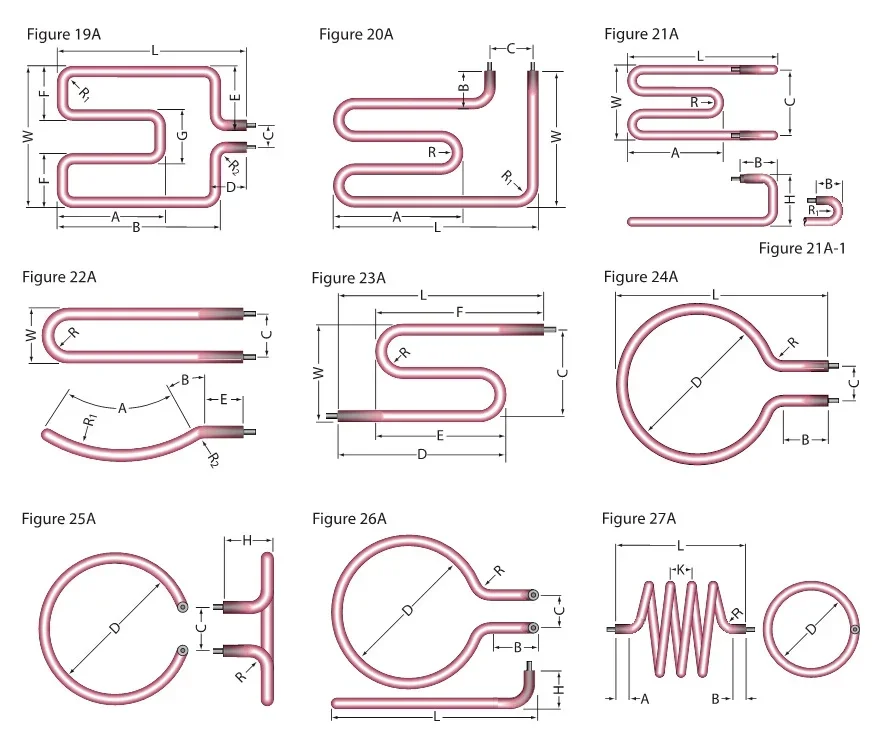

5. Pls check the below heater shape simple drawing, and choose the right one you want.

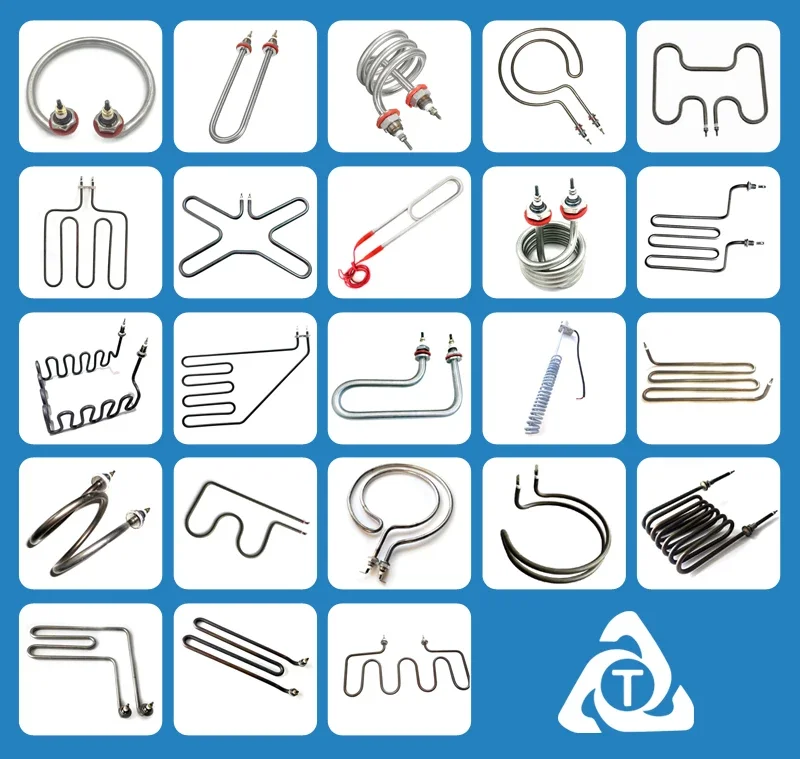

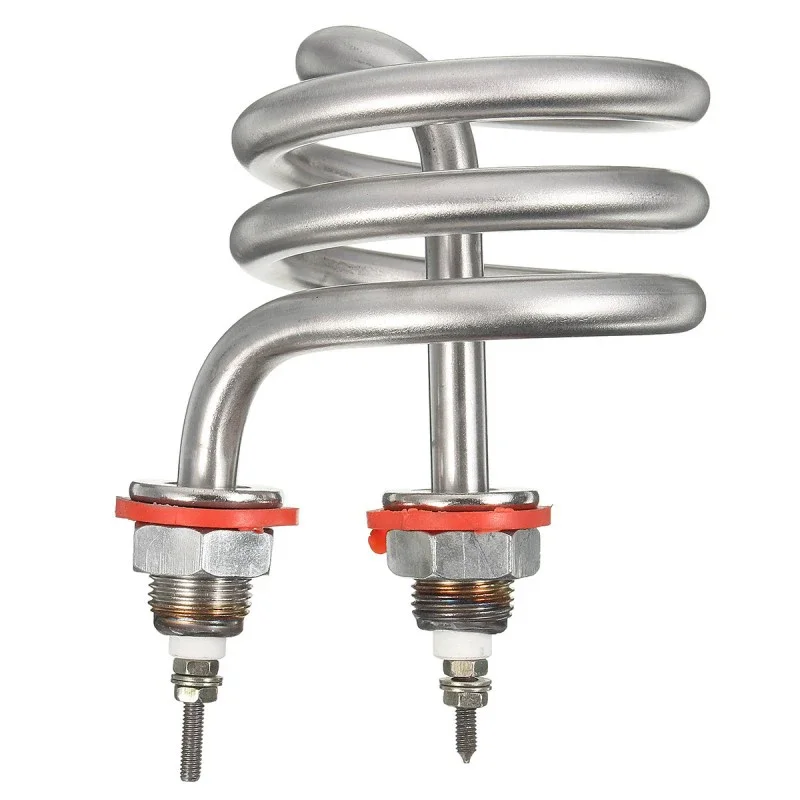

Various Tubular Heater shape , you can tell us directly the figure No.
How to Choose The right Material for the tubular heaters? Please check this table. | ||
Material | Maximum Sheath Temperature | |
Copper | 350℉(170℃) Application: Water, Oil, Grease | |
Steel | 750℉(400℃) Application: Alkaline cleaning solutions, Tars, Asphalt or air heating | |
Stainless Steel | 1200℉(600℃) Application: Corrosive liquids, food processing equipment, Radiant heating | |
Incoloy | 1500℉(815℃) Application: Cleaning and degreasing solutions, Corrosive liquids | |

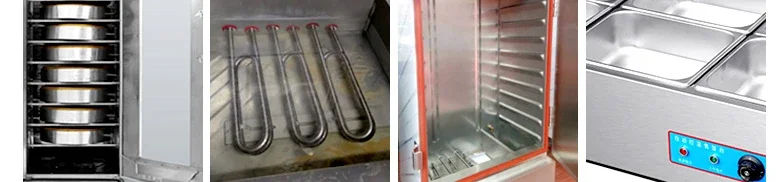

2.Water and Oil Heating Appliances.
3.Packaging machinery
4.Vending Machines.
5.Dies and Tools.
6.Heating Chemical Solutions.
7.Ovens & Dryers
8.Kitchen equipments
9.Medical equipments
Used in many other applications.

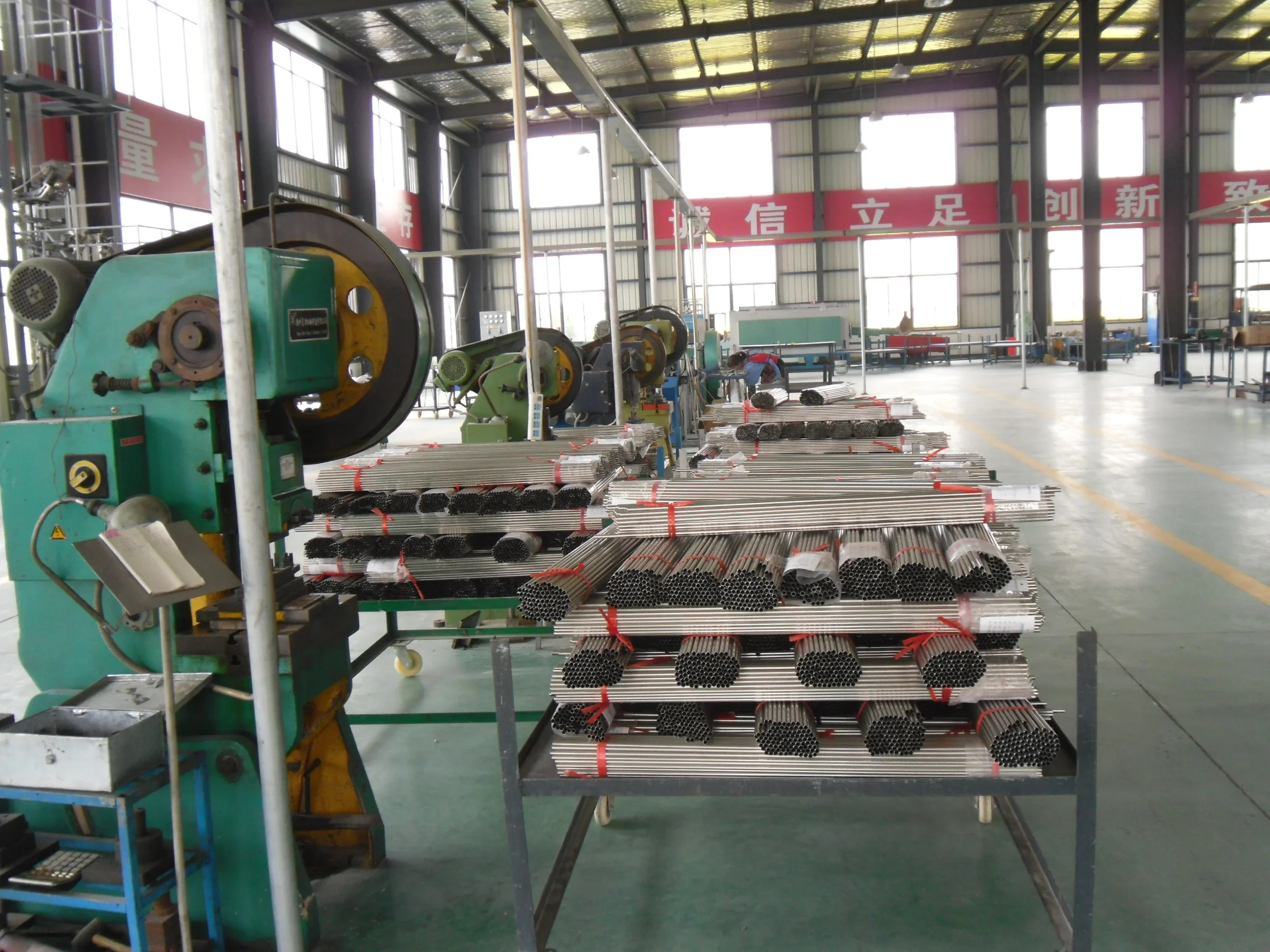

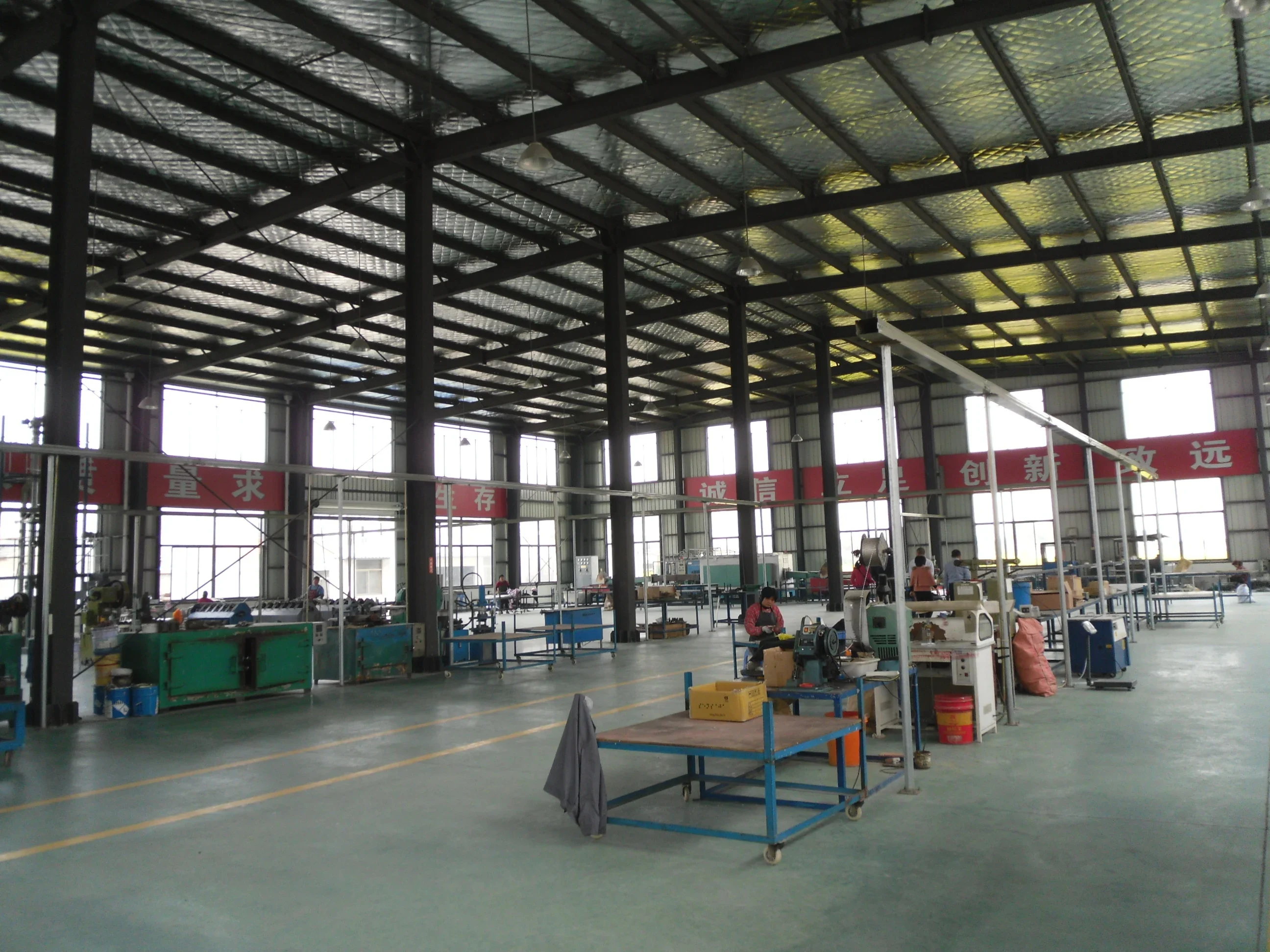

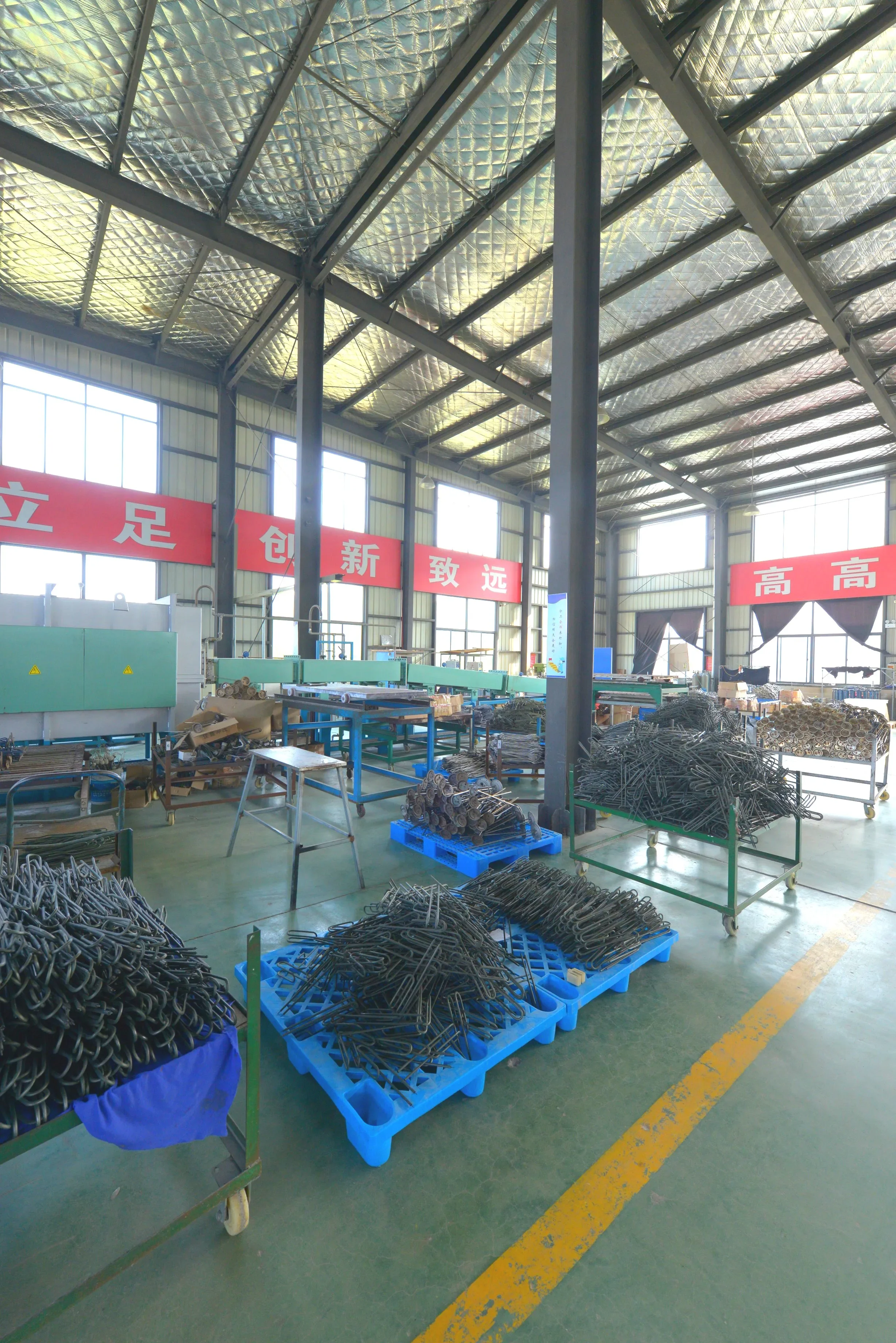

Factory
Office
Sales Team
Engineer Team

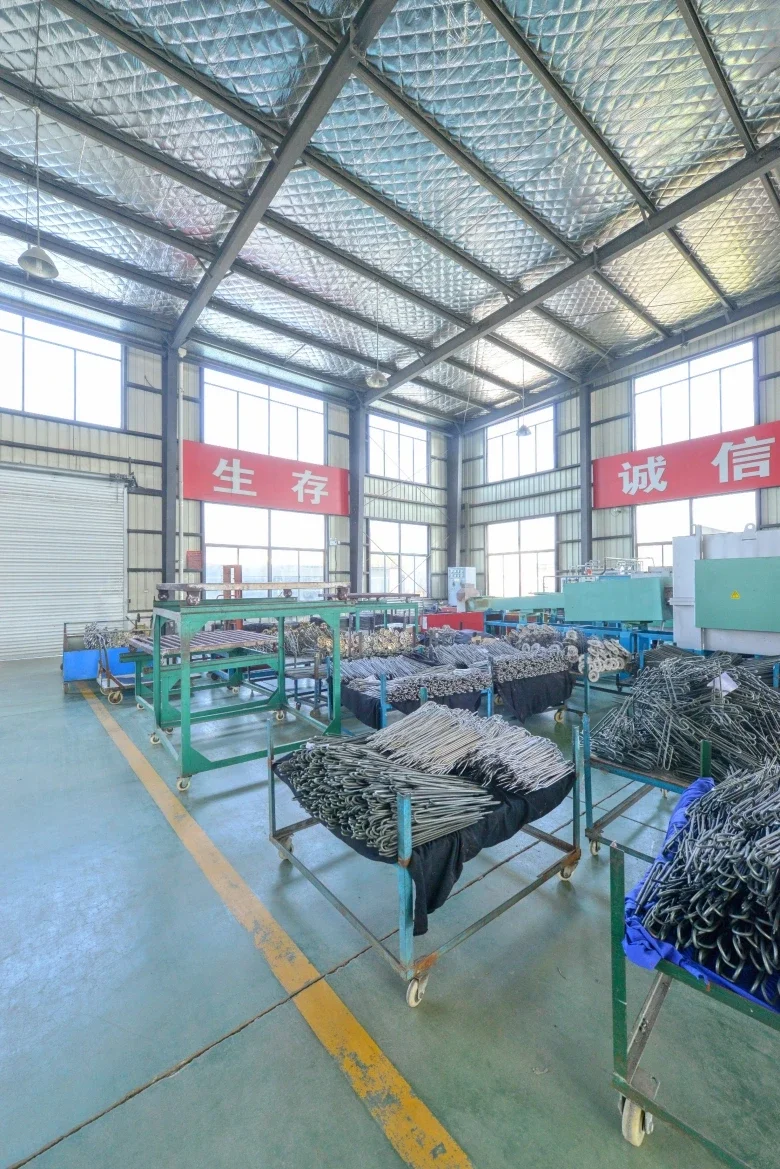

Heater plant
Packaging for heater

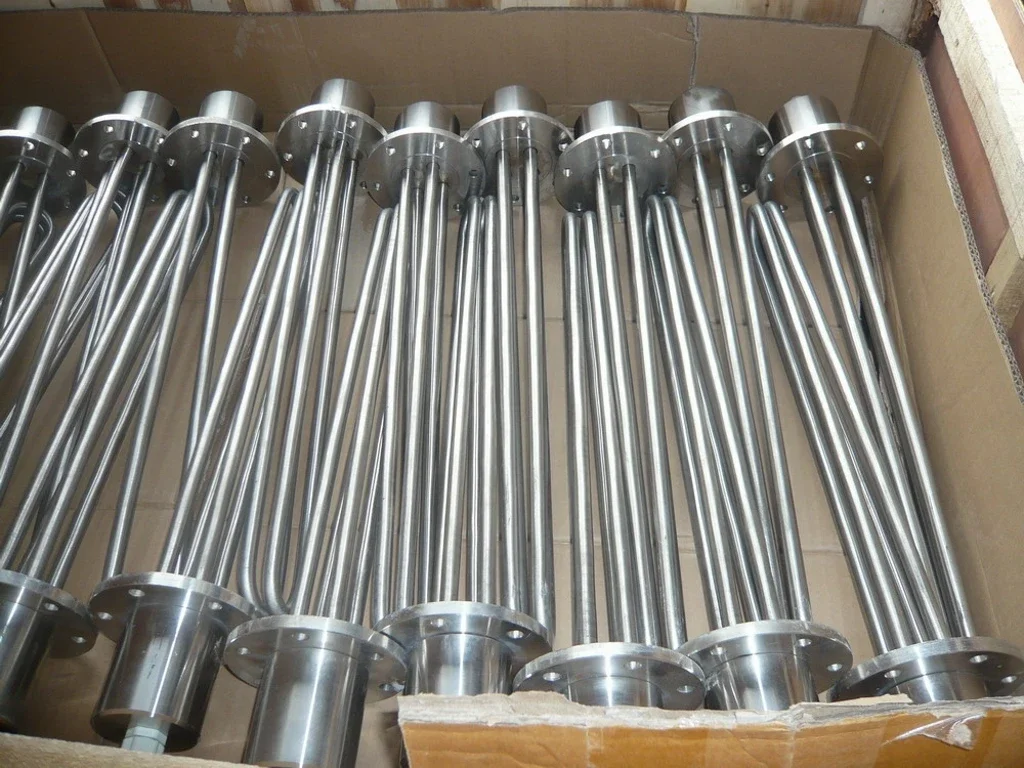

1) plastic bag + carton for tubular heater

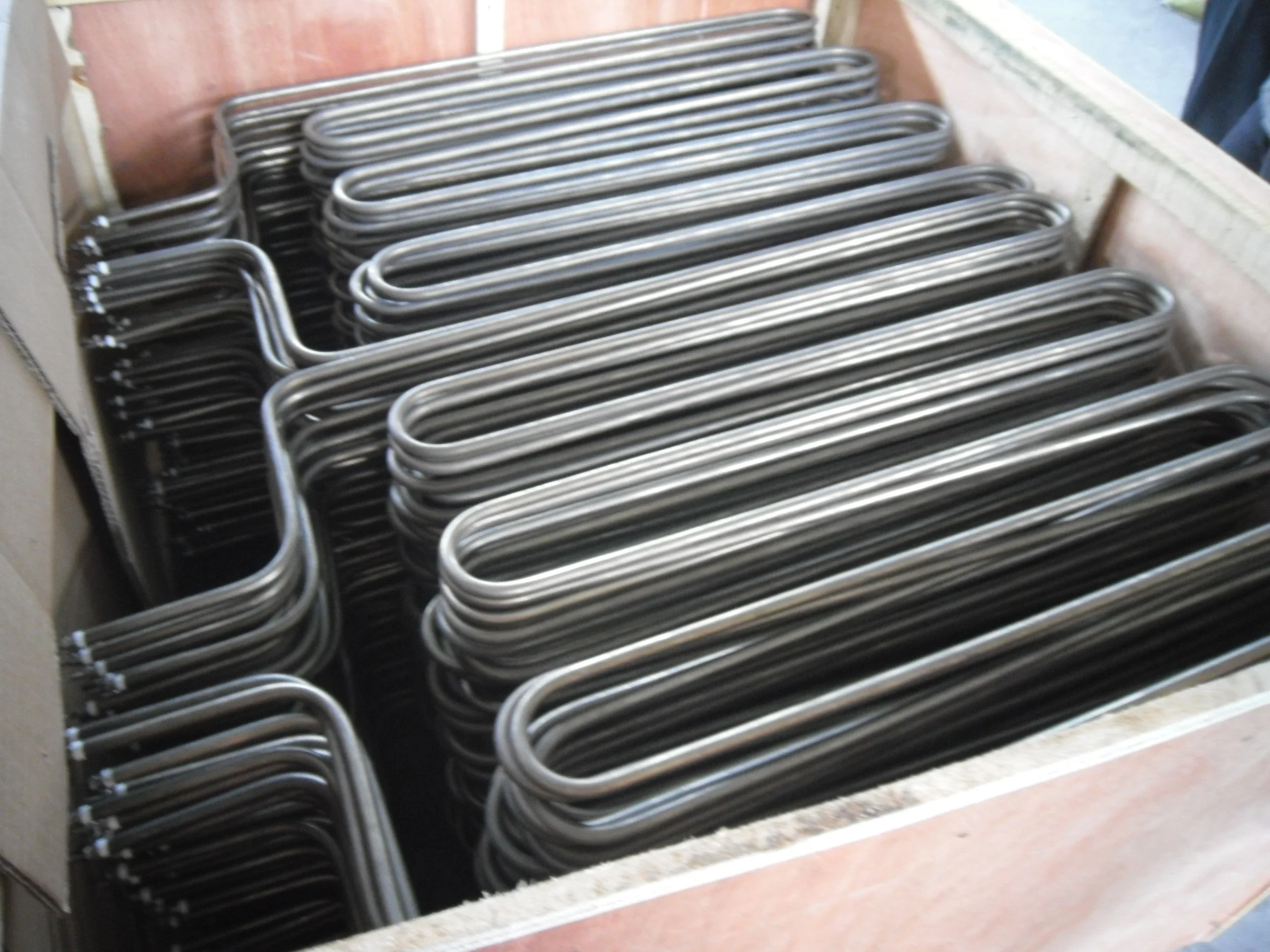

2) wooden box for tubular heater
Shipping for heater
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $16 / piece
- 50–99 piece: US $13 / piece
- 100+ piece: US $10 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tubular heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the tubular heater be supplied for my local voltage?
The standard configuration is 110 V, 220 V, Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
