Tunnel axial jet fan — 220V/380V/440V, power source Electric. The complete factory specification follows. Made by Hricc Industrial Equipment (Shandong) Co., Ltd. (2 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Tunnel Axial Jet Fan
- Model Number: HRC-SDF
- Power Source: Electric
- Power(KW): 5-250
- Voltage: 220V/380V/440V
- Material: Cast Iron
- Blade Material: Aluminium alloy
Technical Specifications
| Blade Diameter | 48 in |
|---|---|
| Voltage | 220V/380V/440V |
| Speed | 1350RPM, 2700 RPM, 920rpm |
| Type | Blower |
| Material | Cast Iron |
| Blade Material | Aluminium alloy |
| Mounting Type | Duct Fan, Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | HRICC |
| Model Number | HRC-SDF |
| Product Name | HRC SDF tunnel fans |
| Power(KW) | 5-250 |
| Rotating Speed(R/Min) | 980-2800 |
| Air Volume (M³/Min) | 90-9500 |
| Pressure(Pa) | 275-9000 |
| Color | Red/white/grey/yellow/blue/customized |
| Package | Wooden case |
| Selling Units | Single item |
Product Details
Products Description

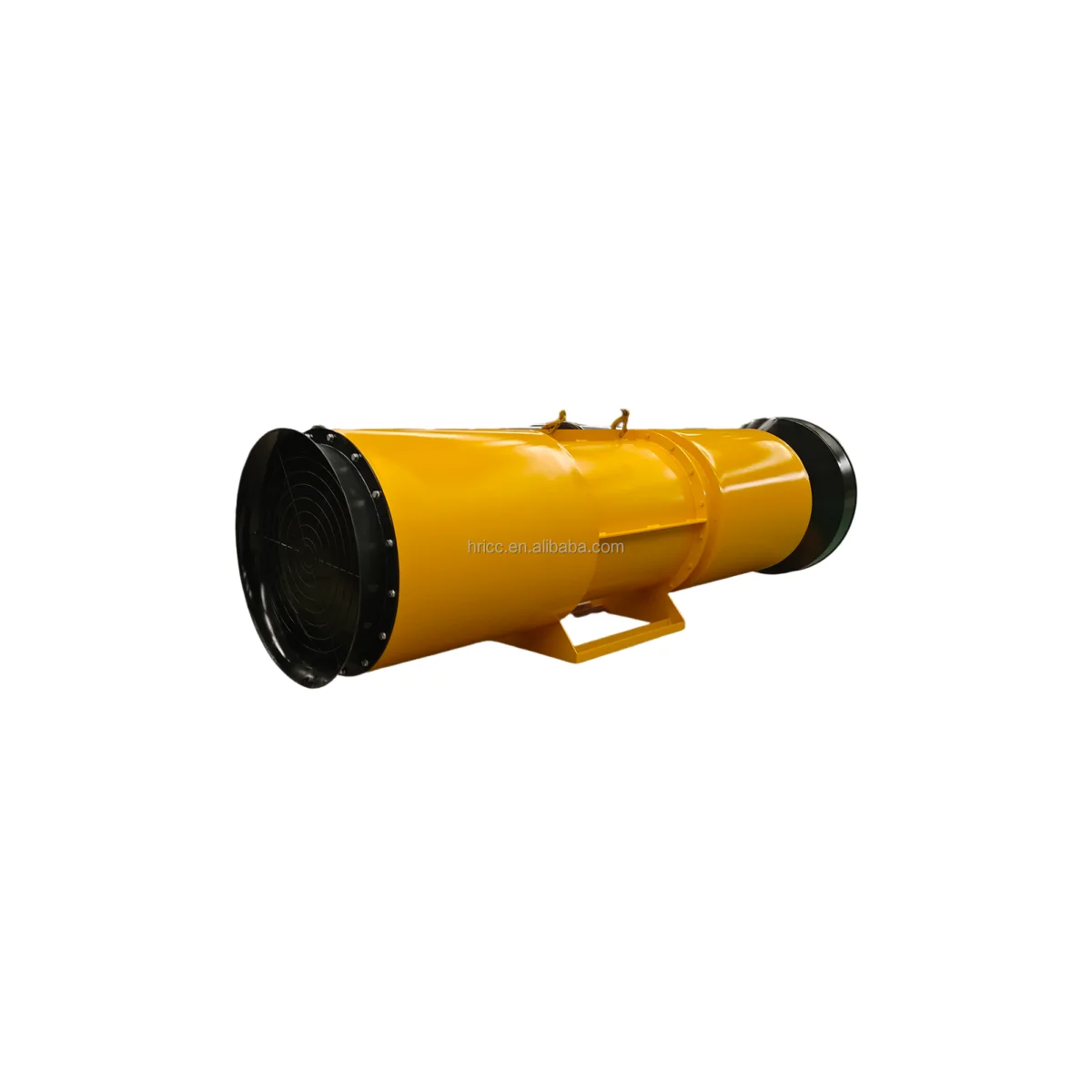

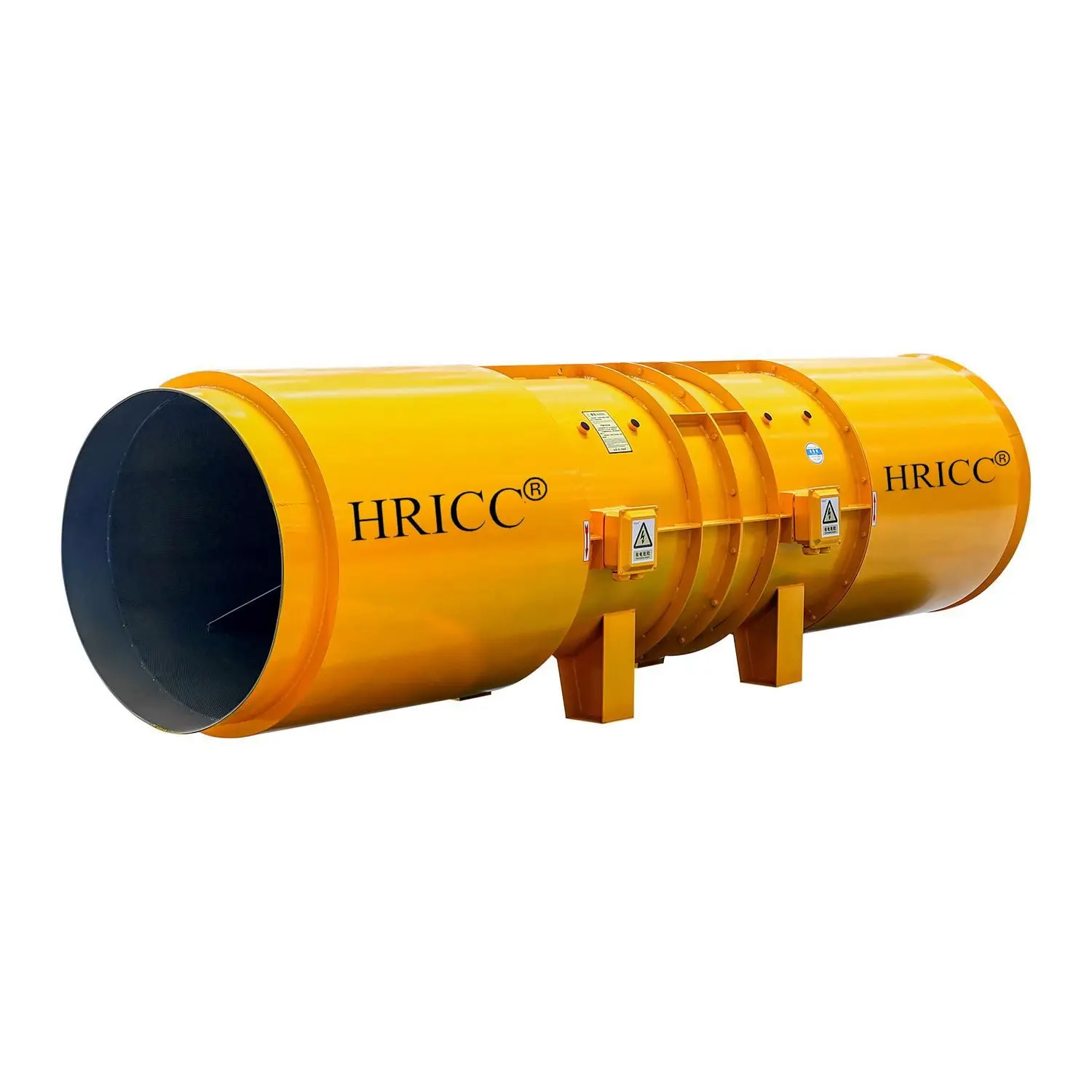

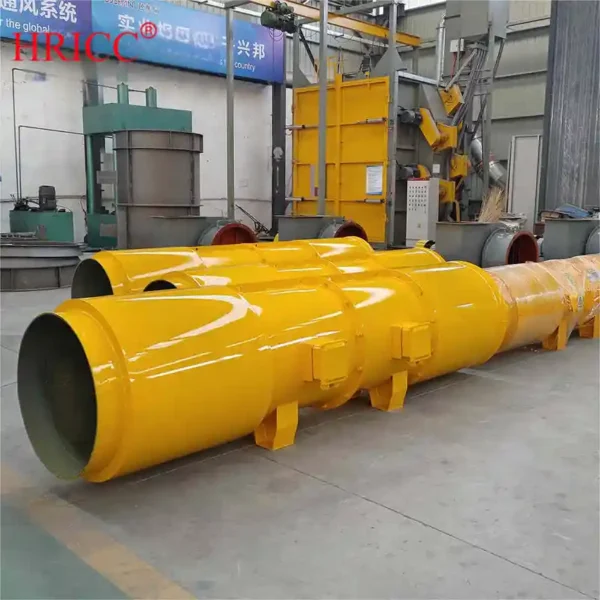

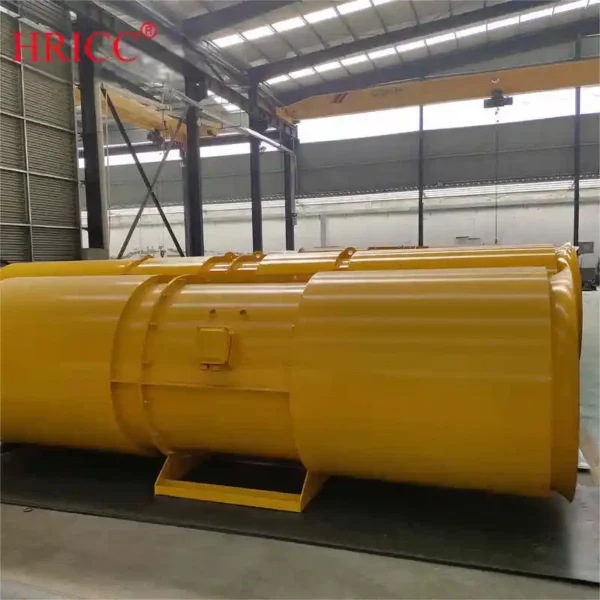

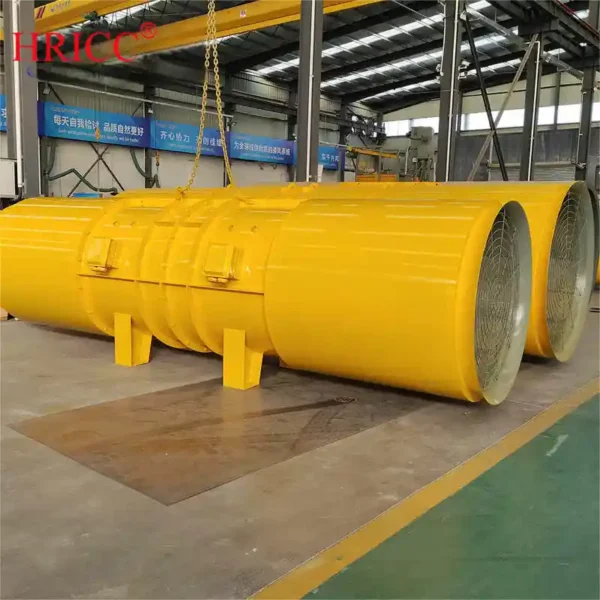

Professional SDF Tunnel Construction Fan – Heavy-Duty Ventilation for Mining & Civil Engineering
SDF counter rotating axial flow tunnel fan is a new product developed by Hricc Industrial Equipment (Shandong) Co., Ltd on the basis of summarizing the structure and technical performance of existing forced in tunnel fan. The product has the characteristics of reasonable structure, complete specifications, high efficiency, low noise and long air supply distance, which greatly reduces the labor intensity of workers and saves ventilation time. It is an ideal equipment for tunnel ventilation. It can also be used in ventilation systems of metallurgy, chemical industry, mining industry and so on.
Application field
This product can be used on the ground of tunnel or support.Use on the bracket. Ambient gas temperature of fan.It is 15 to 50 degrees, and the altitude shall not exceed 1000 meters,The rated frequency of the power supply used is 50Hz.
lateral plan

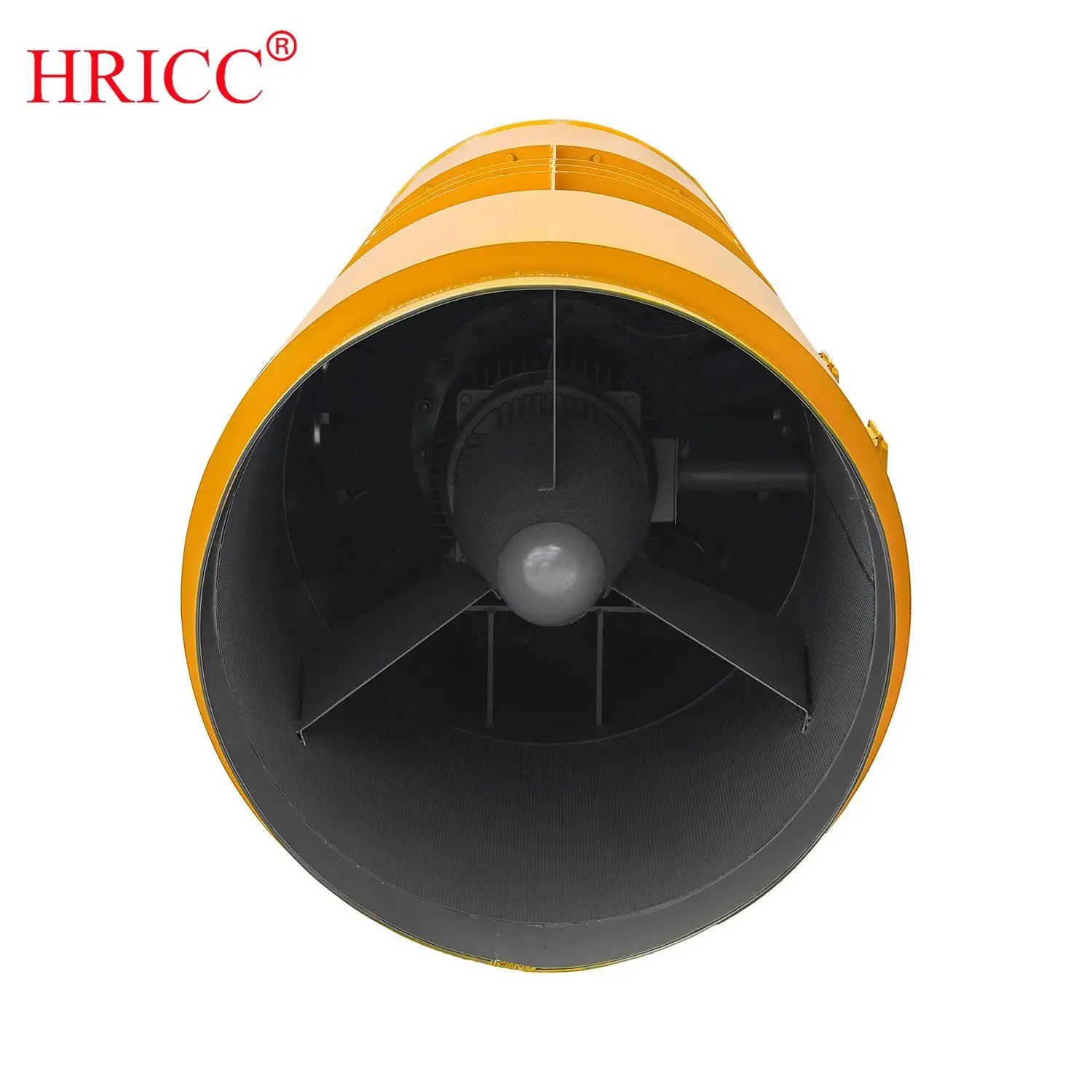

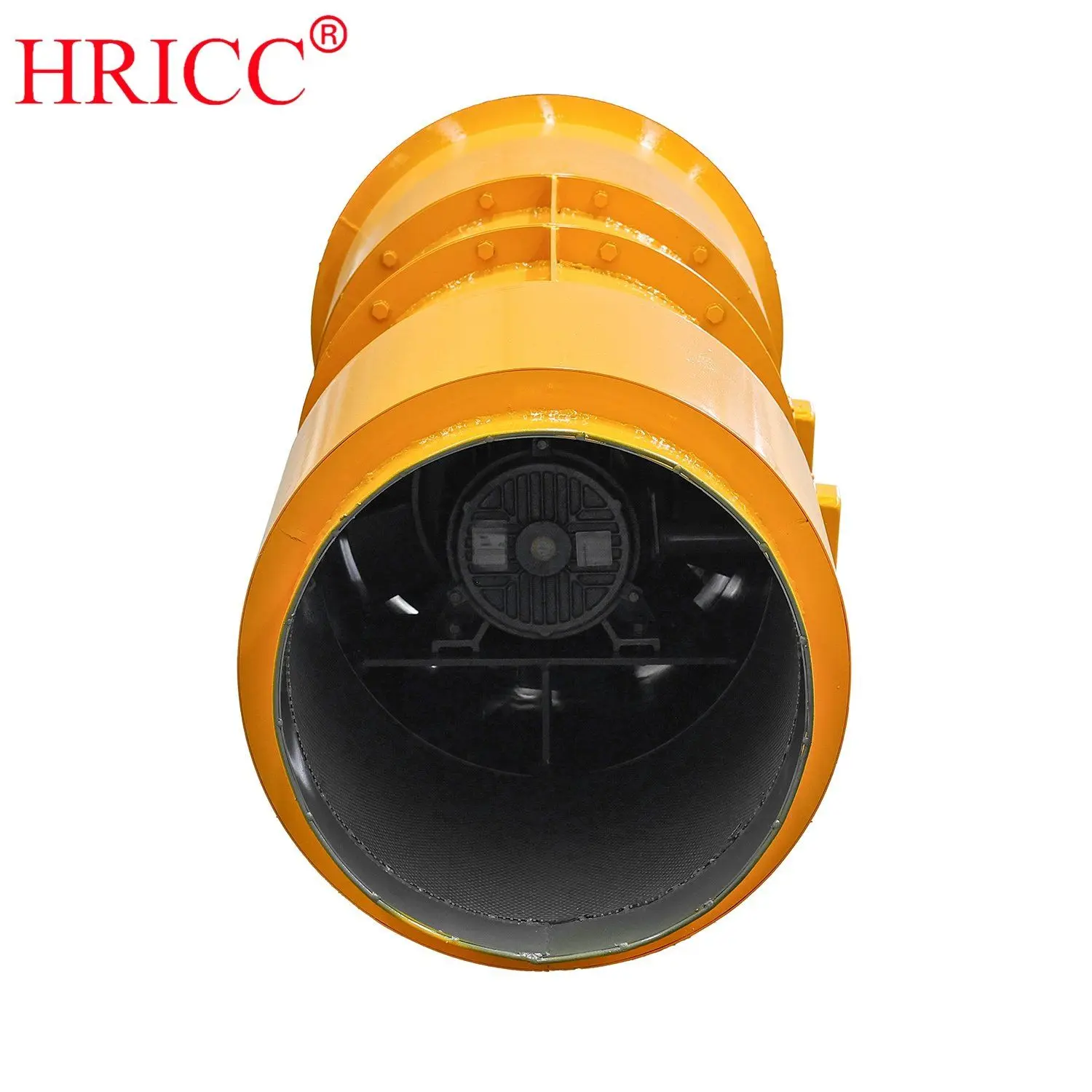

front view

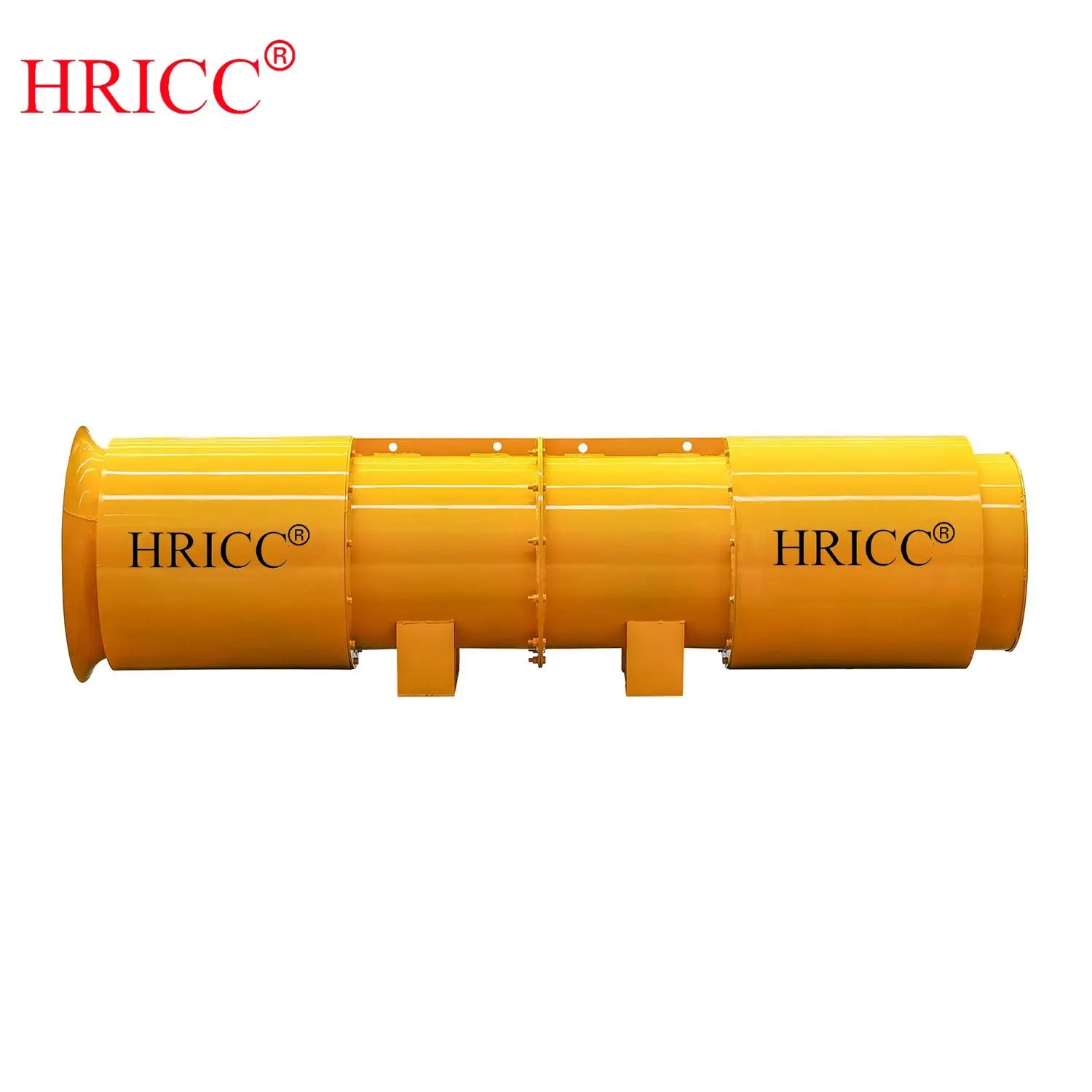

Side view
Product Parameters
(Custom configurations available upon request.)
Fan type | Power (KW) | Rpm (r/min) | Air-hose (Mm) | Air Volume (m³/s) | Pressure (Pa) |
SDF-4 | 2×4 | 2900 | 400 | 165-110 | 375-3040 |
SDF-5 | 2×7.5 | 2900 | 500 | 260-170 | 400-3155 |
SDF-5.6 | 2×11 | 2900 | 550 | 350-190 | 310-3640 |
SDF-5.6 | 2×15 | 2900 | 550 | 390-270 | 380-4480 |
SDF-6.3 | 2×30 | 2900 | 600 | 510-310 | 640-7310 |
SDF-7.1 | 2×45 | 2900 | 700 | 690-410 | 680-8160 |
SDF-8 | 2×55 | 2900 | 800 | 870-500 | 690-8230 |
SDF-9 | 2×75 | 2900 | 800 | 970-560 | 850-9900 |
SDF-10 | 2×45 | 1450 | 1000 | 890-520 | 450-5720 |
SDF-10 | 2×55 | 1450 | 1100 | 1170-670 | 510-3100 |
SDF-11 | 2×75 | 1450 | 1200 | 1580-930 | 850-6410 |
SDF-12 | 2×90 | 1450 | 1500 | 1640-990 | 990-6640 |
SDF-13 | 2×110 | 1450 | 1500 | 1770-1040 | 1260-6850 |
SDF-14 | 2×132 | 1450 | 1600 | 1920-1270 | 1330-7200 |
SDF-15 | 2×160 | 980 | 1800 | 2050-1330 | 1640-5870 |
SDF-16 | 2×185 | 980 | 2000 | 2270-1650 | 1800-6590 |
Installation and commission
The Fan does not need a special equipment foundation, placed on a relatively flat ground or plane can be long-term stable

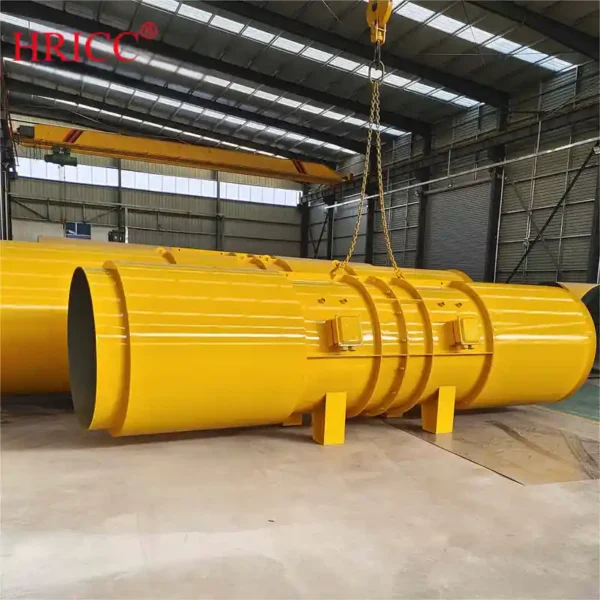

operation, if the use of hanging installation, the fan top lifting ears should be good bolt, use The u-shaped crane steel link can be good.
operation, if the use of hanging installation, the fan top lifting ears should be good bolt, use The u-shaped crane steel link can be good.

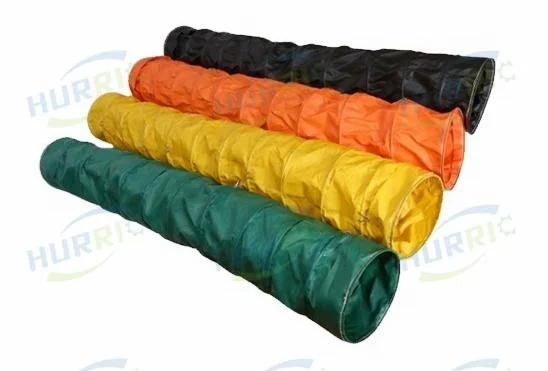

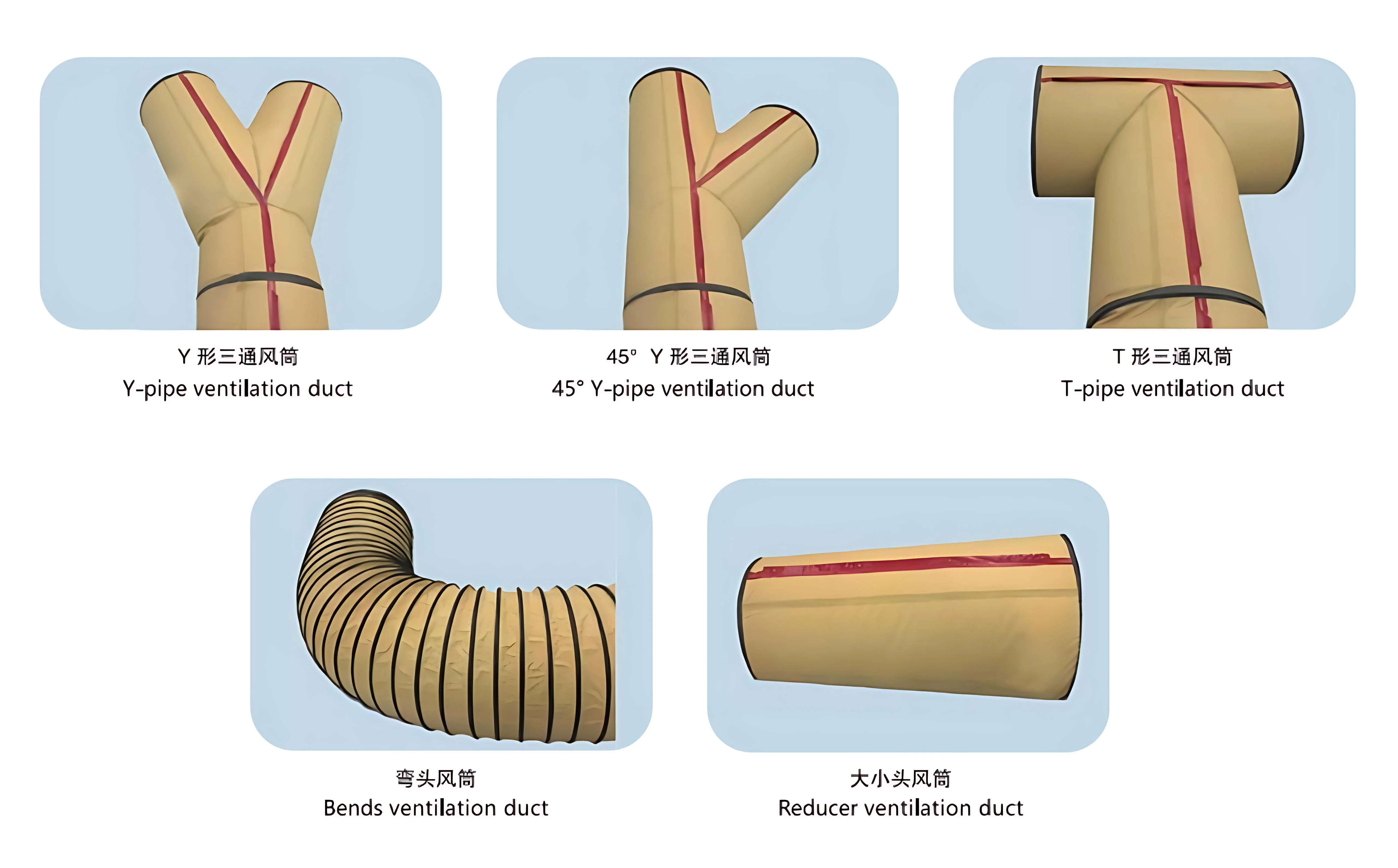

Tunnel fan Accessories
Material | Double-sided PVC |
Diameter | 200-3000mm or customized |
Thickness | 0.49-0.9mm or customized |
Weight | 470g/m² or customized |
Length | 1-300m or customized |
Wind pressure resistance | ≥5000pa |
Temperature | -20-200℃ |
Color | Black, yellow, orange or customized |
Construction site
Company Profile
Why Choose Us?
OEM/ODM capabilities
Cost Efficiency: Direct factory pricing (save 20–30% vs. distributors)
Fast Lead Time: 7-day standard production (expedited shipping options available)
QC Assurance: 100% factory testing (pressure curve report provided with each unit)
Cost Efficiency: Direct factory pricing (save 20–30% vs. distributors)
Fast Lead Time: 7-day standard production (expedited shipping options available)
QC Assurance: 100% factory testing (pressure curve report provided with each unit)
Other Products
FAQ
Q. What's the information should I provide when inquiry?
A: Flow rate&Air Volume
B: Pressure
C: Purpose
D: Use environment(Temperature, atmospheric pressure)
Q. How does your factory control product quality?
A.We have quality inspection department. All blowers are running more than 3 hour before delivery to test the quality.
A: Flow rate&Air Volume
B: Pressure
C: Purpose
D: Use environment(Temperature, atmospheric pressure)
Q. How does your factory control product quality?
A.We have quality inspection department. All blowers are running more than 3 hour before delivery to test the quality.
If there is quality problem, we will produce new one.
Q. What are your terms of payment?
A. TT 50% AS THE ADVANCE PAYMENT AND TT 50% AFTER INSPECTION BEFORE SHIPPING.
B. 100% IRREVOCABLE L/C AT STGHT.
Q. What products do you produce?
A. Centrifugal fan, tunnel fan, axial fan, jet fan, mining fan, exhaust fan,anti-corrosion blower, high pressure blower, explosion proof fan, etc, welcome to contact us to learn more details.
Q. Where is your factory? Can i visit your factory?
A. Our factory is located in Zibo, Shandong, welcome to visit our factory.
Q. How long will it take to ship after order?
A. 20~30 days for one container.
Q. What are your terms of payment?
A. TT 50% AS THE ADVANCE PAYMENT AND TT 50% AFTER INSPECTION BEFORE SHIPPING.
B. 100% IRREVOCABLE L/C AT STGHT.
Q. What products do you produce?
A. Centrifugal fan, tunnel fan, axial fan, jet fan, mining fan, exhaust fan,anti-corrosion blower, high pressure blower, explosion proof fan, etc, welcome to contact us to learn more details.
Q. Where is your factory? Can i visit your factory?
A. Our factory is located in Zibo, Shandong, welcome to visit our factory.
Q. How long will it take to ship after order?
A. 20~30 days for one container.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–2 piece: US $800 / piece
- 3+ piece: US $780 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this tunnel axial jet fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the tunnel axial jet fan be supplied for my local voltage?
The standard configuration is 220V/380V/440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
