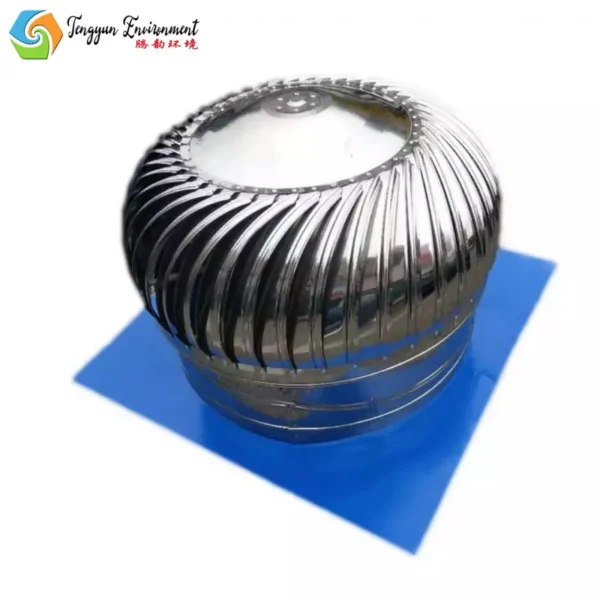

This turbo adjustable air extractor is published with the manufacturer’s full specification — voltage NO, material Stainless Steel. Made by Jinan Tengyun Environment Engineering Co., Ltd. (9 years on the platform, typical reply ≤11h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Turbo Adjustable Air Extractor
- Model Number: TR-600
- Power Source: NO
- Voltage: NO
- Material: Stainless Steel
- Blade Material: Stainless Steel
- Speed: 3.5
Technical Specifications
| Blade Diameter | 20 in |
|---|---|
| Voltage | NO |
| Speed | 3.5 |
| Type | Roof Axial Fan |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Mounting Type | Roof Fan |
| Bearing Type | Ball Bearing |
| Power Source | NO |
| Warranty | 2 Years |
| After-Sales Service Provided | Field installation, commissioning and training |
| Customized Support | OEM, ODM |
| Place Of Origin | Shandong, China |
| Brand Name | TENWIN |
| Model Number | TR-600 |
| Color | Silver |
| Product Name | Stainless steel roof ventilation fan |
| The Size Of Holes | 600*600mm |
| Usage | Roof exhaust fan |
| Weight | 6KG |
| Turbine Height | 420MM |
| Inlet Air Speed | 3.4m/s |
| Air Volume | 3600m3/h |
| Outside Diameter Of Turbine | 730mm |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
- High-Air-Capacity: Delivers up to 8000 m³/h for efficient ventilation.

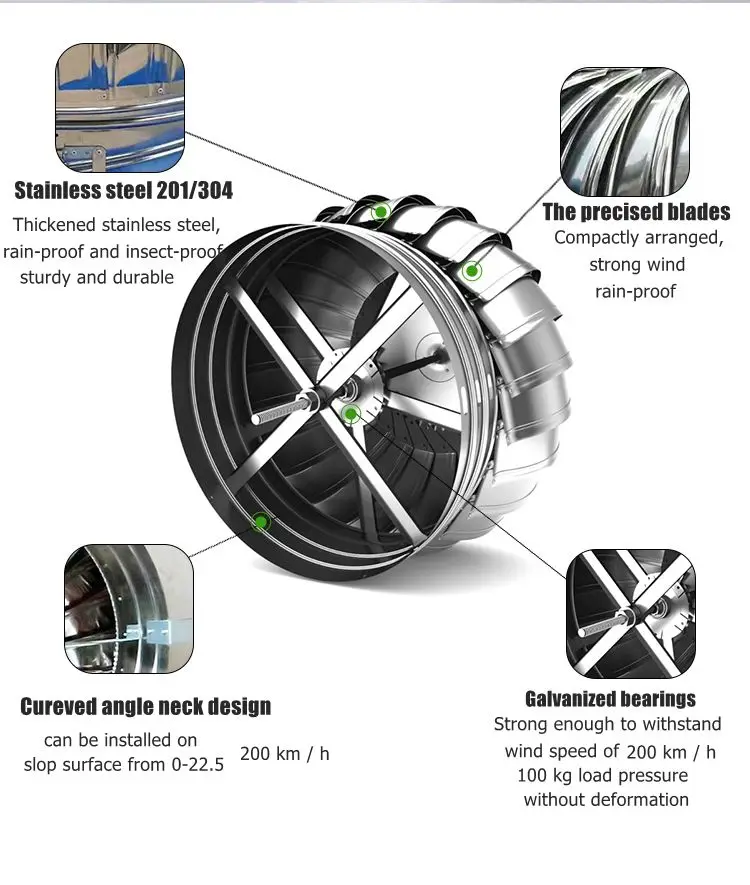

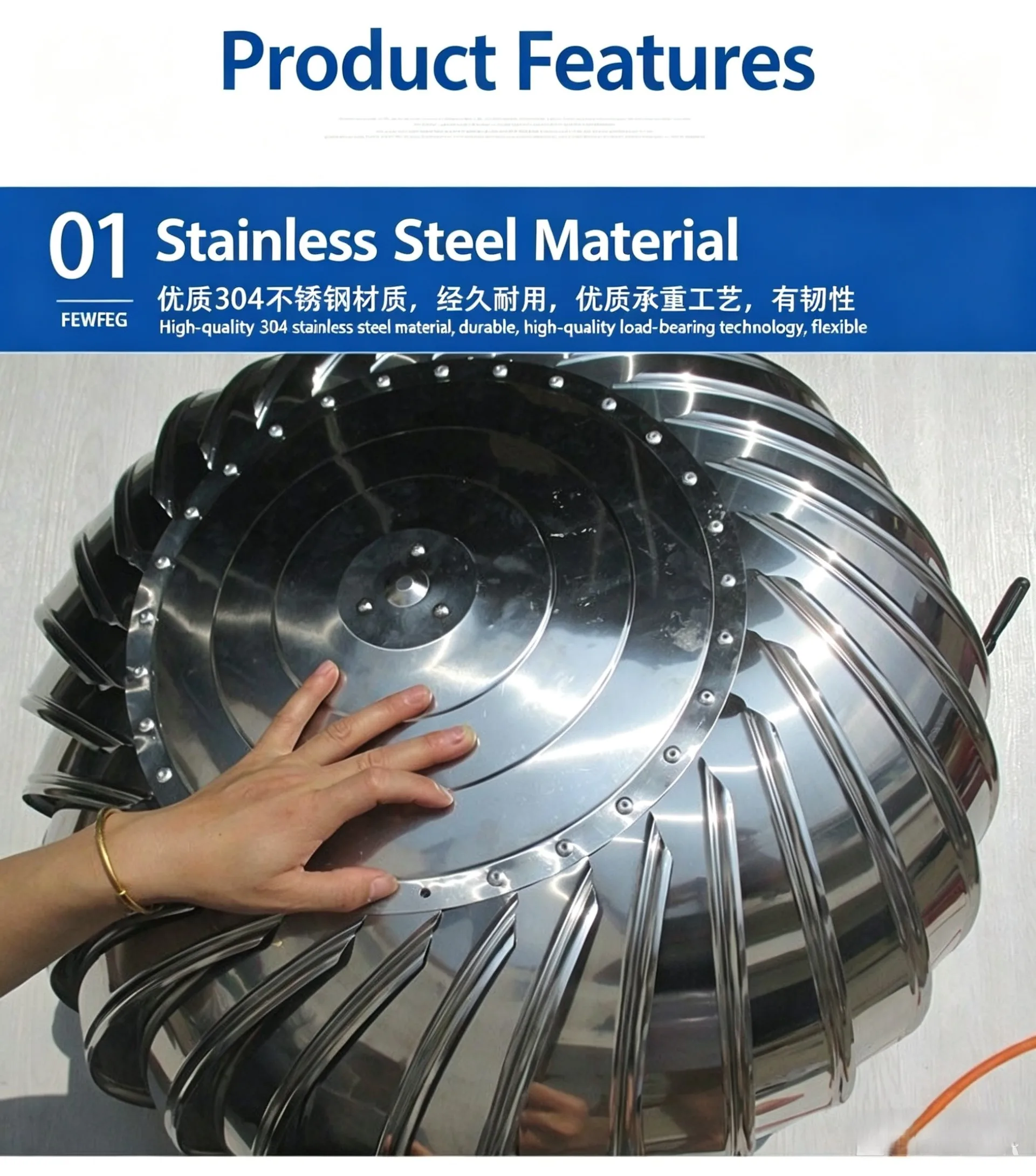

- Stainless Steel Construction: Durable and corrosion-resistant material.

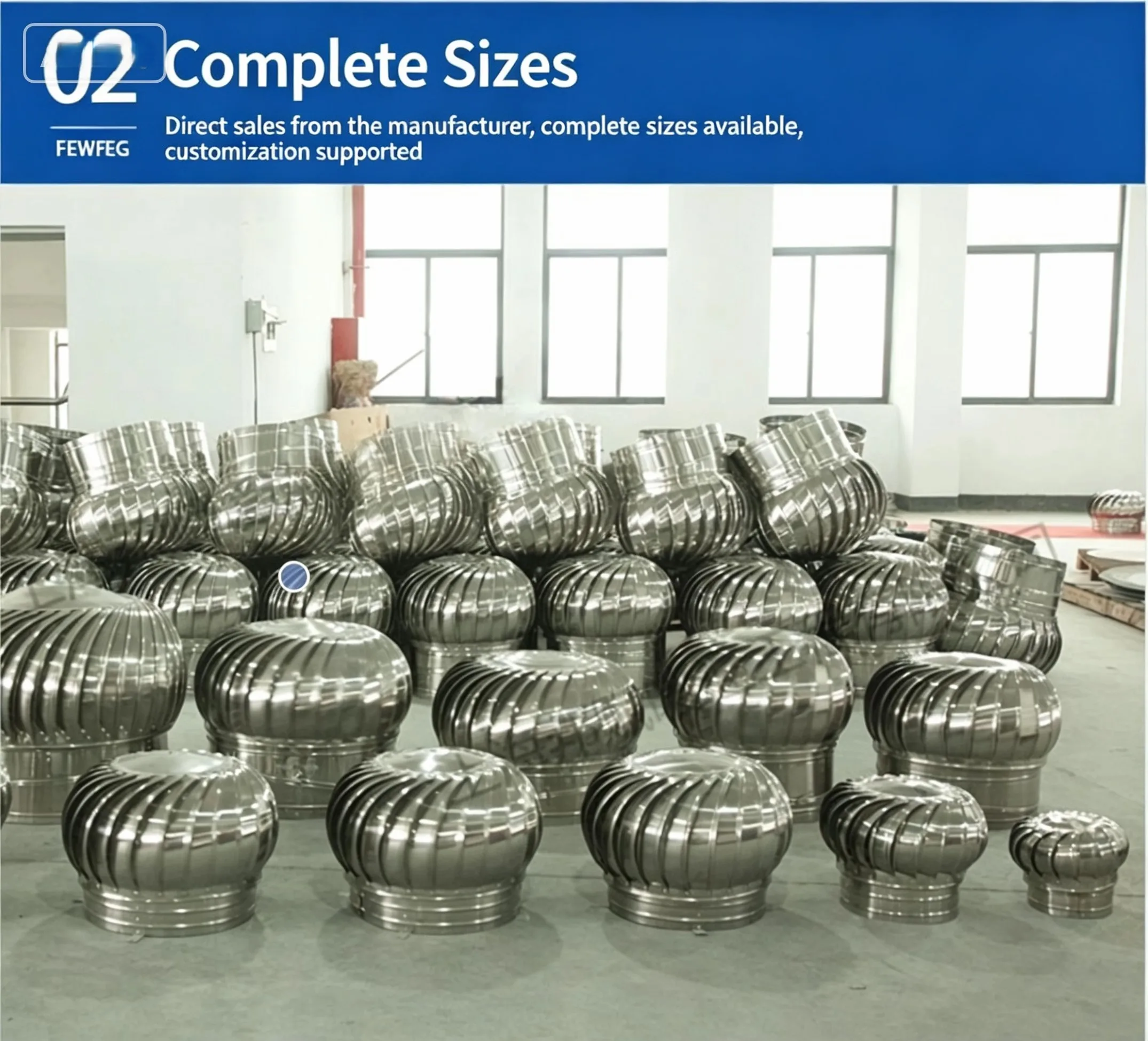

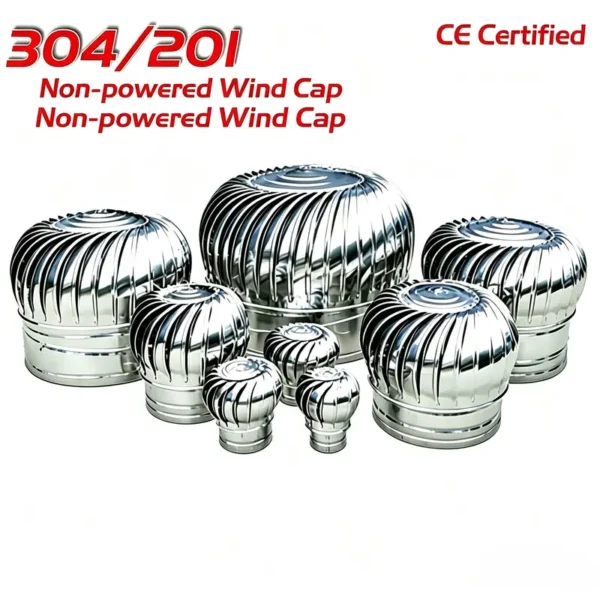

- Customizable Models: Choose from various sizes for specific needs.
- Professional Packaging: Ensures safe and efficient delivery.
- Wide Application: Suitable for industrial, agricultural, and greenhouse settings.

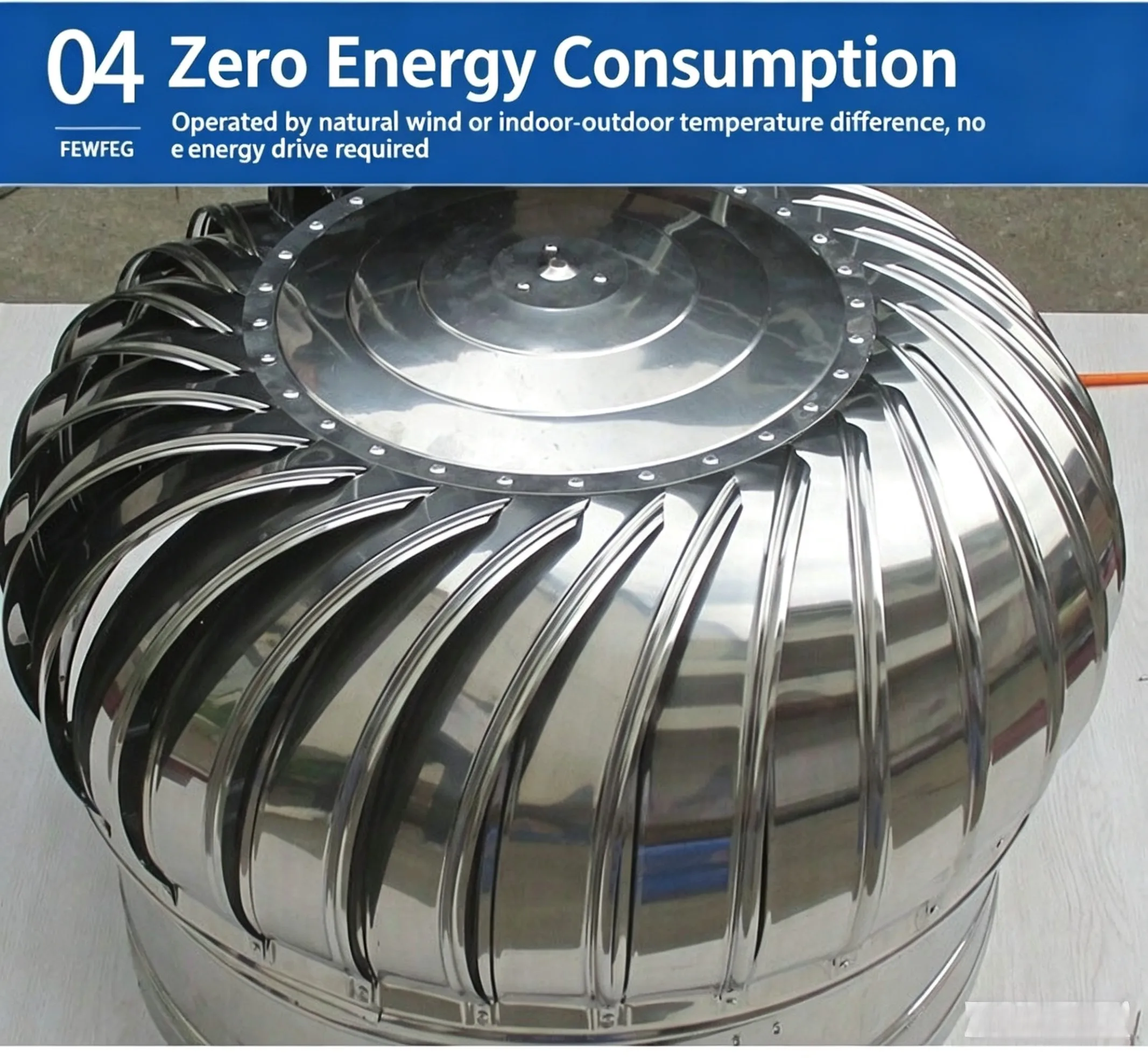

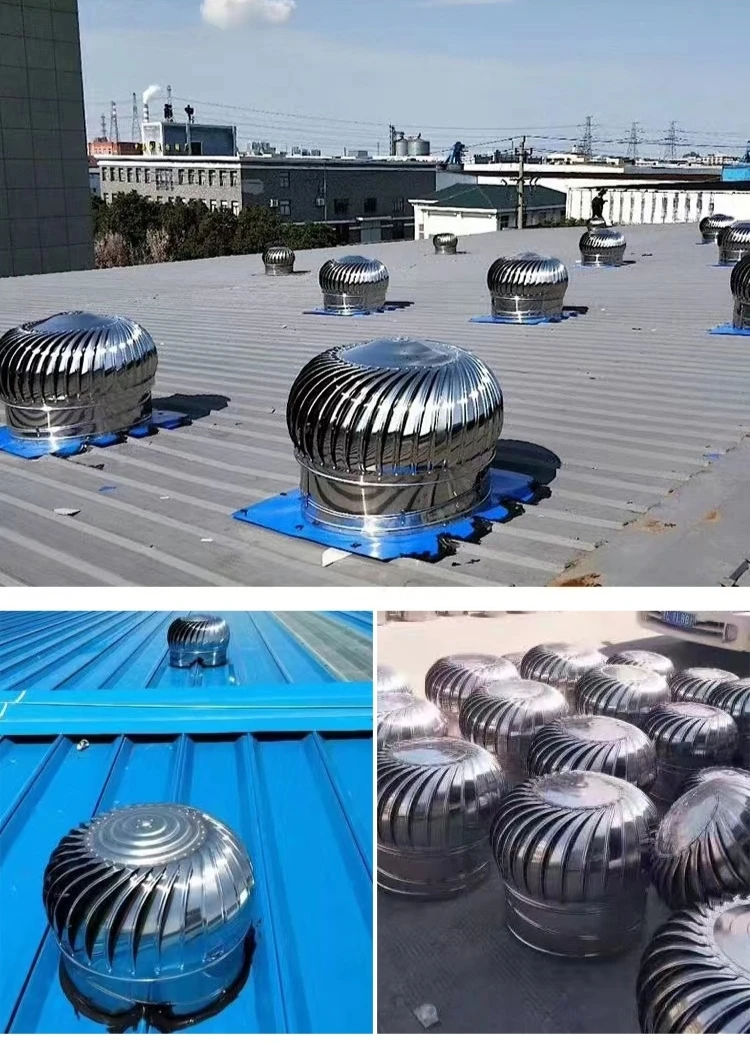

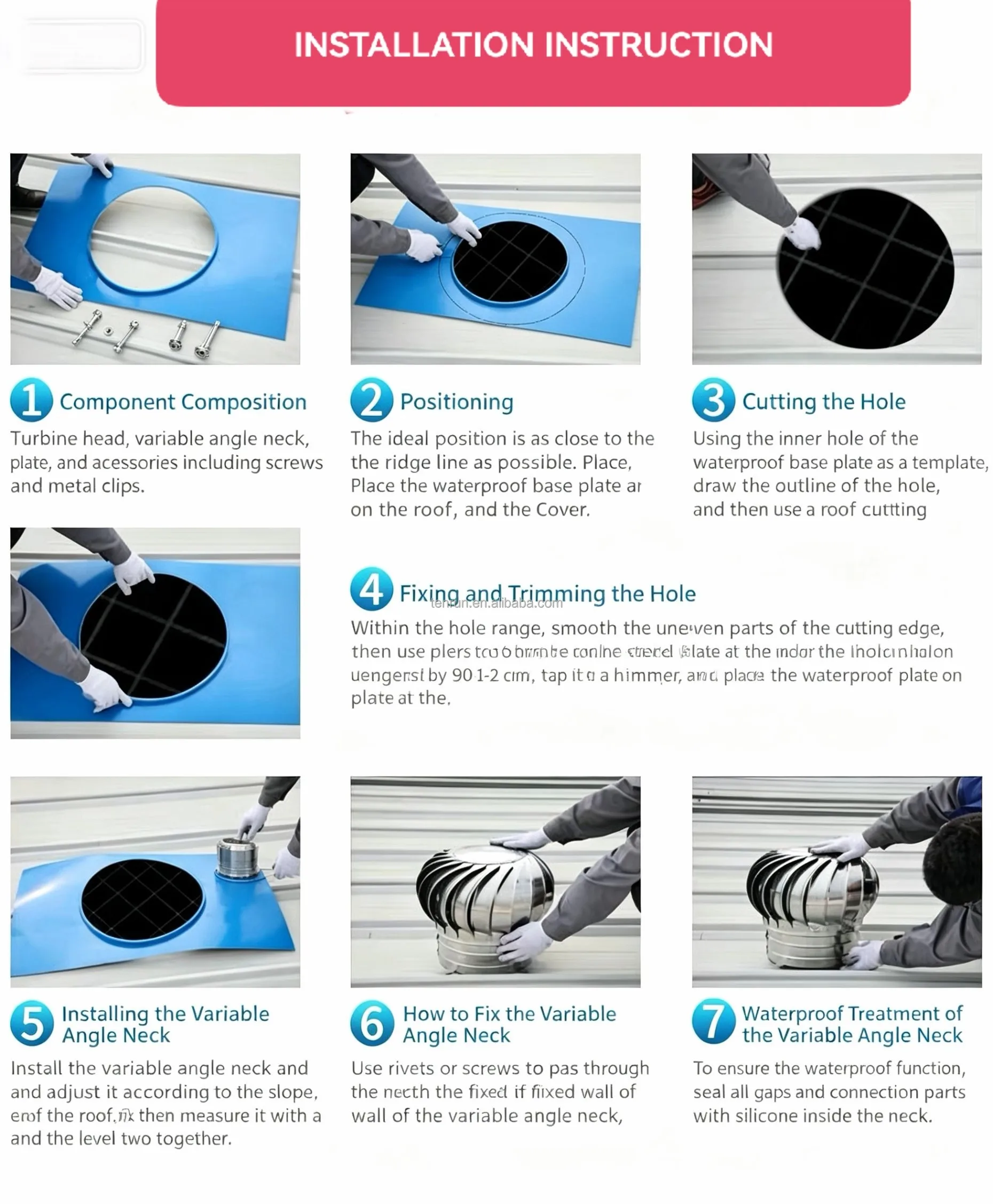

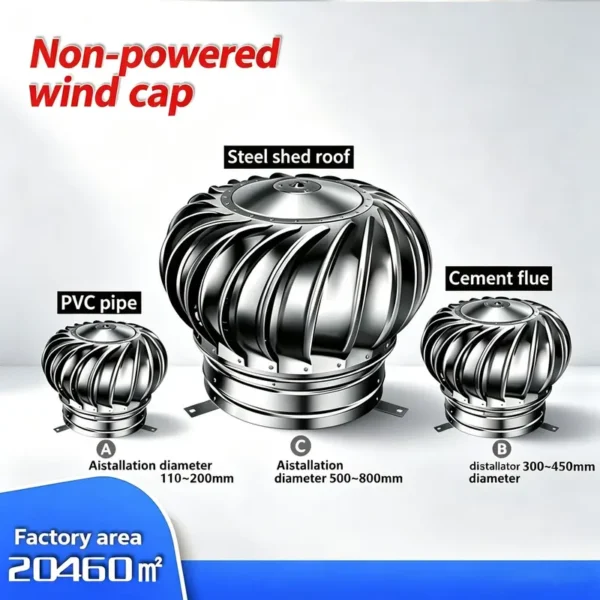

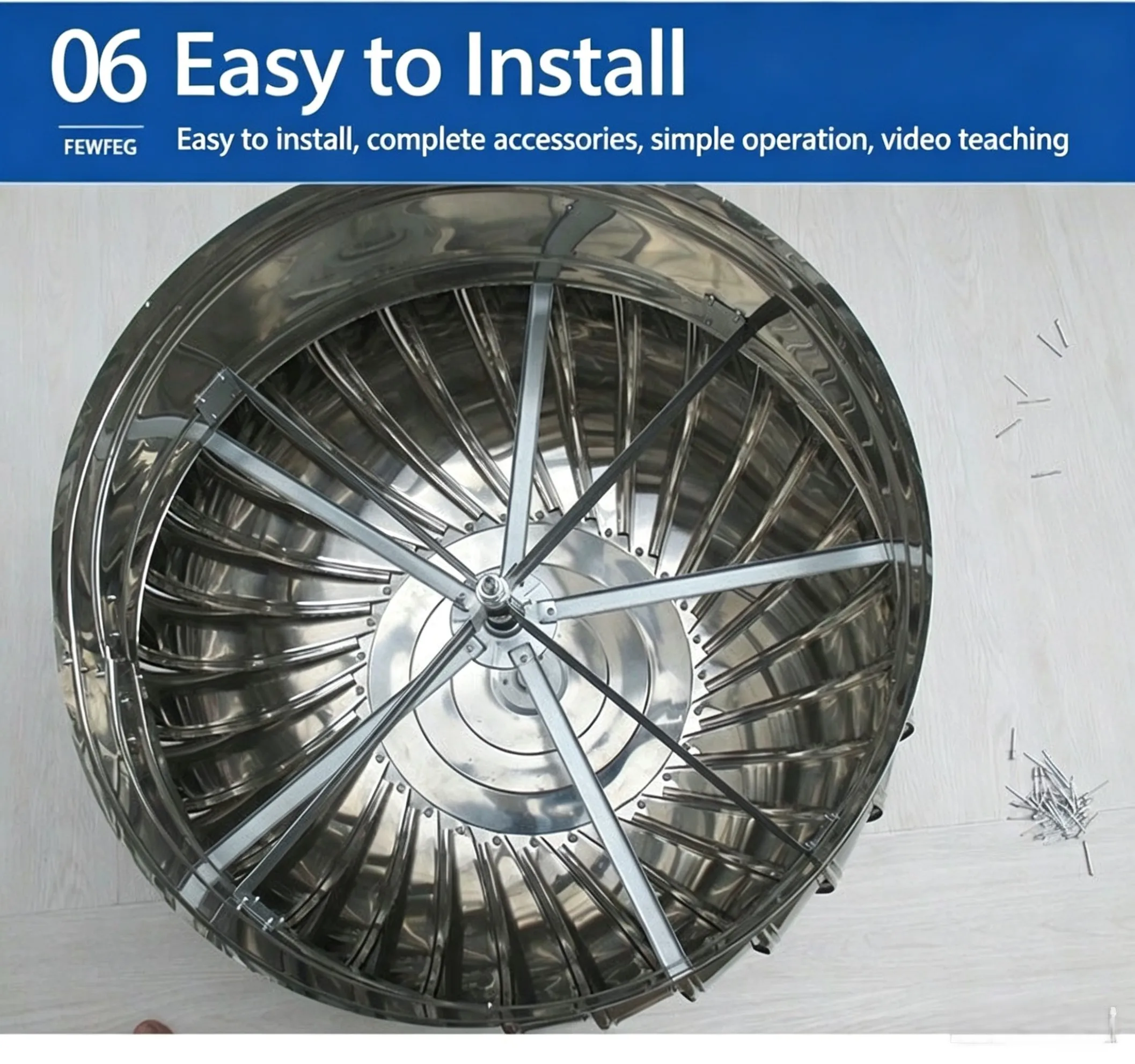

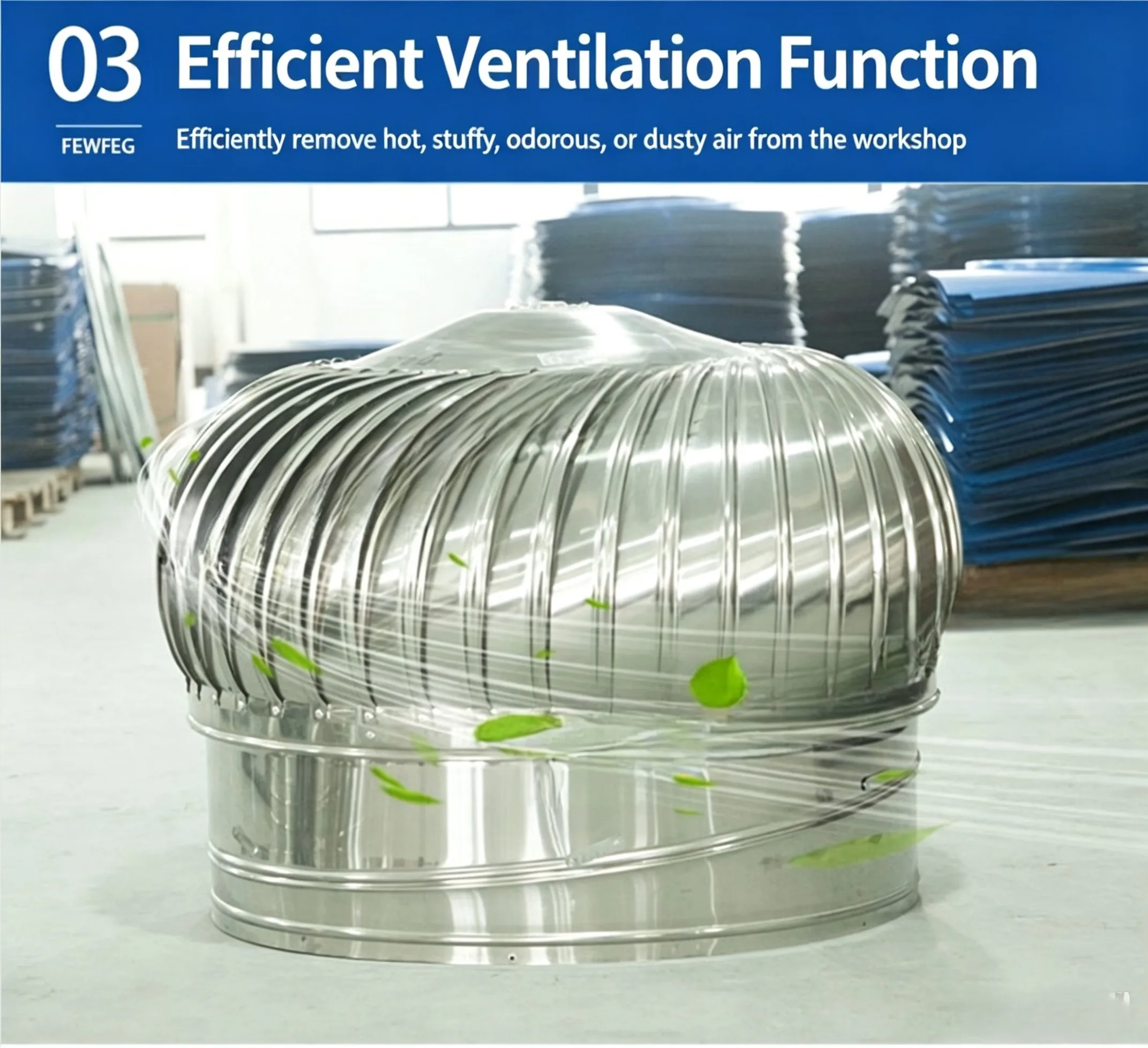

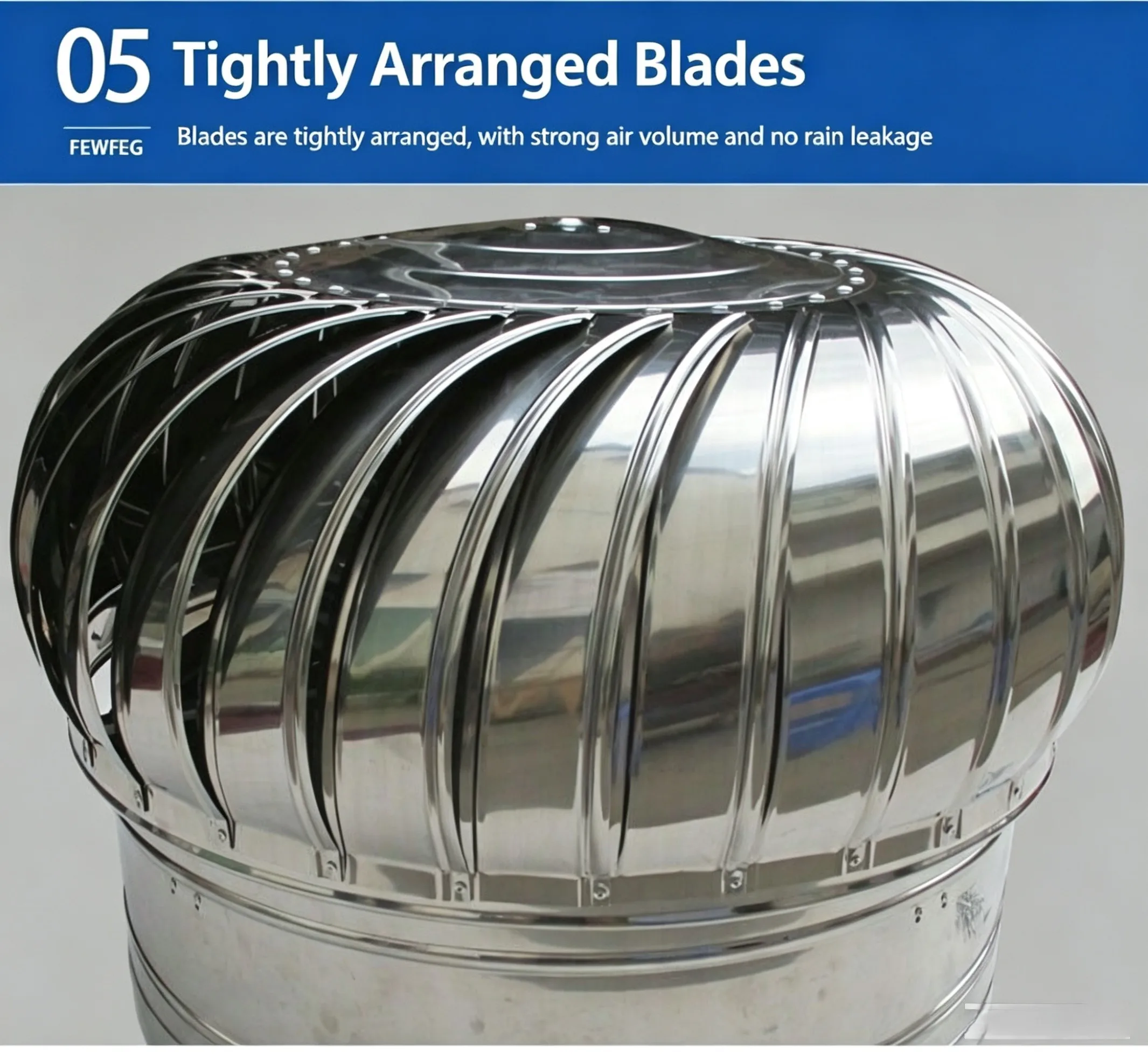

- Product's Features: Air driven top roof ventilation fan no power chimney fan 1). No maintenance or operating costs, 2). Water and dust proof, 3). Improves air quality, 4). Improves productivity. 5). The structure of the high quality, 6). The precision of the running device, 7). Green environmental protection ventilation equipment 8). Applicability widely. All kinds of industrial factory building contour plate light steel structure roofing, concrete roof can also be installed. And there's no need to support, installation is convenient. roof air ventilator

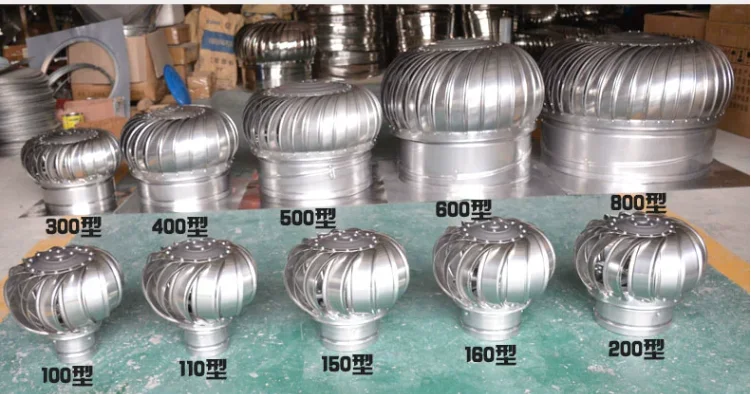

Model No | Height of fan | Diameter of head | Diameter of neck | vanes | material | Airflow capacity(m3/h) | Ventilation Average Annual Wind Speed (m/s) |
300mm | 310mm | 400mm | 300mm | 24 | SS316/SS304/SS201 | 1280 | 3.4 (Level 3 Wind Speed |
400mm | 380mm | 480mm | 400mm | 24 | SS316/SS304/SS201 | 1380 | 3.4 (Level 3 Wind Speed |
500mm | 480mm | 600mm | 500mm | 32 | SS316/SS304/SS201 | 2520 | 3.4 (Level 3 Wind Speed |
600mm | 580mm | 700mm | 600mm | 32 | SS316/SS304/SS201 | 3600 | 3.4 (Level 3 Wind Speed |
680mm | 600mm | 780mm | 680mm | 32 | SS316/SS304/SS201 | 4500 | 3.4 (Level 3 Wind Speed |
800mm | 650mm | 900mm | 800mm | 42 | SS316/SS304/SS201 | 6500 | 3.4 (Level 3 Wind Speed |
880mm | 700mm | 1000mm | 880mm | 42 | SS316/SS304/SS201 | 8000 | 3.4 (Level 3 Wind Speed |

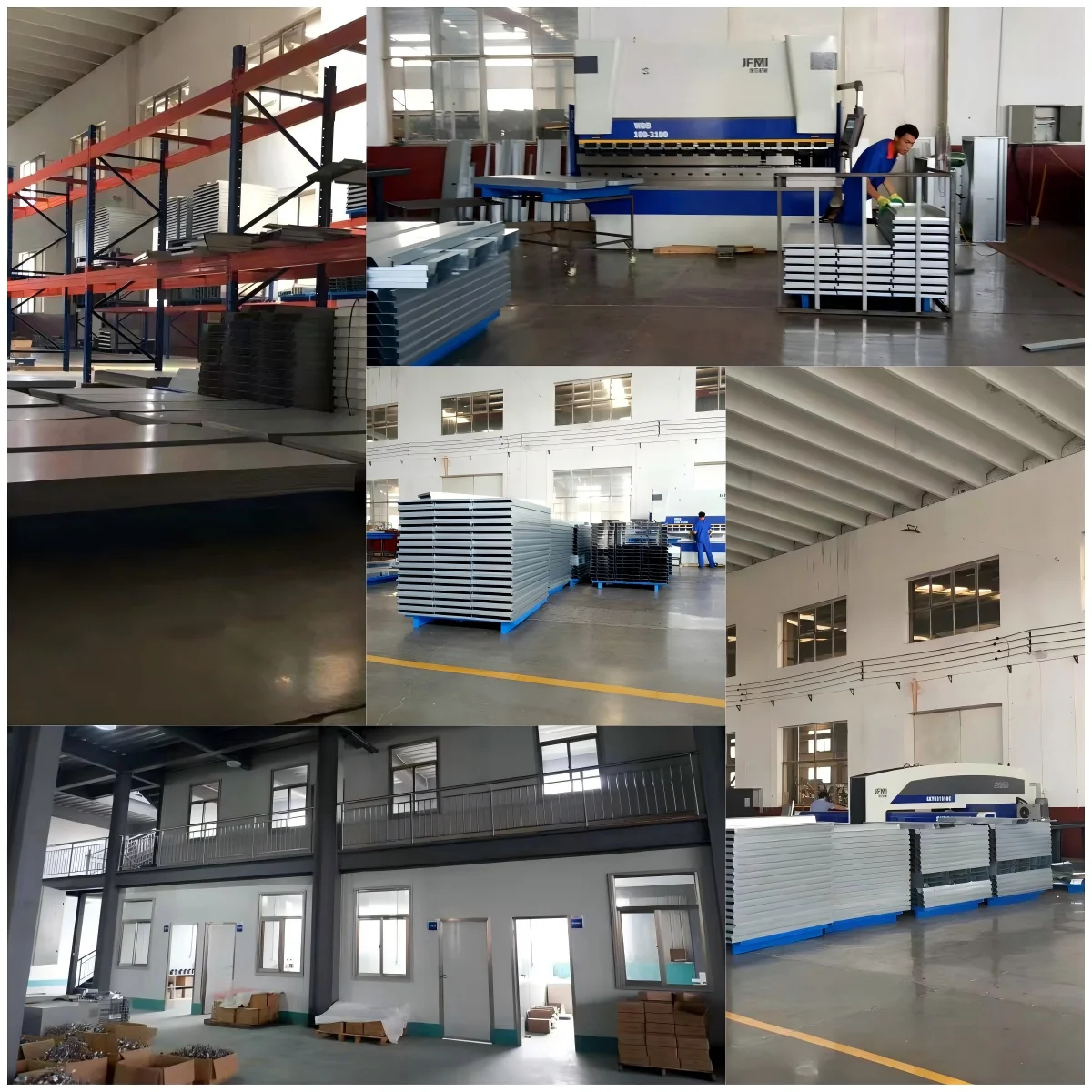

technological development of ventilation and refrigeration equipment, heating equipment and livestock machinery. We produce six series of "TENWIN" brand products with more than 20 specifications, including evaporative cooling pads, poultry and greenhouse exhaust fans, circulating fans,axial flow fans, heaters,water coolers,etc.which are widely used in agriculture, greenhouse, animal husbandry and other industries. Tengyun has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D, production, sales and maintenance services. At the same time, we provide OEM or ODM services for customers. The series of products have served all walks of life in the world, and have been exported to Asia, Africa, North America, including the United States, India, Vietnam, the Philippines,Thailand and other countries. We will recommend our best products to more countries and develop more distributors in many countries around the world. We are honored to with more international friends develop our glorious business.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $9 / piece
- 100+ piece: US $8.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this turbo adjustable air extractor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the turbo adjustable air extractor be supplied for my local voltage?
The standard configuration is NO. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

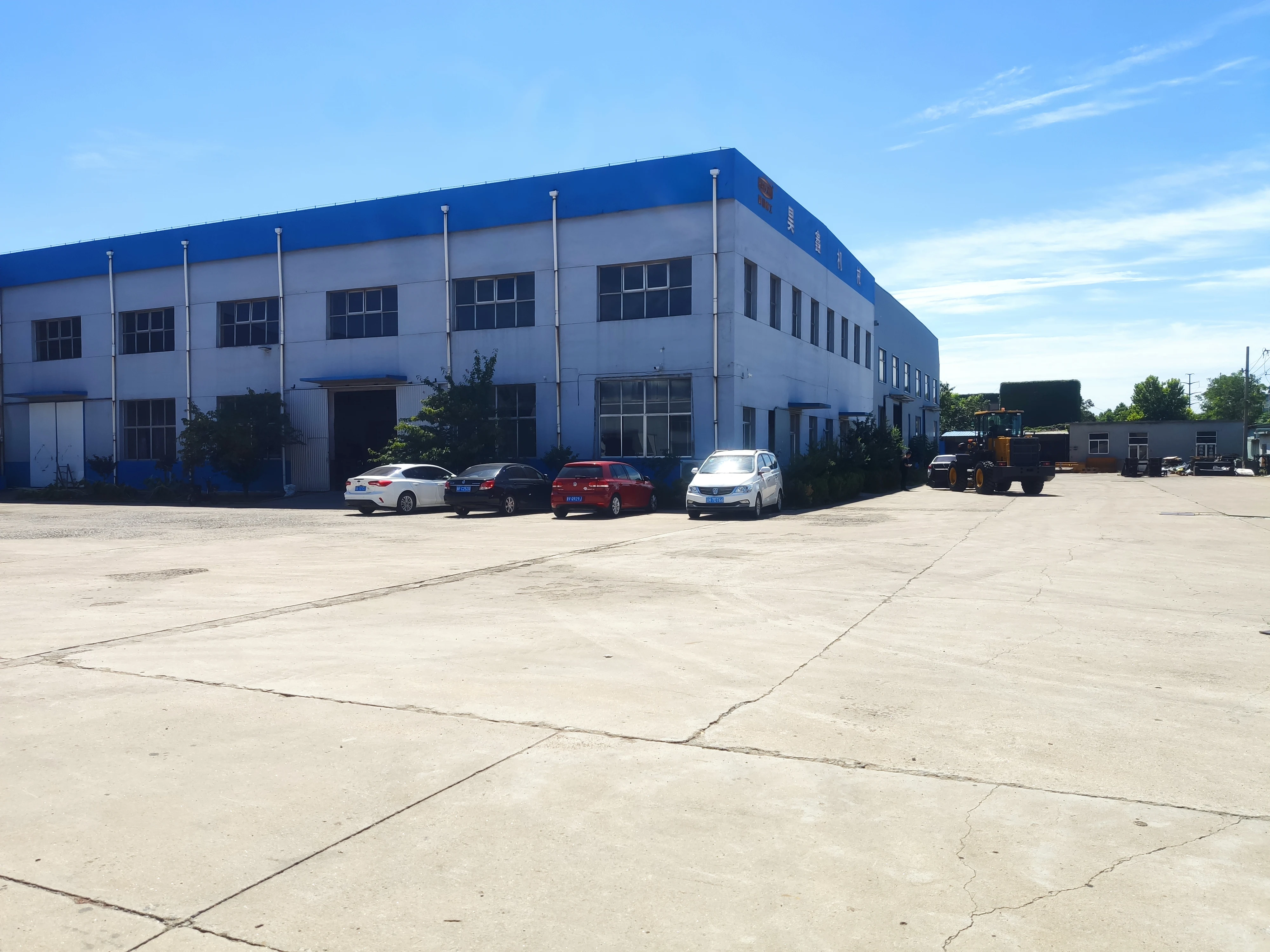

About the Manufacturer
This product is produced by Jinan Tengyun Environment Engineering Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company. Browse the full Jinan Tengyun Environment Engineering Co., Ltd. range on HVACR Nexus.
