Key specification for this two ball bearing: 28v, power source Electric. Everything below is reproduced from the factory data sheet. Made by Beijing Xinbao Jiaye Technology Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Two Ball Bearing

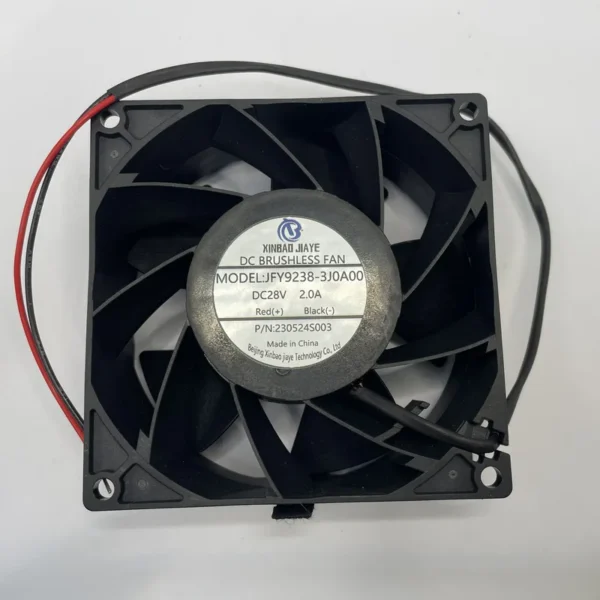

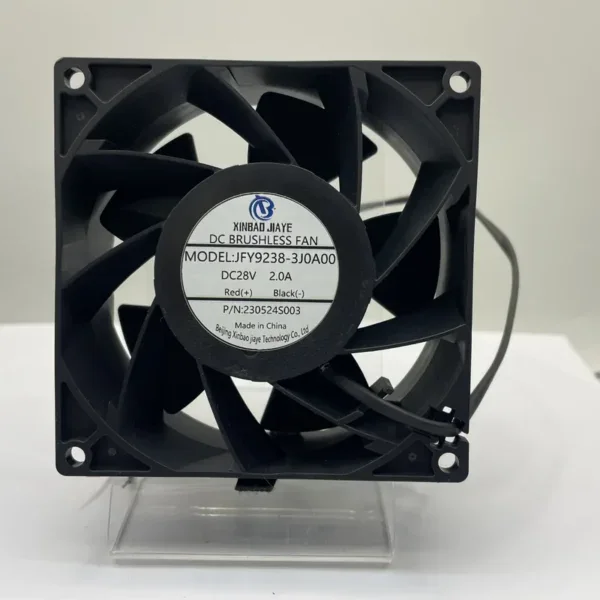

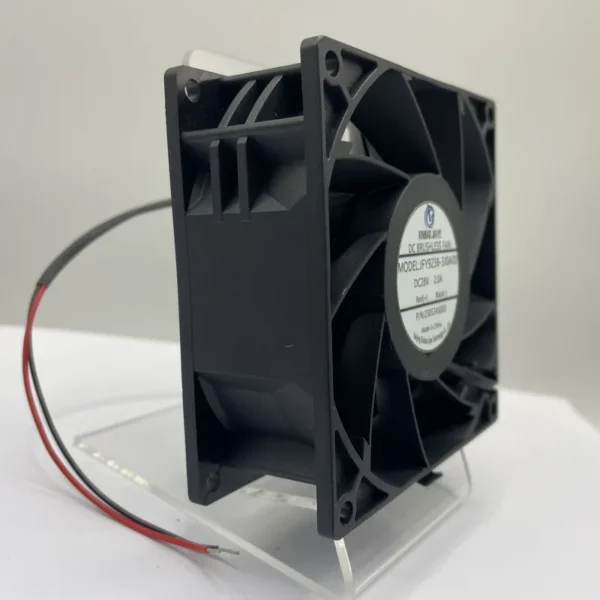

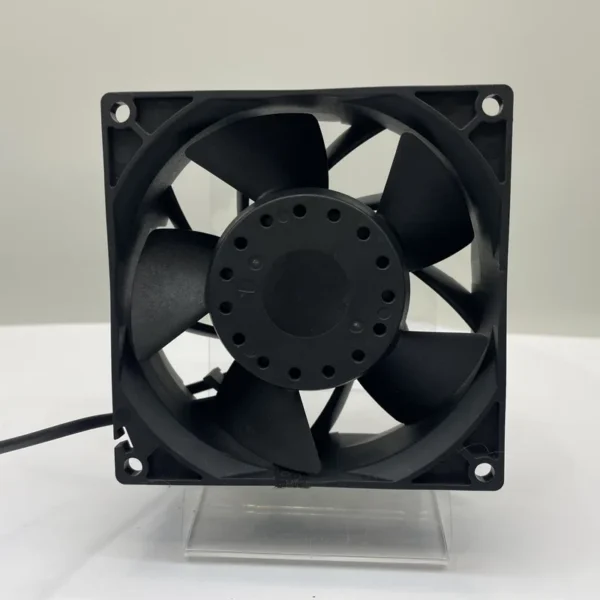

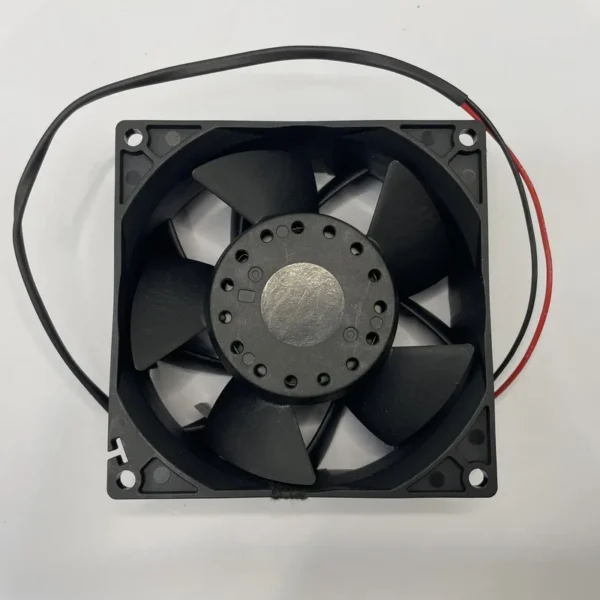

Model Number: JFY9238-3J0A00
Power Source: Electric
Voltage: 28v
Rated Voltage: 5/12/24/28/48v
Material: PBT
Blade Material: PBT
Technical Specifications
Voltage
28v
Speed
10000rpm
Type
dc cooling fan
Material
PBT
Blade Material
PBT
Mounting Type
Free Standing
Bearing Type
TWO BALL BEARING
Power Source
Electric
Warranty
1 Year
After-Sales Service Provided
Online support
Customized Support
ODM, OBM
Place Of Origin
Beijing, China
Brand Name
XinBaoJiaYe
Model Number
JFY9238-3J0A00
Function
PWM FG
Size
92*92*38MM
Rated Voltage
5/12/24/28/48v
Operating Temp. Range
(-20℃– 75℃)-40℃– 85℃
Waterproof Grade
IP55/IP68
Selling Units
Single item
Single Volume
0 cm³
Single Gross Weight
0.0 kg
Product Details
Product Description
Outline dimension drawing

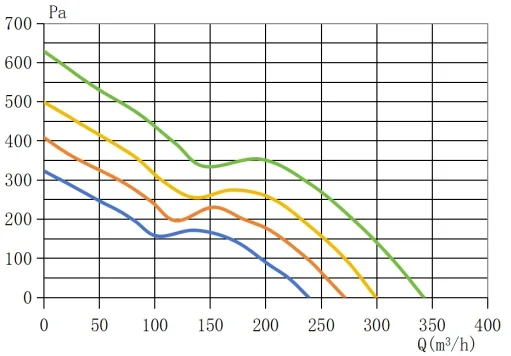

Airflow Characteristic Curve
Application areas
Our products are widely used in aviation, ships, drones, air purifiers, communication equipment, LED lights, medical equipment, printers, projectors, power modules, various electronic equipment, new energy vehicles, etc.
Fan detail disassembly drawing
Fan disassembly drawing
Integrated heat dissipation
PBT glass fiber material so that the fan is not easy to deform strong wind, mute effect is better
Motor housing
Stamping made of high-quality materials to ensure the stability of the fan at high speed
High efficiency and energy saving
The coil is made of pure copper wire and Baosteel material. The operating temperature of the click is greatly reduced. and lower current, thereby increasing the fan's Stability
PCB Circuit Board
The combination of glass fiber board and domestic chip makes the whole Fan power consumption is small and stable performance
Beijing Xinbao Jiaye Technology Co., Ltd. is a company specializing in the production and sales of DC axial flow fans, blowers, centrifugal/AC fans, heat dissipation modules, uniform temperature plates, and heat pipe heat dissipation integration companies. The company has assembly workshops and test centers, and has professional winding machines, dynamic balancing machines, full-automatic air volume test systems, semi-anechoic chambers, salt spray test chambers, low-high test chambers, damp-heat test chambers, high and low temperature impact test chambers, vibration test chambers, etc. Fan production is mainly based on the GJB7246 DC DC fan, GJB1423 AC fan series and GB/ T 40206 AC/DC industrial cooling fan. The company has always adhered to: science and technology as the leading, quality assurance, reputation as the first business purpose.
Our Professional Test Equipment
Noise Room
The finished fan will be put into this room to test the noise level
wind tunnel
Test the precise airflow and air pressure of the fan
High and low temperature test machine
We can test whether the fan can work at high or low temperature by putting the fan in it, Temperature range: -40 degrees to 100 degrees, and test the fan life at different temperatures
Packaging and Transportation
FAQ
1. What is a DC axial fan?
DC fans typically operate at 5V, 12V, 24V, and 48V. The role of the DC motor is to attract and repel the permanent magnets in the motor. Blowing along the fan axis or parallel to the blade axis to create a variable and stable airflow. Standard sizes for DC axial fans include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 172mm, and 254mm.
2. How to choose a DC fan? You need to consider the following points:
-Hydraulic bearing fan: life expectancy is 40000 hours,
-Ball bearing fan: The life expectancy is 50000 hours or more.
Ordering and Pricing
Minimum order quantity: 10 piece
Volume pricing:
10–999 piece: US $11.9 / piece
1000+ piece: US $9.6 / piece
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this two ball bearing?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the two ball bearing be supplied for my local voltage?
The standard configuration is 28v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
