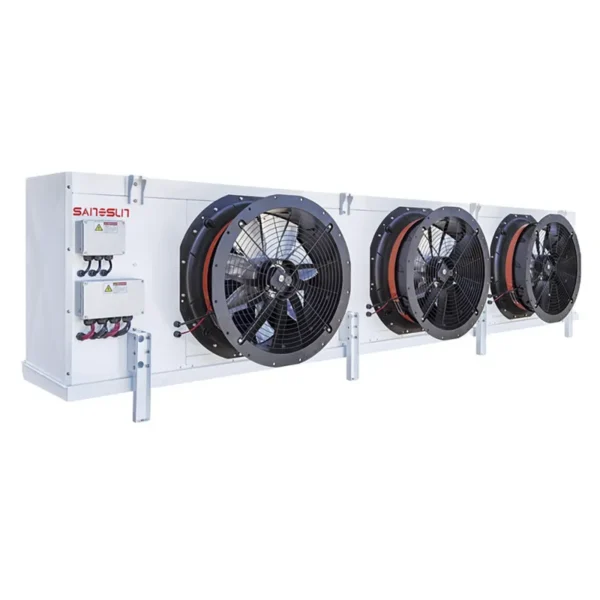

The unit cooler listed here carries 380V-440V/3Ph/50HZ-60HZ, material Copper, documented exactly as the manufacturer publishes it. Made by Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd. (6 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Unit Cooler
- Voltage: 380V-440V/3Ph/50HZ-60HZ
- Material: Copper
- Refrigerant: R404A
- Warranty: 2 Years
- Certification: CE ROHS
- Place Of Origin: ShanDong
Technical Specifications
| Application | Refrigeration Parts |
|---|---|
| Type | Evaporator |
| Warranty | 2 Years |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 200 |
| Place Of Origin | ShanDong |
| Brand Name | FENGSHUN |
| Product Name | Evaporator |
| Rating | SC3/-25℃/12.4KW |
| Model | SA1-R632D7EP |
| Brand | FENGSHUN |
| Refrigerant | R404A |
| Material | Copper |
| Voltage | 380V-440V/3Ph/50HZ-60HZ |
| Packing | Wooden Case |
| Certification | CE ROHS |
| Selling Units | Single item |
| Single Package Size | 182X85X100 cm |
| Single Gross Weight | 200.0 kg |
Product Details
Item | Description | Data | ||
1 | Product name | Air cooler / Evaporator | ||
2 | Brand | SUNESUN | ||

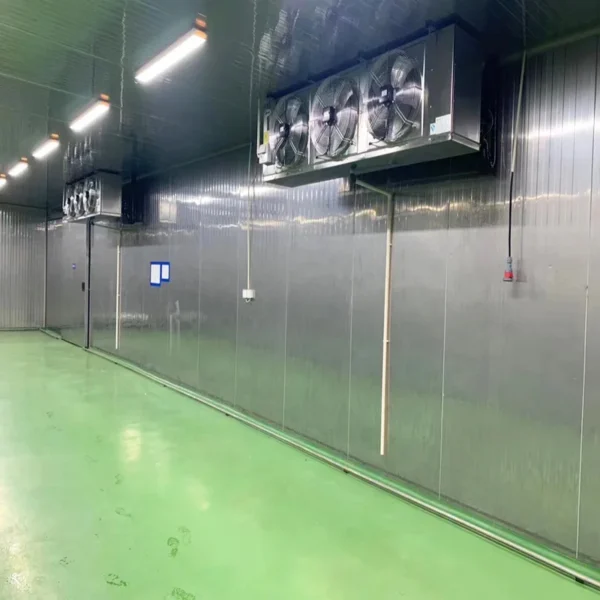

3 | Application | Used for cold room or freezer room 10℃/ 0℃ /-18℃ /-25℃/ -35℃ | ||
4 | Cooling capacity | From 3kW to 160kW | ||
5 | Fan motor diameters | 300mm / 350mm / 400mm/ 450mm / 500mm / 630mm / 710mm / 800mm | ||
6 | Motor fan brand | EBM / ZIEHL-ABEGG / Weiguang | ||
7 | 220V/380V/415V/440V/460V 50hz/60hz Single phase/three phase | |||
8 | Fin space | 4mm, 6mm, 7.5mm, 10mm | ||
9 | Fin material | Aluminum magnesium alloy/Stainless Steel | ||
10 | Tube | Copper / Stainless Steel | ||
11 | Refrigerant | R507A/R404A/Ammonia R717 | ||
12 | Shell material | Galvanized Steel / Stainless Steel of 201/ 304/ 316 | ||
13 | Main Market | Southeast Asia, Australia, America, Central America, Latin America, Africa, Europe, Middle East, etc | ||
14 | Certificate | CE、ISO9001 |
Applicable working temp | 10℃ | 0℃ | -18℃ | -25℃ | -34℃ |
Evaporation temp | 0℃ | -8℃ | -25℃ | -31℃ | -40℃ |
Temperature difference | 10K | 8K | 7K | 6K | 6K |
Superheat | 6.5K | 5.2K | 4.6K | 3.9K | 3.9K |
Condition code | SC1 | SC2 | SC3 | SC4 | SC5 |
Refrigerating capacity | range | Individual fan power | Air volume | |
SC1 | 3.21~120kw | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC2 | 2.56~85KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC3 | 2.24~62KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC4 | 1.95~54KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
SC5 | 1.24~45KW | 5~10M | 0.13~2.62KW | 5000~22000M³/H |
Q. How does the equipment operate ?
Q. How is the equipment model determined ?
Q. What is the quality of the product ?
Q. What are the trade options available ?
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $449 / set
- 5–9 set: US $432 / set
- 10+ set: US $429 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this unit cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this unit cooler carry?
It is supplied with CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the unit cooler be supplied for my local voltage?
The standard configuration is 380V-440V/3Ph/50HZ-60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd. range on HVACR Nexus.
