Key specification for this upright recirculating water chiller: voltage AC 110/220V, refrigerant type R410a. Everything below is reproduced from the factory data sheet. Made by Dongguan Spt Laser Technology Co., Ltd. (8 years on the platform, typical reply ≤12h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Upright Recirculating Water Chiller
- Voltage: AC 110/220V
- Refrigerant Type: R410a
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Certification: RoHS
- Place Of Origin: Guangdong, China
Technical Specifications
| Type | Water-Cooled |
|---|---|
| Voltage | AC 110/220V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Place Of Origin | Guangdong, China |
| Brand Name | SPT Laser |
| Dimension(L*W*H) | 58*29*47cm |
| Model | CW3000/CW5000/CW5300 |
| Frequency | 50/60Hz |
| Max Flow | 13L/min |
| Refrigerant Type | R410a |
| Charge | 380g |
| Color | White |
| After Warranty Service | Video technical support |
| Certification | RoHS |
| After-Sales Service Provided | Online support |
| Packaging Details | Carton wooden box foam packaging |
| Port Of Dispatch | Shenzhen, Hong Kong, Guangzhou, Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1000 sets per Month |
Product Details

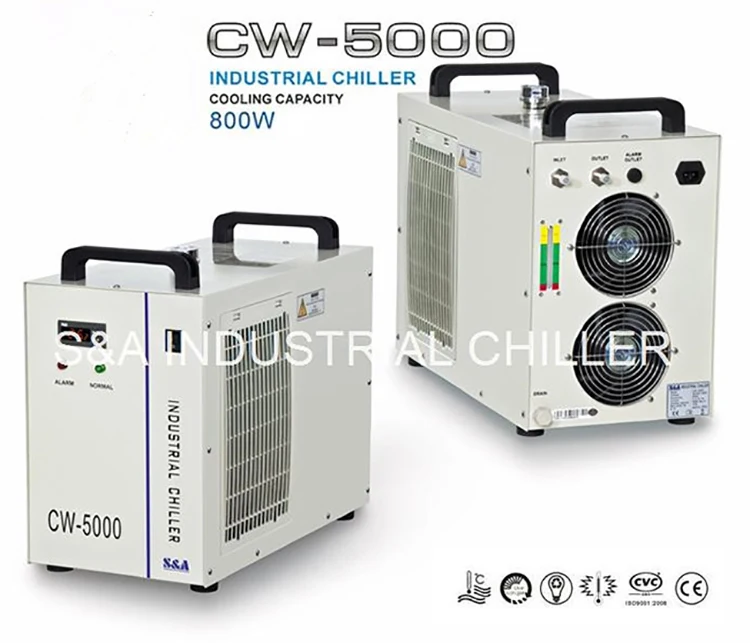

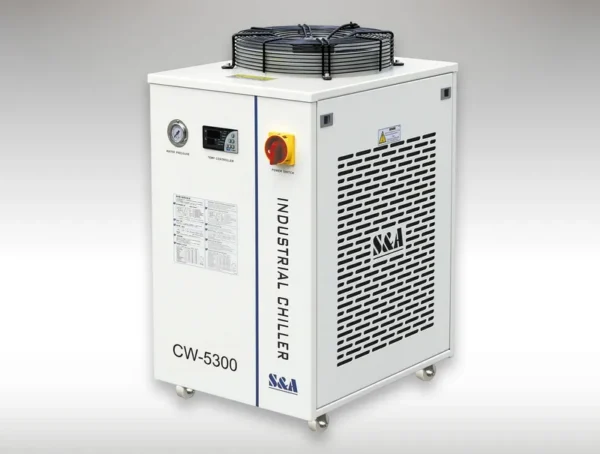

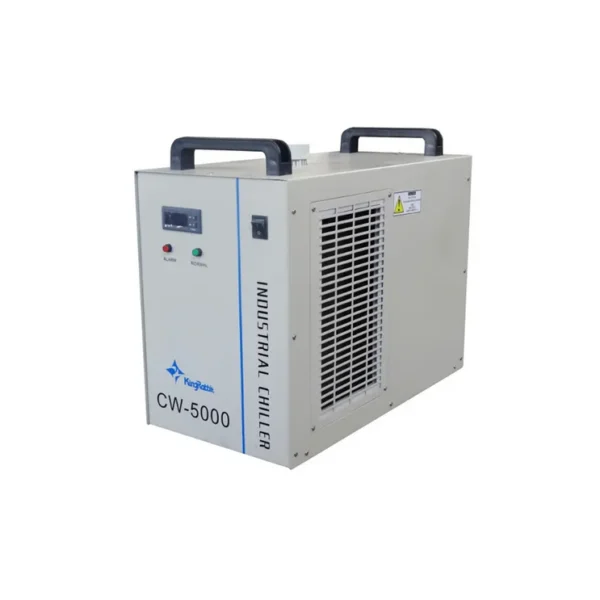

CW3000 CW5000 CW5300 Upright Recirculating Water Chiller Plant For Industrial Laser
SPT Laser is specialized in laser tube manufacture and laser technology for more than 10 years. We will provide the following services.
1. High Quality Products with Competitive Price.
2. All orders are guaranteed to be dispatched within 3 working days after payment.
3. If any quality problem confirmed during warranty, new laser tube for warranty replacement will be sent with your new order without extra charge.
| Model | CW-3000 | CW-5000 | CW-5200 |
| Voltage | AC 1P 220V | AC 1P 220V | AC 1P 220V |
| Frequency | 50/60Hz | 50Hz | 50Hz |
| Current | 0.45A | 1.4-2.1A | 2.4-3.1A |
| Compressor power | – | 0.295KW | 0.52KW |
| – | 0.40HP | 0.71HP | |
| Refrigerating capacity | – | 2361Btu/h | 5084Btu/h |
| – | 0.692KW | 1.49KW | |
| – | 595Kcal/h | 1281Kcal/h | |
| Refrigerant | – | R-134a | R-22/R-134a/R-410a |
| Filling quantity | – | 300g | 360g |
| Temperature control | – | ±0.3℃ | ±0.3℃ |
| precision | |||
| The pump power | – | 0.03KW | 0.03KW |
| Heat release | 50W/℃ | – | – |
| Water tank capacity | 9L | 6L | 6L |
| Max. lift | 10m | 10m | 10m |
| Max. flow | 10L/min | 10L/min | 10L/min |
| Alarm Signal | Flow alarm | Overcurrent protection for | Compressor overcurrent |
| compressor, flow alarm, | protection, | ||
| over temperature alarm | |||
| Net weight | 9.5Kg | 24Kg | 26Kg |
| Gross weight | 12Kg | 27Kg | 29Kg |
| Machine Size | 49*27*38cm(LxWxH) | 58*29*47cm(LxWxH) | 58*29*47cm(LxWxH) |
| Package size | 59*39*48cm(LxWxH) | 70*43*58cm(LxWxH) | 70*43*58cm(LxWxH) |
Features:
1. Radiating capacity: 50W / degree
2. Small thermolysis water cooler, energy saving, long working life and simple operation;
3. With completed water flow and over high temperature alarm functions;
4. Multiple power specifications; CE approval.
SPT Laser technology co,.itd always committed to manufacturing stable laser core for demanding applications. Leveraging our founders'10 years experience in laser industry and deep understanding of the client's point of view, SPT has raised the standard of quality manufacturing of an entire industry in just few years.
With professional and strong R&D, manufacturing, and sales teams, SPT has a full breadth of perspective on every aspect of laser industry. Focusing on our clients demanding needs, we consistently deliver "Build to Last" laser core. As a professional supplier of CO laser core, SPT offers comprehensive solutions, incorporating technology and manufacturing customizations matching industries and applications' demands.
SPT product portfolio includes CO laser tubes, CO RF laser tubes, CO laser lenses and mirrors, laser obstacle remover and other laser devices.
Our strict testing process and commitment to the highest international industry standards has led SPT to an un-matched manufacturing quality and highest possible product performance, certified by CNAS, CE, supported by several national technology patents. Our products are designed and tested against rigorous standards, and the entire production process is strictly managed under IS09001 quality management system and SGS.
SPT now aims to develop the most advanced and stable laser core ever conceived by balancing a culture of innovation, while striving for consistency and refined systematization of execution. We believe in growing together with our customers, providing high-quality solutions for demanding laser machinery makers and automation equipment integrators.
Our company will attend various laser and photonics exhibitions domestic and abroad every year to introduce our latest technology and products to customers. At the same time, we actively understand the latest information of the laser market and through continuous learning to create better products.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–49 set: US $780 / set
- 50+ set: US $160 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this upright recirculating water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this upright recirculating water chiller carry?
It is supplied with RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the upright recirculating water chiller be supplied for my local voltage?
The standard configuration is AC 110/220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
