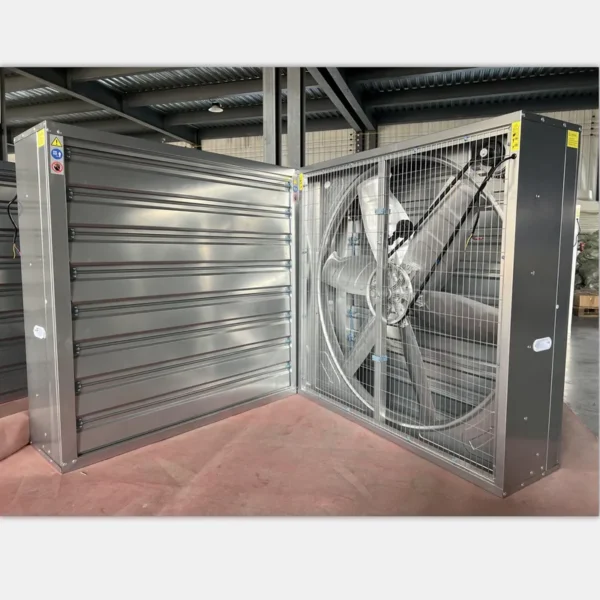

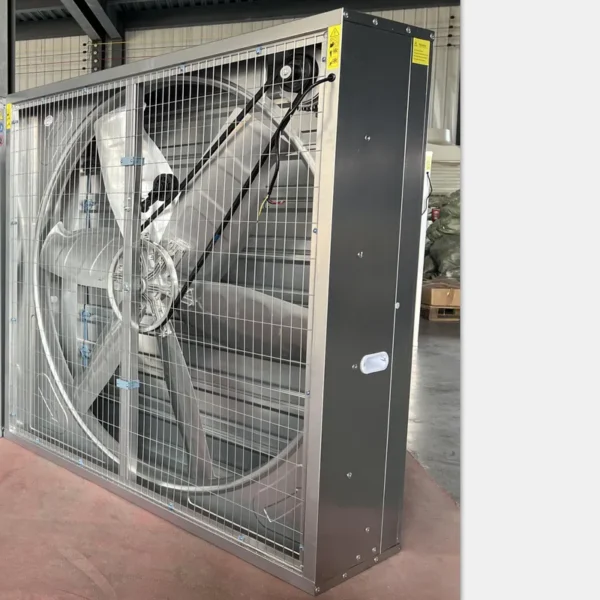

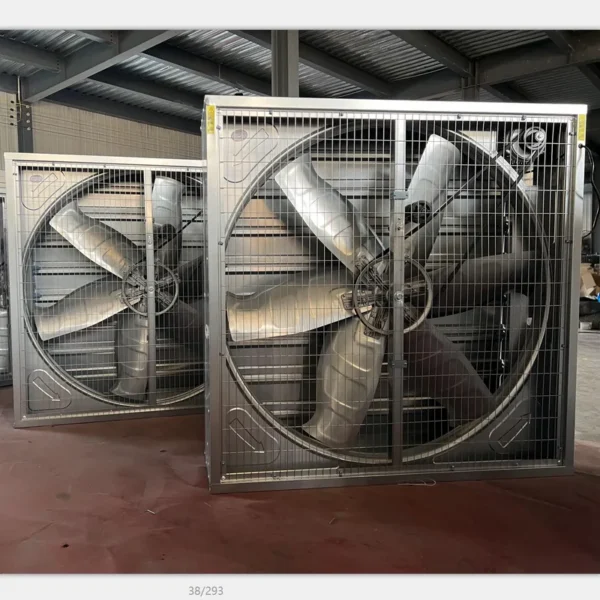

Ventilation Hammer Exhaust Fan, MUHE, AC 220V~240V, Electric

The ventilation hammer exhaust fan listed here carries voltage AC 220V~240V, power source Electric, documented exactly as the manufacturer publishes it. Made by Shandong Muhe Machinery Co., Ltd. (15 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ventilation Hammer Exhaust Fan

• Power Source: Electric
• Voltage: AC 220V~240V
• Rated Voltage: 230v/380v
• Blade Material: Stainless Steel
• Material: 275g Coating Weight Galvanized Sheet
• Warranty: 1 Year

Technical Specifications

Product Details

Products Description

SHANDONG MUHE Poultry Farming

Animal Husbandry Equipment Poultry Farm Fan

Model (Drop Hammer)	Blade Dia(MM)	Blade Rotational Speed(RPM)	Air Flow (M³/H)	Noise (DB)	Input Power (W)	Rated Voltage (V)	Size High-Wide-Thickness(MM)
MHB-620	500(20")	1400	5700	≤ 60	370	220/380	620-620-370
MHB-800	710(28")	650	18000	≤ 60	370	220/380	800-800-400
MHB-900	750(30")	650	20000	≤ 60	550	220/380	900-900-400
MHB-1000	900(36")	640	23000	≤ 60	550	220/380	1000-1000-400
MHB-1100	1000(39")	600	32500	≤ 60	750	220/380	1100-1100-400
MHB-1220	1100(43")	460	38000	≤ 60	1100	220/380	1220-1220-400
MHB-1380	1250(50")	439	44000	≤ 60	1100	220/380	1380-1380-400
MHB-1530	1400(55")	439	55800	≤ 60	1500	220/380	1530-1530-400

FAN MODEL	Dimention(MM)
		A	B	C	D	E
MHB-620  (20")	620	620	370	255	115
MHB-800  (28")	800	800	400	275	125
MHB-900  (30")	900	900	400	275	125
MHB-1000(36")	1000	1000	400	275	125
MHB-1100(39")	1100	1100	400	275	125
MHB-1220(43")	1220	1220	400	275	125
MHB-1380(50")	1380	1380	400	275	125
MHB-1530(55")	1530	1530	400	275	125

Main Feature

1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust;
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Details Images

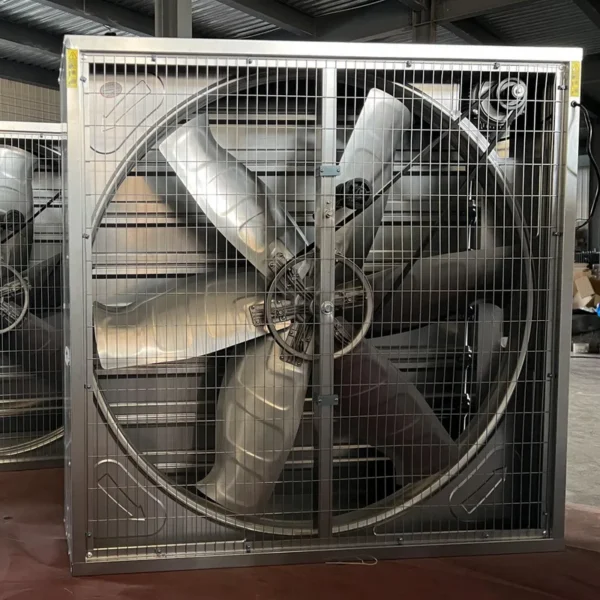

FAN BLADES

1. Material : Krupp 430 Stainless Steel, Thickness 1.2 mm

2. Diameter: 1250 mm
Advantage:
Large Air Flow, No Deformation, No fracture, No Dust, Attractive and Durable.
Note:
Blade Material Also Have Galvanized Sheet, Aluminum Alloy for Chooice.

BELT PULLEY

1. Material: High Strength Aluminum-Magnesium Alloy by Die-Casting.
2. Blast-Sanding Treatment, Eliminate Internal Stress to Improve Its Own Rigidity and Stability
Advantage:
Light Weight, Low Vibration ,Attractive appearance.

DYNAMIC-BALANCE TESTER

Fan Blades Are Adjusted by Dynamic-Balance Tester, the Weight Tolerance of Each Blade is Controlled Within 1 g.
Advantage:
Ensure the Fan Smooth Running, Lower Vibration, Less Noise, Increase Stability.

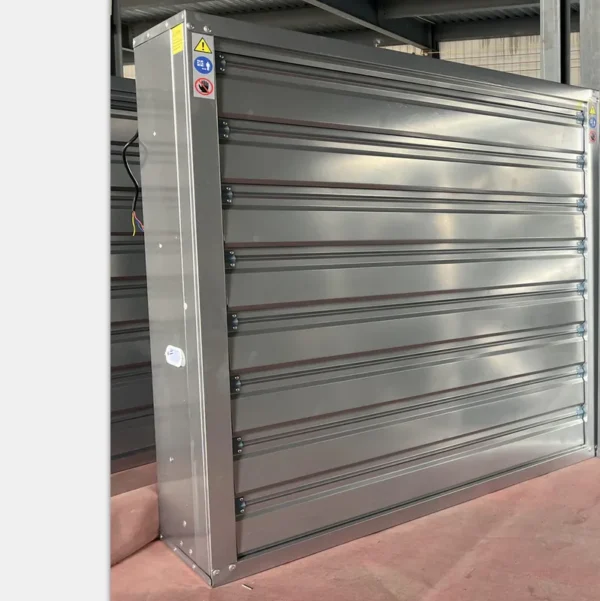

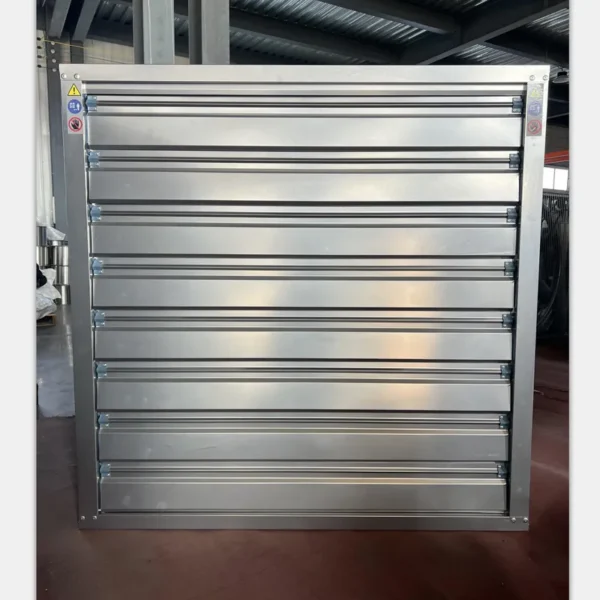

OPENING SYSTEM

1.Material: High Quality Nylon PA66
2.Guide Rod: 304 Stainless Steel with Special Material Outside, High Strength,No Rust, Reduce Friction.
3.Rivet: 304 Stainless Steel , Wear-Resisting, No Rust.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.

BEARING

Imported Double-Row Bearing With Special Waterproof Design.
Advantage:
High Strength, Low Noise, Free Maintenance and Long Service Life.

BELT

Brand: Mitsuboshi Belt (Japanese)
Type: A type
Advantage:
Famous Brand; Long Service life;

Maintenance Free.

SAFE NET

Material: Hot-Dip Galvanized Wire is Coated With Plastic
Advantage:
Double Protection to Ensure Never Rust.

BLADE SUPPORT BASE

1.Material: Aluminum Magnesium Alloy.
2. Type: Plug-In Connection
Advantage:
Compare With The Traditional Welding Connection , Our New Type Aluminum Magnesium Alloy Base Has Greatly Reduced the Friction Coefficient, Fixed More Firmly,

MOTOR

1. Brand: Chinese Famous motor,

Siemens & ABB & WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor Voltage and Frequency can be Customized.
100% Cupper Wire

Shandong Muhe machinery Co., Ltd is a company that engages in the research of air-flow
dynamics and environmental control.lt specializes in designing and manufacturing temperature controlling machineny. through intensive cooperation with renowned universities in China, our company has established a research institute that combines the aspects of study, research and production in order to develop innovations in machinery involved with ventilation and heating as well as products for poultry facilities. With the help of CAD software and advanced technology abroad, we aim to design products that exhibit energy saving properties that operate with high efficiency, all while maintaining environmental friendliness.
Shandong Muhe Machinery Co., Ltd is a pioneer and leader in the industry of ventilating, cooling and heating equipment that is used in workshops, conservatories and standard poultry shacks.
Muhe provides products in six series, as well as over thirty types of devices to include poultry fans,cooling pads, negative pressure blowers,gardening fans, roofing automatic ventilation devices,axial flow fans, air fumnaces, various tvpes of feeding eauipment and So on. These products can be widely used in a variety of settings within both agriculture and industry.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–49 set: US $120 / set
  • 50–99 set: US $105 / set
  • 100–299 set: US $85 / set
  • 300+ set: US $66 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ventilation hammer exhaust fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ventilation hammer exhaust fan be supplied for my local voltage?

The standard configuration is AC 220V~240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shandong Muhe Machinery Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Muhe Machinery Co., Ltd. range on HVACR Nexus.
