Manufactured by XICHENG EP LTD, this vertical pressure leaf filter is documented here exactly as the factory publishes it. Supplier profile: 7 years on the platform, factory-assessed. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Vertical Pressure Leaf Filter
- Warranty: 1 Year
- Place Of Origin: China
- Single Package Size: 100X100X100 cm
- Weight (Kg): 200 kg
- Single Gross Weight: 200.0 kg
- Core Components: fan
Technical Specifications
| Core Components | fan |
|---|---|
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 1 Year |
| Purify Efficiency | 90% |
| Weight (Kg) | 200 kg |
| Place Of Origin | China |
| Brand Name | XICHENG |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 200.0 kg |
Product Details
Product Overview

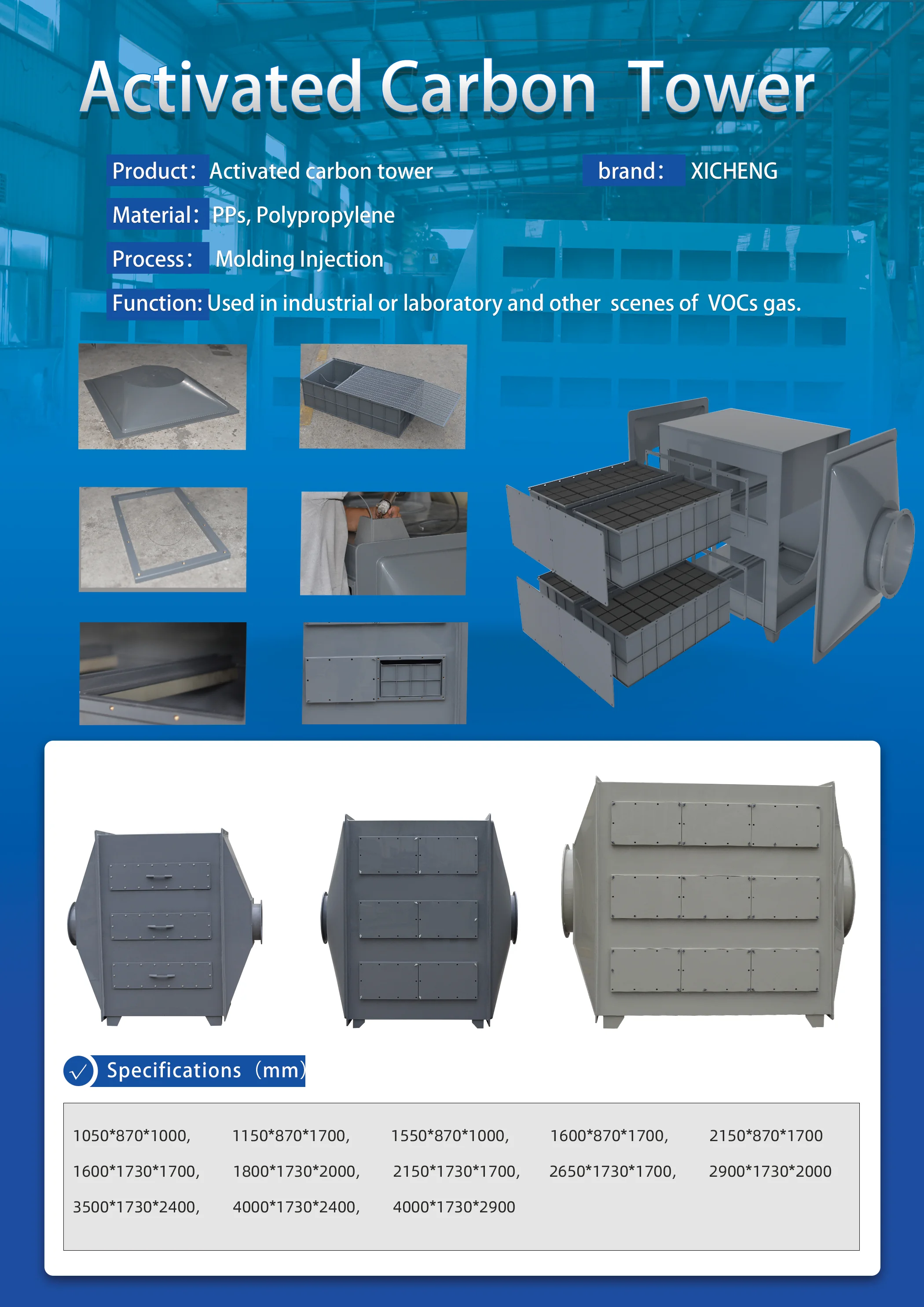

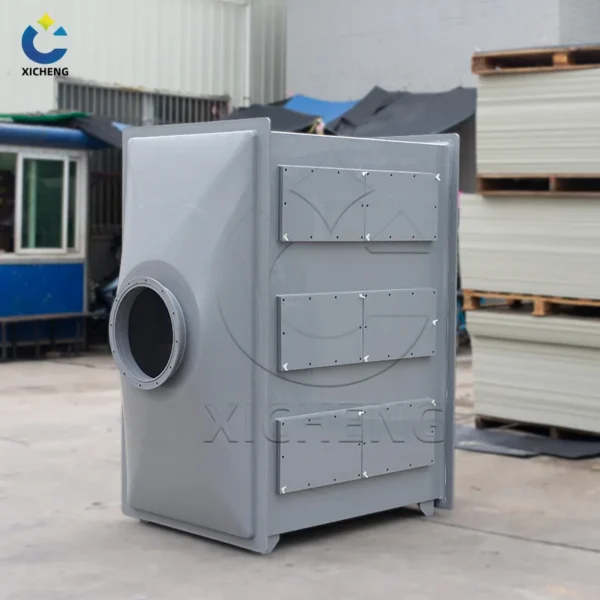

Activated Carbon Absorption Device
Activated carbon adsorption tower, which is a dry exhaust gas treatment equipment. It is not only a high-efficiency, economical and practical organic waste gas purification and treatment equipment, but also an environmental protection equipment product for waste gas filtration and adsorption of peculiar smell. The device is an adsorption device for purifying high-concentration organic waste gas and paint spraying waste gas.
Principle
The scrubber body includes exhaust gas inlet, packing layer, spray sprinkler, defogging layer, window, discharge port, maintenance port, support and fixation inside the PP scrubber.

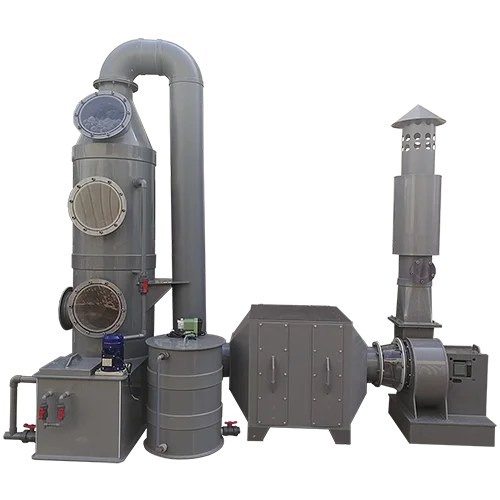

The industrial waste gas enters the tower and fully contacts with the cleaning liquid in the tower to produce changes to achieve the treatment and purification effect. It can remove impurities and dust, purify the gas, and finally meet the emission requirements. The purification tower as a whole includes a tower body, a filling layer, a defogging layer, a circulating sprinkler pipeline, and a circulating water tank.Application field of activated carbon absorption device
Painting room, printing plant, feed factory, fish meal factory, plastic processing plant, oil refinery, rubber factory, chemical plant, pharmaceutical factory, sewage treatment plant, garbage transfer station, chemical plant, leather factory, and the use of a variety of organic solvents from the project exhaust gas. This kind of gas contains a variety of organic solvents, inorganic and organic sulfide, hydrocarbons, chlorine, oil, mercury and other components harmful to the environment, can be used after the adsorption of activated carbon emissions.
FEATURES AT A GLANCE

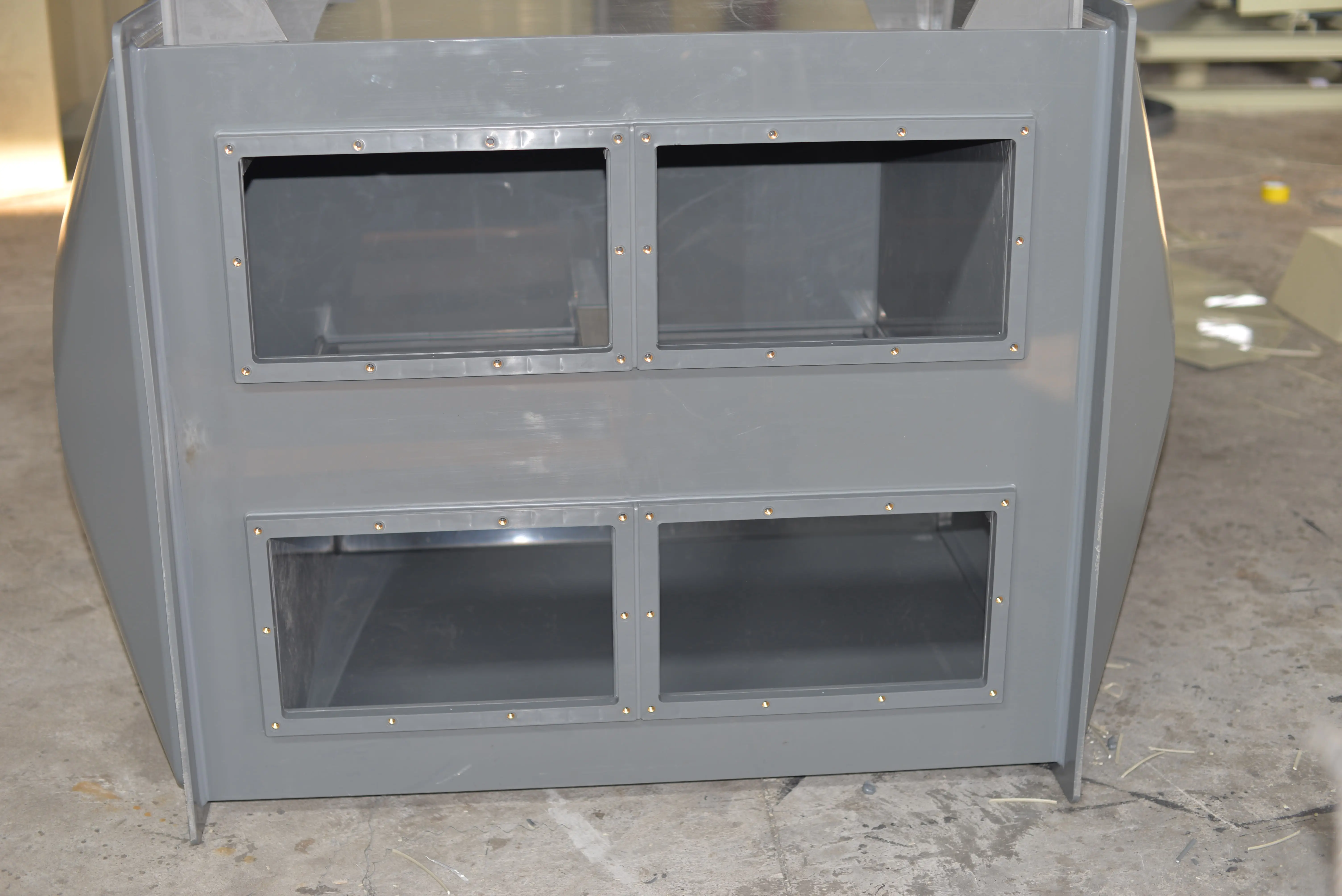

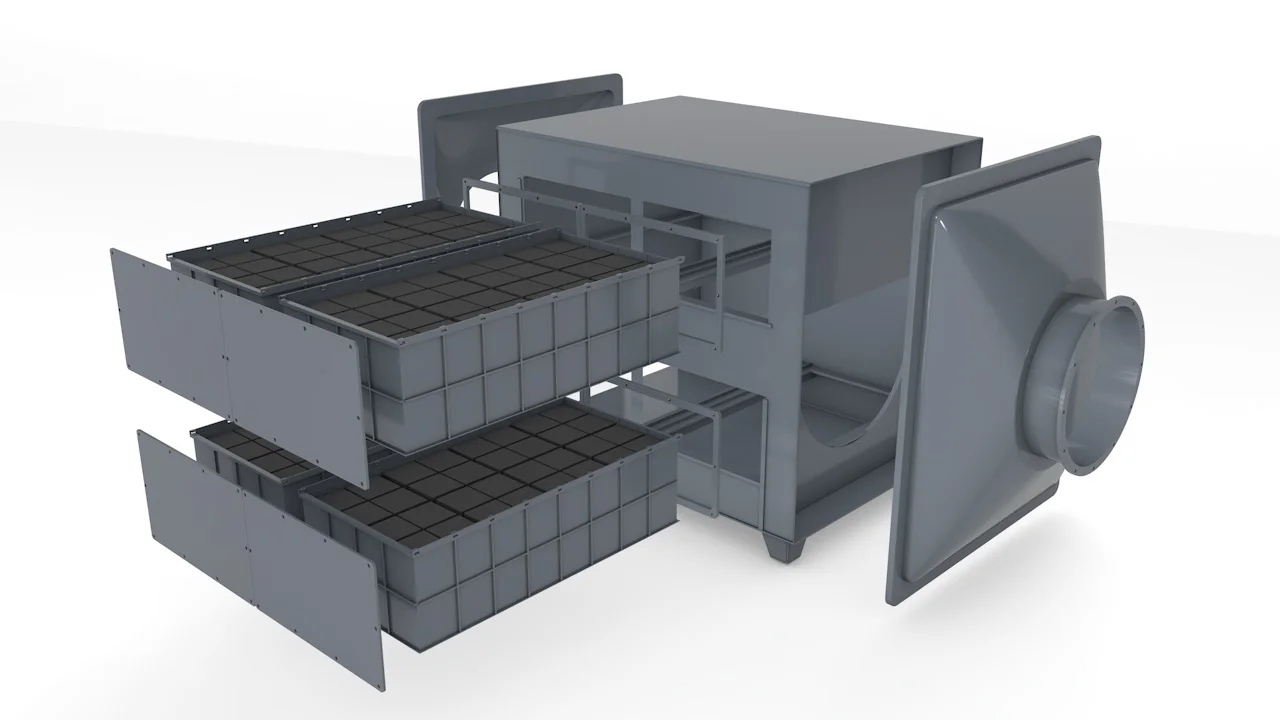

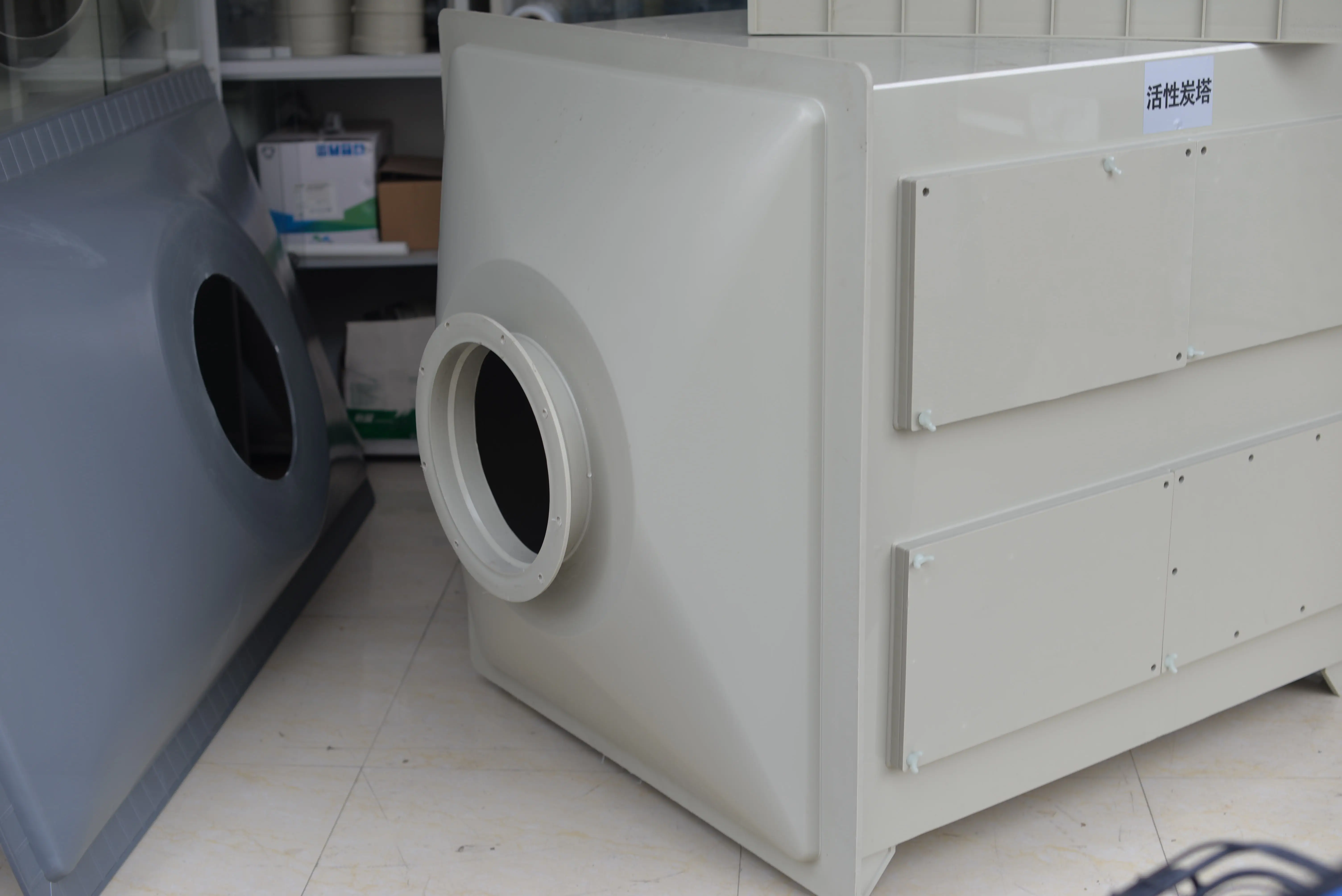

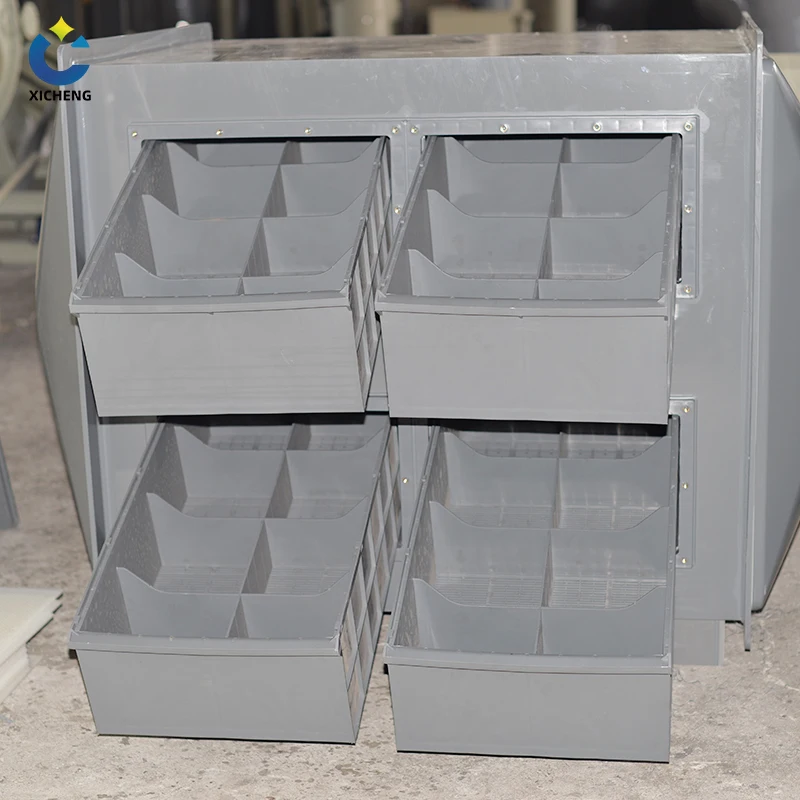

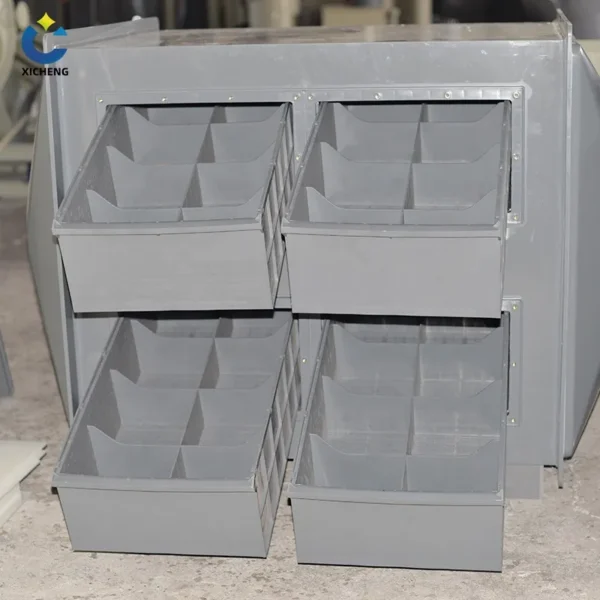

The activated carbon box (activated carbon absorption tower) is divided into a box body and a carbon box. According to the air volume and size, the box can be made into one, two or more cells. The upper part of the box body is the inlet and the bottom is the outlet.The inlet and outlet are combined by blind screws. The two ends of the box body are the air inlet and the air outlet, which can be made into a round or square shape as required. The box can also be connected to other equipment with flanges.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Air volume (m³/h) | Specification (mm) | Number of Drawers | Passing Area (m²) |
1 | 0-2500 | 1050*870*1000 | 2 | 0.64 |
2 | 2500–3500 | 1150*870*1700 | 3 | 0.96 |
3 | 3500–5000 | 1550*870*1000 | 4 | 1.28 |
4 | 5000–7000 | 1600*870*1700 | 6 | 1.92 |
5 | 7000–10000 | 2150*870*1700 | 9 | 2.88 |
6 | 10000–14000 | 1600*1730*1700 | 12 | 3.84 |
7 | 14000-18000 | 1800*1730*2000 | 16 | 5.12 |
8 | 18000–22000 | 2150*1730*1700 | 18 | 5.76 |
9 | 22000–28000 | 2650*1730*1700 | 24 | 7.68 |
10 | 28000–35000 | 2900*1730*2000 | 32 | 10.24 |
11 | 35000–45000 | 3500*1730*2400 | 40 | 12.8 |
12 | 45000–55000 | 4000*1730*2400 | 48 | 15.36 |
13 | 55000–60000 | 4000*1730*2900 | 60 | 19.2 |
Successful Project
BYD COMPANY LIMITED from China
Project name : Washing tower & activated carbon filter
Efficiency : more than 95%
Terms of cooperation : long-term cooperation
Cooperation background: Our cooperation with BYD Company is mainly the laboratory waste gas treatment project and the paint shop exhaust emission project
Efficiency : more than 95%
Terms of cooperation : long-term cooperation
Cooperation background: Our cooperation with BYD Company is mainly the laboratory waste gas treatment project and the paint shop exhaust emission project
Huawei Technologies CO LTD from China
Project name : Washing tower & activated carbon filter
Efficiency : 80%-95%
Terms of cooperation : long-term cooperation
Cooperation background: We cooperate with Huawei Company mainly for laboratory waste gas treatment project.
Efficiency : 80%-95%
Terms of cooperation : long-term cooperation
Cooperation background: We cooperate with Huawei Company mainly for laboratory waste gas treatment project.
Tazmeen Shefahsp Trade Co.ltd from Spain
Project name : Washing tower and fume purification equipment
Efficiency : more than95%
Cooperation background: Our cooperation with Tazmeen Shefahsp Trade Co.ltd is mainly based on acid waste gas.
Efficiency : more than95%
Cooperation background: Our cooperation with Tazmeen Shefahsp Trade Co.ltd is mainly based on acid waste gas.
Ventilation & Engineering ltd from Israel
Project : Acid fog waste gas treatment , two washing towers in series + activated carbon filter
Efficiency : more than 90%
Cooperation background: We cooperate with Ventilation & Engineering ltd mainly for acid-alkaline exhaust gas, and generally use spray tower in series to neutralizethe reaction.
Efficiency : more than 90%
Cooperation background: We cooperate with Ventilation & Engineering ltd mainly for acid-alkaline exhaust gas, and generally use spray tower in series to neutralizethe reaction.
Company Profile
XICHENG Profile
XICHENG EP (CN) LTD located in Shenzhen, China. It's a comprehensive exhaust gas treatment equipment and accessories processing enterprise integrating equipment research and development, equipment manufacturing, product sales and after-sales service. Our company's main products: Wet scrubber, activated carbon adsorption, ventilation pipe and a series of plastic injection molded parts and processing parts, etc.

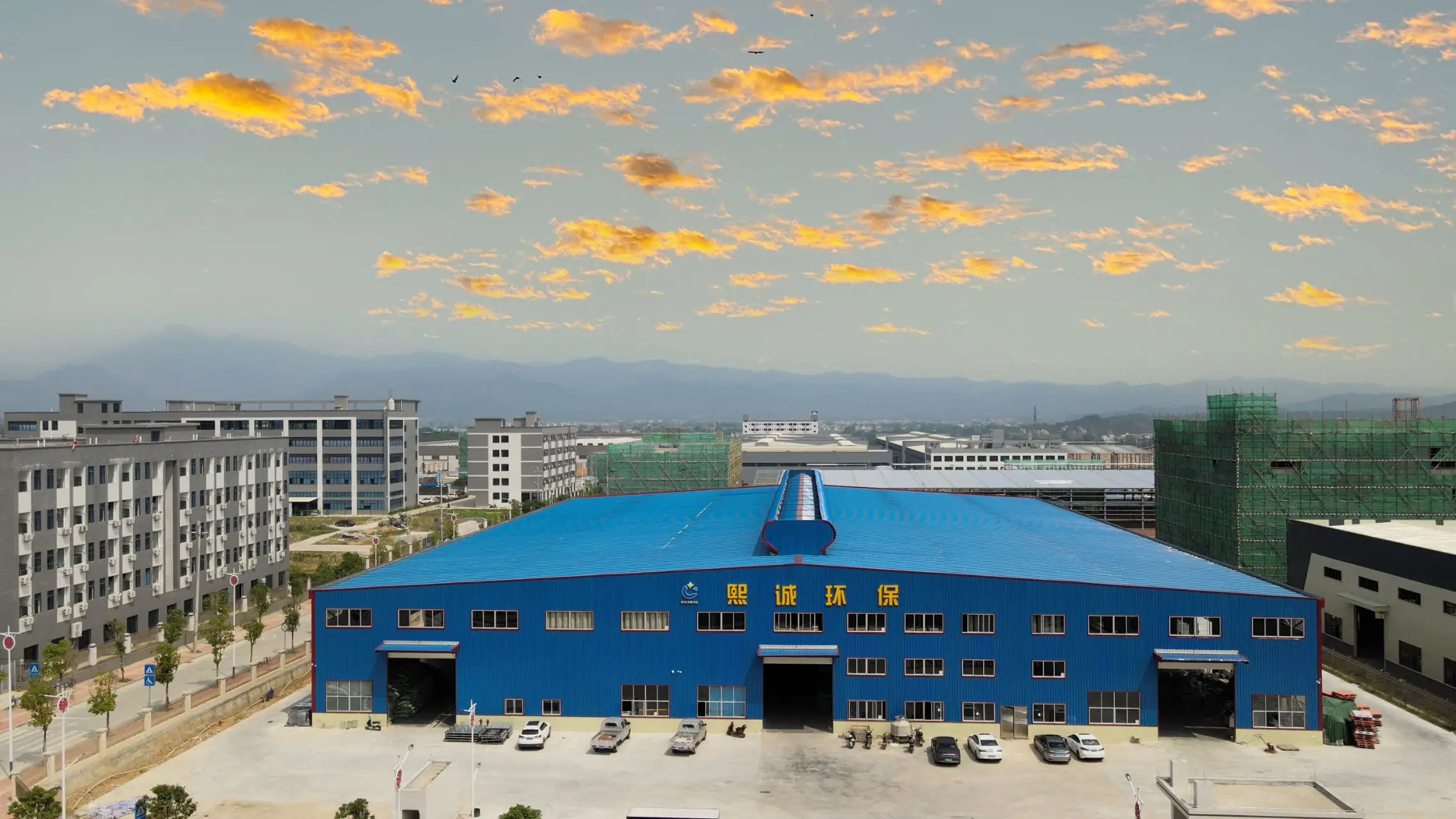

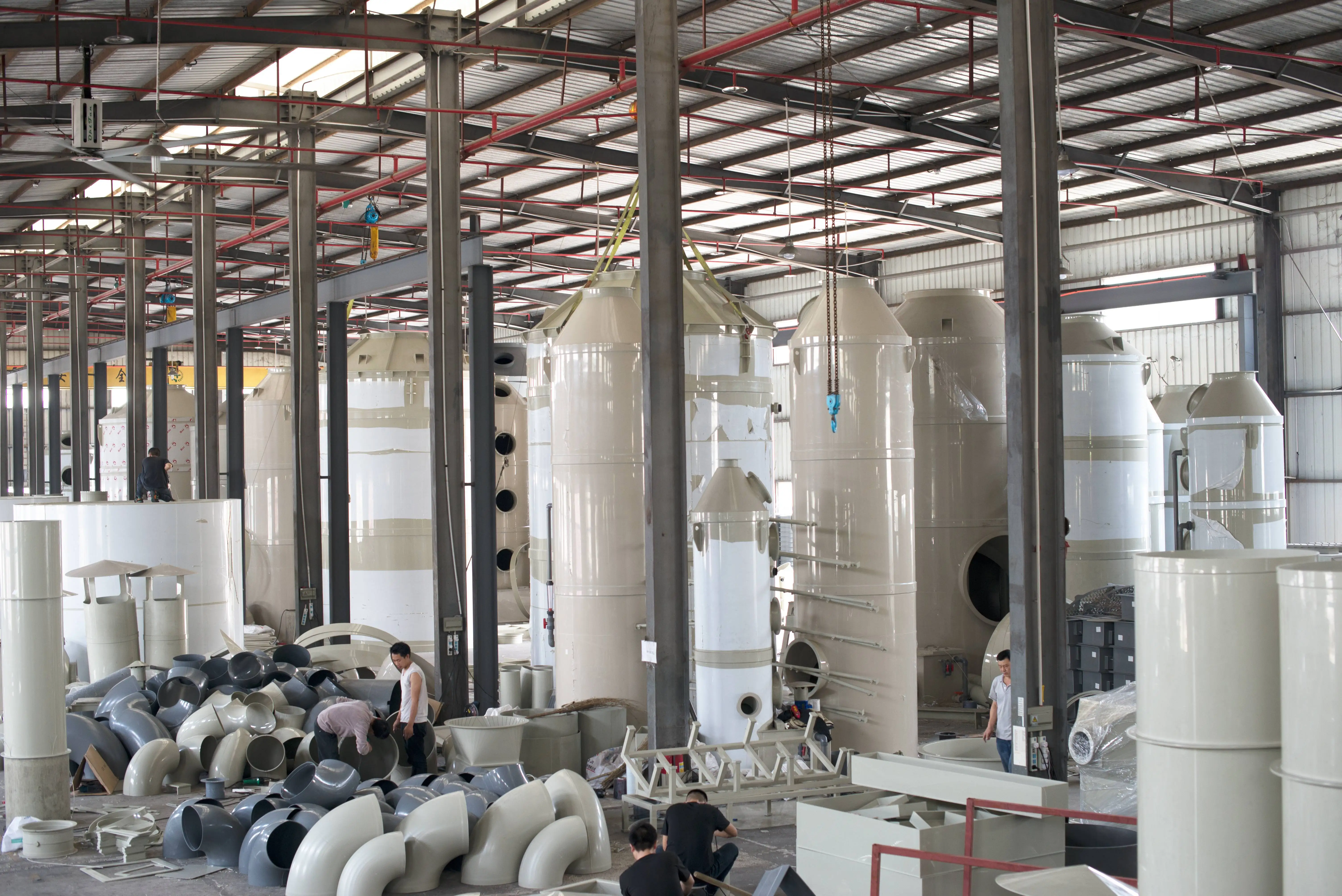

manufacturing shop

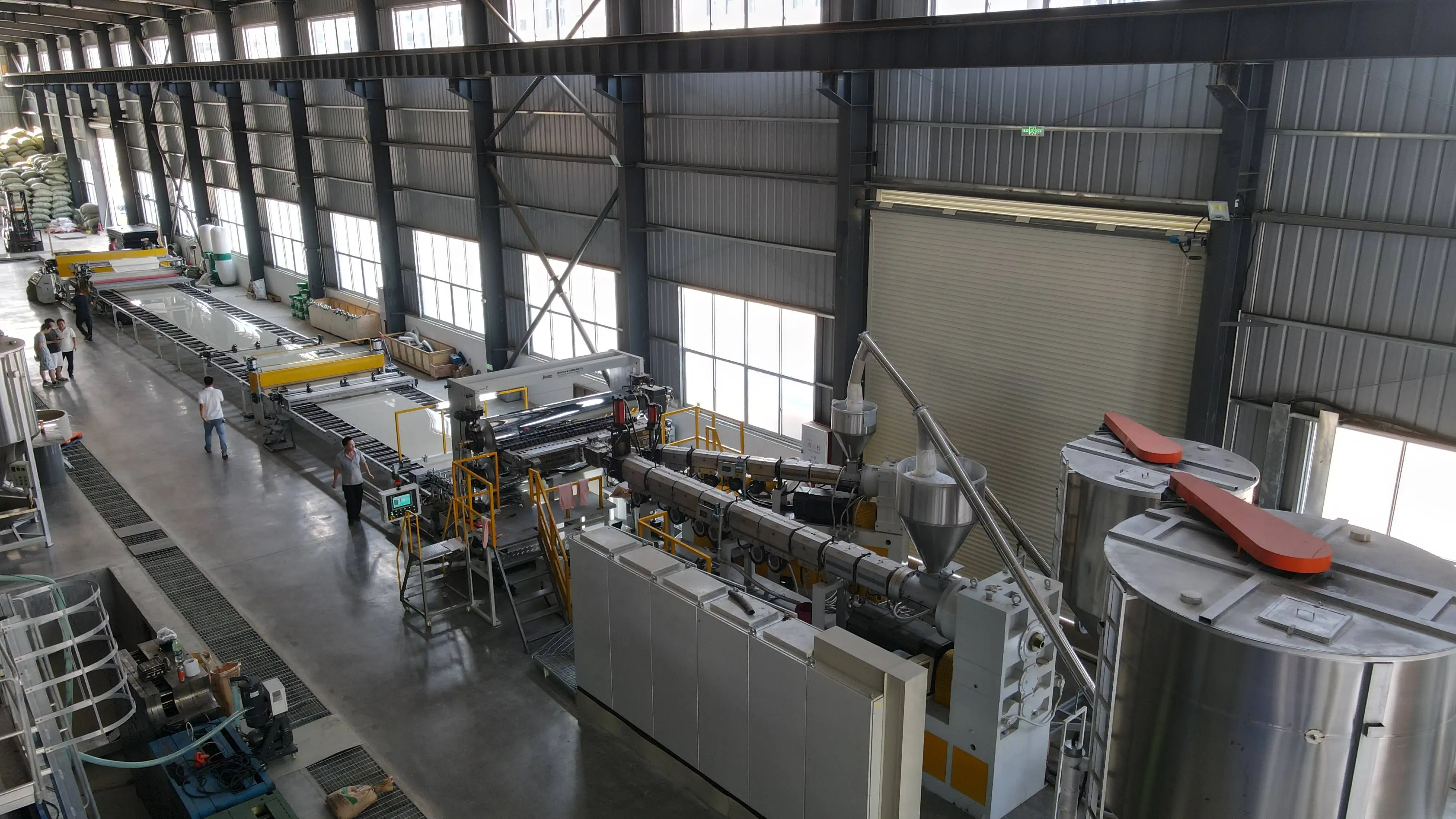

PP sheet machine workshop

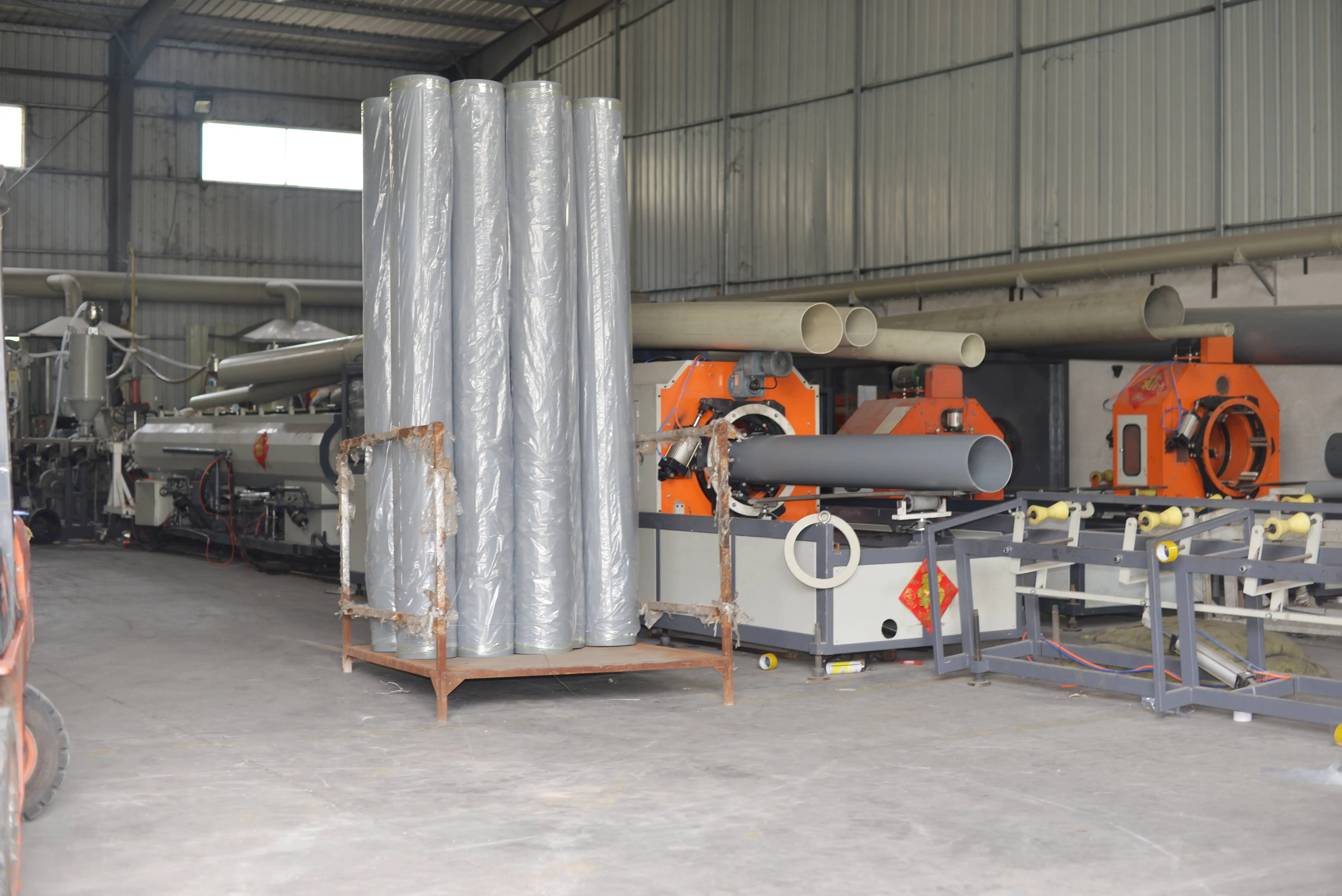

PP pipe machine workshop

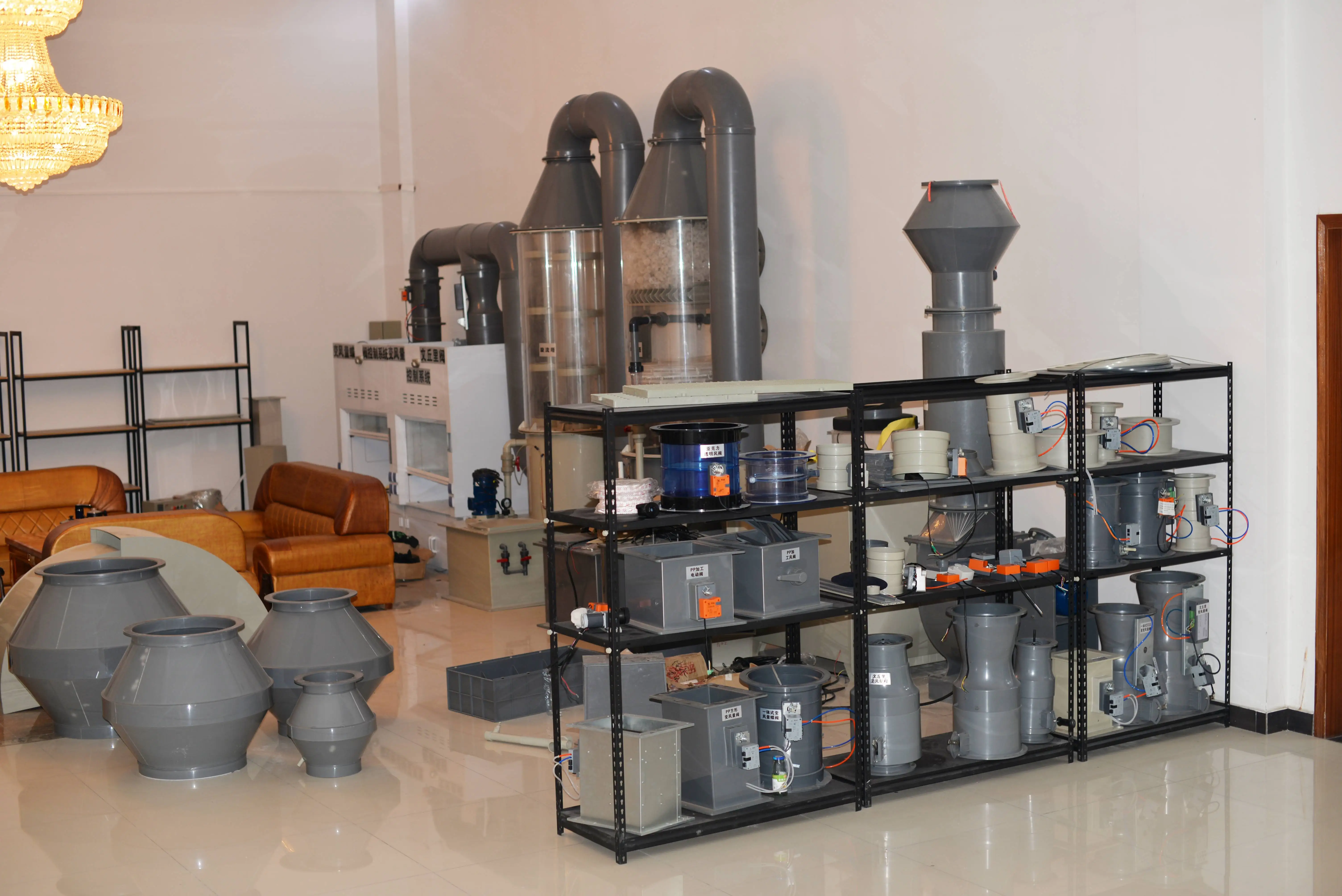

Exhibition area

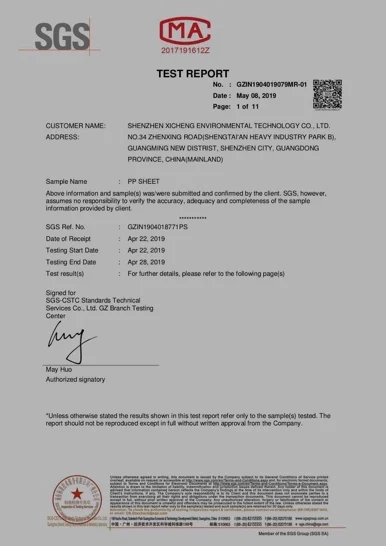

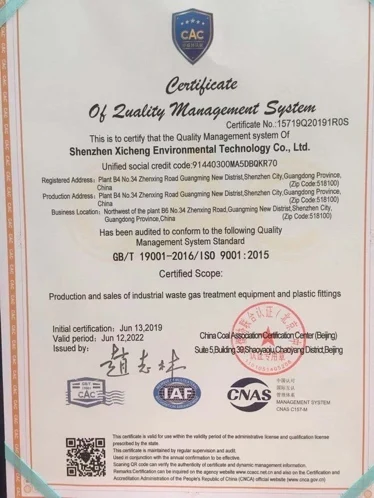

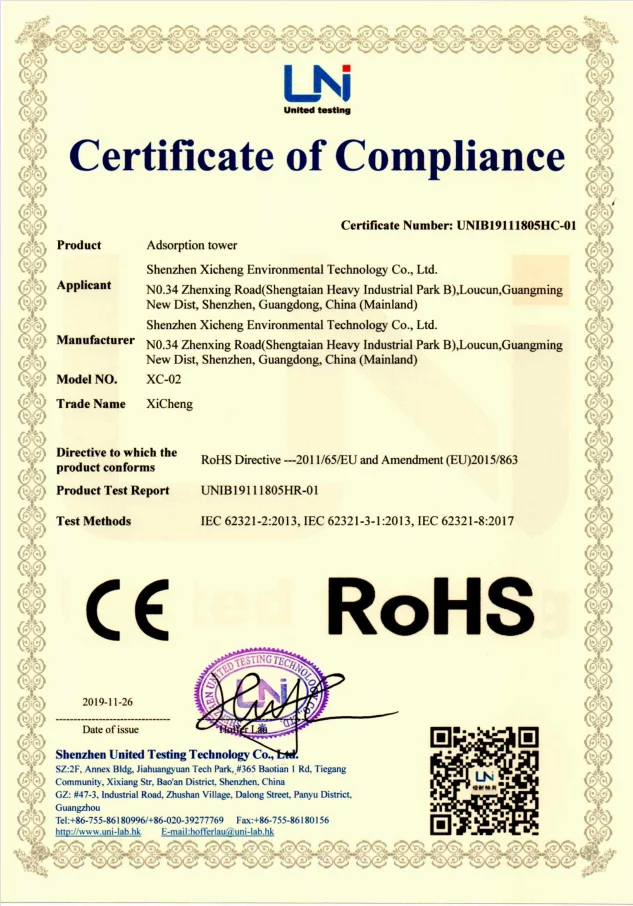

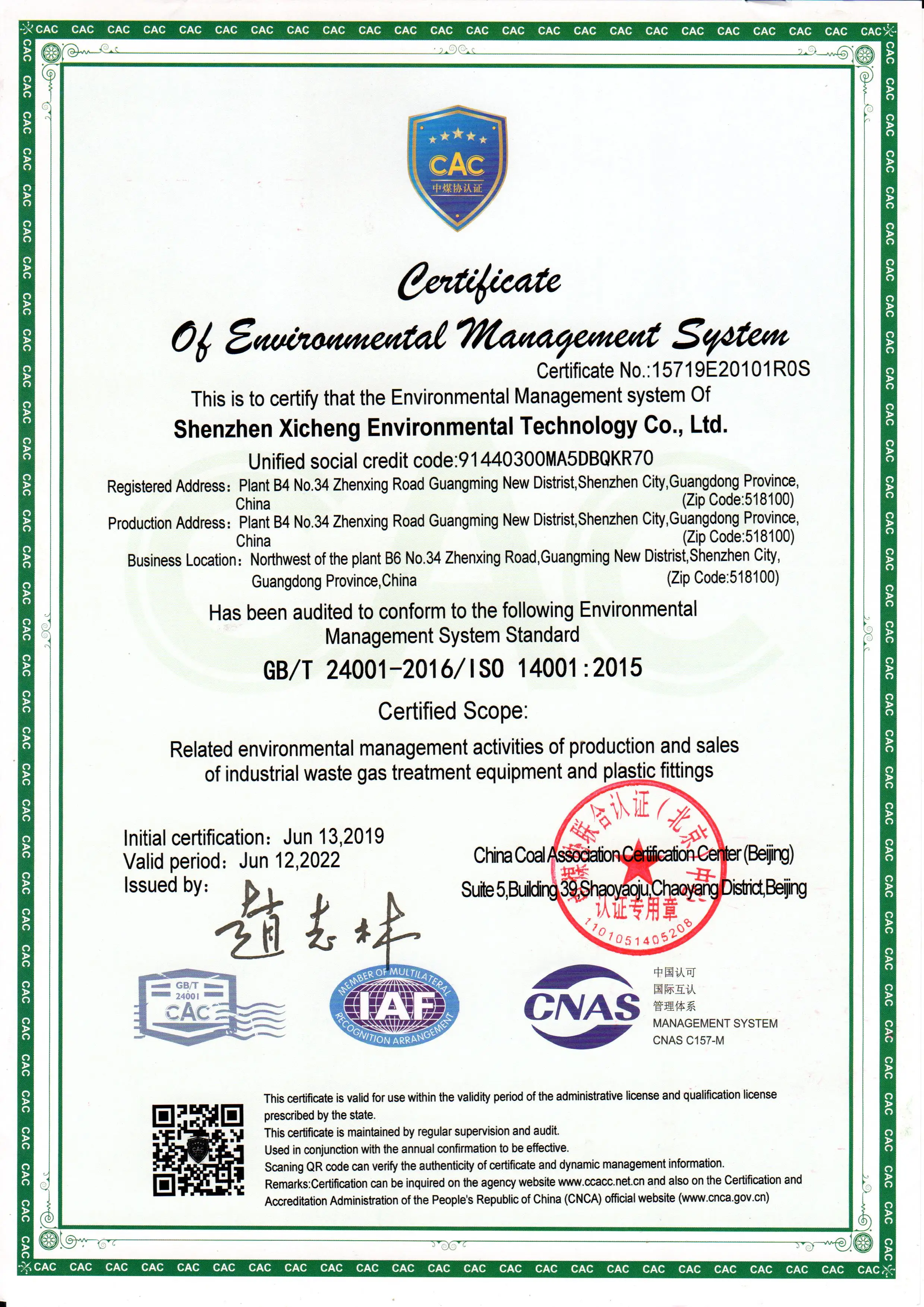

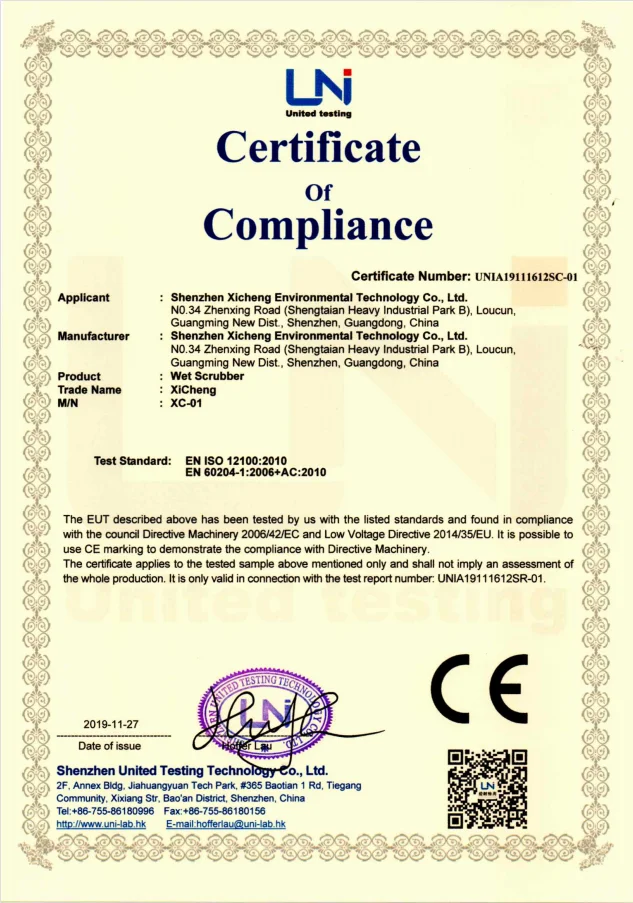

Certification
Office1
Office2
FAQ
Q1: Are you a trading company or manufacture?
A: We are manufacture; we have our professional manufacturing teams and technicians.
A: We are manufacture; we have our professional manufacturing teams and technicians.
Q2: How long is the warranty of your equipment?
A: One year warranty, in the meanwhile, quality inspection before delivery, during the warranty period, we can replace the damaged consumables for free.
A: One year warranty, in the meanwhile, quality inspection before delivery, during the warranty period, we can replace the damaged consumables for free.
Q3: What if the product needs repair after the warranty period?
A: after the warranty period, we have a good price for consumables for our customers.
A: after the warranty period, we have a good price for consumables for our customers.
Q4: Is overseas after-sales service available?
A: Yes, and after installation we will teach you basic operation and maintenance method.
A: Yes, and after installation we will teach you basic operation and maintenance method.
Q5: May I customize my own equipment?
A: Yes, please inform us your needs in details and we will design the facility per your data.
A: Yes, please inform us your needs in details and we will design the facility per your data.
Q6: Do you have technical support?
A: Our Company is responsible for installation and debugging of equipment, meanwhile, responsible for the technology and operationtraining for user operator.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this vertical pressure leaf filter?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
