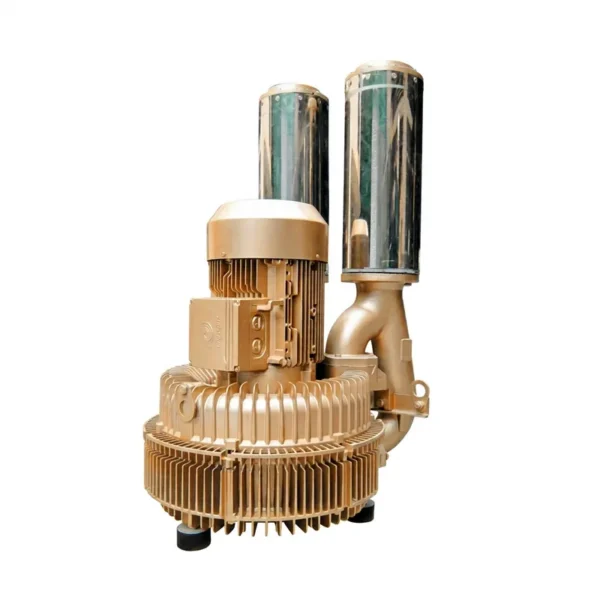

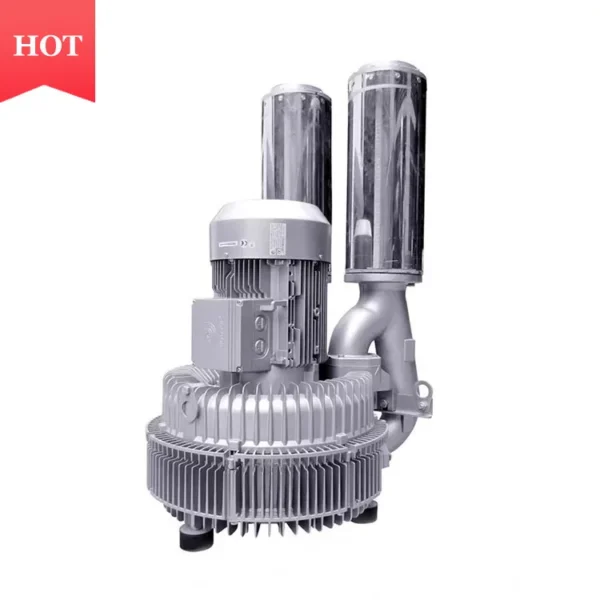

Vertical Side Channel Blower, 34HP, 25kW, 220V

Vertical side channel blower — 220 V, power source Electric Blower. The complete factory specification follows. Made by CONG TY TNHH MOC SONG PHAT (1 year on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Vertical Side Channel Blower

• Model Number: GHBH 034 36 BW9
• Power Source: Electric Blower
• Rated Voltage: 220 V
• Blade Material: Aluminium Alloy
• Place Of Origin: Guangdong, China
• Application: Air Blower

Technical Specifications

Product Details

Products Description

Technical Parameter

Product style	25kW 34HP High Airflow Vertical Side Channel Blowers
Model number	GHBH 034 36 BW9			Weight	235kg
Level of protection	IP55			Insulation class	F
Certificate	CE Certificate、RoHS Certificate、ISO Certificate、TUV Certificate
Frequency	50Hz			60Hz
Rated power	25kW			29kW
Rated voltage	345-415△/600-690Y(V)			380-480△/660-720Y(V)
Rated current	52△/30Y(A)			52△/30Y(A)
Max airflow	2050m³/h			2480m³/h
Max vacuum	-310mbar			-270mbar
Max pressure	280mbar			230mbar
Sound level	75db(A)			84db(A)

Main Features

GOORUI Side channel blowers are maintenance-free: ·External, permanently lubricated bearings ·Contactless rotating impellers ·Fan-cooled motors GOORUI Side channel blowers are user-friendly: ·Weight-optimised design through aluminum pressure casting parts ·Possibility for a vertical or horizontal installation ·Suitability for converter operation GOORUI Side channel blowers are environmentally friendly: ·Oil-free operation ·Low energy requirement ·Low noise emission GOORUI Side channel blowers can be used world-wide: ·50/60Hz voltage range motors of the Iso class F ·Protection type IP55 with an integrated thermal protection switch (standard) ·CE, TUV, RoHS, CCC and ISO9001 certifications

Performance Curves & Dimensions

Detailed Photos

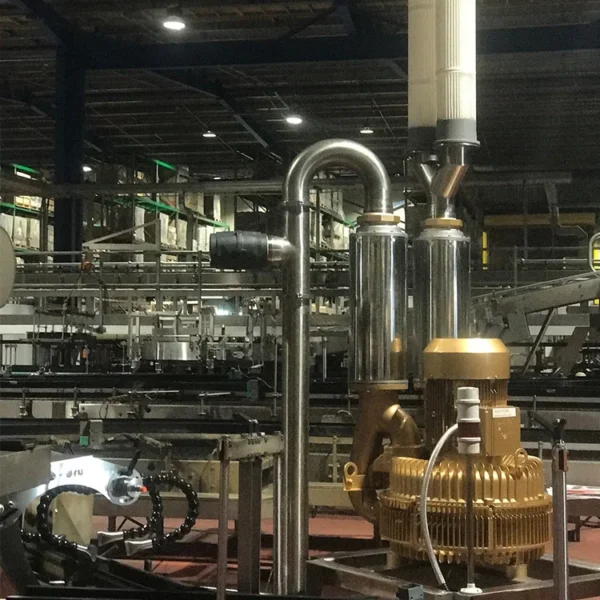

Applications

Accessories

Installation Instructions

Packaging & Shipping

Side Channel Blower Package

– To be packed with carton box
– To be packed with wooden case
If you have any special requirement about package,please let me know in advance.

Shipping methods

– By express, such as DHL, UPS, TNT etc
– By air cargo port to port
– By sea port to port
Also can choose the most suitable way as per your request.

Company Profile

Founded in 2002, Dongguan Foersheng Industrial M&E Co,.Ltd. is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts. Products are sold widely in the demestic and overseas market.GOORUI is the brands of our products,with many years of development, our brands are more and more popular with people. Our factory is over 60,000 square meters,it has the advanced production equipment,Such as DOOSAN CNC machines,automatic robot painting line,three-coordinate measuring machine.We have perfect lectrical Performance Testing System,Blower Performance Testing System,Ensure product quality. Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services. Due to premium products and considerate service, our products are extensively used in aquaculture, wood-working machinery, injection mold machinery, Sewage Treatment, Printing, Paper Industry, Pneumatic Conveying etc. Our products have won support and trust from customers through the world and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success !

FAQ

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–1 unit: US $2898.73 / unit
  • 2–4 unit: US $2848 / unit
  • 5–9 unit: US $2759 / unit
  • 10+ unit: US $2670 / unit
• Ships from: VN
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this vertical side channel blower?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the vertical side channel blower be supplied for my local voltage?

The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
