This volume electric air blower is published with the manufacturer’s full specification — 380 V, power source Electric. Made by Zhengzhou Wencheng Import And Export Trading Co., Ltd. (2 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Volume Electric Air Blower
- Model Number: HTF
- Power Source: Electric
- Power: 1.1kw – 75kw
- Voltage: 380 V
- Material: Cast Iron
- Blade Material: Cast Iron
Technical Specifications
| Voltage | 380 V |
|---|---|
| Speed | 16500 rpm |
| Type | High-Temperature Axial Fan |
| Material | Cast Iron |
| Blade Material | Cast Iron |
| Mounting Type | Free Standing |
| Bearing Type | DUAL BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Henan, China |
| Brand Name | WENCHENG |
| Model Number | HTF |
| Advantage | High Air Pressure |
| Product Keywords | Smoke extract axial fan |
| Air Volume | 3000m³/h – 191260m³/h |
| Blade Diameter | 350mm – 1600mm |
| Power | 1.1kw – 75kw |
| Motor Type | AC Cooper Motor |
| Color | Customizable |
| Operating Temperature | ≤ 280 ℃ |
| Frequency | 50/60 Hz |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
Specification

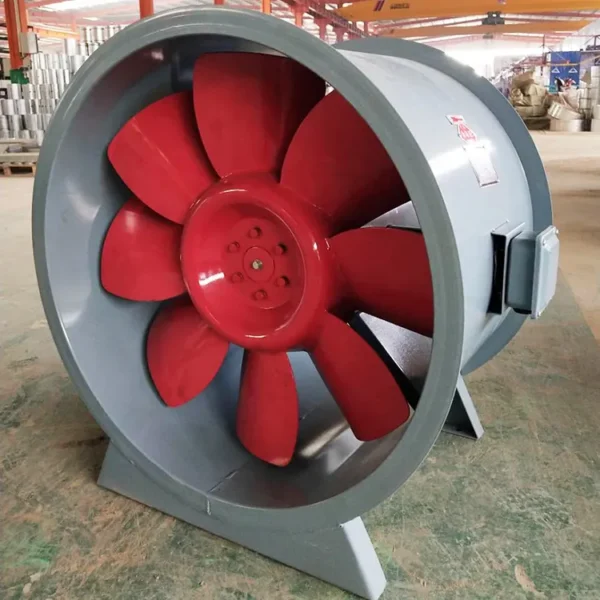

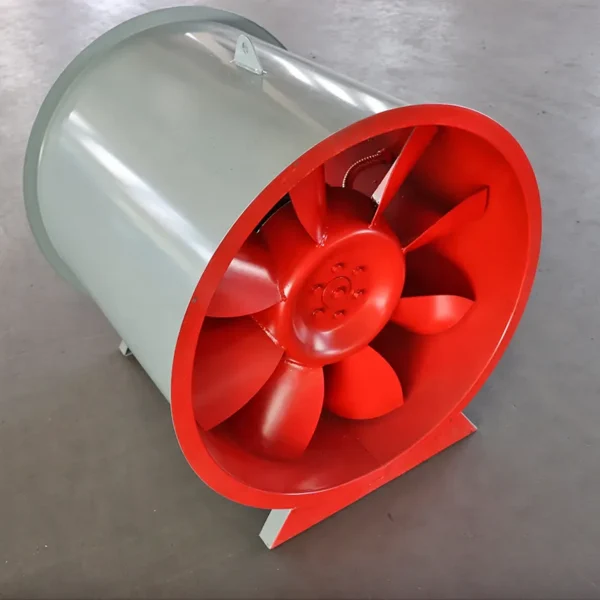

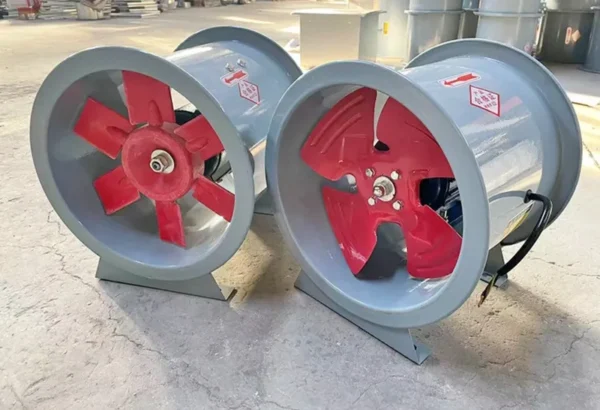

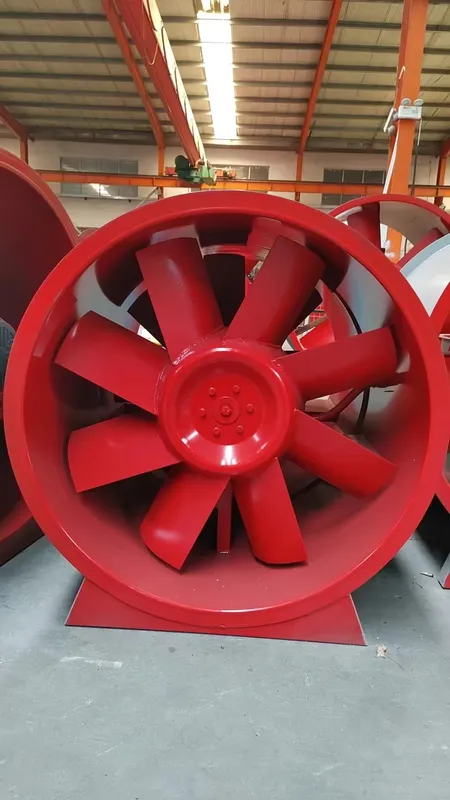

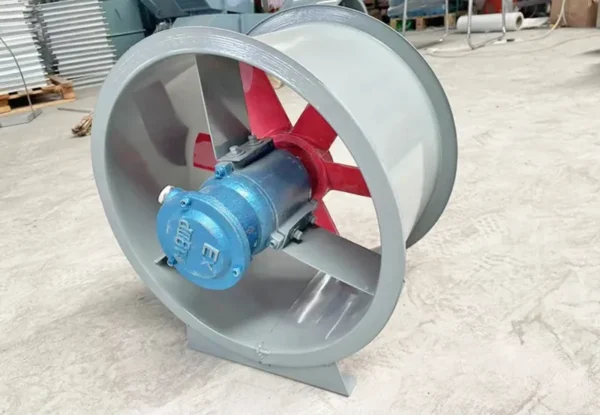

HTF-V FIRE FIGHTING HIGH TEMPERATURE FUME EXHAUSTING MIXED FLOW FAN
HTF-V Mixed-flow Fire-Fighting Heat Fume Extraction Fan is a novel and intermediate fan between axial-flow fan and centrifugal
fan. It absorbs the advantages from both fans. Its wind pressure is higher than the same machine number axial-flow fan and flow
larger than the same machine number centrifugal fan. It has advantage a such as wide and effective operational zone, high
efficiency etc, This fan is widely applicable for the ventilation and exhaust system in the office building hotel large -size
high-grade civil purpose architectures etc, It can also be used for ventilation and air-exchange in the mining and industrial
enterprises such as freezing house, textile and so on in order to replace for the low-pressure centrifugal fan or high-pressure
axial-flow with no need to install large amounts of the noise blanking facilities
HTF-V Mixed-flow Fire-Fighting Heat Fume Extraction Fan is a novel and intermediate fan between axial-flow fan and centrifugal
fan. It absorbs the advantages from both fans. Its wind pressure is higher than the same machine number axial-flow fan and flow
larger than the same machine number centrifugal fan. It has advantage a such as wide and effective operational zone, high
efficiency etc, This fan is widely applicable for the ventilation and exhaust system in the office building hotel large -size
high-grade civil purpose architectures etc, It can also be used for ventilation and air-exchange in the mining and industrial
enterprises such as freezing house, textile and so on in order to replace for the low-pressure centrifugal fan or high-pressure
axial-flow with no need to install large amounts of the noise blanking facilities
item | value |
Power Source | Electric |
Type | High-Temperature Axial Fan |
blade material | Cast Iron |
voltage | 380V |
bearing type | DUAL BALL BEARING |
mounting type | FREE STANDING |
speed | 16500rpm |
customized support | OEM, ODM, OBM |
place of origin | China |
Henan | |
brand name | WENCHENG |
model number | HTF |
warranty | 1 Year |
after-sales service provided | Online support |
Material | Cast Iron |
model number | HTF axial flow fire smoke exhaust fan |
Advantage | High Air Pressure |
Product Keywords | Smoke extract axial fan |
Air volume | 3000m³/h – 191260m³/h |
Blade diameter | 350mm – 1600mm |
Power | 1.1kw – 75kw |
Motor Type | AC Cooper Motor |
Color | Customizable |
Operating temperature | ≤ 280 ℃ |
Frequency | 50/60 Hz |
Packing & Delivery
Material:
1. The shell is made of hot rolled steel plate, which is thickened and formed at one time. 2. It complies with GBJ45-82 fire code
and is equipped with a special motor cooling system;
and is equipped with a special motor cooling system;
3. High performance impeller, unique design conforms to aerodynamic principle radian;
4. Cylinder hub, blade root high strength
Features/advantages:
1. Excellent power performance and high temperature resistance;
2. Compact mechanism, stable operation and convenient
installation;"
installation;"
Company Profile
WEN CHENG LIMITED is a manufacturer who focus on the desian and producing for the industrial & commercial ventlatorsOur ventilators be use in ventilation system (supply or exhaust) of Building, Air-conditioning, industrial (HVAC), Firefighing, thecommercial & industrial (HVAC) system.We have products ranges include centrifugal fans, axial fans, fan accessories, HVLS fans, misting fans. And fan accessoriesinclude forward-curve & backward-curve lmpellers, axial impellers, fan blades. We are not only specialized in standard & bulkfans & blowers manufacture but also the project solution and fan type selection. Meanwhile we provide custom, semi-custom.OEM fans. Our engineers who with more than 20years experience in fans design, with the help of the advanced processing equipments(Laser cutings, CNC lathers & bendings, Roling, Dynamic balance) and experienced workers, they ensure the fans with highquality. And the fans be test by airway system so their technical parameters are truth & reliable.Currently, our products have been exported to more than 100 countries, and win trust & affirmation of the clientsWe WENCHENG LIMITED will be your honest and reliable partner. OUR ADVANTAGES Focus on customization. We have always been committedto providing customized fan products according to customerneeds to meet the customer's strict requirements for productperfommance,appearance size,product material, useoccasion,installation site, etc.High-quality accessories.Core accessories of the fan, suchas centrifugal fan wheel and aluminum alloy axial flowblades.The accessories specifications are complete, theproducts are strong and durable, and all have been strictlydynamically balanced. Real and reliable performance The product performancecurve has been tested by the actual operation point of theduct. And we can provide a true and reliable performancecurve. Real test report. Some products have CE certification,high-temperature fire inspection certification, etc.; aluminumalloy axial flow wind blade flaw detection test reports, density test reports etc.
FAQ
1. How to select suitable products according to the on-site operation environment?
The design of the entire ventilation system and the selection of fans should be carried out by professionals. It is necessary to estimate the resistance of the system as accurately as possible, otherwise improper selection will lead to poor actual use effect of the fan.
2. How long is the deliverycycle of the product? How about the payment method?
1) Generally, the delivery period is 10-30 days. The specific delivery date shall be determined in combination with the actual product.
2) Payment methods support TT, LC and Dp. The payment for goods is divided into deposit and balance payment, which shall be paid before shipment.
3. Why choose you in the same industry? What are your advantages over your peers?
1) Our company has more than 20 years of manufacturing experience in the fan industry, with
complete site and equipment configuration;
complete site and equipment configuration;
2) Advanced manufacturing technology, production equipment has basically achieved
semi-automatic, leading the industry level;
semi-automatic, leading the industry level;
3) Quality assurance and product quality have been certified by the Fire Products
Conformity Assessment Center of the Ministry of Public Security;
Conformity Assessment Center of the Ministry of Public Security;
4) We owned a technical team of 12 members, formed by three
senior engineers, nine intermediate engineers. Accredited fan laboratory, makes each single performance data more reliable.
senior engineers, nine intermediate engineers. Accredited fan laboratory, makes each single performance data more reliable.
4.What is the delivery method?
Logistics modes include express delivery, sea transportation, land transportation and air transportation.
5. About after-sales service.
1) 24-hour service hotline, professional technicians answer product questions;
2)Provide relevant technical guidance according to the use of customers;
3) Regularly make a return visit to understand the product
operation, and exchange the latest maintenance and servicing technology.
operation, and exchange the latest maintenance and servicing technology.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $15 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this volume electric air blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the volume electric air blower be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
