This wall fan is published with the manufacturer’s full specification — 110V, 220V, blade material Plastic. Made by HXHFAN INDUSTRIAL CO., LTD. (6 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Wall Fan
- Model Number: 12025
- Voltage: 110V, 220V
- Blade Material: Plastic
- Warranty: 1 Year
- Certification: CE
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 110V, 220V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | AC |
| Mounting Type | Screwing |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | HXHFAN |
| Model Number | 12025 |

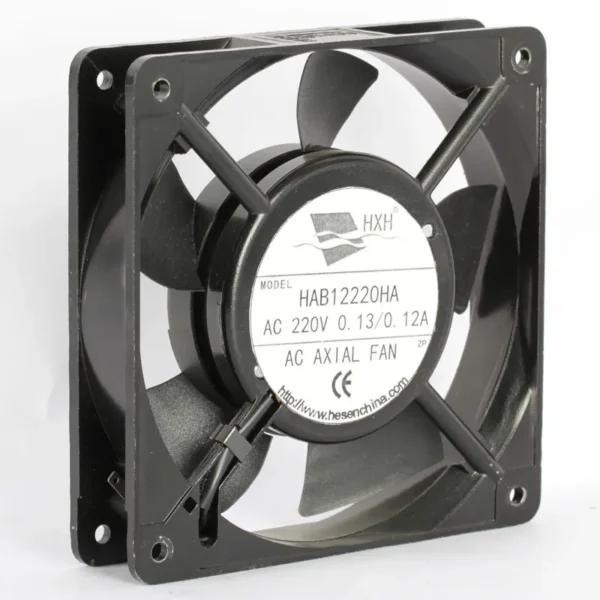

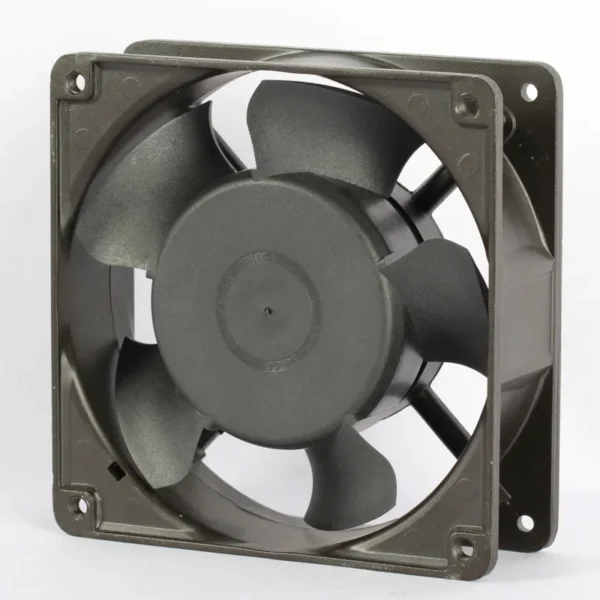

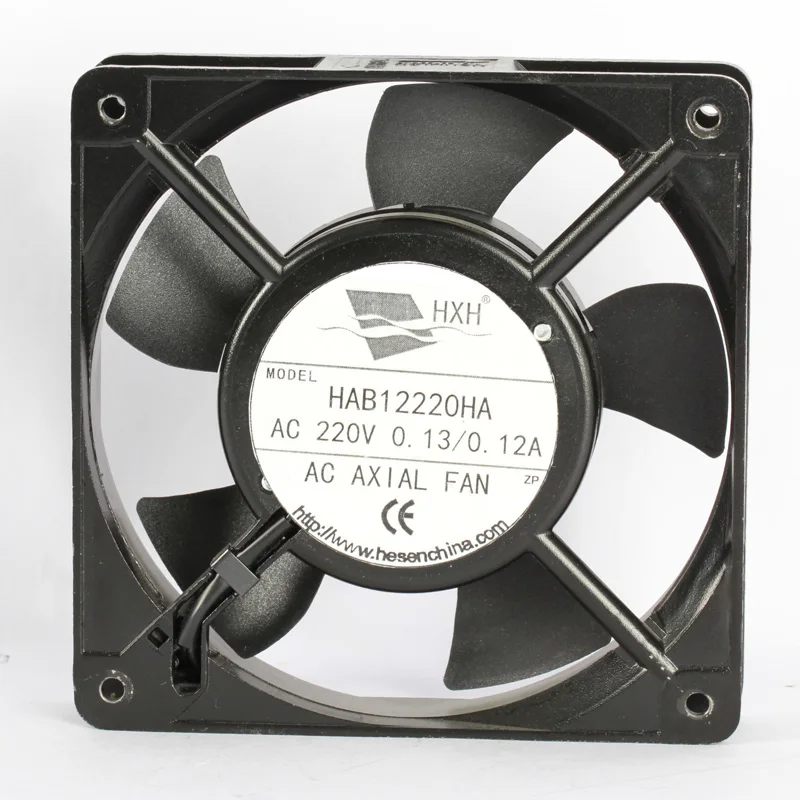

| Product Name | Axial fan |
| Size | 120x120x25mm |
| Bearing Type | Ball/Sleeve |
| Application | Cabinet, home appliance |
| Color | Balck |
| Certification | CE |
| Frame | Metal |
| Blade | Plastic |
| Packaging Details | Cartoon package |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Package Size | 12X11X10 cm |
| Single Gross Weight | 1.000 kg |
| Supply Ability | 20000 perches per Day |
Product Details

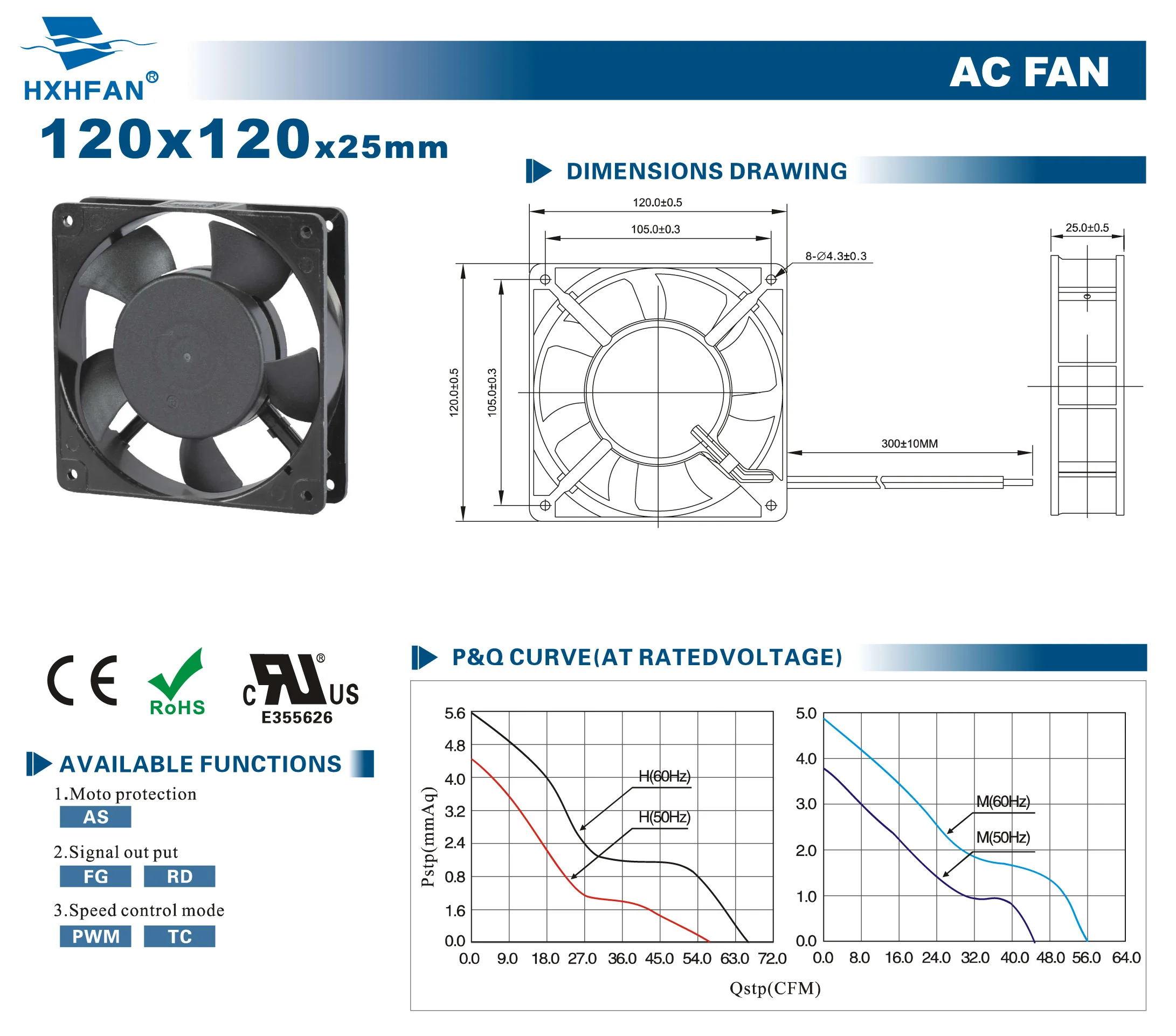

| 120×120×25MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAS12110HA | W/T | Sleeve | 110 | 100-125 | 50/60 | 0.25/0.24 | 2300/2700 | 1.61/1.87 | 57/66 | 4.5/5.6 | 0.18/0.22 | 39/44 |
| HAS12110MA | W/T | 100-125 | 50/60 | 0.16/0.15 | 1800/2300 | 1.27/1.58 | 45/56 | 3.8/4.9 | 0.15/0.19 | 31/36 | ||
| HAB12110HA | W/T | Ball | 100-125 | 50/60 | 0.25/0.24 | 2300/2700 | 1.61/1.87 | 57/66 | 4.5/5.6 | 0.18/0.22 | 39/44 | |
| HAB12110MA | W/T | 100-125 | 50/60 | 0.16/0.15 | 1800/2300 | 1.27/1.58 | 45/56 | 3.8/4.9 | 0.15/0.19 | 31/36 | ||
| HAS12220HA | W/T | Sleeve | 220 | 200-240 | 50/60 | 0.13/0.12 | 2300/2700 | 1.61/1.87 | 57/66 | 4.5/5.6 | 0.18/0.22 | 39/44 |
| HAS12220MA | W/T | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 1.27/1.58 | 45/56 | 3.8/4.9 | 0.15/0.19 | 31/36 | ||
| HAB12220HA | W/T | Ball | 200-240 | 50/60 | 0.13/0.12 | 2300/2700 | 1.61/1.87 | 57/66 | 4.5/5.6 | 0.18/0.22 | 39/44 | |
| HAB12220MA | W/T | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 1.27/1.58 | 45/56 | 3.8/4.9 | 0.15/0.19 | 31/36 | ||
Q1. What is a DC Axial Fan?
A: An DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.
Ordering and Pricing
- Minimum order quantity: 200 piece
- Volume pricing:
- 200–999 piece: US $4.5 / piece
- 1000+ piece: US $3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this wall fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the wall fan be supplied for my local voltage?
The standard configuration is 110V, 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by HXHFAN INDUSTRIAL CO., LTD., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full HXHFAN INDUSTRIAL CO., LTD. range on HVACR Nexus.
