Key specification for this wall split air conditioner: power supply 110-120V/ 208-230V/ 220-240v, capacity 8001-10000. Everything below is reproduced from the factory data sheet. Made by Foshan Sylon Electrical Appliance Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Wall Split Air Conditioner
- Model Number: CS(H)-09K
- Power Type: AC
- Power Source: Electric, Vehicle Power Supply, Manual, Solar, Gas, USB, Battery
- Power (W): 850
- Power Supply: 110-120V/ 208-230V/ 220-240v
- Capacity (Btu): 8001-10000
Technical Specifications
| Application | Commercial, Household, RV, Garage, Outdoor, Car, Hotel, Hospital, School |
|---|---|
| Capacity (Btu) | 8001-10000 |
| Cooling/Heating | Cooling/Heating |
| Refrigerant | R410A |
| Energy Efficiency Rating | Class A |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Recommended Room Size（Square Feet） | up to 298 sq. ft |
| Eer | 3.10 |
| Feature | Quiet Mode, Self-Cleaning, Air Purification, Dehumidifier, Energy Saving |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Power Type | AC |
| App-Controlled | Yes |
| Remote Control | Yes |
| Timer | Yes |
| Operating Language | Spanish, Dutch, French, German, English |
| Private Mold | No |
| Power Source | Electric, Vehicle Power Supply, Manual, Solar, Gas, USB, Battery |
| Logo/Graphic Design | 3D Printing, Heat-Transfer Printing, UV printing, Inkjet Printing, Hot Stamping, Laser Printing, Silk Screen Printing |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Brand Name | Sylon |
| Cop | 3.29 |
| Maximum Airflow Rate | 481m³/h |
| Power (W) | 850 |
| Model Number | CS(H)-09K |
| Compressor | Toshiba-GMCC-GREE |
| Brand | Sylon Air Conditioner |
| Product Name | Wall Split Air Conditioner |
| Function | CoolingHeating |
| Power Supply | 110-120V/ 208-230V/ 220-240v |
| Certification | SASO GCC GSO ISO IEC AHRI TUV EMC ETL |
| Color | White |
| Control | Remote + Wifi Optional |
| Selling Units | Single item |
| Single Package Size | 75X34X53 cm |
| Single Gross Weight | 36.000 kg |
Product Details

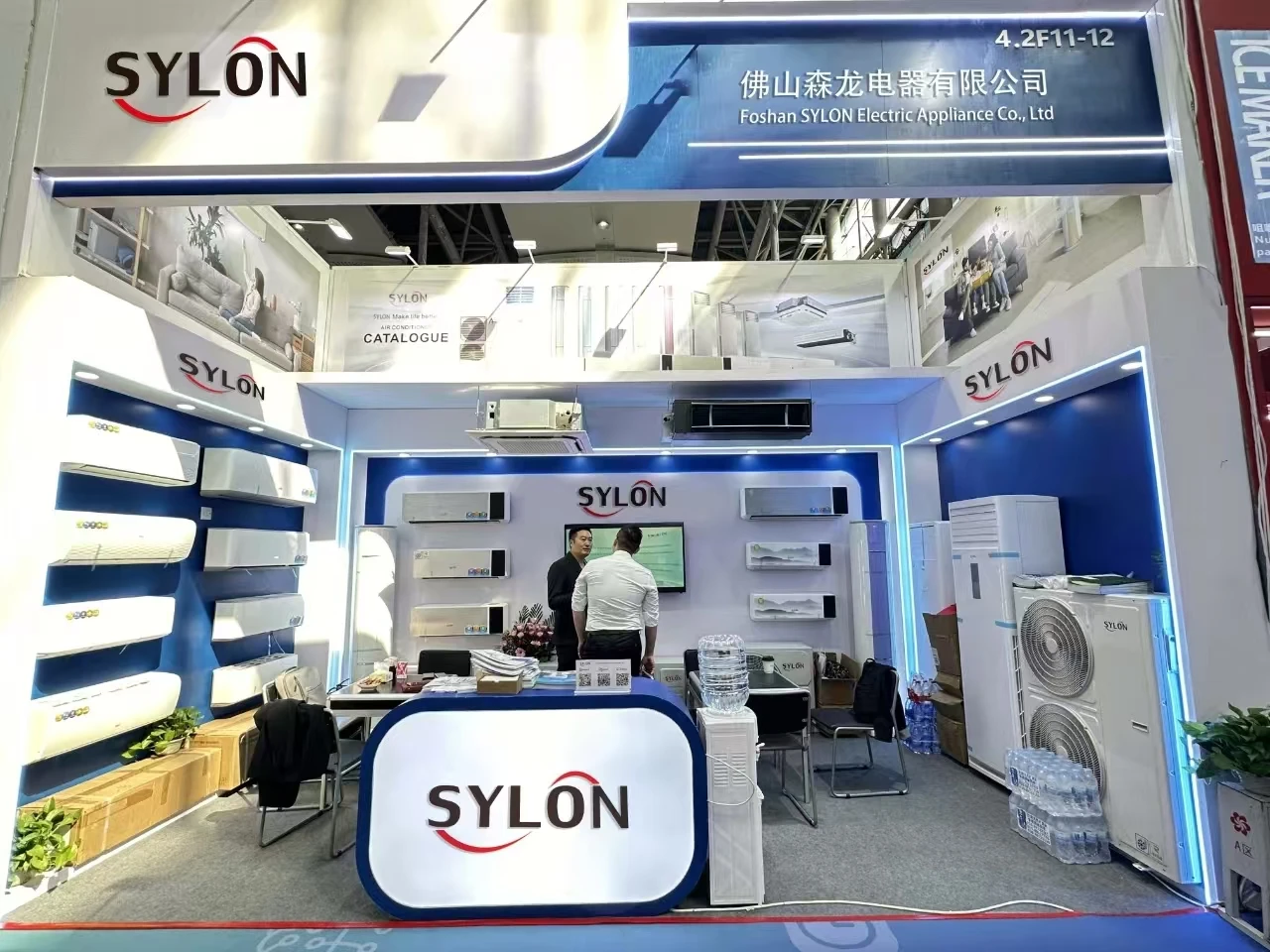

In October 2024, the 136th China Import and Export Fair was held in Guangzhou, China. Sylon Air Conditioner and its subsidiary
YINLI Super Air Conditioner production base participated in the exhibition in Zone A to have friendly business communication with
global merchants.

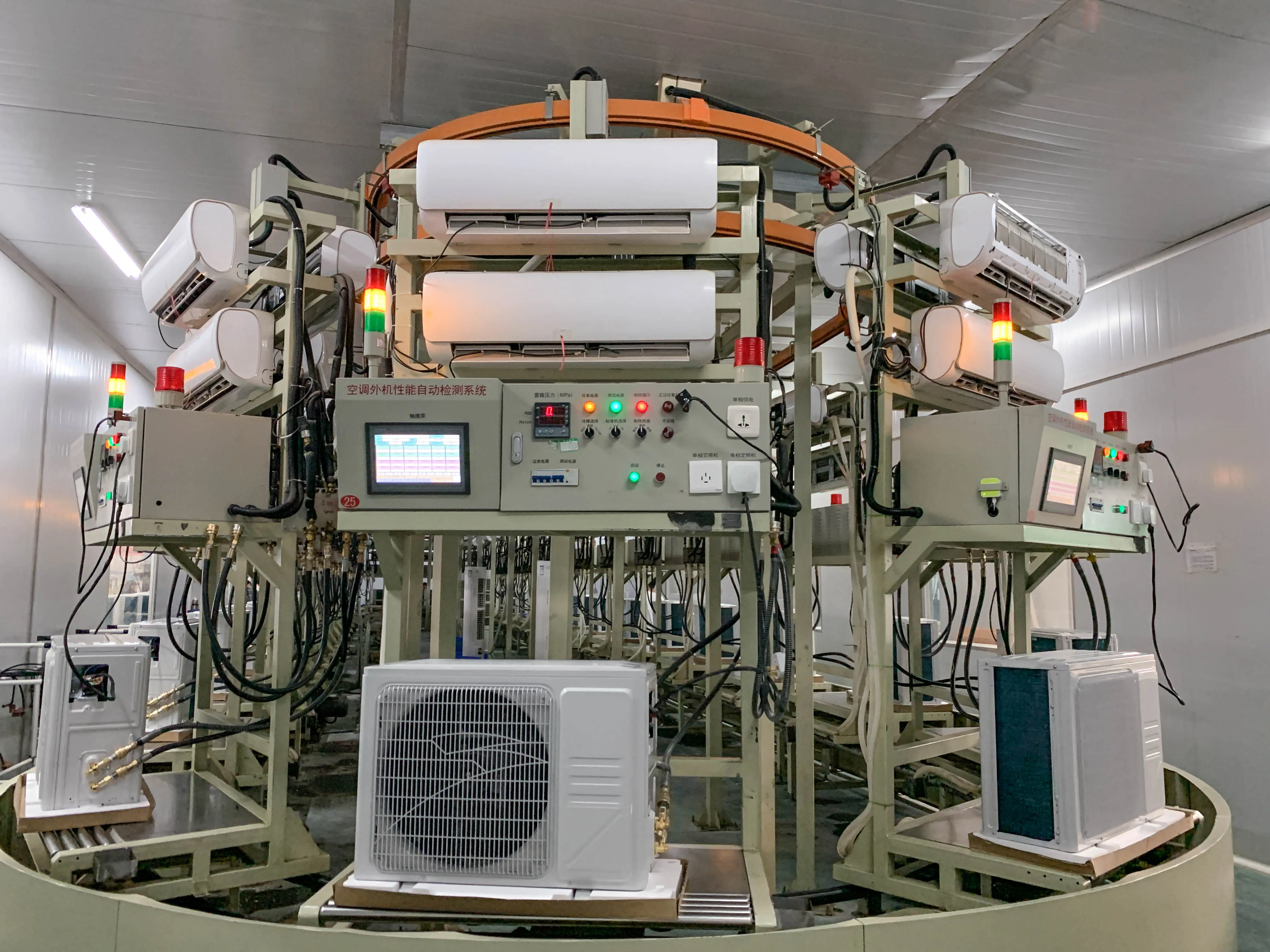

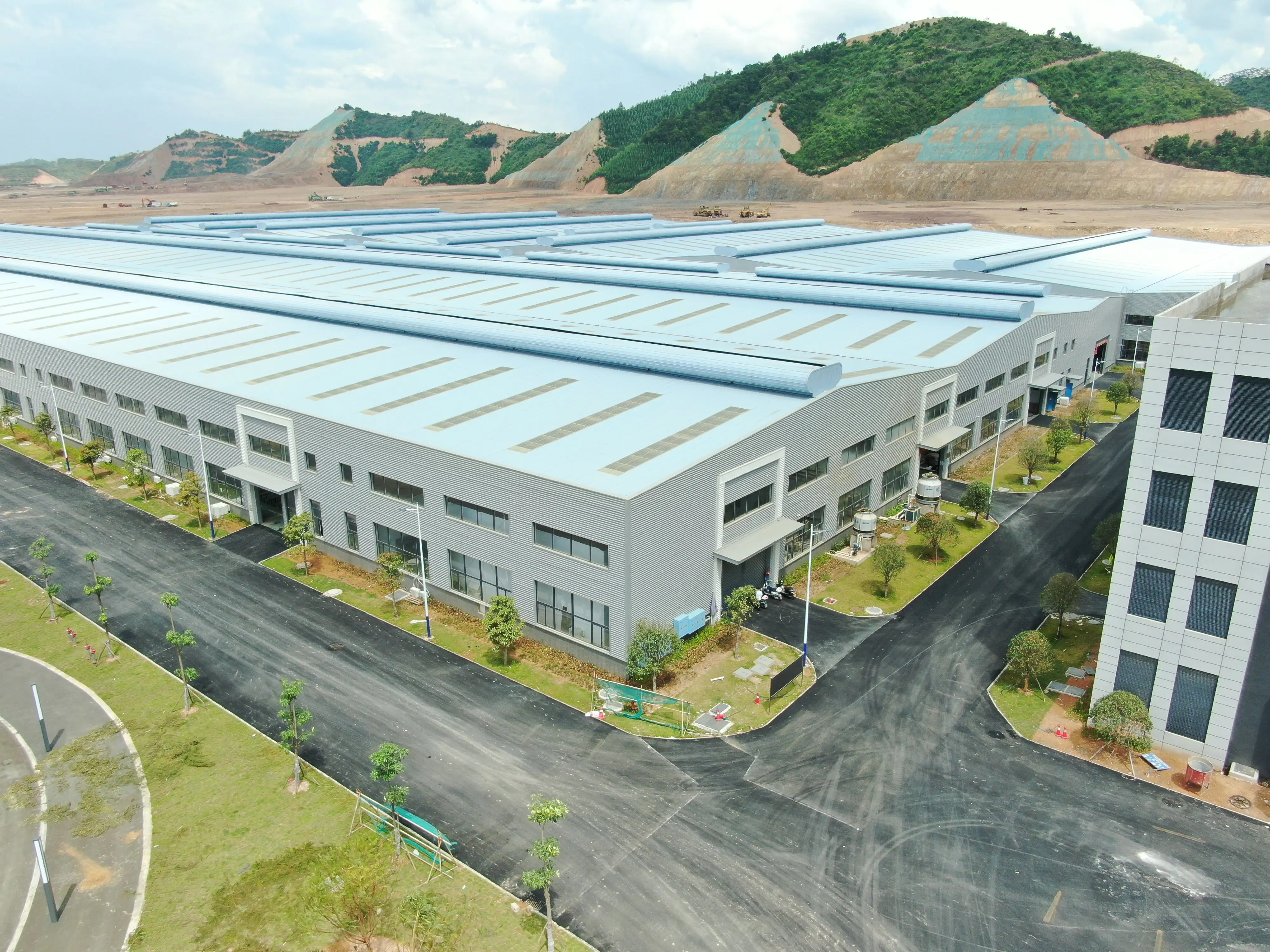

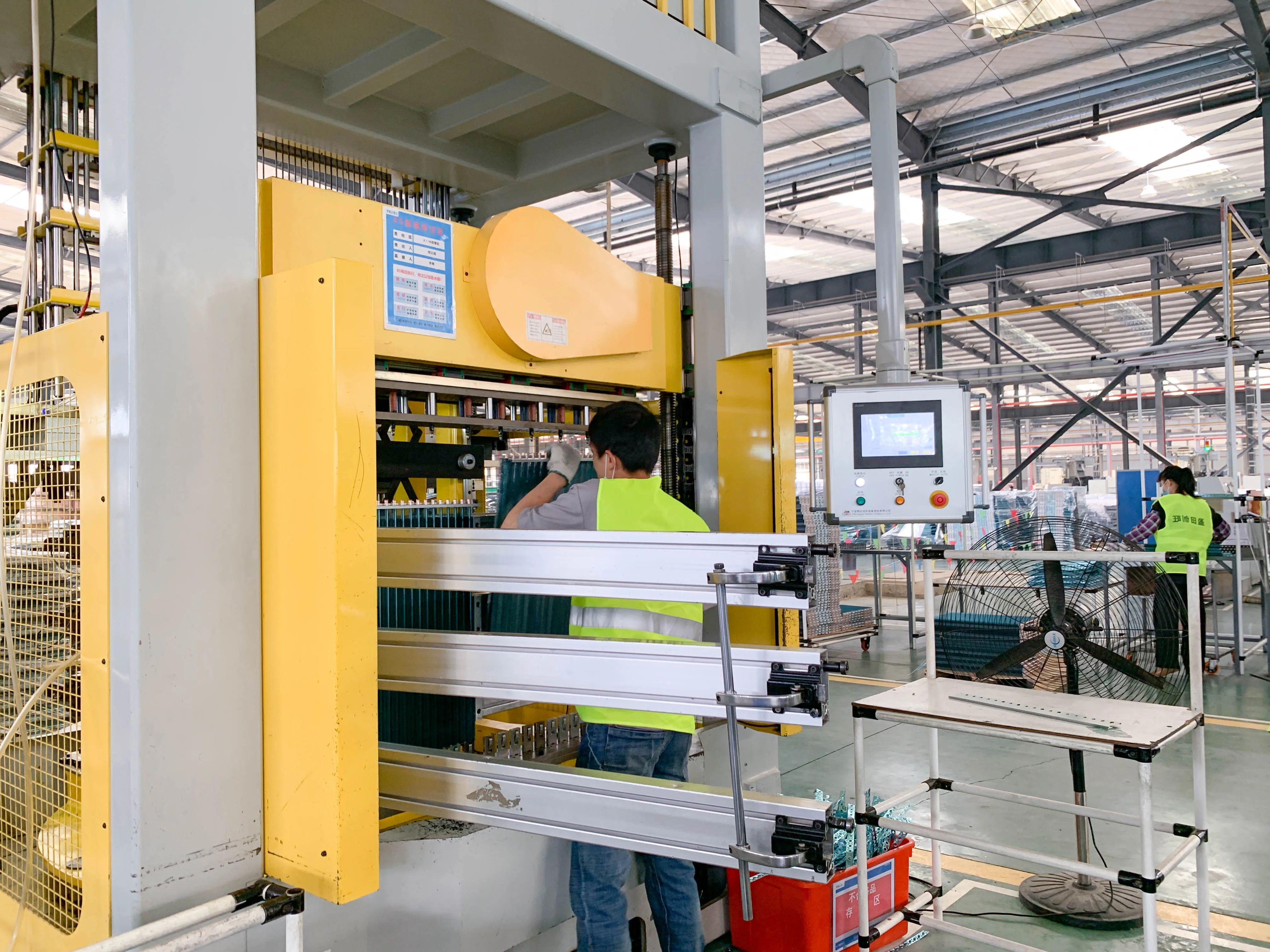

Our Factory and Production Process
Split Wall Mounted Air Conditioning Function
Standard Functions:
1.Mildew Froof 2.24 Hr Timer 3.High Density Filter 4.Emergent Using 5.180° Shine Wave 6.Louver Position Memory 7.Turbo Mode
8.Fast Cooling&Heating 9.Independent Dehumidification 10.Wide Foltage Range 11.Dust Removal Reminder 12.-20°Ultra-Low Tem Start
13.Self-diagnosisand Auto-protection 14.Error Alarm 15.Sleep Mode 16.Smart Deforsting 17.Anti-Cold Air 18.Heating Compensation
19.Brand Compressor 20.Auto Restart 21.Dew Prevention 22.Auto Mode 23.Anti-rust Design 24.Hidden Led Design
25.Thoughtful Packaging
Optional Functions:

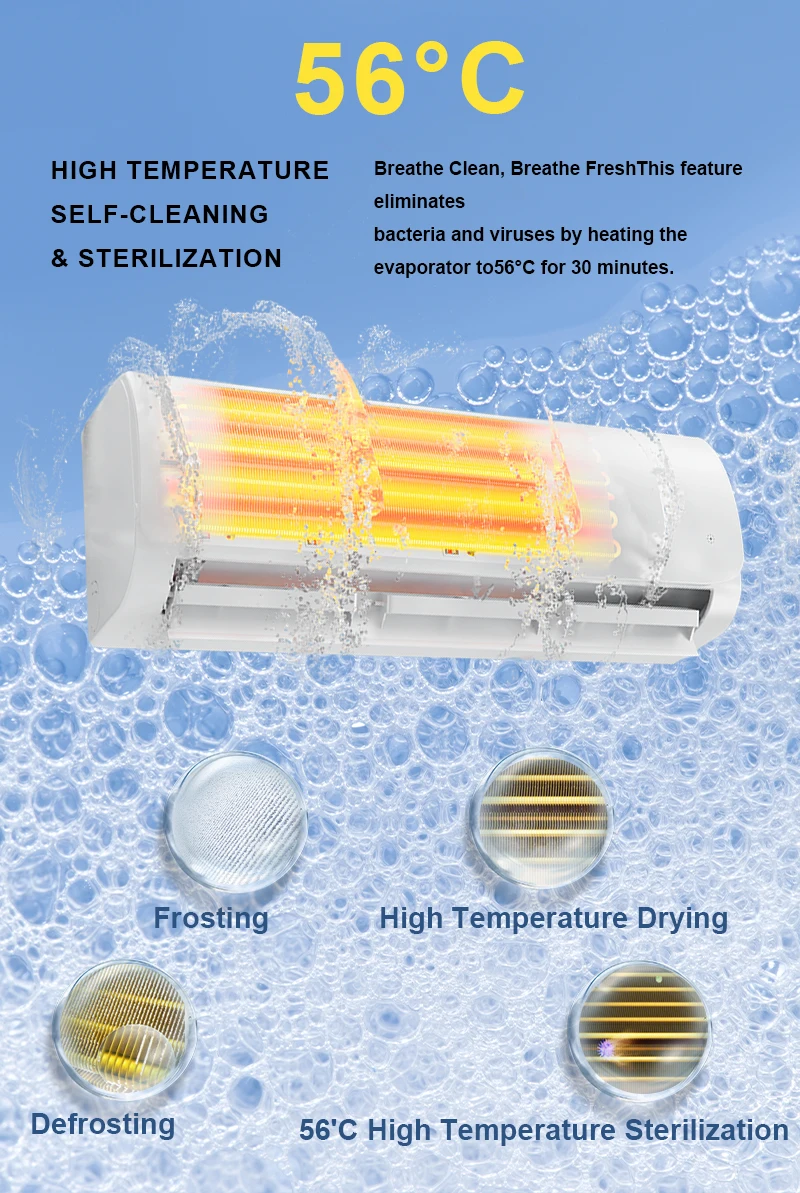

1.UVC Sterilization 2.ECO Mode 3.Self-Clean 4.0.5W Standly 5.580℃ Self-clean 6.Cold Plasma 7.Anti Wirus Filter 8.3 in 1 Filter
9.Full DC Inverter 10.Twin-rotary Compressor 11.5 Grades Indoor Fan Speeds 12.I Feel 13.3D Air Flow 14.Quiet Mode 15.USB Wifi
16.Wifi Control 17.Offline Voice Control 18.Child Lock 19.2-way Drainage 20.Chass is Heating Belt 21.Fire-Proof Electric Control Box
22.Auxiliary Electric Heater 23.Anti-rust Grille

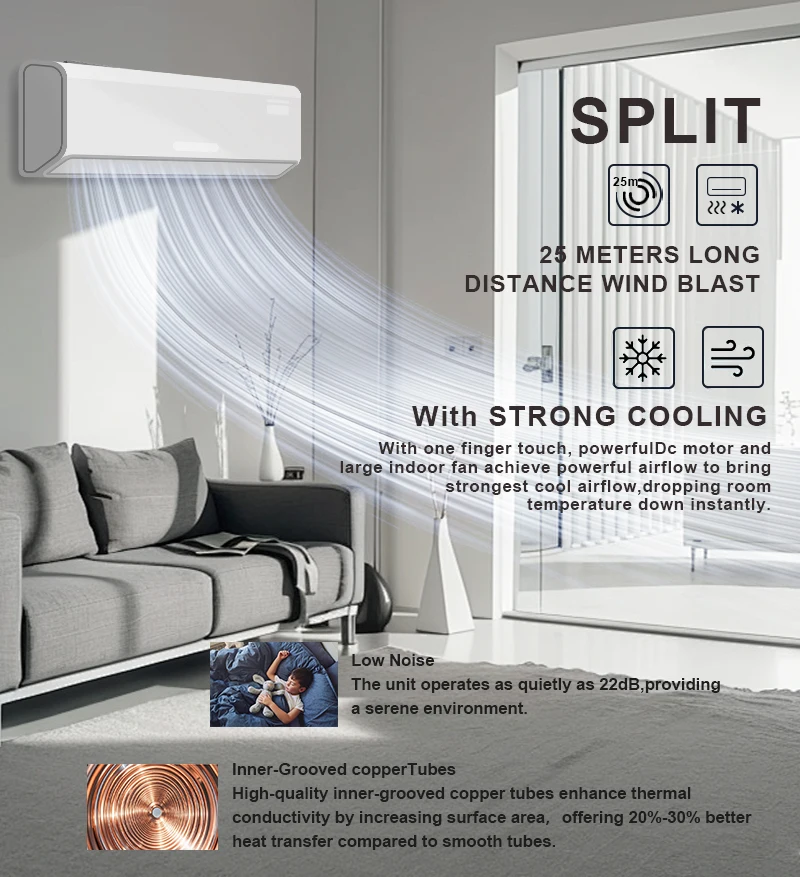

Wall Mounted Mini Split Sylon mini split air conditioners offer ductless solutions for single zones. The new models are stylishly designed with a sleek mattefnish, giving you energy eficiency, as well as funcionality. With a high SEER2 rating, this wall mounted mini split system will help you save moneyall year round.
Title goes here.

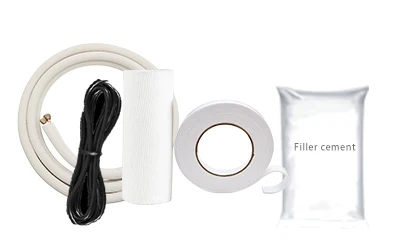

Installation Kit including Pre.Flared and insulated Copper Line Set,Communication Wires, smallAccessories and DrainageExtension.
Title goes here.

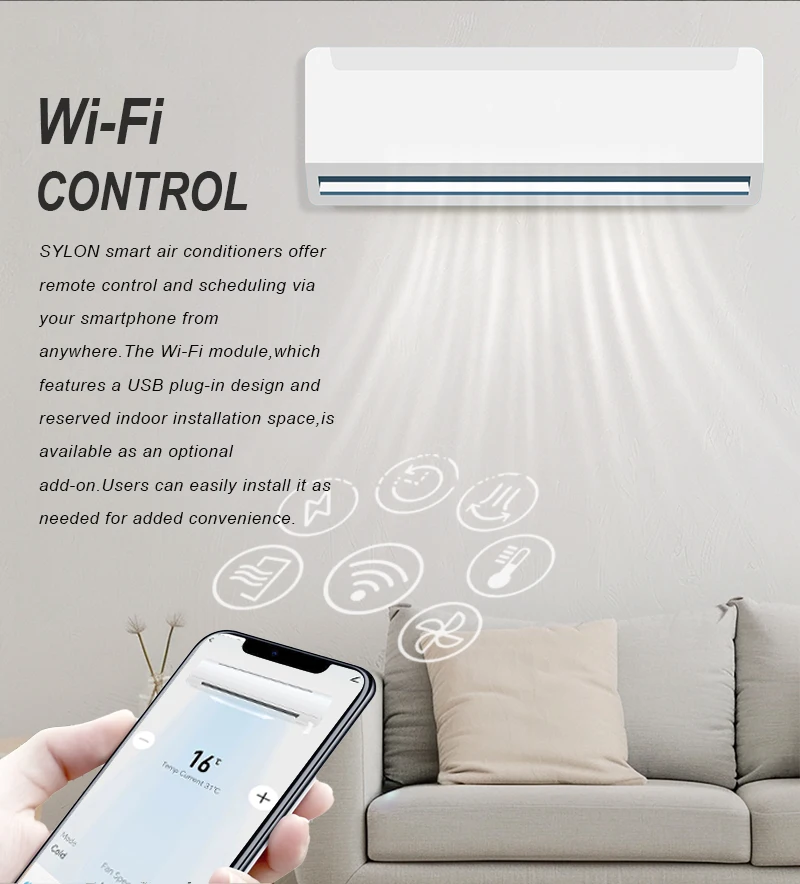

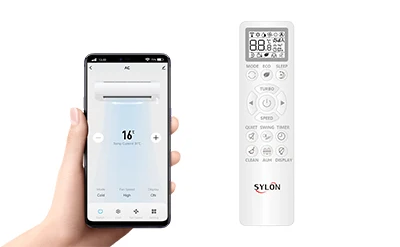

With the App, you can control your unit from anywhere. The exclusive remote controller for morespecific temperature control.
Title goes here.

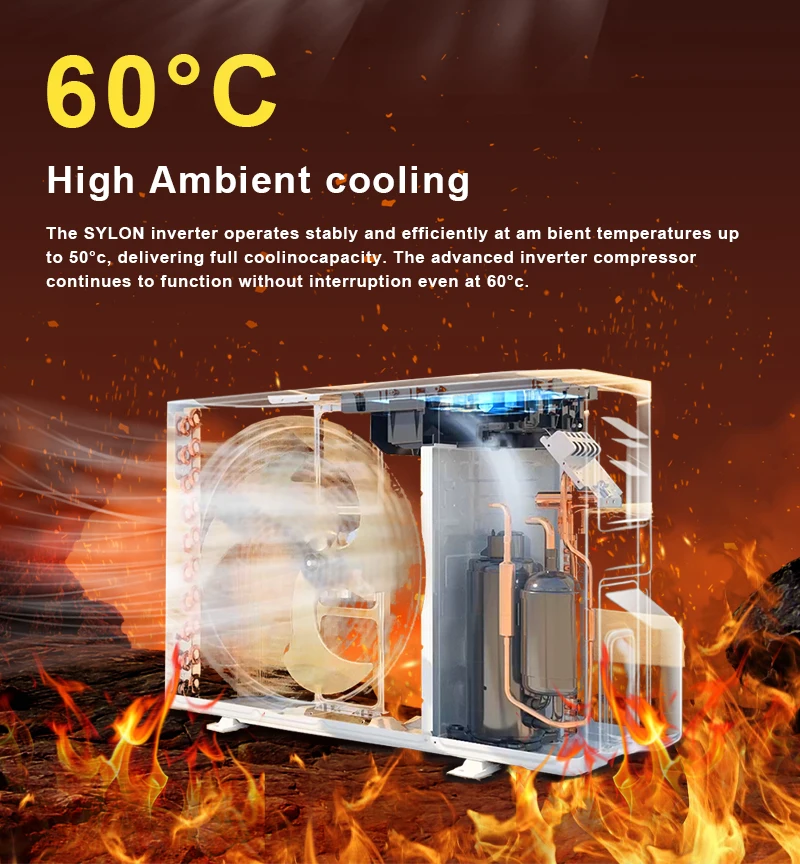

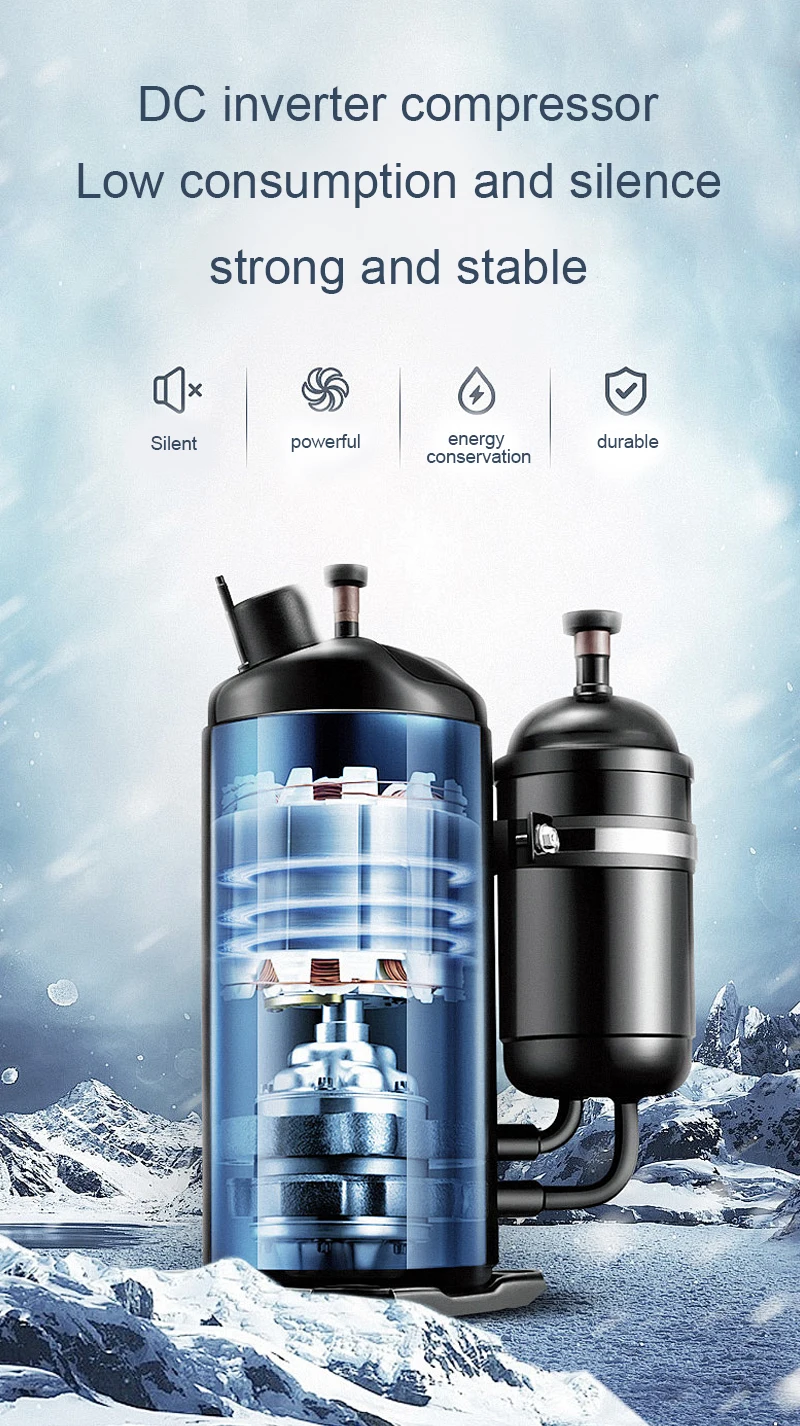

Sylon Air Conditioner compressor units with lnverter Technology will save youenergy compared to traditional compressors.
Model | SSDH-9DH | SSDH-12DH | SSDH-18DH | SSDH-24DH | ||||
Power supply | Ph-V-Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |||
Cooling | Capacity | Btu/h | 2900 | 3068 | 3409 | 5763 | ||
Input | W | 1123 | 1197 | 1291 | 1908 | |||
Rated current | A | 5.15 | 5.48 | 5.94 | 8.9 | |||
EER | W/W | 2.6 | 2.56 | 2.64 | 3.02 | |||
Max. input power | W | 560 | 798 | 838 | 2480 | |||
Max. current | A | 5 | 3.65 | 3.96 | 11.57 | |||
Heating | Capacity | Btu/h | 3200 | 3061 | 3885 | 6633 | ||
Input | W | 1100 | 936 | 1145 | 2069 | |||
Rated current | A | 5 | 4.29 | 5.28 | 9.7 | |||
EER | W/W | 3.03 | 3.27 | 3.39 | 3.21 | |||
Max. input power | W | 960 | 624 | 763 | 2689 | |||
Max. current | A | 6 | 2.86 | 3.52 | 12.61 | |||
Compressor | Model | KSK75D43UEZA | KSK75D43UEZA | KSK89D33UEZD3 | KSN140D33UFZ3 | |||
Type | Rotary | Rotary | Rotary | Rotary | ||||
Brand | GMCC | GMCC | GMCC | GMCC | ||||
Indoor coil | a.Number of rows | 530-10-ⅡK7-1.3(QS) | 530-10-ⅡK7-1.3(QS) | 605-12-ⅡK7-1.3(QS) | 716-12-ⅡK7-1.4(QS) | |||
Indoor air flow (Hi/Mi/Lo) | m3/h | 469 | 481 | 593 | 1081 | |||
Indoor noise level | dB(A) | 48 | 48 | 48 | 48 | |||
Indoor Fan motor | Type | cross flow | cross flow | cross flow | cross flow | |||
output | W | 13 | 13 | 18 | 30 | |||
Indoor Fan Speed | Cooling | rpm | 1150 | 1150 | 1150 | 1150 | ||
Heating | rpm | 1050 | 1050 | 1050 | 1050 | |||
Dry | rpm | 950 | 950 | 950 | 950 | |||
Sleep | rpm | 850 | 850 | 850 | 850 | |||
Indoor unit | Dimension(W*H*D) | mm | 750*260*196 | 750*260*196 | 840*290*202 | 950*315*222 | ||
Packing (W*H*D) | mm | 825*335*255 | 825*335*255 | 920*345*255 | 1048*390*305 | |||
Net/Gross weight | Kg | 8/9 | 8/9 | 10.5/12.5 | 14/16 | |||
Outdoor fan motor | Type | axial fan | axial fan | axial fan | axial fan | |||
Speed | r/min | 860 | 860 | 860 | 860 | |||
output | W | 25 | 25 | 25 | 50 | |||
Outdoor coil | a.Number of rows | 427-9-ⅠK7.94-1.4(QS) | 500-8-ⅠK7.94-1.4-8(QS) | 500-10-ⅠK7.94-1.4(QS) | 800-680-20-ⅡB7.94-1.4(QS) | |||
Outdoor noise level | dB(A) | 50 | 50 | 50 | 50 | |||
Outdoor unit | Dimension(W*H*D) | mm | 630*500*236 | 730*550*280 | 730*280*550 | 830*550*295 | ||
Packing (W*H*D) | mm | 750*332*528 | 845*371*590 | 845*371*590 | 905*373*599 | |||
Net/Gross weight | Kg | 20.3/22.4 | 22/24 | 28/32 | 32/35 | |||
Refrigerant type/Refrigerant charge | g | R32/460g | R32/450g | R32/630g | R32/1000g | |||
Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ9Φ6 | Φ9Φ6 | Φ12/Φ6 | Φ12Φ6 | ||
Max. refrigerant pipe length | m | 15 | 15 | 15 | 15 | |||
Max. difference in level | m | 5 | 5 | 5 | 5 | |||
power cord/Connecting line | Electric wire | Core number x Size x Length | 16A 1.5mm2×3 1.5m | 16A 1.5mm2×3 1.5m | 13A 1.5mm2×3 1.5m | 16A 1.5mm2×3 1.5m | ||
I&O connection cable | Core number x Size x Length | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | 4×1.5mm2x (3.8m） | |||
Operation temperature range | ℃ | 16~31 | 16~31 | 16~31 | 16~31 | |||
Room temperature | Indoor(cooling/ heating) | ℃ | 43 | 43 | 43 | 43 | ||
Outdoor(cooling/heating) | ℃ | -7 | -7 | -7 | -7 | |||
Application area (Cooling Standard) | m² | 10~15 | 16~26 | 15~30 | 20~37 | |||
FAQ
Q1:Are you a manufacturer or trading company? How can I trust your company?
A:We are one of the best professional HVAC solutions manufacturers and suppliers in China with more than 10 years of experience,
and are also the authorized agents of some well-known brands, such as Dunham-Bush (American brand with 126 years of history) and
TICA Climate (Carrier Holdings, Inc.), you can verify us in any way, and if needed we can also provide business references in your
area as proof of credibility. Our products have obtained AHRI, RTCA, ENERGY STAR, CE and other certifications.
Q2:Can you provide drawing design services?
A:Yes, we have a professional HVAC engineering team to design your project and optimize the solution, and we can also provide
professional HVAC drawings.
Q3:Do you have technical support?
A:We have a professional technical team available 7*24 hours to answer technical questions.
After the goods arrive, we can also guide installation and debugging via online video or phone call.
If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4:Can you help me calculate the best logistics and transportation price in my country?
A:Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at
a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5:What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6:Can you provide mounting accessories with the equipment?
A:Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.
Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with
good packaging methods.
Q7:How about the packaging?
A:Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T L/C payment method.
A:We are one of the best professional HVAC solutions manufacturers and suppliers in China with more than 10 years of experience,
and are also the authorized agents of some well-known brands, such as Dunham-Bush (American brand with 126 years of history) and
TICA Climate (Carrier Holdings, Inc.), you can verify us in any way, and if needed we can also provide business references in your
area as proof of credibility. Our products have obtained AHRI, RTCA, ENERGY STAR, CE and other certifications.
Q2:Can you provide drawing design services?
A:Yes, we have a professional HVAC engineering team to design your project and optimize the solution, and we can also provide
professional HVAC drawings.
Q3:Do you have technical support?
A:We have a professional technical team available 7*24 hours to answer technical questions.
After the goods arrive, we can also guide installation and debugging via online video or phone call.
If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4:Can you help me calculate the best logistics and transportation price in my country?
A:Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at
a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5:What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6:Can you provide mounting accessories with the equipment?
A:Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.
Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with
good packaging methods.
Q7:How about the packaging?
A:Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T L/C payment method.
Ordering and Pricing
- Minimum order quantity: 100 set
- Volume pricing:
- 100–299 set: US $178 / set
- 300–499 set: US $170 / set
- 500–999 set: US $162 / set
- 1000+ set: US $153 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this wall split air conditioner?
The standard minimum order quantity is 100 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this wall split air conditioner carry?
It is supplied with SASO GCC GSO ISO IEC AHRI TUV EMC ETL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the wall split air conditioner be supplied for my local voltage?
The standard configuration is 110-120V/ 208-230V/ 220-240v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Sylon Electrical Appliance Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Foshan Sylon Electrical Appliance Co., Ltd. range on HVACR Nexus.
