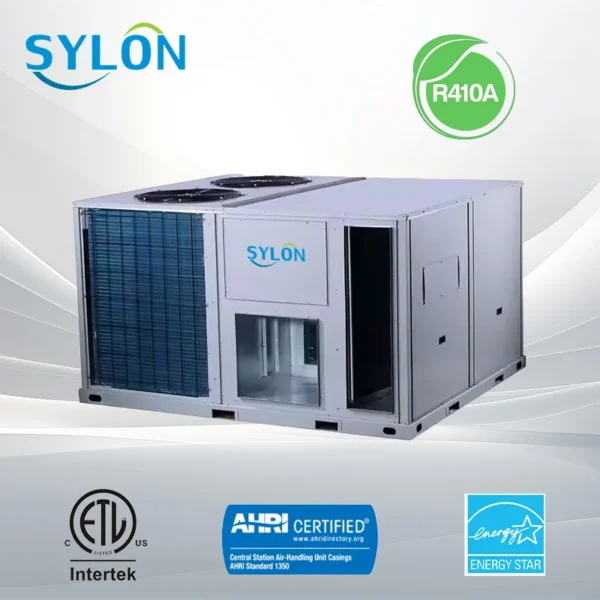

The package unit listed here carries 380V ~ 3N/50Hz/60Hz, capacity ≥ 30,100 BTU/h, documented exactly as the manufacturer publishes it. Made by Foshan Sylon Electrical Appliance Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Package Unit
- Model Number: SRCT-062-300CWN1-R(G)
- Power Type: AC
- Power Source: Vehicle Power Supply, USB, Solar, Manual, Electric, Gas, Battery
- Power (W): 6.6-34.3kw
- Power Supply: 380V ~ 3N/50Hz/60Hz
- Capacity (Btu): ≥ 30,100 BTU/h
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Capacity (Btu) | ≥ 30,100 BTU/h |
| Cooling/Heating | Cooling/Heating |
| Application | Outdoor, RV, Office, Household, Hotel, Commercial, Garage, Car |
| Energy Efficiency Rating | Class C |
| EER | 8.6-12 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Power Type | AC |
| Power Source | Vehicle Power Supply, USB, Solar, Manual, Electric, Gas, Battery |
| Refrigerant | R410A |
| App-Controlled | Yes |
| Feature | Air Purification Function, Humidity Adjustment, Sleep Mode, Wifi, Energy-Saving |
| Remote Control | Yes |
| Power (W) | 6.6-34.3kw |
| Warranty | 5 year |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | Spanish, Dutch, French, German, English |
| Private Mold | No |
| Logo/Graphic Design | 3D Printing, Heat-Transfer Printing, UV printing, Inkjet Printing, Hot Stamping, Laser Printing, Silk Screen Printing |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Recommended Room Size（Square Feet） | 280-1080 |
| Brand Name | Sylon |
| Cop | 8-12 |
| Maximum Airflow Rate | 2800-12000m³/H |
| Model Number | SRCT-062-300CWN1-R(G) |
| Brand | Sylon Air Conditioner |
| Product Name | Central Vrv Air Conditioner |
| Function | Cooling Air |
| Keyword | Central Air Conditioning System |
| Power Supply | 380V ~ 3N/50Hz/60Hz |
| Color | Gray |
| Compressor | Copeland/Danfoss |
| Certification | AHRI ETL CE CB Energy Star |
| Selling Units | Single item |
| Single Package Size | 233X223X128 cm |
| Single Gross Weight | 940.0 kg |
Product Details
Product Description
Product Paramenters
Nominal ton* | 5 | 7.5 | 8.5 | 10 | 12.5 | 15 | ||||
Model | SRCT-050CWN1-R(G) | SRCT-075CWN 1-R(G) | SRCT-085CWN1-R(G) | SRCT-100CWN1-R(G) | SRCT-125CWN1-R(G) | SRCT-150CWN1-R(G) | ||||
Cooling(T1) | Capacity (T1) | Btu/h | 58000 | 84000 | 103000 | 113000 | 136000 | 155000 | ||
kw | 17 | 24.6 | 30.2 | 33.1 | 39.9 | 45.4 | ||||
Input (T1) | kw | 5 | 7.43 | 9.28 | 10.18 | 12.25 | 14.35 | |||
EER (T1) | Btu/(w.h) | 11.6 | 11.3 | 11.1 | 11.1 | 11.1 | 10.8 | |||
Cooling(T3) | Capacity (T3) | Btu/h | 51000 | 73000 | 90000 | 99600 | 120000 | 140000 | ||
kw | 14.9 | 21.4 | 26.4 | 29.2 | 35.2 | 41.0 | ||||
Input (T3) | kwv | 6.14 | 8.79 | 10.84 | 11.99 | 14.45 | 17.28 | |||
EER (T3) | Btu/(w.h) | 8.3 | 8.3 | 8.3 | 8.3 | 8.3 | 8.1 | |||
Power Factor | 0.79 | 0.79 | 0.78 | 0.75 | 0.82 | 0.77 | ||||
Airflow | Indoor side | CFM | 2000 | 2800 | 3600 | 4200 | 4500 | 5200 | ||
External pressure level | Pa | Defhault:60;0-150 | Default: 75;0-200 | Default: 75;0-250 | Default:85;0-250 | Default: 85;0-300 | Default: 110;0-300 | |||
Max. current | A | 14.8 | 22.6 | 27.0 | 30.9 | 36.8 | 41.8 | |||
Sound pressure level | dB(A) | 66.9 | 71.6 | 73.3 | 70.5 | 73.8 | 75.9 | |||

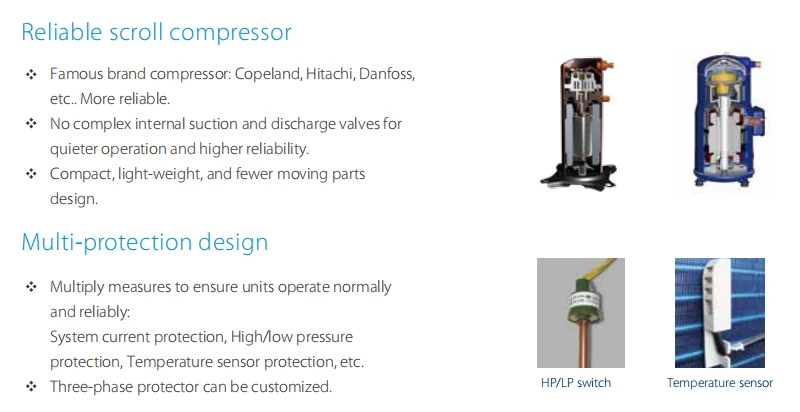

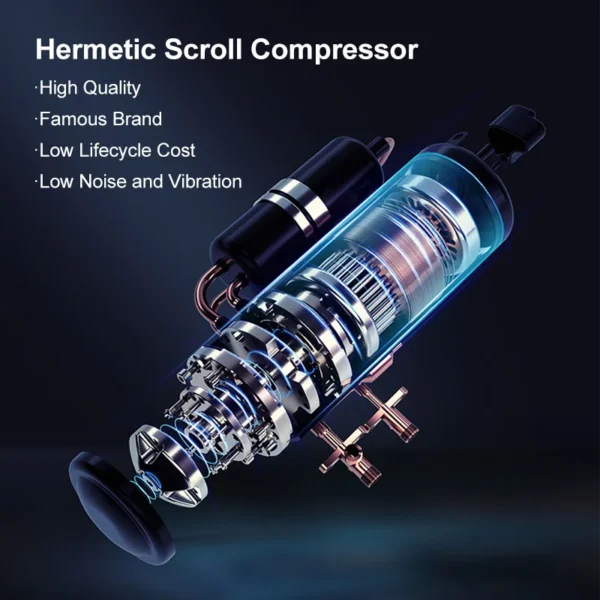

Compressor | Type/ Quantity | Scroll/1 | Rotary/ 2 | Scroll/1+Rotary/1 | Scroll/2 | Scroll/ 2 | Scroll/2 | |||
Brand | Copeland | GMCC | Copeland+GMCC | Copeland | Copeland | Danfoss | ||||
Indoor fan | Type/ Drive type | Centrifugal/ Direct | Centrifugal/ Belt | Centrifugal/ Belt | Centrifugal / Belt | Centrifugal / Belt | Centrifugal/ Belt | |||
Outdoor fan | Type/ Drive type | Axial/ Direct | Axial/ Direct | Axial/ Direct | Axial/ Direct | Axial/ Direct | Axial/ Direct | |||
Compressr ON/OFF logic | 士1℃ | ±1°C | ±1°C | ±1°C | ±1°C | ±1°C | ||||
Return tuyere and supply tuyere structure | Up/down | Up/down | Up/down | Up/down | Up/down | Up/down | ||||
Fresh air intake box | No | No | No | NO | No | No | ||||
Aluminum flter | Optional | Optional | Optional | Optional | Optional | Optional | ||||
Double skin | Optional | Optional | Optional | Optional | Optional | Optional | ||||

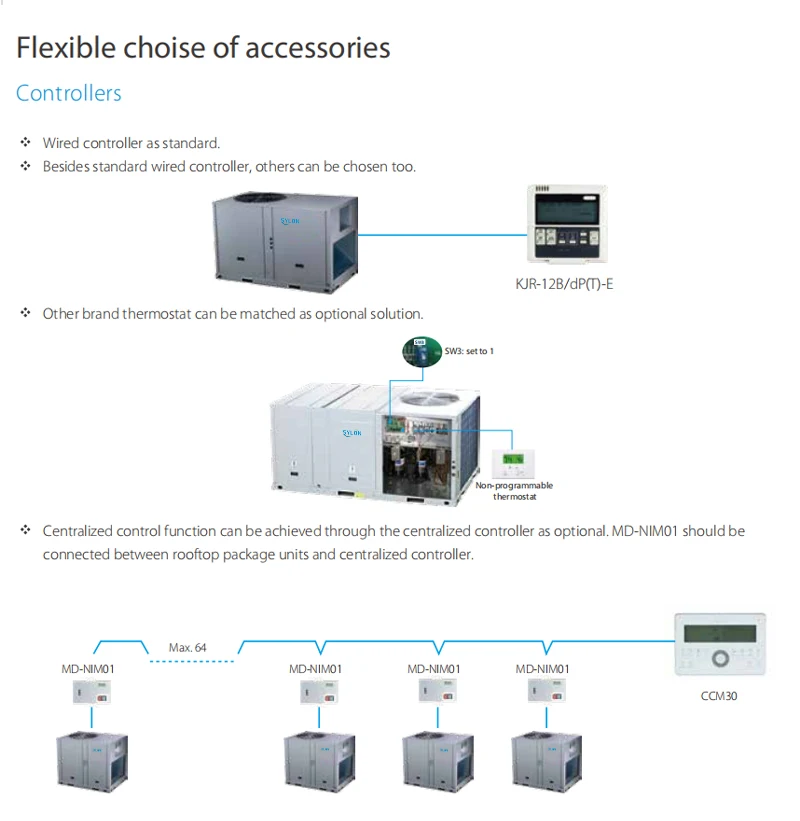

Standard wired controller | KJR-90K | KJR-90K | KJR-90K | KJR-90K | KJR-90K | KJR-90K | ||||
Centralized controller | Optional | Optional | Optional | Optional | Optional | Optional | ||||
BM5 access | Yes | Yes | Yes | Yes | Yes | Yes | ||||
0.59Ctemperature display | Yes | Yes | Yes | Yes | Yes | Yes | ||||
24V wired controller | Yes | Yes | Yes | Yes | Yes | Yes | ||||
Two controllers access | Yes | Yes | Yes | Yes | Yes | Yes | ||||
Room temperature display | Yes | Yes | Yes | Yes | Yes | Yes | ||||

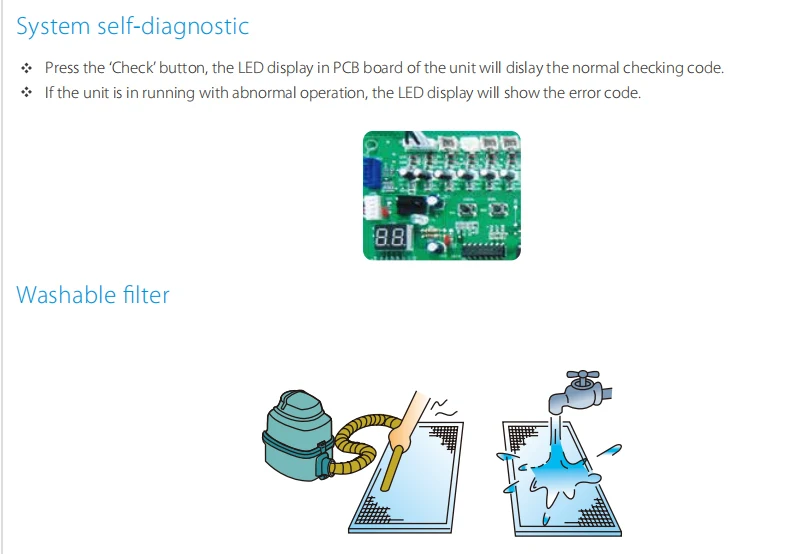

Error code display | Yes | Yes | Yes | Yes | Yes | Yes | ||||
Power protector | Yes | Yes | Yes | Yes | Yes | Yes | ||||
Power-off memory function | Yes | Yes | Yes | Yes | Yes | Yes | ||||
Wif access | Yes | Yes | Yes | Yes | Yes | Yes | ||||
App control | Yes | Yes | Yes | Yes | Yes | Yes | ||||
Ambient temperature | 10℃-52℃ | 10℃-52℃ | 10℃-52°C | 10℃-52℃ | 10℃-52°C | 10℃-52°C | ||||

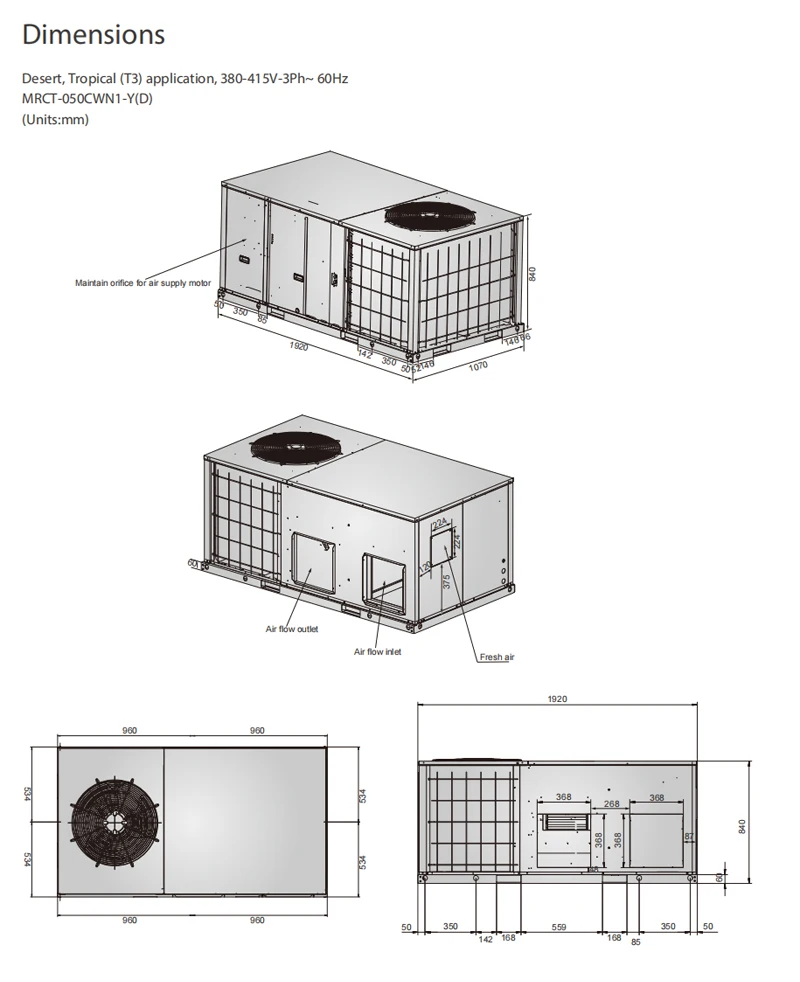

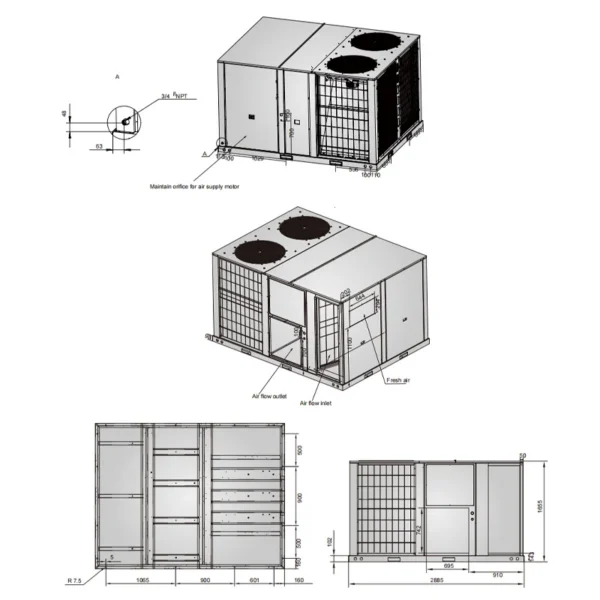

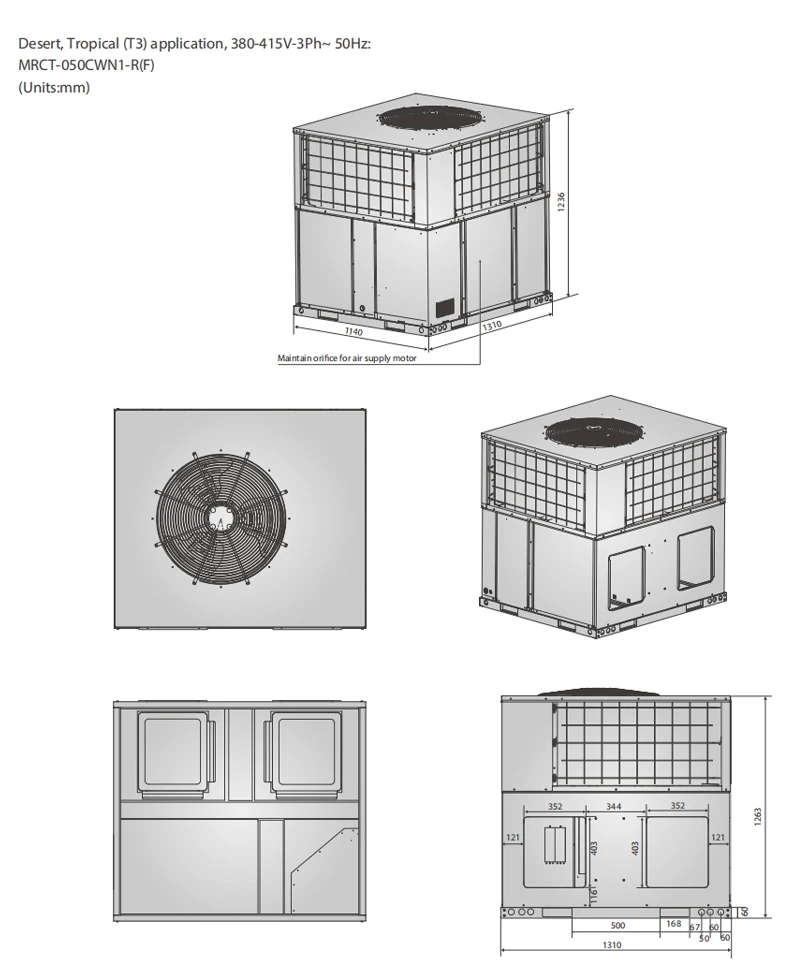

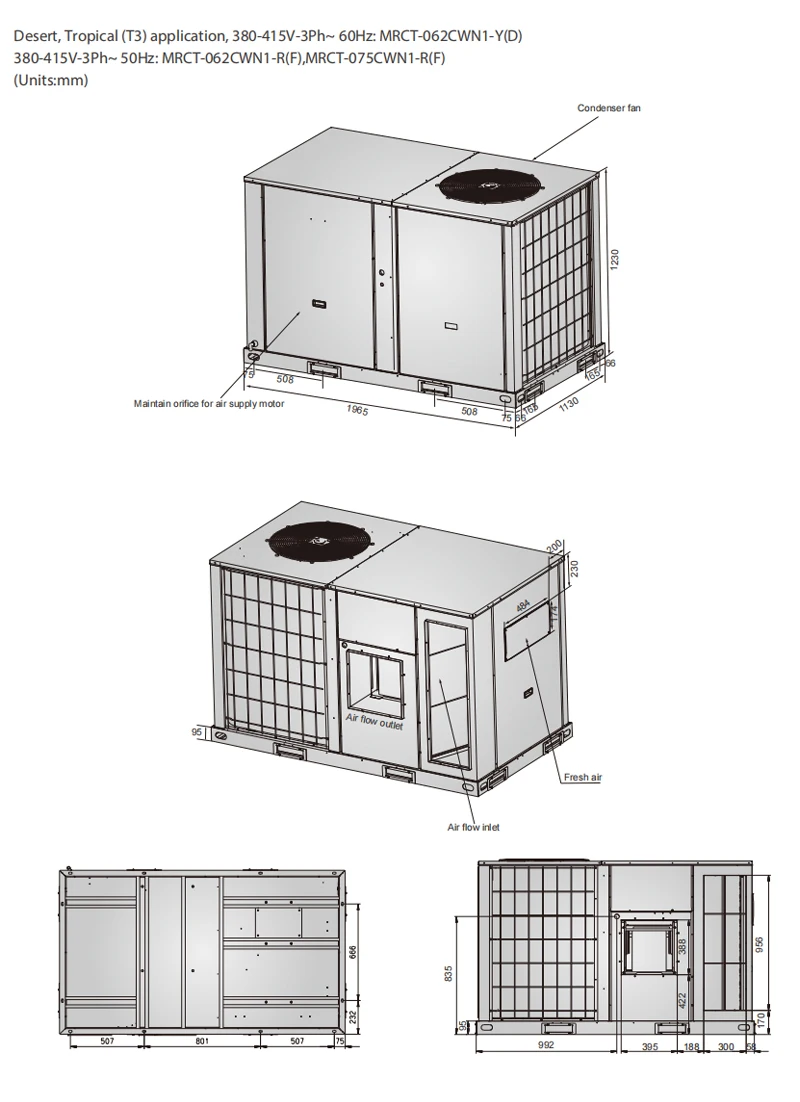

Dimension | Net (wxHxD) | mm | 1475x840x1130 | l483x1231x1138 | 1965x1230x1130 | 1670x1247x2192 | 1670x1247x2192 | 1670x1247x2192 | ||
Packing (wxHxD) | mm | 1495x870xl150 | 1500xl255xl155 | 1995x1255xl160 | 1695x1284x2212 | 1695x1284x2212 | 1695x1284x2212 | |||
Weight | Net/ Gross | kg | 215/220 | 313/323 | 388/400 | 480/505 | 570/595 | 605/630 | ||
Company Factory Introduction
FAQ
Q1:Are you a manufacturer or trading company? How can I trust your company?
A:We are one of the best professional HVAC solutions manufacturers and suppliers in China with more than 10 years of
experience,and are also the authorized agents of some well-known brands, such as Dunham-Bush (American brand with 126 years of history) and TICA Climate (Carrier Holdings, Inc.), you can verify us in any way, and if needed we can also provide business references in your area as proof of credibility. Our products have obtained AHRI, RTCA, ENERGY STAR, CE and other certifications.
Q2:Can you provide drawing design services?
A:Yes, we have a professional HVAC engineering team to design your project and optimize the solution, and we can also provide professional HVAC drawings.
Q3:Do you have technical support?
A:We have a professional technical team available 7*24 hours to answer technical questions.
After the goods arrive, we can also guide installation and debugging via online video or phone call.
If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4:Can you help me calculate the best logistics and transportation price in my country?
A:Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5:What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6:Can you provide mounting accessories with the equipment?
A:Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.
Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.
Q7:How about the packaging?
A:Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T L/C payment method.
A:We are one of the best professional HVAC solutions manufacturers and suppliers in China with more than 10 years of
experience,and are also the authorized agents of some well-known brands, such as Dunham-Bush (American brand with 126 years of history) and TICA Climate (Carrier Holdings, Inc.), you can verify us in any way, and if needed we can also provide business references in your area as proof of credibility. Our products have obtained AHRI, RTCA, ENERGY STAR, CE and other certifications.
Q2:Can you provide drawing design services?
A:Yes, we have a professional HVAC engineering team to design your project and optimize the solution, and we can also provide professional HVAC drawings.
Q3:Do you have technical support?
A:We have a professional technical team available 7*24 hours to answer technical questions.
After the goods arrive, we can also guide installation and debugging via online video or phone call.
If required, we can also dispatch a project engineer to your country at a reasonable cost.
Q4:Can you help me calculate the best logistics and transportation price in my country?
A:Yes, our professional logistics team will help you arrange cost-effective shipping services, allowing you to ship quickly and at a lower cost. Normally we recommend shipping 20GP, 40GP, 40HQ in full container.
Q5:What is your delivery time?
A:About 35-40 days for standard units. The specific time depends on your needs.
Q6:Can you provide mounting accessories with the equipment?
A:Yes of course. This is one of our standard services and we can calculate and quote the installation kit you require.
Note: Most of our customers prefer to ship the equipment and installation materials together, we specialize in doing this with good packaging methods.
Q7:How about the packaging?
A:Carton packaging, different logos can be customized according to customer requirements.
Q8: What payment methods are supported?
A: Usually payment is by T/T L/C payment method.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–19 set: US $18588 / set
- 20–49 set: US $16588 / set
- 50–99 set: US $14588 / set
- 100+ set: US $12588 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this package unit?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this package unit carry?
It is supplied with AHRI ETL CE CB Energy Star documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the package unit be supplied for my local voltage?
The standard configuration is 380V ~ 3N/50Hz/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Sylon Electrical Appliance Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Foshan Sylon Electrical Appliance Co., Ltd. range on HVACR Nexus.

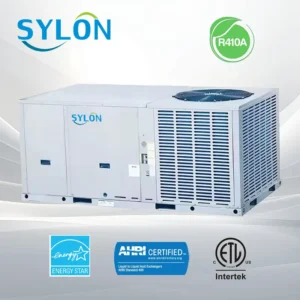

See more in Rooftop Units on HVACR Nexus.
