Water Co2 Heat Pump, 120KW, 380V

Water co2 heat pump — 380V, 120KW. The complete factory specification follows. Made by Foshan Lingyingda Energy Saving Technology Co., Ltd. (5 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Water Co2 Heat Pump

• Model Number: LYDS-120ZW
• Voltage: 380V
• Heating Capacity: 120KW
• Material: Stainless Steel
• Tube Material: Copper
• Refrigerant: CO2/R744

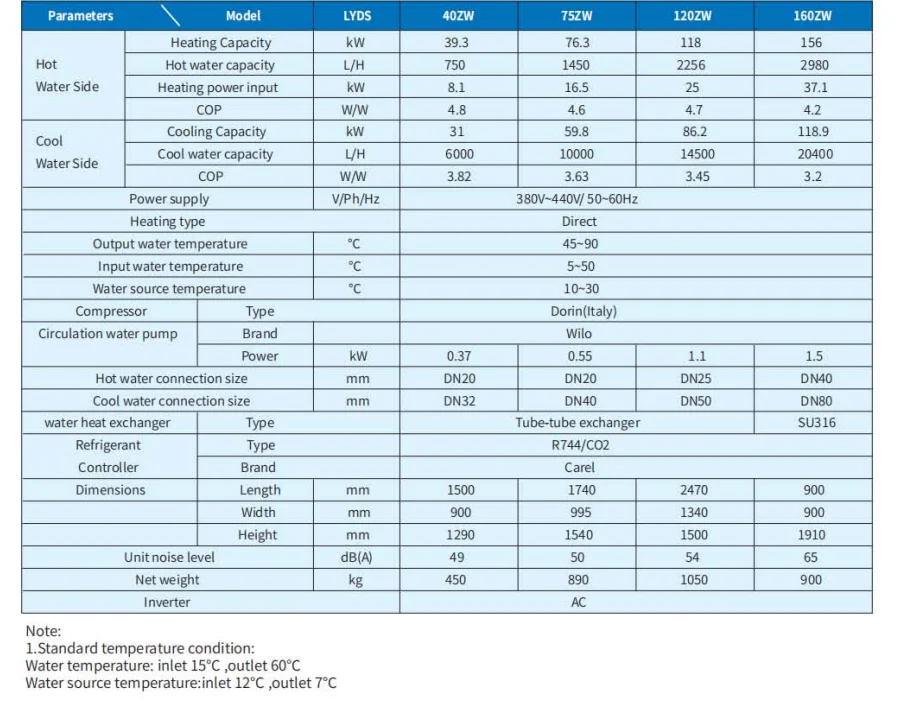

Technical Specifications

Product Details

Product Description

Model	LYDS-120ZW	Refrigerant	CO2/R744
Heating capacity	118(KW)	Controller	carel
hot water capacity	2256(L/H)	Compressor type	Inverter
COP	4.7	work ambient	(-)30-45

Product Advantage

Providing both heating and cooling water throughout the year. CO2 (R744) is a natural gas that has zero ozone depletion potential (ODP) and a global warming potential (GWP) of 1, making it an environmentally friendly option. The monobloc and compact design of this system makes it an ideal choice for replacing boilers. Operating this system is easy with its touch screen interface. It is also integrated with Modbus, allowing it to be connected to a wireless central control. The modular design of this system allows for the combination of multiple units to achieve a larger capacity. By using this system, commercial buildings can significantly lower their carbon footprint and daily costs. With the ability to set temperatures up to 70℃, this system ensures a clean and safe supply of domestic hot water, preventing the growth of Legionella bacteria. This system can be designed to provide both heating and cooling simultaneously, resulting in a potential energy consumption reduction of up to 80%. An optional double wall heat exchanger is available, which allows for the direct production of potable water. The inverter control feature of this system automatically adjusts its capacity according to the working situation, offering flexibility and efficiency.

Manufacturing Technique

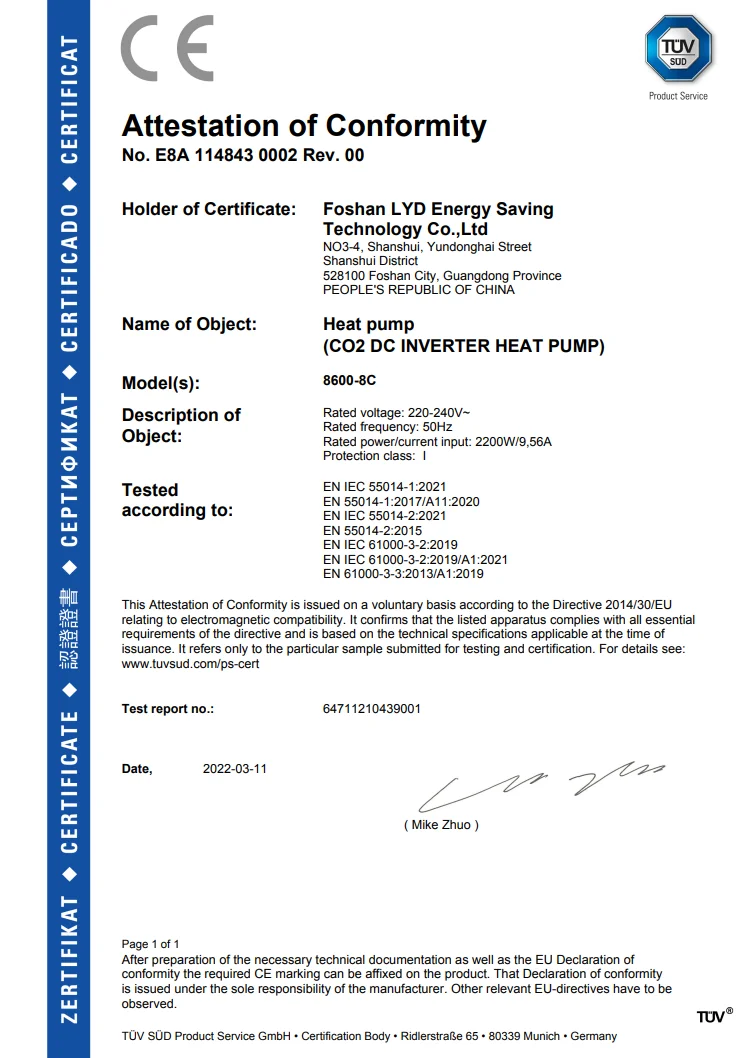

Certifications

Some cases

customer visiting

FAQ

Q1 Experience

A1:With a solid 8-year background in manufacturing CO2 heat pumps, we have gained extensive expertise through various cases and projects.

Q2: Professional

A2: Collaborate with academic institutions, possess formidable research and development capabilities in the field of R744 heat pump technology.

Q3:Reliable

A3:Collaborate with renowned supplier of high-quality components, ensuring the durability and dependability of units for an extended period.

Q4: Service

A4: Our company offers excellent customer service, which encompasses product modifications, personalized configurations, as well as commissioning and maintenance services.

Q5: Customized

A5: Providing environmentally friendly and cost-effective energy solutions for diverse needs, utilizing heat pump technology. Q6: Customized A6:Providing OEM&ODM solutions Ensuring distributors' security by preventing territorial competition

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–99 set: US $180000 / set
  • 100+ set: US $170000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water co2 heat pump?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the water co2 heat pump be supplied for my local voltage?

The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Lingyingda Energy Saving Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Lingyingda Energy Saving Technology Co., Ltd. range on HVACR Nexus.
