Key specification for this water heater: 220V, power 8.5-12KW. Everything below is reproduced from the factory data sheet. Made by Foshan Shengyu Thermal Energy Technology Co., Ltd. (3 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Water Heater
- Model Number: LJ85Sa/LJ10Sa/LJ12Sa
- Power (W): 8.5-12KW
- Power Source: Electric
- Nominal Power Rating [KW]: 8.5/10/12
- Voltage (V): 220V
- Voltage/[VAC]: 220V
Technical Specifications
| Voltage (V) | 220V |
|---|---|
| Power (W) | 8.5-12KW |
| Waterproof | IPX4 |
| Application | Hotel, Garage, Commercial, Household |
| Control Mode | Touch Control |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Installation | Wall-mounted |
| Housing Material | Stainless Steel |
| App-Controlled | No |
| Operating Language | English |
| Private Mold | Yes |
| Power Source | Electric |
| Logo/Graphic Design | Silk Screen Printing |
| Place Of Origin | Guangdong, China |
| Brand Name | SHEMOHEAT |
| Model Number | LJ85Sa/LJ10Sa/LJ12Sa |
| Product Name | Instant Electric Shower Water Heater |
| Max Operating Pressure [MPa] | 1 (10) |
| Thread Connections | G 1/2" |
| Hot Water Output [L/Min] | 4.8/5.6/6.7 |
| Nominal Power Rating [KW] | 8.5/10/12 |
| Voltage/[VAC] | 220V |
| Nominal Current[A] | 38.6/45.5/54.5 |
| Requird Cable Diameter[Mm²] | 4.0/6.0/10 |
| Selling Units | Single item |
| Single Package Size | 150X22X10 cm |
| Single Gross Weight | 17.000 kg |
Product Details
Model | LJ85Sa | LJ10Sa | LJ12Sa | ||
Power | 8.5KW | 10KW | 12KW | ||
Voltage | 220V | ||||
Nominal current | 38.6A | 45.4A | 54.5A | ||
Power cable | 4.0mm² | 6.0mm² | 10.0mm² | ||
Maximum operating pressure [MPa (bar)] | 1 (10) | ||||
Temperature Setting | 25°C-55°C / 80℉-131℉ | ||||

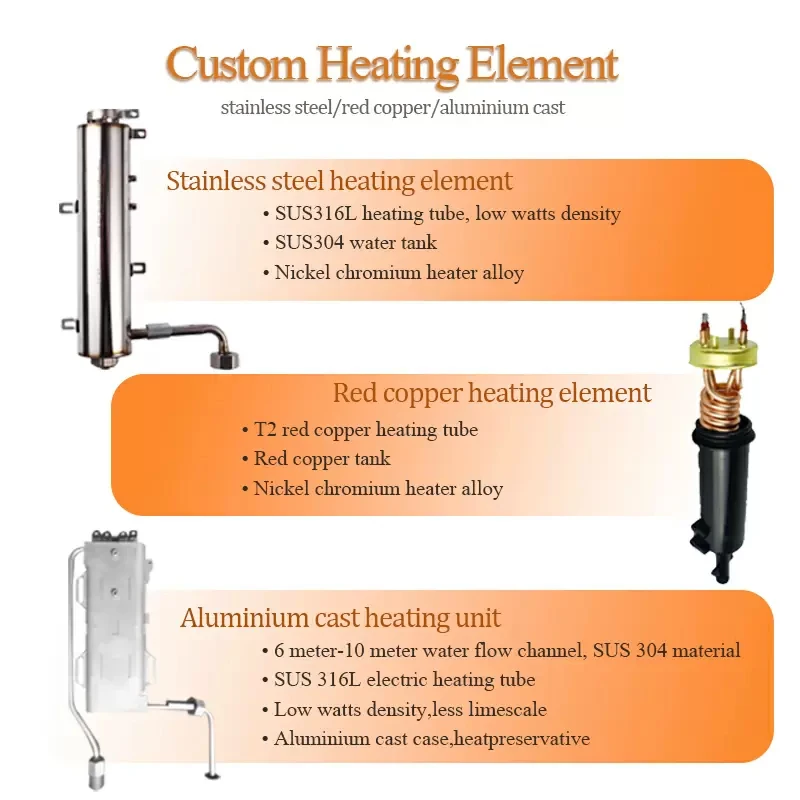

Heating Element | Stainless Steel Heating Elment | ||||
Meaterial | ABS | ||||
Certification | CCC/ISO/ROHS/CE | ||||
Warranty | 1 Years for complete machine, 3 Years for Heating element | ||||
Samples Delivery Time | 7 Days-10 Days | ||||
Customed Service | Customed Logo/Size/power | ||||
* Bathroom shower
Top shower head 4.5L/min
Side head sprayer 2.5L/min
Hand shower head 3.5L/min
Performance Features:
* Stainless steel 304 body, no exposed water pipes, luxurious and fashionable
* Core conversion valve: four-speed conjoined unique full copper electroplating design
* Four water outlet modes: top spray, side spray, hand shower, faucet (1 side spray)
* Water and electricity separation, cast aluminum heating system
* Fully automatic constant temperature: automatic constant temperature
* Temperature, bathing, time, water output, temperature digital display
* 126*36mm LCD display, touch buttons
* Voltage 3.5KW-8.5W can be adjusted arbitrarily, saving energy and electricity
* with regulator valve
* Compact, resistant and stylish with digital temperature control in increments of 1°F ranging from 25℃(80°F) to 55℃(130°F)
* 8% energy efficient
A: Yes, we are a professional Electric Water Heater manufacturer with rich experience and complete R&D,production,sales and
service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pump water heaters, swimming pool heat
pumps,and EVI heat pumps in cold areas.
Q3: How to place an order?
Answer:Please send us an inquiry or contact us through online services; after receiving your inquiry, we will reply to you
Catalogs,quotations and other information you need.
Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand
according to yourspecial needs.
Q5: Can I apply to become your heat pump distributor/distributor?
A: Yes, we are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products
in local countries/regions.
Q6： I need to buy in large quantities. Can you provide sample service?
Yes, we can provide sample service, and we have engineers to help you solve installation problems
Title goes here.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–299 piece: US $250 / piece
- 300–799 piece: US $230 / piece
- 800–99999999 piece: US $220 / piece
- 100000000+ piece: US $199 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this water heater?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the water heater be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Shengyu Thermal Energy Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Shengyu Thermal Energy Technology Co., Ltd. range on HVACR Nexus.
